Golden Buzzaround XL User manual

Buzzaround XL
Service Guide
This Service Guide contains:
Troubleshooting
Replacement Instructions
Multi-meter Instructions
Model GB117 Model GB147

Buzzaround XL_SG_REVA
1

Buzzaround XL_SG_REVA
2
Table of Contents
Nomenclature and Contact Information.......................................................................................................3
ABOUT THE BUZZAROUND XL SERVICE GUIDE.............................................................................4
Buzzaround XL Components....................................................................................................................4-9
Wiring Diagram..........................................................................................................................................10
SCENARIO 1: Turn the key to the on position and no power...................................................................11
SCENARIO 2: Batteries will not charge....................................................................................................12
BEEP CODES.......................................................................................................................................13-18
BEEP CODE #1 – Batteries Low (Scooter may drive slowly)...................................................................13
BEEP CODE #2 – Batteries Low (Scooter will not operate)......................................................................13
BEEP CODE #3 - High Battery Voltage....................................................................................................13
BEEP CODE #4 - Current Limit Timeout.............................................................................................13-14
BEEP CODE #5 - Brake Fault...............................................................................................................14-15
BEEP CODE #6 - Paddle Fault (out of neutral)..........................................................................................15
BEEP CODE #7 - Paddle Fault/Speed Control Fault (voltage error)....................................................16-17
BEEP CODE #8 - Motor Voltage Fault (Open/Shorted)......................................................................17-18
BEEP CODE #9 - Controller Fault.............................................................................................................18
BUZZAROUND XL REPLACEMENT INSTRUCTIONS.................................................................19-25
Drive Wheel................................................................................................................................................19
Drive Train..................................................................................................................................................19
Throttle Pot.................................................................................................................................................19
Battery........................................................................................................................................................20
Circuit Breaker............................................................................................................................................21
Battery Harness Fuse..................................................................................................................................21
Controller....................................................................................................................................................21
Main Harness..............................................................................................................................................22
Control Panel..............................................................................................................................................22
Motor/Brake................................................................................................................................................23
Front Intermediate Harness....................................................................................................................23-24
Rear Intermediate Connector......................................................................................................................24
Power Harness.............................................................................................................................................25
APPENDIX A - HOW TO USE A VOLTMETER....................................................................................26
APPENDIX B - HOW TO USE AN OHM METER..................................................................................27

Buzzaround XL_SG_REVA
3

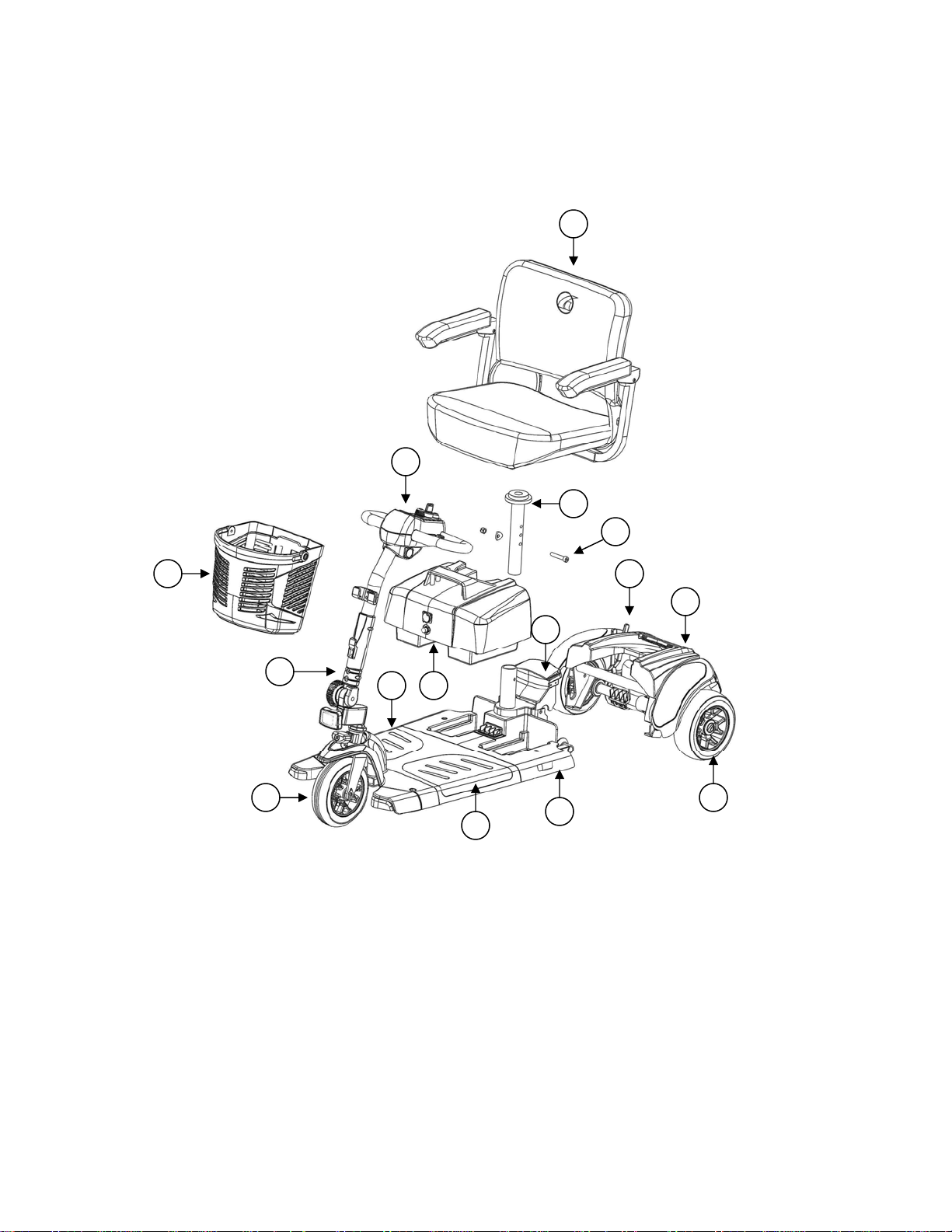

BUZZAROUND XL NOMENCLATURE
1 - Seat Assembly with arms
2 - Control Panel
3 - Battery Pack
4 - Rear Section
5 - Freewheel Lever
6 - Drive Wheel
7 - Front Section
8 - Controller (located under floor panel)
9 - Removable Anti-Slip Floor Panels (Gray/Textured)
10 - Front Wheel
11 - Tiller
12 - Front Basket
13 - Seat Post
14 - Bolt, Arc Washer, and Nut
15 - Lockup Handle
Figure 1. Buzzaround XL (Model GB117)
Contact Information
Golden Technologies
401 Bridge Street
Old Forge, PA 18518
Toll-free: 800-624-6374
Mobility Tech: x501
Lift Chair: x502
VA Tech: x505
Fax: [phone]
Email: [email protected]
5
6
7
8
9
3
4
2
1
10
11
12
13
14
15

Buzzaround XL_SG_REVA
4
ABOUT THE BUZZAROUND XL™ SERVICE GUIDE
This service guide provides you with the information necessary to troubleshoot the Golden Technologies Buzzaround XL
GB117/GB147. The troubleshooting scenarios in this manual consist of procedures that enable you to systematically trace
and correct faults in the system. Appendices A and B include instructions on how to measure voltage and continuity with
a multimeter.
Before troubleshooting, check the following:
Make sure that the circuit breaker is reset.
Visually check terminals for corrosion. Check wires for missing insulation.
Make sure the battery terminals are securely tightened.
Make sure that the batteries are fully charged and are in good working order. When possible, keep sets of
known good batteries of various ratings in your shop at all times. The Buzzaround XL uses either two (2) 12AH
or (2) 22AH batteries. Problems that surface during troubleshooting are often due to the fact that the batteries are
not fully charged or can not hold their charge.
Make sure that the electrical connections are secure. Unplug the connectors and make sure all the pins in the
connectors are seated securely. If necessary, push any unseated pins back into their connector housings to securely
seat them.
If you get to a point during troubleshooting where you cannot continue, call Technical Support
at 800-624-6374.
BUZZAROUND XL COMPONENTS
The Buzzaround XL is a battery-operated scooter with a controller that monitors the system and beeps when it detects a
fault in the system. The Buzzaround XL was designed to operate within a range of between 18 - 24 volts (V) of direct
current (DC).
The Buzzaround XL control system is made up of the components listed below. Each of these
components is designated by its assigned number. Refer to the figure 11 (wiring diagram) on page 10.
• Circuit Breaker (1)
• 12V Batteries (2 and 3)
• Battery Harness (4)
• Power Harness (5)
• Dynamics R-Series Controller (6)
• Main Harness (7)
• Front Intermediate Harness (8)
• Rear Intermediate Connector (9)
• Motor/Brake Assembly (10)
• Brake (11)
• Control Panel - includes Speed Pot (12), Key Switch (13), Horn Button, and Battery Meter
• Throttle Pot (14)
• Charger Harness (15)
• Off-Board Battery Charger – (See figure 11 on page 9.)
Parts and service must be authorized by the Golden Technologies Service Department.
Unauthorized parts or service may void the warranty. For more information, contact the Golden Technologies
Service Department at 800-624-6374 or [email protected].

Buzzaround XL_SG_REVA
5
Component: Circuit Breaker - #1
Location: Mounted on the Battery Pack. See figure 2.
Function: Protects battery circuit from current overload. When the current draw exceeds the breaker rating, the circuit
breaker will open.
Connections: The circuit breaker is connected to the positive (+) terminal on one battery and the negative (-) terminal on
the other. (Note: Both circuit breaker wires are orange in color.)
Failure Signs: Opens repeatedly. May indicate failed circuit breaker or short in the wiring. May also open if the motors
are overloaded (from excessive weight, excessive uphill driving, etc).

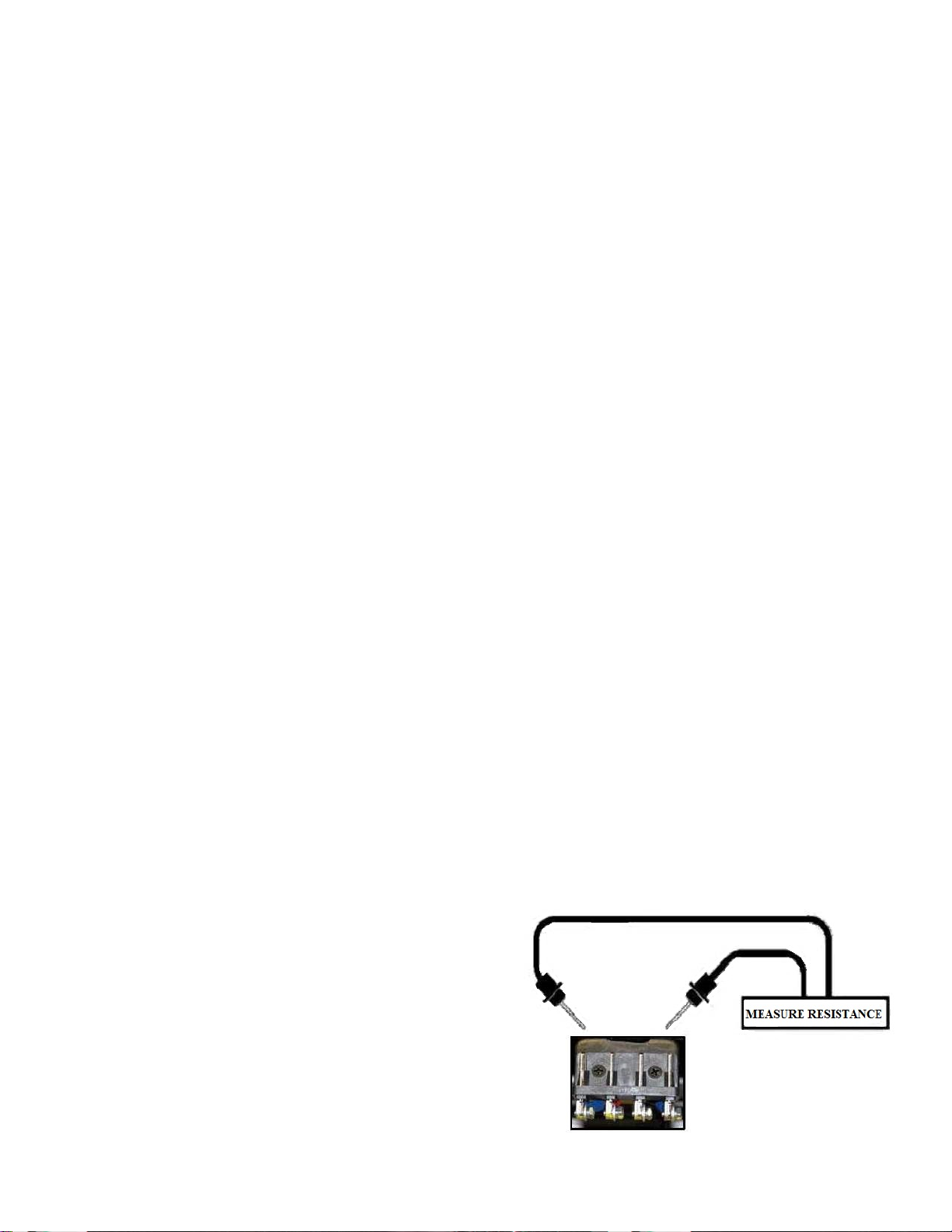

Test: Measure the resistance across the circuit breaker and the wires that connect the circuit breaker to the batteries.
Expected reading: Less than 10 ohms.
Serviceable: 30amp circuit breaker must be replaced with exact current rating.
Figure 2. Battery Box Figure 3. Inside Battery Pack
Component: 2-12VDC Batteries - #2 and #3
Location: Inside the battery pack. See figure 3.
Function: Supply 24VDC to the motor and/or accessories (12VDC x 2).
Connections: Connected in series. The positive (+) terminal of one battery is connected to the negative (-) of the
other (orange wires) through the circuit breaker (1). The most positive and negative terminals are connected to the
charging port (red and black wires) and the controller through the power harness (5). Refer to figure 11 on page 10.
Failure Signs: Batteries drain quickly. Scooter runs slowly or not at all. Batteries will not charge, but charger is working
properly. Beep Code #1 or #2.
Tests: Fully charge the batteries first and load test. Make sure the contacts are not corroded. See figure 4 below and figure
16 on page 12.
Expected Readings: 12 - 14VDC each when fully charged.
Serviceable: Replace batteries as necessary.
Component: Battery Harness - #4
Location: Inside the battery pack. See figure 3.
Function: Connects the batteries to the Power Harness (5).
Provides over current protection from the battery charger
through a 5-amp inline fuse, and from the batteries through a
40-amp inline fuse.
Connections: Connected to the power harness, charger harness,
batteries, battery fuse, and charger fuse.
Refer to figure 11 on page 10.
Failure Signs: Corroded wires may cause the batteries not to
work properly. Make sure connector pins are seated properly. Figure 4. Scooter Battery Connection
Batteries will not charge if the inline fuse is blown.
Tests: Test the harness for continuity. Test the fuse for continuity.
Expected Readings: Less than 10 ohms.
Serviceable: Replace the harness as necessary. Replace inline fuse(s) with exact type and rating. See figure 3.
Circuit
Breaker
Charger Fuse
(5amp)
Charging Port
Battery Fuse (40amp)
1
2
3
4
15
5

Buzzaround XL_SG_REVA
6
Figure 5. Controller
Component: Power Harness - #5
Location: Mounted to the front frame – located under the battery pack. See #5 on figure 4.
Function: Connects the battery pack to the controller.
Connections: Connects to the battery pack to the controller (inhibit), (Bat -), (Bat +) connections.
Refer to figure 11 on page 10.
Failure Signs: Charger connected to the battery pack and the scooter runs, inhibit problem or no power to the controller.
Tests: Test harnesses for continuity. Check connectors. Make sure the contacts are not corroded and are seated properly.
Expected Readings: Continuity (less than 10 ohms).
Serviceable: Replace as necessary.
Component: Controller - #6
Location: Mounted to the front frame - under the floor shroud. See #1 on figure 5.
Function: Controls and monitors the system. Uses a series of beeps when something in the system is out of range.
Connections: Connected to the main harness, charger & inhibit, brake, motor (M1M2), battery (B-B+). See figure 5.
Refer to figure 11 on page 10.
Failure Signs: Beep Code #9. No power to the control panel or the motor.
Tests: Test for voltage coming into and out of the controller.
Expected readings: Battery voltage.
Serviceable: Replace as necessary.
Component: Main Harness - #7
Location: Inside the tiller and under the frame. See #2 on figure 5.
Function: Provides connectivity for the tiller components and the controller.
Connections: Connected to the controller, and control panel. Refer to figure 11 on page 10.
Failure Signs: Scooter will not run.
Tests: Test for voltage and continuity. Check connectors. Make sure the pins are not corroded and are seated properly.
Expected readings: Battery voltage. Continuity (less than 10 ohms).
Serviceable: Replace as necessary.
2
1
Char
g
er & inhibit
M1 & M2 Brake Bat- Bat+
Main Harness

Buzzaround XL_SG_REVA
7
Component: Front Intermediate Harness - #8
Location: Mounted on the front frame. See figure 6.
Function: Provides connectivity between the motor/brake
and the controller.
Connections: Connected to the rear intermediate connector (9)
and the controller (6). Refer to figure 11 on page 10.
Failure Signs: Scooter will run slowly or not at all.
Tests: Test for voltage and continuity. Check connectors.
Make sure the pins are not corroded and are seated properly.
Expected readings: Continuity (less than 10 ohms).
Serviceable: Replace as necessary.
Component: Rear Intermediate Connector - #9
Location: Mounted on the rear frame. See figure 7.
Function: Provides connectivity between the motor/brake Figure 6. Front Intermediate Harness
and the controller.
Connections: Connected to the front intermediate
harness (8) and the motor/brake assembly (10).
Refer to figure 11 on page 10.
Failure Signs: Scooter will run slowly or not at all.
Tests: Test for voltage and continuity. Check connectors.
Make sure the contacts are not corroded.
Expected readings: Continuity (less than 10 ohms).
Serviceable: Replace as necessary.
Component: Motor/Brake Assembly - #10
Location: Mounted on the transaxle. See #1 on figure 8.
Function: Drives the scooter.
Connections: Connected to the rear intermediate connector (9)
and the brake (11). Refer to figure 11 on page 10.
Failure Signs: Scooter runs slowly or not at all. Figure 7. Rear Intermediate Connector
Tests: Test for internal resistance in motor. Test motor
wires for continuity. See Beep Codes #5 and #8.
Expected readings: Internal motor resistance is
0.8 ohms – 1.5 ohms. Brake resistance is 45 ohms – 52 ohms.
Serviceable: Replace the motor/brake assembly.
Component: Brake - #11
Location: Mounted on the end of the motor. See #2 on figure 8.
Function: Keeps the motor from moving when the power is off.
Connections: Connected to the rear intermediate connector (9).
Refer to figure 11 on page 10.
Failure Signs: Scooter runs slowly or not at all.
Tests: Test for internal resistance. See Beep Code #5 on page 14
and Beep Code #8 on page 17.
Expected readings: Brake resistance is 45 ohms – 52 ohms.
Serviceable: Replace the motor/brake assembly.
Figure 8. Motor/Brake Assembly
12

Buzzaround XL_SG_REVA
8
Component: Speed Pot (Potentiometer) - #12
Location: Mounted on the control panel. See #1 on figure 9.
Function: The speed pot uses variable resistance to control
the speed of the scooter.
Connections: Connected to the main harness through the control panel harness.
Failure Signs: Beep Code #7
Tests: Call Tech Support
Expected readings: Depends on speed pot position.
Serviceable: Yes. Replace the speed pot.
Component: Key Switch - #13
Location: Mounted on the control panel. See #2 on figure 9.
Function: Completes the circuit to provide power to the motor.
Connections: Connected to the main harness through the
control panel harness.
Failure Signs: No power when the key is in the “ON” position.
Tests: Continuity when the key is in the “ON” position. Make
sure the connector pins are seated properly.
Expected readings: Less than 10 ohms.
Serviceable: Yes. Replace the key switch.
Component: Throttle Pot (Potentiometer) - #14

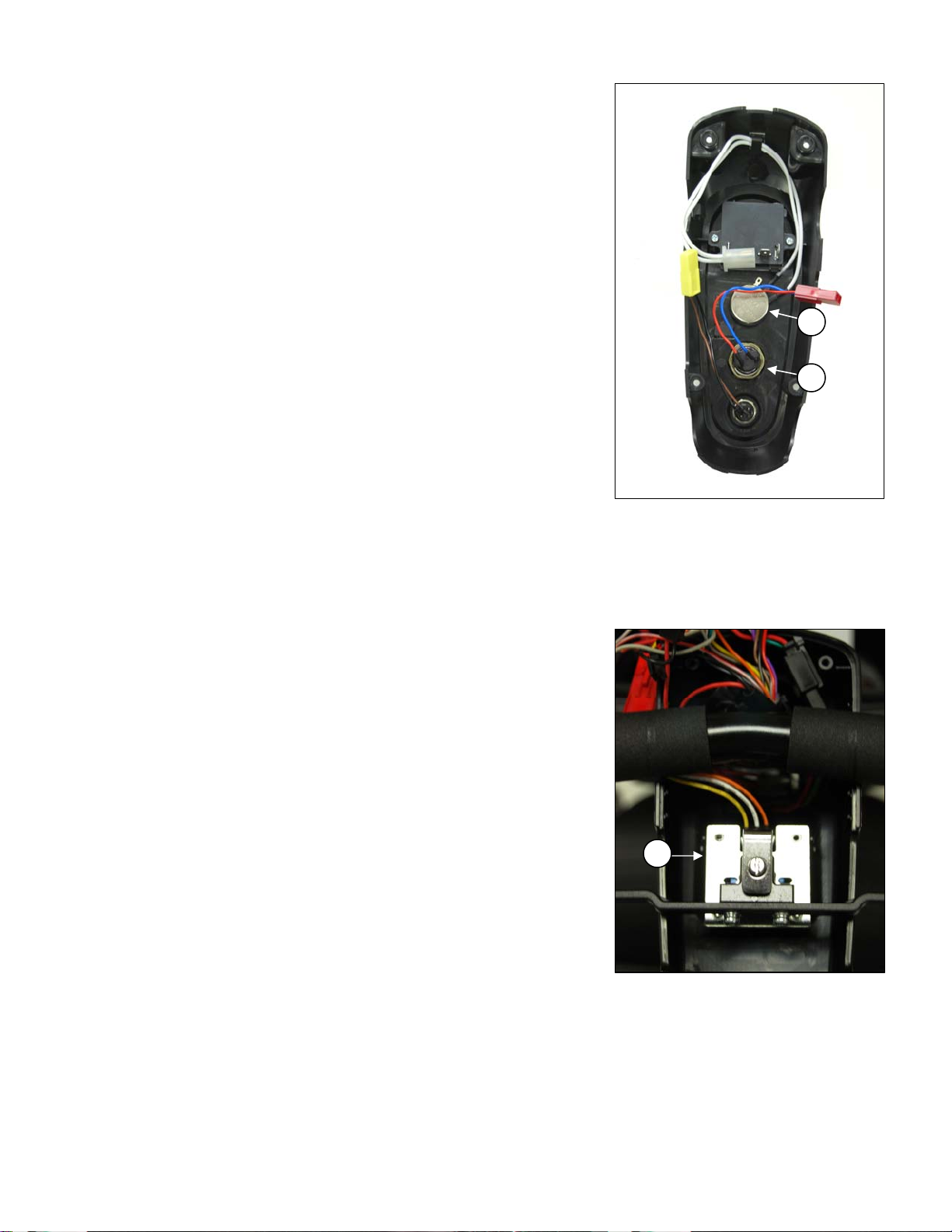

Location: Below the control panel. See #1 on figure 10. Figure 9. Control Panel (Back)
Function: The throttle pot uses variable resistance
to control speed and direction of travel by varying voltage.
Connections: Connected to the main harness (7) and 1amp in-line fuse.
Refer to figure 11 on page 10.
Failure Signs: Beep Codes #6 and #7.
Tests: Test resistance across pins 1, 2, and 3 on the throttle pot.
Expected readings: Depends on direction of deflection.
Serviceable: Replace as necessary.
Component: Charger Harness - #15
Location: Two locations.
1. Inside the battery pack. See #15 on figure 3 on page 5.
2. Inside the tiller. See #15 on figure 11 on page 10.
Function: Connects the charger to the batteries.
Connections: Connected to the battery harness (4), power harness (5),
and the charger not shown. Refer to figure 11 on page 10.
Failure Signs: Batteries will not charge.
Tests: Test for voltage and continuity. Check connectors.
Make sure the pins are not corroded and are seated properly.
Expected readings: Continuity (less than 10 ohms).
Serviceable: Replace the harness as necessary.
Figure 10. Throttle Pot
1
2
1

Buzzaround XL_SG_REVA
9
Component: Off-Board Charger
Location: Stored inside a pouch on the seatback.
Function: Recharges batteries.
Connections: Connects to the charger port on the battery pack
or the charger port on the tiller. The tiller port is connected to the
batteries through the main harness. Refer to figure 11 on page 10.
Failure Signs: Charger power LED does not go on. Batteries
will not charge.
Tests: With the charger connected to the charger port, measure
voltage across the most negative (black wire) and most positive
(red wire) battery terminals. While observing the voltage reading,
plug the charger into the wall outlet and make sure the voltage
reading increases.
Expected readings: Battery voltage first, approximately 27 volts
when fully charged. Then voltage should increase to approximately
29.5 volts with the charger connected and plugged into the wall outlet.
Also, refer to the charger test on page 12. Test charger harness and
fuse for continuity.
Serviceable: Replace if necessary. Figure 11. Off-Board Battery Charger
Only use the charge that was supplied with the scooter. The charger was specifically
designed and tested for the product it came with.
Some Off-Board Battery Chargers may have a switch that enables them to be used with either 110
VAC or 230 VAC. This switch is typically located on the end of the charger. Some may also have a removable glass
fuse. *Fuses must be replaced with exact type and rating.*
