Golden Compass Sport GP605 CC User manual

Compass Sport™
Owner’s Manual
Compass Sport ™
Center-Wheel Drive Power Chair
GP605 CC/GP605 SS
401 Bridge Street, Old Forge PA 18518
Tel: [phone] Fax: [phone]
www.goldentech.com
YOUR LIFE IN MOTION

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
2
CONTENTS
INTRODUCTION …………………………………………………… 3-4
SAFETY..............................................................……….. 5-8
EMI/RFI ........................................................…….…….. 9
SPECIFICATIONS…………………………………………………… 10
ASSEMBLY/DISASSEMBLY……………………………………… 11-15
COMFORT SETTINGS…………………………………………….. 16-19
OPERATION/DIAGNOSTICS ……………………………………. 20-26
BATTERY CHARGING ……………………………………………. 27-28
CARE AND MAINTENANCE …………………………………….. 29
WARRANTY………………………………………………………….. 30-31
REGISTRATION CARD…………………………………………….
32

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
4
INTRODUCTION
Safety Guidelines
The symbols below are used in the owner's manual and/or on the product to identify
warnings and to notify you of important safety information. Make sure you read and
understand them completely.
WARNING! Indicate(s) a hazardous situation which, if not avoided, could
result in death or serious injury. This icon is represented as a black symbol on
a yellow triangle with a black border.
MANDATORY! Failure to perform mandatory actions can cause personal
injury and/or equipment damage. This icon is represented as a white symbol
on a blue dot with a white border.
PROHIBITED! Indicate(s) an action(s) that should not be performed under any
circumstance. Failure to adhere can cause personal injury and/or equipment
damage. This icon is represented as a black symbol with a red circle and red
slash.
Safety Symbols
The symbols below identify warnings, mandatory actions, and prohibited actions. They
can be found in the owner’s manual and/or on the product. Make sure you understand
all safety labels before operating the product. Do not remove safety labels from the
product.
Read and follow the Explosive conditions exist! Indoor use only!
Owner’s manual!
Use only AGM or
Gel-Cell batteries! Avoid transmitters! Hot surface!
Pinch/Crush Hazard! Do not place into trash! Electrical hazard!
Corrosive chemicals Do not use personal Recycle
electronic devices!

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
5
SAFETY
Your Compass Sport™ is a battery-operated personal mobility vehicle. Please exercise
caution and consideration when you are operating it. Driving your Compass Sport™
carefully and thoughtfully will help ensure your personal safety and the safety of other
people.
MANDATORY! Read and follow the owner’s manual before operating your
power chair.
Before operating you Compass Sport, please ensure you read and
understand this owner’s manual in its entirety. If any uncertainty exists after reading
this manual, please ask for further instruction or training from your authorized Golden
Dealer / Representative.
BEFORE GETTING ON YOUR Compass Sport™
Check to be certain that the power is turned off. See “Operation” on pages 20-26.
This will eliminate the possibility of accidentally activating the joystick and causing
injury to yourself or to others.
Check to be certain that your Compass Sport™is not in freewheel mode. See the
“Operation” section on page 25.
Flip up the armrests.
If your chair is equipped with leg rests, move them to the sides.
If your chair is equipped with a footrest, flip it to the “up” position.
GETTING ON YOUR Compass Sport™
Carefully seat yourself comfortably and securely on the seat.
Adjust the leg rests or flip down the footrest.
Flip down the armrests.
Fasten the lap belt.
GETTING OFF YOUR Compass Sport™
Make certain that the power is turned off.
Unfasten the lap belt.
Flip up the armrests.
Flip up the footrest, or move the leg rests to the sides.
Carefully stand and step away from the chair.
MAXIMUM WEIGHT
Your Compass Sport™has been rated to a maximum payload (passenger and anything
else being carried on the Compass Sport™)of 300 pounds. Exceeding the maximum
weight rating will void the warranty.
Exceeding the maximum weight capacity will void your
warranty and may result in injury to yourself or others.

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
6
SAFETY
DRIVING ON AN INCLINE
Drive with caution when attempting to negotiate any incline, even handicap access
ramps.
Try to keep your Compass Sport™moving when climbing an incline. If you do come
to a stop, restart and accelerate slowly and carefully.
Always climb or descend a gradient by driving straight up or straight down the face
of the slope.
Do not traverse or drive across the face of a gradient.
Do not attempt to negotiate an incline that is covered with snow, ice, cut or wet
grass, leaves, or any other potentially hazardous material.
Do not back down an incline.
Do not try to descend or climb an incline that is greater than the maximum incline
stated in the specifications section of this manual.
If, while you are driving down a slope, your chair starts to
move faster than you feel is safe, gently release the joystick and allow your
Compass Sport™to come to a stop. When you feel that you again have control of
your power chair, adjust the speed control to a lower setting, then push the
joystick forward and continue safely down the remainder of the slope.
MEDICATION
Always check with your physician to determine if any of the medications you are taking
may affect your judgment and/or your ability to operate your Compass Sport™.

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
7
SAFETY
SAFETY RULES
Do not attempt to use your Compass Sport™on an escalator. Always use an
elevator.
Do not carry passengers on your power chair.
Do not operate your Compass Sport™ if it is not functioning properly.
Use caution when driving on soft or uneven surfaces such as grass, gravel, and on
decks where there is no railing.
Never drive on the roadway, except when you must cross the street.
Always cross streets at intersections and use the most direct route, making sure
that your path is clear and that you are visible to motor traffic.
It is not recommended to drive your Compass Sport™up or down a step or curb
that is higher than 1 1/2 inches.
Never back up or down a step or curb.
Never operate your Compass Sport™while you are under the influence of alcohol.
Do not operate or store your power chair where it will be exposed to rain, snow,
mist, and below freezing temperatures.
Do not operate your power chair on slippery, icy or salted surfaces.
Never sit on your power chair when it is in freewheel mode and on an incline or
decline.
Do not modify your power chair in any way that is not authorized by
Golden Technologies.
Do not disassemble the tire. If disassembly is required, have your authorized
Golden Compass Sport dealer perform any necessary maintenance or repair.
Do not attempt to inflate the tires of your Golden Compass Sport™. Your
Golden Compass Sport™, is equipped with foam-filled flat free tires that do not
require inflation.
Never sit on your Compass Sport™ when it is being transported.
Always fasten down your Compass Sport™ securely with an approved tie-down
system while transporting your power chair.

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
8
SAFETY
Please be sure to follow this important warning when transferring onto or off of the
Golden Compass Sport power wheelchair:
NEVER TRANSFER ON OR OFF OF THIS POWER WHEELCHAIR USING THE SEAT
BACKREST FOR SUPPORT DURING TRANSFER. THE SEAT BACK MAY FOLD
DOWN AND MAY CAUSE YOU TO LOSE YOUR BALANCE AND COULD RESULT IN
PERSONAL INJURY.
Please be sure to follow this important warning about adding electrical or mechanical
devices to your Golden Compass Sport power wheelchair:
DO NOT ALLOW ANYONE EXCEPT AN AUTHORIZED GOLDEN TECHNOLOGIES,
INC. REPRESENTATIVE TO CONNECT ANY ELECTRICAL OR MECHANICAL
DEVICE TO YOUR COMPASS SPORT™. UNAUTHORIZED ACCESSORIES WILL VOID
THE WARRANTY AND MAY CAUSE INJURY.
Please be sure to follow this important warning if you encounter a problem with your
mobility device.
Should you encounter a problem with the operation of your
mobility device such as a mechanical or electrical problem immediately stop
using the product. Disconnect the batteries then contact the dealer from whom
you purchased your mobility device for evaluation of the problem and repair if
needed.

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
9
EMI/RFI
The rapid development of electronics, especially in the area of communications, has
saturated our environment with electromagnetic (radio) waves that are emitted by
television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios
(ham radios), wireless computer links, microwave transmitters, paging transmitters,
etc. These electromagnetic (EM) waves are invisible and increase in strength the closer
one gets to the source of transmission. When these energy waves act upon electrical
devices and cause them to malfunction or to function in an erratic or uncontrolled
manner, they are referred to as Electromagnetic Interference (EMI) or Radio Frequency
Interference (RFI).
EMI/RFI AND YOUR Compass Sport™
All electrically powered vehicles, including power chairs are susceptible to EMI/RFI.
This interference could result in abnormal, unintended movement of a power
wheelchair.
Unintended movement or brake release could cause an accident
or injury.
The FDA has determined that each make and model of power chair can resist EMI/RFI
to a certain level. The higher the level of immunity, the greater the degree of protection
from EMI/RFI measured in volts per meter (V/m). The FDA has also determined that
current technology is capable of providing 20 V/m of immunity to EMI/RFI, which
would provide useful protection against common sources of interference. This product
has been tested and has passed an immunity level of 20 V/m.
EMI/RFI RECOMMENDATIONS
PROHIBITED! Do not turn on or use hand-held personal electronic
communication devices such as cellular phones, walkie-talkies, and CB
radios while your power chair is turned on.
Be aware of any nearby transmitters (radio, television, microwave, etc.) on your
intended route and avoid operating your chair close to any of those transmitters.
Turn off the power if your Compass Sport™is going to be in a stationary position for
any length of time.
Be aware that adding accessories or components or modifying your power chair may
make it more susceptible to EMI/RFI.
If unintended movement or brake release occurs, turn your power chair off as soon
as it is safe to do so.
Turn off your power chair as soon as it is safely possible if
unintended or uncontrollable motion occurs or if unintended brake release
occurs.

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
10
SPECIFICATIONS
1. Battery range will vary due to rider weight, drive surface, and terrain.
2. Electronics warranty excludes batteries.
Literature is current at the time of printing. Golden Technologies reserves the right to make changes to
the product or literature at any time.
Model GP605 CC GP605 SS
Medicare Code K0823 K0822
Maximum Incline 6 degrees 6 degrees
Weight Capacity 300 lbs. 300 lbs.
Maximum Speed 4 mph 4 mph
Operating Range119.5 miles 19.5miles
Ground Clearance 3.25” 3.25”
Turning Radius 19.5" 19.5"
Type Batteries 2-U1 2-U1
Colors Red, Blue Red, Blue
Charger Off Board Off Board
Controller Dynamic Linx, 40 Amp Dynamic Linx, 40 Amp
Dimensions:
Length 39" 39"
Width (outside of tires) 24" 24"
Height (ground to top of back of seat) 38” – 40” 40” – 42”
Height (ground to top of back of headrest) 45” – 50.5” 47” – 52.5”
Ground to Top of Seat 21” – 23” 19” – 21”
Number of Seat Height Positions 3 3
Size of Increments 1” 1”
Weight of Unit: (assembled) 185 lbs. 179 lbs.
Base 92 lbs 92 lbs
Seat (18 X 18 Solid Pan Seat) 40 lbs.
Seat (18 X 18 Captain's Chair Seat) 46 lbs.
Batteries U1 - 22 lbs U1 - 22 lbs
Tires: Flat Free Flat Free
Center Drive Wheels (2) 10” 10”
Casters (4) 6” 6”
Standard Seat: Captain’s Seat Captain’s Van/Pan
Back Height-no headrest 19” 23”
Back Height with headrest 26.5” – 29.5” 30.5” – 34.5”
Width x Depth (Adjustable Depth) 18” x 18” 18” x 18”, 20” x 18”, 20” x 20”
Color Gray Vinyl Coffee/Sand, Charcoal/Gray
Electric Rise Seat (Option) N/A N/A
Pneumatic Rise Seat (Option) N/A N/A
Footrest: Yes Yes
Height adjustable 3" - 7” 3" - 7”
Angle adjustable 0 – 35 degrees 0 – 35 degrees
Length adjustable (Option) Yes Yes
Warranty:
Frame Lifetime Lifetime
Drive Train 13 months 13 months
Electronics213 months 13 months

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
11
ASSEMBLY/DISASSEMBLY
Your Compass Sport™ is shipped partially disassembled in order to maximize the
protection of all its parts during the shipping process. Please follow the instruction
below to quickly and easily assemble the power chair for your use.
You will need only basic tools. If you do not have the required tools, or if
you do not feel capable of safely assembling your power chair, please contact your local
Golden Technologies, Inc. representative.
Main Components
1. Frame with power module, controller cable & connectors for battery cables.
2. Battery box covers
3. Seat assembly
4. Joystick
5. Batteries (Two – U1)
6. Seat Belt
Joystick Batteries
Battery Box Covers
Seat Assembl
y
Free Wheel Levers
Center Wheel Fenders
Caster Arm Cover
Joystick
Seat Belt
(
not shown
)
Arm Assembl
y
Caster
Drive Wheel Foot
p
late
Seat Swivel Lever

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
12
ASSEMBLY / DISASSEMBLY
Before operating or assembling your Compass Sport™, be sure to connect
the power cable from the batteries to the Linx power module. Your Compass Sport™ will
not power up or operate without completing this step.
1. Remove the rear battery cover. Refer to “Accessing the batteries” on page 14.
2. Plug the power cable into the Linx power module. See figure 1 on page 13.
3. Replace the rear battery cover.
SEAT INSTALLATION/REMOVAL
The standard (18 x 18) seat assembly weighs about 46 pounds.
Please ask for help if you do not feel capable of safely lifting that much weight.
Removal of arms will significantly reduce the weight of seat.
Be sure the seat is correctly installed and locked before operating
your power chair.
Never pull on the arms or use them as a handle to move the power
chair as they could inadvertently pull out of the receiver bar causing injury.
INSTALLATION
1. To install the seat, align the seat post stinger on the bottom of the seat with the
hole in the seat post on the chair. See figures 2 and 3 on page 13.
2. Push down on the seat and rotate the seat until it aligns and locks in place. See
figure 3 on page 13.
3. Attach arms by loosening the arm width adjustment knobs (See figure 18 on page
19). Insert left arm into left receiving tube and tighten the arm width adjustment
knob. Repeat with right arm.
4. Attach joystick to right arm. See “Joystick Installation/Removal” on page 13.
5. Connect the joystick cable. See figure 5 on page 13.
6. Lift the Backrest Angle Adjustment Lever (See figure 4 on page 13) and while
holding the lever, lift the seat back to an upright angle.
7. To remove, simply reverse the process above.
REMOVAL
1. With one hand brace the seat back. With the other hand lift the Backrest Angle
Adjustment Lever and while holding the lever, lower the back of the seat to the seat.
Lifting the Backrest Angle Adjustment Lever will cause the back
to automatically close towards the seat. Improper handling may result in
injury.
2. Disconnect the cable from the joystick. See figure 5 on page 13.
3. Remove arms by loosening the arm width adjustment knobs (See figure 18 on
page 19). Remove by pulling arms out of the receiving tubes.
4. Lift the seat up and off the seat post receiver.

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
13
ASSEMBLY / DISASSEMBLY
Figure 1 Figure 2
Figure 3 Figure 4
JOYSTICK INSTALLATION/REMOVAL
1. Loosen the joystick adjustment knob. See figure 5.
2. Slide the joystick assembly into the joystick bracket to the desired position.
3. Tighten the adjustment knob.
4. Connect the joystick cable.
5. To disassemble, turn off joystick controller and then reverse the process above.
Figure 5
Seat Post
Seat Post Stin
g
er
Ad
j
ustment Knob
J
o
y
stick Cable
Seat Swivel Handle Backrest Angle
Ad
j
ustment Lever
Power Module
Po
w
er Cable

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
14
ASSEMBLY / DISASSEMBLY
ACCESSING THE BATTERIES
1. Remove the seat. Refer to “Seat Removal” on page 12.
2. Locate the two “Battery Box Covers”, front and rear.
3. Remove one of the covers by lifting up on the outer edge of the cover. See figure 6.
4. Remove the opposite cover by lifting up on the outer edge of the cover.
Figure 6
There is a “Battery Connection Diagram” located on the inside of the rear
battery box cover. See figure 7.
Figure 7
The batteries weigh 22 pounds each. (Battery weights may vary
depending on the manufacturer). Please ask for help if you do not feel capable of
safely lifting that much weight.
Black
Black
Oran
g
e
Fuse
Fuse
Red
Red
Red
Battery
Battery
Black
Orange
Rear
Front
Lift cover up
Rear Cover
Front Cover

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
15
ASSEMBLY/ DISASSEMBLY
BATTERY INSTALLATION/REMOVAL
Figure 8 Figure 9
Figure 10
1. Use the screws, washers, and nuts provided to connect the positive (red booted)
connector of each cable to the positive (+) terminal of each battery. See figure 8 and
figure 9.
2. Use the screws, washers, and nuts provided to connect the negative (black booted)
connector of each cable to the negative (-) terminal of each battery.
3. Place the batteries into the battery box. Be certain the color coded connectors
match. Refer to the “Battery Connection Diagram” shown in figure 7 on page 14.
4. Secure the batteries in place using the buckle straps. See figure 10.
5. Connect each color coded battery cable connector to the corresponding connector
on the main wire harness. See figure 10.
6. Install both battery box covers.
7. To disassemble, reverse the above process.
Battery shown with
cable connected
properly.
Buckle Strap
Nut
Black (-)
Red (+)
Buckle Strap Color Coded
Connector
Color Coded
Connector
Lock Washe
r
Flat Washe
r
Batter
y
Terminal
Rin
g
Terminal
Flat Washe
r
Bolt
Batter
y

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
16
COMFORT SETTINGS
You may be spending a great deal of time on your Compass Sport™.To provide you with
the maximum seating comfort, Golden Technologies, Inc. has designed this power chair
to incorporate the following adjustments for operator comfort.
COMFORT SETTINGS
1. Seat height
4. Armrest angle
7. Armrest height
2. Headrest height
5. Footrest angle
8. Armrest width
3. Backrest angle
6. Footrest height
9. Joystick length
Make certain that the power to your Compass Sport™is
turned off before making any adjustments, to eliminate the risk of the joystick
being accidentally bumped and activating the power chair.
If you do not feel capable of safely making these adjustments, please
contact your local Golden representative.
SEAT HEIGHT ADJUSTMENT
The seat post is a design that is adjustable in height. Adjustment is made by removing
the seat post bolt, raising or lowering the seat post to the desired height and re-
installing the seat post bolt. See figure 11.
Figure 11
Seat Post Bolt
(8mm Allen)
Seat Post
Nut (17mm)

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
17
COMFORT SETTINGS
HEADREST HEIGHT ADJUSTMENT
1. Standing behind the chair, push and then release the clamp on the left post of the
headrest while you are pulling up or pushing down on the head rest. See figure 12.
2. The headrest will “click” to a stop in one of the preset positions.
3. Repeat step 1 until the headrest is at the desired height.
Figure 12 Figure 13
BACKREST ANGLE ADJUSTMENT
The backrest can be folded down to minimize chair height during transport.
1. Pull up on the adjustment lever (see figure 13) and push against the backrest until
the backrest is in the desired position.
2. Release the lever.
3. To return the backrest to the upright position, pull up on the lever and move the
backrest to the desired position.
ARMREST ANGLE ADJUSTMENT
1. Lift armrest up. See figure 14.
2. Turn jam nut counter-clockwise with a 14mm wrench to loosen.
3. Turn the adjustment bolt using a 6mm Allen wrench to raise or lower the armrest-
angle. Turning the bolt counter-clockwise will raise the angle. Turning the bolt
clockwise will lower the angle. Turn until desired angle is reached.
4. Re-tighten jam nut by turning clockwise.
5. Repeat steps 1-4 on the other armrest.
Figure 14
Backrest Angle
Adjustment Lever
Headrest Clamp
Jam Nut
(14mm)
Adjustment Bolt
(6mm Allen)

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
18
COMFORT SETTINGS
FOOTREST ANGLE ADJUSTMENT
1. Fold the footrest upward for easy access to the angle adjustment bolt. See figure 15.
2. Turn the jam nut counter-clockwise with a 17mm wrench to loosen.
3. Use an 8mm Allen wrench to turn the adjustment bolt. Turn the adjustment bolt
counter-clockwise to increase the footrest angle. Turn the adjustment bolt clockwise
to decrease the footrest angle.
4. When the desired footrest angle is reached, re-tighten the jam nut.
Figure 15
FOOTREST HEIGHT ADJUSTMENT
1. Remove front cover.
2. Use a 13mm socket and 5mm Allen wrench to remove the bolts. See figure 16.
3. Slide the footrest to the desired height.
4. Align the bolt holes in the footrest and the footrest bracket.
5. Install and tighten the bolts.
Figure 16
Footrest Angle
Adjustment Bolt
(8mm Allen)
Footrest Height
Adjustment Bolts
(
5mm Allen
)
Jam Nut (17mm)
Nuts
(
13mm
)

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
19
COMFORT SETTINGS
Figure 17 Figure 18
Figure 19
ARMREST HEIGHT ADJUSTMENT
1. Loosen the two armrest height adjustment screws on the outside of the armrest with
a 3mm Allen wrench until you can slide the armrest up and down freely. See figure 17.
2. Raise or lower the armrest to the desired position.
3. Retighten the two adjustment screws to lock the armrest into that position.
4. Repeat steps 1-3 to adjust the opposite arm.
ARMREST WIDTH ADJUSTMENT
1. Loosen the adjustment knob at the rear of the seat. See figure 18.
2. Slide the arms in or out to the desired width.
3. Tighten the adjustment knob to secure the arm.
4. Repeat steps 1-3 to adjust the opposite arm.
JOYSTICK BRACKET LENGTH ADJUSTMENT
1. Loosen the adjustment knob. See figure 19.
2. Slide the joystick holder in or out to the desired position.
3. Tighten the adjustment knob.
Joystick Adjustment Knob
Adjustment
Knob
Allen
Screws
(3mm)

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
20
OPERATION
Your Compass Sport™is simple to operate. However, for your safety and the safety of
others, Golden Technologies, Inc. recommends that you carefully read and understand
the following operating instructions. We also recommend that you practice operating
your Compass Sport™in an area free of any obstacles. Once you have gained
confidence in your ability to control your power chair, you will more easily be able to
operate it in normal daily conditions.
Before turning on the power of your Compass Sport™, take note of your
environment and set your speed control accordingly. (See “The Speed Control Buttons”
figure 20) For indoor driving, we recommend that you select the lowest speed setting.
For outdoor driving, we recommend that you select a speed setting at which you feel
comfortable, safe, and in control of your power chair. Familiarize yourself with the
features of your Compass Sport™ described below and follow the instructions to safely
operate your power chair.
Figure 20
The surface of the joystick can potentially get hot when it is
exposed to strong sunlight for long periods.
Joystick
Battery
Gauge
Horn
Button
Speed Dial
Power
Button &
Status
Indicator XLR Charger Connector
Communications
Bus Connector

Compass Sport Owner’s Manual – Model # GP605 CC, GP605 SS Revised 10/27/14
21
OPERATION
DRIVING: Joystick Power On/Off Button
To turn on the power to your Compass Sport™, press the power button. If the
system is healthy, the Status indicator (through the Power Button) will light up
green, and the Battery Gauge will display the current battery status.
Power Off
If there is a fault with the system when powering up, the status indicator will indicate a
fault with a series of red flashes (see “Diagnostics”) on page 24. If the fault is one that
prevents the power chair from driving, then the battery gauge will flash continuously.
To turn off the power to your Compass Sport™, press the power button; the
system will power down and the Status indicator will switch off.
Power On
In the unlikely event that the power chair is in a runaway situation, press
the power button to perform an EMERGENCY STOP.
Drive Inhibit Indication
Drive inhibit mode is indicated by the battery gauge
with a right-to-left light sequence.
The light sequence starts with the green LED on the
right-hand side, and one-by-one, each LED will switch
on then off. When the sequence completes at the left-most
red LED, it begins again at the right-hand side.
The light sequence continues until the error condition
has been cleared.

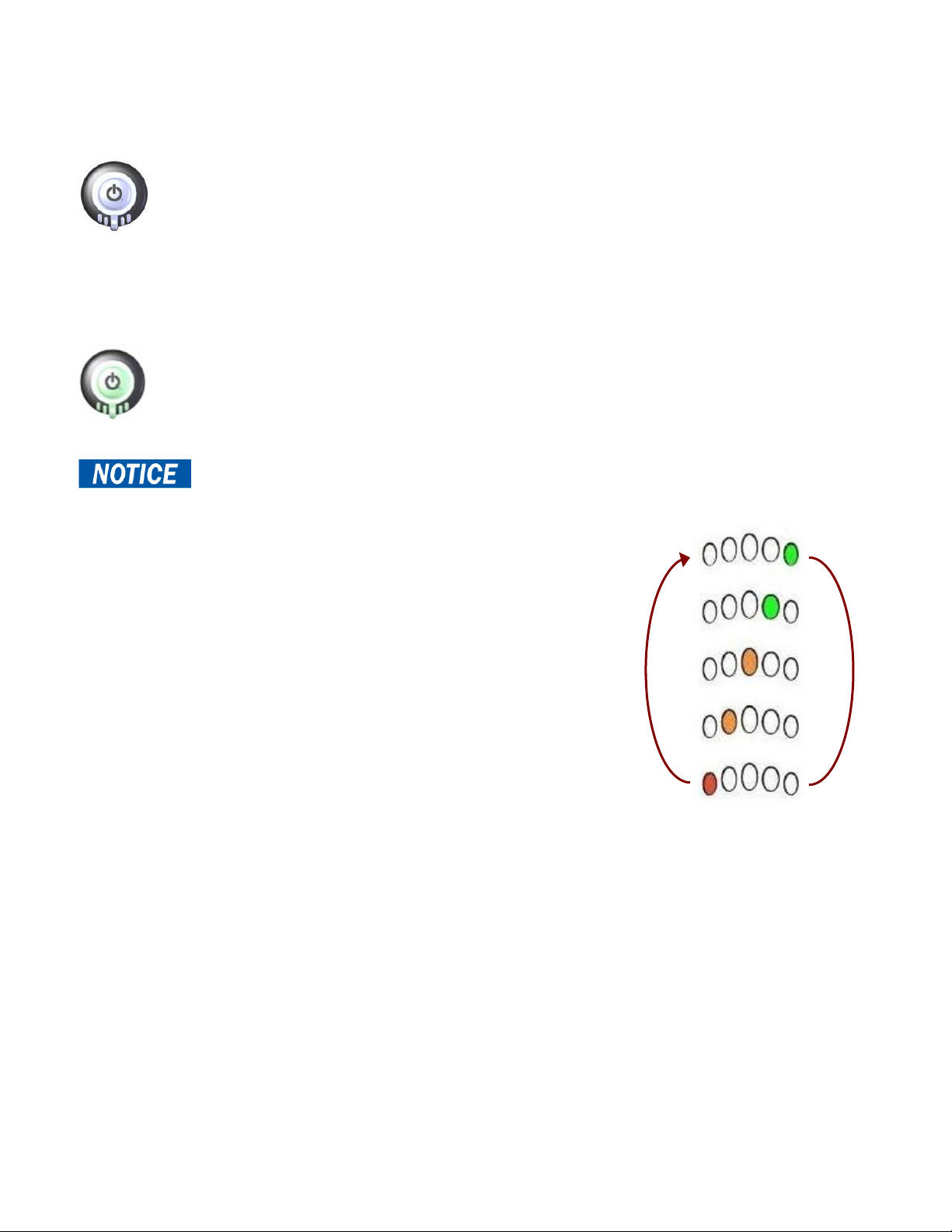

Drive Inhibit Light Sequence
OONAPU
OONAPU (“Out Of Neutral At Power Up”) is a safety feature that prevents accidental
movement of the wheelchair, either when powering up, or when the wheelchair comes
out of an inhibit state.
If the LINX LE System is turned on (or comes out of an inhibit state) while the joystick
is not in the center position, an OONAPU warning is displayed. During an OONAPU
warning, the battery gauge LEDs will flash continually to alert the user, and the chair
will not drive. If the joystick is returned to the center position within five seconds, the
warning will clear and the wheelchair will drive normally.
However, if the joystick remains out of neutral for longer than five seconds, an
OONAPU error will occur; the error is displayed by the Status indicator flashing red,
and the chair will not drive. To clear the error, return the joystick to the neutral
position and power the unit off and then on again.
Start
