Goldline AQL2-BASE-RF User manual

North Kingstown, RI 02852 USA 092047D
Copyright © 2008 Goldine Controls
LD
C
GLINE
ON
T
ROLS
Aqua LogicAqua Logic
Aqua LogicAqua Logic
Aqua Logic
and
Base Station
InstallationandOperation Manual
for model
AQL2-BASE-RF
®
www.goldlinecontrols.com
LD
C
GLINE
ON
T
ROLS
FCCStatement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by Goldline Controls could
void the user’s authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced radio / TV technician for help.
IndustryCanadaStatement
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.
The term “IC” before the certification / registration number only signifies that the
Industry Canada technical specifications were met.

Compatibility
This product is compatible with all Pro Logic controls and withAqua Logic controls
operating software revision r2.60 or higher. To verify the software level of yourAqua
Logic control: Press the Menu button (possibly multiple times) until “Diagnostic
Menu”is displayed. Next, pressthe “>” or“<“ keys (possiblymultiple times) untilthe
main and display software revision levels are displayed (the “main” rev should be
r1.10orhigher).
If the software revision level is less than r2.60 contact the Goldline Technical Service
Dept.fromMondaythroughFriday, 8AM to 8PMEastern at 908-355-7995 forinforma-
tion on upgrades.
ThisBase Station cancommunicate with thespaside remote (AQL2-SS-RF),the wire-
lesswallmount and tabletopremote display/keypads(AQL2-Wx-RF-PS-x,AQL2-Tx-
RF-PS-x,AQL2-Tx-RF-P-4-x)andtheAquaPodhandheldremotecontrol(AQL2-POD).
1 6
LIMITED WARRANTY (effective 01/01/09) Goldline warrants its Aqua Rite, Aqua Rite Pro,
Aqua Logic, Pro Logic and E-Command products to be free of defects in materials and
workmanship, under normal use and service for a period of three (3) years. This warranty
is applicable from the initial date of installation on private residential swimming pools in the US
and Canada. The warranty is not transferable and applies to the original owner only.
Aqua Trol, commercial installations, installations outside of the US and Canada, accessory
products and replacement parts are covered under the terms of the warranty for a period of
one (1) year.
Proof of purchase is required for warranty service. If written proof of purchase is not
provided, the manufacturing date code will be the sole determinant of the date of installation
of the product.
To obtain warranty service or repair, please contact the place of purchase or the nearest
Goldline authorized warranty service center. For more information on authorized service
centers please contact the Hayward/Goldline Technical Service Support Center ( 61 White-
cap Road, North Kingstown RI, 02852) or visit the Goldline web site,
www.goldlinecontrols.com.
WARRANTYEXCLUSIONS:
1. Material supplied or workmanship performed by others in process of installation.
2. Damage resulting from improper installation including installation on pools larger than the
product rating.
3. Problems resulting from failure to install, operate or maintain the product(s) in accor-
dance with the recommendations contained in the owners manual(s).
4. Problems resulting from failure to maintain pool water chemistry in accordance with the
recommendations in the owners manual(s).
5. Problems resulting from tampering, accident, abuse, negligence, unauthorized repairs or
alternations, fire, flood, lightning, freezing, external water, degradation of natural stone
used in or immediately adjacent to a pool or spa, war or acts of God.
DISCLAIMER. THE EXPRESS LIMITED WARRANTY ABOVE CONSTITUTES THE EN-
TIRE WARRANTY OF GOLDLINE WITH RESPECT TO ITS POOL AUTOMATION AND
CHLORINATION PRODUCTS AND IS IN LIEU OF ALL OTHER WARRANTIES, EX-
PRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE. IN NO EVENT SHALL GOLDLINE BE RESPONSIBLE FOR ANY
CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES OF ANY NATURE WHAT-
SOEVER, INCLUDING, BUT NOT LIMITED TO, PERSONAL INJURY, PROPERTY DAM-
AGE, DAMAGE TO OR LOSS OF EQUIPMENT, LOST PROFITS OR REVENUE, COSTS
OF RENTING REPLACEMENTS, AND OTHER ADDITIONAL EXPENSES, EVEN IF THE
SELLER HAD BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OF LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
NO WHOLESALER, AGENT, DEALER, CONTRACTOR OR OTHER PERSON IS AU-
THORIZED TO GIVE ANY WARRANTY ON BEHALF OF GOLDLINE.
THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN ALTERED IN ANYWAYAFTER
LEAVING THE FACTORY.

INSTALLATION
Installation is very easy and should just take a few minutes. For most installations the
Base Station will mount directly on the ProLogic orAqua Logic main control unit (see
description and diagram below). For some installations where the remote devices are
a long distance from the Base Station or where there are interfering walls (eg.Asteel
shed in the yard or a steel reinforcing grid inside a stucco wall on the house), the Base
Station may have to mounted remotely from the control unit in order to achieve
reliable communications. Refer to the instructions and diagram on page 3 for more
information regarding remote mounting.
Direct Mounting on Pro Logic or Aqua Logic Control Unit
Disconnect power and then remove the panel from the Pro Logic or Aqua Logic
control unit. Remove the knock-out on the upper left side of the enclosure and mount
theRF Base Station. SecuretheBase Station inplace by firmlytighteningthe nut from
inside of the enclosure. Lastly, plug the pigtail cable into the connector labeled
“Wireless Connector” on thePro Logic/Aqua Logic main circuit board.
25

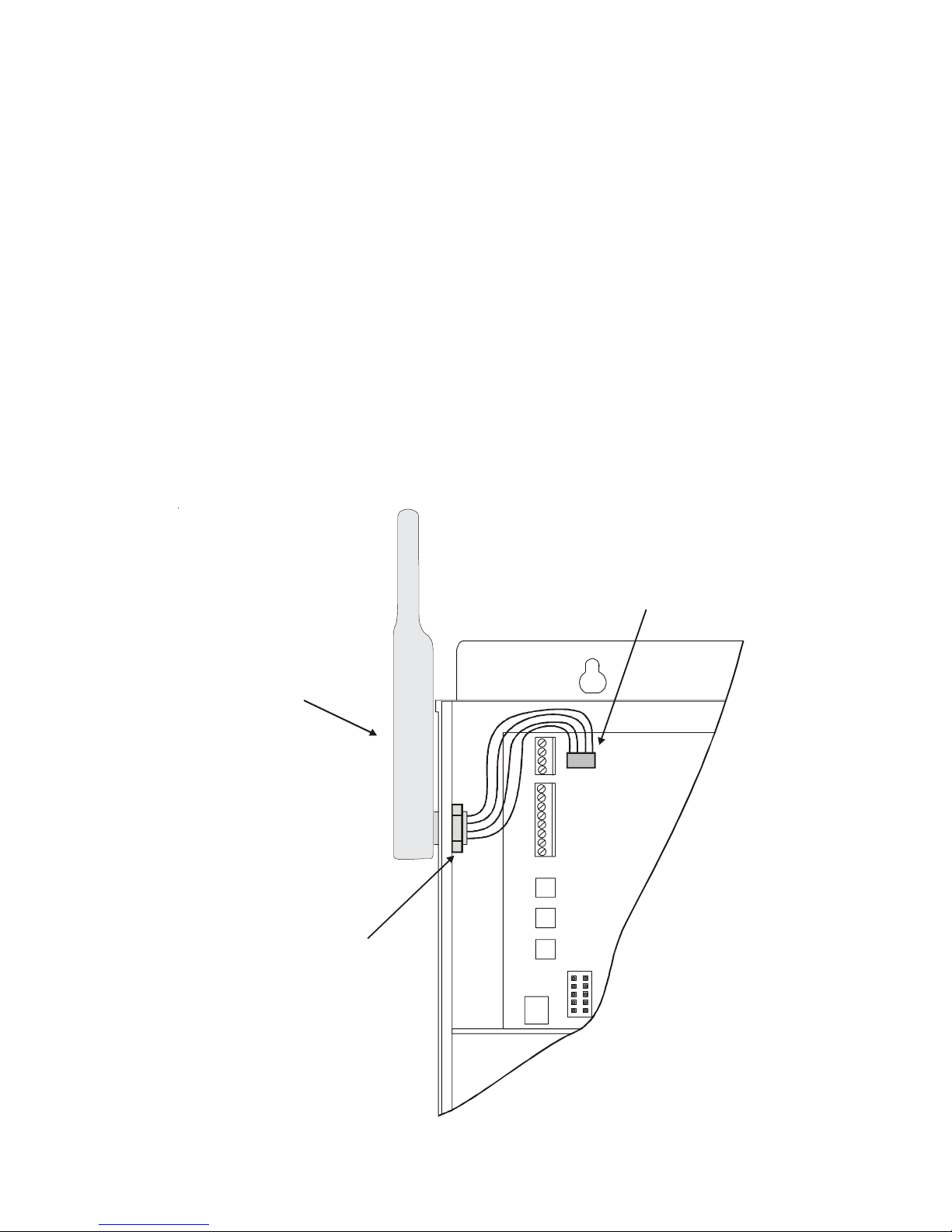

Base Station
(AQL2-BASE-RF)
Tighten nut
Main PCB
Connector for
Base Station

Remote Mounting of the Base Station
The Base Station can be mounted up to 500 feet away from the Pro Logic or Aqua
Logic control unit. This feature is helpful if the main control unit is located a long
distance from the pool area or if there are buildings that may interfere with the radio
communication between the Base Station and the remote devices.
1. Mount the Base Station on an standard, outdoor rated electrical box.
2. Cut the each of the 4 wires in the Base Station "pigtail" cable and then install the
connector half into the "Wireless Connector" on the main printed circuit board
(PCB) in the Pro Logic/Aqua Logic control unit.
3. Use a 4 conductor cable and splice both ends of the cable making sure that the
colors match up correctly.
OPERATION
Every Base Station is manufactured with a unique ID code. This allows private,
secure communication with all of your remote devices while ignoring any signals
transmitted by other wireless devices including any other Pro Logic/Aqua Logic
controls in the neighborhood.
IMPORTANT: Before tryingto use anyremote device: Youmust "teach" thecorrect
ID code to the remote device so it knows which Base Station to communicate with.
Refer to the Pro Logic/Aqua Logic Operation Manual or the manual for your remote
device for "teaching" instructions .
The Base Station and remote devices are programmed with a sophisticated protocol
that automatically switches frequencies if other devices are interfering. In the un-
likely event that it can not find a usable frequency, it may be necessary to change
channels. Refer to the Pro Logic/Aqua Logic Operation Manual for instructions.
TROUBLESHOOTING
.1. Can’tfind the“TeachWireless”display: Press the “menu” button (possi-
bly more than once) until “Settings Menu” is displayed. Next, press the “<“ or “>”
buttons (possibly more than once) until “Teach Wireless” display appears. If you go
through all of the displays without ever seeing the "Teach Wireless" and you get to
the point where “Settings Menu” appears again, then this means that the Pro Logic/
Aqua Logic control unit is not communicating with the Base Station. Check that the
4 wire cable from the Base Station is plugged into the “wireless connector” on the
main printed circuit board (refer to the Installation section for connection diagram). If
this connector is already plugged in (for more than 30 seconds), then call Goldline
Technical Service for assistance.
2. “Teach Wireless” failed: Ensure that the remote is powered when pressing the
button. This is indicated by a single flash on the LED on the spa-side remote or
a message on the display of the in-house remotes. If the remote is powered, then
the next most likely cause is that the distance between the Base Station and the
remote is too great—try moving the remote closer to the station. Lastly, there
may be other equipment in the neighborhood that is using the same frequency.
To see if this is the case, go to the Settings Menu/Wireless Channel and select
another channel. Note that after you change the channel you will have to “re-
teach” every wireless remote device in the system.
3. Unreliable communicationwith remotedevices: The most likely cause is that
the distance between the Base Station and the remote is too great—try moving
the remote closer to the station. Lastly, there may be other equipment in the
neighborhood that is using the same frequency. To see if this is the case, go to
the Settings Menu/Wireless Channel and select another channel. Note that after
you change the channel you will have to “re-teach” every wireless remote device
in the system.
4. No communicationwith remotecontrols: Try the “TeachWireless” procedure
to ensure that the remote knows the ID code of the Base Station and also what
channel to communicate on. If this procedure is not successful, then refer to the
“Teach Wireless” failed section above.
43
Cut 4 wire pigtail on base
receiver and splice in connecting cable
Standard
Electrical Box
Base Receiver
Wireless
Connector
500’
(max)

Remote Mounting of the Base Station
The Base Station can be mounted up to 500 feet away from the Pro Logic or Aqua
Logic control unit. This feature is helpful if the main control unit is located a long
distance from the pool area or if there are buildings that may interfere with the radio
communication between the Base Station and the remote devices.
1. Mount the Base Station on an standard, outdoor rated electrical box.
2. Cut the each of the 4 wires in the Base Station "pigtail" cable and then install the
connector half into the "Wireless Connector" on the main printed circuit board
(PCB) in the Pro Logic/Aqua Logic control unit.
3. Use a 4 conductor cable and splice both ends of the cable making sure that the
colors match up correctly.
OPERATION
Every Base Station is manufactured with a unique ID code. This allows private,
secure communication with all of your remote devices while ignoring any signals
transmitted by other wireless devices including any other Pro Logic/Aqua Logic
controls in the neighborhood.
IMPORTANT: Before tryingto use anyremote device: Youmust "teach" thecorrect
ID code to the remote device so it knows which Base Station to communicate with.
Refer to the Pro Logic/Aqua Logic Operation Manual or the manual for your remote
device for "teaching" instructions .
The Base Station and remote devices are programmed with a sophisticated protocol
that automatically switches frequencies if other devices are interfering. In the un-
likely event that it can not find a usable frequency, it may be necessary to change
channels. Refer to the Pro Logic/Aqua Logic Operation Manual for instructions.
TROUBLESHOOTING
.1. Can’tfind the“TeachWireless”display: Press the “menu” button (possi-
bly more than once) until “Settings Menu” is displayed. Next, press the “<“ or “>”
buttons (possibly more than once) until “Teach Wireless” display appears. If you go
through all of the displays without ever seeing the "Teach Wireless" and you get to
the point where “Settings Menu” appears again, then this means that the Pro Logic/
Aqua Logic control unit is not communicating with the Base Station. Check that the
4 wire cable from the Base Station is plugged into the “wireless connector” on the
main printed circuit board (refer to the Installation section for connection diagram). If
this connector is already plugged in (for more than 30 seconds), then call Goldline
Technical Service for assistance.
2. “Teach Wireless” failed: Ensure that the remote is powered when pressing the
button. This is indicated by a single flash on the LED on the spa-side remote or
a message on the display of the in-house remotes. If the remote is powered, then
the next most likely cause is that the distance between the Base Station and the
remote is too great—try moving the remote closer to the station. Lastly, there
may be other equipment in the neighborhood that is using the same frequency.
To see if this is the case, go to the Settings Menu/Wireless Channel and select
another channel. Note that after you change the channel you will have to “re-
teach” every wireless remote device in the system.
3. Unreliable communicationwith remotedevices: The most likely cause is that
the distance between the Base Station and the remote is too great—try moving
the remote closer to the station. Lastly, there may be other equipment in the
neighborhood that is using the same frequency. To see if this is the case, go to
the Settings Menu/Wireless Channel and select another channel. Note that after
you change the channel you will have to “re-teach” every wireless remote device
in the system.
4. No communicationwith remotecontrols: Try the “TeachWireless” procedure
to ensure that the remote knows the ID code of the Base Station and also what
channel to communicate on. If this procedure is not successful, then refer to the
“Teach Wireless” failed section above.
43
Cut 4 wire pigtail on base
receiver and splice in connecting cable
Standard
Electrical Box
Base Receiver
Wireless
Connector
500’
(max)

INSTALLATION
Installation is very easy and should just take a few minutes. For most installations the
Base Station will mount directly on the ProLogic orAqua Logic main control unit (see
description and diagram below). For some installations where the remote devices are
a long distance from the Base Station or where there are interfering walls (eg.Asteel
shed in the yard or a steel reinforcing grid inside a stucco wall on the house), the Base
Station may have to mounted remotely from the control unit in order to achieve
reliable communications. Refer to the instructions and diagram on page 3 for more
information regarding remote mounting.
Direct Mounting on Pro Logic or Aqua Logic Control Unit
Disconnect power and then remove the panel from the Pro Logic or Aqua Logic
control unit. Remove the knock-out on the upper left side of the enclosure and mount
theRF Base Station. SecuretheBase Station inplace by firmlytighteningthe nut from
inside of the enclosure. Lastly, plug the pigtail cable into the connector labeled
“Wireless Connector” on thePro Logic/Aqua Logic main circuit board.
25
Base Station
(AQL2-BASE-RF)
Tighten nut
Main PCB
Connector for
Base Station

Compatibility
This product is compatible with all Pro Logic controls and withAqua Logic controls
operating software revision r2.60 or higher. To verify the software level of yourAqua
Logic control: Press the Menu button (possibly multiple times) until “Diagnostic
Menu”is displayed. Next, pressthe “>” or“<“ keys (possiblymultiple times) untilthe
main and display software revision levels are displayed (the “main” rev should be
r1.10orhigher).
If the software revision level is less than r2.60 contact the Goldline Technical Service
Dept.fromMondaythroughFriday, 8AM to 8PMEastern at 908-355-7995 forinforma-
tion on upgrades.
ThisBase Station cancommunicate with thespaside remote (AQL2-SS-RF),the wire-
lesswallmount and tabletopremote display/keypads(AQL2-Wx-RF-PS-x,AQL2-Tx-
RF-PS-x,AQL2-Tx-RF-P-4-x)andtheAquaPodhandheldremotecontrol(AQL2-POD).
1 6
LIMITED WARRANTY (effective 01/01/09) Goldline warrants its Aqua Rite, Aqua Rite Pro,
Aqua Logic, Pro Logic and E-Command products to be free of defects in materials and
workmanship, under normal use and service for a period of three (3) years. This warranty
is applicable from the initial date of installation on private residential swimming pools in the US
and Canada. The warranty is not transferable and applies to the original owner only.
Aqua Trol, commercial installations, installations outside of the US and Canada, accessory
products and replacement parts are covered under the terms of the warranty for a period of
one (1) year.
Proof of purchase is required for warranty service. If written proof of purchase is not
provided, the manufacturing date code will be the sole determinant of the date of installation
of the product.
To obtain warranty service or repair, please contact the place of purchase or the nearest
Goldline authorized warranty service center. For more information on authorized service
centers please contact the Hayward/Goldline Technical Service Support Center ( 61 White-
cap Road, North Kingstown RI, 02852) or visit the Goldline web site,
www.goldlinecontrols.com.
WARRANTYEXCLUSIONS:
1. Material supplied or workmanship performed by others in process of installation.
2. Damage resulting from improper installation including installation on pools larger than the
product rating.
3. Problems resulting from failure to install, operate or maintain the product(s) in accor-
dance with the recommendations contained in the owners manual(s).
4. Problems resulting from failure to maintain pool water chemistry in accordance with the
recommendations in the owners manual(s).
5. Problems resulting from tampering, accident, abuse, negligence, unauthorized repairs or
alternations, fire, flood, lightning, freezing, external water, degradation of natural stone
used in or immediately adjacent to a pool or spa, war or acts of God.
DISCLAIMER. THE EXPRESS LIMITED WARRANTY ABOVE CONSTITUTES THE EN-
TIRE WARRANTY OF GOLDLINE WITH RESPECT TO ITS POOL AUTOMATION AND
CHLORINATION PRODUCTS AND IS IN LIEU OF ALL OTHER WARRANTIES, EX-
PRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE. IN NO EVENT SHALL GOLDLINE BE RESPONSIBLE FOR ANY
CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES OF ANY NATURE WHAT-
SOEVER, INCLUDING, BUT NOT LIMITED TO, PERSONAL INJURY, PROPERTY DAM-
AGE, DAMAGE TO OR LOSS OF EQUIPMENT, LOST PROFITS OR REVENUE, COSTS
OF RENTING REPLACEMENTS, AND OTHER ADDITIONAL EXPENSES, EVEN IF THE
SELLER HAD BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OF LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
NO WHOLESALER, AGENT, DEALER, CONTRACTOR OR OTHER PERSON IS AU-
THORIZED TO GIVE ANY WARRANTY ON BEHALF OF GOLDLINE.
THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN ALTERED IN ANYWAYAFTER
LEAVING THE FACTORY.

North Kingstown, RI 02852 USA 092047D
Copyright © 2008 Goldine Controls
LD
C
GLINE
ON
T
ROLS
Aqua LogicAqua Logic
Aqua LogicAqua Logic
Aqua Logic
and
Base Station
Installation andOperationManual
for model
AQL2-BASE-RF
®
www.goldlinecontrols.com
LD
C
GLINE
ON
T
ROLS
FCCStatement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by Goldline Controls could
void the user’s authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced radio / TV technician for help.
IndustryCanadaStatement
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.
The term “IC” before the certification / registration number only signifies that the
Industry Canada technical specifications were met.
This manual suits for next models
2
Table of contents
Other Goldline Accessories manuals
Popular Accessories manuals by other brands

NTI
NTI XTENDEX VOPEX-C5SV-x Installation and operation manual

Shel lab
Shel lab SCO6AD-2 Installation & operation manual

DamoaTech
DamoaTech DT-SMS01B Install manual

IFM Electronic
IFM Electronic efector200 OW Series installation instructions

Byron
Byron DB302 Installation and operation instruction

Alphacool
Alphacool NexXxoS GPX-N 980 M01 instruction manual
