Goldmedal 8160F User manual

© 2016 Gold Medal Products Co. Part No. 85073
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Fence Grills
Model No. 8160, 8161, and 8162 Series

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS (continued)
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This
information may not be the latest available for your purposes. It is critical that
you call Gold Medal’s Technical Service Department at -800-543-0862 for any
questions about your machine operations, replacement parts, or any service
questions. (Gold Medal Products Co. does not assume any liability for injury due
to careless handling and/or reckless operation of this equipment.)

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 4
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control.
Model Description
8160F: Small Flat Fence Grill (same width as 8 62, but longer depth), unit has
2 Heat Controls.
8162: Small Flat Fence Grill, unit has Heat Control.
8161F: Large Flat Fence Grill, unit has 2 Heat Controls.
Setup
Your new Fence Grill is fully assembled and tested at the factory.
. Remove all packaging and tape.
2. Wipe grill clean prior to operation by using a damp washcloth.
3. Place fence on grill by aligning the pins on the grill with the slots in the fence.

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 5
gmpopcorn.com
Electrical Requirements
The following power supply must be provided:
8160F, 8162: 20 Volts, 750 Watts, 60Hz.
8161F: 20 Volts, 700 Watts, 60Hz.
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle. We recommend this equipment be on a dedicated and protected circuit.
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold
Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The
use of extension cords is not recommended due to safety concerns, and may cause sacrificed
and/or reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power
supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 6
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
ON/OFF POWER SWITCH
Provides power to the Motor and the Heat Control(s). Switch has a built in pilot light to
indicate that there is power to the unit.
HEAT CONTROLS
Models 8 60F and 8 6 F have two Heat Controls which cover the upper and lower zones;
Model 8 62 has one Heat Control. These controls have a positive OFF and are variable
from low to high.
Operating Instructions
. Be sure grill surface is clean, and fence is placed on grill and aligned with pins.
2. Turn the Power Switch ON.
3. Turn Heat Control(s) fully clock-wise to “High” position.
4. Pre-heat the grill for 5 minutes.
5. Place pre-cooked product on grill between the fence rails.
6. Cook for 20-30 minutes and check product temperature with cooking thermometer
(should be 50 Degrees F). Adjust heat as necessary to raise the temperature of the
food to 50 Degrees Fahrenheit.
7. Carefully remove and serve product.
ON/OFF Power Switc
Heat Control for
Upper Zone
Heat Control for
Lower Zone
NOTE: Model 8162 only
as
one Heat Control.

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 7
gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water.
Always unplug the equipment before cleaning or servicing.
025_020314
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of
advertising your product.
Follow the directions below to clean and sanitize the unit each day after use.
. With the machine OFF, unplug the unit and allow it to cool before attempting to clean.
2. Take fence off the cooking surface and clean it with mild soap and hot water.
DO NOT use oven cleaners or abrasive materials (e.g. steel wool or abrasive pads) on
cooking surface, fence, or stainless steel body.
3. Empty drip pan, and clean with mild soap and hot water.
4. Clean the outside of the unit using a soft cloth dampened with a mild soap and hot
water.
Wipe stainless steel parts with a clean cloth and cleaner designed for stainless steel,
such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088).
DO NOT use oven cleaners or abrasive materials as they will damage parts of the
machine.
5. Dry the unit completely with a soft, dry cloth.
6. When unit is dry, place fence back on grill (align the pins on the grill with the slots in
the fence), and reinsert the drip pan.

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 8
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 9
gmpopcorn.com
Ordering Spare Parts
. Identify the needed part by checking it against the photos, illustrations, and/or
parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
0700 Medallion Drive
Cincinnati, Ohio 4524 -4807
Or, place orders by phone or online:
Phone: [phone]
(5 3) 769-7676
Fax: [phone]
(5 3) 769-8500
E-mail: [email protected]
Web Page: gmpopcorn.com

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 10
gmpopcorn.com

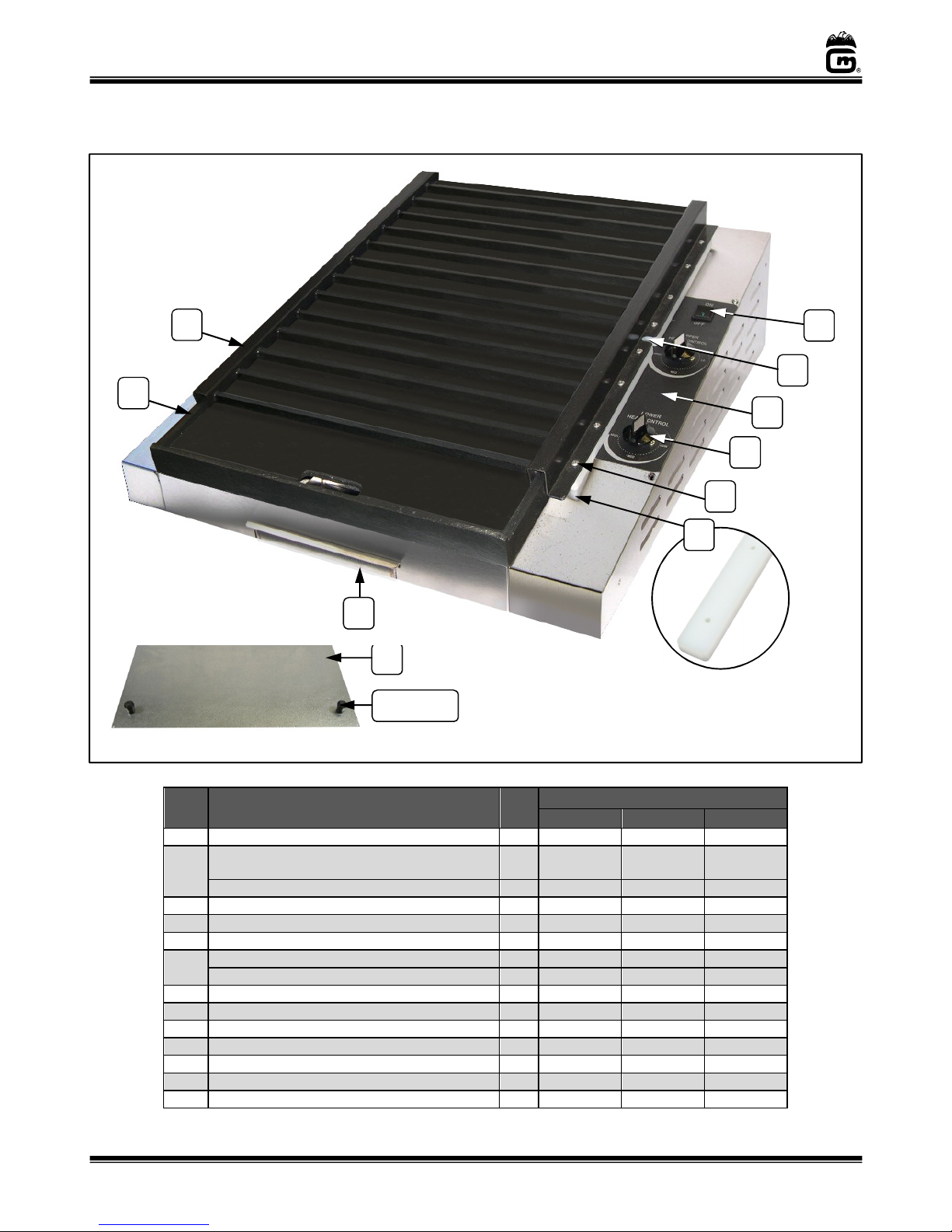

Cabinet Exterior
Item Part Description Qty.
Part Number
8160
F
8161
F
8162
COOK PLATE, MACHINE
85000
85035
7357
2
FENCE WELDMENT (Model No. 8 62
also
has
movable bars) 85053 8507 7362
MOVABLE BAR
6
7364
3
SWITCH, ROCKER DPST
55395
55395
55395
4
I
NNER SLIDE WELD. (pins the fence ride
on)
2
85024
85024
85024
5
CONTROL LABEL
85049
85049
7470
6
HEAT CONTROL KNOB
2
87049
87049
HEAT CONTROL KNOB
87049
7
# 0 X 3/8 P/H SMS TYPE B
6
52277
52277
52277
8
FENCE GLIDES
(Plastic)
4
8505
8505
7374
9
DRIP PAN
85097
8504
85097
0
BOTTOM COVER
85020
85048
7359
GLIDE
4
47328
47328
47328
2
SCREW, 0
-
24 X 3/4 HXHD
4
4 3 4
4 3 4
4 3 4
3
CRUTCH TIP BLACK 70 DURO
4
49 23
49 23
49 23
11, 12, 13
10
9
1
2 3
7
5
8
6
4
Bottom View
Exterior View (Model 8161
F
s own for reference)

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 11
gmpopcorn.com

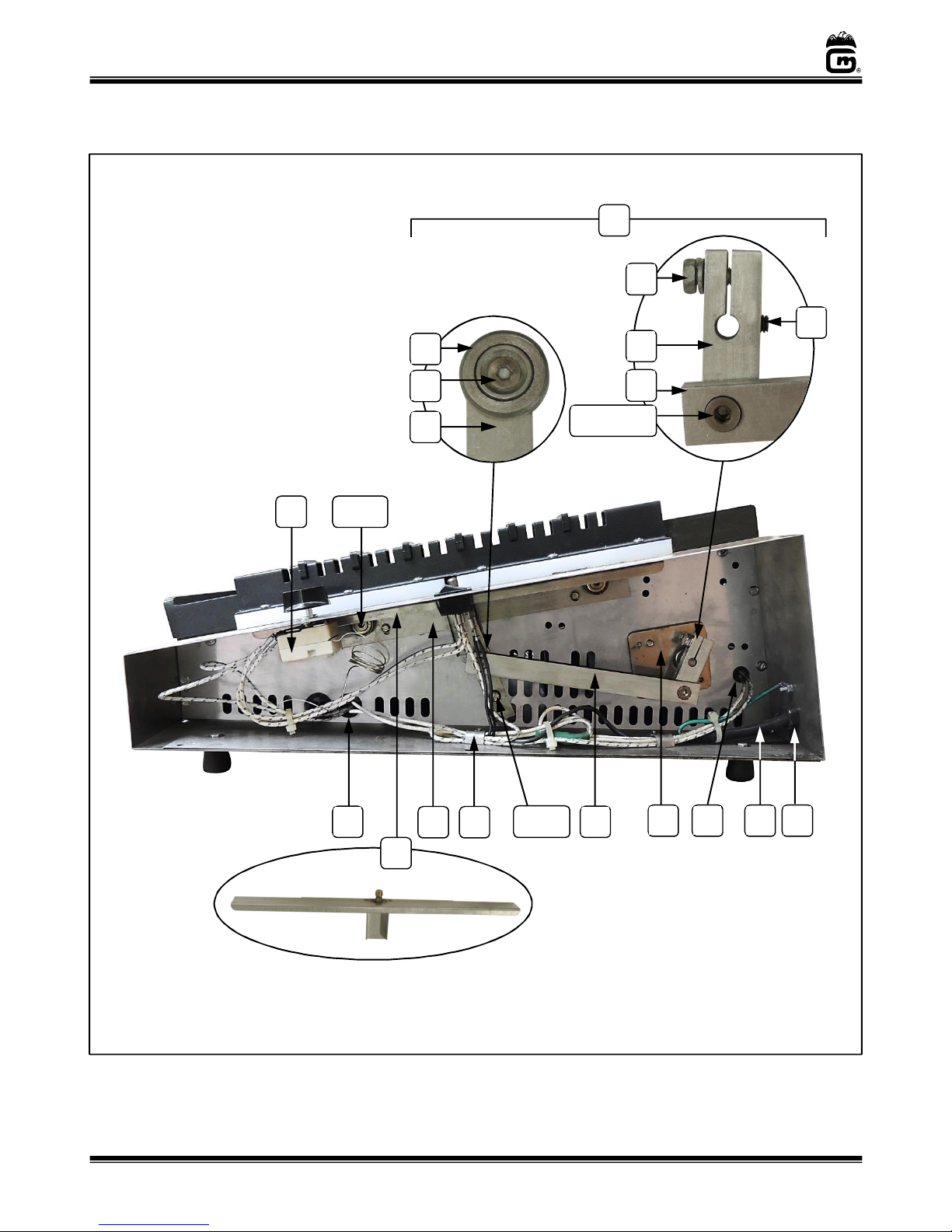

Cabinet Interior - Control View
5 9
22 24 25 23
Interior
-
Control View
(Model No. 8162 s own for reference)
13
12
14
18, 19, 20
16
15
21
17
9
2, 3, 4
7
1
10, 11
8
6

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 12
gmpopcorn.com
Cabinet Interior - Control View
Item Part Description Qty.
Part Number
8160
F
8161
F
8162
HEAT CONTROL
2
85002
85002
HEAT CONTROL
85002
2
BALL BEARING 8X22X7
4
85 36
85 36
85 36
3
AGITATOR BRG HUB
4
43434
43434
43434
4
5/ 6 SPACER
4
85 37
85 37
85 37
5
SNAP BUSHING
2
45396
45396
45396
6
INNER SLIDE WELDMENT
2
85024
85024
85024
7
OUTER SLIDE W/STUDS
2
85 38
85 38
85 38
8
U CLIP
2
552 5
552 5
552 5
9
DRIVE ASSY (Complete assembly includes
items 0-22 below) 69700 69702 7355
0
CROSS BAR
6986
6970
6986
FLANGED BUSHING
2
85008
85008
85008
2
ROLLER BEARING
2
69704
69704
69704
3
# 0
-
24 FLAT SOCKET HEAD S
2
69706
69706
69706
4
DRIVE LINK
2
69859
69859
69859
5
/4
-
20 X 3/4 GRADE 5 BOLT (w
Lock
Washer)
3
74520
74520
74520
6
MOTOR LINK
69860
69860
69860
7
DRIVE BAR
69858
69858
7356
8
AGITATOR BRG HUB
2
43434
43434
43434
9
FLANGE BUSHING
2
69862
69862
69862
20
0
-
32 X .875 PH FLAT M/S
2
289
289
289
2
/4
-
20 X 3/8 SET SC
3
69703
69703
69703
22
MOTOR PLATE REPLACEMENT KIT
85 35
85 35
85 35
23
SNAP BUSHING
47236
47236
47236
24
LEAD
-
IN CORD 5 AMP PLUG
87085
87085
87085
25
STRAIN RELIEF SR7W
-
2
67060
67060
67060

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 13
gmpopcorn.com
Cabinet Interior - Element View
10
8
7
1 2 3
4
5
6
9

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 14
gmpopcorn.com
Cabinet Interior - Element View Parts List
Item Part Description Qty.
Part Number
8160
F
8161
F
8162
ELEMENT CLAMPS
4
85027
85027
85027
2
BULB COVER
2
85028
85028
BULB KEEPER
2
74
3
0
-
32 X /4 PHIL PAN M/S
2
25 3
25 3
25 3
4
HEAT ELEMENT, 860W
2
85 08
85 08
850W HEAT ELEMENT
2
85 0
5
ELEMENT CLAMPS
4
85040
85040
85040
6
BAFFLE PLATE
85
85 2
7370
7
CROSS BAR
6986
6970
6986
8
FLANGED BUSHING
2
85008
85008
85008
9
MOTOR SHIELD
85060
85060
7369
0
MOTOR
7477
7477
7477

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 15
gmpopcorn.com
WIRING DIAGRAM
Model No. 8160F and 8161F

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 16
gmpopcorn.com
Model No. 8162

Fence Grills Model No. 8160, 8161, and 8162 Series
Page 17
gmpopcorn.com
© 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241
-
4807 USA
gmpopcorn.com
Phone:
(800) 543
-
0862
Fax:
(800) 542
-
1496
[phone] [phone]
