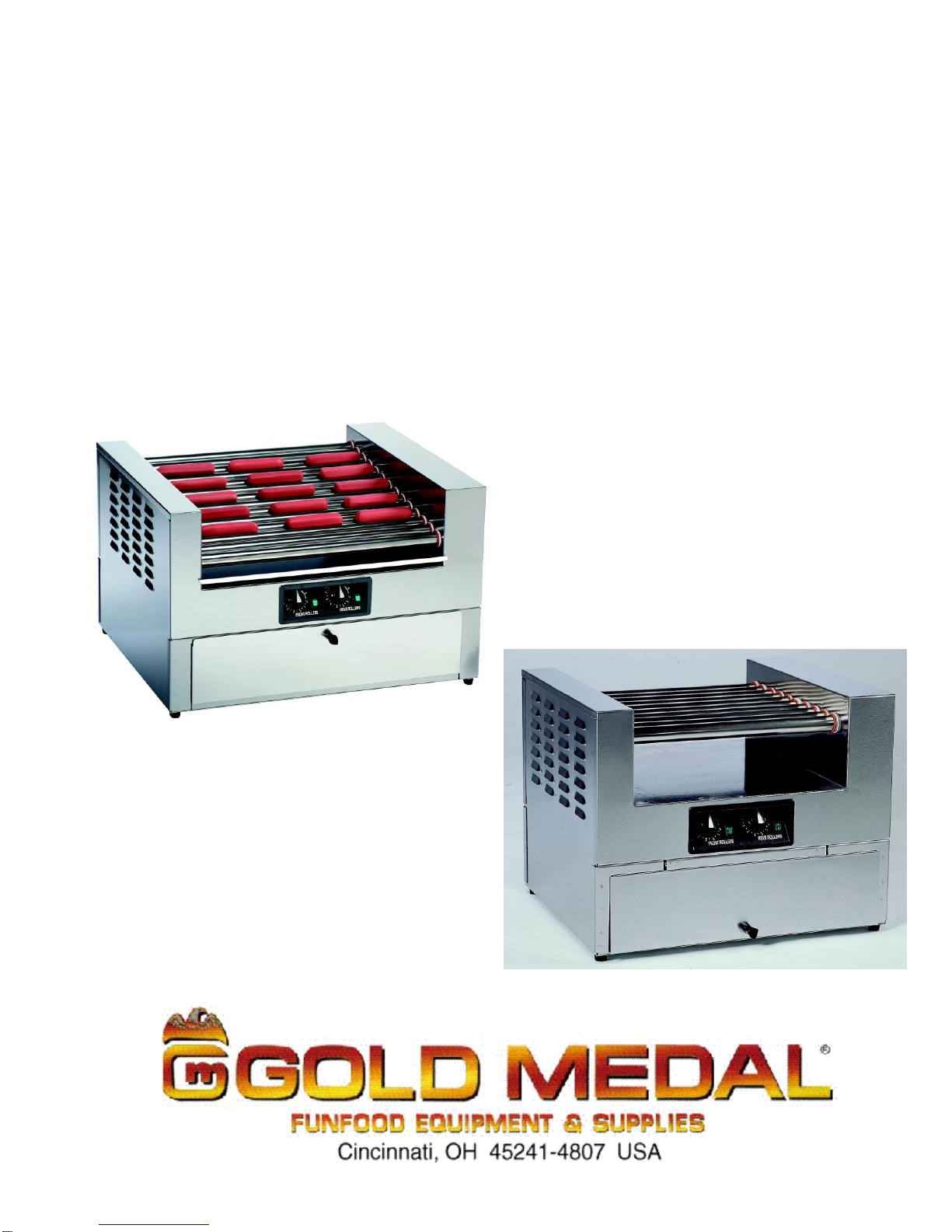

Goldmedal 8322EX User manual

Part No. 88198EX
Cabinet Combo
Instruction Manual
Roller Grill Bun
Model #8322EX, #8324EX, #8324SLX,
#8323EX, #8323SLX, #8423EX
Model #8423EX
Model #8324EX

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
2
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
3
SAFETY PRECAUTIONS (CONTINUED)
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Note: Improvements are always being made to Gold Medal’s equipment. This information may
not be the latest available for your purposes. It is critical that
you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any
questions about your machine operations, replacement parts, or any service questions.
(Gold Medal Products Co. does not assume any liability for injury due
to careless handling and/or reckless operation of this equipment.)

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
4
FORWARD
This manual covers the model ROLLER GRILL BUN CABINET COMBOS.
You can be very proud of your ROLLERGRILL / BUNCABINET COMBO. In addition to being an attractive
"eye catcher", it contains various engineering innovations which make it the leader in the industry. The
exterior of the machine is designed and built-up to present an attractive appearance for many years.
INSTALLATION
INSPECTION OF SHIPMENT
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be
filed immediately with the transportation company. The warranty does not cover damage that occurs in
transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it
is beyond our control (reference warranty in back of manual).
MANUAL
Read and understand the operator’s manual and all other safety instructions before using this equipment.
To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Setup
This unit has been tested at the factory. Remove all packaging and tape prior to operation. Place unit on a
sturdy, level base.

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
5
ELECTRICAL REQUIREMENTS
8322EX:230 V~, 550 W, 50 Hz.
8323EX, 8323SLX, 8324EX, 8324SLX,: 230 V~, 1000 W, 50 Hz.
8423EX:230 V~, 1310 W, 50 Hz.
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
Your electrician must furnish sufficient power for proper machine operation. We recommend this equipment
be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in
damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged
directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may
cause sacrificed and/or reduced performance. Make sure cord is located to prevent a trip hazard or unit
upset.
Before You Plug In Machine
1. Make sure all machine switches are in the OFF position before plugging the equipment into the
receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the power supply
cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect
the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install the unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
6
OPERATING INSTRUCTIONS
CONTROLS AND THEIR FUNCTIONS
ON/OFF SWITCH
Flipping this switch to the "ON" position energizes the motor that turns the rollers. This switch can be used
alone or with the heat turned on.
HEAT CONTROL
Turning this control counter-clockwise increases the amount of heat to the rollers.
THERE ARE TWO SETS OF THESE CONTROLS, ONE FOR EACH SET OF ROLLERS

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
7
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water.
Always unplug the equipment before cleaning or servicing.
025_020314
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of
advertising your product.
Follow the directions below to clean and sanitize the unit each day after use.
1. With the machine OFF, unplug the unit and allow it to cool before attempting to clean.
2. Remove any remaining hot dogs from the rollers.
3. Clean all rollers using a soft cloth dampened with a mild soap and hot water.
DO NOT use oven cleaners or abrasive materials (e.g. steel wool or abrasive pads) on
non-stick roller assemblies; ONLY clean with a soft cloth dampened with a mild soap and
hot water.
4. Remove the drip pan/accessories and clean thoroughly with mild soap and hot water.
5. Clean the outside of the unit using a soft cloth dampened with a mild soap and hot
water.
Wipe stainless steel parts with a clean cloth and cleaner designed for stainless steel,
such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088).
DO NOT use oven cleaners or abrasive materials as they will damage parts of the
machine.
6. Dry the unit completely with a soft, dry cloth.
7. When unit is dry, reinsert the drip tray beneath the rollers.

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
8
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
9
Ordering Spare Parts
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list.
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located on the
machine nameplate/data plate) with your order.
5. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or, place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [e-mail]
Web Page: gmpopcorn.com

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
10

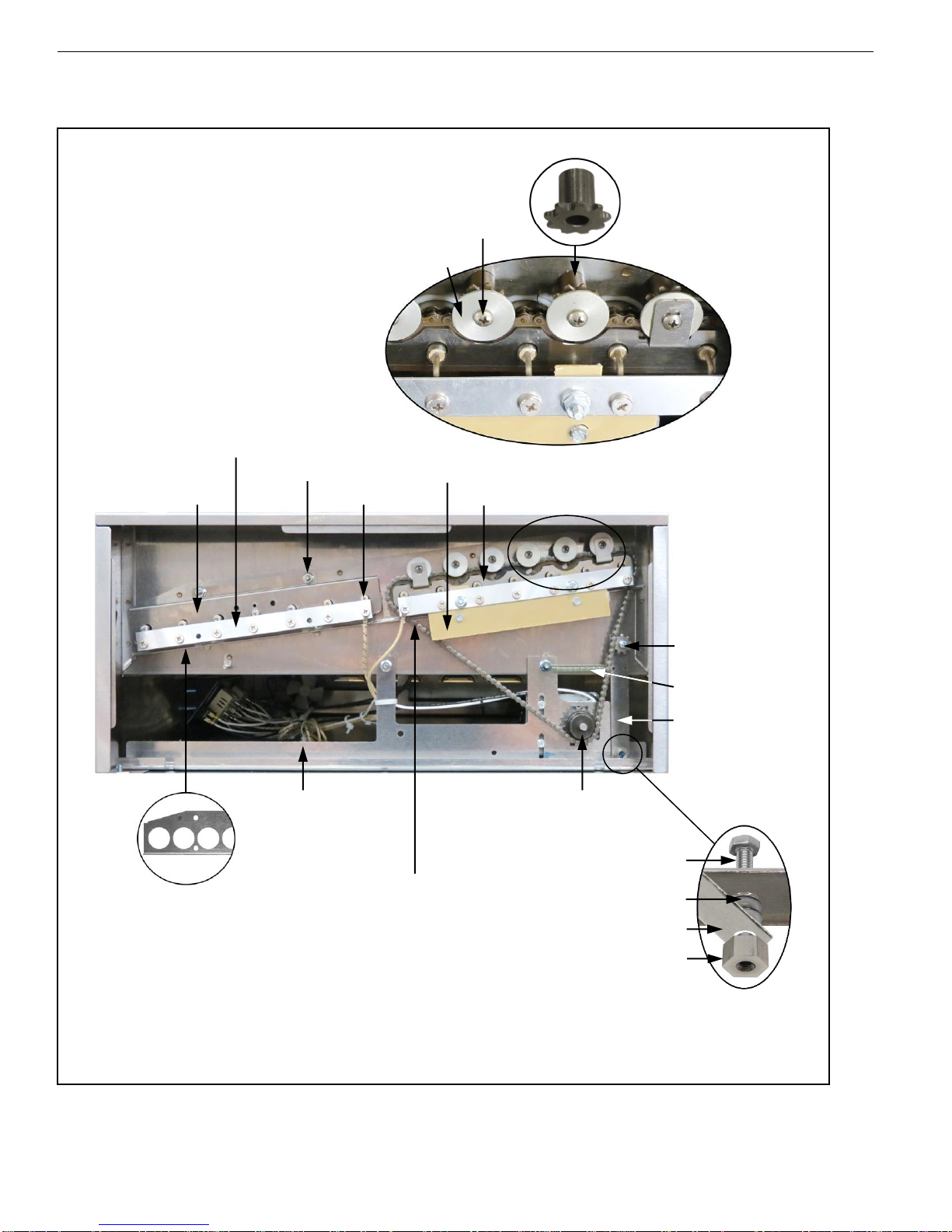

Cabinet Interior –Right Side
General image shown for parts reference only.
(Number of rollers and roller angle may vary.)
8225
Positraction Sprocket
Located behind
Outer Retainer
Outer Retainer
8-32 X 1 Screw
Heat Element
Tube Cover Plate
(Non-Drive End)
Conductor Plate
Tube Cover Plate
(Drive End)
Insulator
Board
10-32 Lock Nut
RH Idler Brkt
Idler Pivot
10-32 X 1/2 UNSL HX M/S
#10 Flat Washer S.S.
Idler Sprocket
8-32 X ¾ Phil Pan
Spring
RH Idler Bracket
Assembly
Mounting Bracket
Upper Drive Chain;
Master Drive Chain Link
(Order a Master Link for each
Drive Chain being ordered.)
Drive Sprocket
Motor Mounting
Bracket

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
11
PARTS LIST
8322EX 8324EX 8323EX 8423EX 8424EX 8324SLX 8323SLX
Part No Part No Part No Part No Part No Part No Part No Description
~~~ 87933 87933 88171 88171 87933 87933 Outer Chain Guard
~~~ 87934 87934 88172 88172 87934 87934 Inner Chain Guard
88522 88224 88224 88169 88169 88224 88224 Assembly Mounting Bracket
111252 111252 111252 111868 111868 111252 111252 Tube Cover Plate, Drive End
111253 111253 111253 111869 111869 111253 111253 Tube Cover Plate, Non-Drive End
88194 88194 88194 88166 88166 88194 88194 Insulator Board
87898 87898 87898 88165 88165 87898 87898 Conductor Plate
88283 88142 88184 88185 88377 88142 88184 Bottom Plate
88275 87606 87646 88164 88363 87606 87646 Drip Pan
88103 88103 88103 88103 88103 88103 88103 Control Panel Sticker
88273 87376EX 88123EX 88123EX 87376EX 87376EX 88123EX Heat Element
88345 88149 88149 88181 88300 88149 88149 End Cover
~~~ 87531EX 87531EX 87531EX 87531EX 87531EX 87531EX Drive Motor CW
87532EX 87532EX 87532EX 87532EX 87532EX 87532EX 87532EX Drive Motor CCW
42532 42532 42532 42532 42532 42532 42532 DSPT Rocker Switch
42369 42369 42369 42369 42369 42369 42369 Lead In Cord
87589 87589 87589 87589 87589 87589 87589 Teflon Bearings
87301 87301 87301 87301 87301 87301 87301 Heat Control
87353 87353 87353 87353 87353 87353 87353 Dirve Sprocket
88291 88231 88232 88232 88231 88231 88232 Roller Assembly
87511 87511 87511 87511 87511 87511 87511 O-Rings
~~~ ~~~ ~~~ 88192 88192 87591 87591 Upper Drive Chain
~~~ ~~~ ~~~ 88191 88191 87590 87590 Lower Drive Chain
88274 87591 87591 ~~~ ~~~ ~~~ ~~~ Drive Chain
88228 88228 88228 ~~~ ~~~ 88228 88228 Outer Retainer
~~~ 88229 88229 ~~~ ~~~ 88229 88229 Inner Retainer
77521 77521 77521 ~~~ ~~~ 77521 77521 8-32 x 3/4 Slot HX HD
87988 87988 87988 ~~~ ~~~ 87988 87988 Idler Sprocket
8000 8000 8000 8000 8000 8000 8000 1" Dial Thermometer
38389 38389 38389 38389 38389 38389 38389 Knob, Control
87044 87044 87044 87044 87044 87044 87044 Master Link
88347 87595 87595 88170 88170 87595 87595 Motor Mounting Bracket
87594 87594 87594 87594 87594 87594 87594 Motor Plate
88286 88145 88177 88178 88376 88145 88177 Body Weldment (Bun Cabinet)
88284 88139 88183 88183 88143 88139 88183 Door (Bun Cabinet)
87682 87125 88193 88193 88146 87125 88193 Pivot Pin (Bun Cabinet)
88282 88138 88179 88179 88378 88138 88179 Drawer (Bun Cabinet)
88151 88151 88187 88187 88187 88151 88187 Drawer Slide (Bun Cabinet)
88152 88152 88152 88186 88186 88152 88152 Drawer Slide Bracket

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
12
WIRING DIAGRAM
Models #8324EX, #8324SLX, #8323EX, #8323SLX

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
13
WIRING DIAGRAM
Models #8423EX

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
14
WIRING DIAGRAM
Models #8322EX

Export Roller Grill Bun Cabinet Combo
8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX
15
© 2016 –The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
gmpopcorn.com
Phone: [phone] Fax: [phone]
[phone] [phone]
