INTRODUCTION
The MX-1004PF Professional Quad-View Video Processor is an advanced video processor for
multimedia presentations. It is an ideal solution for applications where up to four video signals must be
displayed on a single display. It supports up to 16 video inputs, of which four can be outputted simultane-
ously with the desired display layout through software control. The advanced video processor allows you
to manipulate output images, wherever positions and whatever sizes you want for viewing two computers
or two video signals or a combination.
The embedded scaler converts signals from input sources to match the native resolution of monitors,
flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). Dual
outputs are provided in both analog (VGA) and digital (DVI) format, one is connected to remote display
and the other is connected to on-site display for real time monitoring.
1

FEATURES
●Support six most popular video formats: four VGA, four DVI/HDMI, four component, four S-Video and
four composite inputs!
●Input resolution support from 640x480 to 1920x1200, interlaced or progressive.
●DVI 1.0
●Support HDCP 1.1
●Dual outputs (DVI / VGA), 640x480 to 1920x1200.
●Video background available.
●Adjustable size& position through software.
●Dynamic transition for video sizing and positioning
●Titles, borders and colored backgrounds.
●Resize, position, zoom& pan and blend output video.
●Image parameters and layouts are automatically saved in flash memory and can be recalled for later
use.
●Several Image parameters and layouts can be saved in computers and can be loaded for later use.
●Video parameters adjustable (brightness, contrast, color temperature, etc.).
●User-selectable output settings, up to 1920x1200.
●Perfectly as a video screen splitter, a video converter and a video switcher.
●Firmware upgradable for support of new features and technology enhancements.
●Software control through RS-232/RS-485 over Cat-5.
●Can be cascaded to obtain more images using RS-485 control path
●Control protocol available for customer proprietary design
●1U size.
PACKAGE CONTENTS
●1x MX-1004PF ●4x DVI to DVI & VGAbreakout cable
●4x VGA to component breakout cable ●4x S-Vedio & Composite breakout cable
●4x DVI to VGA adapter ●1x USB to RS-232 cable
●2x 1U rack mounting-ear ●1x Installation software CD
●1x ULAC power cord ●1x User manual
●1x IR Remote
2

SPECIFICATIONS
Model Name
MX-1004PF
Technical
Role of usage Multiplexer / video processor
Dual output support Yes [DVI & VGA]
Background video input Yes
HDCP compliance Yes
Video bandwidth DVI/HDMI[Single-link 4.95Gbps] VGA[165MHz]
Component [30MHz] Composite [13.5MHz] S-Video [13.5MHz]
Video support
480i / 480p / 720p / 1080i / 1080p60 / 1920x1200@75 / 1600x1200@60
Audio support
No
Control
RS-232 and RS-485
Embedded video mixer Yes
Cascadable Yes
Input TMDS signal
1.2 Volts [peak-to-peak]
ESD protection Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
PCB stack-up
6-layer board [impedance control — differential 100
Ω
; single 50
Ω
]
Input 4x VGA + 4x DVI + 4x HDMI + 4x component + 4x composite +
4x S-Vudeo + 1x RS-232 + 1x RS-485
Output 1x DVI + 1x VGA
DVI connector DVI-I [femal,29-pin]
S-Video connector 9 pin
VGA connector HD-15 [15-pin D-sub female]
RS-232 connector DE-9 [9-pin D-sub female]
RCA connector 75Ωfemale
RJ-45 connector WE/SS 8P8C with 2 LED indicators
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model 300 x 440 x 44mm [11.8”x1’5.3”x1.7”]
Package 310 x 525 x 155mm [1’0.2”x1’8.7”x6.1”]
Carton 570 x 580 x 260m [1’10”x1’10.9”x10.2”]
Weight Model 2.9kg [6.4 lbs]
Package 5kg [11.1 lbs]
Fixedness 1RU rack-mount with ears
Power supply AC Power 100-240V
Power consumption 35 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
3

PANEL DESCRIPTIONS
The MX-1004PF has 16 inputs and accepts both graphics and video signals, which come from
computers (DVI or VGA), composite, and component video sources respectively. You can pick up four of
the ten inputs and then display four of them simultaneously on the same screen. Figure 2 shows the rear
panel connectors of a MX-1004PF and Table 1 illustrates how you can connect video devices and display
to the MX-1004PF.
Rear Panel
TABLE 1: I/O CONNECTORS
Input Connector Video Source
DVI-x
YPbPr-x/VGA-x
CVBS-x
S-Video-x
[x = 1~4]
[1] DVI
[2] VGA — with a DVI-to-VGA adapter (DVA01)
[3] Component (YPbPr) — with a DVI-to-VGA adapter (DVA01) and a
VGA-to-component breakout cable (VYPBA01)
[4] CVBS
[5] S-Video
Output Connector Display
DVI-I OUT
[1] DVI display
[2] VGA display — with a DVI-to-VGA adapter (DVA01)
[3] 1x DVI display + 1x VGA display — with a DVI to DVI&VGA breakout cable
(DDVY01)
*Turn on the MX-1004PF then switch the circled DIP switche simultaneously up and down
to factory default mode.
*These IO ports support various resolution from 640x480 up to 1920x1200,for more detail
of the supported modes, please refer to the Appendix –Supported Resolution.
4

C
S
e
[
M
Y
o
2 3
9
1
10
8
C
O
N
e
lecting PI
P
M
ain Win
d
o
u can cho
o
4 5
8
1
N
TR
O
P
Window A
r
d
ow with
o
se one of t
h
2
9
O
L
P
PAP Full S
c
Input Sele
c
Function k
e
Function k
e
Function k
e
r
rangemen
t
3 triple
s
h
e followin
g
1.
2.
3
1
10
P
AN
E
c
reen
c
t
e
y: Input Si
g
e
y: Setting
e
y: Layout
1
t
s
ub-wind
o
g
window a
r
To cancel t
4 5
1
1 1
2
6
11
12
13
E
L
A
g
nal
1
o
ws asid
e
r
rangemen
t
select a ty
p
B
B
B
he operatio
n
2
1
3
6
1
5
147
A
ND
e
]
t
from 4 pre
p
e by pressi
n
B
_top: press
U
B
_right: pres
s
B
_btm: press
D
B_left: press
L
n
, press [ LA
Y
7
3
14
5
VF
D
Funct
i
Funct
i
Infrar
e
Navig
a
sets
n
g accordin
g
U
P
s
RIGHT
D
OWN
L
EFT
Y
OUT 1] ag
a
15
D
M
i
on key: La
y
i
on key: N/
A
e
d Senso
r
a
tion
g
button whil
e
a
in
EN
U
y
out 2
A
e
VFD
5
U

6
To cancel the operation, press [ LAYOUT 2] again
display prompts
B_top : press UP
B_btm : press DOWN
B_left : press LEFT
B_right : press RIGHT
[Quad Windows in crisscross + 3 user-defined custom
1.
2.
select a type by pressing according button while VFD

IR REMOTE CONTROL
MX-1004PF ships with a compact remote control that allows for direct access to most commands
used to control the video processor.
IR Remote Button Define
Power Button Power ON/OFF the device
Cross-Layout Set PAP layout to default layout (cross type )
Side-Bar Layout
Set PAP layout to default layout (Side-Bar
type )
Input CH2 Set channel 2 to be focus channel
Right Button Menu button
Input CH4 Set channel 4 to be focus channel
Up Button Menu button
PAP Full Screen Move to the left titles
Down Button Menu button
Input CH1 Set channel 1 to be focus channel
Left Button Menu button
Input CH3 Set channel 3 to be focus channel
Custom Layout4 Set PAP layout to custom position and size
Custom Layout8 Set PAP layout to custom position and size
Custom Layout3 Set PAP layout to custom position and size
Custom Layout7 Set PAP layout to custom position and size
Custom Layout2 Set PAP layout to custom position and size
Custom Layout6 Set PAP layout to custom position and size
Custom Layout1 Set PAP layout to custom position and size
Custom Layout5 Set PAP layout to custom position and size
CH4 Source Change channel 4 input source
CH3 Source Change channel 3 input source
CH2 Source Change channel 2 input source
CH1 Source Change channel 1 input source
D Button Reserve
C Button Reserve
B Button Reserve
A Button Reserve
7

HARDWARE INSTALLATION
Safety Precautions
1. To prevent fire or shock hazards, do not expose this device to rain or moisture.
2. When connecting other products such as DVD players, and personal computers, you should turn off
the power of this product for protection against electric shocks.
3. The product should be placed more than one foot away from heat sources such as radiators, heat
registers, stoves, and other products (including amplifiers) that produce heat. In addition, do not cover
any material or devices on the top of the device.
4. Do not use immediately after moving from a low temperature to high temperature, as this causes
condensation,
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
injury to a child or adult and serious damage to the product.
6. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
7. Do not allow the same still picture to be projected for a long time or an abnormally bright video picture
to be projected. The video image could be burned in to the display device.
Installation Procedures
Unpacking
Remove the MX-1004PF from the shipping container and examine it for any signs of shipping
damage or missing items (check with package contents above). All shipping items should be saved if the
product is to be moved or returned for service. Shipping unit back to dealers for service not in the original
box may result in voiding warranty or additional cost.
Placement
The unit uses convection to cool. A fan is not needed, so do not block the sides of this device or
stack another device on the top or bottom of the MX-1004PF.
Connections
We recommend the highest quality cables for both input and output connections.
1. Switch off the MX-1004PF and all devices that you want to connect.
2. Connect a monitor, a projector or other displays that comes with DVI / VGA inputs by using 1
male-to-male DVI (VGA) cable to MX-1004PF DVI output (you can connect 2 displays equipped with
DVI and VGA respectively by a DVI to DVI&VGA breakout cable (DDVY01)).
3. Plug in DVI to DVI&VGA breakout cable (DDVY01) to DVI-YPbPr-VGA-x and plug in VGA to
component adapter (VYPBA01) to the VGA connector of the breakout cable.
4. Connect a device equipped S-Video & CVBS through S-Video & CVBS breakout cable.
5. Connect a device equipped with DVI output (such as PC) to the DVI connector of the breakout cable.
6. Connect a device equipped with component video output (YPbPr such as DVD player or camera) to
the 3-RCA jack of the VYPBA01.
7. Connect a device equipped with VGA output (such as laptop) to the VGA connector of MX-1004PF.
8. Connect a device equipped with composite video output to composite input of the MX-1004PF.
9. Connect your computer with the MX-1004PF by a 9-pin RS-232 cable and then install the software.
10.Plug in AD power cord into AC power socket.
11.Execute the control software and establish the connection between PC/Laptop and MX-1004PF.
12.For detailed software control operation, please refer to the software instruction section.
8

OPERATION SOFTWARE
System Requirement and Precautions
1. The MX-1004PF provides a software control program, Quartet, which runs under Microsoft Windows
98, 2000, XP, Vista through the interface of RS-232 serial control.
2. Before you click on the icon of the software, make sure you have secured the connection between
your computer COM port and the MX-1004PF and switched on the MX-1004PF with green LED light.
Instruction of Software Connection
1. Power up the MX-1004PF and you can see VFD on the front panel blink. Make sure the serial port
mode is right for your setting. RS-232 mode: , RS-485 mode: or .
2. The first step after running the software is to automatically link (By last COM port setting) if the device
responses correctly through RS-232, it will start application normally, otherwise the dialog will show
up. You can click the “scan” button to get detail information. The information will help you choose the
correct COM port and Device ID. After set the correct COM port and ID, you can select “Linkage” and
click “Execute” button. When the MX-1004PF is correctly connected, you can close the Linkage
dialog. If the serial connection is well established, you can see work main control console as below.
.
9

Definitions of Menu Buttons and Icons
The software has following menu options available:
Fast Linkage
This button will update software GUI for device state
Output Resolution
Supported Mode
Resolution
Supported Mode
Resolution
HDTV 720p
1280x720 @ 60Hz
VESA
1280x768 @ 60Hz
HDTV 1080p
1920x1080 @ 60Hz
VESA
1366x768 @ 60Hz
VESA
800x600 @ 60Hz
VESA
1400x1050 @ 60Hz
VESA
1024x768 @ 60Hz
VESA
1600x1200 @ 60Hz
VESA
1280x1024 @ 60Hz
VESA
1920x1200 @ 60Hz
Background Color
Clicking on this button will show the color dialog for background color adjustment.
2
3
4
5
7
8
1
6
1
2
3
9
10
10

Background Setting
MX-1004PF offers the video background to make this advanced unit actually working like 5
channel video mixer! The default background video must work as full screen! Users can choose
between color and video background through the following control window. Click on this button will
show the dialog for output resolution, background color and background channel setting.
We recommend not changing Serial Resolutions.
Only INPUT 4 can be used as “Background Channel”
Border Settings
Allows you to enable Border and enter Custom Text for Labels each Input Source.
4
5
11

Display / Layout Mode
Set signal channel full screen or all channel Notice that the input sources will not be changed in
Software.
Default Layouts
There are 5 pre-configured layouts available from Control Software, IR Remote Control or Front
Panel Buttons.
-Panel Cross
-Panel Right – Type
-Panel Left – Type
-Panel Top – Type
-Panel Bottom - Type
6
12

Panel Cross
Panel Right – Type
Panel Left – Type
13

Panel Top – Type
Panel Bottom – Type
Focus Input
Select which Input Source should stay in focus when “Layouts” are selected
Save and Set Custom Layouts
Save up to 8 Custom Layouts and Set them using Control Software, Front Panel or IR Remote Control.
Input Signal which is selected at “Focus Input” will be displayed as Main Video Sources.
14

Layout Control Size
Set layout control size in Software by percent.
If you enable Fixed Stretch, Aspect Ratios are kept with each Input layout is changed.
Layout Control
Create different Layouts by Drag and Drop. You can use “Fixed Aspect Ratio” as described above
to retain Aspect Ratio of source image.
Preview Window
Shows preview Window of Layouts
Input Channel Selection and Customization
In this section you can Select Input Channel, Input Signal, Channel Window Visible, Blend
Settings, Custom Height, Custom Width, Color Brightness, Contrast, Saturation, Hue, Red, Green,
Blue, Color Balance andAuto Configuration.
[Input Selection]
Select “Focus Input” from drop down menu or by Clicking on Main Layout Window.
Click on “Input Signal”.
Select Correct “Input Signal” from drop down menu.
Once right Input Signal is selected, click on UP ARROW (Input Update) beside Focus Input to
update it on system memory.
7
8
10
9
15

[Size and Position]
Select on “Size / Pos”
Channel Windows Visible: You may uncheck
“Channel Window Visible” if you decide to not
show this Windows on screen
Blend: Change the value of Blending from
100% to 0%. This will allow you to overlay an
Input Source on other.
Custom Height and Width: If you have specific
requirement for Input Layout, you may adjust
them here.
16

[Color Setting]
Various options to change Brightness, Contrast,
Saturation, Hue, Red, Green and Blue are available on
each “Input Source”
[Color Balance and Auto Configure]
You may adjust Color Balance and Auto Configure them by selecting these options
SOFTWARE CONFIGURATION
Follow these steps to select right Output Resolution and Input Signal
•Once RS232 communication is setup properly, you should select Optimal “OUTPUT
Resolution” supported by your Display (TV or Monitor)
•Select correct “Input Signal” for each Input.
After Selecting right Input Signal, ensure to Click on “Input Update”
•Repeat above steps for each Input you have connected
•Select Layout Mode
•Select “Default Layouts” or create your own by dragging dropping
17

THE FIRMWARE UPDATE PROCESS

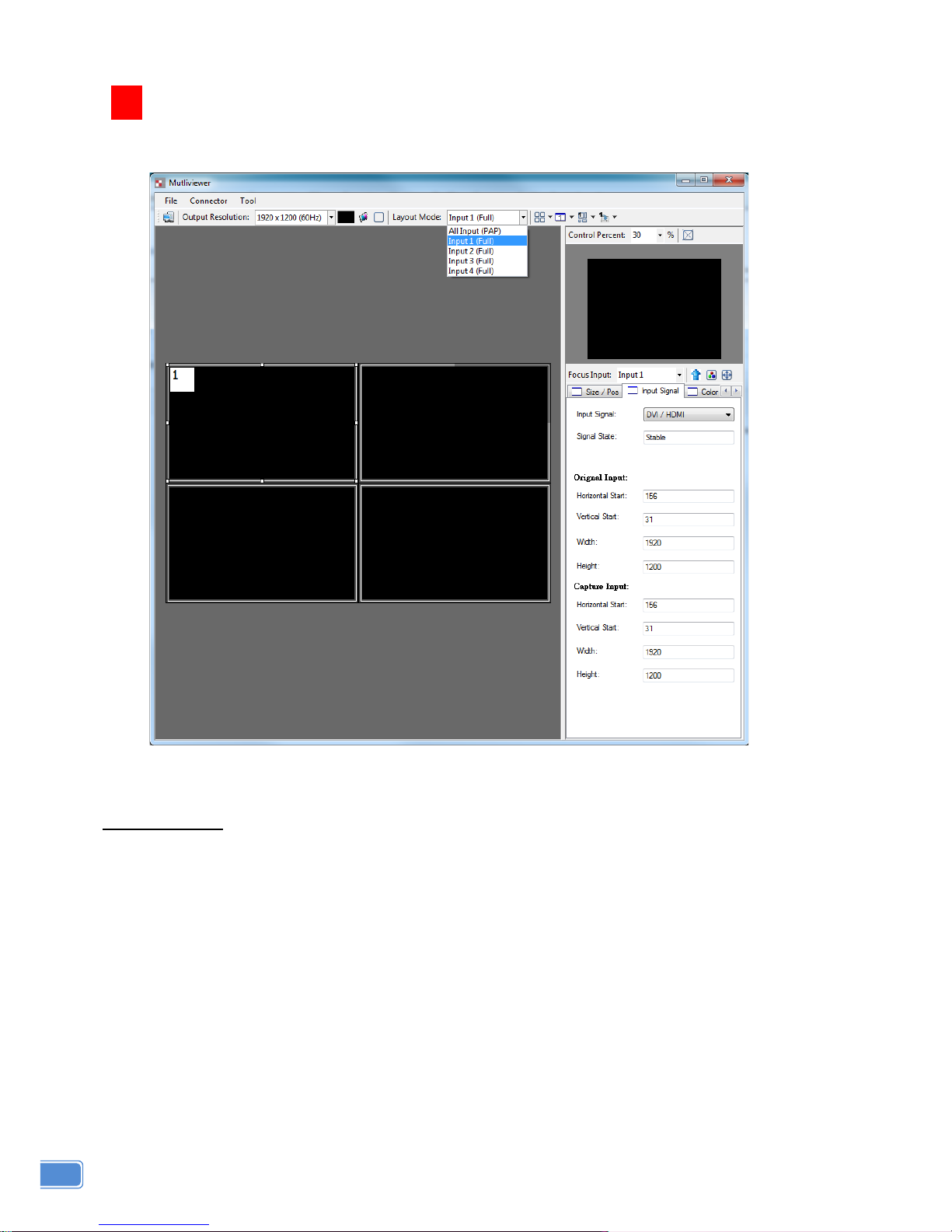

If your firmware is not newest, the control will display the dialog after link the device.
Please “Execute” botton to firmware update
Control Mdoule Update: Please follow the step to update the Control Module
18
