1x2 HDMI 2.0a Splitter with Built-in&
User Adjustable EDID Management
User Manual
rev: 180627
Made in Taiwan
SP-5002IZM

Safety and Notice
The SP-5002IZM 1x2 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management has
been tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the SP-5002IZM should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS ......................................................................................................1
SPECIFICATIONS ..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
HARDWARE INSTALLATION.............................................................................................4
CONNECTION DIAGRAM...................................................................................................4
NOTICE...............................................................................................................................5
WARRANTY........................................................................................................................6

1
INTRODUCTION
The SP-5002IZM 1x2 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management
provides the most cost effective and advanced HDMI splitter solution in the market, by which the high
definition video and high quality audio can be transmitted to 2 different locations without losing any
quality.SP-5002IZM also supports HDR and the true 4K2K video!
With built-in USB firmware update mechanism, the compatibility among countless HDMI sources
and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition
audio support, SP-5002IZM is suitable for high quality HDMI broadcasting, digital signage and education
applications!
FEATURES
● HDMI2.0a compliant
● Supports 4K2K@60 4:4:4 8bits
● Supports HDR1, which is 4K2K@60 4:2:0 10bits2
● HDCP 2.2 and 1.4 compliant
●Wide frequency range: 25MHz~600MHz
●Video bandwidth: 18Gbps
●Supports resolution downscaling from 4K2K to 1080P!
●Supports default EDID and EDID learning from display
●Supports xvYCC, x.v.Color& Deep Color
●Micro-USB firmware update for expanding compatibility
●Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
●Easy installation
PACKAGE CONTENTS
●1x SP-5002IZM
●1x DC 5V wall wart
●1x User Manual
1. HDR = High Dynamic Range.
2. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits
is 594MHz.
1. NOT supports
2. SP-5002IZM can bypass 4K HDR data content, but can NOT process it and make HDR content 100%
fit into 1080p
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P
(2) Frame rate conversion
(3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0

2
SPECIFICATIONS
Model Name
SP-5004IZM
Technical
Role of usage
1x2 Distribution Amplifier (Splitter)
HDMI compliance
HDMI 2.0a
HDCP compliance
HDCP 2.2 / 1.4
Video bandwidth Single-link 600MHz [18Gbps]
Video support
HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, LPCM
ESD protection
Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Firmware update
Feasible via Micro-USB port
Input
1x HDMI
Output
2x HDMI
HDMI connector
Type A [19-pin female]
Dip switch
EDID Mode selection
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
82 x 62 x 18mm[3.2" x 2.4" x 0.7" ]
Package
198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton
420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
Weight
Model
124g[4.4 oz]
Package
169g[6 oz]
Fixedness
Wall-mounting case
Power supply
5V 1A DC
Power consumption
3 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
1. Power LED:Lights on when device is ready
2. Micro-USB Port: Connect to 5V DC power supply unit
3. EDID MODE:
DIP Switch Position
Description
Off [] Off [] Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio
On [] Off [] Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio
Off [] On [] Full HD(1080p@60) – 12bit 3D video & 7.1ch audio
On [] On [] Learning EDID from output 1
4. Signal LED: Input signal LED indicator
5. HDMI IN: Connect to a HDMI input source
6. Signal LED: Output 1-2 signal LED indicator
7. HDMI OUT 1-2: HDMI outputs to HDMI displays [HDMI OUT1: EDID Learn Default]
Signal LED light on when device is connect to source and display.
*Automatic EDID learning will detect all the connected HDMI equipped monitors and
analyze all the content of EDID. The EDID with maximal resolution support will be the
reference EDID for incoming HDMI source players.

4
HARDWARE INSTALLATION
Broadcasts HDMI signal to 2 HDMI displays!
1. Switch off all devices, including monitors.
2. Connect to the displays.
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.
4. Plug in 5V DC power supply.
5. Power on the HDMI monitors.
6. Power on the HDMI source.
CONNECTION DIAGRAM

5

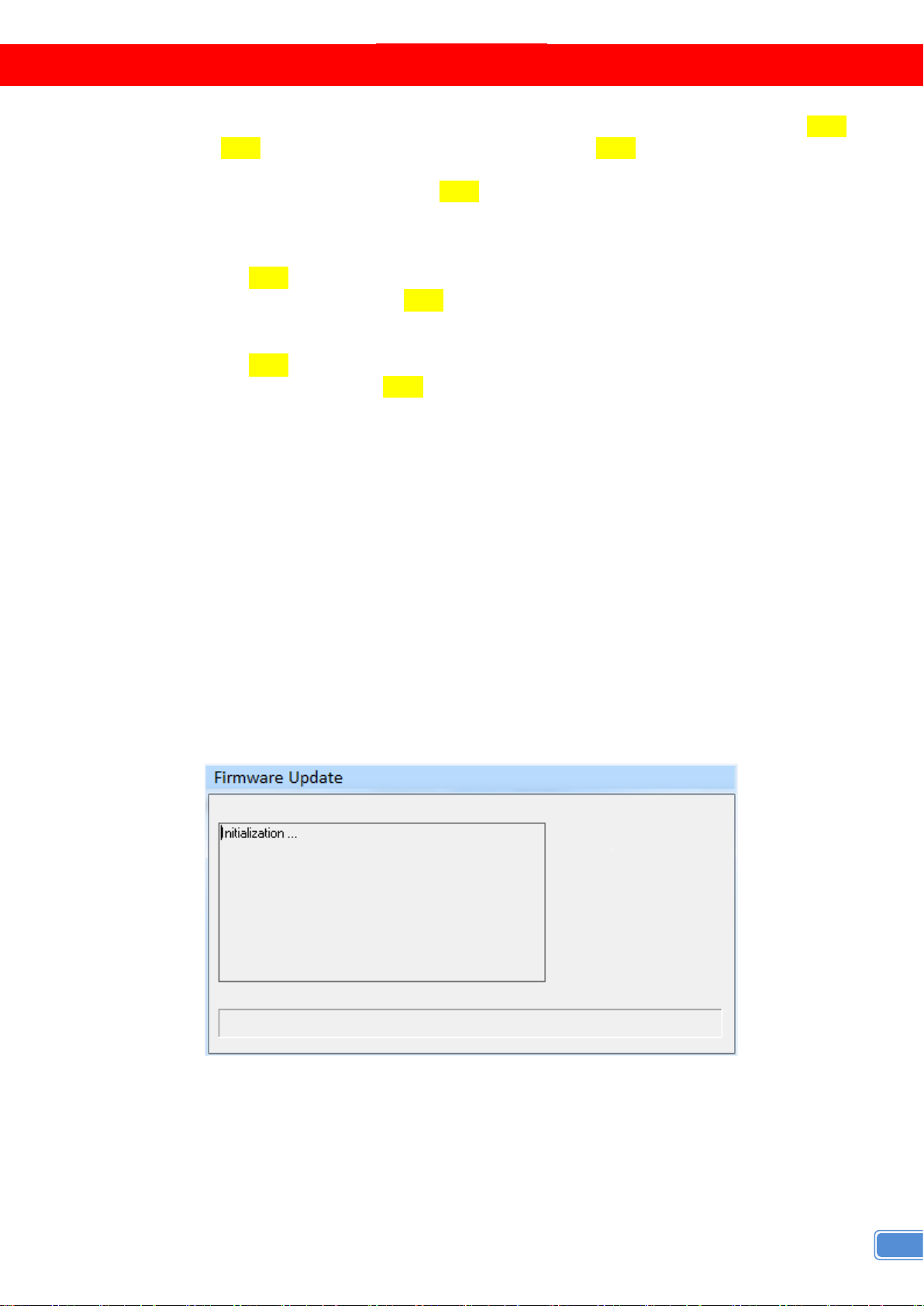

NOTICE
1. If somehow user cannot get video output, please try to adjust EDID dip switch to “[pin1, pin2] =[↑-↓]”
or “[pin1, pin2]=[↓-↓]” for trouble shooting. Under “[pin1, pin2]=[↑-↓]”, there will be video output.
The only requirement is that the display has to support at least Full HD. If default Full-HD EDID still
cannot work, user can switch to “[pin1, pin2]=[↓-↓]” to learn the EDID from output 1 to customize the
EDID information. (Please note that the display with lowest resolution must be connected to
output 1)
Select to [pin1, pin2]=[
↑
-
↓
] - Full-HD(1080p@60) – 12bit 3D video & 7.1ch audio
1) Set the rotary switch to “[pin1, pin2]=[↑-↓]”
2) Power on the device
Select to [pin1, pin2]=[
↓
-
↓
] – Learning EDID from output 1
1) Set the dip switch to “[pin1, pin2]=[↓-↓]”
2) Power on the device
3) It will automatically learn EDID from output 1
[NOTE]
a. If the user wants to change EDID mode, please power cycle the device after setting dip switch.
2. Firmware update is proceeded through Micro-USB.
1) Save the firmware file (.bin) & software in the same folder.
2) Connect the Micro-USB cable between PC and device
3) Open firmware update software and then device will start to update firmware automatically.
4) After update process is done, software will show “Success” message and then be closed
automatically.
5) Power cycle the device

6
WARRANTY
The SELLER warrants the SP-5002IZM 1x2 HDMI 2.0aSplitter with Built-in& User Adjustable
EDID Management free from defects in the material and workmanship for 1 year from the date of
purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order
within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit
has not been subjected to accident, disaster, abuse or any unauthorized modifications including static
discharge and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction
only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the SP-5002IZM features and specifications is
subject to change without further notice.
