Gomax SP-5104 User manual

1x4 HDMI Splitter with EDID Manager
User Manual
rev: 111125
Made in Taiwan
S
SP P- -5 51 10 04 4

The SP-5104 1x4 HDMI Splitter with EDID Manager has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the SP-5104 should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
SWITCH SETTING .............................................................................................................4
EDID LEARNING................................................................................................................4
HDMI PIN DEFINITION.......................................................................................................4
HARDWARE INSTALLATION.............................................................................................5
CONNECTION DIAGRAM ..................................................................................................5
WARRANTY .......................................................................................................................6

1
INTRODUCTION
The SP-5104 1x4 HDMI Splitter with EDID Manager allows you to distribute one HDMI/DVI video
sources up to 4 separate HDTV displays. This splitter offers the most flexible solution by which the high
definition video and high quality audio can be transmitted to different local locations through HDMI cables
and also to the next stage over a long distance without degrading the quality. The cascade ability allows
pure digital video and audio broadcast station by station and therefore make extending HDMI compliant
video and audio anywhere feasible. In addition, EDID management can allow you to switch setting
between different EDID quickly and flexibly.
FEATURES
●State-of-the-art Silicon Image (founder of HDMI) chipset embedded for upmost compatibility and
reliability
●Support HDMI Deep Color & 3D
●HDCP compliant
●HDMI 3D video support wide frequency range 25MHz-225MHz
●HDMI video distribution to up to 4 displays and cascade to another SP-5104
●Regenerates the HDMI signal
●Supports default HDMI EDID and has the ability to learn the EDID of displays
●Input up to 15m (50ft) using HDMI cables
●Outputs up to 15m (50ft) using HDMI cables
●Allows cascading
●Perfectly integrated with other HDMI over Cat.X series products
PACKAGE CONTENTS
●1x SP-5104
●1x DC 5V 4A in-line with C7 power cord
●1x User Manual

2
SPECIFICATIONS
Model Name
SP-5104
Technical
Role of usage
1x4 Distribution Amplifier (Splitter)
HDMI compliance
HDMI Deep Color & 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support
Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz]
Audio support
DTS-HD Master Audio, Dolby TrueHD
Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset —±2kV
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω
Input
1x HDMI
Output
4x HDMI
HDMI connector
Type A [19-pin female]
Switch number
4
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
195 x 110 x 27mm [7.7" x 4.3" x 1.1"]
Package
330 x 200 x 95mm [1'1" x 7.9" x 3.7"]
Carton
495 x 440 x 380mm [1'7" x 1'5" x 1'3"]
Weight
Model
600g [1.3 lbs]
Package
1250g [2.8 lbs]
Fixedness
Wall-mounting case with screws
Power supply
5V 4A DC
Power consumption
4 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3

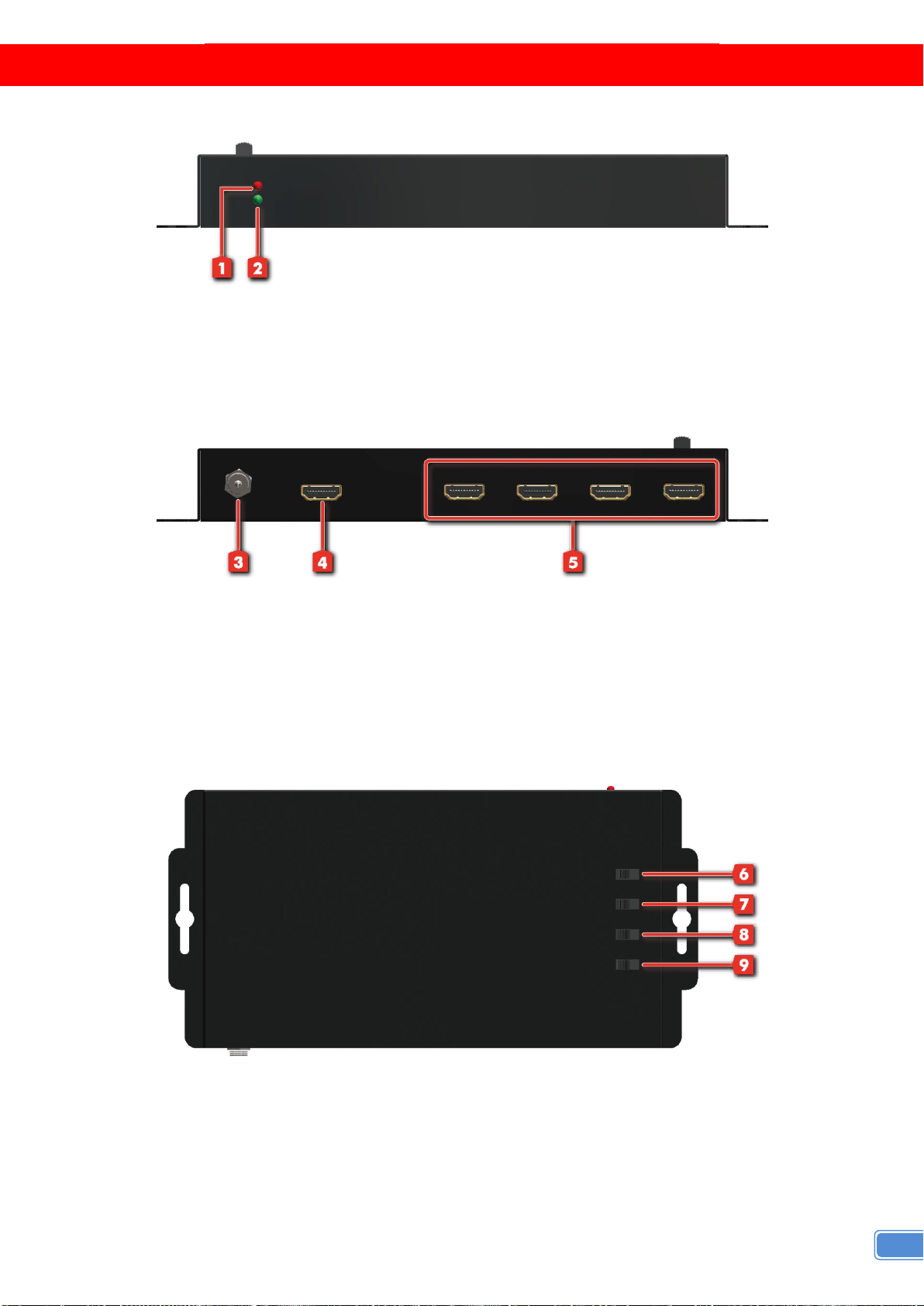

PANEL DESCRIPTIONS
Front Panel
1. Power: Power detection Indicator
2. Signal: Signal detection Indicator
Rear Panel
3. power +5V DC: connect to 5V 4ADC interlocking power adapter
4. HDMI INPUT: for cascading from HDMI source
5. HDMI OUT 1 ~ 4: for connecting to display through HDMI cable or through Cat-5e cable with our
HDMI over Cat-5e extender
Top Panel
6. SW1: EDID Mode
7. SW2: EDID - Full HD/HD Selection
8. SW3: EDID - Audio Selection
9. SW4: EDID - Output Format Selection

4
SWITCH SETTING
Left Position
Right Position
SW1
Default EDID
EDID Learning
SW2
Full HD
HD
SW3
Audio - Multi Channel
Audio - 2 Channel
SW4
12 bit (Deep Color)
8 bit
EDID LEARNING
1. Power up the SP-5104. Connect to HDMI OUT4 with the display you want the SP-5104 to learn its
EDID.
2. The SP-5104 is only bound to learn the EDID from the display for the HDMI source device connected
to HDMI OUT4.
3. To learn the display's EDID for source device connected to HDMI OUT4, Set SW1 to Right Position.
Power on and wait for about 5 seconds to complete the EDID learning process.
HDMI PIN DEFINITION
Type A (Receptacle) HDMI
Pin 1
TMDS Data2+
Pin 8
TMDS Data0 Shield
Pin 14
Reserved (N.C. on device)
Pin 2
TMDS Data2 Shield
Pin 9
TMDS Data0–
Pin 15
SCL
Pin 3
TMDS Data2–
Pin 10
TMDS Clock+
Pin 16
SDA
Pin 4
TMDS Data1+
Pin 11
TMDS Clock Shield
Pin 17
DDC/CEC Ground
Pin 5
TMDS Data1 Shield
Pin 12
TMDS Clock–
Pin 18
+5V Power
Pin 6
TMDS Data1–
Pin 13
NC
Pin 19
Hot Plug Detect
Pin 7
TMDS Data0+

5
HARDWARE INSTALLATION
1. Connect HDMI input to HDMI compliant sources (such as a Blu-ray Disc player)
2. Connect all HDMI outputs to the HDMI displays
3. Plug in 5V 4A DC power supply.
4. Power on the SP-5104
5. Power on the HDMI displays.
6. Power on the HDMI source(s).
CONNECTION DIAGRAM

6
WARRANTY
The SELLER warrants the SP-5104 1x4 HDMI Splitter with EDID Manager free from defects in the
material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its
option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modifications including static discharge and power surge. This warranty is
offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty
seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the SP-5104 features and specifications is subject to
change without further notice.
