Gomax SP-5004PZ User manual

1x4 HDMI 2.0a Splitter with EDID
Management
User Manual
rev: 150918
Made in Taiwan
SP-5004PZ

Safety and Notice
The SP-5004PZ 1x4 HDMI 2.0a Splitter with EDID Management has been tested for conformance
to safety regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the SP-5004PZ should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS ......................................................................................................1
SPECIFICATIONS ..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
HARDWARE INSTALLATION.............................................................................................4
CONNECTION DIAGRAM...................................................................................................4
NOTICE...............................................................................................................................5
WARRANTY........................................................................................................................6

1
INTRODUCTION
The SP-5004PZ 1x4 HDMI 2.0a Splitter with EDID Management provides the most cost effective
and advanced HDMI splitter solution on the market, by which the high definition video and high quality
audio can be transmitted to 4 different locations without losing quality. SP-5004PZ supports all 3D
formats and the true 4K2K video!
With built-in USB firmware update mechanism, the compatibility among countless HDMI sources
and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition
audio support, SP-5004PZ is suitable for high quality HDMI broadcasting, digital signage and education
applications!
FEATURES
● HDMI 2.0a compliant
● Supports 4K2K@60 4:4:4 8bits
● Supports HDR*, which is 4K2K@60 4:2:0 10bits**
● HDCP 2.2 and 1.4 compliant
●Wide frequency range: 25MHz~600MHz
●Video bandwidth: 18Gbps
●Supports default EDID and EDID learning from display
●Supports xvYCC, x.v.Color & Deep Color
●Mini-USB firmware update for expanding compatibility
●Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
●Allowscascading
●Easy installation
PACKAGE CONTENTS
●1x SP-5004PZ
●1x DC 5V2A wall wart
●1x User Manual
* HDR = High Dynamic Range.
** The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is equal to the 4K2K@60 4:4:4 8bits

2
SPECIFICATIONS
Model Name
SP-5004PZ
Technical
Role of usage
1x4 Distribution Amplifier (Splitter)
HDMI compliance
HDMI 2.0a
DVI compliance
DVI 1.0
HDCP compliance
HDCP 2.2
Video bandwidth Single-link 600MHz [18Gbps]
Video support
HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, DVD-Audio, LPCM, SACD, MPCM
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±2kV
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
Firmware update
Feasible via Mini-USB port
Input
1x HDMI
Output
4x HDMI
HDMI connector
Type A [19-pin female]
Rotary control switch
EDID Mode selection
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
154 x 83 x 25mm [6.1" x 3.3" x 1"]
Package
264 x 170 x 77mm [10.4" x 6.7" x 3."]
Carton
430 x 358 x 291mm [16.9" x 14.1" x 11.5"]
Weight
Model
583g [20.5 oz]
Package
1126g [2.5 lbs]
Fixedness
Wall-mounting case
Power supply
5V 2A DC
Power consumption
10 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3

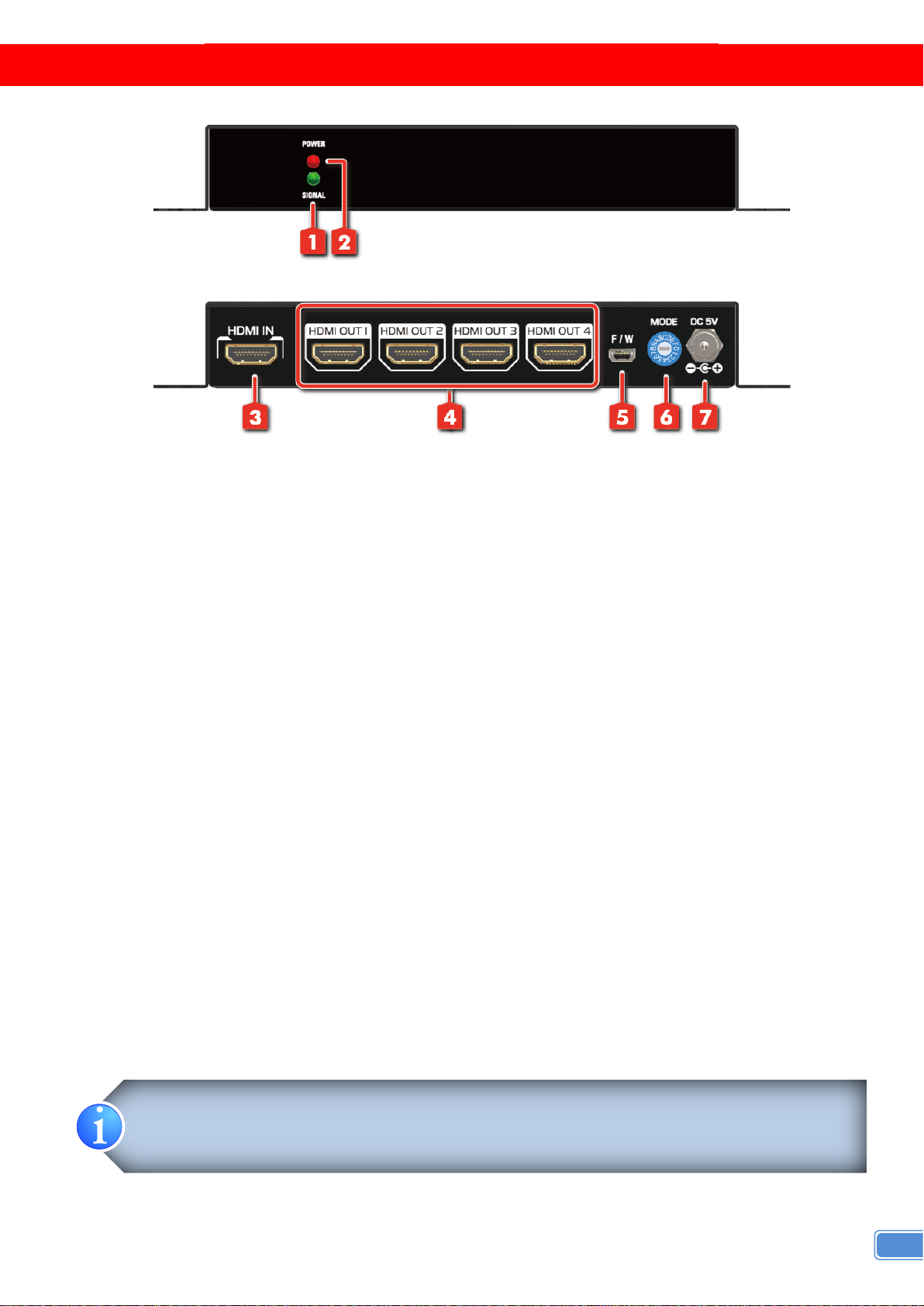

PANEL DESCRIPTIONS
1. Signal LED: Signal LED indicator
2. Power LED:Lights on when device is ready
3. HDMI IN: Connect to a HDMI input source
4. HDMI OUT1-4: HDMI outputs to HDMI displays
[HDMI OUT1: EDID Learn Default]
5. Mini-USB:For technical support only [firmware update]
6. MODE: 0 - F/W update mode
1 - EDID Ultra-HD(4K2K@60) - 24bit 2D video & 7.1ch audio
2 - EDID Ultra-HD(4K2K@60) - 24bit 2D video & 2ch audio
3 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 7.1ch audio
4 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 2ch audio
5 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
6 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
7 - EDID Full-HD(1080p@60) - 24bit 3D video & 7.1ch audio
8 - EDID Full-HD(1080p@60) - 24bit 3D video & 2ch audio
9 - EDID Full-HD(1080p@60) - 36bit 2D video & 7.1ch audio
A - EDID Full-HD(1080p@60) - 36bit 2D video & 2ch audio
B-
EDID HD(1080p@30)(1080i@60)(720p@60)-24bit 2D video & LPCM7.1ch/Dolby Digital
C - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
D - Auto EDID analysis learning mode
E - Learn EDID from output1
F - Learn EDID from output4
7. +5V DC: Connect to the +5V DC 2A power supply unit
1. Automatic EDID learning will detect all the connected HDMI equipped monitors and analyze all the
content of EDID. The EDID with minimal resolution support will be the reference EDID for incoming
HDMI source players.

4
HARDWARE INSTALLATION
Broadcasts HDMI signal to 4 HDMI displays!
1. Switch off all devices, including monitors.
2. Connect to the displays.
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.
4. Make sure the rotary switch is NOT at “MODE 0”
5. Plug in 5V DC power supply.
6. Power on the HDMI monitors.
7. Power on the HDMI source.

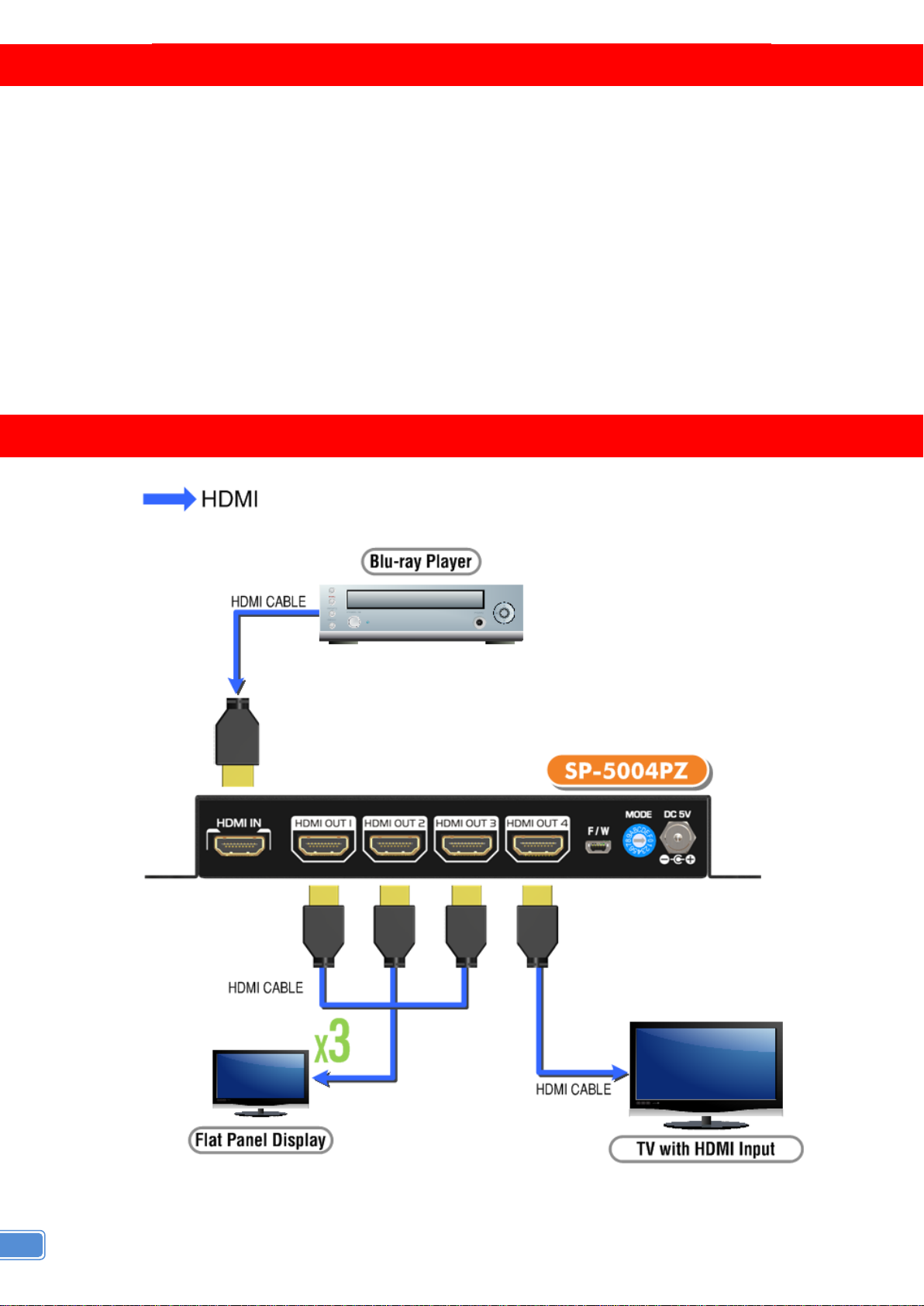

CONNECTION DIAGRAM

5
NOTICE
1. While connecting a new monitor to the splitter under mode D (auto EDID) & mode E and F (EDID
learning), experiencing a short period of time without displaying might be expected. The splitter will do
Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI
input is necessary to update!
2. For firmware update through Mini-USB, users MUST turn the power off, set the rotary switch to “0”,
and then connect the Mini-USB cable between PC and device. Open the firmware update software, [1]
set the correct com port and baud rate (57600 is recommended), [2] click the “File” button to direct to
the firmware HEX or BIN file, power on the device and press “Program MCU” symbol to firmware
update. Once update process is done, please power off the device and set the rotary switch back to
other mode (NOT to “0”).

6
WARRANTY
The SELLER warrants the SP-5004PZ 1x4 HDMI 2.0a Splitter with EDID Management free from
defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The
SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident,
disaster, abuse or any unauthorized modifications including static discharge and power surge. This
warranty is offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the
warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the SP-5004PZ features and specifications is
subject to change without further notice.
