Gomier 2500 Series User manual

1
GOMIER MANUAL 2500 SERIES
This manual is for the following 2500 series models
20” (50cm) 6 speed external gears
20” (50cm) 3 speed internal gears (pictured and detailed in this manual)
20” (50cm) footbrake
24” (60cm) 6 speed external gears
24” (60cm) 3 speed internal gears
24” (60cm footbrake
Details in this manual cover all models but documents the 20” size tricycle.
All safety component lists and assembly procedures are written to include all 6 models listed above and have
the same meaning and interpretation irrespective of size or model
Important information prior to riding
Index
Component directory
Tricycle fit
Summary of basic maintenance
Road safety
Trouble shooting
Assembly details
Warranty details
Distributed in Australia and New Zealand by Bike Solutions Pty Ltd
A.C.N. 004 941 413
Tel: Australia 61 (03) 9705 1700 Fax: [phone]
Tel: New Zealand 64 (03) 338898

2
Page 2
This manual is important so please take enough time to read and then understand your new
tricycle.
Your tricycle will be fully assembled by a qualified technician and be ready to ride.
If this tricycle does not appear to be assembled completely or some components appear to be
missing:
Do not ride this tricycle.
Call the outlet where you purchased the tricycle for further instructions
Warranties may be void if this tricycle is not assembled by a qualified technician
Other qualified technicians are listed on our website www.bikesolutions.com.au
This tricycle has a total load capacity of 120KG.
Total load capacity includes the riders’ total weight and the weight of all extra goods being carried.
Ensure any goods carried in the carry basket are securely fastened.
Index
Manufacturers’ responsibility – page 3
Owners’ responsibility – page 3
Tricycle components – page 4
Tricycle fit – page 5
Basic maintenance – page 6&7
Wet weather riding – page 7
Road safety information – page 8
Trouble shooting – page 9
Tools required and tyre pressures – page 10
Assembly or re assembly instructions – page 11-14
Warranty details – page 15

3
Page 3
MANUFACTURERS’ RESPONSIBILITY
Gomier Manufacturing Company Ltd (Taiwan) supply the tricycle in disassembled form to strict
manufacturing standards.
Bike Solutions Pty Ltd (A.C.N. 004 941 413) as sole Australian distributor for Gomier tricycles ensure
all components are of the standard required for Australian standards compliance.
Bike Solutions Pty Ltd only distribute to outlets qualified to assemble this tricycle to a safe riding
condition using only the components originally specified by Gomier Manufacturing Company Ltd
(Taiwan).
OWNERS’ RESPONSIBILITY
To reduce the risk of serious personal injury, you should have read and understood the instructions in
this manual prior to riding this tricycle for the first time.
Your Gomier tricycle will be supplied fully assembled and adjusted ready for use.
Your tricycle should be returned to the place of purchase for an inspection, within 3 months of the
purchase date.
You, as owner or rider are responsible for normal maintenance of the tricycle to ensure the tricycle is in
good riding condition. (Refer page 8 for basic maintenance details).
Ensure that if you allow another rider to use the tricycle they are fully instructed in the operation of the
tricycle.

4
Page 4

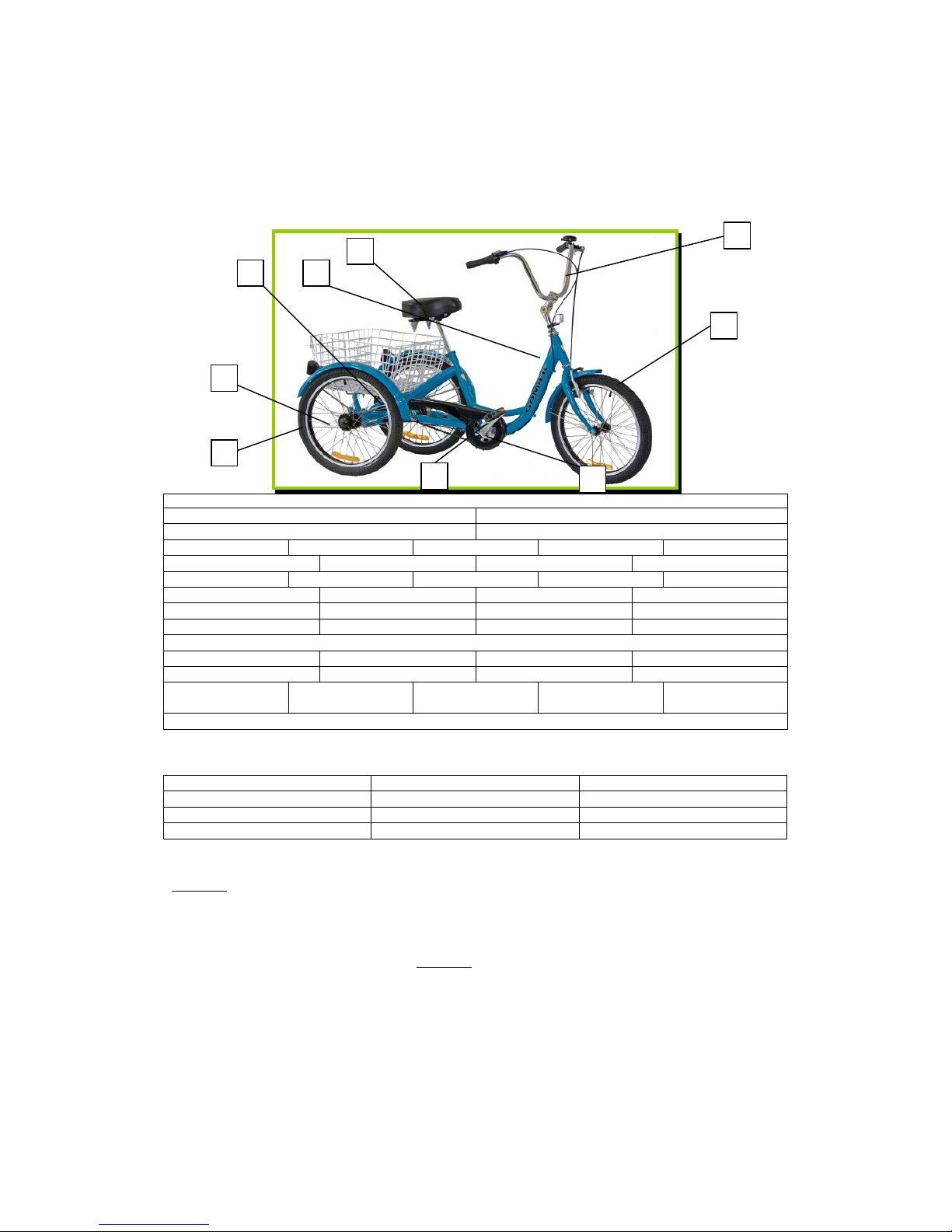

Tricycle Components
1 Frame 1a Front forks
2 Rear fork assembly 2a Rear carry basket
3 Handlebar 3a Brake lever 3b Brake calliper 3c Handle bar stem 3d Handlebar grips
4 Drive train 4a Chainwheel 4b chain 4c Rear sprocket
5 Saddle 5a Seat post 5b seat clamp 5c q/r alloy lever
6 Front wheel 6a 20 x 1.75 alloy rim 6b 36 hole steel hub 6c stainless steel spokes
7 Rear wheel 7a 20 x 1.75 alloy rim 7b Sealed 36 hole hub 7c stainless steel spokes
8 Tyres & tubes 8a 20 x 1.75 tyres 8b 20 x 1.75 A.V. tubes 8c 20 x 1.75 rim tape
9 Pedals with reflectors
10 Safety 10a Chain cover 10b Mudguards 10c Warning device (bell)
11 Reflectors 11a Front reflector 11b Wheel reflector(3) 11c Mudguard reflector(2)
12 Other 12a Front brake
cable
12b V brake parts 12c Mudguard parts 12d Frame Parts
13 Owners Manual with Warranty details
Additional parts for external gear model
14 Rear band brake assembly 14a Brake lever 14b Brake cable and fittings
15 Rear Gear lever 15a gear cable 15b gear lever fittings
POWER ASSISTED TRICYCLES
Any power assisted conversion must be well designed with the units, components and control mechanisms
customised to suit the design of this tricycle.
Your dealer will have the latest information on the most appropriate power assisted front wheel option.
Front forks on all Gomier tricycles have an opening of 100mm and if any wheel other than the original wheel
supplied with the tricycle is to be installed then the cone distance of the front hub in this wheel must not exceed
100mm.
Front wheels with a cone distance greater than 100mm will void the warranty.
Electric Vehicles Pty Ltd electric powered front wheel kit (PowerPed EVO) is approved for use on all
Gomier tricycles. www.evehicle.com.au
Read carefully all manufacturers’ instructions for the installation of power assisted front wheel
Any modifications to the original design of the frame and fork will void the warranty.
9
1
8
3
2
6
7
5
4

5
Page 5
Tricycle Fit
For safety reasons it is important that the rider must be able to ride in a comfortable manner.
Your tricycle dealer will ensure the tricycle is suitable and safe for you to ride.
After a short time of riding you may feel more confidence and consider resetting the seat height and the handlebar
position that was set by the dealer.
Height of the seat and the position of the handlebars can be fine tuned for your riding enjoyment.
It is important to remember that different riding conditions will change the characteristics of the tricycle.
Gomier Manufacturing as manufacturer, and Bike Solutions as distributor, are not responsible for
failure, injury, or damage caused by improper completion of the assembly prior to riding or lack of
future maintenance of your tricycle.
Let’s get started.
As the rider of this tricycle you must be able to sit on the saddle in the normal riding position and have your feet
positioned with the heel raised and the toe of your foot just touching the ground.
Seat Post
Now set the seat post securely ensuring the minimum insertion line is not visible outside the frame
If it is not possible to set the seat post with the minimum insertion line not showing, then the seat post needs to be
changed for a longer version.
If it is necessary to change the seat post for any reason it is important to replace it with the correct diameter size
namely 26.8mm.
Handlebar height
If your handlebar requires adjustment ensure that the minimum insertion mark is not visible then tighten the stem
expander bolt and the handlebar binder bolt on the headstem to the required torque measurement of 20-23Nm.
In the unlikely situation that the conditions of braking has changed during these modifications
re-adjust the front brake pad clearances to the rim and reset the front brake cable adjustments.
Fig 1
Fig 2
Handlebar binder allen key bolt
Not designed to be adjusted
Allen key bolt to adjust the angle
Handlebar locking clamp

6
Page 6
Basic maintenance
Regular inspection and maintenance
Regularly check that all bolts and nuts are tight. Check all components to see if any are worn or
damaged.
Even though damage caused by accidents will void the frame and fork warranty it is very important for
your safety that you inspect the frame for signs of misalignment or breaks in the tubing especially
around welds.
Inspect the forks for misalignment or rake movement.
If there is evidence of damage or misalignment, return the tricycle to the dealer from where it was
purchased for a full assessment and quotation for the repair or replacement of the damaged part.
Other qualified technicians are listed on our website www.bikesolutions.com.au.
Braking
This tricycle is fitted with dual braking.
Coaster footbrake operated by pedalling in reverse to stop.
Ensure the brake operates smoothly without locking or grabbing when applied normally. Keep brake
arm securely attached to the frame by the retaining bolt and nut.
Front linear brake calliper and lever mounted on the handlebars to your local authorities regulations.
Ensure brake shoes are adjusted correctly (refer Page 5 Fig 1)
Replace worn or missing shoes.
Inspect the braking surface of the rims for damage and wear and keep surface clean.
Brake cables ( 2)
Replace worn, damaged or frayed cables. Ensure cables are not kinked and especially take note that the
front brake cable does not become hooked up with any attached bag or basket or any item being carried
on the front handlebar assembly which could cause the brake to be partially on.
Gear lever ( external gear model)
Check gear lever assembly is correctly positioned and tight.
Front fork
Bent or damaged forks should be replaced. Never attempt to repair by straightening.
Important: Front forks with the same inside diameter, wall thickness and angle of rake must be used
when replacing the front forks.
Head bearings
Keep well adjusted. The forks should always turn smoothly and the fittings should never feel loose and
the rider should never feel vibration.
Front wheel
Keep both wheel nuts tight. 22-27Nm (195-239in-lb)
Wheel must be always centred in the fork to ensure correct and safe braking. Ensure the front wheel
spins freely with the bearings correctly adjusted. Keep spokes tight and check the rim is straight and
true.
This front wheel is very important for your safety so if you are not experienced to carry out this work
refer to your dealer.
For other qualified technicians refer to our website www.bikesolutions.com.au.
Drive train
Crank bearings should turn freely without any side play. Keep locknut tight (remember tightening is
clockwise). Bearings should be well greased and clean.
Replace bent pedals and cranks. Do not attempt to straighten either.
Ensure pedals are tight at all times (remember tightening is clockwise for right pedal and anti clockwise
for left pedal)
Inspect closely for any stripping of metal around the pedal axle as this could show early signs of a
stripped crank.
This is very important for your safety so replace both pedals and crank set if you are not sure. If you are
not experienced to carry out this work refer to your dealer.
For other qualified technicians refer to our website www.bikesolutions.com.au

7
Page 7
Rear wheels
Keep wheel nuts tight and correctly adjusted. Ensure both wheels spin freely with the bearings
correctly adjusted. Keep spokes tight and check the rims are straight and true.
Handlebar and headstem
Make sure the minimum insertion line is not visible and ensure the headstem binder bolt and the stem
expander bolt are tightening securely (20-23Nm 176-202in-lb) Refer page 4 Fig 1
Replace worn grips making sure they are fitted correctly and are tight with finger holes down.
Do not use soap or lubricants as these agents may cause the grips to move even after long periods of
use. Light household contact cement is recommended.
Brake lever
Minor adjustments can be made to the operation and effectiveness of your front brake as shown.
Chain (Coaster and internal geared model 2 x1/8”) (External geared model 1 x 3/32”))
Chain should be inspected regularly for damage or stiff links. Ensure the chain joiner is securely
fastened on coaster and internal geared models.
Lubricate the chain regularly with light machine oil. Use the oil sparingly and wipe off any excess oil.
Seat adjustment.
Ensure the minimum insertion line on the seat post is not visible.
Ensure the seat binder bolt is always tight 20-23Nm(176-202in-lb)
Position the angle of the seat to suit the rider and safe riding conditions and ensure the saddle clamp
bolt is tight 15-19Nm(133-169in-lb)
Align the direction of the saddle for the safety of the rider.
Tyres
Ensure all tyres are inflated according to the pressures indicated on the tyre wall. Frame or foot pump
should be used at all times. Unregulated air pumps must not be used as their volume readings will not
agree with the tricycle volume readings indicated on the tyre wall.
Inspect regularly all tyres to ensure they are correctly seated on the rims.
If a tyre becomes completely flat lift the wheel off the ground before pumping the tyre to correct
pressure to assist in keeping the tyre correctly seated in the rim.
Wet weather riding
All braking effectiveness is compromised during wet weather.
Ensure you allow a longer braking distance to stop.
Increased front brake lever pressure may be required under wet weather conditions.
It is important to take care when applying front brake levers at any time but especially during wet
weather.
Stopping distances can double or even triple in wet conditions.
Adjust your brakes when performance is less efficient than normal.
Avoid skidding and take extra care going downhill.
Ride more slowly in wet conditions than you normally would in dry conditions and avoid sudden stops
or quick manoeuvres.
Remember tricycles due to their particular design, can at times be unstable if turning left or right
abruptly or not planned well in advance.
Take care when riding over metal grates, traffic markers and kerbs.
Visibility is greatly reduced especially in the rain.
Use the same precautions when riding in the rain as you would riding at night.
Refer to the safety instructions listed on page 7.

8
Page 8
Road safety information
Riding your tricycle can be a dangerous activity.
Obey the road rules and regulations of your local area.
Wear an approved helmet and fit it correctly every time you ride.
Observe all traffic regulations, red, amber and green lights, one way streets, stop signs, give way signs
and all other directives.
Keep to the correct side of the road in normal traffic directions (always left side of the road in
Australian states and territories).
Give pedestrians the right of way.
Watch for other vehicles when pulling out into traffic.
Watch for other vehicles that may pull out in front of you or turn in front of you. Watch out for sudden
opening of vehicle doors in front of you.
Never carry passengers on your tricycle.
Don’t weave in and out of traffic or swerve from side to side.
Avoid riding over potholes, grates or other hazards.
Always wear light coloured clothing or reflective safety garments. Clothes should be snug fitting but
allow a full range of movement. Loose clothing could get tangled in the wheels or other rotating
mechanisms.
Gloves, long sleeve shirts and pants can reduce injury in the event of an accident.
Always wear suitable footwear. Bare feet or light footwear can be dangerous.
Control your speed at all times, as speed should be relative to the riding terrain and the experience of
the rider.
Reflectors
Reflectors are supplied with your tricycle and should be replaced if damaged.
Ensure they are correctly positioned and clean at all times.
If you have any doubt about the positioning of your reflectors contact the outlet you purchased your
tricycle from.
For other qualified technicians refer to our website www.bikesolutions.com.au
Riding at night
If you are riding after dusk you must have lights installed on the front and rear of your tricycle.
Rechargeable lights are recommended as they can remain on even when you are stationery.
When braking always apply the rear brake first to stop.
Using the front brake only may cause you to become unstable during braking.
In situations that require extra braking use both brakes equally together.
Correct adjustment of the front brake is critical at all times (Refer page 4 fig 2)

9
Page 9
Trouble shooting
Front wheel seems loose.
Check to ensure the front wheel nuts are tight
Ensure the cones and lock nuts are correctly adjusted.
Check that all spokes are tight and the rim is straight and true.
Front wheel seems unstable.
Ensure the tyre has the correct air inflation and that the tyre is seated correctly.
Check that the rim is not damaged.
Ensure the front forks are correctly adjusted
Ensure the handlebar and headstem are tight
Braking does not seem normal
Check that the rear brake is still bolted to the frame (Coaster and internal geared model).
Ensure the front brake is adjusted correctly and the brake cable is lubricated and in good condition
Check that the front brake lever is tight and in the correct position on the handlebar and also that the rear brake
lever is tight and in the correct position on the handlebar and the cable is correctly tensioned.
Brakes are noisy when braking
Check that the brake shoes are correctly aligned (front of brake shoes should touch the rim first when braking is
applied)
Check that the brake shoes do not have any dust or small particles embedded in the face of the brake shoe.
Check for badly worn brake shoes.
Brakes rub on the rim or are slow to release
Ensure both brake arms are releasing equally from the rim after braking.
Check that the brake cable is in good condition and lubricated.
Ensure the linea brake springs are correctly positioned.
Drive Train trouble shooting
All parts of your drive train require special tools, so generally maintenance should be carried out by the dealer
where you purchased the tricycle.
Other qualified technicians are listed on our website www.bikesolutions.com.au
Quick reference for minor problems.
Creaking or clicking noise.
Ensure pedals are tight.
Ensure cranks are tight.
Grinding or knocking noise.
Bottom bracket may need tightening and adjusting.
Pedal bearings may need lubricating.
Chain is noisy or jumping.
Lubricate the chain and check for stiff links.
Check the rear sprocket for wear or broken teeth.
Check the teeth of the front chainwheel for wear or damage.
Riding position seems different
Ensure the seat and seat post is tight (remember to return the seat post and saddle to the safe riding position)
Check that the handlebars are correctly aligned for your riding position.
Tube leaks or will not hold air
Inspect tyres for foreign objects and remove if found.
Inspect tube for cut or leak.
Check for loose valve core and tighten if necessary (ensure the valve is in an upright position to the rim (90%)).

10
Page 10
Assembly Instructions
Your tricycle is assembled and ready to ride.
However in the event that you require to disassemble your tricycle either partially or completely, the
following tools are required for re assembly.
We recommend you use a qualified technician.
A torque wrench is recommended during re-assembly
Tool List
Adjustable Wrench 5-10cm
Adjustable Wrench 32cm
Flat Screw Driver 15mm
Phillips Head Screw Driver
Allen Key Set 2-6mm
Set of Open end Spanners 7-22mm
Socket Set 6-22 mm
Set of tyre levers
Wire Cutters
Chain link remover
Recommended Torque Wrench 20-100 Nm range with socket set plus 1x 18mm open slot socket
Recommended Torque Wrench/Torque Screw Driver 5- 20Nm
Safety issues determine that assembly of this tricycle should be carried out by qualified technicians.
Tyre Pressures
Tyre Pressure Conversion table Recommended Pressure -
PSI 28
30 32 34 36 38 40 42 44 46
KPA
193 207 221 234 248 262 276 290 303 317
PSI 48
50 52 54 56 58 60 65 70 75 80
KPA
331 345 359 372 386 400 414 448 483 517 552
Electric front wheel motor assembly.
If a front electric motor is fitted then all documentation will be enclosed for your reference.
Front wheel electric motor manual.
If this manual is, missing then call your dealer for details, before riding.
Tricycles are different from bicycles.
If you are an experienced bicycle rider or previously have ridden bicycles you should be aware of the
different riding experiences of a tricycle.
When turning a bicycle the rider will lean over to compensate for the turn.
It is not possible to do this on a tricycle.
When turning your tricycle it will be more unstable than a two wheel bicycle, so the rider must take
extra care.
