GOOD HOUSEKEEPING 72033 User manual

English
Model
72033

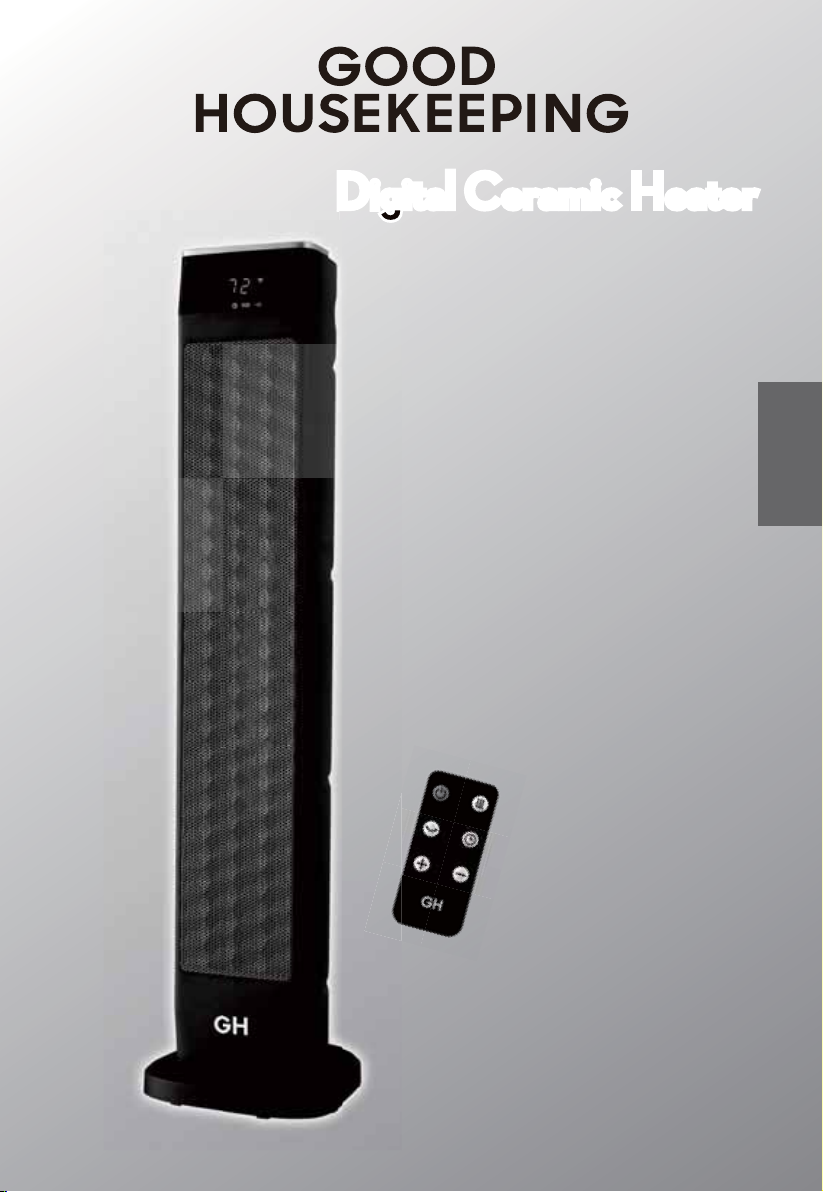

Digital Ceramic Heater
Owner's Manual
With Remote Control

2
Operating Instructions
Tip-over Switch
Thermal Protection System
Maintenance
Storage
Trouble Shooting
Technical Support
FCC Warning
Warranty
Introduction ....................................................................
...........................................................................
.........................................................................
...................................................................
...............................................................
................................................................
......................................................
.....................................................
............................................
....................................................
.........................................................
............................................................
..........................................................
3
3
3
6
Safety and Warnings
Important Instructions
Parts of the Heater
6
9
9
9
9
10
10
11
TABLE OF CONTENTS
8
82501-01 R20231020

3
Thank you for choosing the Good Housekeeping Ceramic
Heater. This manual gives you complete instructions for
using your heater.
READ CAREFULLY BEFORE ATTEMPTING TO
ASSEMBLE, INSTALL, OPERATE OR MAINTAIN
THE PRODUCT DESCRIBED. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL
SAFETY INFORMATION. FAILURE TO COMPLY
WITH INSTRUCTIONS COULD RESULT IN
PERSONAL INJURY AND/OR PROPERTY
DAMAGE!
NOTE: When switching on the appliance for the first time,
allow it to run at full power for approximately two hours to
remove any manufacturing odors. Make sure that the room
in which the appliance is located is well ventilated during
this operation. It is normal for the appliance to emit small
cracking sounds when you turn it on the first time. Do not
be alarmed.
SAVE THESE INSTRUCTIONS FOR REFERENCE.
INTRODUCTION
SAFETY AND WARNINGS
1. Read all instructions before using this heater.
3. Extreme caution is necessary when any heater is used by
or near children or people with disabilities, and whenever
the heater is left operating and unattended.
4. Always unplug heater when not in use.
2. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Use rear carrying handle when
moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes and curtains at
least 3' (0.9 m) from the front and top of the heater and
keep them away from the sides and rear. Keep the rear
grill away from walls or drapes so it does not block the air
intake.
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock,
injury to persons or property, and hyperthermia, including
the following:
82501-01 R20231020

4
5. Do not operate the heater with a damaged cord, plug,
after the heater malfunctions, or has been dropped/damaged
in any manner. Discard the heater or return to an
authorized service facility for examination and/or repair.
7. This heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate the heater
where it may fall into a bathtub or other water container.
8. Do not run the cord under carpeting. Do not cover the
cord with throw rugs, runners, or similar coverings. Do not
route the cord under furniture or appliances. Arrange the
cord away from high traffic areas and where it will not be
tripped over.
9. To disconnect the heater, turn control to OFF, then
remove the plug from the outlet.
10. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an electric
shock, fire or damage to the heater.
11. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces, like a
bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside.
Do not use in areas where gasoline, paint, or flammable
liquids are used or stored.
13. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, injury to persons, or other
damage to property.
14. Ensure the heater is on a stable, secure surface to
eliminate the potential of tipping over.
15. To prevent overload and blown fuses, be sure that no
other appliance is plugged into the same outlet (receptacle)
or into another outlet (receptacle) wired into the same
circuit.
16. lt is normal for the heater's plug and cord to feel warm
to the touch. A plug or cord which becomes hot to the
touch or becomes distorted in shape may be a result of a
worn electrical outlet. Worn outlets or receptacles should
be replaced prior to further use of the heater. Plugging a
heater into a worn outlet/receptacle may result in
overheating of the power cord or fire.
6. Do not use outdoors.
17. Always plug heaters directly into a wall outlet/
receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
82501-01 R20231020

5
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
DANGER-HIGH TEMPERATURES MAY BE
GENERATED UNDER CERTAIN ABNORMAL
CONDITION. DO NOT PARTIALLY OR FULLY
COVER OR OBSTRUCT THE FRONT OF THIS
HEATER.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
18. Check your heater cord and plug connections. A loose
fitting outlet can cause the plug to overheat or cause a fire.
Be sure plug fits tight in the outlet. Check frequently
during use to make sure plug and outlet are not hot. lf so,
discontinue using heater and have outlet replaced by a
qualified electrician.
19. Note: Heaters draw more current than small appliances.
Overheating of the outlet may occur even if it has not
occurred with the other appliances.
20. Check that neither the appliance nor the power cable
has been damaged in any way during transportation.
21. Make sure that no pieces of polystyrene or other
packaging material have been left between elements of the
appliance. lt may be necessary to clean the appliance
before use.
23. This appliance has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock, this
plug is intended to fit in a polarized outlet only one way. lf
the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician. Do not
attempt to defeat this safety feature.
22. Connect to properly polarized outlets only.
24. Hyperthermia can result in death. Symptoms of
hyperthermia include high body temperature, headache,
nausea, vomiting, tiredness, dizziness, fainting, and rapid
pulse. If you begin to experience symptoms related to
hyperthermia, turn off the heater and seek medical
attention.
25. To avoid excess room temperatures which can cause
hyperthermia: DO NOT leave product running unattended
in a confined space around infants, or individuals with
reduced physical, sensory or mental capabilities.
82501-01 R20231020

Parts of the Heater
1.
2. Power Light
3. Safety Grill
4. Base
5. Remote Control
Control Panel
Symbols
(Figure 2)
Power Button
Function Button
Oscillation Button
Plus Button
Minus Button
Timer Button
Figure 2
(Figure 1)
Figure 1
5
2
3
1
4
PARTS OF THE HEATER
OPERATING INSTRUCTIONS
1. Place the heater on a firm, level surface. Plastic or
rubber tabs, like the feet on this unit, may stick to furniture
surfaces and/or hardwood floors. The unit may leave a
residue that could darken, stain or leave permanent
blemishes on the finish of certain furniture surfaces,
including wood surfaces, and/or hardwood floors.
2. Plug the cord set into a 120 volt AC outlet. Be sure that
the plug fits tightly into outlet. When plugs fit loosely into
receptacles, they may slip partially or completely out of the
receptacle with only the slight movement of the attached
cord. Receptacles in this condition may overheat and pose
a serious fire hazard; if covered by a curtain or drape, the
fire hazard is even greater.
3. When the heater is initially plugged in, the Power Light
will turn on indicating power to the unit. The Power
Light will remain lit until the heater is unplugged from
the electrical outlet.
Operation
4. Turn the heater ON by pressing the Power Button
5. When turning the heater on, the unit will be in HIGH
heat.
6. Press the Function Button to switch over High - Low -
ECO mode - Fan - High function.
682501-01 R20231020

7
7. To turn the heater OFF, press the Power Button .
The unit will first turn off the heating elements. The fan will
continue to run for 15 additional seconds, which will cool off
the elements and front grill. Unplug the unit by pulling the
plug from the electrical outlet only after the fan has had
stopped.
Oscillation
Timer Function (Figure 3)
1. To set the room at a specific temperature, press the
button to ECO Mode such that the ECO indicator will
glow on the LED display. Press the or buttons until
the desired temperature has been reached.
2. Once the room temperature reaches 2 degrees above
the set temperature, the heater will shut off. Once the
room temperature reaches 2 degrees below the set
temperature, the heater will turn back on and continue to
cycle off and on to maintain the set temperature.
3. To cancel the ECO Mode, press the button and the
heater will run continuously.
ECO Mode Control (Figure 4) (Figure 5)
The timer function may be activated when the heater
display is in any function. This function allows you to set
the length of time the heater will run before turning itself
off, from 0 hour to 12 hours. Pressing the Timer Button
will increase the length of time by 1 hour each time
this button is pressed. After the display reflects 12 hours,
pressing the Timer Button once more will reset the
heater to run continuously. The heater will turn off when
the set time has elapsed. The unit can be turned back on
by pressing the Power Button . Pressing the Timer
Button to 0 hour will cancel the timer function.
Figure 3
Figure 4
Figure 5
Pressing the Oscillation Button will allow the heater to
oscillate back and forth. To stop the oscillation, press the
Oscillation Button again.
Forced shutdown function
If the heater runs for 15 hours without any operation, it will
automatically shut down. To cancel this function, press the
button for 20 seconds, and the digital screen will
display "C2" and flash 3 times.
82501-01 R20231020

Figure 6
Figure 7
Holder
Battery
CR2025
8
Remote Control (Figure 6) (Figure 7)
WARNING
1. The remote control uses one (1) "CR2025" button cell
(included) for operation.
3. Replace the battery if the remote control does not
operate well.
NOTE: Remove the battery out of the remote control if
you won't use the remote control for a long time. To
install or replace the button cell, simply press the holder
at the bottom of the handheld remote control unit with
your thumb to pull out the battery cover. Replace with a
new "CR2025" button cell, and then replace the cover.
Battery Disposal - Please dispose of the used battery per
municipal or provincial law.
1) Keep batteries out of reach of children. Should a child
swallow a battery, consult a doctor immediately.
2) Do not recharge or dispose in fire.
3) Keep in a dry and cool place.
4) Insert battery in correct direction.
2. All functions performed by using the remote control
work identically on the unit.
This heater is equipped with a safety tip-over switch. This
feature cuts the main power to the heater if it gets knocked
over. If the heater tips over, the digital screen will display
"P4". Simply stand the heater upright and press the Power
Button to resume operation.
TIP-OVER SWITCH
82501-01 R20231020
WARNING
INGESTION HAZARD: This product contains a
button cell or coin battery.
DEATH or serious injury can occur if ingested.
A swallowed button cell or coin battery can cause
Internal Chemical Burns in as little as 2 hours.
KEEP new and used batteries OUT OF REACH
of CHILDREN.
Seek immediate medical attention if a battery
is suspected to be swallowed or inserted inside
any part of the body.

9
1. Perform the cleaning procedures described above.
2. Wipe all parts dry.
3. Pack the heater in a plastic bag and store it in a cool, dry
place. We recommend that you store the heater in its
original carton.
If your heater fails to operate:
Make sure the electrical outlet or circuit breaker is
working.
Check for obstructions. If you find an obstruction, turn
the heater OFF, and UNPLUG THE UNIT.
Carefully remove the obstruction and follow the reset
instructions.
1. Press the Power Button to turn the heater OFF and
unplug the heater before moving or cleaning.
2. Interior dust can often be removed by using a vacuum
cleaner with a crevice tool attachment.
4. Do not use cleaning liquid or other chemicals to spray on
the unit.
3. To clean the enclosure, use a clean, soft and lightly damp
cloth to gently wipe off the dirt from the surface of the unit.
Be sure not to wet the heating element and the switches.
Allow the unit to dry completely before use.
MAINTENANCE
STORAGE
TROUBLE SHOOTING
1. Press the Power Button to turn the heater OFF.
2. Unplug the heater and wait 10 minutes for the unit to
cool down.
3. After the 10 minutes, plug the unit in again and operate
normally.
THERMAL PROTECTION SYSTEM
This heater includes an Overheat Protection System that
shuts the unit off when a potential overheat temperature is
reached. If this occurs, the heater can only resume its
normal operation after resetting it. To reset the heater:
82501-01 R20231020

10
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
OceanAire Home Goods Company
980 Cobb Place Boulevard NW, Suite 100, Kennesaw,
GA 30144
1-888-880-3267
NOTE:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Consult the dealer or an experienced radio/TV
technician for help.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
If you need any assistance with setup, operation, or parts
for your new Good Housekeeping Heater, please call us.
Our technical support staff is ready to help! We are open
24 hours a day, 7 days a week.
1-888-880-3267 (FANS)
You may also reach us online at
OceanAireHomeGoodsCompany.com
An electronic copy of this user manual can also be obtained
online at OceanAireHomeGoodsCompany.com
TECHNICAL SUPPORT
FCC WARNING
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
82501-01 R20231020

11
OceanAire Home Goods Company makes the following
limited warranty to the user or consumer purchaser of this
Good Housekeeping heater:
If your Good Housekeeping heater motor fails at any time
within two years after the date of sale to you due to a defect
in material or workmanship, labor to repair the defect will be
provided free of charge at our nearest service center or our
Service Department in Kennesaw, Georgia. You will be
responsible for labor costs after this two years period. The
foregoing limited warranty applies only to the motor itself,
and does not apply to electronic controls such as remote
controls, remote control receivers or transmitters used in
conjunction with the motor. These electronic control items
are included in the one year limited warranty below.
If any part of your Good Housekeeping heater other than the
motor fails at any time within one year after the date of sale to
you due to a defect in material or workmanship, we will repair
or, at our option, replace the defective part free of charge for
parts and labor performed at our nearest service center or at
our Service Department in Kennesaw, Georgia.
IF THE USER OR CONSUMER PURCHASER CEASES TO
OWN THE HEATER, THIS WARRANTY AND ANY IMPLIED
WARRANTY WHICH THEN REMAINS IN EFFECT,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE VOIDED. NO WARRANTY,
EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IS MADE IN RESPECT TO THE GLASS GLOBES
OR LIGHT BULBS OR THE FINISH ON ANY METAL
PORTION OF THE HEATER. THIS WARRANTY IS IN LIEU
OF ALL OTHER EXPRESS WARRANTIES. THE DURATION
OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IN RESPECT TO ANY GOOD HOUSEKEEPING
HEATER MOTOR OR OTHER HEATER PART, IS
EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS
WARRANTY SET FORTH ABOVE FOR SUCH MOTORS
AND OTHER PARTS.
WARRANTY
Warranty
2 Year
This warranty is voided if your Good Housekeeping heater
is not purchased and used in the contiguous USA.
This warranty excludes and does not cover defects,
malfunctions or failures of any Good Housekeeping heater
which were caused by repairs by persons not authorized by
82501-01 R20231020

12
IN NO EVENT SHALL OCEANAIRE HOME GOODS
COMPANY BE LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS OR THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.
us, use of parts or accessories not authorized by us,
mishandling, improper installation, modifications, or
damage to the Good Housekeeping heater while in your
possession, or unreasonable use, including failure to
provide reasonable and necessary maintenance.
To obtain servicing, contact the nearest Good
Housekeeping authorized service center or the OceanAire
Home Goods Company Service Department, 980 Cobb
Place Boulevard NW, Suite 100, Kennesaw, GA 30144.
Please contact us before shipping your heater to us. If we
authorize you to ship it to us, you will be responsible for all
insurance and freight or other transportation charges to our
factory service center. We will return your Good
Housekeeping heater freight prepaid. Your heater should
be properly packed to avoid damage in transit since we will
not be responsible for any such damage. Proof of purchase
is required when requesting warranty service. The
purchaser must present sales receipt or other document
that establishes proof of purchase.
Warranty
2 Year
980 Cobb Place Boulevard NW, Suite 100, Kennesaw, GA 30144
GOOD HOUSEKEEPING is a trademark of Hearst
Communications, Inc. 2022 Hearst Communications, Inc.
All Rights Reserved.
Printed in China
82501-01 R20231020
