Good Way DU2810 User manual

Netbook Docking Station
User’s Manual

Netbook Docking Station User’s Manual
ABOUT THIS MANUAL
This manual is designed for use with the Mini Docking Station. Information in this document has been
carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The
information in this document is subject to change without notice. The manufacturer does not make any
representations or warranties (implied or otherwise) regarding the accuracy and completeness of this
document and shall in no event be liable for any loss of profit or any commercial damage, including but not
limited to special, incidental, consequential, or other damage.
SAFETY INSTRUCTIONS
Always read the safety instructions carefully:
Keep this User’s Manual for future reference
Keep this equipment away from humidity
If any of the following situation arises, get the equipment checked by a service technician:
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.
The equipment has not been working well or you cannot get it to work according to the User’s Manual.
COPYRIGHT
This document contains proprietary information protected by copyright. All right are reserved. No part of this
manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written
permission of the manufacturer.
TRADEMARKS
All trademarks and registered trademarks are the property of their respective owners or companies.
i

Table of Contents
ii
Table of Contents
1. Introduction.......................................................................................................1
Features.............................................................................................................................2
Package Contents..............................................................................................................2
System Requirements........................................................................................................2
Front Panel........................................................................................................................3
Rear Panel.........................................................................................................................4
2. Installation.........................................................................................................5
A. Connecting the Docking Station to Computer .............................................................5
B. On Windows 2000 / XP / Vista.....................................................................................5
C. On Windows 7..............................................................................................................8
D. Connecting Devices to the Docking Station ..............................................................10
Connecting DVI Monitor.........................................................................................................10
Connecting USB Devices........................................................................................................10
3. Using the Docking Station with Video..............................................................11
USB 2.0 Ports..................................................................................................................11
Display Modes.........................................................................................................................11
Adjusting Resolution, Color Depth and Refresh Rate.............................................................15
Disconnecting the Docking Station .........................................................................................17
How Standby or Hibernate ModeAffects DevicesAttached to the Docking Station.....18
External Monitors....................................................................................................................18
Other Devices ..........................................................................................................................18
4. Uninstalling the Drivers..................................................................................19
Uninstalling the USB or Ethernet Display Adapter........................................................19
5. Specifications..................................................................................................20
6. Regulatory Compliance..................................................................................21
FCC Conditions ..............................................................................................................21
CE ...................................................................................................................................21
WEEE Information .........................................................................................................21

Netbook Docking Station User’s Manual
1. Introduction
Netbook Docking Station provides a quick and easy connection to the workspace
peripherals you use every day. Especially it has Auto-install function that Install CD
not requires when you want install driver into host devices. It’s suitable with
Netbook or without CD-ROM devices user.
1

Netbook Docking Station User’s Manual
Features
DualView let you expend your work area across your notebook screen and external
monitor.
Dual display settings – Allows you to switch between mirror and extended video
modes.
DVI monitor output – Supports video resolutions up to 1920 x 1080 (HDTV Out mode)
with a refresh rate of 60 Hz.
Build-in Auto-install function (installation CD not requires). Suitable with Netbook or
without CD-ROM devices user.
Six USB port makes connections quick and easy.
One forward-facing USB 2.0 port – Ideal for use with memory keys and other “quick
access” devices.
Gain instant access to your keyboard, monitor, mouse and all peripherals with one
USB plug.
Supports WindowsXP, Vista32/64 bit, Windows7
Package Contents
Netbook Docking Station x1
USB 2.0 Cable x1
PowerAdapter x1
DVI-to-VGA adapter x1
User’s Manual x1
System Requirements
WindowsXP, Vista32/64 bit, Windows7
2

Netbook Docking Station User’s ManualNetbook Docking Station User’s Manual
Front Panel
USB 2.0 downstream ports: For connection to USB
peripherals.
3

Netbook Docking Station User’s Manual
Rear Panel
5 USB 2.0 downstream ports (A type female
connector): For connection to USB
peripherals.
DVI video output port: For connection to a VGA or DVI
monitor.
For DVI model, if you want to connect to a VGA monitor, u
s
provided DVI to VGA adapter for connection.
USB upstream port: For connection to the USB
port of the host computer.
Power jack: For connection to the provided powe
r
adapter. The Docking Station always needs
external power supply for operation, as it does not
take power from the USB bus.
4

Netbook Docking Station User’s Manual
2. Installation
A. Connecting the Docking Station to Computer
1. Plug the power cord of the power adaptor into the DC IN jack on the back of the
docking station and then connect the power adapter to a working electrical
outlet.
The Power indicator on the front panel glows when the docking station is
powered on.
2. Plug the square end of the USB cable into the USB upstream connector at the
back of the docking station.
3. Plug the other end of the USB cable into an available USB 2.0 port on your
computer.
B. On Windows XP / Vista
1. When plugging Mini Docking Station to your computer by USB cable. Please
locate and double-click Run Autorun.exe to execute DisplayLink Driver under
Vista.
5

Netbook Docking Station User’s Manual

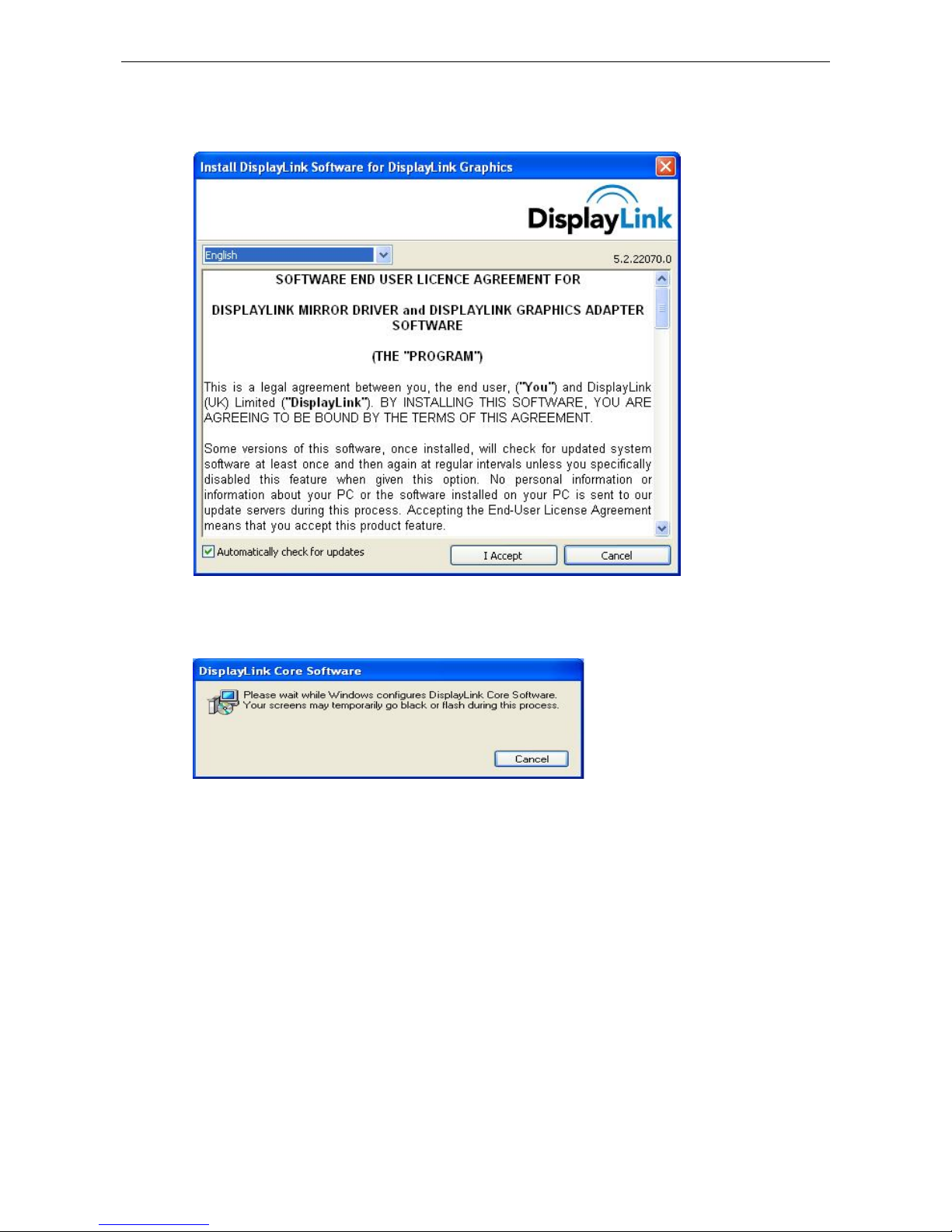

2. Please click I Accept after reading the statement of “Software End User License
Agreement”.
3. Please wait while Windows configures DisplayLink Core Software. Your screens
may temporarily go black or flash during this process.
Note:You may need to restart your system for the configuration changes made to
DisplayLink Graphics to take effect.
6

Netbook Docking Station User’s Manual
4. After the installation is completed, you will see the DisplayLink Manager Icon in
System Tray that looks like a monitor as below. Click on the icon to bring up the
menu.
-Extend Mode: The screen is part
of the extended desktop.
-Mirror Mode: The screen copies
the contents of the primary screen.
-Off Mode: The screen is black.
-Set as Main Monitor: The screen
is the primary screen.
-Notebook monitor off: The
Notebook screen is black and the
DisplayLink screen is the primary
screen.
*Actual strings depend on your operation system. These screen shots are from Windows XP SP2 and Vista ,
it might vary slightly for each operation system.
7

Netbook Docking Station User’s Manual
C. On Windows 7
To install the Driver:
1. Plug Mini Docking Station to your computer by USB cable. Please locate and
double-click Run Autorun.exe to execute DisplayLink Driver.
2. Please click I Accept after reading the statement of “Software End User
License Agreement”.
8

Netbook Docking Station User’s Manual

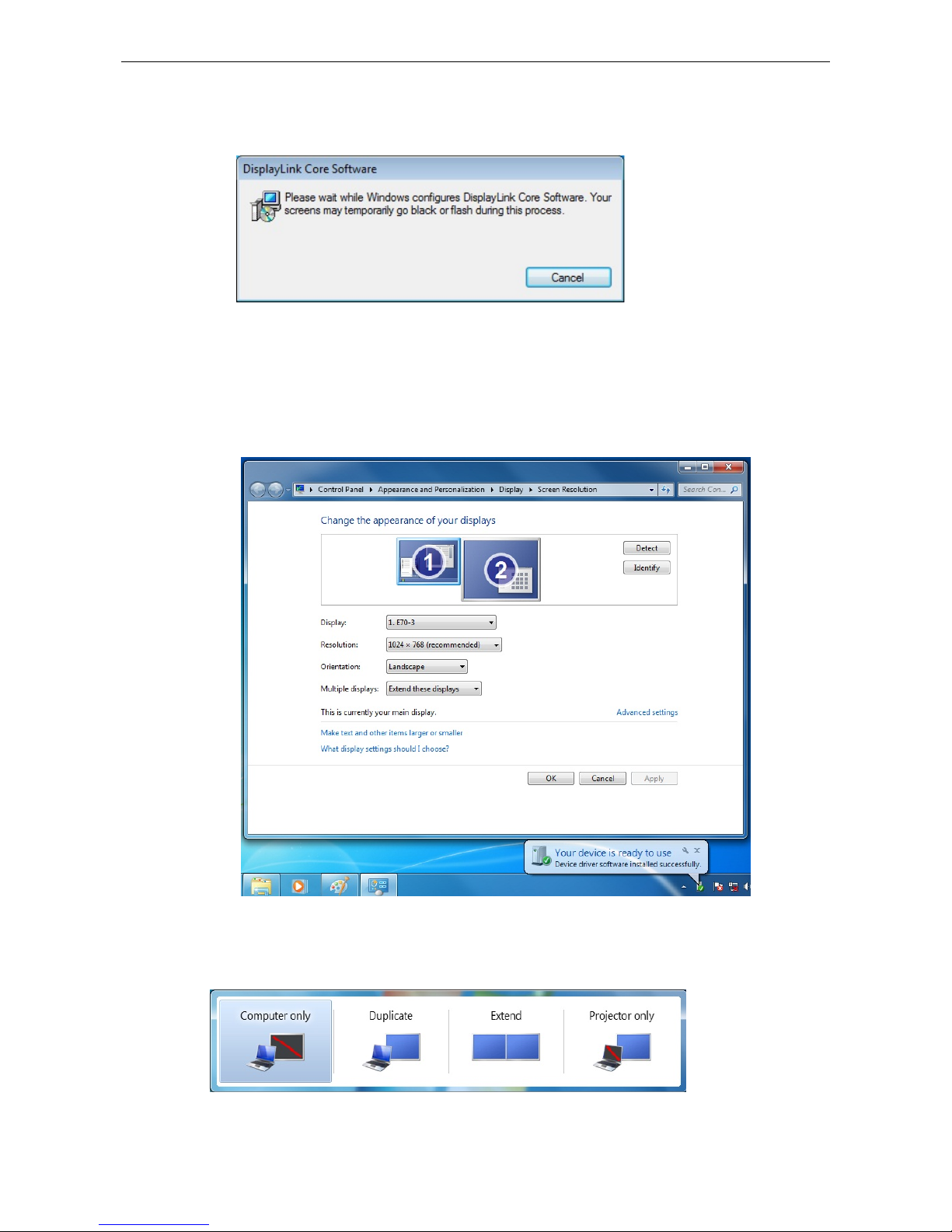

3. Please wait while Windows configures DisplayLink Core Software. Your
screens may temporarily go black or flash during this process.
4. After the installation is completed, the following Window will pop up. You can
change the appearance of your displays through the Window. Moreover,
additional controls are available in Windows 7: Orientation (Portrait, landscape,
rotated portrait, rotated landscape)
5. To control the behavior of an attached DisplayLink device (or screen), it is
possible to use Windows Key+P to display a menu (and cycle through it) to
allow: Disconnect Projector, Duplicate, Extend, Projector Only.
*Actual strings depend on your operation system. These screen shots are from Windows 7 and
might vary slightly for each operation system.
9

Netbook Docking Station User’s Manual
D. Connecting Devices to the Docking Station
Now the installation is complete. You can connect the peripherals/monitor to
appropriate ports on the docking station as required. If required, you can connect
and disconnect the peripherals/monitor any time without disconnecting the docking
station from the USB port on your computer.
Connecting DVI Monitor
E. For DVI model: The equipped DVI-I (DVI-Integrated) connector transmits both
the digital and analog signals. This means it supports either of these two
connection types:
It can be connected to a DVI-D (digital) monitor using a DVI cable (not
provided)
Or, it can be connected to an analog VGA monitor using the privided DVI-I
to VGA adapter and a VGA cable (not provided).
Upon the connection it’s normal that the screen flicks black a couple of times. Once
the connection is done, an extended screen will appear on the add-on monitor.
Sometimes it takes time for the add-on monitor to show the video. Please wait for
while.
For Windows Vista, if the add-on monitor has been blank for a while, please
reboot your system again.
To change the display mode, see next chapter for instructions.
Connecting USB Devices
Connect your USB devices to the USB ports on the docking station. As long as one
USB device is connected to the port and the connection works properly, the USB
10

Netbook Docking Station User’s Manual
LED glows green (on). When no USB device is connected to the port, the LED light
is off.
If your USB device, such as a printer or optical drive, etc., came with its own AC
adaptor, make sure that it is plugged into the device and a working electrical outlet.
3. Using the Docking Station with Video
USB 2.0 Ports
The Six USB ports on the docking station function just like the ports on a USB hub.
Just connect any USB device to the docking station’s USB ports when required.
A. All the four USB ports provide power when the computer is either off, suspended
or hibernated. This means you can use the USB port for power charging purpose.
B. The USB port supports hot-plug feature. You may plug and unplug an USB device
from the docking station at any time when required.
C. Some USB devices, e.g., printers and optical drives, require higher power to
operate. To use these devices, the power adapter shipped with the device should
be plugged into the device and the mains.
Video Port
Display Modes
There are several ways you can utilize the monitor attached on the docking station.
The add-on monitor can be configured to use either “mirror mode”, “extended
mode” or be the primary display as described in this section.

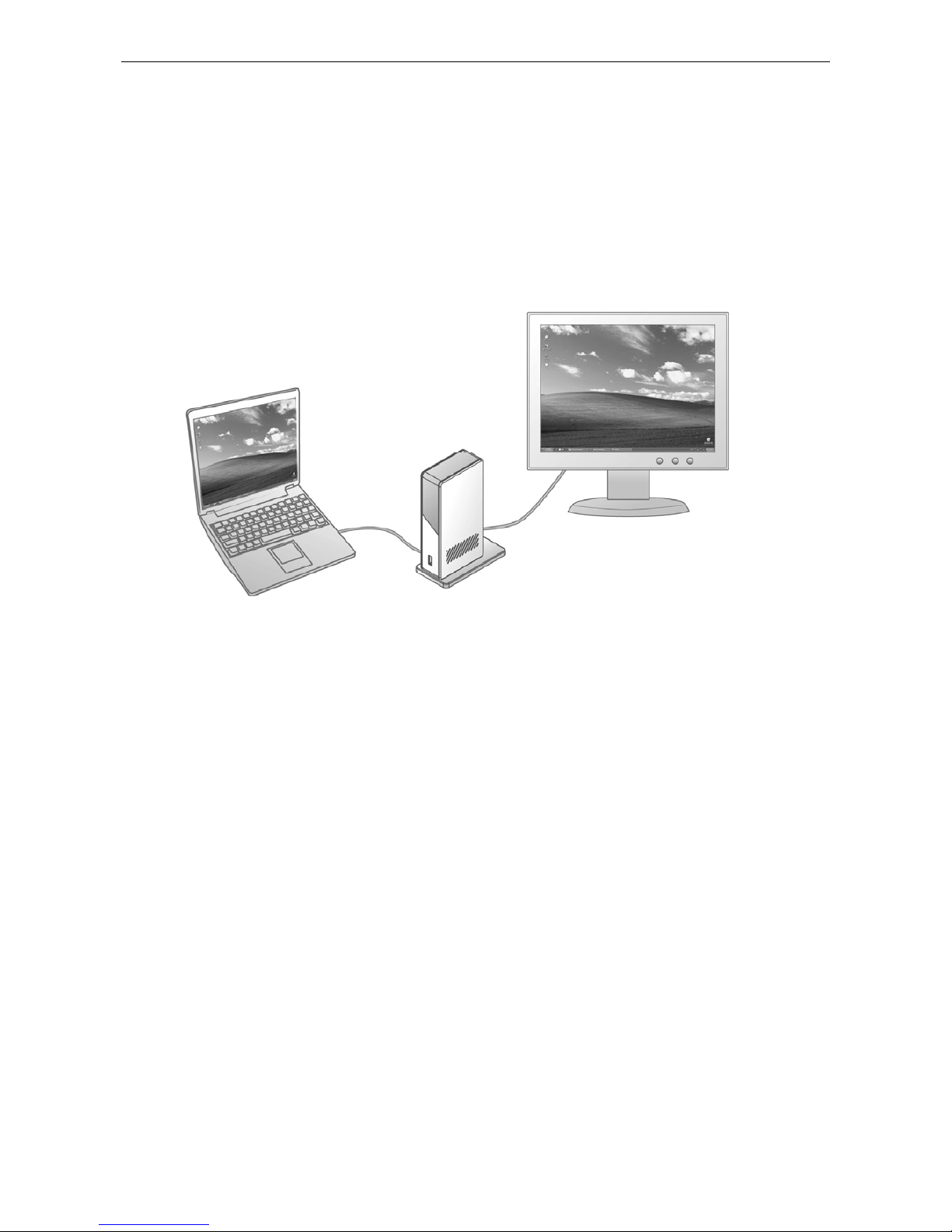

Extend Your Windows Desktop to Add-on Monitor (Default)

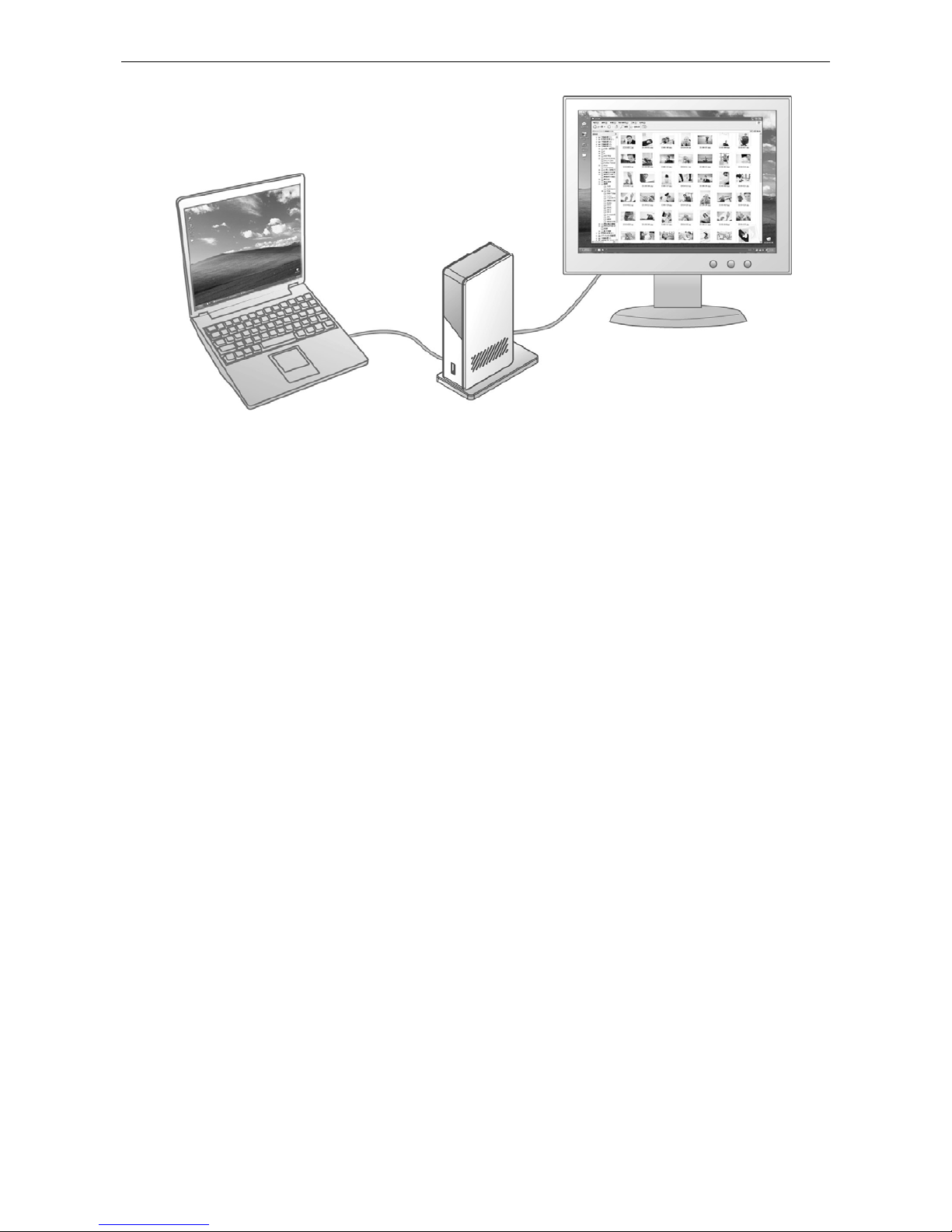

In this so-called “extended mode”, your display will be spread over the add-on
monitor(s). This mode allows you to perform multiple tasks more effectively without
overlapping windows.
11

Netbook Docking Station User’s Manual
Extended mode is the default setting. To set up the video component to use or
restore extended mode, follow these steps:
1. Position the mouse anywhere on your computer desktop, right-click and select
Screen Resolution on Win 7, Personalize > Display Settings on Vista or
Properties > Settings on XP/2000.
2. In the Display drop-down menu, select the option with the string “DisplayLink
Graphics Adapter”.
3. Check the Multiple Displays>Extend these displays on Win 7, Extend the
desktop onto this monitor box on Vista or Extend my Windows desktop
onto this monitor box on XP/2000.
4. Drag the icons in the window at the top of the screen to match the physical
arrangement of your primary monitor and add-on monitor.
The add-on monitor connected to the docking station may be identified as
either "2" or “3”, depending on your computer, although there may not be a total
of 3 screens connected.
5. Click OK to close the settings screen.
12

Netbook Docking Station User’s Manual
Once the setting is done, to use your extended desktop, simply drag and drop
your open windows over to your second monitor. However, note that some
applications may not support display on the extended desktop.
Cursor disappeared ?
If you’re in extneded mode but the add-on monitor is not connected, the desktop
still pans to the add-on monitor and it’s possible that your cursor has moved to
the extended desktop so that you cannot find it on the primary display. To solve
the problem in such a case, connect the add-on monitor to the docking station or
keep moving your mouse to try or unplug the docking station first to restore the
cursor.
13

Netbook Docking Station User’s Manual
Video and DVD Playback in Extened Mode
On Windows Vista with extended mode, it’s suggested that you run video or DVD
playback programs on your primary monitor instead of the add-on monitor to
ensure the playback performance.
Mirror Your Windows Desktop
This mode is referred to as “mirror” or “clone” mode. In this mode, your original
screen (the primary display) will be mirrored to the add-on monitor.
In mirror mode, the video component will automatically select the settings (screen
resolution, color quality and refresh rate) for the add-on monitor. But you can
manually adjust the settings as required. However, the settings of the add-on
monitor are limited by that of the primary monitor. For example, even though your
add-on monitor supports a resolution of up to 1680x1050, you can only configure it
to use 1280x1024 due to the primary monitor only supports a resolution of up to
1280x1024.
If you change the video output to extended mode and then want to switch back to
mirror mode, follow these steps:
1. Position the mouse anywhere on your computer desktop, right-click and select
Screen Resolution on Win 7, Personalize > Display Settings on Vista or
Properties > Settings on XP/2000.
2. In the Display drop-down menu, select the option with the string “DisplayLink
Graphics Adapter”.
3. Check the Multiple Displays>Duplicate these displays on Win 7, uncheck
the Extend the desktop onto this monitor on Vista or Extend my Windows
desktop onto this monitor on XP/2000.
4. Click OK to close the settings screen.
14

Netbook Docking Station User’s Manual
Be the Primary Monitor
To make the add-on monitor the primary display:
1. Position the mouse anywhere on your computer desktop, right-click and select
Screen Resolution on Win 7, Personalize > Display Settings on Vista or
Properties > Settings on XP/2000.
2. In the Display drop-down menu, select the option ends with DisplayLink
Graphics Adapter.
3. Check the This is my main monitor box on Vista/Win 7 or Use this device as
the primary monitor box on XP/2000.
On some PCs and laptops it is necessary to disable the main display (i.e.
uncheck the Extend the desktop onto this monitor or Extend my Windows
desktop onto this monitor box for the main display) as part of the same
settings change.
4. Click OK to close the settings screen.
The add-on monitor stays primary if the PC enters hibernate or suspend mode
or is rebooted. If the add-on monitor is unplugged, the main display becomes
primary again.
Adjusting Resolution, Color Depth and Refresh Rate
There are three components that make up the screen mode:
Resolution: In common usage, this refers to the number of pixels displayed on
screen horizontally and vertically.
Color Depth: This defines the number of different colors that can be shown on the
screen at the same time.
Refresh rate: Measures the speed that the entire screen is rescanned. Higher
frequencies reduce flicker.
Some monitors advertise the supported modes through the video connector. If this
is the case, the video component identifies the supported modes from the monitor.
If the monitor does not advertise the supported modes, the video software chooses
a set of common screen modes for the monitor.
15

Netbook Docking Station User’s Manual
The software supports the modes listed below.
Color Depth
Resolution
Refresh rates available at
16 bit color quality
Refresh rates available at
32 bit color quality
640x480 60 72 75 85 60 72 75 85
800x600 56 60 72 75 85 56 60 72 75 85
1024x768 60 70 75 85 60 70 75 85
1280x960 60 85 60 85
1280x1024 60 75 60 75
1360x768 60 60
1366x768 50 60 50 60
1368x768 60 60
1400x1050 60 75 85 60 75 85
1440x900 60 60
1600x1200 60 60
1680x1050 60 60
1920x1080 60 50 60 50
About the resolutions and refresh rates available to users
The resolutions and refresh rates available to the user through Windows are a
comprise of the support from the following elements:
■The video component of the docking station
■The primary monitor and the add-on monitor
■The primary video card on your computer and installed drivers
Therefore, for example, if your monitor doesn’t support a resolution of
1600x1200, then 1600x1200 is not possible though your dokcing station’s video
component supports 1600x1200. This ensures that the monitor cannot be put
into an unsupported mode, which might damage it.
If cloning the primary display, the video component will try to use the preferred
monitor mode. In some cases, this may not be the most appropriate mode for the
cloned desktop. It is recommended that the primary display resolution be changed
to closer match the default resolution of the add-on monitor.
16

Netbook Docking Station User’s Manual
To configure the three components (resolution, color depth and refresh rate) of a
screen mode, follow these steps:
1. Position the mouse anywhere on your computer desktop, right-click and select
Screen Resolution on Win 7, Personalize > Display Settings on Vista or
Properties > Settings on XP/2000.
2. In the Display drop-down menu, select the option ends with DisplayLink
Graphics Adapter.
3. To change the screen resolution or color quality, select those options on the
screen. Be sure to select one of the supported resolutions and color quality
numbers in the table above. For an add-on monitor, you can also select any
resolution or color quality supported by that monitor.
4. To change the refresh rate, click Advanced… and then click Monitor.
5. Select a refresh rate from the Screen refresh rate drop-down list and then click
Apply.
6. Click OK to close the settings screen.
Disconnecting the Docking Station
If the docking station is unplugged from the computer, the add-on monitor goes
blank. All windows and icons move to the primary screen.
On reconnection of the docking station, the docking station returns to the same
mode as it was before disconnection. However, windows and icons that were
previously on the screen will not be moved back.
17
