GoodHome Solna 3663602437970 User manual

Solna
3663602437970/ 3663602437963/ 3663602437956/
3663602437703/ 3663602437697/ 3663602437680/
3663602438243 3663602438236 3663602438229
V10220

.
.
.
.
.
.
.
.
Safety 04
.
.
.
FR Sécurité 36
PL Informacje dotyczące bezpieczeństwa 69
RO Siguranță 101
.
.
.
.
.
.
.
.
Installation 08
.
.
.
FR Installation 41
PL Montaż 74
RO Instalare 105
.
.
.
.
.
.
.
.
Use 14
.
.
.
FR Utilisation 46
PL Użytkowanie 79
RO Utilizare 110
.
.
.
.
.
.
.
.
Care and Maintenance 34
.
.
.
FR Entretien et maintenance 66
PL Czyszczenie i konserwacja 99
RO Îngrijire şi întreținere 130
.
.
.
.
.
.
.
.
Guarantee 35
.
.
.
FR Garantie 67
PL Gwarancja 100
RO Garanție 131
.
.
.
.
EN Contents FR Contenu
.
.
. . 02
.
.
PL Zawartość RO Cuprins
.

EN IMPORTANT - Please read the following instructions carefully before using the appliance and retain for further reference.
FR IMPORTANT - Veuillez lire attentivement les instructions suivantes avant d’utiliser l’appareil et les conserver pour référence.
PL WAŻNE - Przed użyciem proszę dokładnie zapoznać się z instrukcją bezpieczeństwa.
RO IMPORTANT - Vă rugăm să citiți cu atenție ghidul de siguranță separat înainte de utilizare.
x ?

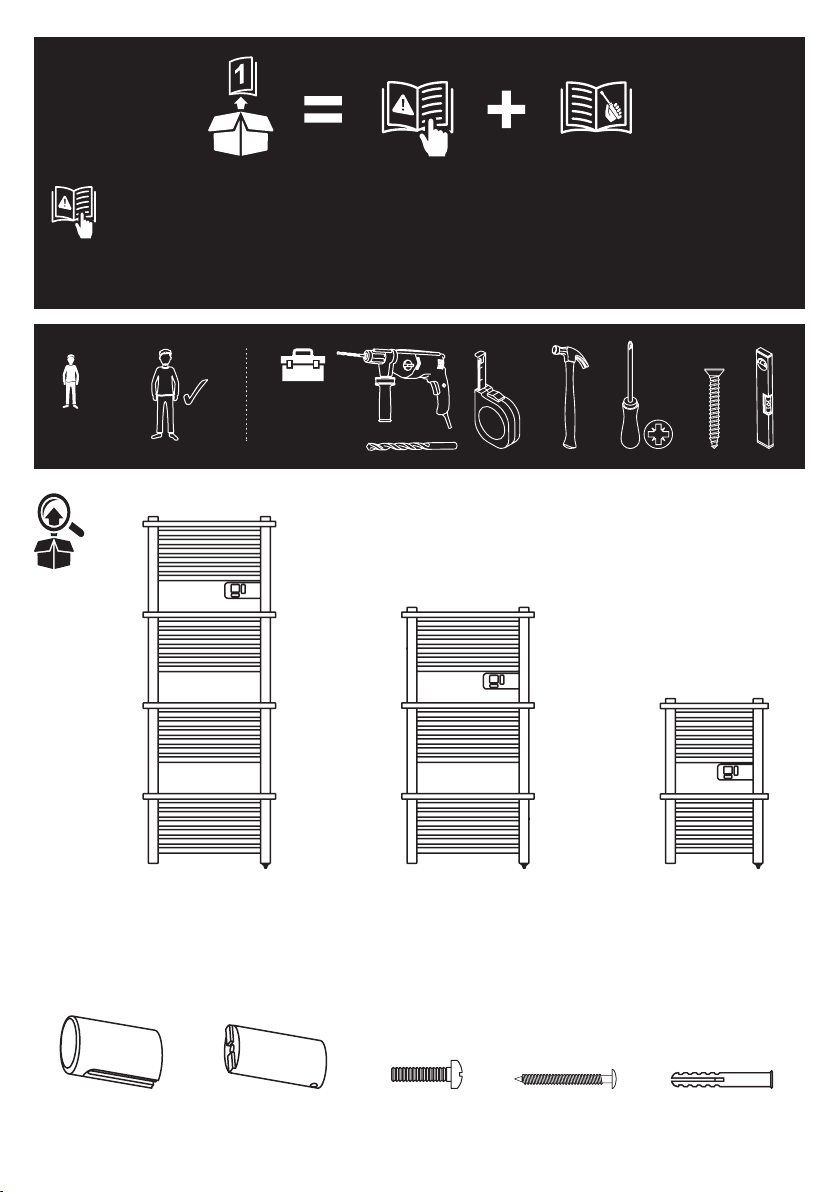

[01] x1 [01] x1 [01] x1
3663602437970/ 3663602437963/ 3663602437956/
3663602437703/ 3663602437697/ 3663602437680/
3663602438243 3663602438236 3663602438229
[02] x4 [03] x4 [04] x4 [05] x4 [06] x4

.
.
.
.
.
EN . Before you start
PLEASE READ THE SAFETY
ADVICE CAREFULLY
BEFORE USING THE
APPLIANCE.
WARNING: Risk of fire,
electric shock, physical
injuries and material damage.
Before using this appliance,
always follow the safety
advice during assembly, use
and maintenance.
• This appliance can be
used by children aged
from 8years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not
play with the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
• Children of less than
3years should be kept
away unless continuously
supervised.
• Children aged from 3years
and less than 8years
shall only switch on/off
the appliance provided
that it has been placed or
installed in its intended
normal operating position
and they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children aged
from 3years and less than
8years shall not plug in,
regulate and clean the
appliance or perform user
maintenance.
CAUTION: Some parts of
this product can become
very hot and cause burns.
Particular attention has to
be given where children
and vulnerable people are
present.
WARNING: In order to
avoid overheating, do
not cover the heater.
.
.
.
.
.
.
.
. Safety 04
.
.
.

.
.
.
.
.
.
.
. Safety 05
.
.
.
WARNING: This appliance
is intended only for drying
textiles washed in water.
• If the supply cord
is damaged, it must
be replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
• The appliance must not be
used outdoors.
• The appliance is intended
for domestic use only. Do
not use this appliance for
anything other than its
intended purpose.
• Do not operate the
appliance in a room where
flammable liquids, solvents
or varnishes are stored
and/or where flammable
vapours may exist.
• Do not attempt to
disassemble this appliance,
repair it or perform any
modifications yourself. This
appliance does not contain
any parts that can be used
separately.
• Keep plastic packaging out
of the reach of children.
• Information on appliance
installation is provided in
the Installation section on
pages 8to 13.
• The heater must not be
located immediately below
a socket-outlet.
WARNING: Means for
disconnection having a
contact separation in all
poles must be incorporated
in the fixed wiring in
accordance with the wiring
rules.
CAUTION: In order to avoid
a hazard due to inadvertent
resetting of the thermal
cut-out, this appliance must
not be supplied through an
external switching device,
such as a timer, or connected
to a circuit that is regularly
switched on and off by the
utility.

.
.
.
.
.
.
.
. Safety 06
.
.
.
• The appliance must be
supplied through a residual
current device (RCD)
having a rated residual
operating current not
exceeding 30mA.
WARNING: This appliance
must only be used as a
fixed appliance. It must
be attached vertically
and securely to a vertical
wall. Any other position is
potentially dangerous.
WARNING: In order to avoid
a hazard for very young
children, this appliance
should be installed so that
the lowest heated rail is at
least 600mm above the
floor.
WARNING: If this appliance
is installed in a bathroom, it
must be installed only in the
volume 2and out of volume
of the bathroom in line with
the installation standards
applicable in your country.
IMPORTANT: KEEP THIS
INFORMATION FOR
FUTURE REFERENCE. READ
CAREFULLY.
Conformity with all relevant EC
Directive requirements.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
local store for recycling advice.
Class II product - Double Insulated -
No earth required.
Caution, hot surface
IP24 Protected against splashing water
in all directions.
Manufacturing date code; year of
yyWxx manufacturing (20yy) and week of
manufacturing (Wxx).

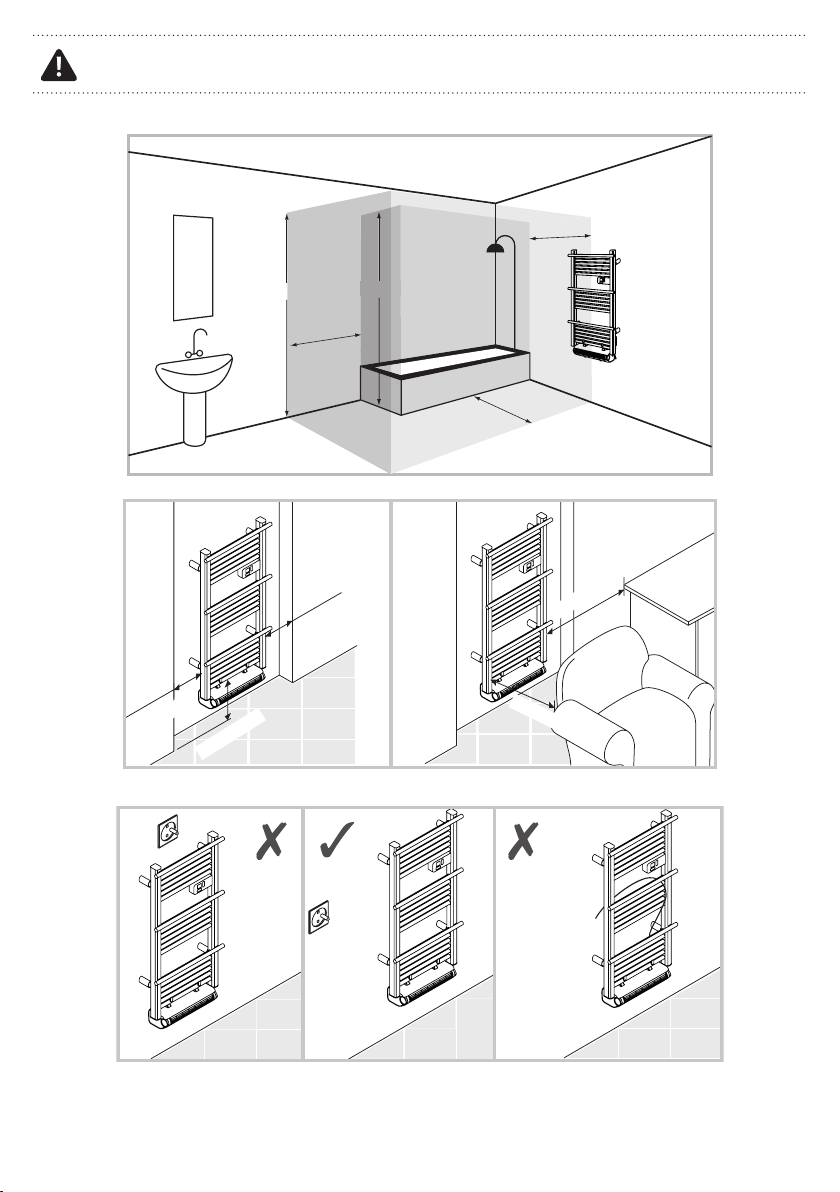

2.25m 2.25m
Zone 2
Zone 1
0.6m
0.6m
0.6m
Outside zone
min 15cm min 15cm
min 50cm
min 50cm
min 60cm
.
.
.
.
.
.
.
. Safety 07
.
.
.

.
.
.
.
.
.
.
. Installation 08
.
.
.
IMPORTANT : Please follow the safety advice set out on pages 4 to 7.
L = 370 mm for SOLNA35 model.
L = 470 mm for SOLNA50 & SOLNA75 models.
The screws and wall plugs supplied are suitable for solid walls.
For all other types of wall, please use suitable screws and wall plugs.
CAUTION: The surface of this product can become very hot and is therefore not
suitable for use in an environment where there could be risks. Vulnerable persons
and young children should not be left unattended near the towel drying rack. To
prevent any danger to very young children, we recommend installing this appliance
so that the lowest heated bar is at least 600 mm above the ground.
1
2
[06]
[04]
[05]
[03]
[02]
L
L
Min. 150 mm
from the
ceiling
Min. 600 mm
from the
floor 12

.
.
.
.
.
.
.
. Installation 09
.
.
.
12
Max. 250mm
[03]
[04]
[02]
1
2
Max.250mm

.
.
.
.
.
.
.
. Installation 10
.
.
.

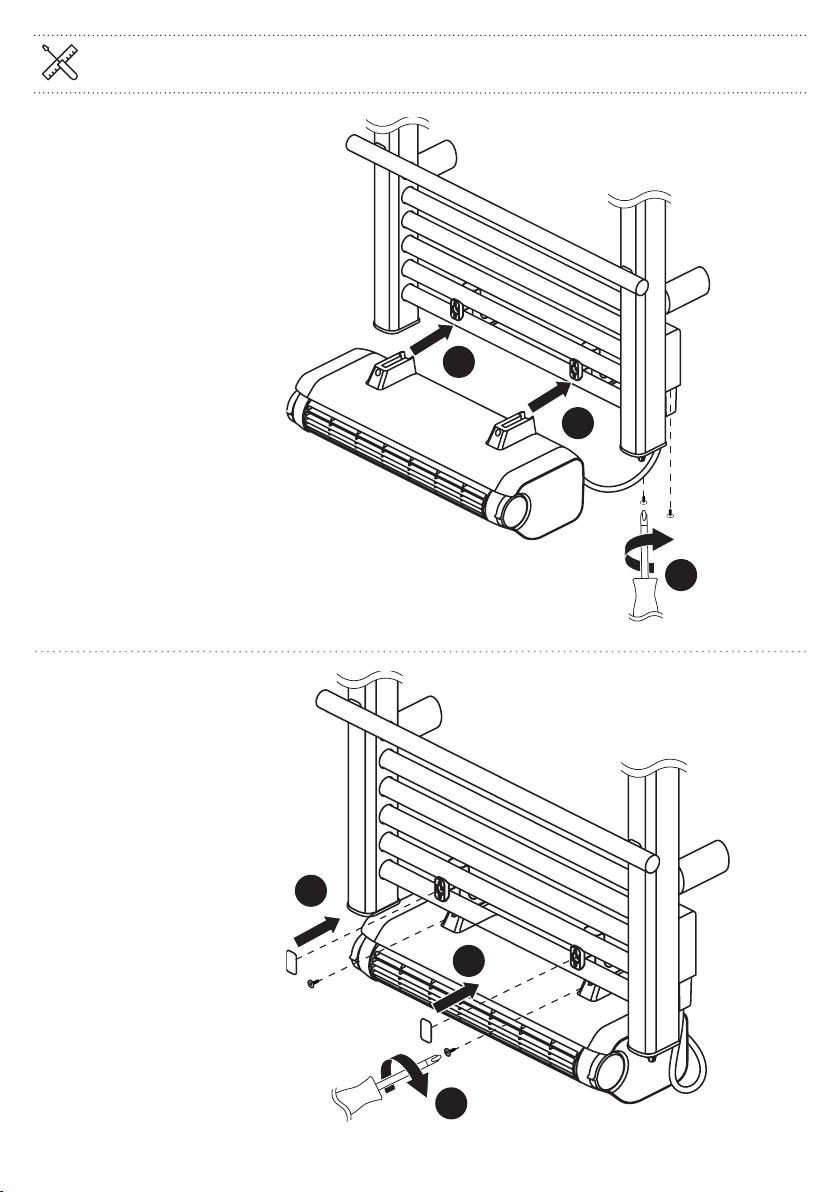

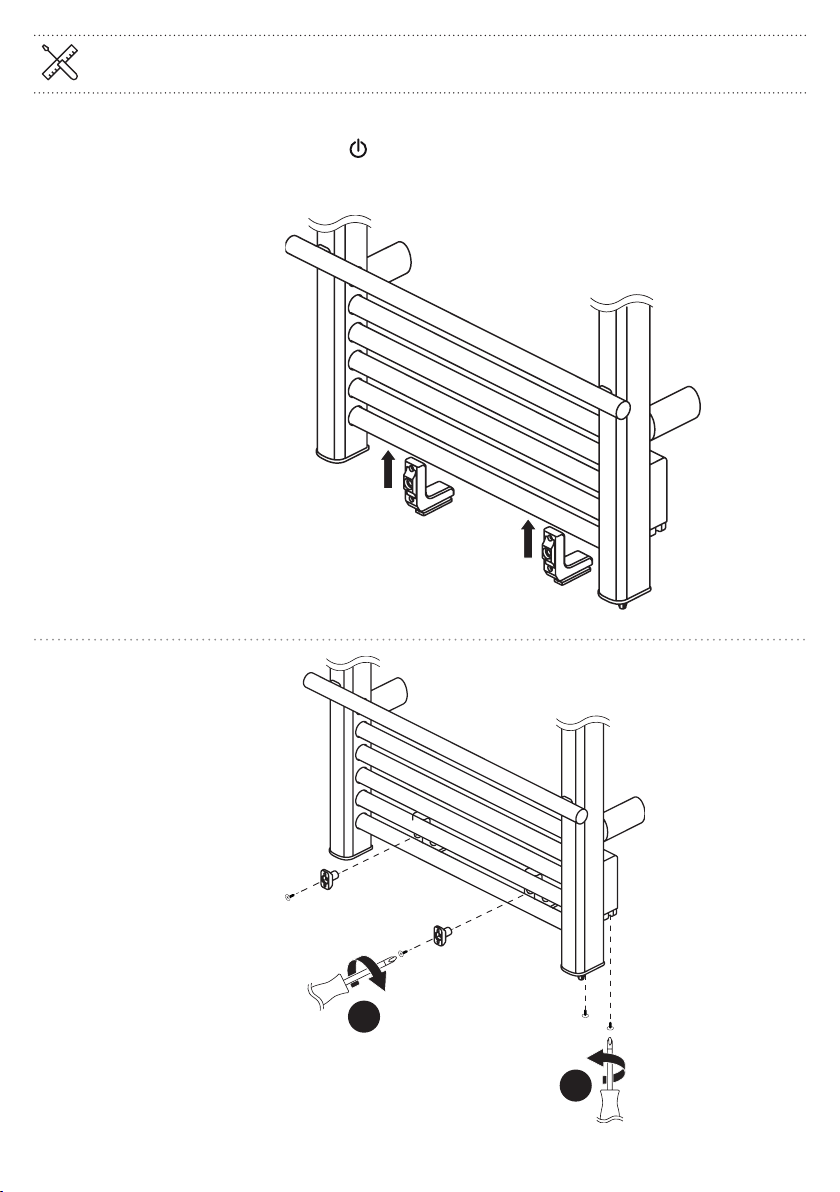

Blower assembly (blower not supplied with towel heater)
• Before connecting the blower, press the button to shut down the appliance.
• The blower shall not touch the wall. If necessary, increase the length of the wall brackets after loosening
the screws [04].
:
:
:
:
:
:
:
01 :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
02 :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
2

.
.
.
.
.
.
.
. Installation 11
.
.
.
:
:
:
:
:
:
:
03 :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
04 :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:

.
.
.
.
.
.
.
. Installation 12
.
.
.
:
:
:
:
:
:
:
05 :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
2
:
:
:
:
:
:
:
06 :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
: 1
2
2

.
.
.
.
.
.
.
. Installation 13
.
.
.

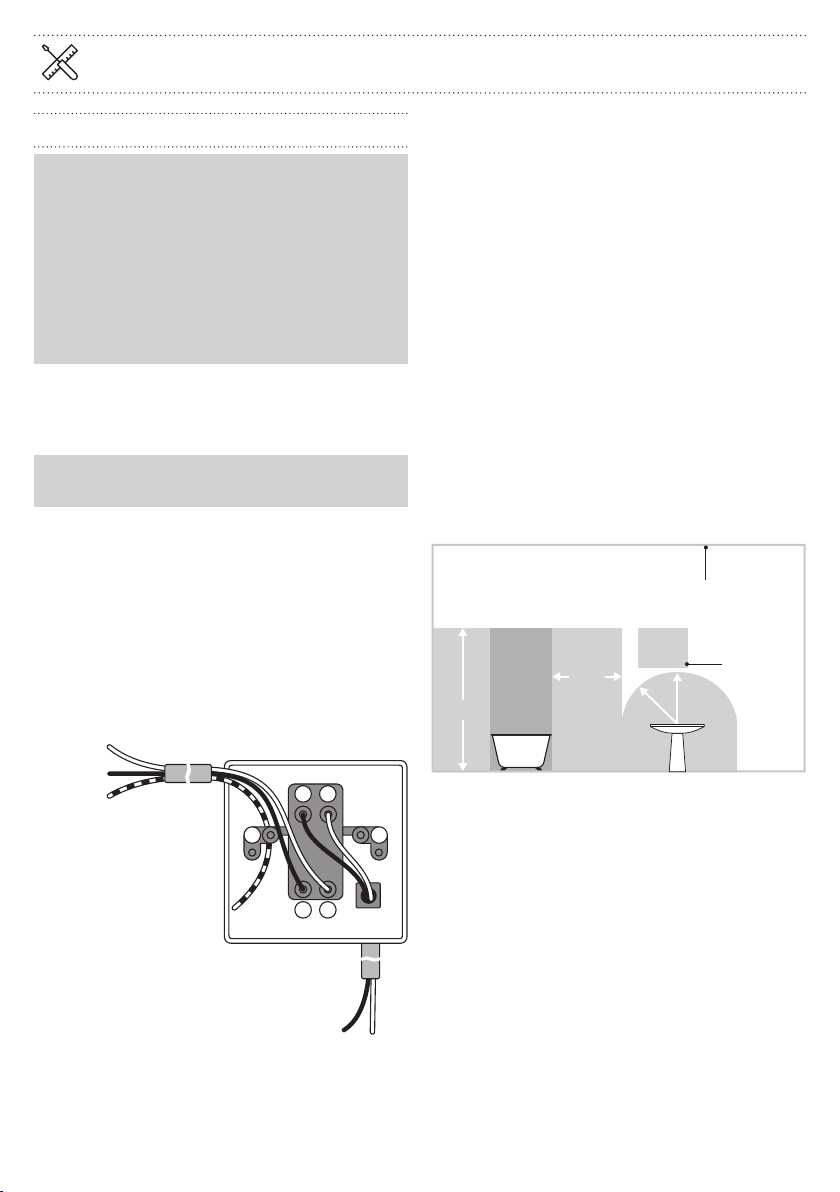

Electrical connection
Warning: you need to connect the two
conductors of the supply cable to a
connection block in respecting the
polarities as following :
IMPORTANT: The wires in the mains
lead are coloured in accordance with
the following code :
Blue – Neutral
Brown – Live
• The blue wire must be connected to the terminal
marked with an N or coloured black.
• The brown wire must be connected to the
terminal marked with an L or coloured red.
WARNING: Never connect live or
neutral wires to the earth terminal.
• This product is double insulated and must not be
earthed. If there are any incoming earth cables,
they must be joined together using a suitable
connector (not supplied) and well insulated with
good quality insulation tape. This is to ensure
earth continuity throughout your property.
Flex outlet method - metal frontplates
Connect the cables as shown in the diagram:
From supply:
Neutral
Live
Earth
To appliance: Live
Neutral
ALL EARTH WIRES MUST BE SLEEVED AND
TERMINATED TO BACK BOX.
• DO NOT wire/fit a plug to this appliance. The
appliance must be electrically connected to a
fused fixed spur, which is fitted with a 7 Amp
fuse for SOLNA35, and with a 10Amp fuse for
SOLNA50 and SOLNA75.
• All fittings must be installed by a competent
person in accordance with the current IET
Wiring Regulations (BS7671). If in doubt, consult
a qualified electrician.
• This product is suitable for use in living areas,
and Bathroom (dry) outside Zones and zone
2 only (see diagram below and current IET
Wiring Regulations for details). It is not suitable
for Bathroom Zones 0 and 1. If being fitted in
a bathroom a 30mA RCD must be used. This
appliance does not come fitted/supplied with a
fused plug.
• Always refer to the Reference Drawing for
Bathroom Installation.
Note: the below drawing is for reference only.
(DRY) OUTSIDE ZONES
ZONES 0 ZONES 2
ZONES 1
2.25m
0.6m
0.6m
ZONES 2 Window
recess
Ceiling
IP24: THIS PRODUCT IS SUITABLE FOR
BATHROOMS (DRY) OUTSIDE ZONES AND
ZONE2.
• Full details can be found in the current IET
Wiring Regulations (BS7671).
L N
L N
E E

The controls
Setpoint temperature
Frost protection mode
Heating LED
Lock
Programme mode
Temperature
OK or Boost (3 sec.) settings
or Menu
selection
Menu
ECO mode
Comfort mode
Blower
Open window
Prolonged absence
ON/Standby
The icon and the value being adjusted flash. Flashing stops when the setting is validated by pressing
OK-boost, or after 30seconds of inaction (any modification to the setting is then cancelled).
On / standby
• Press the button to switch the heat on or off (appliance on standby).
Two short beeps that increase in pitch sound when switched on and three beeps that decrease in pitch
sound when shut down.
When switched on, the setpoint temperature and current mode are displayed alternatively every 3
seconds.
Standby ON ON
The icon is the heating LED. It is displayed on and off cyclically.
.
.
.
.
.
.
.
. Use 14
.
.
.

Locking the buttons
• Press and hold for more than 3 seconds on the button to lock or unlock the buttons. The icon
indicates that it is locked.
The button is never locked.

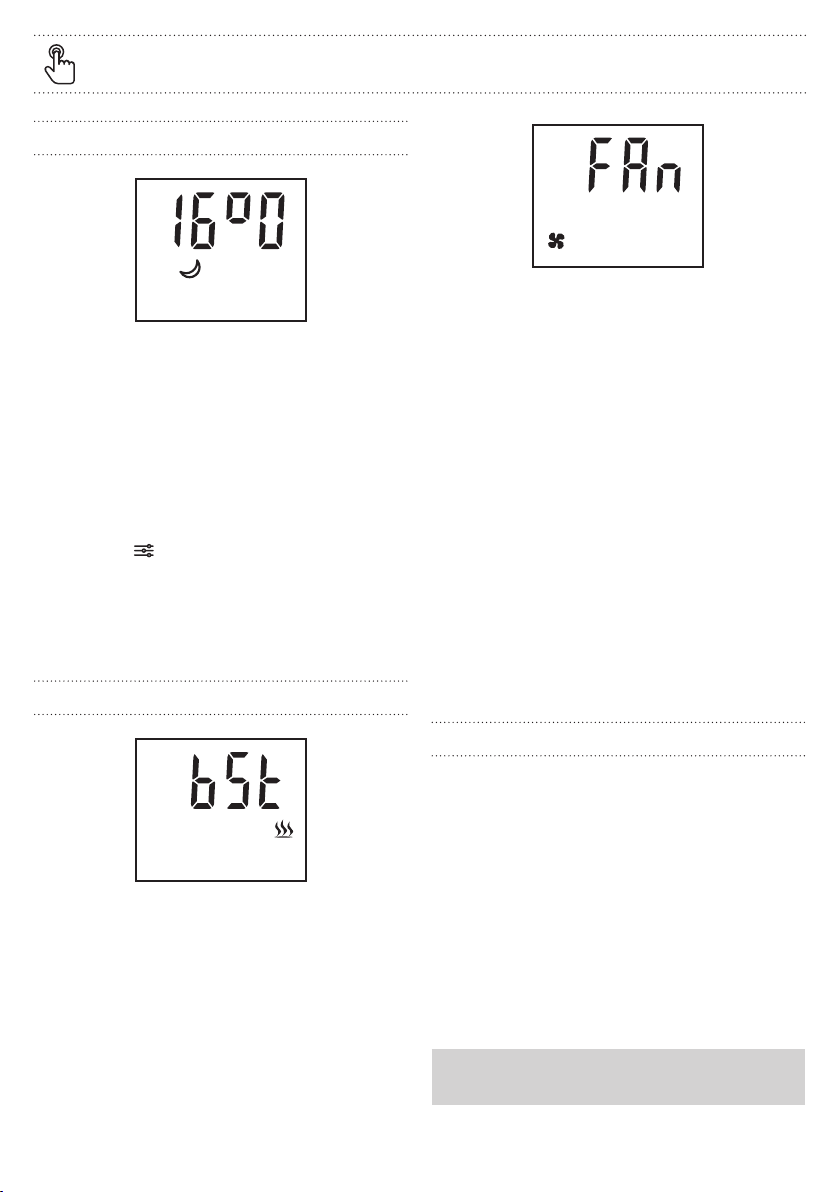

Mode selection
• Press the button to display Πod, then the OK-boost button, then press +or -to select one of the
following modes:
Con (Comfort) Constant temperature that can be set between 13.5°C and 30°C.
Pro (Programme) Weekly programming (refer to the Weekly programming section).
EcP (Programme Ecopilote) Simplified weekly programming (refer to the Weekly programming
section).
FilP unused
FrF (Frost protection) Temperature at 7.5°C, not adjustable.
Eco (Economy) Constant temperature that can be set between 13°C and 29.5°C.
• Press the button to cancel the setting, or the OK-boost button to validate the mode: the mode and
temperature are displayed alternately every 3 seconds.
Setting the Comfort mode temperature
The Comfort and ECO setpoint temperatures are set separately.
The Comfort mode temperature range is between 13.5°C and 30°C and can be adjusted in increments of
0.5°C. If limited, reduce the ECO temperature, as the Comfort temperature is always higher than the ECO
temperature.
• When Comfort mode (Con) is in operation, press the +or -button to increase or reduce the setpoint
temperature ; the temperature flashes.
• Press the button to cancel the setting, or the OK-boost button to validate the Comfort temperature
selected.
.
.
.
.
.
.
.
. Use 15
.
.
.

Setting the ECO mode temperature
The Comfort and ECO setpoint temperatures are
set separately.
The ECO mode temperature range is between 13°C
and 29.5°C and can be adjusted in increments of
0.5°C. If limited, increase the Comfort temperature,
as the ECO temperature is always lower than the
Comfort temperature.
• When ECO mode (Eco) is in operation, press the
+or -button to increase or reduce the setpoint
temperature. The temperature flashes.
• Press the button to cancel the setting,
or the OK-boost button to validate the ECO
temperature selected.
Setting the Boost
The temperature setting is automatically forced
to 30°C during boost. When Boost finishes, the
thermostat returns to the mode and temperature
that was previously set.
• Press and hold for 3seconds on the OK-boost
button to switch Boost on or off.
• (Only for an appliance with a blower): Press
the +or -button to select bSt (Boost without
blower) or FAn (Boost with blower), then press
the OK-boost button to validate.
• Press the +or -button to select the Boost time:
5, 10, 15, 20, 30, 45, 60, 90or 120minutes (the
default selection is 60minutes without blower
and 15minutes with blower), then press the
OK-boost button to validate the selection; the
remaining time in Boost is displayed.
• Press the MENU button to stop the Boost.
Only for an appliance with a blower: the fan
continues to run for a few seconds after stopping
the Boost to cool the blower.
In Programme mode, Boost can be stopped at any
time by pressing and holding for 3seconds on the
OK-boost. Following a manual stop in
Programme mode, Boost can only be reactivated by
a programme after a period of 2hours.
Precautions for use
Setting the temperature
• The heating power is maximal as long as the
setpoint temperature has not been reached.
Programming the setpoint temperature to the
maximum temperature possible, will not heat the
room quicker.
• Wait several hours for the room temperature
to stabilise before adjusting the temperature
setting.
• Shut down the appliance when ventilating the
room.
Maintenance (only for an appliance with a
blower)
IMPORTANT: Do not operate the blower
without its air filter.
• Regularly clean the air inlet and outlet vents as
soon as they begin to clog.
.
.
.
.
.
.
.
. Use 16
.
.
.

Power cuts
• Following a power cut and resume, the
appliance will automatically restart with all of the
settings and programs used before the cut (if
it was in operation before the cut, it will stay on
after the power resume).
• The programmer clock starts from the time the
cut began. This means that the time and day
could be misaligned.
• Following a power resume, the reference, then
the total time the appliance is turned on is
displayed for 30seconds on power resume.
Secondary programmes and
functions

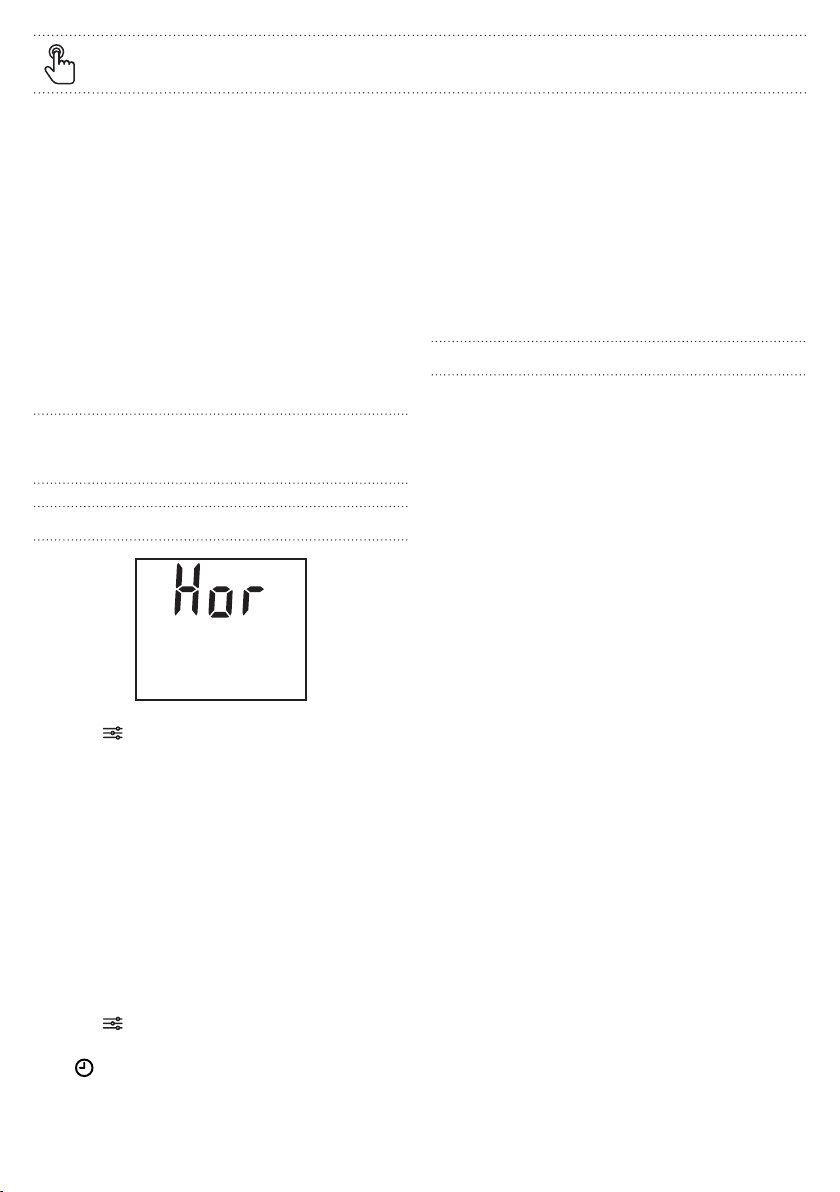

Setting the Time
• Press , then +to access the Hor menu.
• Press OK-boost to enter this menu.
• Press +or -to set the day of the week
d1 = Monday, d2 = Tuesday,...., d7 = Sunday.
• Press OK-boost to validate
• Press +or -to set the hour.
• Press OK-boost to validate.
• Press + or -to set the minutes.
• Press OK-boost to validate.
• Press +or -to select automatic (Aut) or manual
(ΠAn) time setting.
• Press OK-boost to validate.
• Press to exit the menu
If the icon permanently flashes in programme
mode (Pro or EcP), this indicates that the time is
offset following a power cut. It is flashing as a time
has not been set.
Following a power cut, the appliance will
automatically restart with all of the settings used
before the cut (if it was on or standby before the
cut, it will stay on or standby after the cut).
Automatic time setting is not possible outside
France.
Select manual time setting if daily automatic time
setting is incorrect.
Weekly programming
The time must be set before any programming.
There are two programmers available. They
comprise 6 programs: Pr1 to Pr6 for one, and 3
programs, Ec1 to Ec3 for the other. Selecting Pro or
EcP mode activates one or the other.
Each program defines a time period in which the
setting can be Comfort or Boost (only for Pr1 to
Pr6). Outside time periods, the setting is ECO.
The time period for one programme may overlap
the time period of another. In this case, the higher
number programme has priority.
Each programme is defined by:
• its name: Pr1,Pr2,Pr3, Pr4,Pr5,Pr6,Ec1,Ec2
or Ec3,
• its operating mode: Comfort (Con) or Boost
without blower (bSt) or Boost with blower (FAn :
only for an appliance with a blower).
• its days of activation: Monday to Sunday (1-7), or
Saturday and Sunday (6-7), or Monday to Friday
(1-5), or a day of the week (d1, d2, d3, d4, d5, d6,
d7),
• its start time,
• its end time.
.
.
.
.
.
.
.
. Use 17
.
.
.

Example of weekly programming
Pr 1: Monday to Friday from 5:20 to 7:00 in Comfort mode.
Pr 2: Monday to Sunday from 17:50 to 19:30 in Comfort mode.
Pr 3: Monday to Friday from 7:00 to 7:30 in Boost mode.
Pr 4: Wednesday from 16:30 to 20:00 in Comfort mode.
Pr 5: Saturday and Sunday from 8:10 to 20:00 in Comfort mode.
Pr 6: Saturday and Sunday from 9:20 to 10:10 in Boost mode.
• Press , then +to access the Pro menu.
• Press OK-boost to enter this menu.
• Press +or -to select the programme number (Pr1, Pr2, Pr3, Pr4, Pr5, Pr6,
Ec1, Ec2 or Ec3).
• Press OK-boost to validate.
• (Only for Pr1 to Pr6) Press +or -to select programme operating mode ; Con
(Comfort), or bSt (Boost without blower), or FAn (Boost with blower : only for
an appliance with a blower).
• Press OK-boost to validate.
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
.
.
.
.
.
.
.
. Use 18
.
.
.

• Press +or -to select the day(s) of programme activation or inactivation (not);
Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday (d1 ... d7),
from Monday morning to Sunday evening (1-7), from Saturday morning to
Sunday evening (6-7), from Monday morning to Friday evening (1-5).
• Press OK-boost to validate.
• Press +or -to set the hour of start time of the programme.
• Press OK-boost to validate.
• Press +or -to set the minutes of the start time in blocks of 10 minutes.
• Press OK-boost to validate.
• In the same way, press +or -to set the end time of the programme.
The end time is only programmable between the start time and midnight.
The Boost function is limited to a maximum of 2 hours.
• Press OK-boost to validate (Pro mode is selected by default).
• Press the button to exit the menu without validating the latest
modifications.

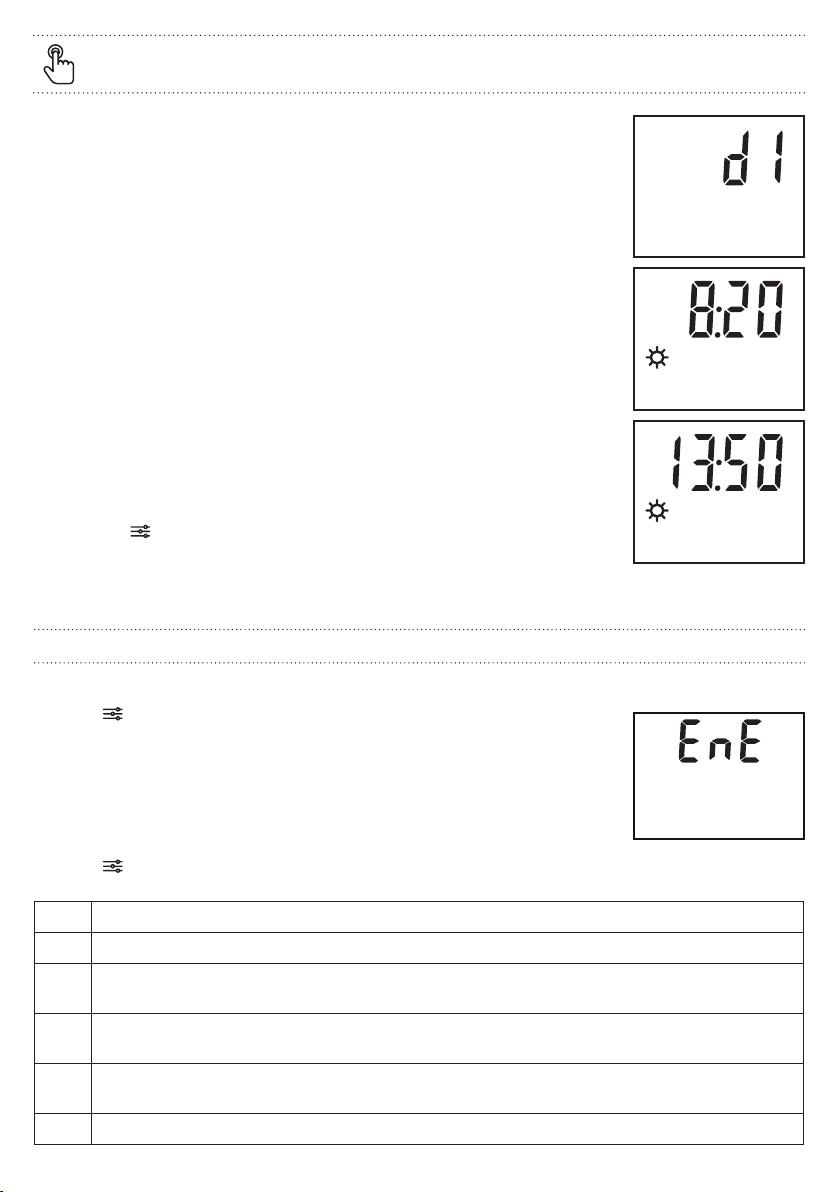

Consumptions
This menu displays the actual consumption duration. It is expressed as a percentage of the total time.
• Press , then +to access the EnE menu, or to access the Out menu to exit
the menu.
• Press OK-boost to enter this menu.
• Press +or -to successively display the consumption duration from today
(dAY), yesterday (d-1), the week (7-d), the month (30d), the year (360d), and
the reset (rES) for all consumption durations (wait a few seconds to see the
consumption duration, as for example E:32).
• Press to exit the menu.
dAY Consumption duration of the current day starting at midnight and ending at midnight.
d-1 Consumption duration of the previous day starting at midnight and ending at midnight.
7-d Consumption duration for the 7 previous days (example: the consumption displayed on Wednes-
day 11 started Tuesday 3 at midnight and ended Tuesday 10 at midnight).
30d Consumption duration for the 30 previous days (example: the consumption displayed on 11 May
started 11 April at midnight and ended 10 May at midnight).
360d Consumption duration for the previous 360 days (example: the consumption displayed on 11 May
2013 started 16 May 2012 at midnight and ended 10 May 2013 at midnight).
rES Press and hold more than 3 seconds on OK-boost to reset the consumption counters.
.
.
.
.
.
.
.
. Use 19
.
.
.

For example, a 1500 W heater displays its consumption duration
For the year 360d -> E:06 (1500 W for 6 % of the time),
i.e. 777.6 kW.h (= 777600 W.h = 1500 x 360 x 24 x 0.06).
For the month 30d -> E:14 (1500 W for 14 % of the time),
i.e. 151.2 kW.h (= 151200 W.h = 1500 x 30 x 24 x 0.14).
For the week 7-d -> E:21 (1500 W for 21 % of the time),
i.e. 52.9 kW.h (= 52920 W.h = 1500 x 7 x 24 x 0.21).
For yesterday d-1 -> E:28 (1500 W for 28 % of the time),
i.e. 10.1 kW.h (= 10080 W.h = 1500 x 24 x 0.28).
For today up to 12:45 dAY -> E:32 (1500 W for 32 % of the time elapsed since 0:00),
i.e. 6.1 kW.h (6120 W.h = 1500 x 12.75 (= 12:45) x 0.32).

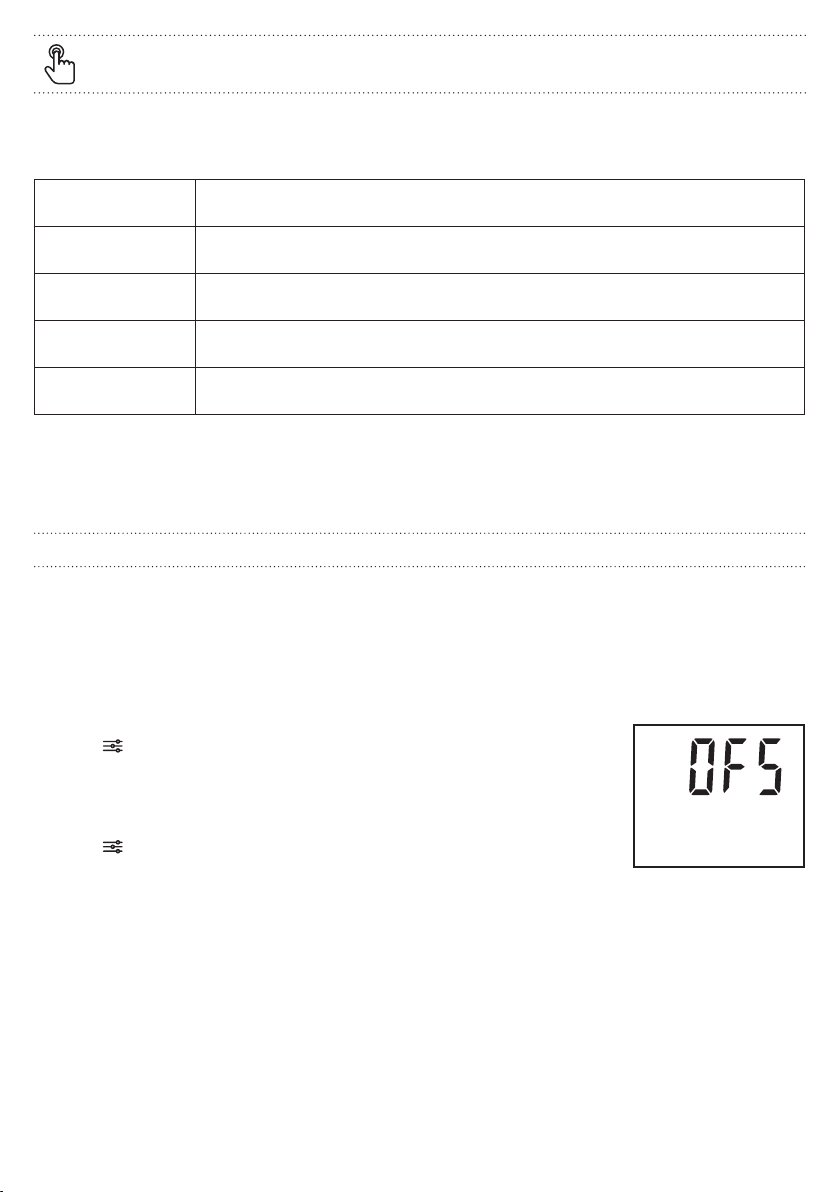

Setting the temperature offset
This setting compensates for any difference (offset) between the temperature displayed by the unit and
ambient temperature measured in the room. This difference varies from one room to another as it depends
on the insulation, room layout and location of the appliance.
This difference must be closed when the ambient temperature is stabilised after more than 2 hours of
heating in Comfort or Eco mode.
This setting changes neither the stability nor the accuracy of the temperature regulation.
• Press , then +to access the OFS menu.
• Press OK-boost to enter this menu.
• Press +or -to set the offset between 8°C and -8°C
• Press OK-boost to validate the offset.
• Press to exit the menu.
For example, if the appliance is set at 20°C and if the ambient thermometer displays 18°C, the offset must
be -2°C.
For example, if the appliance is set at 20°C and if the ambient thermometer displays 22°C, the offset must
be 2°C.
.
.
.
.
.
.
.
. Use 20
.
.
.
