•Refer to Service Manual RS6200006 for installation, operation & troubleshooting information.
•All safety information must be followed as provided in the Service Manual.
•Refer to the appropriate Parts Catalog for part number information.
•Models listed on page 3.
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
RT6121004r2
March 2014
Copyright © 2013-2014 Goodman Manufacturing Company, L.P.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman
does not assume any responsibility for property damage or personal injury due to improper
service procedures or services performed by an unqualified person.
AVPTC Air Handlers

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by in-
dividuals meeting (at a minimum)
the requirements of an "entry level technician", as speci-
fied by the Air-Conditioning, Heating, and Refrigeration
Institute (AHRI). Attempting to install or repair this unit
without such background may result in product damage,
personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
All Airhandlers use DIRECT DRIVE MOTORS. Power supply is AC 208-230v, 60 hz, 1 phase.
AVPTC24B14AA
PRODUCT
TYPE:
A: Air Handler
CABINET FINISH:
U: Unpainted
P: Painted
N: Uncased
EXPANSION
DEVICE:
F: Flowrater
T: TXV
(Expansion
Device)
MINOR
REVISION*
ELECTRICAL:
1: 208-230V/1ph/60Hz
APPLICATION
C: Ceiling Mount PSC Motor
D: Downflow PSC Motor
E: Multi-Position Varible Speed Motor
R: Multi-Position PSC Motor
S: Energy-Efficient Motor:
Multi-Position PSC Motor
T: Coated Coils
V: Variable Speed ECM Motor
W: W all Mount PSC Motor
REFRIGERANT
CHARGE:
4: R-410A
NOMINAL CAPACITY RANGE:
Multi-Position
& Downflow Applications
24: 2 Tons
30: 2 1/2Tons
36: 3 Tons
42: 3 1/2 Tons
48: 4 Tons
60: 5 Tons
EXPANSION
DEVICE:
C: 4-Wire
Communicating
Ready
CABINET
DIMENSIONS:
B: 17.5"
C: 21"
D: 24.5"
MAJOR
REVISION*

PRODUCT IDENTIFICATION
3
The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.
AVPTC24B14A*
AVPTC30C14A*
AVPTC36C14A*
AVPTC48C14A*
AVPTC42D14A*
AVPTC48D14A*
AVPTC60D14A*
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
When installing or servicing this
equipment, safety clothing, includ-
ing hand and eye protection, is
strongly advised. If installing this equipment in an area
that has special safety requirements (hard hats etc.), ob-
serve these requirements. To protect the unit when braz-
ing close to the painted surfaces, the use of a quenching
cloth is strongly advised to prevent scorching or marring
of the equipment finish.
The unit MUST have an uninter-
rupted, unbroken electrical ground
to minimize the possibility of per-
sonal injury if an electrical fault should occur. The electrical
ground circuit may consist of an appropriately sized electri-
cal wire connecting the ground lug in the unit control box to
the building electrical service panel. Other methods of
grounding are permitted if performed in accordance with
the “National Electric Code” (NEC)/“American National Stan-
dards Institute” (ANSI)/“National Fire Protection Association”
(NFPA)70 and local/statecodes. In Canada, electricalground-
ing is to be in accordance with the Canadian Electric Code
CSA C22.1. Failure to observe this warning can result in
electrical shock that can cause personal injury or death.
WARNING
WARNING WARNING
WARNING

PRODUCT DESIGN
4
If this appliance is installed in
an enclosed area such as a
garage or utility room with any
carbon monoxide (CO) producing appliance (i.e.
automobile, furnace, water-heaters, etc.), ensure
the area is properly ventilated.
WARNING
WARNING
HIGHVOLTAGE
Disconnect ALL power
before servicing or installing this unit. Mul-
tiple power sources may be present. Failure
todo so may causeproperty damage, personal
injury or death.
WARNING
WARNING
AIR HANDLERS
See Air Handler Specification Sheet for Proper Combinations.
ALL AIR HANDLERS USE DIRECT DRIVE MOTORS.
POWER SUPPLY IS 208-230 V, 60 HZ, 1 PHASE.
Installation
Before installing this appliance insure that it is properly sized
and adequate power is available.
This appliance can be installed in the vertical or right hori-
zontal position without modification. The horizontal left and
downflow positions require product modification.
This product is designed for zero inches (0 inches) clear-
ance; however, adequate access for service or replacement
must be considered without removing permanent structure.
This unit can be installed on a platform when deemed nec-
essary.
In an attic installation a secondary drain pan must be pro-
vided by the installer and placed under the entire unit with
a separate drain line properly sloped and terminated in an
area visible to the owner. This secondary drain pan is re-
quired in the event that there is a leak or main drain block-
age. Closed cell insulation should be applied to the drain
lines in unconditioned spaces where sweating may occur.
Appliances installed in garages, warehouses or other areas
where they may be subjected to mechanical damage must
be suitably guarded against such damage by installing be-
hind protective barriers, being elevated or located out of
the normal path of vehicles. When installed on a base, the
base must also be protected by similar means.
Heating and cooling equipment located in garages, which
may generate a glow, spark or flame capable of igniting
flammable vapors, must be installed with the ignition source
at least 18"[46cm] above the floor level.
When more than one appliance is installed in a building it
shall be permanently identified as to the area or space ser-
viced by the equipment.
When this product is installed in the downflow installation
in an unconditioned space, remove the horizontal drain pan
and install the following insulation kit.
DFK-B
Downflow Kit DFK-C Downflow Kit DFK-D Downflow Kit
AVPTC24B14** AVPTC30C14** AVPTC42D14**
AVPTC36C14** AVPTC48D14**
AVPTC48C14** AVPTC60D14**
MODEL LIST FOR DOWNFLOW KITS
This kit is used to prevent sweating on the vertical drain
pan.
*AVPTC is a multi-position, variable-speed air handler and
is used with R-410A. The unit’s blower design includes a
variable-speed ECM motor and is compatible with heat
pumps and variable-capacity cooling applications.
AVPTC air handlers are available in 2 to 5 ton sizes with
optional 3 kW to 25kW electric heat kits available for field
installation. (See note below.)
NOTE: Factory-sealedtoachievea2%orlessleakagerate
at 1.0" water gauge external duct static pressure.
Complies with the Factory-sealed Air Handling Credit as
listedinthe2001FloridaBuildingCode,Chapter13,Section
610.2.A.2.1.

PRODUCT DIMENSIONS
5
AVPTC

6
AVPTCPRODUCT DIMENSIONS
PRODUCT SPECIFICATIONS
Model A B C D E F G H
AVPTC24B14* 45 16 3/817 1/218 15 14 3/16 8 13/16 11 15/16
AVPTC30C14* 49 19 15/16 21 20 17 17 11/16 10 1/212 3/8
AVPTC36C14* 49 19 15/16 21 20 17 17 11/16 10 1/212 3/8
AVPTC48C14* 49 19 15/16 21 20 17 17 11/16 10 1/212 3/8
AVPTC42D14* 58 23 5/16 24 1/228 3/16 25 3/16 21 3/16 12 5/16 12 3/8
AVPTC48D14* 58 23 5/16 24 1/228 3/16 25 3/16 21 3/16 12 5/16 12 3/8
AVPTC60D14* 58 23 5/16 24 1/228 3/16 25 3/16 21 3/16 12 5/16 12 3/8
AVPTC
24B14*
AVPTC
30C14*
AVPT
C
36C14*
AVPT
C
48C14A*
AVPTC
42D14*
AVPTC
48D14*
AVPT
C
60D14*
Nominal Ratings
Cooling (Btu/h) 24,000 30,000 36,000 42,000 42,000 48,000 60,000
CFM (High range) 1100/600 1200/600 1600/700 1660/700 1700/800 1800/1350 2000/1600
Blower
Diameter 10⅝"10⅝"10⅝"10⅝"10⅝"10⅝"11⅝"
Width 6" 8" 10⅝"10⅝"10⅝"10⅝"10⅝"
CoilDrainConnectFPT ¾"¾"¾"¾"¾"¾"¾"
Refrigerant Line
Connection Size
Liquid ⅜"⅜"⅜"⅜"⅜"⅜"⅜"
Suction ¾" ⅞"⅞"⅞"⅞"⅞"⅞"
Electrical Data
Voltage 208/240 208/240 208/240 208/240 208/240 208/240 208/240
Electric Heat Capacity (kW) 3, 5,
6, 8, 10 3, 5, 6, 8, 10 5, 6, 8, 10, 15, 19
5, 6, 8,
10, 15,19,
20F
5, 6, 8,
10, 15, 20
5, 6, 8,
10, 15, 20,
25
5, 6, 8,
10, 15, 20,
25
M in Circ uit Ampac ity 4.9/4.9 4.9/4.9 6.5/6.5 6.5/6.5 6.5/6.5 6.5/6.5 8.6/8.6
M ax. O verc urrent Device (amps) 15/15 15/15 15/15 15/15 15/15 15/15 15/15
M inimum VAC 197 197 197 197 197 197 197
M aximum VAC 253 253 253 253 253 253 253
Blower Motor
FLA 3.93.95.25.25.25.26.9
HP ½½¾¾¾¾1
Ship Weight (lbs) 100 118 118 125 155 167 167
*Airflow rate @.3 static

BLOWER PERFORMANCE DATA
7
B ------- 30 sec/50% 60 sec/100%
Speed Selection Dip Switches
A OFF OFF OFF OFF OFF OFF
TAP S1 S2 S3 S4 S5 S6
B ON OFF ON OFF ON OFF
A ------- -------- 60 sec/100%
To set Airflow: (1) Select model and desired High Stage Cooling
Airflow. Determine the corresponding tap (A, B, C, D). Set dip
switches S1 and S2 to the appropriate ON / OFF positions.
(2) Select model and installed electric heater size. Set dip
switches S9, S10, and S11 to the appropriate ON / OFF positions.
(3) If airflow adjustment is required set Trim Enable Switch to
S8
ON (OFF = 0% Trim) and set S3 and S4 to appropriate ON / OFF
positions. Tap Ais +5%,Tap B is -5%, Tap C is +10%, Tap D is
-10%.
D ON ON ON ON ON ON
Cool Adjust Profile
Selection Selection Selection
Switches Switches Switches
Notes:
1.Airflowdata shown applies to legacy mode operation only.
For a fully communicating system, please see the outdoor
unit's installation instructions for cooling and heat pump
airflow data. See
ComfortNet System-Airflow Consideration
section for details.
2. Airflow blink codes are approximations of actual airflow.
Profiles Pre-Run Short-Run OFF Delay
C OFF ON OFF ON OFF ON
C ------- 7.5 min/82% 60 sec/100%
D 30 sec/50% 7.5 min/82% 30 sec/50%
To Set Comfort mode: Select desired Comfort Mode Profile (see
profiles above). Set dip switches S5 and S6 to appropriate ON /
OFF positions.
Dehumidification: To enable, set dip switch S7 to ON. Cooling
airflow will be reduced to 85% of nominal value during cool call
when Dehum command is present. To disable, set S7 to OFF.
Continuous Fan Speed: Use dip switches S12 and S13 to select
one of 4 continuous fan speeds, Tap A is 25%. Tap B is 50%, Tap
C is 75%, Tap D is 100%.
Continuous
Fan
Speed
S12 S13
OFF
ON
OFF
ON
OFF
OFF
ON
ON
Model Speed tap Low stage
(CFM) High stage (CFM)
A410 610
B565 835
C660 970
D765 1125
A440 610
B605 835
C740 1020
D885 1225
A500 725
B700 1000
C930 1330
D1120 1600
A500 725
B700 1000
C930 1330
D1120 1600
A560 800
B763 1090
C994 1420
D1225 1750
A900 1350
B1035 1550
C1140 1700
D1200 1800
A1210 1610
B1365 1815
C1450 1920
D1525 2025
AVPTC60D14**
Cooling/Heat Pump Airflow Table
AVPTC24B14**
AVPTC30C14**
AVPTC36C14**
AVPTC42D14**
AVPTC48D14**
AVPTC48C14**

8
HeatKit Selection
* Revision level that may or may not be designated.
C Circuit breaker option.
HEAT KIT INFORMATION AVPTC
Models
HKSX03XC HKSX05XC HKSX06XC HKSX08XC HKSX10XC
HKSC05XC HKSC08XC HKSC10XC HKSC15XA
HKSC15XB HKSC15XF
HKSC19CA HKSC19CB HKSC20DA
HKSC20DB HKSC25XF
HKSC25DC
AVPTC24B14A* XXXXXXXX
AVPTC30C14A* XXXXXXXX
AVPTC36C14A* XXXXXXXXXXXX X
AVPTC48C14A* XXXXXXXXXXXX X
AVPTC42D14A* XXXXXXXXXX XXX
AVPTC48D14A* XXXXXXXXXX XXXX
AVPTC60D14A* XXXXXXXXXX XXXX
+For match up with a 2 ton outdoor unit: Heater kit application shall not exceed 10 kW. Airflow for 5 kW up to 10 kW heater kits shall be set to
850 cfm speed tap of ON-ON-ON.
++ For match up with a 3 ton outdoor unit: Heater kit application shall not exceed 15 kW. Airflow for 5 kW up to 15 kW heater kits shall be set to
1300 cfm speed tap of ON-OFF-ON.
+++ For match up with a 3.5 ton outdoor unit: Heater kit application shall not exceed 20 kW. Airflow for 5 kW up to 20 kW heater kits shall be set
to 1500 cfm speed tap of ON-OFF-OFF
** 3 kW heater kit is not applicable for this indoor application.
Htr kW 9 10 11 AVPTC24B14A* AVPTC30C14A* AVPTC36C14A* AVPTC48C14* AVPTC42D14A* †AVPTC48D14A* †† AVPTC60D14A* †††
3ON ON ON 730 730 NR NR 850** NR NR
5ON ON OFF 780 780 850 850 1250 1250 1250
6ON OFF ON 850 850 900 900 1300 1300 1300
8ON OFF OFF 950 950 1000 1000 1500 1500 1500
10 OFF ON ON 1025 1025 1200 1200 1550 1550 1750
15 OFF ON OFF NR NR 1440 1440 1720 1720 1780
19* NR NR 1500 1500 NR NR NR
20 NR NR 1500 1500 1800 1815 1850
21 or 25* OFF OFF OFF NR NR NR NR NR 1850 1850
Note: Airflow data shown applies to the electric heat only in either legacy mode or communicating mode operation
NR - Not rated
* Within thermostat user menu CTK0* communicatin
g
thermostat w ill dis
p
la
y
20KW for OFF- OFF- ONdi
p
sw itch selection
,
21kW for OFF-OFF-OFF di
p
switch selection
ELECTRIC HEAT AIRFLOW TABLE
OFF OFF ON

HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

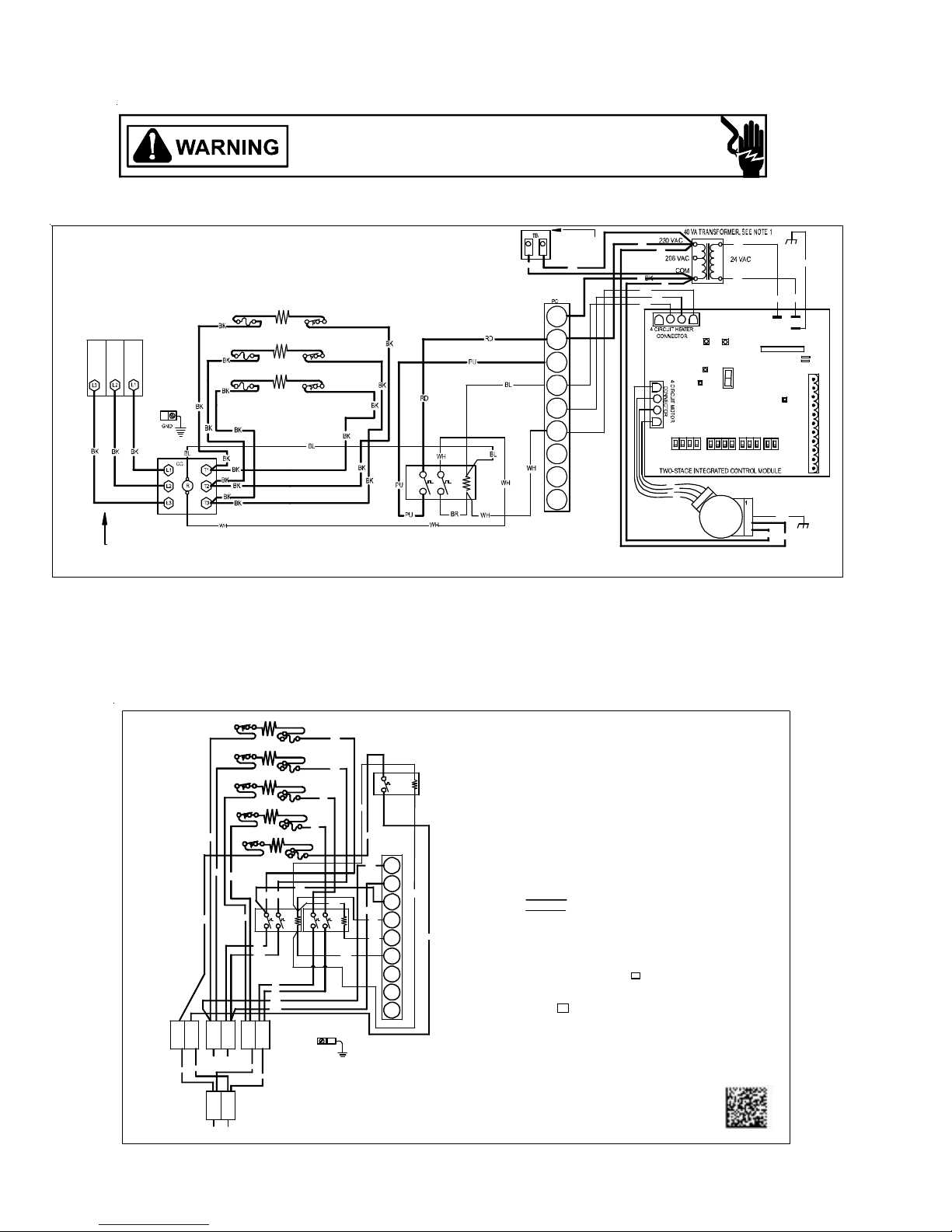

WIRING DIAGRAMS
9
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
AVPTC
RD
BK
GY
BL
CONT FAN
RD
M4
FL
4 CIRCUIT HEATER
CONNECTOR
BL
COM
CIRCULATOR BLOWER
1
1
RD
3
BK
SEE NOTE 6
BK
L2
RD
YL
8
BK
CIRCULATOR
CIRCULATOR
RD
RD
3
PLM
WH
TO
MICRO
L1
R
RD
RD
CAS (1)
AIR
5
230 VAC
BK
7 SEGMENT
DIAGNOSTIC
DISPLAY
PL1
42
FL
SEE
NOTE 7
TL
FOUR (4) ELEMENT ROWS
M2
HTR1
4
O
DEHUM
1
5
4 CIRCUIT MOTOR
CONNECTOR
24 VAC
M5
RD
4
BLWR LEARN
5
DIP SWITCHES
2
PLM
M2
R
AIR
40 VA
L2
L1
L1
4
RD
2
3
BL
L2
1
3
3
FL
1
3
7
RD
8
THREE (3) ELEMENT ROW S
40 VA TRANSFORMER, SEE NOTE 1
L1
TL
9
L2
BL
BL
2
RD
INDOOR
M8
7
7
24 VAC
RD
4
5
7
PLM
BK
1
5
BK
BL
BK
BL
YL
PU
PL2
1
FUSE 3 A
208/230 VAC
BR
GND
ECM MOTOR
HARNESS
GND
6
L2
YL
6
L1
COM
FL
TL
9
BR
G
BK
M1
7
WH
6
MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK INDICATES NO HEAT KIT INSTALLED.
BK
G
INTEGRATED CONTROL MODULE
RD
O
BR
TL
1
2
BK
W2
PLM
BK
3
5
M1
WH
2
4
M1
24V THERMOSTAT CONNECTIONS
HTR1
PU
M6
BK
COM
FL
HTR1
TL
HTR4
R1
W2
PU
L2
M2
1
FL
DISCONNECT
KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED ABOVE.
BK
SEE NOTE 5
4
6
2
BL
RD
PU
Y2
BK
RD
BK
BK
6
M3
BL
TR
C
BK
1
WH
3
9
GND (4)
M3
2
BK
2
R1
INDOOR
9
M4
RD
RD
8
TH
+VDC (1)
Y1
RD
208 VAC
9
HTR3
R2
4
TH
L1
TL
L1
BL
FL
BK
Y2
RD
HTR2
YL
RX (2)
M3
M2
RD
GND
4
TL
HTR3
24 V 3 A
W1
TL
GND
4
ONE (1) ELEMENT ROWS
GN
BL
BK
Y1
M1
R
BK
FAULT
RECALL
1
BK
3
M1
W1
RD
L2
8
9
R2
HTR2
5
M2
W1 (1)
M4
BK
C
L1
8
TWO (2) ELEMENT ROWS
RD
DEHUM
TX (3)
BL
TWO-STAGE INTEGRATED CONTROL MODULE
TL
3
GND
TL
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEATER
HTR2
BL
R
6
HEAT SEQUENCER R2
RD
TRANSFORMER
RD
FL
YL
M7
24 V THERMOSTAT CONNECTIONS
2
HEAT SEQUENCER R1
GN
7
WH
TR
BK
RD
FL
2
FL
L2
BLWR
8
HTR1
BK
BK
YL
EQUIPMENT GND
TERMINAL
PLUG CONNECTION
LOW VOLTAGE FIELD
HI VOLTAGE FIELD
JUNCTION
HI VOLTAGE (230V)
PROT. DEVICE
INTEGRATED CONTROL
LOW VOLTAGE (24V)
FIELD SPLICE
INTERNAL TO
FIELD GND
OVERCURRENT
BK ---- BLACK
OR ---- ORANGE
BL ---- BLUE
PK ---- PINK
GY ---- GRAY
RD ---- RED
WH ---- WHITE
PU ---- PURPLE
YL ---- YELLOW
BR ---- BROWN
COLOR CODES:
GN ---- GREEN
NOTES:
1. PLACE RED WIRES ON TRANSFORMER
TERMINAL 2 FOR 208 VAC OPERATION.
2. MANUFACTURER'S SPECIFIED
REPLACEMENT PARTS MUST BE USED
WHEN SERVICING.
3. IF ANY OF THE ORIGINAL WIRES AS
SUPPLIED WITH THIS UNIT MUST
BE REPLACED, IT MUST BE REPLACED
WITH WIRING MATERIAL HAVING A
TEMPERATURE RATING OF AT LEAST 105°C.
USE COPPER CONDUCTORS ONLY.
4. UNIT MUST BE PERMANENTLY
GROUNDED AND CONFORM TO N.E.C AND
LOCAL CODES.
5. TO RECALL THE LAST 6 FAULTS, MOST
RECENT TO LEAST RECENT, DEPRESS
SWITCH FOR MORE THAN 2 SECONDS
WHILE IN STANDBY (NO THERMOSTAT
INPUTS)
6. RED STATUS LED PROVIDES NETWORK
STATUS. GREEN RX LED INDICATES NETWORK
TRAFFIC. USE LEARN BUTTON TO RESET
NETWORK.
7. DISCARD CONNECTOR PL1 WHEN
INSTALLING OPTIONAL HEAT KIT.
8. THE CONDENSATE ALARM SWITCH (CAS)
TERMINALS CAN ONLY BE UTILIZED WITH
COMMUNICATING MODE SETUPS. THIS
FEATURE IS NOT OPERATIONAL WITH LEGACY
SYSTEMS.
0140A00071-A
1
2
3
CONDENSATE SWITCH
CAS (2)
W2 (2)
FUSE
CAS
SEE NOTE 8
CFM LED
STATUS
LED
SEE NOTE 6
SEE NOTE 6
RX LED
HTR KIT(KW)
COOL AF PROFILE
DEHUM ENABLE
TRIM ENABLE
TRIM %
AF SELECT
RESISTOR
S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13

WIRING DIAGRAMS
10 Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
M9
M10
TL
FL
HTR1
HTR2
HTR3
HTR4
M6
M5
L2
L2 L1
RD
BL
BK
YL
RD
BK
BK
RD
M1 M3
YL
BL
BK RD
M2
R1
M4
PU
9
8
WH
M8
7
6
5
BR
M7
R2
BL RD
BL
4
3
2
BL
YL
BK
RD
1
PC
BK
HTR5
L1
L2
L1
R3
BL
PU
PU
L2L1
CB4
CB3 CB1 CB2
WH
PU
TL
FL
TL
FL
TL
FL
TL
FL
COLOR CODE
BK = BLACK
BL = BLUE
BR = BROWN
PK = PINK
RD = RED
WH = WHITE
YL = YELLOW
WIRING CODE:
HIGH VOLTAGE
LOW
VOLTAGE
COMPONENT CODE
PC = 9 PIN CONNECTOR
HTR = HEATER ELEMENT
TL = THERMAL LMT
RS = RELAY/SEQUENCER
TB = TERMINAL BLOCK
CB = CIRCUIT BREAKER
CC = CONTACTOR
FL = FUSE LINK
TR = TRANSFORMER
SR = STRAIN RELIEF
EM = EVAPORATOR MOTOR
EBTDR = ELEC. BLOWER TIME DELAY
RC = RUN CAPACITOR
GR = GREEN
OR = ORANGE
PU = PURPLE
0140M00274-A
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP MUST EXCEED OR
EQUAL THE MINIMUMBLOWER SPEED (MBS) SPECIFIED FOR THEAIRHANDLER /
HEATER KIT COMBINATION ON THIS UNIT'S SERIAL PLATE.
AFTER INSTALLING
OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED BELOW.
NO MARK INDICATES NO HEAT KIT INSTALLED.
FIVE (5) ELEMENT ROWS
NOTE:-
THIS LABEL MUST BE ATTACHED ON THE
AIRHANDLER IN A PROMINENT LOCATION
BK RD BKRD
3-Phase Heat Kit
25kW Heat Kit
AVPTC
M3
M4M2
M1
RS
1
2
3
5
7
8
9
6
4
FL
HTR3
TL
FL
HTR2
TL
FL
HTR1
TL
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP MUST EXCEED OR EQUAL
THE MINIMUM BLOWER
SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEATER KIT
COMBINATION ON THIS UNIT'S SERIAL PLATE.
CIRCUIT 2
3 PH. 208-240V
RD
BKGY
BL
CONT FAN
COM
CIRCULATOR BLOWER
SEE NOTE 6
RD
WH
R
7SEGMENT
DIAGNOSTIC
DISPLAY
4
2
RD
LEARN
2
DIP SWITCHES
3
1
3
BL
ECM MOTOR
HARNESS
BR
G
O
1
2
BK
3
4
W2
1
SEE NOTE 5
2
BL
BK
1
2
RD
TH
RD
GND
4
24 V 3 A
W1
4
GN
Y1
FAULT
RECALL
5
C
DEHUM
BL
GND
RD
24 V THERMOSTAT CONNECTIONS
GN
TR
1
2
3
FUSE
CAS
SEE NOTE 8
CFMLED
STATUS
LED
SEENOTE 6
SEENOTE 6
RXLED
HTR KIT(KW)
COOL AF PROFILE
DEHUM ENABLE
TRIM ENABLE TRIM%
AF SELECT
S1S2S3 S4 S5 S6S7 S8 S9S10S11S12S13
L1 L2
CIRCUIT 1
1 PH 208-240V
BK RD
