Goodman ComfortNet ACVC9 User manual

Copyright©2012-2013Goodman Company,L.P.
RT6612025r5
November2013
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures performed by an unqualified person.
•RefertoServiceManualRS6612002for troubleshootinginformation.
•RefertotheappropriateParts Catalog for part number information.
•Models listed on page 3.
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
TM
ACVC9/AMVC95
GCVC9/GMVC95
90% UP TO 96% Gas Furnace Units
is a registered trademark of Maytag Corporation or its related companies and is used under license to
Goodman Company, L.P., Houston, TX. All rights reserved.
®
®

PRODUCT IDENTIFICATION
2
The model and manufacturing number are used for positive identification of component parts used in manufacturing.
Pleaseusethese numbers when requestingserviceor parts information.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by indi-
viduals meeting the requirements of an "entry level tech-
nician",ata minimum,asspecifiedby theAir-Conditioning,
Heating, and Refrigeration Institute (AHRI). Attempting to
install or repair this unit without such background may
result in product damage, personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or
service procedures. If you install or perform service on
this unit, you assume responsibility for any personal
injury or property damage which may result. Many juris-
dictions require a license to install or service heating
and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
GCVC90704CXAA
FURNACE TYPE:
V: Variable Speed
SUPPLY TYPE:
C: Counterflow/
Horizontal
M: Upflow/
Horizontal
AFUE
9: 90%
95: 95%
PRODUCT
TYPE:
G: Goodman®
A: Amana®
Brand Gas
NOMINAL INPUT:
045: 45,000 Btuh
070: 70,000 Btuh
071: 70,000 Btuh
090: 90,000 Btuh
091: 90,000 Btuh
115: 115,000 Btuh
CABINET
WIDTH:
B: 17-1/2"
C: 21"
D: 24-1/2"
ADDITIONAL
FEATURES:
N: Natural Gas
X: Low NOx
AIRFLOW
CAPABILITY:
3: 1200
4: 1600
5: 2000
COMMUNICATION
FEATURE:
C: 4-wire
Communication
Ready
MINOR
REVISION
LEVEL
A: Initial Release
MAJOR
REVISION
LEVEL
A: Initial Release

3
PRODUCT IDENTIFICATION
The model and manufacturing number are used for positive identification of component parts used in manufacturing.
Pleaseusethese numbers when requestingserviceor parts information.
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
ACVC950714CXAD
ACVC950915DXAD
ACVC950714CXBA
ACVC950915DXBA
ACVC951155DXAA
GCVC951155DXAE
GCVC950714CXAD
GCVC950915DXAD
GCVC950714CXBA
GCVC950915DXBA
AMVC950453BXAE
AMVC950704CXAE
AMVC950905CXAD
AMVC950905DXAE
AMVC951155DXAE
AMVC950453BXBA
AMVC950704CXBA
AMVC950905CXBA
AMVC950905DXBA
AMVC951155DXBA
Earlier revisions of these units can be found in RT6612021*
GMVC950453BXAE
GMVC950704CXAE
GMVC950905CXAD
GMVC950905DXAE
GMVC951155DXAE
GMVC950453BXBA
GMVC950704CXBA
GMVC950905CXBA
GMVC950905DXBA
GMVC951155DXBA

4
PRODUCT DESIGN Notes:
1. Installermust supplyoneortwoPVC pipes:oneforcom-
bustionair(optional)andonefortheflueoutlet(required).
Ventpipemustbeeither2” or 3” in diameter, depending
uponfurnaceinput,numberofelbows,lengthofrunand
installation (1 or 2 pipes). The optional Combustion Air
Pipeis dependentoninstallation/coderequirementsand
must be 2” or 3” diameter PVC.
2. Linevoltage wiringcanenterthroughtheright or leftside
ofthefurnace.Low voltage wiring can enter throughthe
rightor left sideof furnace.
3. Conversionkits forpropanegasandhighaltitude natural
andpropanegasoperation are available. See HighAlti-
tudeDerate chart for details.
4. Installer must supply the following gas line fittings, de-
pendingon which entrance isused:
Left -- Two 90° Elbows, one close nipple, straight pipe
Right --Straight pipe to reachgasvalve.
Accessibility Clearances (Minimum)
POSITION* FRONT SIDES REAR TOP FLUE FLOOR
Upflow30010 C
Horizontal Alcove 6 0 4 0 C
*= All positioning is determined as installed unit is viewed from the front.
C= If placed on combustible floor, floor MUST be wood only.
POSITION* FRONT SIDES REAR TOP FLUE FLOOR
Upflow10010NC
Horizontal Alcove 6 0 4 0 C
*= All positioning is determined as installed unit is viewed from the front.
C= If placed on combustible floor, floor MUST be wood only.
*MVC95* MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
(INCHES)
NC= For instalaltion on non-combustible floors only. A combustible
subbase must be used for installations on combustible flooring.
*CVC9 MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
(INCHES)
NC= For instalaltion on non-combustible floors only. A combustible
subbase must be used for installations on combustible flooring.
AlcoveIllustration
REAR
SIDE
SIDE
A
LCOVE
24"at frontisrequiredforservicing orcleaning.
Note: In all cases accessibility clearance shall take
precedence over clearances from the enclosure where
accessibility clearances are greater. All dimensions are
givenininches.
GeneralOperation
Modelscoveredbythismanualcomewithanew4-wirecom-
municatingPCB. Whenpairedwithacompatiblecommuni-
catingindoor unit and aCTK0* communicating thermostat,
these models can support 4-wire communication protocol
andprovidemoretroubleshooting information. These mod-
els are also backward compatible with the legacy thermo-
stat wiring.
The GCVC9, GCVC95, GMVC95, AMVC95 and ACVC95
furnaces are equipped with an electronic ignition device to
light the burners and an induced draft blower to exhaust
combustionproducts.
Aninterlockswitch prevents furnace operation iftheblower
dooris not in place. Keep the bloweraccess doors in place
exceptforinspection and maintenance.
Thesefurnacesarealsoequippedwithaself-diagnosingelec-
tronic control module. In the event a furnace component is
notoperatingproperly,thecontrol module's dual 7-segment
LED'swill display an alpha-numericcode, depending upon
theproblemencountered.
Forinformationregarding diagnostics andLEDcodes refer
to the Installation Instructions shipped with the furnace or
theservicemanual.PDFavailableat www.goodmanmfg.com
orwww.amana-hac.com.
Theratedheatingcapacity of the furnace shouldbegreater
thanor equal tothe total heatloss of thearea to be heated.
The total heat loss should be calculated by an approved
methodorin accordance with “ASHRAE Guide”or“Manual
J-LoadCalculations” published by the Air ConditioningCon-
tractors of America.
*Obtain from: American National Standards Institute 1430
BroadwayNewYork,NY 10018
LocationConsiderations
• The furnace should be as centralized as is practical
with respect to the air distribution system.
• Donotinstallthefurnace directly on carpeting, tile,or
combustiblematerialotherthan wood flooring.
• When suspending the furnace from rafters or joists,
use 3/8" threaded rod and 2” x 2” x 1/8” angle as
shownin theInstallationandService Instructions.The
length of the rod will depend on the application and
clearancenecessary.
• When installed in a residential garage, the furnace
mustbepositioned so the burners and ignitionsource
are located not less than 18 inches (457 mm) above
the floor and protected from physical damage by ve-
hicles.

5
PRODUCT DESIGN
HighAltitudeDerate
Whenthis furnace is installedat high altitude,the appropri-
ate High Altitude orifice kit must be installed. This is re-
quiredduetothe natural reduction in thedensityofboth the
gas fuel and combustion air as altitude increases. The kit
will provide the proper design certified input rate within the
specifiedaltituderange.
1LPM-06* supports Honeywell and White-Rodgers 2-stage valves
High altitude kits are purchased according to the installa-
tionaltitudeandusageofeithernaturalorpropanegas.Refer
tothechart below for a tabularlistingof appropriate altitude
rangesandcorrespondingmanufacturer’shighaltitudeNatu-
ralGasandPropaneGas kits. For a tabular listingofappro-
priatealtituderangesandcorrespondingmanufacturer'sHigh
Altitude Pressure Switch kits, refer to either the Pressure
Switch Trip Points & Usage Chart in this manual or the Ac-
cessoryCharts in Service Instructions.
Natural Propan
e
Natural Propan
e
Natural Propan
e
GMVC950453BX*
GMVC950704CX*
AMVC950453BX*
AMVC950704CX*
No
Change LPM-06*(1)
#55 Orifice No
Change
HANG13
#44
Orifice
HALP11
#56
Orifice HAPS28 HANG14
#45
Orifice
HALP11
#56
Orifice HAPS28
GMVC950905CX*
AMVC950905CX* No Change LPM-06*(1)
#55 Orifice No
Change N/A N/A N/A N/A N/A N/A
GMVC950905DX*
GMVC951155DX*
AMVC950905DX*
AMVC951155DX*
No
Change LPM-06*(1)
#55 Orifice No
Change
HANG13
#44
Orifice
HALP11
#56
Orifice HAPS29 HANG14
#45
Orifice
HALP11
#56
Orifice HAPS29
GCVC91155DX*
ACVC951155DX* No Change LPM-06*(1)
#55 Orifice No
Change
HANG13
#44
Orifice
HALP11
#56
Orifice HAPS29 HANG14
#45
Orifice
HALP11
#56
Orifice HAPS31
GCVC950714CX*
GCVC950915DX*
ACVC950714CX*
ACVC950915DX*
No
Change LPM-06*(1)
#55 Orifice No
Change N/A N/A N/A N/A N/A N/A
9,001 - 11,000 Feet
"STANDARD" and "HIGH ALTITUDE" KITS
Furnace ID Blwr Pressure
Switch
Gas Orifices
0 - 7,000 Feet (Standard Altitude) 7,001 - 9,000 Feet
Gas Orifices
ID Blwr
Pressure
Switch
ID Blwr
Pressure
Switch
Gas Orifices

COMPONENT IDENTIFICATION
6
Counterflow/HorizontalUpflow/Horizontal
1 Two-Stage Gas Valve
2 Gas Line Entrance (Alternate)
3 Pressure Switch(es)
4 Gas Manifold
5 Combustion Air Intake Connection
6 Hot Surface Igniter
7 Rollout Limit
8 Burners
9 Flame Sensor
10 Flue Pipe Connection
11 Flue Pipe
12 Primary Limit
13 Gas Line Entrance
14 Flue Pipe Connection (Alternate)
15 Rubber Elbow
16 Two-Speed Induced Draft Blower
17 Electrical Connection Inlets (Alternate)
EC
H
o
riz
o
n
ta
l
Co
nn
ect
i
o
n
s
-L
e
f
t
S
i
de
NOTICE
Thi sfittingis speciallydesignedto
drai nwa terfromtheflueasse mb l y
Ho rizontalConnections-RightSide 0140F00821
H
o
riz
o
n
ta
l
Co
nn
ect
i
o
n
s
-L
e
f
t
S
i
de
NOTICE
H
o
riz
o
n
ta
l
Co
nn
ect
i
o
n
s
-Ri
g
h
t
S
i
de
0
140F00821
18 Coil Front Cover Pressure Tap
19 Coil Front Cover Drain Port
20 Drain Line Penetrations
21 Drain Trap
22 Blower Door Interlock Switch
23 Inductor (Not All Models)
24 Two-Stage Integrated Control Module
(with fuse and diagnostic LED)
25 24 Volt Thermostat Connections
26 Transformer (40 VA)
27 ECM Variable Speed Circulator Blower
28 Auxiliary Limit
29 Junction Box
30 Electrical Connection Inlets
31 Coil Front Cover
32 Combustion Air Inlet Pipe (*CVC9/95 only)

7

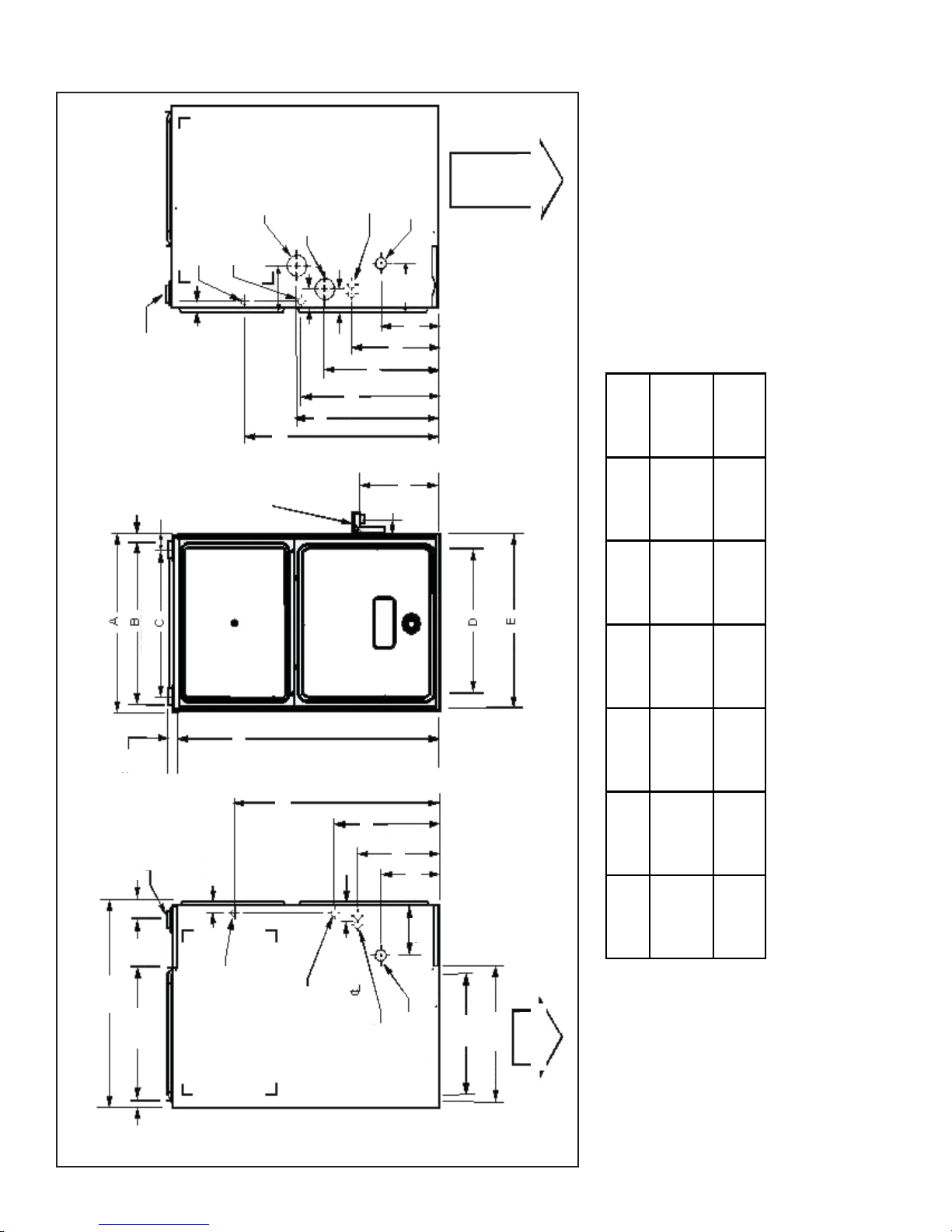

PRODUCT DIMENSIONS GMVC95/AMVC95___X*
NOTE: Airflow area will be reduced by approximately 18% if duct flanges are not unfolded. This could cause performance issues and noise issues.
CABINET
SIZE UNITS A B C D
SMALL 0453BX* 17 1/2 15 12 3/8 12 5/8
MEDIUM 0704CX*
0905CX* 21 19 16 3/8 14 5/8
LARGE 0905DX*
1155DX* 24 1/2 23 20 3/8 18 5/8
All dimensions are in inches.
D
28¾"
ϭϵиΗ
RIGHT SIDE VIEW
LEFT SIDE VIEW
ϮϮЩІЋΗ
&ʽ&½ĦÝ
ϮϯϿШІЋΗ
hĥʽ&½ĦÝ
FRONT VIEW
&ʽ&½ĦÝ
hĥʽ&½ĦÝ
D
E
1¾"
11¾"
30¼"
¾"
¾"
30¼"
1¾"
11¾"
1¾" ϯϮϷϹШІЋΗ
ϭϵϹШІЋΗ
ϮϰϿШІЋΗ
ϮϷϷШІЋΗ
ϮЩІЋΗ
ϭϵϹШІЋ"
¾"
1½"
21¼"
ϮзΗ
ϳдΗ
ϭзΗ
2½"
ϰЯΗ
ϭϲзΗ
ϮзΗ
ϮϳЯΗ
ϲЯΗ
>ÊóͲsʽã¦
½ãÙ®½Kçã½ã
Z®¦«ãͲ^® Ù®Ä>®Ä
,®¦«Ͳsʽã¦
½ãÙ®½Kçã½ã
½ãÙÄãsÄã
&½ç>Êã®ÊÄ
^ãÄÙ'Ý^çÖÖ½ù
½ãÙÄã®Ù
/Äã»>Êã®ÊÄ
sÄã&½çW®Ö
½ãÙÄã'Ý
^çÖÖ½ù
,®¦«Ͳsʽã¦
½ãÙ®½Kçã½ã
>¥ãͲ^®Ù®Ä>®Ä
>ÊóͲsʽã¦
½ãÙ®½Kçã½ã
®Ù/Äã»W®Ö
ϮΗWs
;®Ý«Ù¦Ϳ
®Ù
®Ý«Ù¦
®Ù
®Ý«Ù¦
1"
2"
ϮΗWs
ÊÄÄÝã
Ù®ÄãÙÖ
óвΗWs
®Ý«Ù¦
;Ù®¦«ãÊÙ
½¥ãÝ®Ϳ
14"
Ù®ÄdÙÖ Ù®Ä
dÙÖ
40"
23"
^®çãͲKçã ^®çãͲKçã
Bottom Knock-Out Bottom Knock-Out
D

PRODUCT DIMENSIONS
8
GCVC9/ACVC9_____X*
NOTE: Airflow area will be reduced by approximately 18% if duct flanges are not unfolded. This could cause performance issues and noise issues.
CABINET
SIZE UNITSABCDE
MEDIUM 0714CX* 21 19 16 3/8 14 5/8 17 1/2
LARGE 0915DX*
1155DX* 24 1/2 23 20 3/8 18 5/8 20 7/8
All dimensions are in inches.
&ʽ&½ĦÝ
hĥʽ&½ĦÝ
&ʽ&½ĦÝ
hĥʽ&½ĦÝ
^ãÄÙ
'Ý^çÖÖ½ù
,®¦«Ͳsʽã¦
½ãÙ®½Kçã½ã
>¥ãͲ^®
Ù®Ä>®Ä
>ÊóͲsʽã¦
½ãÙ®½Kçã½ã
®Ù/Äã»W®Ö
ϮΗWs
ϮзΗ
ϰЯΗ
ϭϴзΗ
ϮϬϻШЈЇΗ
®Ù
®Ý«Ù¦
®Ù
®Ý«Ù¦
/^,Z'
RIGHT SIDE VIEWLEFT SIDE VIEW FRONT VIEW
ÊÄÄÝã
Ù®ÄãÙÖ
óвΗWs
®Ý«Ù¦
;Ù®¦«ãÊÙ
½¥ãÝ®Ϳ
sÄã&½çW®Ö
ϮΗWs
>ÊóͲsʽã¦
½ãÙ®½Kçã½ã
,®¦«Ͳsʽã¦
½ãÙ®½Kçã½ã
½ãÙÄãsÄã
&½ç>Êã®ÊÄ
½ãÙÄã®Ù
/Äã»>Êã®ÊÄ
Z®¦«ãͲ^® Ù®Ä>®Ä
½ãÙÄã'Ý
^çÖÖ½ù>Êã®ÊÄ
Ù®ÄdÙÖ
Ù®ÄdÙÖ
ϮзΗ
ϳдΗ
ϲЯΗ
1¾"
9¾"
14"
ϭϵиΗ
8¼"
2"
¾"
¾"
;ZãçÙÄͿ
1¾"
28¾"
20¼"
¾" 2½"
ϮЩІЋΗ
ϮϷϷШІЋΗ
ϮϴϻШІЋΗ
ϭϴϷϹШІЋΗ
ϭϭзΗ
ϮϴϻШІЋΗ
ϵϷϹШІЋΗ
11½"
ϭϱЪΗ
40"

9
PRODUCT DESIGN
LOW FIRE HIGH FIRE LOW FIRE HIGH FIRE LOW FIRE HIGH FIRE LOW FIRE HIGH FIRE
GMVC950453BX*
GMVC950704CX*
AMVC950453BX*
AMVC950704CX*
-0.45 -0.92 -0.30 -0.75 -0.25 -0.25 -0.10 -0.10
GMVC950905CX*
AMVC950905CX* -0.75 -1.60 -.060 -1.40 -0.25 -0.25 -0.10 -0.10
GMVC950905DX*
GMVC951155DX*
AMVC950905DX*
AMVC951155DX*
-0.65 -1.27 -0.50 -1.10 -0.25 -0.25 -0.10 -0.10
GCVC950714CX*
ACVC950714CX* -0.95 -1.80 -0.80 -1.60 -0.25 -0.25 -0.10 -0.10
GCVC950915DX*
ACVC950915DX* -0.95 -1.80 -0.80 -1.60 -0.25 -0.25 -0.10 -0.10
GCVC91155DX*
ACVC951155DX* -0.35 -0.70 -0.20 -0.55 -0.52 -0.52 -0.37 -0.37
(2) Data given is least negative pressurerequired for pressure switch to remain closed.
Note: The typical sea level negative pressure data represents the minimum pressures expected. Shorter length of flue pipe or single pipe systems compared to
dual pipe systems should show higher (greater negative) pressures.
PRESSURE SWITCH TRIP POINTS AND USAGE CHART
NEGATIVE PRESSURE
ID BLOWER
WITH FLUE
NOT FIRING
TYPICAL SEA LEVEL
DATA(1)
NEGATIVE PRESSURE
ID BLOWER
WITH FLUE
FIRING
TYPICAL SEA LEVEL
DATA(2)
NEGATIVE PRESSURE
COIL COVER
WITH FLUE
NOT FIRING
TYPICAL SEALEVEL
DATA(1)
NEGATIVE PRESSURE
COIL COVER
WITH FLUE
FIRING
TYPICAL SEA LEVEL
DATA(2)
MODEL
(1) Data given is least negative pressurerequired for pressure switch to close.

10
PRODUCT DESIGN
LOW FIRE HIGH
FIRE LOW
FIRE HIGH
FIRE LOW
FIRE HIGH
FIRE LOW
FIRE HIGH
FIRE
GMVC950453BX* GMVC950704CX*
AMVC950453BX* AMVC950704CX*
-0.10 -0.10 20197308 -0.30 -0.75 11177113 -0.10 -0.10 -0.22 -0.55 HAPS28
11177115
GMVC950905CX*
AMVC950905CX* -0.10 -0.10 20197308 -0.60 -1.40 0130F00251 N/A N/A N/A N/A N/A
GMVC950905DX* GMVC951155DX*
AMVC950905DX* AMVC951155DX*
-0.10 -0.10 20197308 -0.50 -1.10 11177114 -0.10 -0.10 -0.38 -0.82 HAPS29
11177116
GCVC950714CX* ACVC950714CX* -0.10 -0.10 0130F00070 -0.80 -1.60 0130F00100 N/A N/A N/A N/A N/A GCVC950915DX* ACVC950915DX* -0.10 -0.10 0130F00070 -0.80 -1.60 0130F00100 N/A N/A N/A N/A N/A
GCVC91155DX*
ACVC91155DX* -0.37 -0.37 20197313 -0.20 -0.55 11177118 -0.37 -0.37 -0.15 -0.30 HAPS31
Note: Replacement pressure switch number is listed below high altitude kit number. Note: Allnegative pressurereadingsare in inchesofwater column("w.c.).
0 to 7,000 ft.
MODEL
TRIPPOINT ID BLOWER
PRESSURE
SWITCH HIGH
ALTITUDE
KIT
7,001 ft. to 11,000 ft.
ID BLOWER
PRESSURE
SWITCH
PART #
PRESSURE SWITCH TRIP POINTS AND USAGE CHART
Note: All installations above 7,000 ft. require a pressure switch change. For installations in Canada the *MVC95 & *CVC9/95 furnaces are certified onlyto 4500 ft.
TRIPPOINT
COIL COVER
PRESSURE
SWITCH
TRIPPOINT
COIL COVER
PRESSURE
SWITCH
TRIPPOINT ID BLOWER
PRESSURE
SWITCH
COIL COVER
PRESSURE
SWITCH
PART #

11
PRODUCT DESIGN
Part Number 20162903 20162904 20162905 20162907 20162908 0130F00105
Open Setting (°F) 160 150 145 155 170 130
GMVC950453BX*
AMVC950453BX* --- --- 1 --- --- ---
GMVC950704CX*
AMVC950704CX* --- --- --- 1 --- ---
GMVC950905CX*
AMVC950905CX* --- --- --- --- --- 1
GMVC950905DX*
AMVC950905DX* --- --- 1 --- --- ---
GMVC951155DX*
AMVC951155DX* --- 1 --- --- --- ---
GCVC950714CX*
ACVC950714CX* --- 1 --- --- --- ---
GCVC950915DX*
ACVC950915DX* --- --- --- --- --- 1
GCVC91155DX*
ACVC951155DX* ---- ---- 1 ---- ---- ---
PRIMARY LIMIT
Part Number 10123512 10123517 10123518 10123533 10123534 10123537
Open Setting (°F) 325 210 170 200 220 190
GMVC950453BX*
AMVC950453BX* --- --- 1 --- --- ---
GMVC950704CX*
AMVC950704CX* --- --- --- 2 --- ---
GMVC950905CX*
AMVC950905CX* --- --- --- 2 --- ---
GMVC950905DX*
AMVC950905DX* --- --- --- --- --- 2
GMVC951155DX*
AMVC951155DX* --- --- --- 2 --- ---
GCVC950714CX*
ACVC950714CX* ---- 2 ---- ---- ---- ----
GCVC950915DX*
ACVC950915DX* --- 2 --- --- --- ---
GCVC91155DX*
ACVC951155DX* ---- 2 ---- ---- ---- ---
ROLLOUT LIMIT SWITCHES
Part Number 10123534 10123535 10123537 10123536 10123533 0130F00038
Open Setting (°F) 220 150 190 180 200 120
GMVC950453BX*
AMVC950453BX* --- 2 --- --- --- ---
GMVC950704CX*
AMVC950704CX* --- --- 2 --- --- ---
GMVC950905CX*
AMVC950905CX* --- --- --- 2 --- ---
GMVC950905DX*
AMVC950905DX* --- --- --- 2 --- ---
GMVC951155DX*
AMVC951155DX* --- --- --- --- 2 ---
GCVC950714CX*
ACVC950714CX* --- --- --- --- --- 2
GCVC950915DX*
ACVC950915DX* --- --- --- --- --- 2
GCVC91155DX*
ACVC951155DX* --- --- --- --- --- 2
AUXILIARY LIMIT SWITCHES

12
PRODUCT DESIGN
Thermostats:
ComfortNet™ CTK0* Thermostat Kit
Filters:
Filters are required with this furnace and must be provided by the installer. The filters used must comply with UL900 or
CAN/ULCS111standards.Installing this furnace withoutfilters will void theunitwarranty
Upflow Filters
Returnairfiltersmaybeinstallatedatthefurnacesideand/orbottomreturnopenings.Thefurnacebottomreturnopening
and side openings will accommodate the following filter sizes depending on cabinet size:
RefertoMinimumFilterAreatablestodeterminefilterarearequirement.NOTE:Filterscanalsobeinstalledelsewherein
the duct system such as a central return.

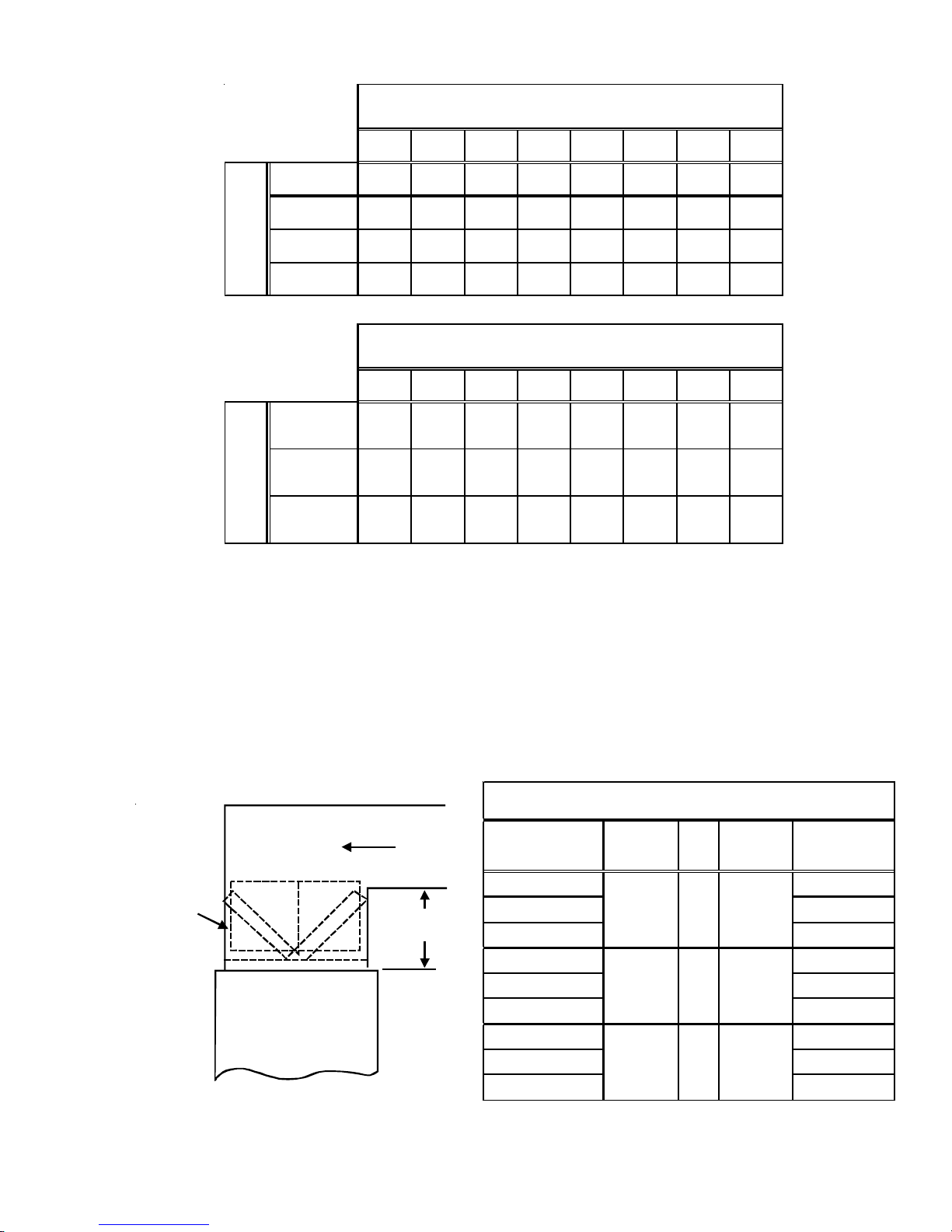

Disposable Minimum Filter Area (in2)
[Based on a 300 ft/min filter face velocity]
*Minimum filter area dictated by heating airflow requirement.
Cabinet
Width
(in.)
Nominal
Filter Size
(in.)
Approx.
Flow Area
(in2)
Cabinet
Width
(in.)
Nominal
Filter Size
(in.)
Approx.
Flow Area
(in2)
All 16 x 25 x 1 400 17-1/2 14 x 25 x 1 350
21 16 x 25 x 1 400
24-1/2 20 x 25 x 1 500
Side Return Opening(s) Bottom Return Opening
600 800 1000 1200 1400 1600 1800 2000
0453__X* 415* 415* 480 576 --- --- --- ---
0704__X* --- --- 636* 636* 672 768 --- ---
0905__X* --- --- --- 826* 826* 826* 864 960
1155__X* --- --- --- 875* 875* 875* 875* 960
600 800 1000 1200 1400 1600 1800 2000
0714__X* --- --- 634* 634* 672 768 --- ---
0915__X* --- --- --- 819* 819* 819* 864 960
1155__X* --- --- --- 860* 860* 860* 864 960
Input__Airflow
UPFLOW
COOLING AIRFLOW REQUIREMENT (CFM)
COUNTERFLOW
COOLING AIRFLOW REQUIREMENT (CFM)
Input
Airflow

13
PRODUCT DESIGN
Counterflow Filters
"A"
Min
Return Air
Optional
Access
Door
Returnairfiltersmaybeinstallatedattheatthecounterflowtopreturn. Afieldsuppliedcenterfiltersupportmustbeprovided
bytheinstallerinordertousethetopreturn. Thefurnacewillaccommodatethefollowingcounterflowtopreturnfiltersizes
dependingoncabinet size:
RefertoMinimumFilterAreatablesto determinefilterarea requirement. NOTE: Filterscanalsobeinstalledelsewhere
in the duct system such as a central return.
Cabinet Width Filter Area
(in2)Qty Filter Size
(in) Dimension "A" (in)
17 1/2 14.2
21 13.0
24 1/2 11.3
17 1/2 19.7
21 18.8
24 1/2 17.7
17 1/2 25.0
21 24.3
24 1/2 23.4
800 2 20 X 20 X 1
1000 2 25 X 20 X 1
Counterflow Top Return
600 2 15 X 20 X 1
Disposable Minimum Filter Area (in2)
[Based on a 600 ft/min filter face velocity]
*Minimum filter area dictated by heating airflow requirement.
600 800 1000 1200 1400 1600 1800 2000
0453__X* 207* 207* 240 288 --- --- --- ---
0704__X* --- --- 318* 318* 336 384 --- ---
0905__X* --- --- --- 413* 413* 413* 432 480
1155__X* --- --- --- 437* 437* 437* 432 480
600 800 1000 1200 1400 1600 1800 2000
0714__X* --- --- 316* 316* 336 384 --- ---
0915__X* --- --- --- 409* 409* 409* 432 480
1155__X* --- --- --- 430* 430* 430* 432 480
Input__Airflow
UPFLOW
COOLING AIRFLOW REQUIREMENT (CFM)
COUNTERFLOW
COOLING AIRFLOW REQUIREMENT (CFM)
Input
Airflow

FURNACE SPECIFICATIONS
1. These furnaces are manufactured for natural gas operation. Optional Kits are available for conversion to propane gas operation.
2. For elevations above 2000 ft. the rating should be reduced by 4% for each 1000 ft. above sea level. The furnace must not be derated, orifice
changes should only be made if necessary for altitude.
3. The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufactures method in accordance with the
"A.S.H.R.A.E.GUIDE" or "MANUAL J-LOADCALCULATIONS"published by the AIRCONDITIONING CONTRACTORS OF AMERICA.Thetotal
heat loss calculated should be equal to or less than the heating capacity. Output based on D.O.E. test procedures, steady state efficiency times
output.
4. Minimum Circuit Ampacity calculated as: (1.25 x Circulator Blower Amps) + I.D. Blower Amps.
14
A/GMVC95
MODEL *MVC950453
BX* *MVC950704 CX* *MVC950905 CX* *MVC950905 DX* *MVC951155 DX*
BTUH
Natural Gas Input (High Fire) 45,000 68,000 90,000 90,000 113,000
Natural Gas Output (High Fire) 43,200 65,300 86,500 86,500 108,600
LP Gas Input (High Fire) 40,500 61,200 81,000 81,000 101,700
LP Gas Output (High Fire) 38,900 58,800 77,800 77,800 97,700
A.F.U.E. 96.1% 96.1% 96.1% 96.1% 96.1%
Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 - .50 .20 - .50 .20 - .50
Temperature Rise (°F) 30 - 60 30 - 60 30 - 60 30 - 60 35 - 65
ID BlowerPressure Switch Trip Point (" w.c.) -0.75 -0.75 -1.40 -1.10 -1.10
Front Cover Pressure Switch Trip Point (" w.c.) -0.10 -0.10 -0.10 -0.10 -0.10
Blower Wheel (D" x W") 10 x 8 10 x 10 11 x 10 11 x 10 11 x 10
Blower Horsepower 1/2 3/4 1 1 1
Blower Speeds
Max CFM @ 0.5 E.S.P.
Power Supply 115-60-1 115-60-1 115-60-1 115-60-1 115-60-1
Minimum Circuit Ampacity (MCA)(1) 11.3 14.1 14.4 14.4 14.4
Maximum Overcurrent Device(2) 15.0 15.0 15.0 15.0 15.0
Transformer (VA) 40 40 40 40 40
Primary Limit Setting (°F) 145 155 130 145 150
Auxiliary Limit Setting (°F) 150 190 180 180 200
Rollout Limit Setting (°F) 170 200 200 190 200
Fan Delay On Heating 30 secs. 30 secs. 30 secs. 30 secs. 30 secs.
Off Heating (3) 150 secs. 150 secs. 150 secs. 150 secs. 150 secs.
Fan Delay On Cooling 5 sec 5 sec 5 sec 5 sec 5 sec
Off Cooling 45 secs. 45 secs. 45 secs. 45 secs. 45 secs.
Gas Supply Pressure (Natural/Propane) ("w.c.) 7 / 11 7 / 11 7 / 11 7 / 11 7 / 11
Manifold Pressure (Natural/Propane) ("w.c.) 3.5 / 10 3.5 / 10 3.5 / 10 3.5 / 10 3.5 / 10
Orifice Size (Natural/Propane) 43 / 55 43 / 55 43 / 55 43 / 55 43 / 55
Number of Burners 2 3 4 4 5
Vent Connector Diameter (inches)(4) 22222
Combustion Air Connector Diameter(inches)(5) 22222
Shipping Weight (lbs.) 123 142 150 155 165
Refer to Blower CFM Charts
NOTE: Low fire input is 70% of high fire input

FURNACE SPECIFICATIONS
15
1. These furnaces are manufactured for natural gas operation. Optional Kits are available for conversion to propane gas operation.
2. For elevations above 2000 ft. the rating should be reduced by 4% for each 1000 ft. above sea level. The furnace must not be derated, orifice
changes should only be made if necessary for altitude.
3. The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufactures method in accordance with the
"A.S.H.R.A.E.GUIDE" or "MANUAL J-LOADCALCULATIONS"published by the AIRCONDITIONING CONTRACTORS OF AMERICA.Thetotal
heat loss calculated should be equal to or less than the heating capacity. Output based on D.O.E. test procedures, steady state efficiency times
output.
4. Minimum Circuit Ampacity calculated as: (1.25 x Circulator Blower Amps) + I.D. Blower Amps.
A/GCVC9
MODEL GCVC91155
DX* ACVC951155 DX* *CVC950714 CX* *CVC950915 DX*
BTUH
Natural Gas Input (High Fire) 113,000 113,000 68,000 90,000
Natural Gas Output (High Fire) 105,100 105,100 64,600 85,500
LP Gas Input (High Fire) 101,700 101,700 61,200 81,000
LP Gas Output (High Fire) 94,600 94,600 58,100 77,000
A.F.U.E. 93.0% 93.0% 95.0% 95.0%
Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 - .50 .20 - .50
Temperature Rise (°F) 40 - 70 40 - 70 25 - 55 25 - 55
ID Blower Pressure Switch High FireTrip Point ("w.c.) -0.55 -0.55 -1.60 -1.60
Front Cover PressureSwitchTripPoint ("w.c.) -0.37 -0.37 -0.10 -0.10
Blower Wheel (D"x W") 11 x10 11 x 10 10 x 10 11 x 10
Blower Horsepower 1 1 3/4 1
Blower Speeds
Max CFM@ 0.5 E.S.P.
Power Supply 115-60-1 115-60-1 115-60-1 115-60-1
Minimum Circuit Ampacity (MCA)(1) 14.4 14.4 11.2 15.0
Maximum Overcurrent Device(2) 15.0 15.0 15.0 15.0
Transformer (VA) 40 40 40 40
Primary Limit Setting (°F) 145 145 150 130
Auxiliary Limit Setting (°F) 120 120 120 120
Rollout Limit Setting (°F) 210 210 210 210
FanDelayOn Heating 30secs. 30 secs. 30secs. 30 secs.
Off Heating (3) 150 secs. 150 secs. 150 secs. 150 secs.
Fan Delay On Cooling 5 sec 5 sec 5 sec 5 sec
Off Cooling 45secs. 45 secs. 45secs. 45 secs.
Gas Supply Pressure (Natural/Propane) ("w.c.) 7 / 11 7 / 11 7 / 11 7 / 11
Manifold Pressure (Natural/Propane)("w.c.) 3.5 / 10 3.5/ 10 3.5 / 10 3.5 / 10
Orifice Size (Natural/Propane) 43 / 55 43 / 55 43/ 55 43 / 55
Number of Burners 5 5 3 4
Vent Connector Diameter (inches)(4) 2222
Combustion Air Connector Diameter (inches)(5) 2222
Shipping Weight (lbs.) 160 160 139 158
Refer to Blower CFM Charts
NOTE: Lowfire in put is 70% of high fir e inp ut

BLOWER PERFORMANCE SPECIFICATIONS
16
1. All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
2. For most jobs, about 400 CFM per ton when cooling is desirable.
3. Do not operate above .5" w.c. ESP in heating mode. Operating CFM between .5" and .8" w.c. is tabulated for cooling purposes only.
4. Continuous fan speeds of 25%, 50%, 75% of maximum cooling airflow are available when using a communicating thermostat and 25%, 50%, 75%, 100%
of maximum cooling airflow are available in legacy mode by setting dip switches
*MVC950453BX Cooling/Heating Speed Charts
*MVC950704CX Cooling/Heating Speed Charts
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise (°F)
Minus 10% 540 351 Minus 10% 713 495 57
Minus 5% 570 371 Minus 5% 752 523 49
Normal 600 390 Normal 792 550 41
Plus 5% 630 410 Plus 5% 832 578 43
Plus 10% 660 429 Plus 10% 871 605 46
Minus 10% 720 468 Minus 10% 778 540 52
Minus 5% 760 494 Minus 5% 821 570 49
Normal 800 520 Normal 864 600 47
Plus 5% 840 546 Plus 5% 907 630 45
Plus 10% 880 572 Plus 10% 950 660 43
Minus 10% 900 585 Minus 10% 842 585 48
Minus 5% 950 618 Minus 5% 889 618 45
Normal 1,000 650 Normal 936 650 43
Plus 5% 1,050 683 Plus 5% 983 683 41
Plus 10% 1,100 715 Plus 10% 1,030 715 39
Minus 10% 1,080 702 Minus 10% 907 630 45
Minus 5% 1,140 741 Minus 5% 958 665 42
Normal 1,200 780 Normal 1,008 700 40
Plus 5% 1,260 819 Plus 5% 1,058 735 38
Plus 10% 1,320 858 Plus 10% 1,109 770 36
A
B
C
DD
*MVC950453BX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 30 - 60°F)
A
B
C
*MVC950453BX
Cooling Speed
( @ .1" - .8" w.c. ESP)
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise (°F)
Minus 10% 540 351 Minus 10% 1,089 756 56
Minus 5% 570 371 Minus 5% 1,150 798 53
Normal 600 390 Normal 1,210 840 50
Plus 5% 630 410 Plus 5% 1,271 882 48
Plus 10% 660 429 Plus 10% 1,331 924 46
Minus 10% 720 468 Minus 10% 1,193 828 51
Minus 5% 760 494 Minus 5% 1,259 874 48
Normal 800 520 Normal 1,325 920 46
Plus 5% 840 546 Plus 5% 1,391 966 44
Plus 10% 880 572 Plus 10% 1,458 1,012 42
Minus 10% 990 644 Minus 10% 1,296 900 47
Minus 5% 1,045 679 Minus 5% 1,368 950 44
Normal 1,100 715 Normal 1,440 1,000 42
Plus 5% 1,155 751 Plus 5% 1,512 1,050 40
Plus 10% 1,210 787 Plus 10% 1,584 1,100 38
Minus 10% 1,286 836 Minus 10% 1,400 972 43
Minus 5% 1,358 883 Minus 5% 1,477 1,026 41
Normal 1,429 929 Normal 1,555 1,080 39
Plus 5% 1,500 975 Plus 5% 1,633 1,134 37
Plus 10% 1,572 1,022 Plus 10% 1,711 1,188 35
B
C
DD
*MVC950704CX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 30 - 60°F)
A
B
C
*MVC950704CX
Cooling Speed
( @ .1" - .8" w.c. ESP)
A

BLOWER PERFORMANCE SPECIFICATIONS
17
1. All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
2. For most jobs, about 400 CFM per ton when cooling is desirable.
3. Do not operate above .5" w.c. ESP in heating mode. Operating CFM between .5" and .8" w.c. is tabulated for cooling purposes only.
4. Continuous fan speeds of 25%, 50%, 75% of maximum cooling airflow are available when using a communicating thermostat and 25%, 50%, 75%, 100%
of maximum cooling airflow are available in legacy mode by setting dip switches
*MVC950905CX Cooling/Heating Speed Charts
*MVC950905DX Cooling/Heating Speed Charts
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise (°F)
Minus 10% 729 495 Minus 10% 1,341 945 60
Minus 5% 770 523 Minus 5% 1,416 998 57
Normal 810 550 Normal 1,490 1,050 54
Plus 5% 851 578 Plus 5% 1,565 1,103 51
Plus 10% 891 605 Plus 10% 1,639 1,155 49
Minus 10% 990 693 Minus 10% 1,413 1,008 57
Minus 5% 1,045 732 Minus 5% 1,492 1,064 54
Normal 1,100 770 Normal 1,570 1,120 51
Plus 5% 1,155 809 Plus 5% 1,649 1,176 49
Plus 10% 1,210 847 Plus 10% 1,727 1,232 47
Minus 10% 1,323 900 Minus 10% 1,521 1,080 53
Minus 5% 1,397 950 Minus 5% 1,606 1,140 50
Normal 1,470 1,000 Normal 1,690 1,200 48
Plus 5% 1,544 1,050 Plus 5% 1,775 1,260 45
Plus 10% 1,617 1,100 Plus 10% 1,859 1,320 43
Minus 10% 1,629 1,125 Minus 10% 1,602 1,125 50
Minus 5% 1,720 1,188 Minus 5% 1,691 1,188 47
Normal 1,810 1,250 Normal 1,780 1,250 45
Plus 5% 1,901 1,313 Plus 5% 1,869 1,313 43
Plus 10% 1,991 1,375 Plus 10% 1,958 1,375 41
C
D
*MVC950905CX
Cooling Speed
( @ .1" - .8" w.c. ESP)
*MVC950905CX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 30 - 60°F)
D
B
C
A
B
A
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise (°F)
Minus 10% 720 468 Minus 10% 1,458 1,013 55
Minus 5% 760 494 Minus 5% 1,539 1,069 52
Normal 800 520 Normal 1,620 1,125 50
Plus 5% 840 546 Plus 5% 1,701 1,181 47
Plus 10% 880 572 Plus 10% 1,782 1,238 45
Minus 10% 900 644 Minus 10% 1,549 1,076 52
Minus 5% 950 679 Minus 5% 1,635 1,135 49
Normal 1,000 715 Normal 1,721 1,195 47
Plus 5% 1,050 751 Plus 5% 1,807 1,255 45
Plus 10% 1,100 787 Plus 10% 1,893 1,315 43
Minus 10% 1,260 819 Minus 10% 1,640 1,139 49
Minus 5% 1,330 865 Minus 5% 1,731 1,202 46
Normal 1,400 910 Normal 1,822 1,265 44
Plus 5% 1,470 956 Plus 5% 1,913 1,328 42
Plus 10% 1,540 1,001 Plus 10% 2,004 1,392 40
Minus 10% 1,620 1,053 Minus 10% 1,730 1,202 47
Minus 5% 1,710 1,112 Minus 5% 1,826 1,268 44
Normal 1,800 1,170 Normal 1,922 1,335 42
Plus 5% 1,890 1,229 Plus 5% 2,018 1,402 40
Plus 10% 1,980 1,287 Plus 10% 2,114 1,469 38
D
*MVC950905DX
Cooling Speed
( @ .1" - .8" w.c. ESP)
A
B
C
A
B
C
*MVC950905DX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 30 - 60°F)
D

BLOWER PERFORMANCE SPECIFICATIONS
18
1. All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
2. For most jobs, about 400 CFM per ton when cooling is desirable.
3. Do not operate above .5" w.c. ESP in heating mode. Operating CFM between .5" and .8" w.c. is tabulated for cooling purposes only.
4. Continuous fan speeds of 25%, 50%, 75% of maximum cooling airflow are available when using a communicating thermostat and 25%, 50%, 75%, 100%
of maximum cooling airflow are available in legacy mode by setting dip switches
*MVC951155DX Cooling/Heating Speed Charts
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise (°F)
Minus 10% 720 468 Minus 10% 1,594 1,107 63
Minus 5% 760 494 Minus 5% 1,682 1,169 60
Normal 800 520 Normal 1,771 1,230 57
Plus 5% 840 546 Plus 5% 1,860 1,292 54
Plus 10% 880 572 Plus 10% 1,948 1,353 52
Minus 10% 990 644 Minus 10% 1,640 1,139 62
Minus 5% 1,045 679 Minus 5% 1,731 1,202 59
Normal 1,100 715 Normal 1,822 1,265 56
Plus 5% 1,155 751 Plus 5% 1,913 1,328 53
Plus 10% 1,210 787 Plus 10% 2,004 1,392 50
Minus 10% 1,260 819 Minus 10% 1,685 1,170 60
Minus 5% 1,330 865 Minus 5% 1,778 1,235 57
Normal 1,400 910 Normal 1,872 1,300 54
Plus 5% 1,470 956 Plus 5% 1,966 1,365 51
Plus 10% 1,540 1,001 Plus 10% 2,059 1,430 49
Minus 10% 1,620 1,053 Minus 10% 1,730 1,202 58
Minus 5% 1,710 1,112 Minus 5% 1,826 1,268 55
Normal 1,800 1,170 Normal 1,922 1,335 53
Plus 5% 1,890 1,229 Plus 5% 2,018 1,402 50
Plus 10% 1,980 1,287 Plus 10% 2,114 1,469 48
C
D
A
B
*MVC951155DX
Cooling Speed
( @ .1" - .8" w.c. ESP)
A
*MVC951155DX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F)
D
B
C

BLOWER PERFORMANCE SPECIFICATIONS
19
1. All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
2. For most jobs, about 400 CFM per ton when cooling is desirable.
3. Do not operate above .5" w.c. ESP in heating mode. Operating CFM between .5" and .8" w.c. is tabulated for cooling purposes only.
4. Continuous fan speeds of 25%, 50%, 75% of maximum cooling airflow are available when using a communicating thermostat and 25%, 50%, 75%, 100%
of maximum cooling airflow are available in legacy mode by setting dip switches
*CVC950714CX Cooling/Heating Speed Charts
*CVC950915DX Cooling/Heating Speed Charts
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise
Minus 10% 729 504 Minus 10% 1,458 1,008 80
Minus 5% 770 532 Minus 5% 1,539 1,064 76
Normal 810 560 Normal 1,620 1,120 72
Plus 5% 851 588 Plus 5% 1,701 1,176 68
Plus 10% 891 616 Plus 10% 1,782 1,232 65
Minus 10% 999 666 Minus 10% 1,575 1,098 73
Minus 5% 1,055 703 Minus 5% 1,663 1,159 69
Normal 1,110 740 Normal 1,750 1,220 66
Plus 5% 1,166 777 Plus 5% 1,838 1,281 63
Plus 10% 1,221 814 Plus 10% 1,925 1,342 60
Minus 10% 1,287 828 Minus 10% 1,674 1,152 70
Minus 5% 1,359 874 Minus 5% 1,767 1,216 66
Normal 1,430 920 Normal 1,860 1,280 63
Plus 5% 1,502 966 Plus 5% 1,953 1,344 60
Plus 10% 1,573 1,012 Plus 10% 2,046 1,408 57
Minus 10% 1,674 1,071 Minus 10% 1,773 1,206 67
Minus 5% 1,767 1,131 Minus 5% 1,872 1,273 63
Normal 1,860 1,190 Normal 1,970 1,340 60
Plus 5% 1,953 1,250 Plus 5% 2,069 1,407 57
Plus 10% 2,046 1,309 Plus 10% 2,167 1,474 55
*CVC950915DX
Cooling Speeds
( @ .1" - .8" w.c. ESP)
*CVC950915DX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 25 - 55°F)
CC
A
BB
D
A
D
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage
CFM Low-Stage CFM Rise
Minus 10% 594 324 Minus 10% 1,107 783 77
Minus 5% 627 342 Minus 5% 1,169 827 73
Normal 660 360 Normal 1,230 870 69
Plus 5% 693 378 Plus 5% 1,292 914 66
Plus 10% 726 396 Plus 10% 1,353 957 63
Minus 10% 747 468 Minus 10% 1,215 855 71
Minus 5% 789 494 Minus 5% 1,283 903 68
Normal 830 520 Normal 1,350 950 64
Plus 5% 872 546 Plus 5% 1,418 998 61
Plus 10% 913 572 Plus 10% 1,485 1,045 58
Minus 10% 1,017 702 Minus 10% 1,323 936 65
Minus 5% 1,074 741 Minus 5% 1,397 988 61
Normal 1,130 780 Normal 1,470 1,040 58
Plus 5% 1,187 819 Plus 5% 1,544 1,092 55
Plus 10% 1,243 858 Plus 10% 1,617 1,144 53
Minus 10% 1,314 864 Minus 10% 1,440 1,017 59
Minus 5% 1,387 912 Minus 5% 1,520 1,074 56
Normal 1,460 960 Normal 1,600 1,130 53
Plus 5% 1,533 1,008 Plus 5% 1,680 1,187 51
Plus 10% 1,606 1,056 Plus 10% 1,760 1,243 49
*CVC950714CX
Cooling Speeds
( @ .1" - .8" w.c. ESP)
A
B
*CVC950714CX
Heating Speed
(@ .1" - .5" w.c. ESP; Rise Range: 25 - 55°F)
A
DD
B
CC

BLOWER PERFORMANCE SPECIFICATIONS
20
1. All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
2. For most jobs, about 400 CFM per ton when cooling is desirable.
3. Do not operate above .5" w.c. ESP in heating mode. Operating CFM between .5" and .8" w.c. is tabulated for cooling purposes only.
4. Continuous fan speeds of 25%, 50%, 75% of maximum cooling airflow are available when using a communicating thermostat and 25%, 50%, 75%, 100%
of maximum cooling airflow are available in legacy mode by setting dip switches
GCVC951155DX Cooling/Heating Speed Charts
Tap Adjust High-Stage
CFM Low-Stage CFM Tap Adjust High-Stage CFM Low-Stage CFM Rise
Minus 10% 705 457 Minus 10% 1,583 1,093 63
Minus 5% 744 483 Minus 5% 1,671 1,153 59
Normal 783 508 Normal 1,759 1,214 56
Plus 5% 822 533 Plus 5% 1,847 1,275 53
Plus 10% 861 559 Plus 10% 1,935 1,335 51
Minus 10% 982 621 Minus 10% 1,612 1,106 61
Minus 5% 1,036 656 Minus 5% 1,701 1,168 58
Normal 1,091 690 Normal 1,791 1,229 55
Plus 5% 1,146 725 Plus 5% 1,881 1,290 52
Plus 10% 1,200 759 Plus 10% 1,970 1,352 50
Minus 10% 1,265 815 Minus 10% 1,654 1,166 60
Minus 5% 1,336 861 Minus 5% 1,746 1,231 57
Normal 1,406 906 Normal 1,838 1,296 54
Plus 5% 1,476 951 Plus 5% 1,930 1,361 51
Plus 10% 1,547 997 Plus 10% 2,022 1,426 49
Minus 10% 1,628 1,049 Minus 10% 1,690 1,172 59
Minus 5% 1,719 1,107 Minus 5% 1,784 1,237 56
Normal 1,809 1,165 Normal 1,878 1,302 53
Plus 5% 1,899 1,223 Plus 5% 1,972 1,367 50
Plus 10% 1,990 1,282 Plus 10% 2,066 1,432 48
DD
GCVC91155DX*
ACVC951155DX*
Heating Speeds
(@.1" -.5" w.c. ESP; Rise Range: 40 - 70°F)
BB
CC
GCVC91155DX*
ACVC951155DX*
Cooling Speeds
(@.1" -.8"w.c. ESP)
AA
