Goodman GMVM96 User manual

Contents
Nomenclature ....................................... 2
Product Specications .......................... 3
Dimensions ........................................... 4
Airow Data .......................................... 6

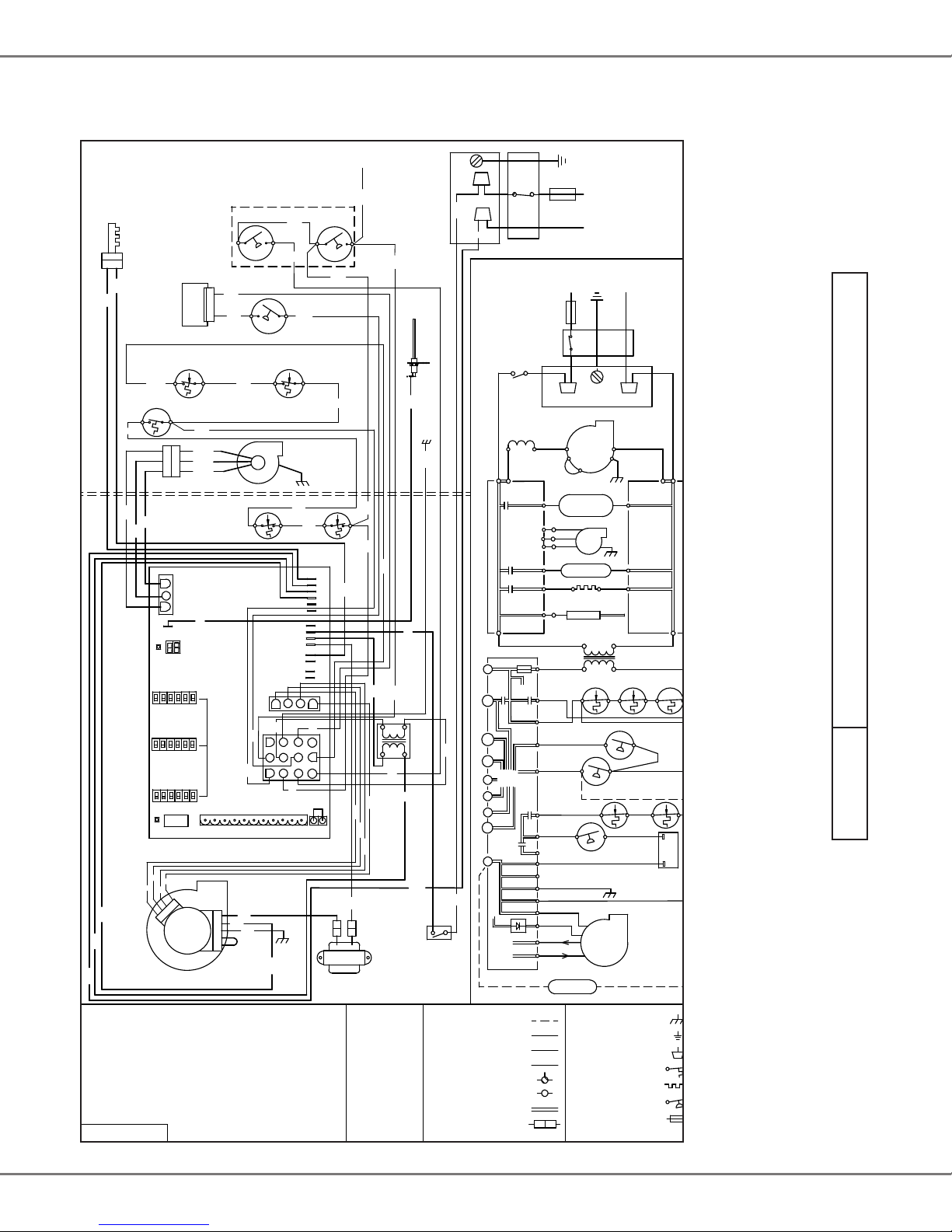

Wiring Diagrams ................................. 11
Thermostats ....................................... 12
Accessories .......................................... 12
Standard Features
• Aluminized-steel, dual-diameter tubular heat exchanger
• Stainless-steel secondary heat exchanger
• ComfortNetTM Communicating Systems compatible
• Self-calibrating, modulating gas valve operates
with two-stage or single-stage thermostats
• Efcient and quiet variable-speed circulator motor
• Furnace control board with self-diagnostics and
provisions for electronic air cleaners and humidiers
• Multiple continuous fan speed
options for quiet air circulation
• Dual-certied for sealed combustion direct vent
(2-pipe) or non-direct vent (1-pipe) applications
• Auto-Comfort and enhanced dehumidication
modes provide energy savings and additional
comfort during the cooling months
• Quiet variable-speed induced draft blower
• All models comply with California NOx emissions standards
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat
Exchanger Limited Warranty (good for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-
Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not
required in California or Québec.
Cabinet Features
• Cabinet air leakage (QLeak) ≤ 2%
• Fully insulated heavy-gauge steel cabinet
with durable baked-enamel nish
• Foil-faced insulation lines the heat exchanger section
• Designed for multi-position installation
• Airtight solid bottom for side-return applications and easy-cut
tabs for effortless removal in bottom air-inlet applications
• Convenient left or right connection for gas and electric service
• Coil and furnace t ush for most installations
SS-GMVM96 www.goodmanmfg.com 1/13
Supersedes 3/12
GMVM96 / GCVM96
CoMfortNet™-CoMpatible,
Multi-positioN, ModulatiNG
Variable-speed Gas furNaCe
upto 96% afue

2 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 3
Product SPecificationS Product SPecificationS
NoMeNClature
     
 
 
G
Goodman
®
Brandor A Ini.alReleases(Major&Minor)
Dis.nc.ons™ B 1stRevisions(Major&Minor)
C 2ndRevisions

C
Downflow/Horizontal

D DedicatedDownflow N NaturalGas
H HighAirflow X LowNOx
K DedicatedUpflow
M Upflow/Horizontal 
A14”
 B17½”
V TwoStage/Variablespeed C21”
H TwoStage/Mul.speed D24½”
S SingleStage/Mul.speed
E TwoStage/HighEfficiency 
31200
 41600
C ComfortNet™Communica.ngSystem 52000
M Modula.ngFurnace 
045:45,000
 060:60,000
96 96% 9
90%+
080:80,000
95 95% 8 80% 100:100,000
115:115,000
















2 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 3
Product SPecificationS Product SPecificationS
speCifiCatioNs
GMVM96
0603BX
GMVM96
0805CX
GMVM96
1005DX
GMVM96
1155DX
GCVM96
0604CX
GCVM96
0805DX
GCVM96
1005DX

High Fire Input¹ 60,000 80,000 100,000 115,000 60,000 80,000 100,000
High Fire Output¹ 57,600 76,800 96,000 109,250 57,600 76,800 95,000
Low-Fire Steady-State Input¹ 30,000 40,000 50,000 57,500 30,000 40,000 50,000
Low-Fire Steady-State Output¹ 28,800 38,400 48,000 54,625 28,800 38,400 47,500
AFUE² 96 96 96 95 96 96 95
Tons AC @ 0.5” ESP 1.5-3.0 2.0-5.0 2.0-5.0 2.0-5.0 1.5-4.0 2.0-5.0 2.0-5.0
Temperature Rise Range (°F) 20-50 35-65 35-65 35-65 20-50 20-50 25-55

Size (D x W) 10" X 8" 11" X 10" 11" X 10" 11" X 10" 10"X 10" 11" X 10" 11" X 10"
Horespower @ 1050 RPM 3/4 1 1 1 3/4 1 1
Speed Variable Variable Variable Variable Variable Variable Variable
Vent Diameter³ 2" 3" 3" 3" 2" 3" 3"
No. of Burners 3 4 5 5 3 4 5
Disposable Filter (in²) 731 683 853 981 731 975 1,056

Min. Circuit Ampacity (amps)6.0 14.2 14.2 14.2 6.0 14.2 14.2
 15.0 15.0 15.0 15.0 15.0 15.0 15.0
 135 145 170 170 139 165 170
¹Natural Gas BTU/h
² 
³ 


 

 
the same size as noted.

 All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.
 
 

4 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 5
Product SPecificationS Product SPecificationS

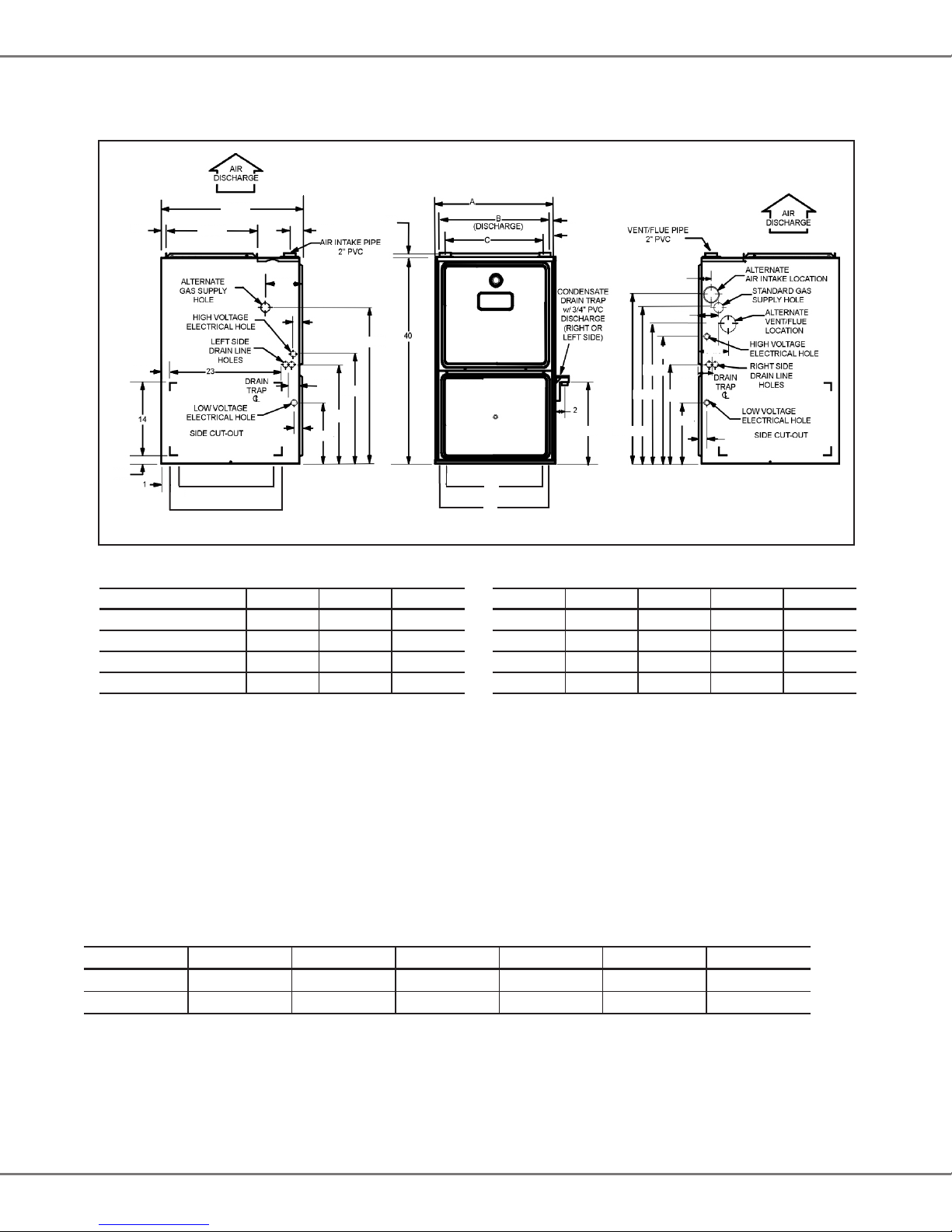

GMVM96 diMeNsioNs
MiNiMuM ClearaNCes to CoMbustible Materials
      
 0” 0” 3” C 0” 1”
Horizontal 6” 0” 3” C 0” 6”


 
 
 
  D H A B C D E
GMVM960603BX  28¾" 40¾"  16"   
GMVM960805CX 21" 28¾" 40¾" 21"   16" 
GMVM961005DX  28¾" 40¾"  23"   
GMVM961155DX  28¾" 40¾"  23"   

 


 
 
 


 
28¾

RIGHT SIDE VIEW
LEFT SIDE VIEW
22 ¹/₁₁
FOLDED FLANGES

UNFOLDED FLANGES
FRONT VIEW
FOLDED FLANGES
UNFOLDED FLANGES
D
E
1¾
11¾
30¼
¾
¾
30¼
1¾
11¾
1¾ 32¹³/₁₁
19³/₁₁
24₁/₁₁
2¹¹/₁₁
2¹/₁₁
19³/₁₁
¾

21¼










4 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 5
Product SPecificationS Product SPecificationS
GCVM96 diMeNsioNs
FOLDED FLANGES
UNFOLDED FLANGES
FOLDED FLANGES
UNFOLDED FLANGES
MiNiMuM ClearaNCes to CoMbustible Materials
      
 0” 0” 3” NC 0” 1”
Horizontal 6” 0” 3” C 0” 6”



 
 
 
  D H A B C D E
GCVM960604CX 21" 28¾" 40¾" 21"   18" 
GCVM960805DX  28¾" 40¾"  23"   23"
GCVM961005DX  28¾" 40¾"  23"   23"

 


 
 
 


 

6 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 7
Product SPecificationS Product SPecificationS
GMVM96 airflow data — CooliNG speeds
GMVM960603BX GVMV960805CX
   
  CFM*   CFM*   CFM*   CFM*
A
Minus(-) 567
A
Minus(-) 351
A
Minus(-) 747
A
Minus(-) 486
Normal 630 Normal 390 Normal 830 Normal 540
Plus (+) 693 Plus (+) 429 Plus (+) 913 Plus (+) 594
B
Minus(-) 720
B
Minus(-) 495
B
Minus(-) 981
B
Minus(-) 675
Normal 800 Normal 550 Normal 1090 Normal 750
Plus (+) 880 Plus (+) 605 Plus (+) 1199 Plus (+) 825
C
Minus(-) 900
C
Minus(-) 612
C
Minus(-) 1314
C
Minus(-) 882
Normal 1000 Normal 680 Normal 1460 Normal 980
Plus (+) 1100 Plus (+) 748 Plus (+) 1606 Plus (+) 1078
D
Minus(-) 1089
D
Minus(-) 720
D
Minus(-) 1620
D
Minus(-) 1089
Normal 1210 Normal 800 Normal 1800 Normal 1210
Plus (+) 1331 Plus (+) 880 Plus (+) 1980 Plus (+) 1331
* @ .1" - .8" w.c. ESP * @ .1" - .8" w.c. ESP
GMVM961005DX GMVM961155DX
   
  CFM*   CFM*   CFM*   CFM*
A
Minus(-) 711
A
Minus(-) 459
A
Minus(-) 711
A
Minus(-) 459
Normal 790 Normal 510 Normal 790 Normal 510
Plus (+) 869 Plus (+) 561 Plus (+) 869 Plus (+) 561
B
Minus(-) 990
B
Minus(-) 639
B
Minus(-) 990
B
Minus(-) 639
Normal 1100 Normal 710 Normal 1100 Normal 710
Plus (+) 1210 Plus (+) 781 Plus (+) 1210 Plus (+) 781
C
Minus(-) 1269
C
Minus(-) 819
C
Minus(-) 1269
C
Minus(-) 819
Normal 1410 Normal 910 Normal 1410 Normal 910
Plus (+) 1551 Plus (+) 1001 Plus (+) 1551 Plus (+) 1001
D
Minus(-) 1647
D
Minus(-) 1044
D
Minus(-) 1647
D
Minus(-) 1044
Normal 1830 Normal 1160 Normal 1830 Normal 1160
Plus (+) 2013 Plus (+) 1276 Plus (+) 2013 Plus (+) 1276
* @ .1" - .8" w.c. ESP

 All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
 For most jobs, about 400 CFM per ton when cooling is desirable.
 

6 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 7
Product SPecificationS Product SPecificationS
GMVM96 airflow data — HeatiNG speeds
GMVM960603BX

GMVM960805CX


      
Minus(-) 855 62 Minus(-) 1,440 49
Normal 950 56 Normal 1,600 44
Plus (+) 1,045 51 Plus (+) 1,760 40
Minus(-) 945 56 Minus(-) 1,521 47
Normal 1,050 51 Normal 1,690 42
Plus (+) 1,155 46 Plus (+) 1,859 38
Minus(-) 1,053 50 Minus(-) 1,620 44
Normal 1,170 45 Normal 1,800 39
Plus (+) 1,287 41 Plus (+) 1,980 36
Minus(-) 1,143 46 Minus(-) 1,701 42
Normal 1,270 42 Normal 1,890 37
Plus (+) 1,397 38 Plus (+) 2,079 34
* @ .1" - .5" w.c. ESP * @ .1" - .5" w.c. ESP
GMVM961005DX

GMVM961155DX


      
Minus(-) 1,629 54 Minus(-) 1,629 62
Normal 1,810 49 Normal 1,810 56
Plus (+) 1,991 44 Plus (+) 1,991 51
Minus(-) 1,665 53 Minus(-) 1,665 60
Normal 1,850 48 Normal 1,850 54
Plus (+) 2,035 43 Plus (+) 2,035 49
Minus(-) 1,701 52 Minus(-) 1,701 59
Normal 1,890 47 Normal 1,890 53
Plus (+) 2,079 43 Plus (+) 2,079 48
Minus(-) 1,746 51 Minus(-) 1,746 58
Normal 1,940 46 Normal 1,940 52
Plus (+) 2,134 41 Plus (+) 2,134 47
* @ .1" - .5" w.c. ESP * @ .1" - .5" w.c. ESP

 All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
 For most jobs, about 400 CFM per ton when cooling is desirable.
 
cooling purposes only.
 

8 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 9
Product SPecificationS Product SPecificationS
GCVM96 airflow data — CooliNG speeds
GCVM960604CX GCVM960805DX
   



   

   

   

 
A
Minus(-) 594
A
Minus(-) 333
A
Minus(-) 810
A
Minus(-) 477
Normal 660 Normal 370 Normal 900 Normal 530
Plus (+) 726 Plus (+) 407 Plus (+) 990 Plus (+) 583
B
Minus(-) 774
B
Minus(-) 486
B
Minus(-) 990
B
Minus(-) 657
Normal 860 Normal 540 Normal 1100 Normal 730
Plus (+) 946 Plus (+) 594 Plus (+) 1210 Plus (+) 803
C
Minus(-) 1035
C
Minus(-) 711
C
Minus(-) 1287
C
Minus(-) 837
Normal 1150 Normal 790 Normal 1430 Normal 930
Plus (+) 1265 Plus (+) 869 Plus (+) 1573 Plus (+) 1023
D
Minus(-) 1323
D
Minus(-) 882
D
Minus(-) 1692
D
Minus(-) 1098
Normal 1470 Normal 980 Normal 1880 Normal 1220
Plus (+) 1617 Plus (+) 1078 Plus (+) 2068 Plus (+) 1342
* @ .1” - .8” w.c. ESP

 All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
 For most jobs, about 400 CFM per ton when cooling is desirable.
 
GCVM961005DX
 



   

 
A
Minus(-) 702
A
Minus(-) 450
Normal 780 Normal 500
Plus (+) 858 Plus (+) 550
B
Minus(-) 963
B
Minus(-) 666
Normal 1070 Normal 740
Plus (+) 1177 Plus (+) 814
C
Minus(-) 1242
C
Minus(-) 828
Normal 1380 Normal 920
Plus (+) 1518 Plus (+) 1012
D
Minus(-) 1602
D
Minus(-) 1044
Normal 1780 Normal 1160
Plus (+) 1958 Plus (+) 1276
* @ .1” - .8” w.c. ESP

 All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
 For most jobs, about 400 CFM per ton when cooling is desirable.
 

8 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 9
Product SPecificationS Product SPecificationS
GCVM96 airflow data — HeatiNG speeds
GCVM960604CX
ACVM960604CX

GCVM960805DX
ACVM960805DX


      
Minus(-) 1,098 48 Minus(-) 1,440 49
Normal 1,220 44 Normal 1,600 44
Plus (+) 1,342 40 Plus (+) 1,760 40
Minus(-) 1,206 44 Minus(-) 1,539 46
Normal 1,340 40 Normal 1,710 41
Plus (+) 1,474 36 Plus (+) 1,881 38
Minus(-) 1,314 40 Minus(-) 1,620 44
Normal 1,460 36 Normal 1,800 39
Plus (+) 1,606 33 Plus (+) 1,980 36
Minus(-) 1,431 37 Minus(-) 1,719 41
Normal 1,590 33 Normal 1,910 37
Plus (+) 1,749 30 Plus (+) 2,101 34
* @ .1" - .5" w.c. ESP * @ .1" - .5" w.c. ESP
GCVM961005DX


  
Minus(-) 1,557 56
Normal 1,730 51
Plus (+) 1,903 46
Minus(-) 1,593 55
Normal 1,770 49
Plus (+) 1,947 45
Minus(-) 1,656 53
Normal 1,840 48
Plus (+) 2,024 43
Minus(-) 1,683 52
Normal 1,870 47
Plus (+) 2,057 43
* @ .1" - .5" w.c. ESP

 All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
 For most jobs, about 400 CFM per ton when cooling is desirable.
 
cooling purposes only.
 

10 www.goodmanmfg.com SS-GMVM96 SS-GMVM96 www.goodmanmfg.com 11
Product SPecificationS Product SPecificationS
teMperature rise raNGe CHart
30 40 50 60 70 80 90 110 120
100 130 140 150
100
90 80
70 60 50
40 30 20
10
OUTPUT BTU/HR x 1000
BTU OUTPUT vs TEMPERATURE RISE CHART
TEMPERATURE RISE
600 CFM
700
900
1000
1100
1200
1400
1600
1800
2000
2200
2400 CFM
FORMULAS
BTU OUTPUT = CFM x 1.08 x RISE
RISE =
BTU OUTPUT
1.08
÷ CFM
800



BTU/h Output = CFM x 1.08 x Rise Rise = BTU/H Output
CFM x 1.08

