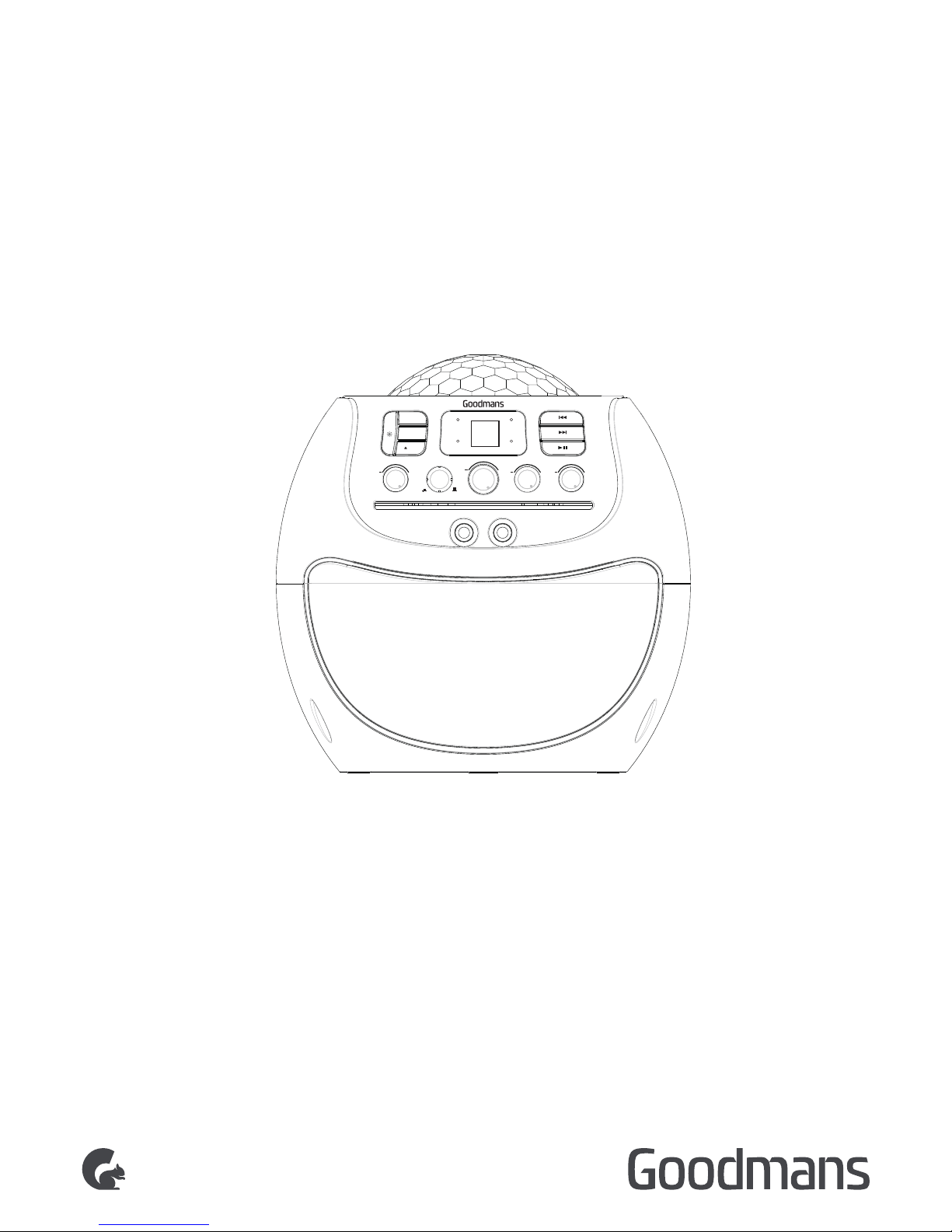

Goodmans XB13CDG User manual

MODEL: XB13CDG
USER MANUAL
CD+G PORTABLE
DISCO KARAOKE
PROG
REPEAT
/STOP
MIC1 MIC2
POWER PROG
PLAY/PAUSE REPEAT
MIC1 VOL AVC VOLUME ECHO MIC2 VOL
+ + +
+
ON OFF

1 Welcome
2
Your CD+G
2.1 In The Box
Karaoke
System
2.3 Indicators
2.2 Front View 2.4
Rear View
3 Quick Setup
3.1 Making the Connections
3.2 Display Lyrics on a TV Screen
3.3 TV Connection for Audio & Video
3.4 TV Connection with SCART Adaptor
3.5 Audio Connection to an External Amplifier
3.6 Connecting the Microphone(s)
4 Operation
4.1 Switching M od es
4.2 W ha t is a CD+G disc?
4.3 Loada Disc
4.4 Play a Son g
4.5 Skip Tracks
4.6 Programmed Playback
4.7 Repe at Sing le/ All Track( s)
3.7 Connecting the Power
3.8 Standby & Auto Standby
3.9 Adjusting the Volume
3.10 Connecting an External Audio Source
3.11 Fitting the Batteries
4.8 Echo Effe ct ( Microphon e Only)
4.9 A.V.C Control( AutoVoice Control)
4.10 Ligh t Effe ct Show
5 Troubleshooting
6 Technical Specifications
7 Customer Support

1
Thank you for choosing this Goodmans product. We’ve been
making electronics for the British peoplefor 70 years. Each of
our projects has been carefully designed to be great at what it
does and this one is no exception. We hope you enjoy your
new Karaoke System.
Carefully remove your Karaoke System from the packaging.
Inside the box you will find:
•
XB13CDG K araoke Machine
•
AV Cable
• Powe r Cab le
• 1 x M icroph one
•
CD+G Demo Disc
•
Quick Start Guide
•
Guarantee Booklet
If any of these item sare missing ,cont act custo mer support.
Visit:w w w .goodmans.co.uk/support
Your XB13CDG requires a mains supply of
230-240V AC ~50Hz. P lease ensure that your mains supply is
compatible before use. Disconnect the power cord from the
mains when not in use.
Place on a flat, stable surface that is not subject to vibrations.
Avoid the following locations:
•
Where it is exposed to direct sunlight
•
Where it is close to heat radiating sources
•
Where the humidity is high and ventilation is poor
•
Where it is dusty
XB 13 CD G
Position of karaoke System
Mains Power
In The Box
Your Karaoke System
Welcome
2.1
2

X B 13 C D G

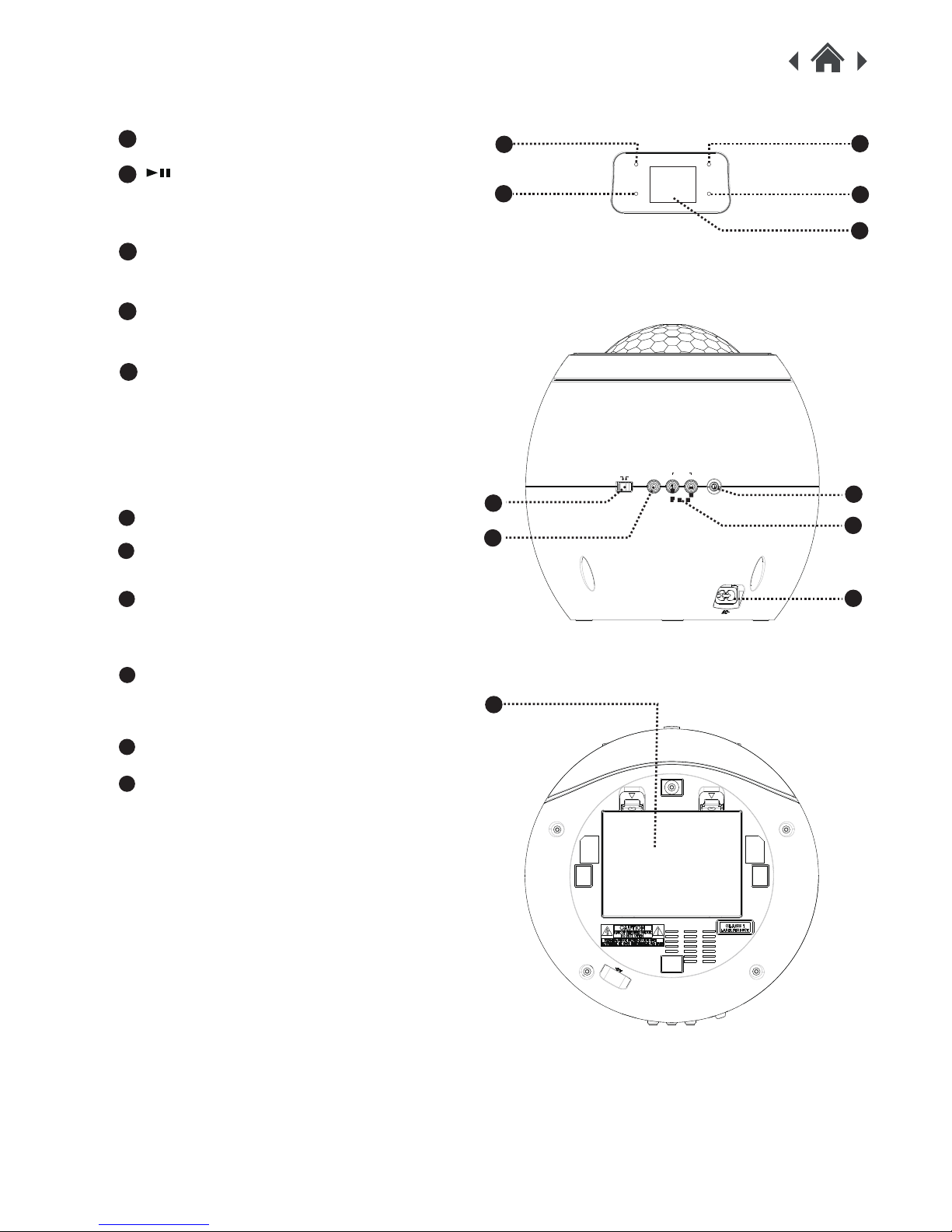

Front View
PROG
REPEAT
/STOP
MIC1 MIC2
POWER PROG
PLAY/PAUSE REPEAT
MIC1 VOL AVC VOLUME ECHO MIC2 VOL
+ + +
+
ON OFF
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
A ECHO control.
Adjusts the amount of echo for the
LIGHT.
Illuminated light show
.lortnocCVA
Controls the auto
PROG button.
Activates the program program
playlist function.
LIGHT button.
the light effects/power saving mode.
/STOP button.
CD disc open/close Stops playback.
MIC 1 VOLUME button.
Adjusts the Microphone level.
DISC compartment.
MIC
1 input.
Microphone input.
SKIP button.
Press to skip
SKIP button.
PLAY/PAUSE button.
Press to begin playback or pause playback.
MIC 2 VOLUME
button.
Adjusts the microphone level.
VOLUME.
Adjusts the volume level of
the internal speaker .
MIC 2 input. Microphone input.
B
C
D
E
F
G
H
I
REPEAT button.
Press to enable the
repeat function
J
K
L
M
N
O
P
Contro.
SPEAKER.
Q
microphone output.
between tracks.
Press to skip between tracks.
2.2

Indicators
ON OFF AUX IN
AUDIO OUT
R
L
VIDEO OUT
POWER
ON OFF
AUDIO OUT
R
L
POWER
8
10
9
6
7
11
indica tor.
I ndicate s when in play or pause
m ode.
2
3
5
1
6
7
8
9
10
11
POWER PROG
PLAY/PAUSE REPEAT
2
13
4
5
Rear View
the repeat mode is active.
Indicates when
the repeat mode is active.
Indicates when
Displays the current track
playing.
POWER indicator.
PLAY/PAUSE
PROG Indicator.
REPEAT indicator.
DISPLAY
POWER Switch
4
COMPOSITE VIDEO
RCA STEREO AUDIO
BATTERY compartment.
AC MAINS input.
AUX IN input.
output.
connect to a TV input.
connect an external
audio source for playblack through
the speakers.
outputs.
Connect to an RCA stereo input on a
TV or amplifier.
XB13CDG
2.3
2.4

Quick Setup
Making the Connections
An audio/video (AV) cable is supplied to give you the option of
connecting the unit to an external amplifier and/ or a TV to
display lyrics on-screen. The cable has three RCA jacks at
each end. White and Red are for left and right audio
connections and the Yellow is for connecting the video.
Some projection TV sets do not display the standard blue
background used on most CD+Gs properly. If the background
colour is inconsistent or flashing, please try connecting your
karaoke system to a standard television.

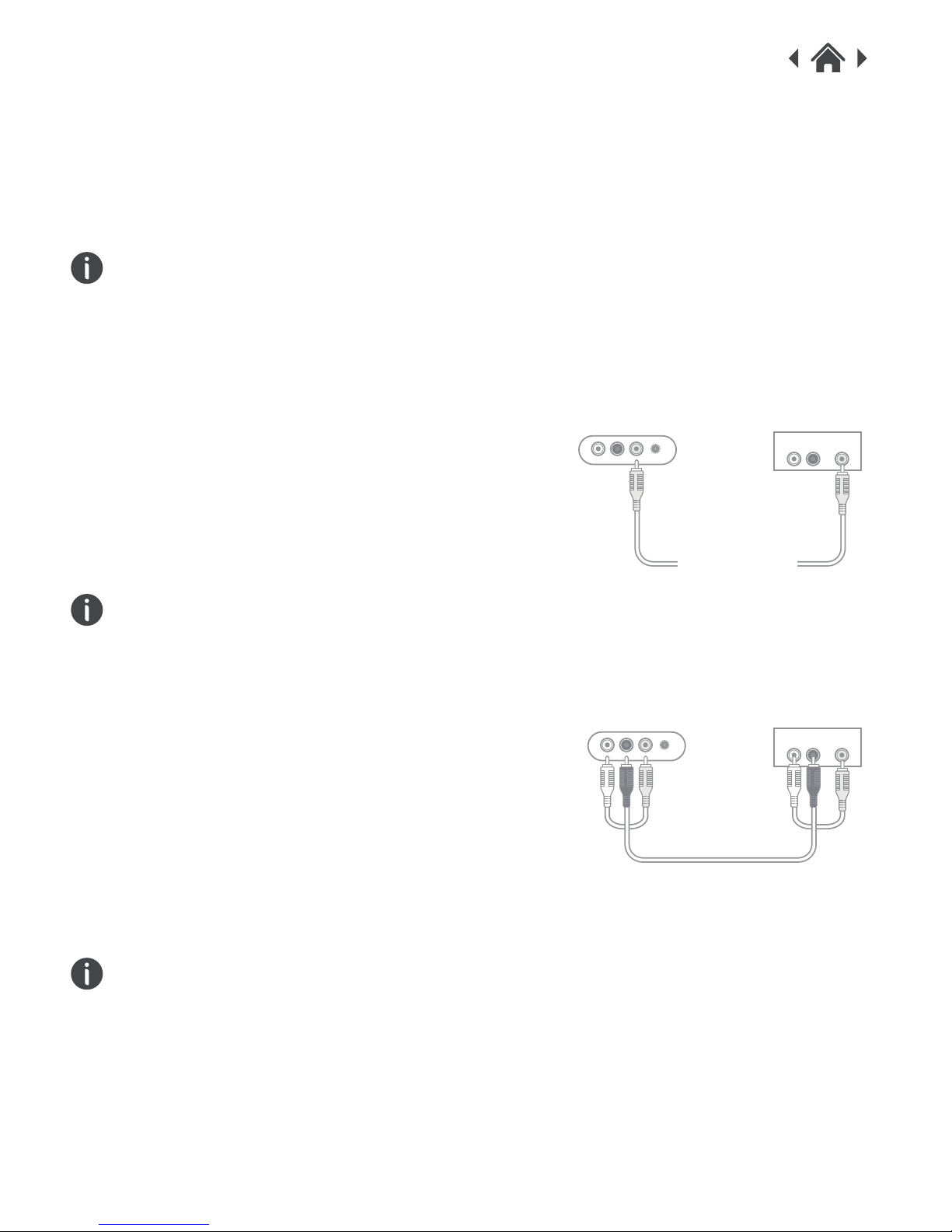

Display Lyrics on a TV Screen
1. Connect the YELLOW (video) jack of the supplied AV
cable to the 'VIDEO OUT' socket on the rear of the
karaoke machine.
2. Connect the other end of the cable to a 'VIDEO INPUT'
on your TV.
3. Select the appropriate video channel on your TV to
view the lyrics on-screen.
This connection will send lyrics (CD+G) only to the TV
screen. All audio will be output from the karaoke machine.
TV Connection for Audio & Video
1. Connect the YELLOW (video) jack of the supplied AV
cable to the 'VIDEO OUT' socket on the rear of the
karaoke machine.
2. Connect the other end of the cable to a 'VIDEO INPUT'
on your TV.
3. Connect the RED & WHITE jacks of the supplied AV
cable to the RED & WHITE 'AUDIO OUT' sockets on
the rear of the karaoke machine.
4. Connect the other end of the cables to the RED & WHITE
stereo inputs on your TV.
Take care to match the socket colours to the jack colours &
that the red, white & yellow sockets are all from the same TV
input.
5. Select the appropriate video channel on your TV to view the
lyrics on-screen and hear the sound from the TV speakers.
AUDIO OUT VIDEO OUT
AUDIO INPUT VIDEO INPUT
Rear of karaoke
machine
VIDEO CABLE
(YELLOW)
Rear of TV
AUDIO OUT VIDEO OUT
AUDIO INPUT VIDEO INPUT
Rear of karaoke
machine Rear of TV
XB13CDG
3.1
3
3.2
3.3

TV Connection with SCART Adaptor
If your TV does not have the same red, white & yellow
input sockets, but does have a SCART input socket, you
can purchase a SCART adaptor. Follow the next diagram.
1. Connect the YELLOW (video) jack of the supplied AV
cable to the 'VIDEO OUT' socket on the rear of the
karaoke machine.
2. Connect the RED & WHITE jacks of the supplied AV
cable to the RED & WHITE 'AUDIO OUT' sockets on
the rear of the karaoke machine.
Take care to match the socket colours to the jack colours.
3. Connect the other end of the cables to the matching
coloured sockets on the SCART adaptor.
4. Connect the SCART adaptor to the SCART input on your
TV.
5. Select the appropriate video channel on your TV to view the
lyrics on-screen and hear the sound from the TV speakers.
Audio Connection to an External Amplifier
As an alternative to listening to the audio through your TV
or internal speakers, you can listen through your home
stereo system.
1. Connect the RED & WHITE jacks of the supplied AV
cable to the RED & WHITE 'AUDIO OUT' sockets on the
rear of the karaoke machine.
2. Connect the other ends of the RED & WHITE cables to
an RCA STEREO input on your amplifier.
3. Power on the amplifier and select the input you connected
the cables to.
In order to see the lyrics on your TV screen you also need to
connect the yellow cable to your TV (see section 3.1).
AUDIO OUT VIDEO OUT
Rear of karaoke
machine
TV SCART
AUDIO OUT VIDEO OUT
AUDIO STEREO INPUT
Rear of karaoke
machine Rear of AMP
XB13CDG
3.4
3.5

XB13CDG
1.
2.
1.
2.
3.
MIC1 MIC2
AVC VOLUME ECHO
+
+
ON OFF
AUX IN
AUDIO OUT
R L
VIDEO OUT
POWER AUDIO OUT
R L
POWER
ON OFF
POWER
ON OFF
POWER

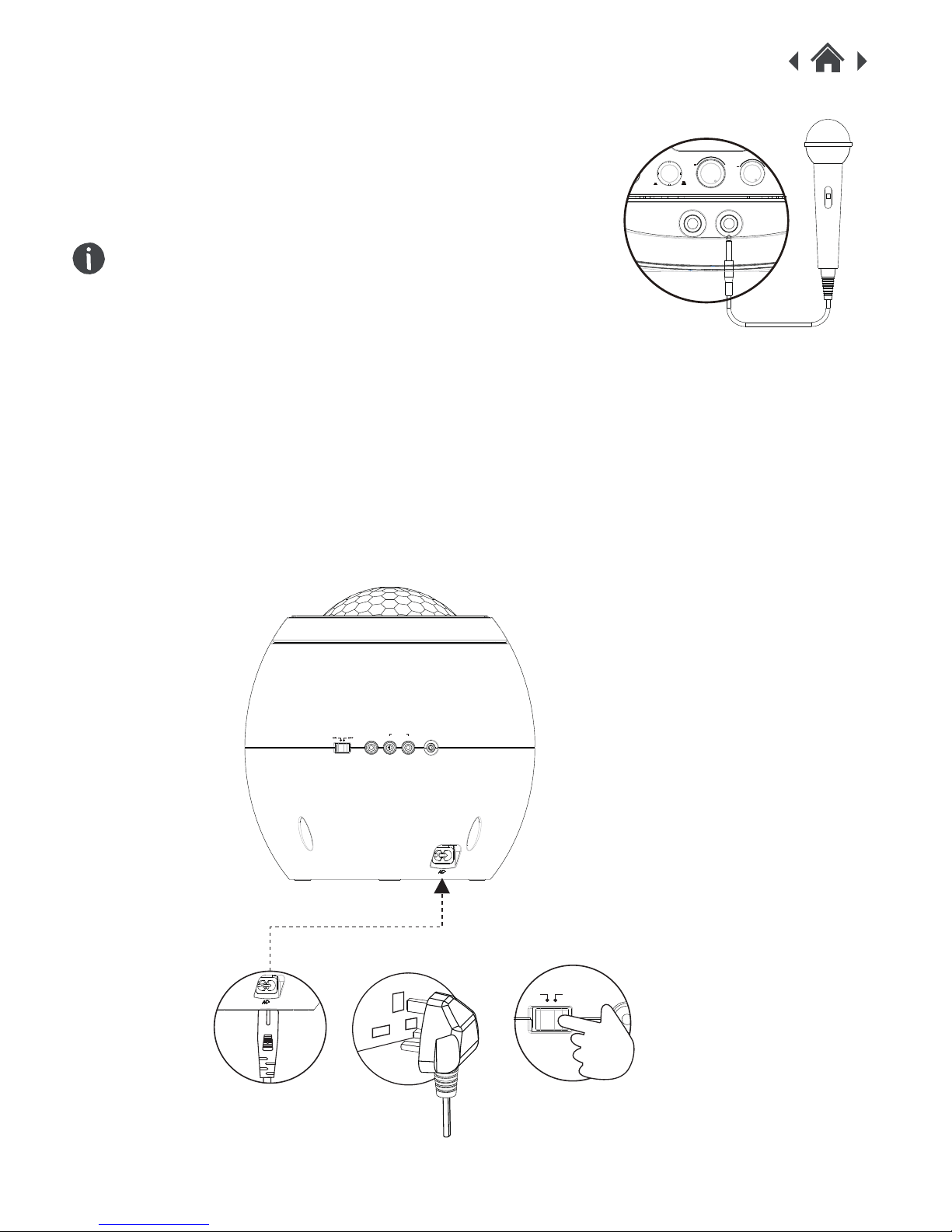

Insert the supplied microphone jack into the MIC 1socket
on the front of the karaoke machine.
Switch the microphone on using the ON/OFF switch found
on the side of the microphone.
An additional microphone can be connected to the MIC 2
socket for duets (only one microphone is supplied).
Connect the mains power cable jack into the AC power
input on the rear of the karaoke mackine.
Press the ON/OFF button on the behind of the
karaoke machine
Connecting the Microphone(s)
Connecting the Power
3.6
3.7
Insert the mains power cable into a power socket, and
switch the power on.

XB13CDG
1.
Press the LIGHT button to on dance disco mode.
2.
Press the LIGHT button off to dance disco mode.
3.
Once audio playback has ceased and the unit has stood
idle for approximately10 mins, it will switchinto a ‘power-
down’ power saving mode.
4.
To wake the unit up, press the LIGHT button.
1. Rotate the VOLUME control clockwise or anti-clockwise
to increase or decrease the volume output.
You can connect other audio sources to sing along to
using the AUX IN socket on the front of the unit.
1.
Connect an audio device(such as an MP3 player)
using a 3.5mm audio cable(not supplied).Insert one
end into the MP3 players earphone output.
2.
Connect the other end into the AUX IN socket on the
behind the karaoke machine.
3.
Press PLAY on the audio device.
4.
Adjust the volume to your desired level.
When connecting via the headphone output the volume
of the karaoke machine is affected by the volume control
on the player.Ensure that the audio source(such as an
MP3 player) is set to about70-80% to avoid distortion.
ON OFF AUX IN
AUDIO OUT
R L
VIDEO OUT
POWER
ON OFF
AUDIO OUT
R
L
POWER
VOLUME
+
PROG
REPEAT
/STOP
Due to new ECO regulation his product
incorporates a powersaving feature.
Dance Disco Light & Auto Standby
Aujusting the Volume
Connecting an External Audio Source
3.8
3.9
3.10
requirements

XB13CDG
1.
Remove the battery cover by pressing the battery cover
tabs downwards and out.
2.
3.
Replace the battery cover.

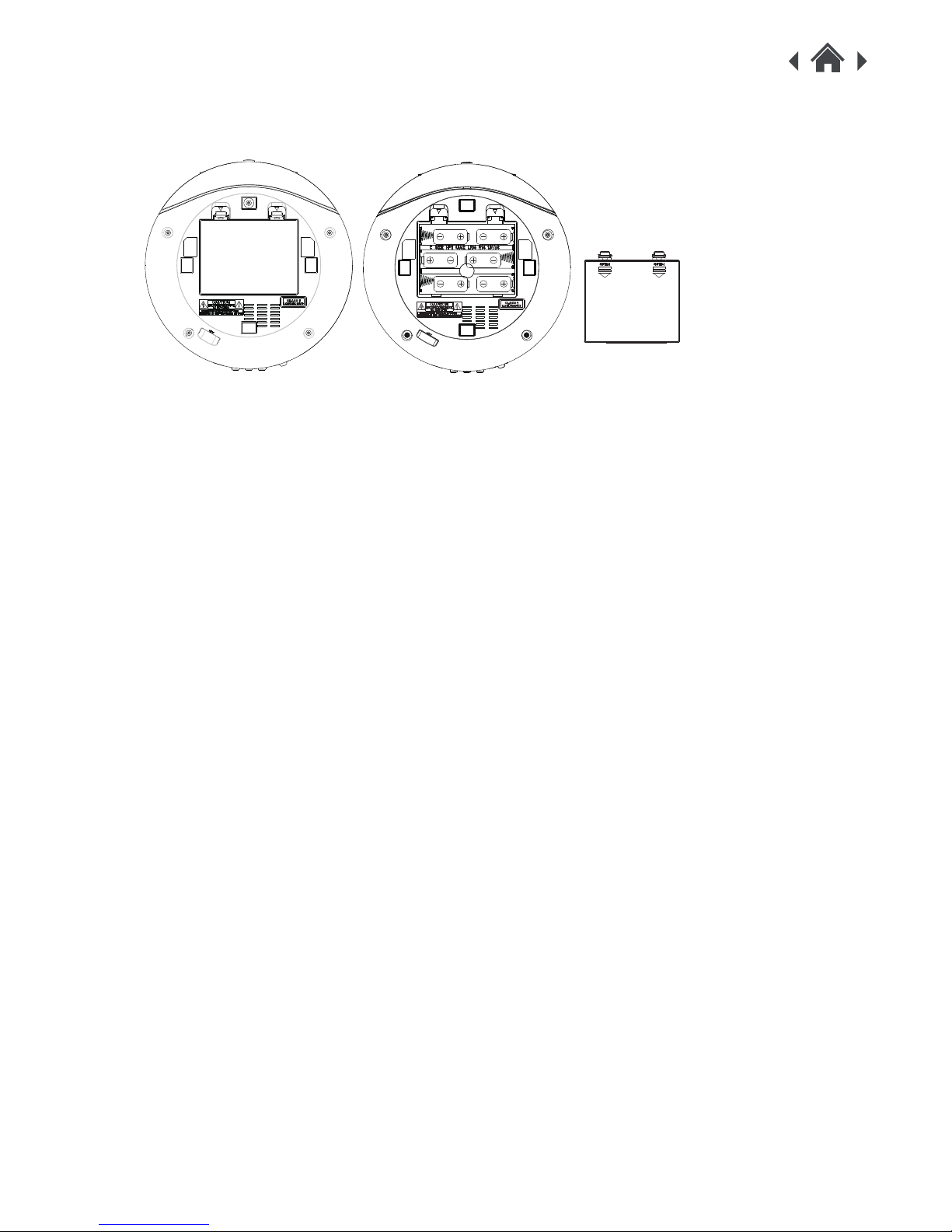

Fitting the Batteries
3.11
Insert 6 ‘C’ UM2 type batteries into the battery
compartment taking note of the engraved battery direction
diagrams on the inside.
x

XB13CDG

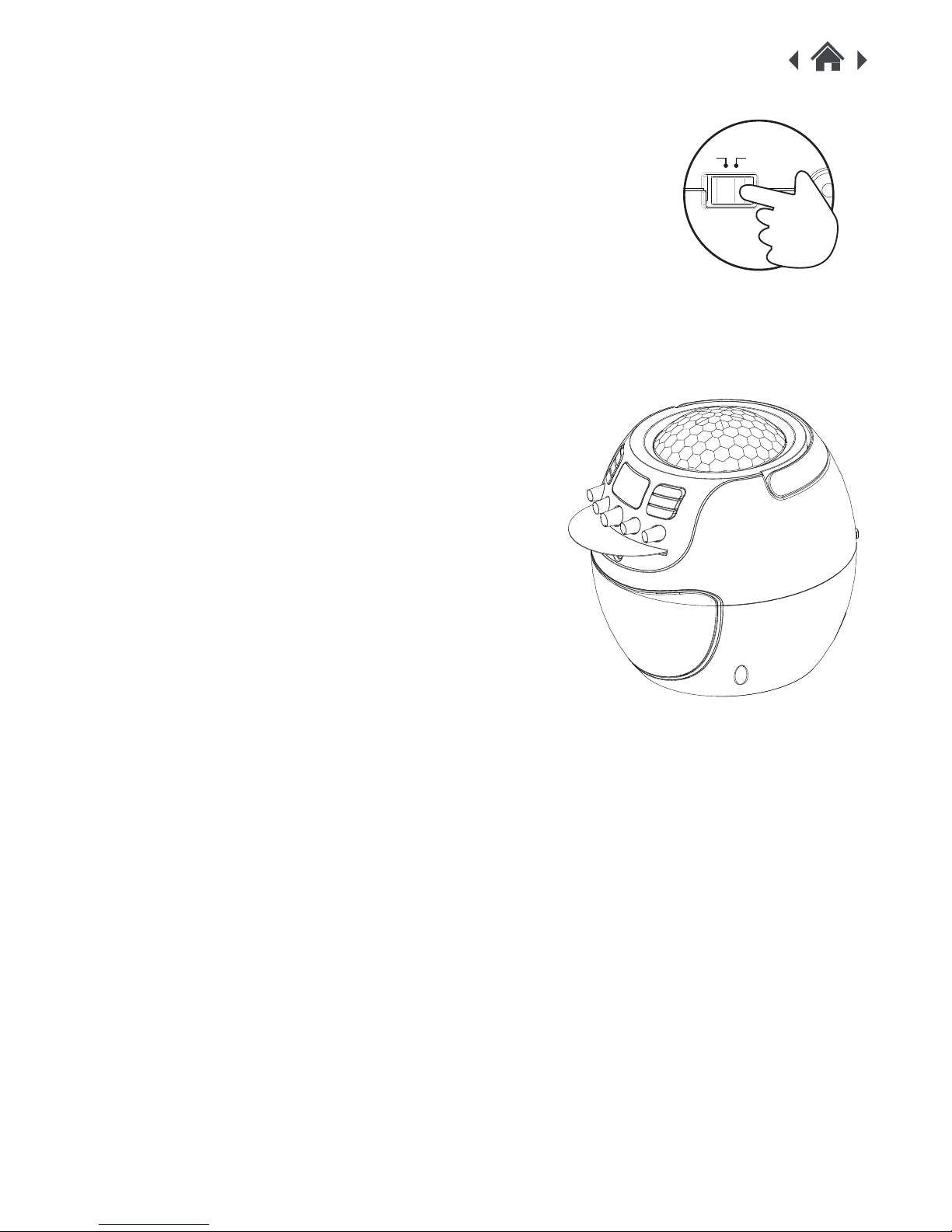

1. Press ON/OFF Switch ON modes.
A CD+G (CD + graphics) is the standard format for most
karaoke discs. Each disc contains the audio track and words
that appear on your TV screen.

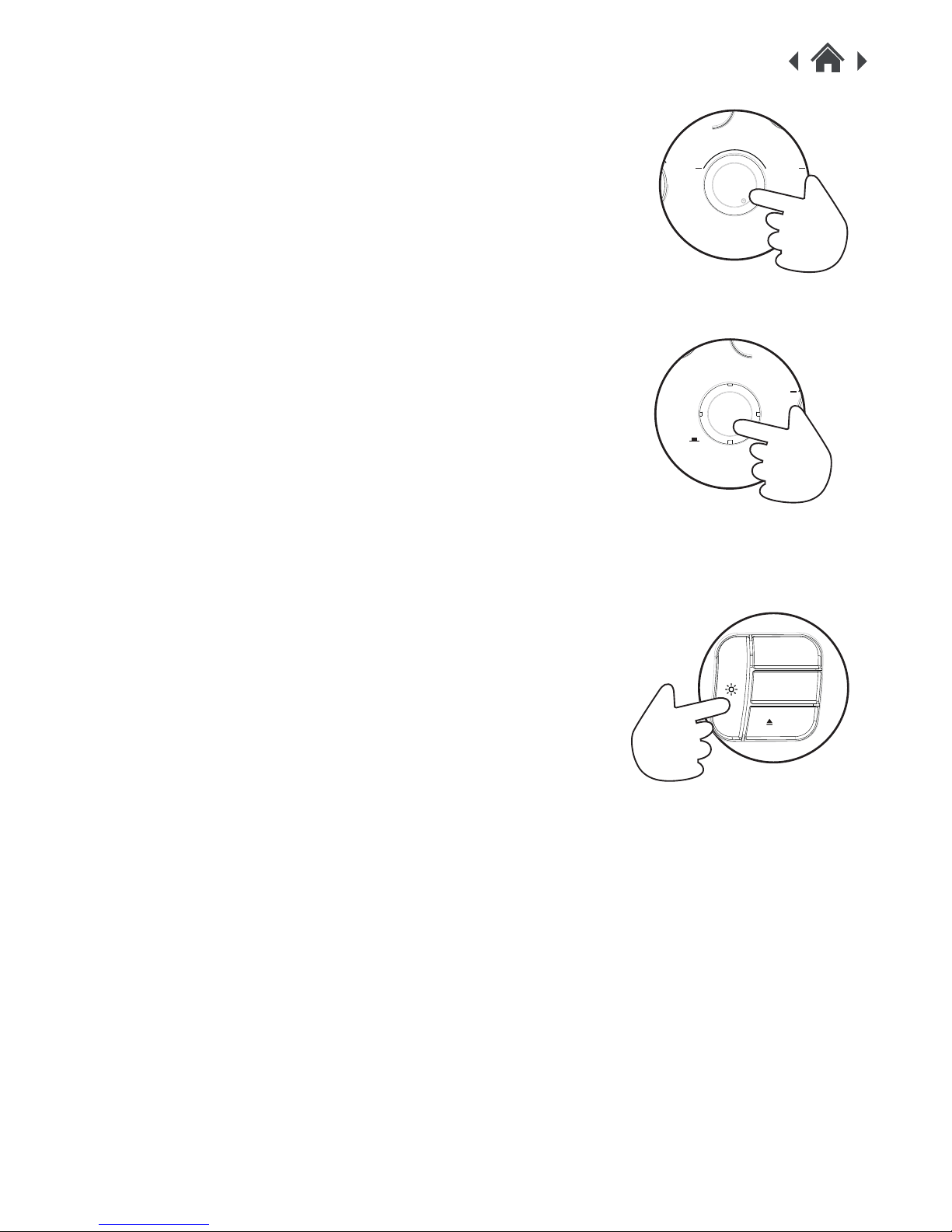

1. Insert CD into the slot below the dials
ON OFF
POWER
ON OFF
POWER
What is a CD+G disc?
Switching Modes
CD+G Operation
Operation
Load a Disc
4.1
4
4.2
4.3

XB13CDG
4.4
4.5
4.6

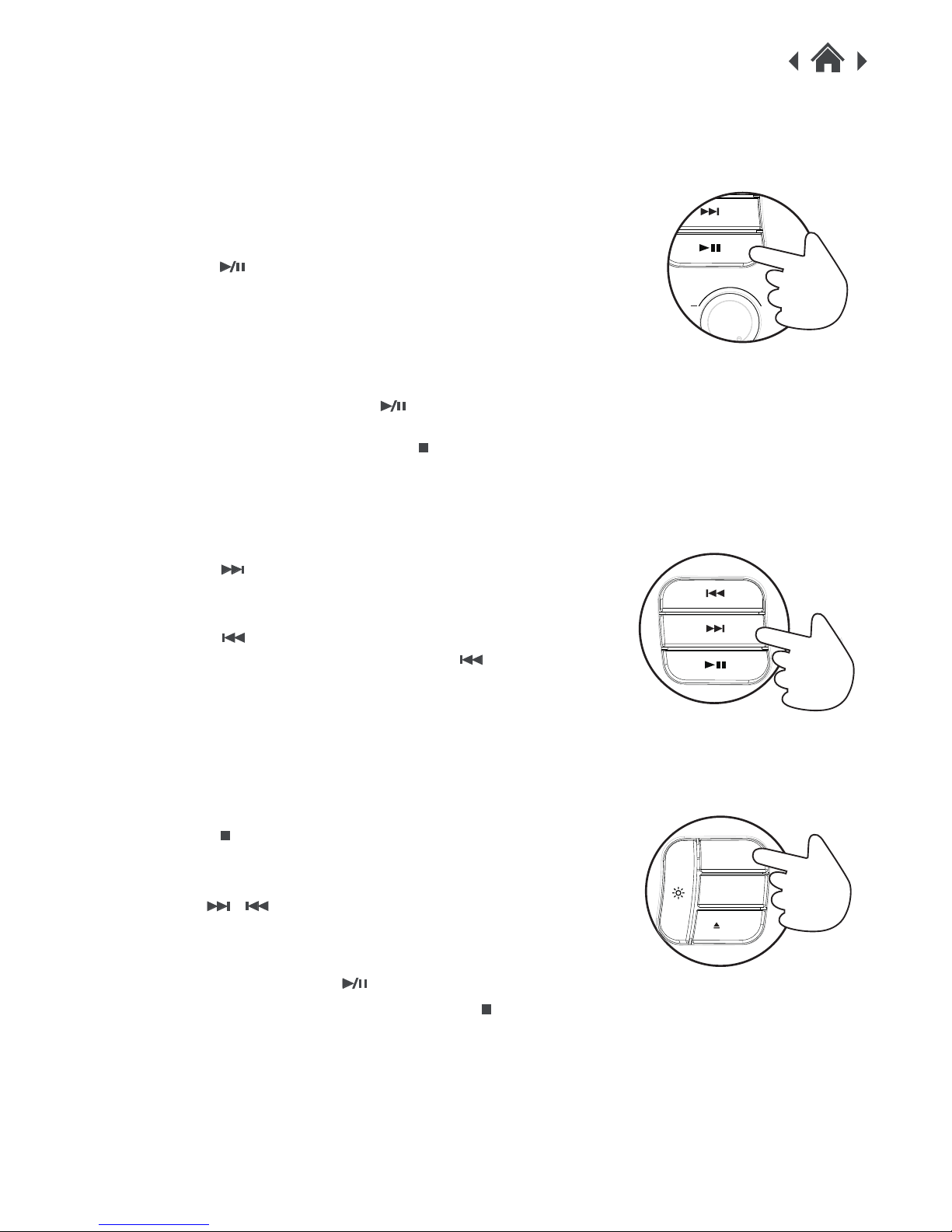

1.
The player begins to read the disc/drive and displays the
total number of compatible tracks on the display.
2.
If a TV is connected a menu displaying folders on the
left, and tracks on the right.
3.
Press the button once to begin playback from track 01.
The PLAY/PAUSE indicator to the left of the display will
illuminate and if playing a CDG disc file the CDG indicator
will illuminate also.
4.
If a TV is connected, the lyrics to the current song will
appear on your TV.
5.
To pause playback press the button once more.The
PLAY/PAUSE indicator and display will flash to indicate the
player is in pause mode; press the button to cease music
playback.The display shows the total number of tracks
once more.
1.
Press the button once during playback to skip to the
next track.To skip to a specific track,press this button
several times until you reach the track number required.
2.
Press the button once during playback to return to the
beginning of the current track.Press the button twice
repeatedly to skip to the previous track.To skip backto a
specific track,press this button several times.
To programme an alternative playback order of tracks follow
the below steps.
1.
Press the STOP button if a disc is playing.Then press the
PROG button toenter the programme setup function.The
PROG indicator to the right of the display will illuminate.
2. /
3.
Press the PROG button to store track ‘1’ of the playlist.
4.
5.
6.
To cancel the program sequence press the STOP button
twice.The PROG indicator will go off.
PROG
REPEAT
/STOP
Skip Tracks
Programmed Playback
Play a Song
CD+G Operation
Use the buttons to skip between the tracks.
When complete press the button to begin playback.
Repeat steps 2-3 to program up to 20 tracks.
MIC2 VOL
+

XB13CDG
1. During playback pressing the REPEAT button will flag the
current track to repeat indefinitely.You will see the REPEAT
indicator to the right of the display flash.
2. Pressing the REPEAT button again will repeat all tracks on
the disc.You will see the REPEAT indicator to the right of
the display stop flashing and remain solid.
3. To cancel the repeat function press the REPEAT button for
a third time.You will see the REPEAT indicator to the right of
the display go off.
PROG
REPEAT
/STOP
Repeat Single/All Track(s)
CD+G Operation
4.7

XB13CDG
1. When using the microphone(s) you can apply echo to your
voice using the ECHO control.
2.
Auto voice control works by lowering the vocals on a multiplex
recording when you sing. When you stop singing the vocals
will be restored.
1.
Press the AVC button to the ON position .to increase the
amount the song vocals cut out when singing.Setting the
control to MAX will cut the vocals out almost completely
when singing.
1. Press the LIGHT button on the front of the karaoke
machine to enable the light show.
PROG
REPEAT
/STOP
MIC1
AVC
+
ON OFF
ECHO
+
+
Other Operation
Echo Effect (Microphone Only)
A.V.C Control (Auto Voice Control)
Light Effect Show
4.8
4.9
4.10
LED ball can be rotated light patterns onto walls and
ceilings.
Rotate clockwise from MIN to MAX to increase the echo
amout. Setting the control to ‘MIN’ means there will be no
echo on the microphone output.

XB13CDG
No Power Check themains plug is connected to the wall socket.
Switch the wall socket on.
Press the ON/OFF button to ON mode.
No sound from the TV or connected Amp The volume level is too low.Increase using the
volume control.
Check the input you connected the karaoke
machine to on the TV or amp and switch to that
input.
Ensure the RED & WHITE audio cables are
connected correctly to the karaoke machine,TV or
Amp.
Ensure the RED & WHITE audio cables are
connected to the same input as the YELLOW video
cable on your TV.
No lyrics appear on the TV screen. Check the YELLOW video cable connections on
both the karaoke machine and TV.
Check you are viewing the input you connected the
YELLOW cable to on your TV.
Check you have loaded a CD+G disc that contains
lyrics.
No sound from the microphone
The MIC VOLUME control is set to MIN.
The microphone ON/OFF switch is set to the OFF
position.
The microphone is not connected properly.
The microphone is damaged; try another
microphone.
What to do
Problem
Troubleshooting
5

QSG-SEP16-XB13CDG
XB13CDG
Power Supply
AC 230-240V ~ 50 Hz
6 x 'C' UM2 type batteries
Speaker Output Power 2W (RMS)
Video Output PAL composite (RCA)
Supported Disc Types CD, CD+G,CD-R,CD-RW
Our customer service team is available for technical or
guarantee support.Visit www.goodmans.co.uk/support
www.goodmans.co.uk
Technical Specification
Customer Support
6
7
Model Number
