Goodwe Wi-Fi/LAN Kit User manual

(Wi-Fi/LAN Kit & Wi-Fi Kit & Wi-Fi Box)
Quick Installation Guide
Communication Module
V1.4-2022-11-10

1
Quick Installation Guide V1.4-2022-11-10

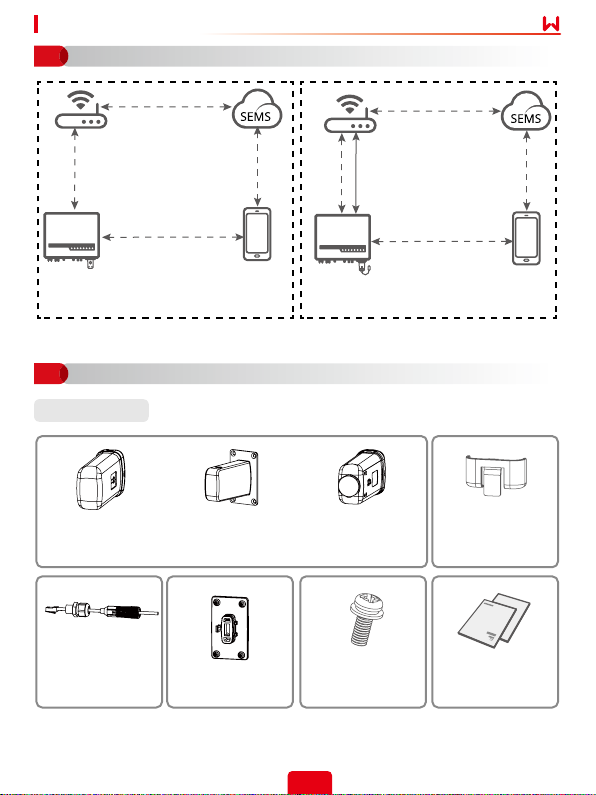

Applications
Communication Network via WiFi Communication Network via LAN
Installation
Packing List
Wi-Fi/LAN Kit x 1Wi-Fi Kit x 1
Or
Unlock Tool x 1 [1]
User Manual x 1Wire Harness
x 1 [2]
Screw x N [3]
Router
<10m
Inverter
<10m
Wi-Fi Kit or
Wi-Fi Box or
Wi-Fi/LAN Kit
Router
SEMS Portal
SEMS Portal App
WiFi
<10m
LAN
<100m
Inverter
Wi-Fi/LAN Kit
<10m
SEMS Portal
SEMS Portal App
Or
Wi-Fi Box x 1
[1]: For Wi-Fi/LAN Kit and Wi-Fi Kit.
[2]: For Wi-Fi/LAN Kit only.
[3]: N=Quantity depends on the Wi-Fi/LAN Kit conguration.
01
02
5-pin USB adapter
x N [3]

2
Quick Installation Guide V1.4-2022-11-10
2
1
22
22
1
1
22
22
2

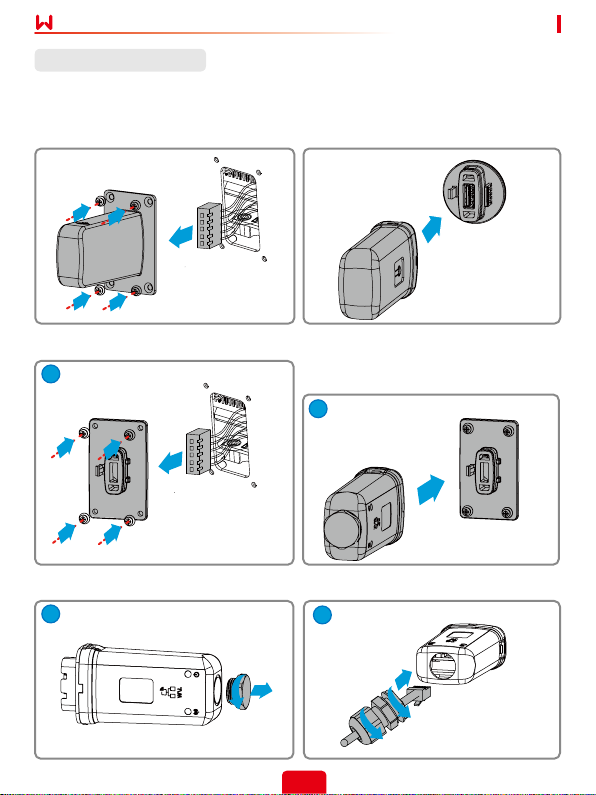

Installing the module
Note: This device should be installed and operated with a minimum distance of 20 cm
between the radiator and your body.
Wi-Fi Box Wi-Fi Kit
Wi-Fi/LAN Kit
Step 3 - Step7 for LAN function only.
USB
Communication
Port of the Inverter
5-pin
Communication
Port of the Inverter
Step 2 for WiFi function only.
5-pin
Communication
Port of the Inverter
(Optional) Install the 5-pin USB adapter.
3
1
2
4
1
2
3

3
Quick Installation Guide V1.4-2022-11-10
5
2
45
3
1
6
1
2
3
4
6
5
7

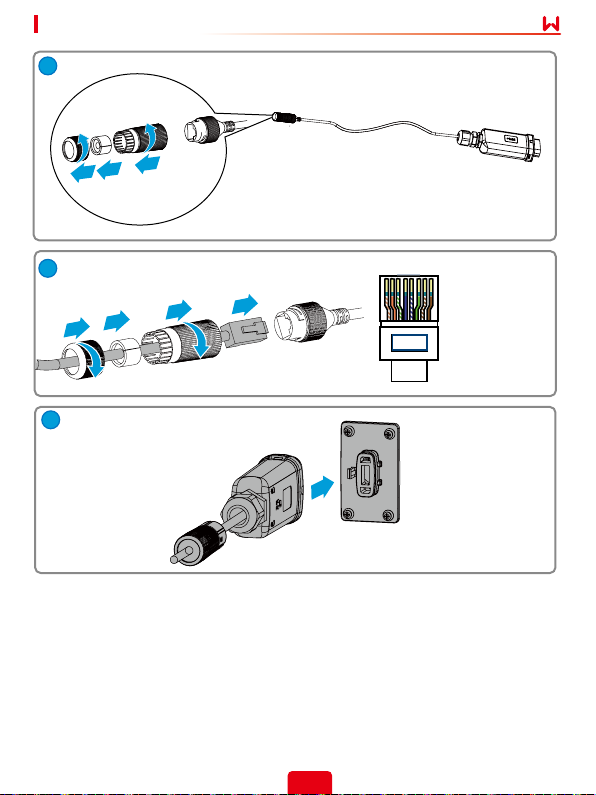

1 2 3 4 5 6 7 8 1. White & Orange
2. Orange
3. White & Green
4. Blue
5. White & Blue
6. Green
7. White & Brown
8. Brown

4
Quick Installation Guide V1.4-2022-11-10
Step 1 Power on the inverter.
Step 2 Power on the router.
Step 3 Check the indicators on the Kit and the inverter to conrm the communication status
of the kit.
Indicator Color Status Description
Green ON The Wi-Fi/LAN Kit is powered on.
OFF The Wi-Fi/LAN Kit is restarting or not powered on.
Blue
ON
• The WiFi communication or LAN communication works
properly.
• The LAN communication is abnormal, but the AP hotspot
is connected.
OFF
• The Wi-Fi/LAN Kit is restarting or not powered on.
• The WiFi communication is abnormal.
• The LAN communication is abnormal, and the AP hotspot
is not connected.
Wi-Fi/LAN Kit
Power
COM
Indicator Color Status Description
Green ON The Wi-Fi Kit is powered on.
OFF The Wi-Fi Kit is restarting or not powered on.
Blue
ON The WiFi AP hotspot is connected.
OFF • Improper communication on Wi-Fi Kit.
• The kit is restarting.
Power
COM
Wi-Fi Kit
Power On
03

5
Quick Installation Guide V1.4-2022-11-10
2
1

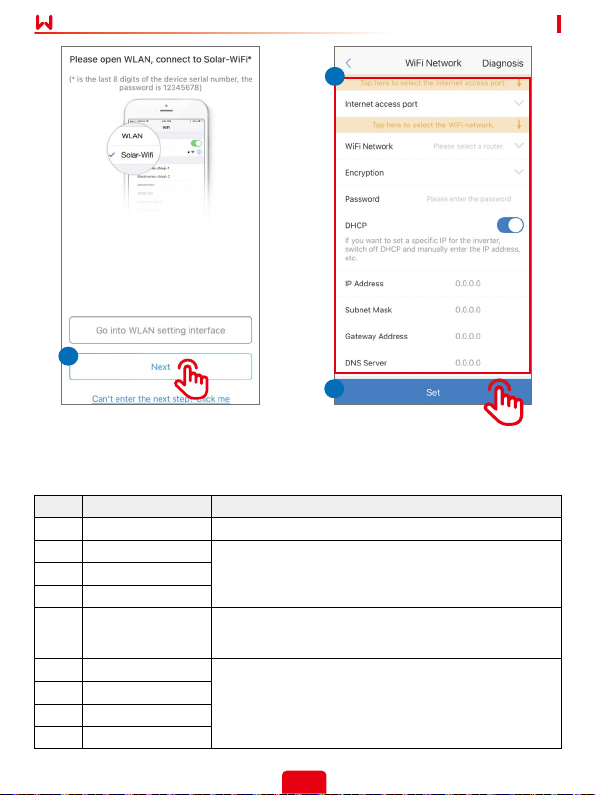

Step 1 Download and install the SEMS Portal
App.
SEMS Portal App
WiFi: Solar-WiFi********
* Represents the last 8 digits of
the serial number of the inverter.
Password: 12345678
Step 2 Connect the app and the inverter.
Commissioning via SEMS Portal App
Step 3 Network Commissioning of the Kit.
Commissioning
04

6
Quick Installation Guide V1.4-2022-11-10
3
Note: After setting the WiFi Network, the module will restart automatically and the indicator
will be o temporarily. The indicator will be on after restarting.
4
5
No. Parameters Description
1 Internet access port For Wi-Fi/LAN Kit only. Select Wi-Fi or LAN.
2 WiFi Network For WiFi mode only.
Set the parameters based on the router network
information.
3 Encryption
4 Password
5 DHCP
• Enable DHCP when the router is in dynamic IP mode.
• Disable DHCP when a switch is used or when the router
is in static IP mode.
6 IP Address
• Do not congure the parameters when DHCP is enabled.
• Congure the parameters according to the router or
switch information when DHCP is disabled.
7 Subnet Mask
8 Gateway Address
9 DNS Server

7
Quick Installation Guide V1.4-2022-11-10

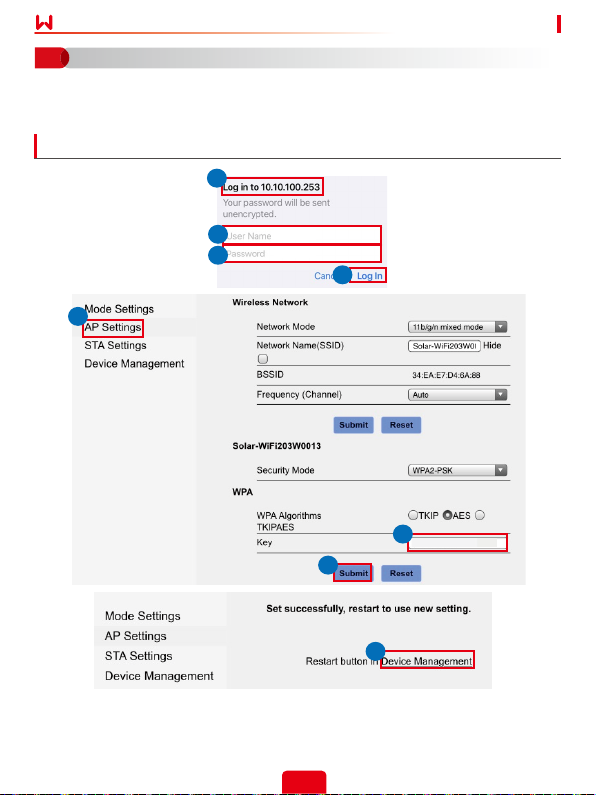

Commissioning Via Web
admin
admin
1
2
3
4
5
6
7
************
************
************
************
************
************
************
************
Note: Conguring parameters via the web applies to the Wi-Fi Kit and Wi-Fi Box, not the
Wi-Fi/LAN Kit.

8
Quick Installation Guide V1.4-2022-11-10
8
No. Parameters Description
1 Network name (SSID)
Set the parameters based on the router network
information.
2 Encryption method
3Encryption algorithm
4 Password
10
11
9

9
Quick Installation Guide V1.4-2022-11-10
(Optional) Continue the following steps when the router is in static IP mode.
No. Parameters Description
1 IPDHCP Mode Select STATIC.
2 IP Address
Set the parameters of the WiFi Kit based on the router
network information.
3 Subnet Mask
4 Gateway Address
5 DNS Server
12
13
14
15
16

10
Quick Installation Guide V1.4-2022-11-10
Log in using the initial password for the rst time and change the password as soon as
possible. To ensure account security, you are advised to change the password periodically
and keep the new password in mind.
Change the password of the Wi-Fi/LAN Kit.
1
2
4
3
Password Setting
05
admin
admin
1
2
3
4

11
Quick Installation Guide V1.4-2022-11-10
5

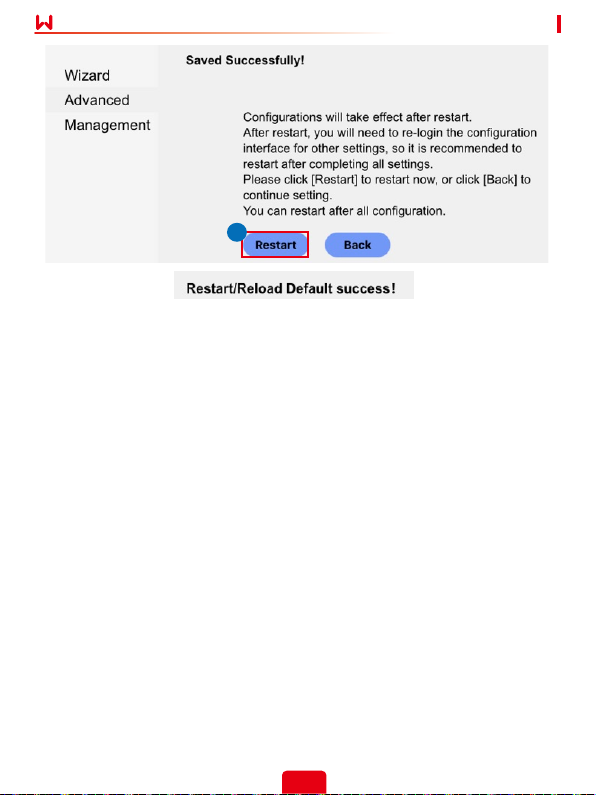

Note: The indicator will be o temporarily when the Wi-Fi/LAN Kit is restarting and be on
again after restarting.
Reconnect WiFi after resetting the Wi-Fi/LAN Kit.
Change the password of the Wi-Fi Kit/Wi-Fi Box
admin
admin
1
2
3
4
Wizard
Management
Advanced
Access point setting
Network name (SSID)
Encryption mod
Encryption algorithm
Password (8 to 63 characters)
AES
WPA/WPA2-PSK
DHCP setting for STA
IP DHCP Mode
IP address
Subnet mask
Gateway address
DNS server address
192.168.204.254
80.59.16.0
192.168.204.149
255.255.255.0
DHCP
Save
Save
Note: config the device's parameter under the access point mode.
Note: After changing the setting, the device must be restarted.
Network name
1
2
3

12
Quick Installation Guide V1.4-2022-11-10
4

13
Quick Installation Guide V1.4-2022-11-10
Step 1 Prepare the new device before replacing the device.
Step 2 Remove the device using the Unlock Tool.
Step 3 Install the new device.
Step 4 Refer to the device Quick Installation Guide to congure the device.
Perform the next steps only when you need to remove the
Wi-Fi/LAN Kit.
Device Replacement
06
For Wi-Fi/LAN Kit and Wi-Fi Kit.
For Wi-Fi Box.
1
2
54
7
8
3
6
2
11
11

14
Quick Installation Guide V1.4-2022-11-10
No. Problem Solutions
1Cannot nd Solar-WiFi**
1. Make sure that the inverter is powered on and the
WiFi module is connected properly.
2. Make sure that the smart device is within the
communication range of the WiFi module.
3. Restart the inverter.
2Unable to connect to
Solar-WiFi**
1. Enter the password: 12345678.
2. Make sure that no other smart device is connected
to Solar-WiFi**.
3. Restart the inverter and reconnect Solar-WiFi**.
4. Make sure the password is correct.
3Cannot log in to
10.10.100.253
1. Switch browsers like Google Chrome, Firefox, IE,
Safari.
2. Restart the inverter and reconnect the WiFi.
4Cannot nd router SSID
1. Put the router nearer to the inverter. Or add some
WiFi relay devices.
2. Check if the channel number of router is higher
than 13. If yes, modify it into a lower number at
router conguration page.
5
WiFi LED indicator blinks
twice continuously with
all conguration steps
done
1. Restart the inverter.
2. Check if the SSID, encryption method, encryption
algorithm and password on WiFi conguration
page is the same with that of Wireless Router , if it
is dierent , please modify it.
3. Restart Wireless Router.
4. Move Wireless Router closer to the inverter or use a
wireless repeater to enhance WiFi signal.
6
WiFi LED indicator blinks
four times continuously
when all conguration
steps done
1. Connect smart device to network and access to
SEMS Portal App to check if the inverter is online.
2. Restart Wireless Router and the inverter.
Troubleshooting
07

15
Quick Installation Guide V1.4-2022-11-10
EU Declaration of Conformity
09
Technical Data
08
GoodWe Technologies Co., Ltd. hereby declares that the communication device sold in the
European market meets the requirements of the following directives:
• Radio Equipment Directive 2014/53/EU (RED)
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006
(REACH)
You can download the EU Declaration of Conformity on https://en.goodwe.com.
EN
EN
Model Wi-Fi/LAN Kit Wi-Fi Box Wi-Fi Kit
General Data
Max. Inverters Supported 1 1 1
Connection Interface USB 5 Pin USB
Ethernet Interface 10M/100M Ethernet /
Installation Plug and Play Screw Fixation Plug and Play
Indicator LED Indicator / LED Indicator
Dimensions (W×H×D mm) 48*119*32 65*72*40 49*96*32
Weight (g) 106 42 59
Ingress Protection Rating IP65 IP65 IP65
Power Consumption (W) 5 2 2
Operating Temperature
Range (℃) -30~60℃ -30~60℃ -30~60℃
Storage Temperature
Range (℃) -40~70℃ -40~70℃ -40~70℃
Relative Humidity 0-100% (non-condensing)
Max. Operating Altitude
(m) 4000 4000 4000
Wireless Parameter
Supported Standards &
Frequencies
802.11b/g/n(2.412G-
2.472G)
802.11b/g/
n(2.412G-2.472G)
802.11b/g/n(2.412G-
2.472G)
Operating Mode AP/STA/AP+STA AP/STA/AP+STA AP/STA/AP+STA

16
Quick Installation Guide V1.4-2022-11-10
С настоящото GoodWe Technologies Co., Ltd. декларира, че комуникационното
устройство, продавано на европейския пазар, отговаря на изискванията на следните
директиви:
• Директива относно радиосъоръженията 2014/53/ЕС (RED)
• Директива относно употребата на опасни вещества 2011/65/ЕС и (ЕС) 2015/863 (RoHS)
• Директива относно отпадъци от електрическо и електронно оборудване 2012/19/ЕС
• Регламент (ЕО) № 1907/2006 относно регистрацията, оценката, разрешаването и
ограничаването на химикали (REACH)
За по-подробни декларации за съответствие посетете адрес https://en.goodwe.com.
Декларация за съответствие на ЕС
09
Технически данни
08 BG
BG
Модел Wi-Fi/LAN Kit Wi-Fi Box Wi-Fi Kit
Обща информация
Макс. поддържани
инвертори 111
Интерфейс за свързване USB 5-щифтов USB
Ethernet интерфейс 10M/100M Ethernet /
Инсталиране Включи и пусни
(Plug and Play) Фиксиране с винт Включи и пусни (Plug and Play)
Индикатор LED индикатор /LED индикатор
Размери (Ш×В×Д mm) 48*119*32 65*72*40 49*96*32
Тегло (g) 106 42 59
Степен на защита от
проникване IP65 IP65 IP65
Консумирана мощност
(W) 522
Температурен диапазон
на работа (℃) -30~60℃ -30~60℃ -30~60℃
Температурен диапазон
на съхранение (℃) -40~70℃ -40~70℃ -40~70℃
Относителна влажност 0-100% (без конденз)
Макс. работна височина
(m) 4000 4000 4000
Безжичен параметър
Поддържани стандарти
и честоти 802.11b/g/ n(2.412G-2.472G)
802.11b/g/
n(2.412G-2.472G)
802.11b/g/
n(2.412G-2.472G)
Режим на работа AP/STA/AP+STA AP/STA/AP+STA AP/STA/AP+STA

17
Quick Installation Guide V1.4-2022-11-10
Společnost GoodWe Technologies Co., Ltd. tímto prohlašuje, že komunikační zařízení,
prodávané na evropském trhu, splňuje požadavky následujících směrnic:
• Směrnice o rádiových zařízeních 2014/53/EU (RED)
• Směrnice o omezeních nebezpečných látek 2011/65/EU a (EU) 2015/863 (RoHS)
• Odpadní elektrická a elektronická zařízení 2012/19/EU
• Registrace, hodnocení, povolování a omezování chemických látek (ES) č. 1907/2006 (REACH)
Pro podrobnější prohlášení o shodě navštivte https://en.goodwe.com.
EU prohlášení o shodě
09
Technické údaje
08 CS
CS
Model Wi-Fi/LAN Kit Wi-Fi Box Wi-Fi Kit
Obecná data
Max. podporované měniče 111
Rozhraní připojení USB 5 pin USB
Ethernetové rozhraní 10M/100M
Ethernet /
Instalace Plug and Play Fixace šroubu Plug and Play
Kontrolka Indikátor LED / Indikátor LED
Rozměry (Š × V × H mm) 48*119*32 65*72*40 49*96*32
Hmotnost (g) 106 42 59
Stupeň ochrany krytem IP65 IP65 IP65
Příkon (W) 522
Rozsah provozních teplot
(°C) -30~60 ℃ -30~60 ℃ -30~60 ℃
Rozsah skladovacích teplot
(°C) -40~70 ℃ -40~70 ℃ -40~70 ℃
Relativní vlhkost 0–100 %
(nekondenzující) 0–100 % (nekondenzující) 0–100 % (nekondenzující)
Max. provozní nadmořská
výška (m) 4000 4000 4000
Bezdrátový parametr
Podporované standardy a
frekvence
802,11 b/g/n
(2.412G–2.472G)
802,11 b/g/n
(2.412G–2.472G)
802,11 b/g/n
(2.412G–2.472G)
Provozní režim AP/STA/AP+STA AP/STA/AP+STA AP/STA/AP+STA

18
Quick Installation Guide V1.4-2022-11-10
GoodWe Technologies Co., Ltd. erklærer hermed, at kommunikationsenheden, som sælges
på det europæiske marked, opfylder kravene i følgende direktiver:
• Direktiv om radioudstyr 2014/53/EU (RED)
• Direktiv om begrænsning af anvendelsen af visse farlige stoer 2011/65/EU og (EU)
2015/863 (RoHS)
• Aald af elektrisk og elektronisk udstyr 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EF) nr. 1907/2006
(REACH)
Mere detaljerede oplysninger vedr. overensstemmelseserklæringer fås på https://en.goodwe.
com.
EU-overensstemmelseserklæring
09
Tekniske data
08 DA
DA
Model Wi-Fi/LAN Kit Wi-Fi Box Wi-Fi Kit
Generelle data
Max. understøttede invertere 111
Grænseade for tilslutning USB 5 Pin USB
Ethernet-interface 10M/100M
Ethernet /
Installation Sæt ind og afspil Fastgørelse med
skruer Sæt ind og afspil
Indikator LED-indikator / LED-indikator
Mål (B×H×D mm) 48*119*32 65*72*40 49*96*32
Vægt (g) 106 42 59
Klassicering for
indtrængningsbeskyttelse IP65 IP65 IP65
Strømforbrug (W) 522
Driftstemperaturområde (℃) -30~60℃ -30~60℃ -30~60℃
Opbevaringstemperaturområde
(℃) -40~70℃ -40~70℃ -40~70℃
Relativ luftfugtighed 0-100% (ikke-kondenserende)
Maks. driftshøjde (m) 4000 4000 4000
Trådløs parameter
Understøttede standarder og
frekvenser 802.11b/g/n(2.412G-2.472G)
Driftstilstand AP/STA/AP+STA AP/STA/AP+STA AP/STA/AP+STA

19
Quick Installation Guide V1.4-2022-11-10
GoodWe Technologies Co., Ltd. erklärt hiermit, dass das auf dem europäischen Markt
verkaufte Kommunikationsgerät die Anforderungen der folgenden Richtlinien erfüllt:
• Richtlinie 2014/53/EU (Funkanlagenrichtlinie)
• Richtlinie 2011/65/EU (Beschränkung der Verwendung bestimmter gefährlicher Stoe in
Elektro- und Elektronikgeräten) sowie Richtlinie 2015/863 (RoHS)
• Richtlinie 2012/19/EU (Entsorgung von Elektro- und Elektronik-Altgeräten)
• Richtlinie 1907/2006 (Registrierung, Bewertung, Zulassung und Beschränkung von
Chemikalien, kurz: REACH)
Für weitere Infos zur Konformitätserklärung siehe https://en.goodwe.com.
EU-Konformitätserklärung
09
Technische Daten
08 DE
DE
Modell Wi-Fi/LAN Kit Wi-Fi Box Wi-Fi Kit
Allgemeine Daten
Max. unterstützte
Wechselrichter 111
Verbindungsschnittstelle USB 5-polig USB
Ethernet-Schnittstelle 10M/100M
Ethernet /
Installation Plug and Play Schraubenxierung Plug and Play
Anzeige LED-Anzeige /LED-Anzeige
Abmessungen (B×H×T mm) 48*119*32 65*72*40 49*96*32
Gewicht (g) 106 42 59
Schutzart gegen Eindringen IP65 IP65 IP65
Leistungsaufnahme (W) 522
Betriebstemperaturbereich
(°C) -30 - 60℃ -30 - 60℃ -30 - 60℃
Lagertemperaturbereich
(°C) -40 - 70℃ -40 - 70℃ -40 - 70℃
Relative Feuchte 0 - 100 % (nicht kondensierend)
Max. Betriebshöhe (m) 4000 4000 4000
WLAN-Parameter
Unterstützte Normen und
Frequenzen
802.11b/g/
n(2.412G-2.472G)
802.11b/g/
n(2.412G-2.472G)
802.11b/g/
n(2.412G-2.472G)
Betriebsmodus AP/STA/AP+STA AP/STA/AP+STA AP/STA/AP+STA
