INSTRUCTIONS FOR USE
AND INSTALATION

WARNINGS
Failure to follow these instructions could cause serious damage to people and/
or things .
The barbecue is intended exclusively for use in accordance with the
instructions in this manual. Any other application is to be considered improper
and therefore dangerous.
Never use the barbecue if you are tired, inadequate mental or physical
condition, under the influence of drugs that induce drowsiness or after taking
alcohol or drugs.
The barbecue should not be used by people, including children, with reduced
physical, sensory or mental capabilities or lack of experience and knowledge.
Do not allow children to operate the barbecue or play near it.
The unit has to be repaired exclusively by authorized personnel only using
original spare parts; in this way will be ensured the safety of the barbecue.
Use only original parts and accessories.
Never tamper with safety devices. Regularly monitor the operation.
Extraordinary repairs must be performed by authorized personnel.
If a part of barbecue is damaged, stop using it and contact Gorenje d.d. to
receive appropriate technical assistance.
In case of malfunctions, immediately turn off the barbecue and contact Gorenje
d.d. to receive appropriate technical assistance.
The user is responsible for any damage caused by third parties or their
property.
Do not use the barbecue in case of bad weather, especially in case of rain and
thunderstorms.
Some parts of barbecue may have sharp edges, especially those that are
referenced in this manual! Wear suitable protective gloves if necessary.
Use the barbecue exclusively outdoors!

Place the barbecue in a good position to ensure maximum stability and away
from heat sources, flammable materials, trees, shrubs etc.
Never use the barbecue on or under wooden balconies.
Read the instructions before using the barbecue.
Some accessible parts may reach high temperatures, keep out the reach of
children.
Do not move the barbecue during use!
Always protect the gas cylinder from direct sun: do not keep it indoors or in
place with no air exchange.
In case of gas leakage immediately close the cylinder and have it checked by
qualified personnel.
Never use a flame to detect gas leak!
Connect or replace the gas cylinder exclusively outdoors without flames,
sparks or hear sources.
Any change to the barbecue can be dangerous.
Keep flammable materials away when using this device.
Use the barbecue at least 1 m away from any wall or surface, 3 m away from
objects that could catch on fire or ignite gas.
This barbecue is designed to be used only with the kind of gas shown in the
technical table.
Check the burner flames periodically.
Close the gas supply when the grill is not in use.
Always close the gas cylinder completely and remove it from the barbecue
before going away.
Sealed parts should not be manipulated by the user.
Clean the barbecue. If it’s not cleaned frequently by grease, it may cause fire.
Never leave the barbecue unattended during use.

Do not use water to extinguish the grease that catches on fire, this can cause
injuty to the body. Turn the knobs off and turn off the gas cylinder in case the
grease catches on fire.
Dear buyer, thank you for purchasing our product.
PRIOR TO THE INSTALLATION AND FIRST USE OF THE BARBECUE, PLEASE READ
THESE INSTRUCTIONS CAREFULLY.
This barbecue has been manufactured in compliance with the relevant standards
and tested by the relevant authorities as indicated by the Safety Certificate. Its
technical characteristics are indicated on the label.
PRODUCT FEATURES
This barbecue is designed to grill efficiently without the use of lava rocks. The necessary
heat to cook foods is generated by special burners which are positioned on the bottom of the
grate and under the hob. The use of barbecue without lava rocks allows a more even
cooking and healthy food, also the materials used prevent the absorption of fat cooking and
subsequent flare-ups, caused from the melting fat. Trough the use of the flame tamers the
heat generated by the burners is transferred to the cooking grill equally. The particular shape
to the waves and the angle of inclination of the walls allows:
- The oily parts of the juices contained in the foods to slip to the bottom of the barbecue,
where they are collected in the appropriate compartments.
- The watery parts of juices contained in the foods to vaporize and to give the classic
barbecue tastes, enhancing the flavor.

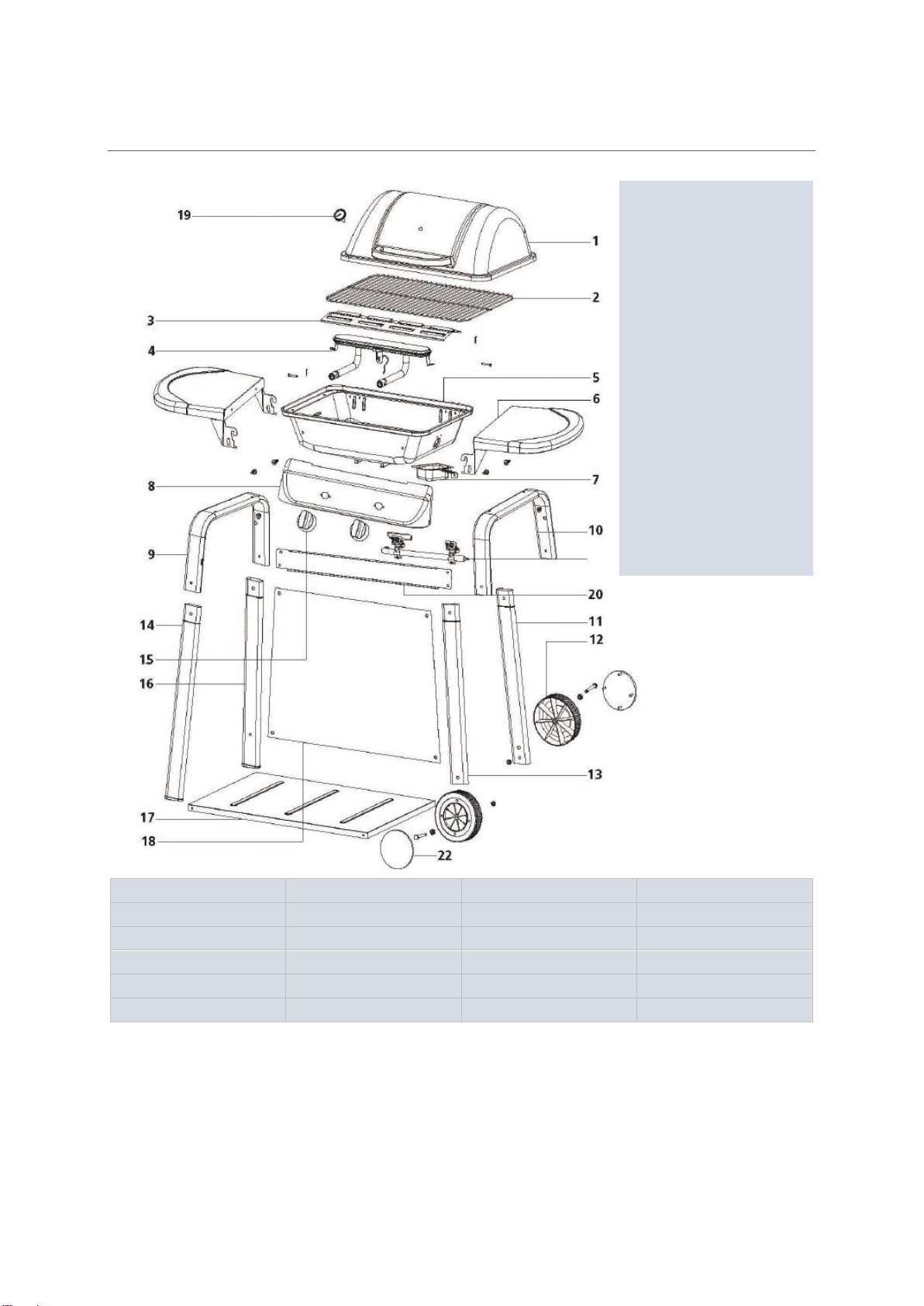

PRODUCT STRUCTURE DIAGRAM
1 1x
7 1x
13 1x
19 1x
2 1x
8 1x
14 1x
20 1x
3 1x
9 1x
15 2x
21 1x
4 1x
10 1x
16 1x
22 2x
5 1x
11 1x
17 1x
6 2x
12 2x
18 1x
1. Lid
2. Steel cooking grid
3. Flame tamers
4. Main burner
5. Tray
6. Side table
7. Grease cup
8. Control panel
9. Upper left bracket
10. Upper right bracket
11. Rear right bracket
12. Wheels
13. Front right bracket
14. Front left bracket
15. Knobs
16. Rear left bracket
17. Bottom panel
18. Front panel
19. Thermometer
20. Front bracket
21. Gas line
22. Wheel cover

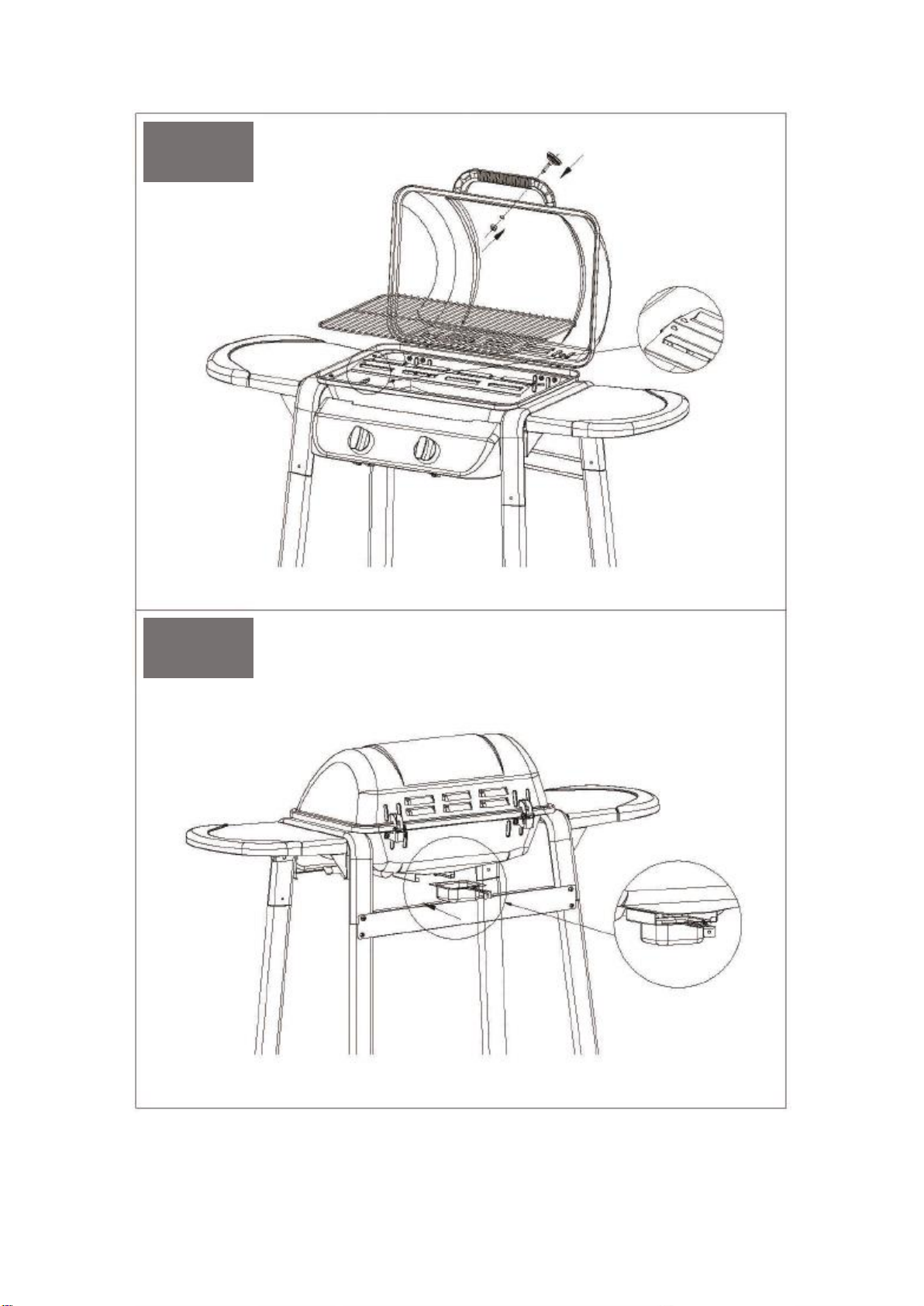

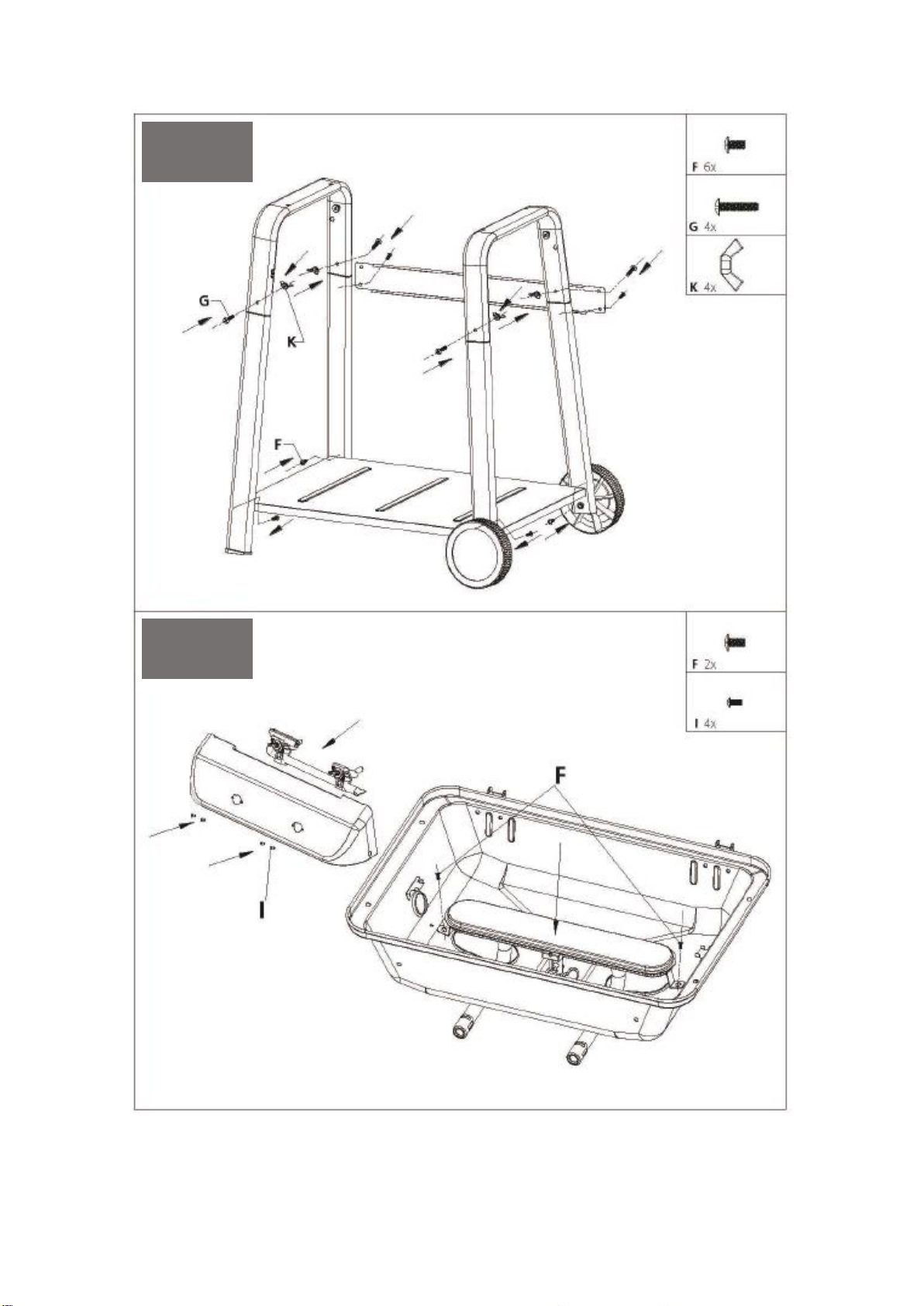

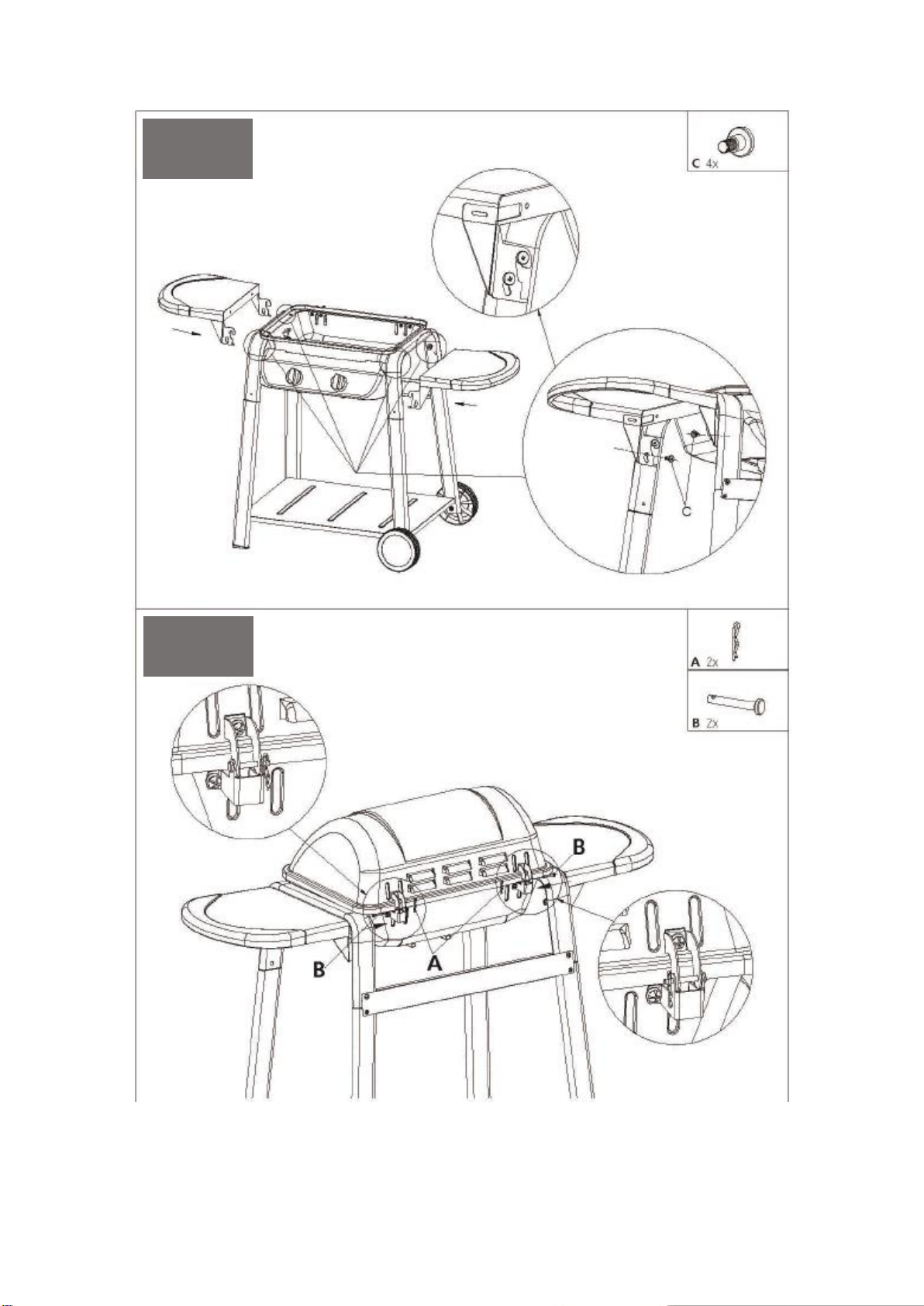

PRODUCT INSTALLATION
READ THE ASSEMBLY INSTRUCTIONS BEFORE ASSEMBLING THE PRODUCT!
The manufacturer is not liable for any direct and/or indirect damage caused by improper
installation.

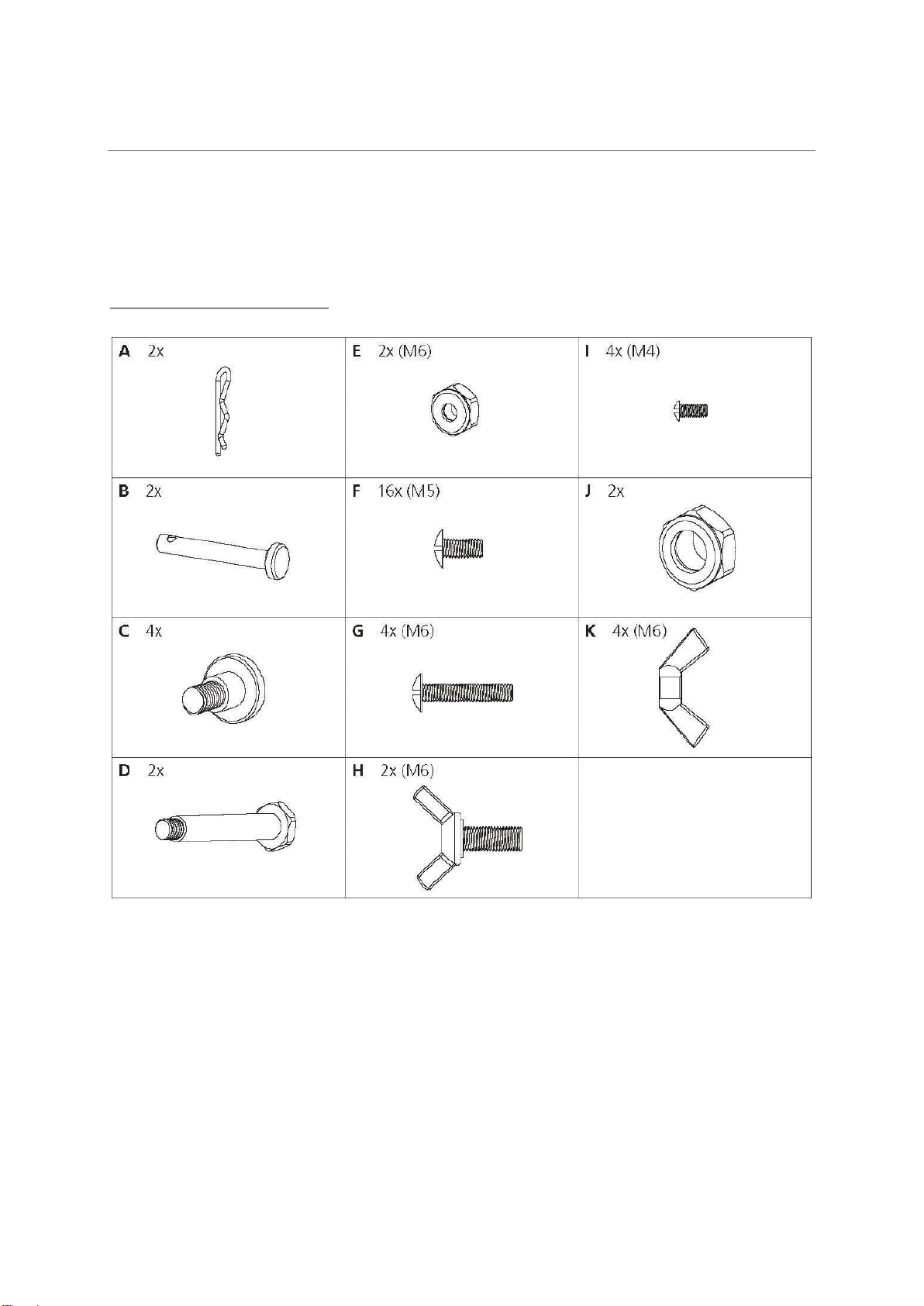

INCLUDED COMPONENTS:

1
2

3
4

5
6

7
8

9
10

11
12

OPERATING INSTRUCTIONS
1. BEFORE FIRST USE
Always use the accessories of the barbecue to prevent burns.
If grease or hot material falls from the barbecue on the valve, regulator, pipe or
any other element in contact with the gas, turn off the gas immediately. Remove
the material and recheck for possible gas leak.
Do not remove the grease drain cup if the barbecue is not completely cooled.
Close all knobs and gas valve when the barbecue is not in use.
Never move the barbecue when it’s still hot.
Push the barbecue, do not pull it when you move it.
The disconnected, stored or transported cylinder must have a safety cup inserted.
Do not store the cylinder inside or near an area with children.
Remove the cylinder from the barbecue if the letter is kept indoors.
Never leave a spare gas cylinder under or near the barbecue or in a closed area.
Never fill the cylinder beyond 80%. An overflow gas cylinder is dangerous
because the excess gas may escape from the safety valve. The safety valve of a
gas cylinder may open, releasing gas and cause fire.
The spare gas cylinder should have the safety cap installed on the socket.
In case of gas leakage inside the reserve cylinder, immediately move away from it
an call the firefighters.
Keep the gas cylinder away from any ignition source when you change it.
For any other problem refer to “TROUBLESHOOTING” section of the manual.
2. DISCONNECTING THE GAS CYLINDER
Close all knobs
Completely close the cylinder valve (turn it clockwise to close it)
Disconnect the regulator of the cylinder valve by turning the quick coupling nut
counterclockwise.
Replace the protective cap on the cylinder valve.
3. LIGHTING THE BARBECUE
ALWAYS CHECK THE GAS PIPE BEFORE USE
DO NOT TURN ON THE BARBECUE IN CASE YOU DETECT THE PRESENCE
OF GAS SMELL
Inspect the gas line before proceeding with the lightning of the barbecue. In
suspicion of cuts, wear or abrasion, replace them before use. The pipe parts must
comply with the regulations in the country of your use. Keep a solution of soap
and water near the gas cylinder valve and check the connections before each
use.
1. Open the lid before turning on the burner and make sure the knobs are set on “0”.
2. Open the cylinder valve by turning it anti clockwise.

3. IGNITION:
CENTRAL BURNER:
Press and slowly turn the left knob counterclockwise (corresponding to the left
side of the burner) to place it on MAX for the spark to ignite the flame. The ignition
is immediate. Press and turn the middle knob to complete the lightning of the
entire burner. The central burner ignition is given by the left knob.
SIDE BURNER (some units):
Operate the corresponding knob, turn it counter-clockwise, press it and place it on
MAX for the spark to ignite the flame. The ignition is immediate.
4. If the desired section of the burner doesn’t light in 5 seconds, close the knob to “0”
and repeat the ignition process for 2 or 3 times.
5. If the burner doesn’t light up after step 4, turn off the gas cylinder and wait 5
minutes to let excess gas evaporate than repeat steps 3 and 4.
6. If there is no spark, try moving the tip of the sparkplug. Place it in front of one of
the holes of the burner.
7. In case that ignition does not work, contact a qualified technician to replace the
non-functioning parts.
8. Once turned on, you can adjust the knob and leave it in the position of the desired
cooking, even at minimum level.
9. If the flame goes accidentally off, immediately close the gas valve on the cylinder.
Check the cause of flame extinguishment whether natural or accidental. After 5
minutes of waiting to allow the unburned gas to release the barbecue, rekindle the
flame repeating step 1.
10. After use, place the knobs on the “0” position and close the gas cylinder.
4. PREHEATING:
Before using the barbecue, turn the knob to the “MAX” position and preheat the
barbecue for 15 minutes. During the preheating phase it is possible to close the lid to
obtain a uniform heating, anyway it is necessary to keep under control the internal
temperature from the thermometer placed on the lid.
5. COOKING:
Place the food on the grid and cook it according to the desired cooking. Adjust the
temperature if necessary. The knob can be set to any position between “MAX” and
“MIN”.
6. POT USAGE (some models):
When using pots to cook food, use the pot support on the burner to the side.
Place the pot directly on it, making sure it is in perfect balance.
Make sure that the flame does not overlap the bottom of the pot.
Adjust the flame in order not to make spill liquids contained in the pots as they
can turn off the burner.

CLEANING AND MAINTENANCE
The frequency of cleaning depends on the frequency of use. Always check for insects or
other obstructions that block the escape of gas trough the burner and in case of obstruction,
contact a technician. The orifice of the valve must be placed in the center of the burner after
cleaning, if not, it could cause a fire resulting in serious damage to people and things.
Never change the settings of the device.
CLEANING THE PAINTED PARTS:
Always wipe in delicate painted parts. Do not use acidic or anti-rust cleaners to clean the
control panel with printed writings. Aggressive detergents could erase the writings.
CLEANING THE STRUCTURE:
Clean the structure of the barbecue with a damp cloth and possibly without abrasive
detergent.
CLEANING THE GRIDS:
Remove the cooking grids and wash them separately with soapy water and then rinse
thoroughly with water.
CLEANING THE BURNER:
Clean the outside of the burners with a brush. Clean the grid with a metal scraper. Clean out
any clogged exit through a paper clip. Never use a wooden stick or it may break and clog the
exit. Check if insects or other obstructions block the escape of gas through the burner and in
case of obstructions, call a technician.
CLEANING THE GREASE CUP:
The grease cup must be emptied after each use and cleaned with warm water using a
sponge and without abrasive detergent.

TROUBLESHOOTING
PROBLEMS
POSSIBLE CAUSES
SOLUTIONS
BURNER WON’T LIGHT
AFTER TURNING AND
PUSHING THE KNOBS
ELECTRODE DEPOSITED
WITH COOKING
RESIDUES
USE CLEAN SWAB AND
ALCOHOL TO CLEAN
DAMAGED ELECTRODE
REPLACE
ELECTRODE WIRES ARE
LOOSE OR FALL OFF
RECONNECT OR
REPLACE WITH NEW
ELECTRODE ASSEMBLY
WITH WIRES
ORIFICE IS BLOCKED
CHECK THE ORIFICE FOR
BLOCKAGE
WIRE IS SHORTING
REPLACE WITH NEW
ELECTRODE ASSEMBLY
WITH WIRES
ELECTRODE DOESN’T
AIM AT BURNER HOLE
ALIGN THE ELECTRODE
AND BURNER HOLE,
ADJUST THE DISTANCE
BETWEEN METAL PIN OF
THE ELECTRODE AND
BURNER HOLE TO 3-5 mm
YELLOW OR ORANGE
FLAME WITH GAS ODOR
INCOMPLETE
COMBUSTION
CALL OUR CUSTOMER
SERVICE CENTER
LOW HEAT WITH KNOB IN
“MAX” POSITION
GAS HOSE BENT OR
KINKED
SMOOTHEN IT
BURNER OR ORIFICE
BLOCKED
CLEAR BURNER OR
ORIFICE
LOW GASS PRESSURE
CALL THE GAS DEALER
GRILL NOT PREHEATED
PREHEAT GRILL FOR 15
MINUTES
FLARE-UP
EXCESSIVE MEAT FAT
CUT OFF FAT BEFORE
GRILLING
TEMPERATURE TOO
HIGH
ADJUST THE
TEMPERATURE
GREASE DEPOSIT
CLEAN
FLAME OUT
WIND SPEED TOO HIGH
FIND SOME COVER OR A
PLACE WITH LESSER
WIND
FLAME LIFTING
BURNER POT BLOCKED
CLEAN THE BURNER POT
GREASE FIRE
GREASE ACCUMULATED
IN FOOR
TURN OFF KNOBS,
CYLINDER VALVE, LEAVE
THE LID OPEN AND LET
THE FIRE BURN OUT.
CLEAN THE GRILL.

TECHNICAL PARAMETERS
Model
OptiCook 52V
Type
Gas grill
Gas type
Butane (G30)
Propane (G31)
28 –30 mbar
Heat output
5.8 kW
Gas consumption
422 g/h
Cooking area
52.8x34.5 cm

ENVIROMENTAL PROTECTION
When using this device in the European countries, the following information’s must be
followed:
DISPOSAL:
Do not dispose this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary. It is prohibited to dispose of this appliance in
domestic household waste. For disposal, there are several possibilities:
a) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
b) When buying a new product, the retailer will take back the old product at least free
of charge.
c) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
d) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
WE RESERVE THE RIGHT TO MAKE CHANGES
THAT DO NOT IMPAIR THE FUNCTIONALITY OF THE DEVICE.
The user manual can also be found at our website http://www.gorenje.com.

NAVODILA ZA UPORABO IN
NAMESTITEV
