Goscam 8205KG User manual

Model No.: 8205KG
Made in China

4
5
6
7
2
1
3
Introduction
Thank you for choosing our baby monitor. Please read the instruction carefully in case of
product damage due to improper operation.
Parts in the package

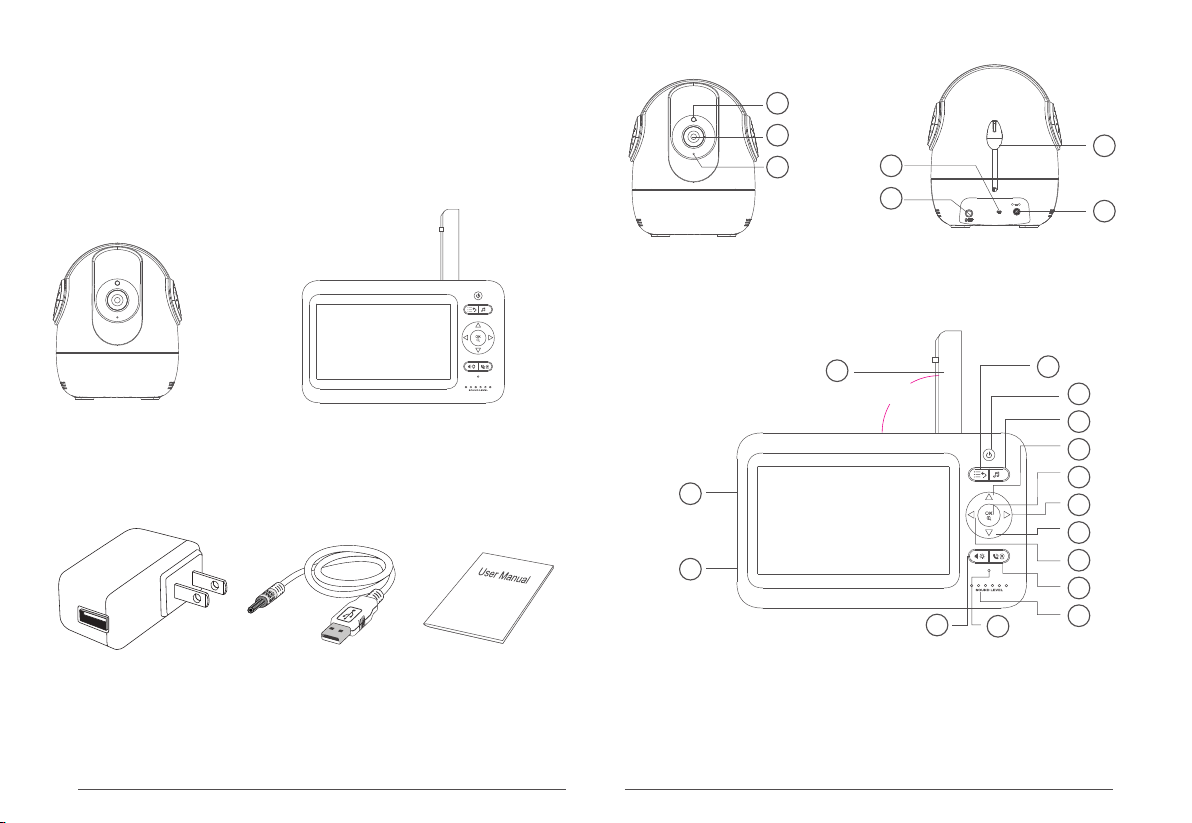

Product structure
Camera
Manual
Power adapter x2
Monitor
Power cable x2 08. Antenna
09. Menu button/Return
10. Power on/off button
11. Lullabies button
12. Turn UP/ Brightness+
13. Confirmation button/
Zoom button
14. Turn right/Volume+
15. Turn down/Brightness-
16. Turn left/Volume
17. Dialogue key ---->
Talking Key
19. Microphone
20. Shortcut button
21. RESET button
22. DC power interface
7. DC power interface
18. Status indicator
1.camera sensor
5.SET
2.Lens
3.Microphone
4.Indicator LED
6.Temperature sensor
10
11
12
13
14
15
16
17
18
08 09
19
20
21
22
0~90°
01 02
DC5V
+
-

27

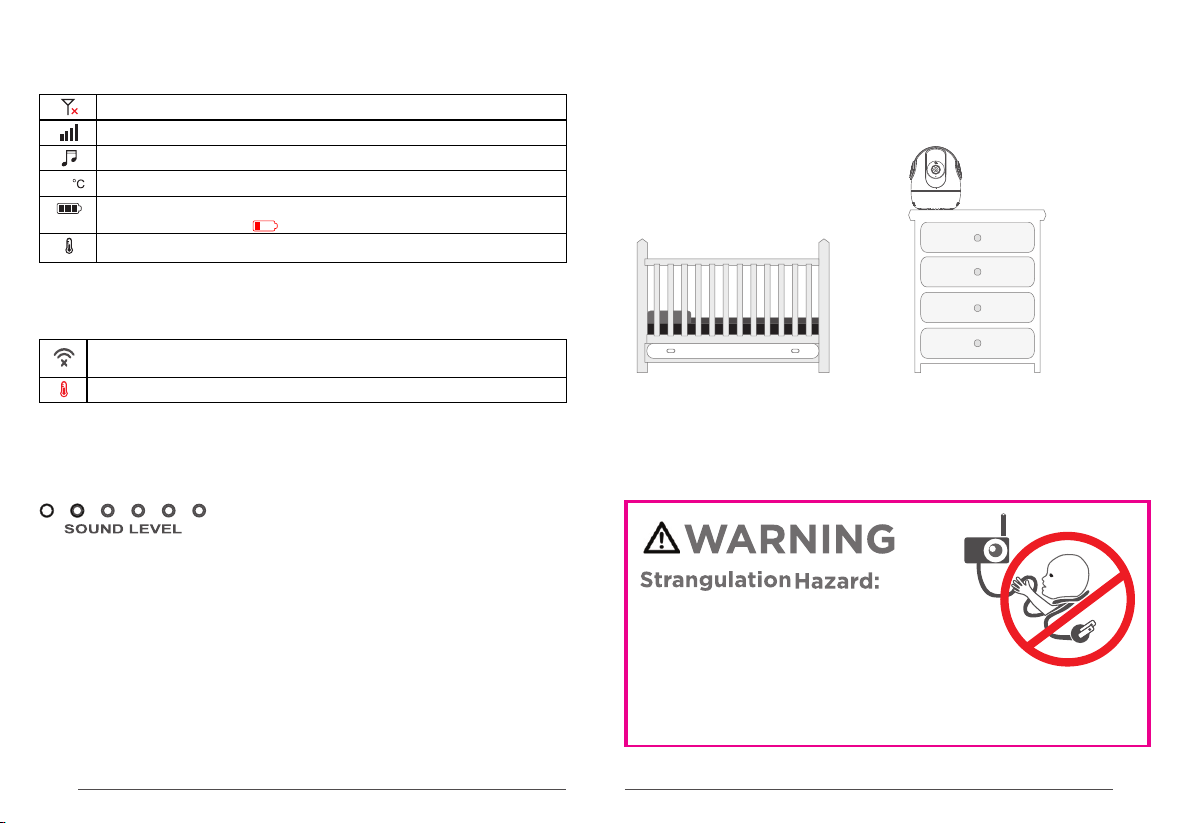

Icon Description
Signal strength between the receiver and the camera
No signal connection between the receiver and the camera
The Lullaby function is enabled.
Displaying current room temperature
Indicating current battery level. When the battery is too low,
this icon will change to and flash.
Temperature alarm is enabled
Status Bar Icon
No camera is added or the camera is disconnected from receiver
Temperature alarm
Message push icon
03 04
Explanation for status indicator LED
Using the Monitor
Place the Camera Unit in a convenient location (e.g. on a table or a shelf) and point
the camera lens toward the area you want to monitor.
NOTE:
Do not place the Monitor Unit within baby's reach. If there is interference with the
picture or sound, try moving the units to different locations, and ensure they are
not close to other electrical equipment.
Children have STRANGLED in cords.
Keep this cord out of the reach of children
(more than 3feet(0.9m) away).
Never use extension cords with AC
Adapters.Only usse the AC Adapters
provided.
The first green indicator is steady on: indicating successful connection between the
camera and the receiver.
The first to the fifth green indicators slowly flash simultaneously: indicating power on,
but camera not connected.
The second to the fifth green indicators slowly flash from low to high: indicating the
received volume
The second to the fifth green indicators slowly flash simultaneously: indicating that the
alarm signal is received.
The sixth red indicator is steady on: indicating that the lithium battery is being charged;
(displayed whether it is turned on or off)
The sixth red indicator is off: indicating that the battery is fully charged.

05 06
Preparation before using camera

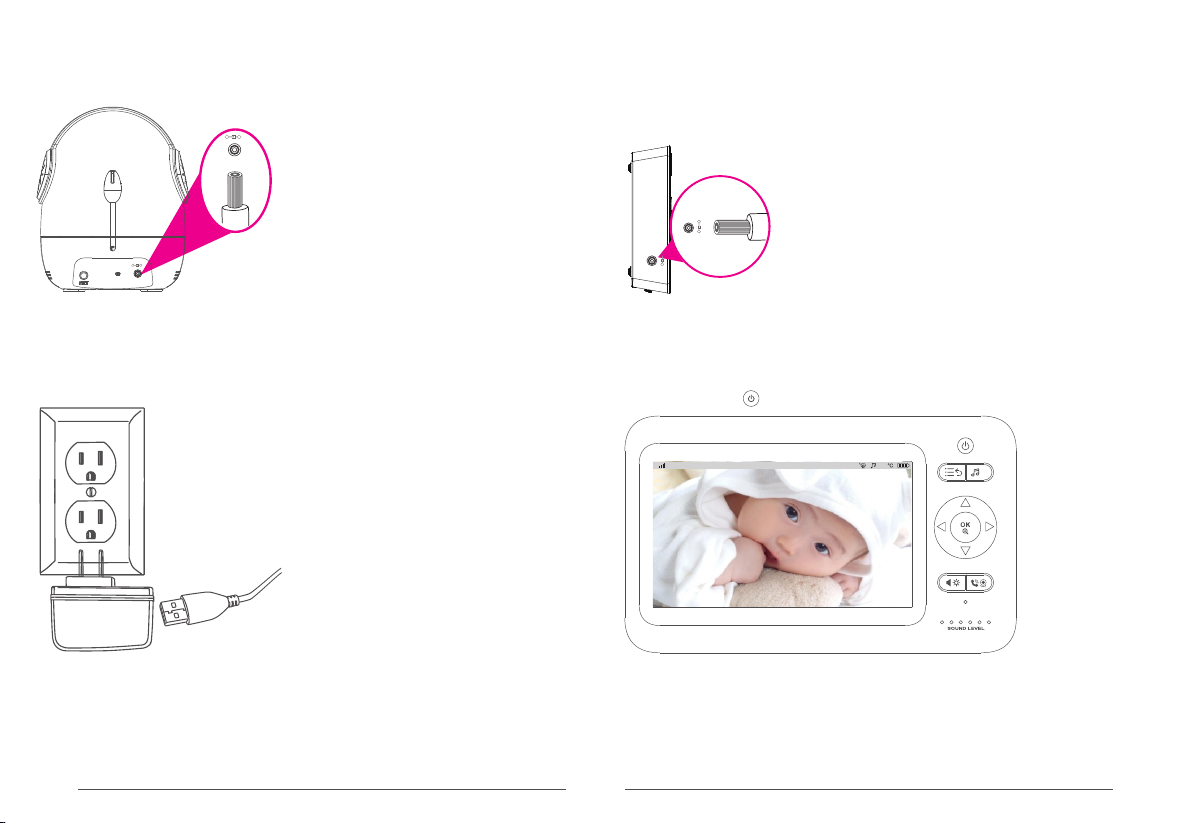

1. Powering the Camera Unit
Insert one end of the included charging
cable into the USB jack on the back of the
camera.
Insert the other end into the included power
adapter. Then insert the adapter into the
socket.
After being powered on, the camera will automatically turn on. (The green light on
the base of the camera is on for a few seconds. At this point, the camera is turned
on successfully).
Preparation before using receiver
1.Power on the receiver (The receiver is provided with a lithium battery, if the
receiver has enough power, please go directly to the Step 2).
Insert one end of the charging cable into the USB charging
jack on the side of the receiver.
2. Receiver starting up
Press and hold the button on the receiver to start the receiver
At this point, a monitor screen will appear on the receiver.
Note: This device has been paired before leaving the factor y. If the receiver fails to
display on the monitor screen as described above, please re-try the device pairing
operation. For detailed steps, please refer to Page 9 “Camera Pairing”.
27
Insert the other end into the included power adapter. Then insert the adapter into
the socket.
2019/05/08 11:24:35
DC5V
+
-
DC5V
+
-
DC5V
+
-
DC5V
+
-

07 08
Receiver function settings
Functions of the Babysitter is user definable, to best satisfy your demands. Audio
and temperature alarms may offer automatic notification to you. This chapter will
introduce the user-definable settings item by item.
Access receiver menu
In states of live view, press MENU button on the monitor can enter into MENU list;
In states of non-live view, press MENU button on the monitor can return to previous
interface level.
CAMER A S S OUN D
DE T ECT ION
TE M PER ATU RE
AL A RM
SETTI N G S
SLE E P MODE
LULLA B I E S
27
Camera settings (camera pairing and
deletion)
Camera is No paired.
Add camera
1. Select Icon and press OK to enter.
2. Select the channel to be paired, press OK to confirm, select and press OK to confirm.
3. When the device prompts “camera is No
paired”, press OK to confirm.
4. When the device prompts “Start pairing, please short press the camera SET key”, press
the SET key of the camera shortly to enter the paring mode.
Start pairing, please short press
the camera SET key
2019/05/08 11:24:35
DC5V
+
-

09 10
Pairing is OK.
5. When the device prompts “Pairing is Ok”, which indicates that the device is successfully
paired, the menu will skip to the real-time monitoring menu, and the first indicator light of
the receiver is constantly on in green.
Delete the camera
2. Select the channel to be deleted, press OK to confirm, select and press OK to confirm.
Camera is paired. Can be deleted.
3. When the device prompts “Camera is paired. Can be deleted” Press OK to confirm. When
the device prompts “Deleting is OK”, the camera is successfully deleted.
Deleting is OK.
1. Select Icon and press OK to enter.
Set the range of the sound sensitivity alarm. Set the sound sensitivity alarm
range. This function recognizes the intensity of the baby's crying, and when the
value is above the threshold, the receiver will sound an alarm.
Audio alarm settings
Note: The audible alarm will last for 1 minute. The audible alarm notification can be
switched off by pressing any button on the receiver, and the notification will not be received
again within 3 minutes thereafter.
1. Select icon and press OK to confirm
2. Select the 、 、 icon as needed and press OK to confirm.
The audible alarm setting is completed. Press MENU to return.
Temperature alarm settings
The temperature alarm gives a push notification to your receiver when your
baby's room is too hot or too cold.
1. Select and press OK to enter the setting page
Default
Low High

11 12
Set to Celsius: Select and press OK to confirm.
Temperature switch: Select and press OK to confirm
After setting, press MENU to return.
°c
ON
ON
OFF
°c
°F
ON
OFF
°c
°F
°F
ON
Celsius setting
Fahrenheit setting
Note: The setting of temperature alarm defaults to 15~29°C (59°F~84°F). When the baby
room temperature is outside this range, the receiver will receive a temperature alarm. The
audible alarm will last for 1 minute. The audible alarm notification can be switched off by
pressing any button on the receiver, and the notification will not be received again
within 3 minutes thereafter.
Set to Celsius: Select and press OK to confirm.
Temperature switch: Select and press OK to confirm
After setting, press MENU to return. Lullabies
The babysitter has 5 pieces of lullabies to help you sleep your baby.
1. Select the icon and press OK to enter the setting page.
2. Select the music you want to play, press OK to confirm, the camera will play the
selected lullaby, press OK again to pause the lullaby. Selecting "All" to play all the
lullabies in a loop. When the setup is complete, press MENU to return.
Note: In this screen,
press to switch the
lullaby and press to
adjust the volume.
Feeding timer
You can set the receiver to auto feeding timer mode. This setting will automatically
switch to sleep mode depending on the length of such setting.
1. Select and press OK to enter the setting page.
2. Select the length of sleep as needed. Press OK to confirm. At this point,
the receiver will automatically sleep according to the time setting. After
the setting is completed, press MENU to return.
OFF
20s 40s 60s
59 84

13 14
Setting
This setting includes time settings, factory reset and viewing hardware version.
Time setting
Language setting
3. You may press to select the item to be adjusted; press to edit the
selected item. After the setting is completed, press OK to confirm. Press MENU
to return.
2. Select and press OK to enter the setting page.
Calibrate the time on the receiver.
O S D:
DATE:
TIME:
ON
2016-12-5
18:25:23
1. Select and press OK to enter the setting page.
Reset default settings
Format all settings on the receiver and delete the camera.
YES NO
Restore to default settings?
3. At this time, the device will prompt “Restore to default settings?”. Select YES and press OK
to confirm. The device will start resetting to default settings.
Start restoring......
4. After the default settings are restored, the receiver will automatically switch to the
monitoring interface with an icon indicating that no camera is added.
2. Select and press OK to enter the setting page.
1. Select and press OK to enter the setting page.
2019/05/08 11:24:35
Switch language displayed on the receiver.
1. Select Settings, and press OK to enter the settings page.
2. Select Language Settings, and press OK to enter the settings page. Select a
language you need and press OK to confirm.

15 16

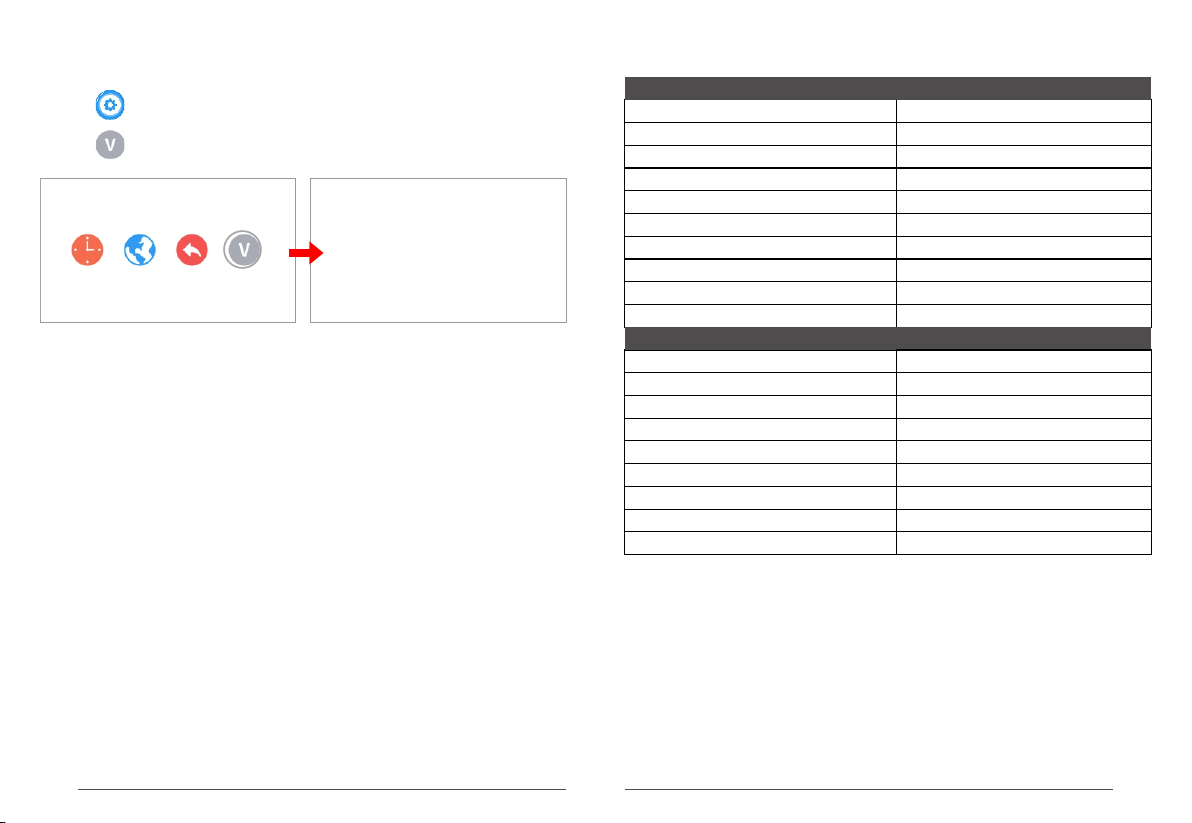

Version information
Rx:
Rx Date:
Tx:
Tx Date:
3. The receiver will display corresponding version information. Press MENU to return after
reviewing the version information.
View the version information of the receiver
1. Select and press OK to enter the setting page.
2. Select and press OK to enter .
All the specifications are subject to minor change without prior notice.
Specifications
DC 5V/1A
2.4GHz FHSS
167x101x29 (mm)
5" TFT LCD monitor
LCD
Wireless transmission Way
Dimensions(W*D*H)
15~85%RH
-10℃~50℃
Operation temperature
Operating humidity
Number of pixels 1280*720P
Power supply
-20℃~60℃
Storage temperature
1/4" CMOS
-10℃~50℃
5m
Image sensor
Video resolution
Rotation angle
Dimensions(W*D*H)
Operation temperature
97x87x111(mm)
720P
Pan: 350° Tilt:58°
Night visual range
Operation humidity 15~85%RH
-20℃~60℃
Storage temperature
Power supply DC 5V/1A
Camera
Receiver
Horizontal Viewing Angle 60±5°
Battery 2000mAH

17 18
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection
against harmful interference in a residential installation.
This equipment complies with radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.This product is compliance to FCC RF Exposure requirements
and refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm Search for
FCC ID: TW5GD8205
Hereby, we declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
Notice: Observe the national local regulations in the location where the device Is to be used.
This device may be restricted for use in some or all member states of the European Union (EU)
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause
undesired operation.
RF Exposure Information:
FCC RF Exposure requirements: The highest 1g SAR value reported under this standard
during product certification for use body exposure condition with the minimum separation
distance of 0mm is 0.02W/Kg.This transmitter must not be collocated or operating in
conjunction with any other antenna or transmitter.This product is compliance to FCC RF
Exposure requirements and refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/
GenericSearch.cfm search for FCC ID: TW5GD7605
EU Environmental Provisions
E-waste cannot be mixed with household
garbage; corresponding local government
sector or recycling stations shall be
responsible for circular process.
CE and FCC Certification Information
