goSilver Plus User manual

Manual
goSilver Plus / Plus 8

Content
01 Foreword Page 4
02 Operation Page 5
03 Selection menu Page 6
04 Setting options Page 7
05 Start of electrolysis Page 9
06 Status screen Page 10
07 Final screen Page 13
08 Production Page 14
09 Notes Page 18
10 Contact Page 19

4
01 Foreword
Thank you very much for choosing the
goSilver Plus for your own production of
colloidal silver.
The software together with the TRUEppm®
technology - taking into account all the
additional factors - fully automatically
ensures a consistently high quality of
production.
With the goSilver Plus, you can produce
both colloidal silver with cold water & ionic
silver under constant heat of about 90° C
(In this case please read the safety note on
page 18.)

5
The operation of the device is simple and
intuitive. All desired settings can be made
with the use of the multifunctional rotary
knob.
After starting the electrolysis, the status of
the production can be checked on the dis-
play. At the end of the electrolysis, the final
screen shows a summary of the respective
production.
Please familiarize yourself with the ope-
ration of the goSilver Plus before the first

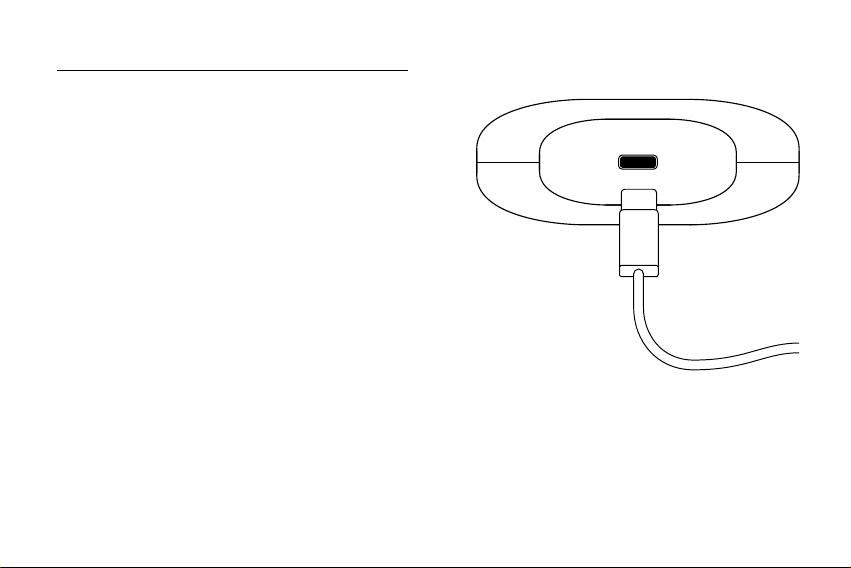

production.To do this, plug the power plug
into a power outlet and connect USB cable
with the device.The start screen appears
on the display.
02 Operation
The rotary switch can be rotated in both
directions and / or pressed down. Pressing
selects or confirms a selection.

6
03 Selection menu
After the start screen, the selection menu
appears automatically. The arrow (cursor)
is in the line „go!“. If the adjusted values fit,
you can start the electrolysis directly.
If you want to set the parameters (amount
of water, ppm concentration, etc.) you can
turn the rotary knob to reach the other
lines and choose your desired settings.To
do this, move the cursor to the line that you
Liters 1,000
ppm 50
go!
>
By turning the rotary knob you can navigate
through the selection menu or, after fixing a
selection, you can specify the corresponding
value.

7
want to change. By pressing, the value can
be edited - the value now flashes.
By turning, the desired value can now be
set and fixed by pressing it again. Further
details under „04 settings options“.
All set values are being saved also when you
shut off and restart the device.
Liters 1,000
ppm 100
go!
>
04 Setting options
04.1 Liters
You can set amounts of water between 0.1
and 40 liters.
04.2 ppm oder mg/L
You can choose between the unit ppm or
milligrams per liter (mg / L). Concentrations
of 0.5 to 99.9 mg / L or 5 to 999 ppm (old)
are possible.
Depending on which selection is pre-set in
point 03.4 or if it has already been changed
there, the concentration in the respective
unit is displayed here.

8
5More settings
Moving the cursor beyond the top of the
display will take you to more settings.
04.3 Water — warm oder cold
You can configure the device for production
with cold or hot water. For production with
hot water, please read the warning note on
page 18!
Beep 1s
Language English
Unit ppm
Water cold
>
04.4 Unit — ppm or mg / L
You can set the concentration either in
ppm (old and as usual) or in milligrams per
liter (mg / L) or TRUEppm (see explanation
on page 18). TRUEppm is exactly one tenth
of the usual ppm.
04.5 Language — German / English
You can change the operating language of
your goSilver Plus to German or English.
The change comes into effect after fixing
the setting.
04.6 Beep - 0, 1, 3, 6, 9 s
At the end of the manufacturing process,
a beep will sound. The duration of the
sound can be adjusted. Off (0s) or 1, 3, 6, 9
seconds.

9
After reviewing all settings, you will not need
to return to this screen until you wish to
make a change in the future. All settings are
permanently saved (even after switching off
the device).
05 Start of electrolysis
Press ‚go!‘ To start production with all set
parameters, if distilled water is used and
the software‘s water test is positive.
For safety reasons the device will not start
if you use tab water, heavily contaminated
water or even colloidal silver, even if only in
small quantities.
If the water test is positive, the device dis-
plays the message:„Water ok.“
Please use
destilled water!

10
If you want to make Colloidal silber with hot
water (90 ° C), please read warning note on
page 18!
Water ok! 06 Status screen
During the manufacturing process, the
most important settings are displayed and
additional information can be used to mo-
nitor the progress of the electrolysis.
06.1 Liters
The selected amount of water
06.2 ppm or mg/L
Depending on the setting, either the selec-
ted ppm and the ppm already generated or
the selected mg / L and the already genera-
Liters 0,25
ppm 15/50
Time left 0:05h

11
ted mg / L are displayed.
06.3 Remaining time
The expected remaining time is display-
ed dynamically in hours and minutes.
At the start, the software calculates the
remaining time with an assumed average
current. By measuring the current in se-
conds, the indication of the remaining time
becomes more and more accurate, but
still remains an estimate, since the future
current is not foreseeable.
If the calculated remaining time is lon-
ger than the possible maximum display
possibility of 99: 59h, this value remains
until the calculated remaining time has
become smaller than the maximum display
possibility.
Liters 0,25
ppm 15/50
10,4 mA 40,7 V
06.4 Progress bar
The progress of the electrolysis is also
indicated visually as a progress bar.
06.5 Expert Mode
By turning the rotary knob during producti-
on, you can switch to the expert mode. The
remaining time display is replaced by a vol-
tage and current indication in the display.
Those who are interested in technology
can observe the interplay of voltage and
current for the generation of the obligatory
constant current.

12
0:05h
06.6 Polarity reversal
The goSilver Plus changes the polarity
of the electrodes approximately every 15
seconds. This prevents excessive formati-
on of electrode sludge and possibly short
circuits between the electrodes.
The electrodes do not need to be cleaned
during manufacture. The flawless function
of the polarity change can be recognized by
a flashing dot in the remaining time display.
The flashing dots also signal the current
flow. If the electrodes are not yet in distilled
water, there is no current and the dots do
not flash.

13
07 Final screen
When the electrolysis is finished, the
goSilver Plus switches to standby mode.
The final screen summarizes the amount of
water and concentration produced.
Note: The goSilver Plus switches to standby
mode at the end of production and remains
ready for further production. Accordingly,
the goSilver Plus does not turn itself off. If
desired, disconnect the device from the USB
power adapter.
Manual termination of production
The manufacture can be terminated
manually at any time by holding down the
rotary switch for more than 2 seconds.
All information in this case will be frozen
on the status screen.The concentration
produced up to this point is also displayed.
In addition, the note (stopped) appears on
the screen.
Liters 0,25
ppm 50/50
✔ready!
Liters 0,25
ppm 15/50
stopped 0:05h

14
08 Production
1.
Please pour distilled water, preferably
„Ampuwa for Dishwashing“ into a glass jar.
Under no circumstances should you use
simple tap water, this can form harmful
chemical compounds with the silver.
2.
Connect the 5 volt USB power adapter (if
not already done) to the goSilver Plus using
the cable.
3.
Screw the silver electrodes into the sup-
plied adapters. Insert the silver electrodes
with the adapter first into the bottom of
the device. With the goSilver Plus you can
connect a pair of electrodes, with the goSil-
ver Plus 8 you can connect one, two, three
or four pairs. The device recognizes the
number of electrodes and includes this in
the calculation of the production time.
Illustration only applies
to the goSilver Plus 8

15
The more pairs, the faster the production
process. Please always use the opposite
jack in pairs.
Note:
Please do not touch the silver electrodes
with your bare fingers. Any fat residues
could affect the production.
The silver electrodes shine only initially
after they come out of production and
Pair 1 Pair 2 Pair 3 Pair 4
hardening. After a single use, they change to
a matt gray color due to the change in the
originally smooth surface, which is comple-
tely normal.
4.
Then place the device with the electrodes
first on a glass jar. The electrodes dip into
the water, but not the adapters.
The distance between the surface of the
water and the adapters should be about
5mm, in a production with permanent 90 °
C about 10mm.
Illustration only applies to the goSilver Plus 8

16
If the electrodes or adapters are too deep
into the water, pour some water away. The
calculation of the production time is there-
by minimally affected.
5.
As a precaution, fix the supply cable with
tape on the table and make sure that the
device can not fall into the vessel.
6.
After you have previously made your
desired settings on the goSilver Plus, start
the electrolysis process. After a successful
water test, goSilver Plus starts and the
display changes to the status display. Illustration only applies
to the goSilver Plus 8

17
7.
When the desired concentration is rea-
ched, the device automatically switches to
standby mode. Depending on the setting, a
beep sounds and the final screen is shown
in the display.
8.

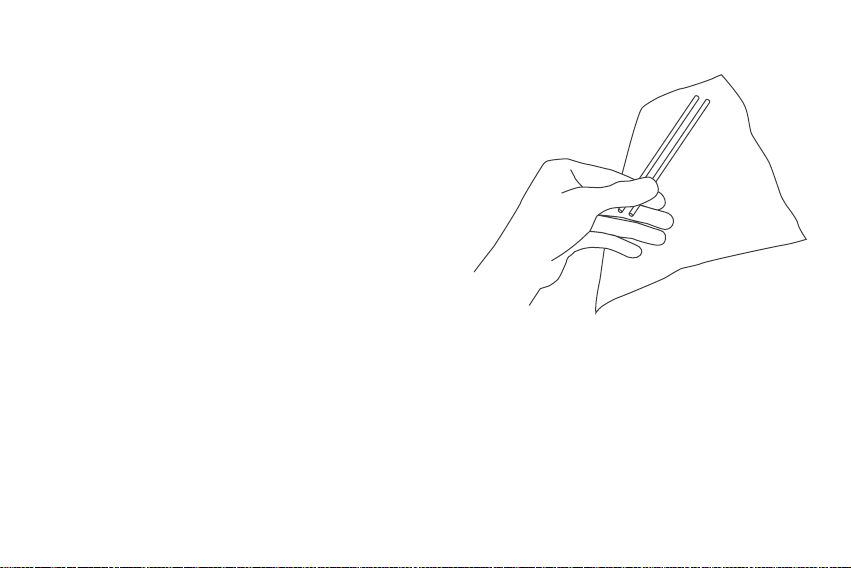

After use, wipe the silver electrodes while
still wet with a dry cloth.
If you have produced Ionian Silver with
cold water, please protect the suspension
from direct sunlight and seal it airtight in a
suitable (brown or blue glass) container.
Colloidal silver produced under permanent
heat is less sensitive to external influences.
Illustration only applies
to the goSilver Plus 8

18
09 Notes
09.1 TRUEppm®
The „ppm“ dosing recommendations in
most publications in Germany do not re-
flect the true silver content in the suspen-
sion.
please never set the same number in
milligrams per liter (mg / L) in goSilver Plus.
That would be 10 times the recommended
dose. Further information on this topic can
be found at www.gosilver.de/trueppm-en
09.2 Production with cold or hot water
You can choose to make either cold or per-
manently heated water, which has different
effects on colloid formation. Please inform
yourself at: www.gosilver.de/en/production
09.3 Do not expose the device to steam
Please do not put the device onto hot water,
it is not designed for that. For a production
with hot water or wide vessels, please use
the adapter plate available in our shop
(www.gosilver.de/shop).

19
Please inform at:
General information about colloidal silver:
www.vitalinstitut.net/kolloidales-silber
Facebook page:
www.facebook.com/gosilvertool
www.gosilver.de
www.gosilver.de/en (EU - English)
www.gosilver.solutions (US)
[e-mail]
Whatsapp: [phone]
10 Kontakt

20
Lake Vision UG
Seestr. 9
86919 Utting am Ammersee
Germany
www.lake.vision
[e-mail]
LAKE VISION
