Gotting HG G-98780-A Operating and installation instructions

Transponder Antenna
HG G-98780-A
13.56 MHz, 1-dimensional
English, Revision 15 Date: 12.10.2017 Dev. by: WM Author(s): RAD/MN
Innovation through Guidance www.goetting-agv.com
Device Description HG G-98780-A
Transponder

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
2Overview HG G-98780-A
® 2017 Götting KG, errors and modifications reserved.
The Götting KG in D-31275 Lehrte has 
a certified quality management system
according to ISO 9001.

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
3Table of Contents HG G-98780-A
Contents
1 About this Document ............................................................................. 5
2 Introduction............................................................................................. 6
2.1 Accessories........................................................................................................................... 6
2.2 Functional Description ...................................................................................................... 7
2.3 Positioning Pulse ................................................................................................................ 7
3 Mounting ................................................................................................. 9
3.1 Transponders ....................................................................................................................... 9
3.1.1 Dimensions and Specifications ................................................................................................... 9
3.1.2 Mounting Instructions .................................................................................................................... 9
3.2 Antenna HG 98780-A ......................................................................................................10
3.3 Interface HG 06150ZA/XA (optional) ..........................................................................11
4 Installation / Commissioning .............................................................. 12
5 Components and Operation ................................................................ 13
5.1 Transponders in the Ground..........................................................................................13
5.2 Transponder Antenna on the Vehicle / Crane..........................................................13
5.2.1 HG G-98780ZA/WA (with CAN-Bus and RS422 / RS232 interfaces) ............................13
5.2.1.1 Connection plan of the 12-pin socket .................................................................................14
5.2.2 HG G-98780YA/XA (with Profibus and RS232/RS422)......................................................15
5.2.2.1 Dimensions ..................................................................................................................................15
5.2.2.2 Pin Allocations X1/X2/X3.........................................................................................................16
5.2.3 HG G-98780UA (with Profibus, RS422 and Cable Tails) ...................................................16
5.2.3.1 Dimensions ..................................................................................................................................17
5.2.3.2 Pin Allocations X1/X2/X3.........................................................................................................17
5.2.4 Positioning Pulse ...........................................................................................................................18
5.2.5 Switch-on Characteristics...........................................................................................................18
5.2.6 Interfaces .........................................................................................................................................19
5.2.6.1 Serial (RS 422 / RS 232) ..........................................................................................................19
5.2.6.1.1 List of system data to be output ....................................................................................19
5.2.6.1.2 List of commands ...............................................................................................................21
5.2.6.2 System Monitor ..........................................................................................................................22
5.2.6.3 Positioning Pulse........................................................................................................................22
5.2.6.4 CAN Bus ........................................................................................................................................22
5.2.6.4.1 Description............................................................................................................................22
5.2.6.4.2 CAN Message Object 1 (Transmission Object)..........................................................22
5.2.6.4.3 CAN Message Object 2 (A Identifier; Transmission Object)..................................22
5.2.6.4.4 CAN Message Object 3 (D Identifier; Transmission Object)..................................23
5.2.6.4.5 CAN Message Object 4 (Reference Transponder, transponder programming;
Reception Object) ...............................................................................................................23
5.2.6.5 Profibus .........................................................................................................................................23
5.2.6.5.1 Profibus Input Bytes...........................................................................................................23
5.2.6.5.2 Output Bytes ........................................................................................................................24

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
4Table of Contents HG G-98780-A
5.2.7 Software download .......................................................................................................................24
5.3 Accessories (optional)..................................................................................................... 25
5.3.1 Serial/parallel Converter HG 06150ZA/XA .............................................................................25
6 Software................................................................................................ 26
6.1 Terminal program.............................................................................................................26
6.1.1 Parameter presettings..................................................................................................................27
6.2 System monitor ................................................................................................................ 27
6.2.1 How to start the monitor program ...........................................................................................27
6.2.1.1 Procedure Monitor only............................................................................................................28
6.2.1.2 Procedures 3964R/transparent..............................................................................................28
6.2.2 Operating the monitor program ................................................................................................29
6.2.2.1 Main menu....................................................................................................................................29
6.2.2.2 (T)ime & Code..............................................................................................................................31
6.2.2.3 (S)erial Output .............................................................................................................................32
6.2.2.4 C(A)N Parameters.......................................................................................................................34
6.2.2.5 P(r)ofibus-Parameters...............................................................................................................35
6.2.2.6 CS(V)...............................................................................................................................................36
6.2.2.7 (B)oot Load...................................................................................................................................36
6.3 Software Update (Antenna Software)........................................................................ 37
6.3.1 Installation of the Program for Software Update.................................................................37
6.3.2 Software Update ............................................................................................................................37
7 Maintenance ......................................................................................... 40
8 Troubleshooting ................................................................................... 41
9 Technical Data ...................................................................................... 42
9.1 Antenna ............................................................................................................................... 42
9.2 Parallel converter (optional).......................................................................................... 43
10 Appendix ............................................................................................... 44
A Effective Antenna Area....................................................................................................................... 44
B Positioning Accuracy........................................................................................................................... 46
C Attenuation of the Reception Level caused by Metal........................................................... 48
D Influence of Water................................................................................................................................ 49
E Mounting next to Massive Metal Structures............................................................................. 50
F Procedure 3964R .................................................................................................................................. 50
F.1 Data direction antenna -> PLC .......................................................................................................................50
F.2 Data direction PLC -> Antenna.......................................................................................................................51
G Procedure „transparent“ .................................................................................................................... 51
G.1 Data direction antenna -> PLC .......................................................................................................................52
G.2 Data direction PLC -> antenna .......................................................................................................................52
H GSD File (Antenna HG 98780XA/YA with Profibus).............................................................. 52
11 List of Figures ....................................................................................... 53
12 List of Tables ........................................................................................ 55
13 Index ...................................................................................................... 56
14 Copyright and Terms of Liability ........................................................ 57
14.1 Copyright ............................................................................................................................ 57
14.2 Exclusion of Liability ....................................................................................................... 57
14.3 Trade Marks and Company Names............................................................................. 57

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
5Chapter 1: About this Document HG G-98780-A
1About this Document
The following symbols and formatting are used in Götting documentations:
Note
Indicates technical information that should be followed when using the device.
ATTENTION!
Indicates dangers that may lead to damages or the destruction of the device.
BEWARE!
Indicates dangers that may lead to injuries or severe damage of property.
WARNING!
Indicates dangers that may lead to injuries, potentially with loss of life, or severe damage of
property.
Tip
Indicates information that makes handling of the device easier.
Link
Indicates additional information in the internet, e.g. on our homepage www.goetting-
agv.com. Those links are clickable in the PDF version of this documentation.
Program texts and variables are indicated through the use of a fixed width
font.
Whenever the pressing of letter keys is required for program entries, the required
etter eys are indicated as such (for any programs of Götting KG small and capital
letters are equally valid).

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
6Chapter 2: Introduction HG G-98780-A
2Introduction
The described antennas are especially suited for outdoor applications, as the electronic
units are sealed within the antenna cases. All important settings, adjustable values and soft-
ware updates can be effected via a serial interface.
Unlike Transponder Positioning System S_I13933 (128 kHz operating frequency), Transpon-
der Positioning Antenna HG G-98780-A is operating at 13.56 MHz. This ensures sufficient
frequency separation to interference sources such as, e.g., drives, power converters and
switching power supply.
Both systems supply a similarly structured output format in which additional system infor-
mation can be configured by the user. This information can, for example, be saved in a visu-
alization system and enables statements about the condition and availability/ accessibility
of the transponders and antennas. This system description applies to devices with the firm-
ware 98780B2 version 1.06 and higher.
2.1 Accessories
The following accessories are available for the one-dimensional Transponder Positioning
Reader HG G-98780-A:

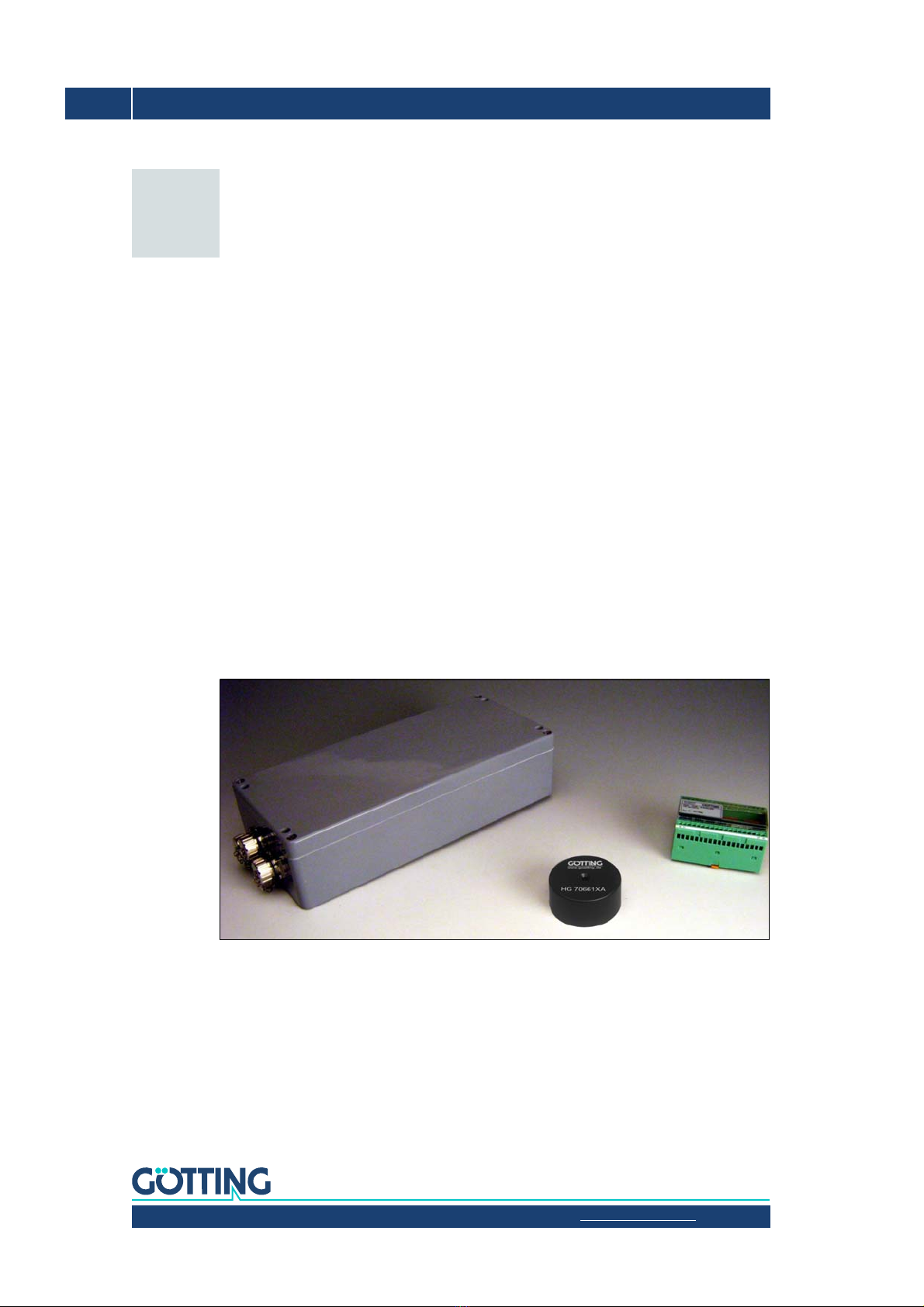

Figure 1 Components
1. Transponder reader with preamplifier and interpreter HG 98780-A with different
interfaces (see Table 1 on page 7)
2. Transponder HG 70661 (on the pavement)
3. Optional interface HG 06150-A serial/parallel converter
4. Optional desktop reading and programming unit HG 81830VA (not shown in picture)




Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
7Chapter 2: Introduction HG G-98780-A
2.2 Functional Description
As the antenna passes over the transponder, it energizes the latter with an energy field of
13.56 MHz. The transponder returns its code through frequency modulation to the antenna.
An additional coil generates the positioning pulse. The interpreter which is integrated within
the antenna decodes the transponder code.
Furthermore several antenna parameters, e. g. current consumption and supply voltage, are
measured and, if desired, added to the serial output protocol.
The serial signal is made available via potentially separated RS 422 or RS 232 interfaces. In
addition, the positioning pulse is dc-insulated. Furthermore, CAN Bus or Profibus interfaces
are provided optionally. The following variants are available, they can be distinguished by
the second to last character of the product number, e.g. HG G-98780ZA.
As an option, the serial signal can be converted into a 16 bit parallel output signal (24 Volts
switched) for the code within an external interface device. This interface device is suited for
mounting rail (top-hat rail) installation and should be installed in a place protected from any
environmental influences (see section 5.3 on page 25).
2.3 Positioning Pulse
For the generation of the positioning pulse, it is necessary that the following preconditions
are met:
– The reception voltage S (refer to Table 20 on page 30) must exceed the set threshold
for Level for Positioning (refer to section 6.2.2.2 on page 31).
– A transponder code must be decoded without error.
– The measured voltage X must fall below a certain threshold (refer to Table 20 on
page 30).
If the above listed preconditions are met, a positioning pulse with changeable duration is
generated. For the generation of a new positioning pulse it is essential that the reception
voltage S has fallen below the threshold set for Threshold for Decoding (refer to sec-
tion 6.2.2.2 on page 31) first.
HG G-98780-A
Variant Profibus CAN Bus RS 422 RS 232
ZA X X
YA X X
XA X X
WA X X
UA X X
Similar to variant XA but with 4 m cable tails:
– 1 x Power/Serial
– Additionally the following connector options can be ordered
- 1 x Profibus & 1 x Profibus Terminating Resistor
If the antenna is to be the last device on the Profibus
- 2 x Profibus
If further devices follow on the Profibus
Table 1 Overview of HG G-98780-A variants

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
8Chapter 2: Introduction HG G-98780-A
Thus only one pulse per transponder crossing is possible. Therefore, if a vehicle/crane stops
above the transponder after the positioning pulse was generated and then changes its di-
rection of travel, no renewed positioning pulse is generated during the center crossing!
Positioning Accuracy
As the field compensation for the corresponding measuring coil is not infinitely sharp and
is also depending on the reading height (refer to Appendix, Section A on page 44), the po-
sitioning pulse is generated at different but reproducible locations, depending on the direc-
tion of travel. Since the antenna is not aware of its direction of travel, but depends on the
physical effect of the field strength, only the vehicle/crane control can carry out the direc-
tion-depending compensation. The appendix, section B on page 46 shows the locations of
the positioning pulse related to the X and Y coordinates and the reading height.

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
9Chapter 3: Mounting HG G-98780-A
3Mounting
3.1 Transponders
3.1.1 Dimensions and Specifications
The maximum reading distance for all transponders can only be achieved when the mini-
mum distance to metal surfaces is maintained. It is recommended to maintain the mini-
mum distances within the metal-free area (Figure 2). The impact on positioning accuracy
and range also depends on the size and distance of metal parts.

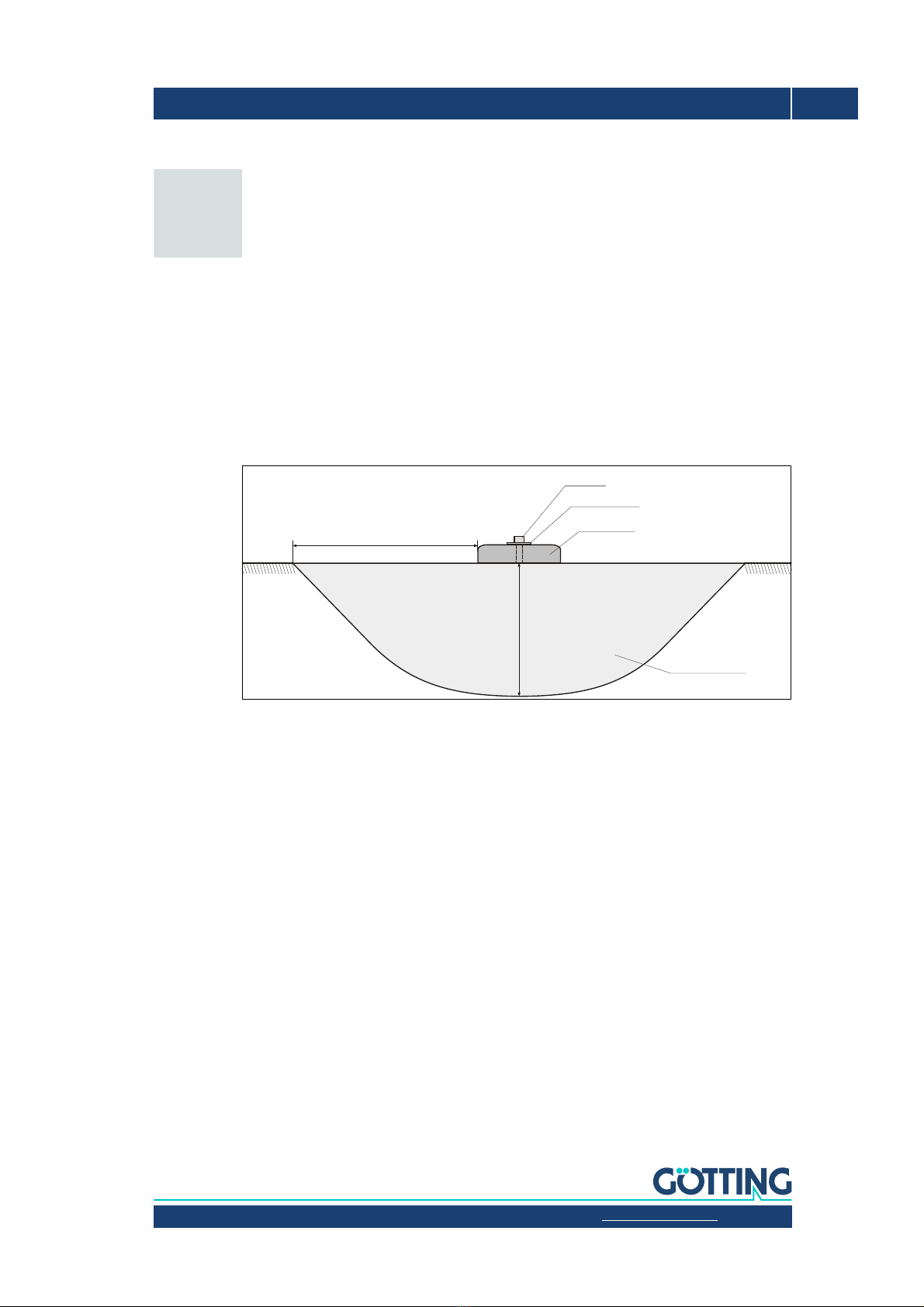

Figure 2 Minimum iron-free area around Puck Transponder HG 70661
As rule of thumb it can be said that if the metal-free area behind the transponder has to be
at least of the same range as the reading distance between transponder and antenna. The
reception of the transponder signal will be largely unattenuated (also refer to Table 26 on
page 48). It is essential, that the transponder does not dip into the meshs/loops of steel
reinforcement grids. Single metal rods, on the other hand, hardly have any influence on
the performance.
3.1.2 Mounting Instructions
The Transponders may be mounted on even ground using a metal screw and a washer. The
maximum fastening torque is not allowed to exceed 4 Nm. The diameter of the metal wash-
er should not be max. 18 mm. For further information please refer to the transponder data-
sheet HG G-70661.
Screw
Washer
Transponder
approx. 200 mm
approx. 100 mm
Metal-free area

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
10 Chapter 3: Mounting HG G-98780-A
3.2 Antenna HG 98780-A
ATTENTION!
Make sure the antenna is mounted correctly with regards to the orientation of its reading
side!

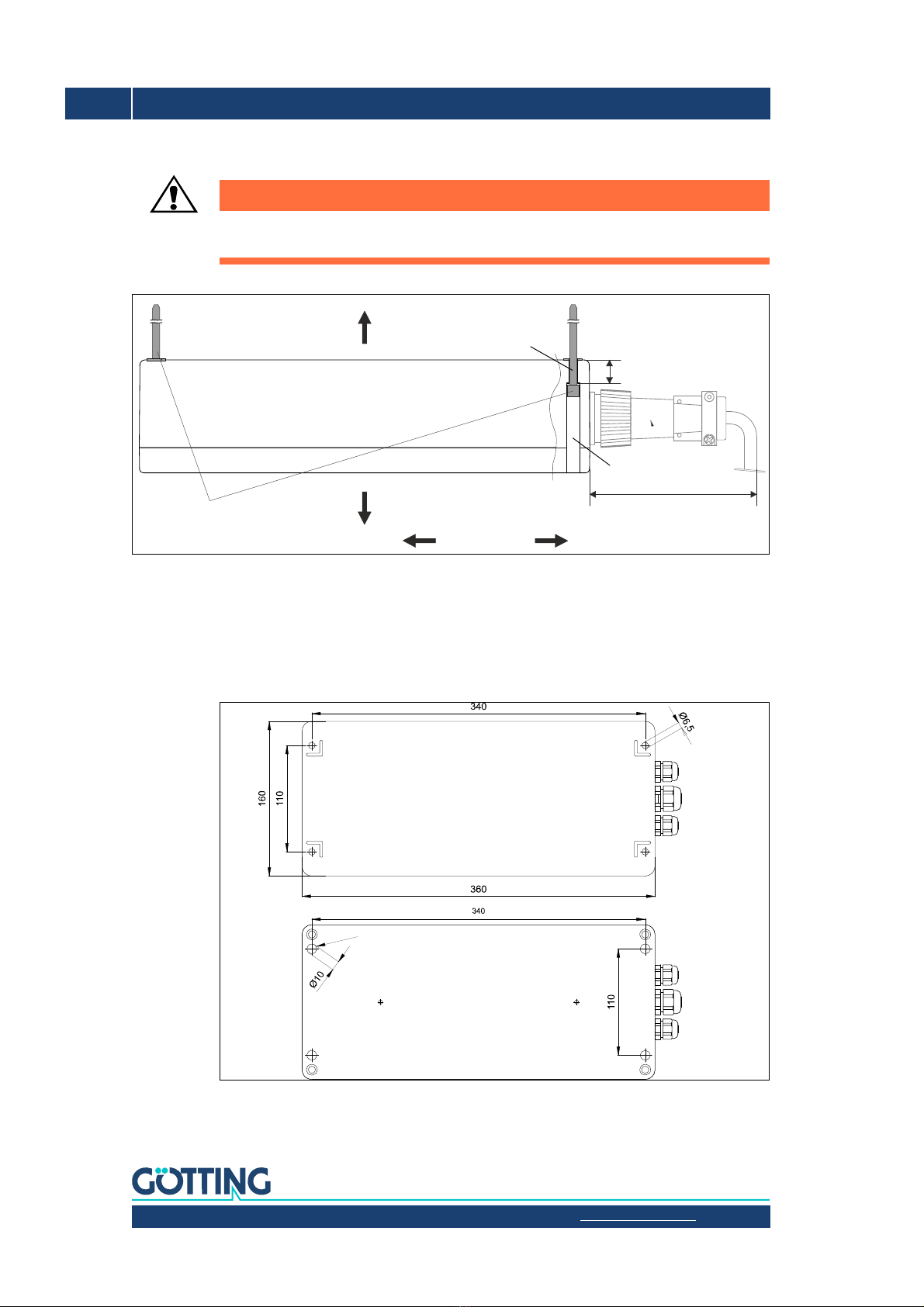

Figure 3 Mounting the antenna
The casing of the antenna has bore holes for 4 screws (also refer to Figure 4 below). We rec-
ommend the usage of M6 hexagon socket screws. The length of the screws depends on
where the antenna is to be mounted. Please make sure that in the direction of travel there
is enough free space for the connections. Depending on the variant up to 140 mm are need-
ed (the picture above shows the ZA/WA variants).
Figure 4 Position of the mounting holes
Moving directions
4 Screws
(not in the scope of supply)
Mounting side
Reading side
approx. 20 mm
up to 140 mm
Bore hole ø 6,5 mm
Bore hole ø 10 mm
4 bore holes
4 bore
holes
Reading side
Mounting side

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
11Chapter 3: Mounting HG G-98780-A
In order to prevent any adverse effects on the system:
– The space above and around the antenna should be metal-free. YOu can find more
information in the sections C on page 48, D on page 49 and E on page 50.
– Do not operate the reading antenna while the reading side is located directly above a
metal surface, as this would mistune the antenna severely in such a way that the
power consumption of the output stage would increase considerably.
– Perfect transponder readings are only guaranteed if the transponders are placed
within max. ±4 cm tolerance from the center line of the antenna! Outside these lim-
its, the transponder readings become less reliable due to decreasing signal levels.
Note
Whenever the antenna is operated at temperatures below 0oC, it is necessary to use the
integrated heater! As the warm-up time with heater at -20oC surrounding temperature is
approx. 1 hour, the heater should be connected to a stand-by power supply.

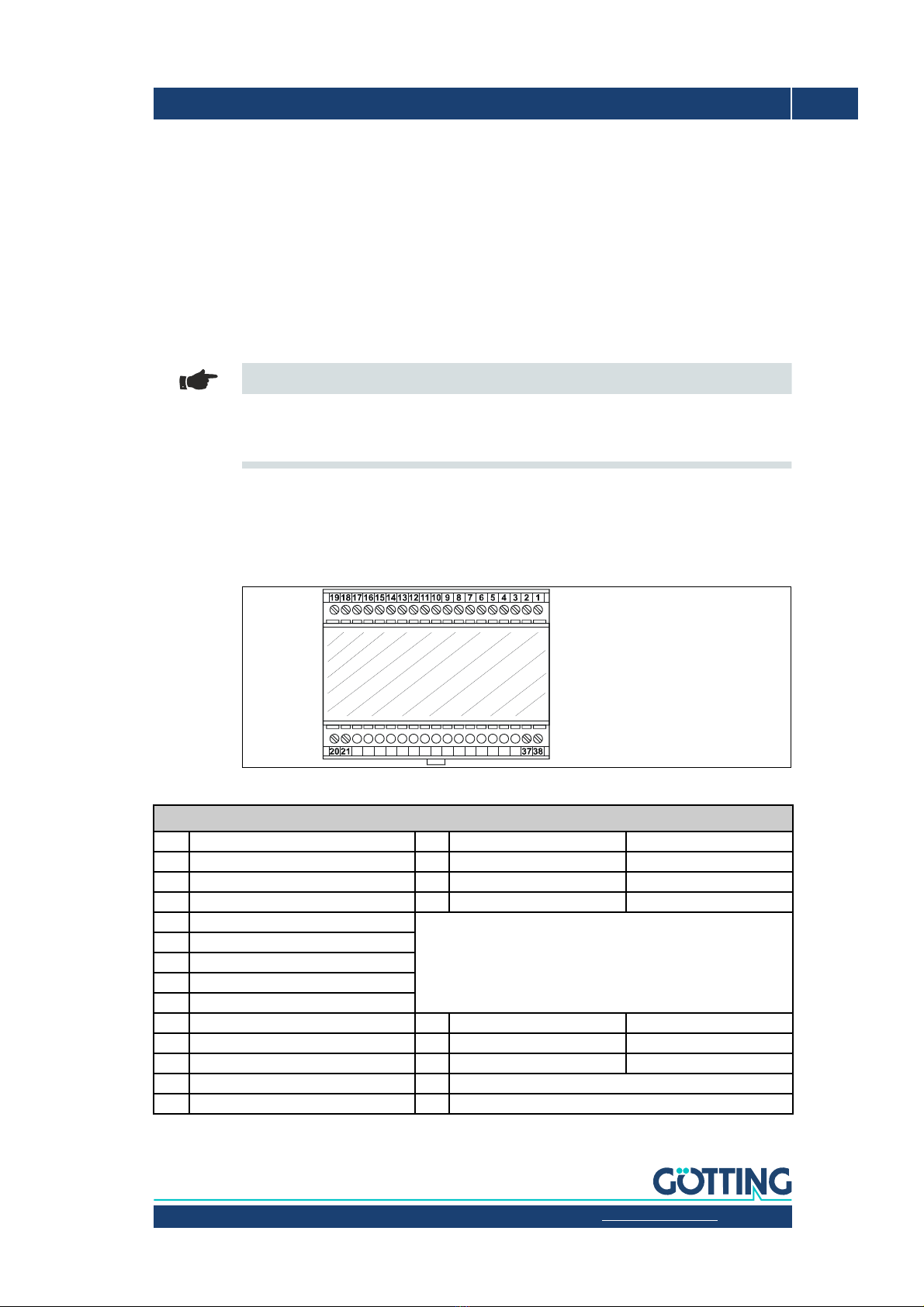

3.3 Interface HG 06150ZA/XA (optional)
The optional interface has to be mounted in a climated enclosure on a mounting bar with
the following connections:
Figure 5 Outline of the interface mounting bar case
Interface connection plan
1Code Bit 1 (lowest Bit) 15 Code Bit 15
2Code Bit 2 16 Code Bit 16 (highest Bit)
3Code Bit 3 17 Data Ready
4Code Bit 4 18 Data Valid
5Code Bit 5
6Code Bit 6
7Code Bit 7
8Code Bit 8
9Code Bit 9
10 Code Bit 10 Version ZA Version XA
11 Code Bit 11 20 Rx+ (RS 422 input) RxD (RS232 Input)
12 Code Bit 12 21 Rx- (RS 422 input) not connected
13 Code Bit 13 37 +24 V operating voltage
14 Code Bit 14 38 GND ground
Table 2 Interface connection plan

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
12 Chapter 4: Installation / Commissioning HG G-98780-A
4Installation / Commissioning
Note
Check the operating voltage before connecting! The cable should not lie directly beside
power supply cables.
Connect all necessary cables. For the next commissioning steps, connect a laptop with the
serial interface of the antenna. Antenna variants with RS422 interface (HG 98780ZA/XA) re-
quire an appropriate interface converter. This interface converter is not included in the
scope of supply of this system. For further information, please refer to the introduction in
chapter 6 on page 26. Then start the monitor program as described in section 6.2 on page
27.
Default values: In default the system uses the values of the file 1 (Mon3964r.txt; as list-
ed in part 6.2.1 on page 27) with 9,600 Baud. Please keep in mind that another user could
have changed these values.
1. Move a transponder into reception range.
The voltage Sshould increase significantly. The code should be detected immedi-
ately and the number of readings has to be continuously counted up to 65535. When
moving the transponder in driving direction over the center axis of the antenna, a
positioning pulse should be generated.
2. For setting the decoding thresholds (refer to section 6.2.2.2 „(T)ime & Code“ on page
31) it is useful, to record a complete test run along the transponder track.
Antennas HG G-98780ZA and HG G-98780WA offer for this function the use of
the serial interface (section 6.2.2.6 „CS(V)“ on page 36) or the CAN Bus Message
Object 3 (section 5.2.6.4.4 on page 23 or 6.2.2.4 „C(A)N Parameters“ on page 34).
Antennas HG G-98780YA and HG G-98780XA offer for the same function the
serial interface (refer to section 6.2.2.6 on page 36) or the Profibus interface (refer to
section 6.2.2.5 on page 35). When using the Profibus interface, the necessary param-
eters from the 16 byte data block are System Status, Code and U-Summe.
Provided that the test run did not reveal any problems, changed parameters may be saved
and the monitor program may be terminated. Changing certain parameters requires a com-
plete system reset (switching the antenna off and on again), as described in the correspond-
ing section for the monitor program (section 6.2). This procedure ensures that the system is
commissioned correctly.

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
13Chapter 5: Components and Operation HG G-98780-A
5Components and Operation
5.1 Transponders in the Ground
Reference marks are the Puck Transponders HG 70661. The transponder data is configurat-
ed to 32 Bit (Read/Write). Range and positioning accuracy of the system are influenced by:
– Steel reinforcements located around or behind the Transponder, refer to section C on
page 48 in the appendix.
– Metal structures around the antenna.
– For influences of snow, ice and water refer to section D on page 49 in the appendix.
The following environmental conditions have no effect on the system:
– Oil, tar, earth, dirt, etc.
– Massive metal structures on one side of the Transponder or antenna, e.g. rails. Refer
to section E on page 50 in the appendix.
5.2 Transponder Antenna on the Vehicle / Crane
5.2.1 HG G-98780ZA/WA (with CAN-Bus and RS422 / RS232 interfaces)

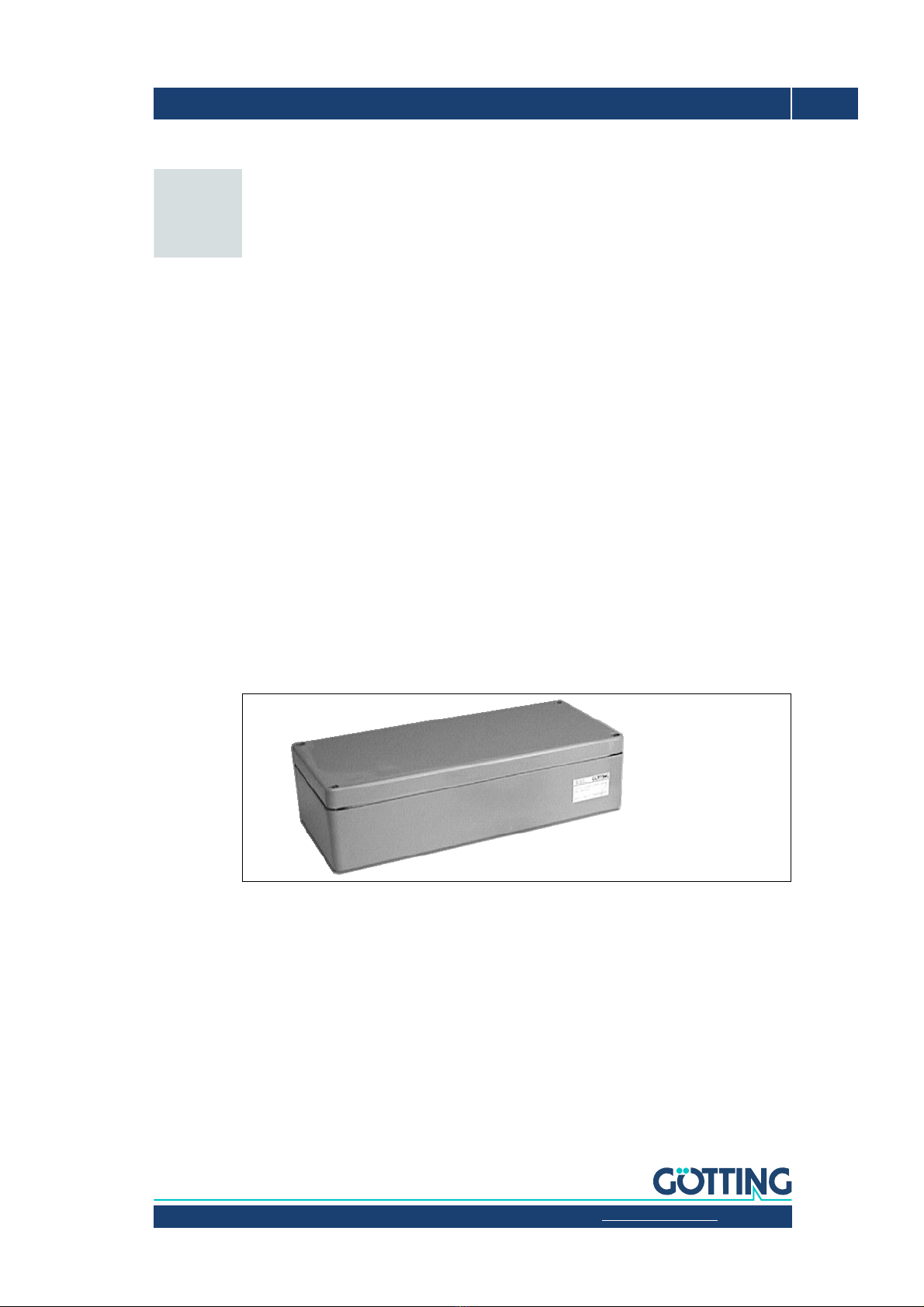

Figure 6 Positioning antenna HG G-98780ZA/WA
The antenna and the interpreter electronics are housed in a 360 x 160 x 91 mm casing. The
reading area is the upper side of the casing. The cover is located on top of the casing, the
12-pin socket (Schaltbau M3) points in the vehicle’s direction of travel.
The interpreter is mounted in a completely sealed unit, along with the heating. The connect-
er is a 12-pin screw-in socket (Schaltbau, type M3) with gold plated pins.

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
14 Chapter 5: Components and Operation HG G-98780-A

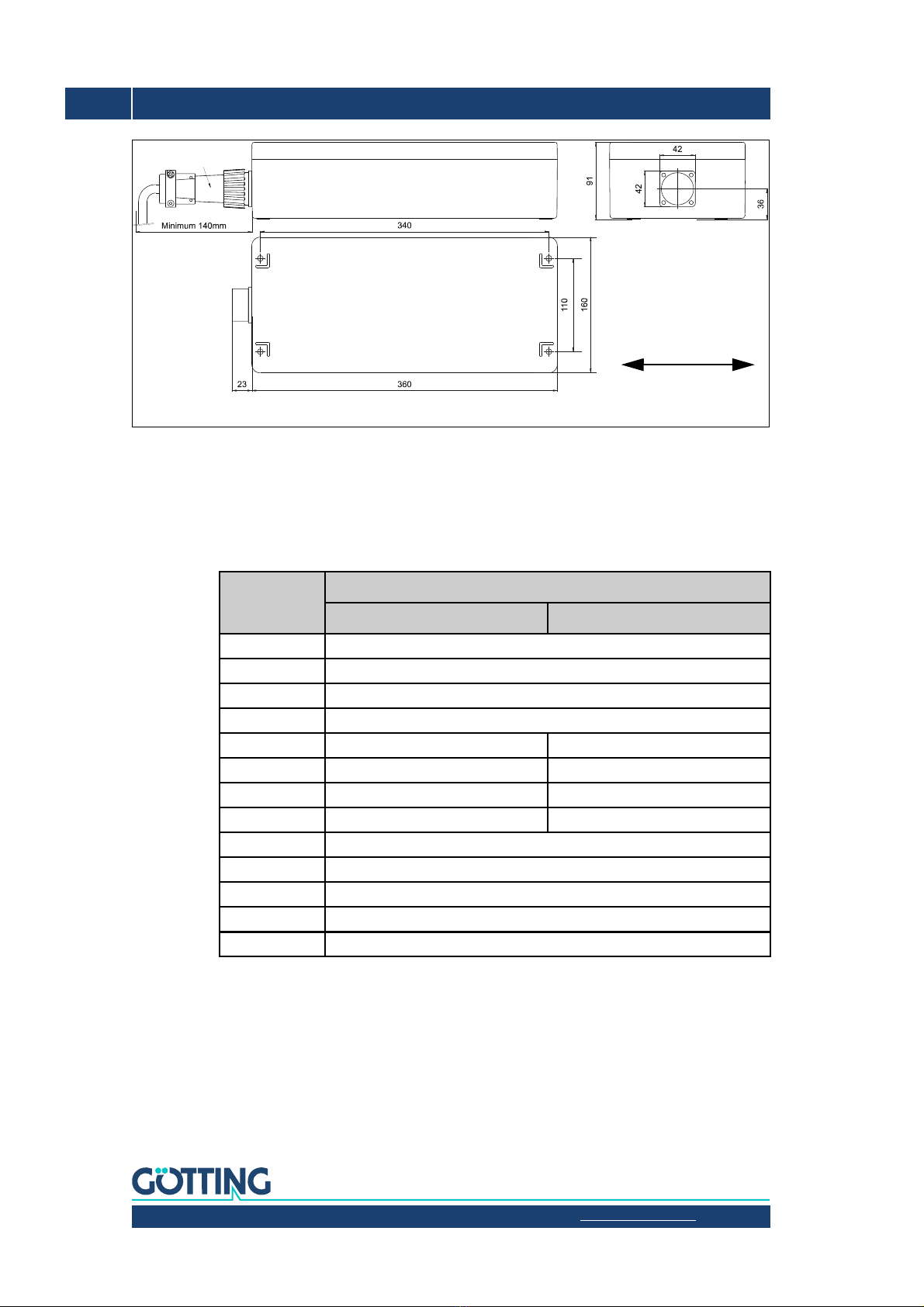

Figure 7 Outline antenna HG 98780ZA/WA (with casing dimensions)
For each antenna of this variant a connector HW CONSET00002 will be supplied (see Figure
7above).
5.2.1.1 Connection plan of the 12-pin socket
The allocation of contacts is as follows:
Contact
Description
HG 98780ZA HG 98780WA
1 +24 V (antenna)
2GND (antenna)
3 +24 V (heating)
4GND (heating)
5+RX (RS 422) Rx (RS232)
6-RX (RS 422) n.c.
7+TX (RS 422) Tx (RS232)
8-TX (RS 422) n.c.
9+ Posi Pulse (see section 5.2.4 on page 18)
10 - Posi Pulse (see section 5.2.4 on page 18)
11 CAN+
12 CAN-
PE signal ground
Table 3 Variant ZA/WA: Connection plan of the 12-pin antenna socket (CAN bus)
Direction of travel
Connector
HW CONSET0002
Mounting side
(with mounting drill holes)

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
15Chapter 5: Components and Operation HG G-98780-A
5.2.2 HG G-98780YA/XA (with Profibus and RS232/RS422)
5.2.2.1 Dimensions

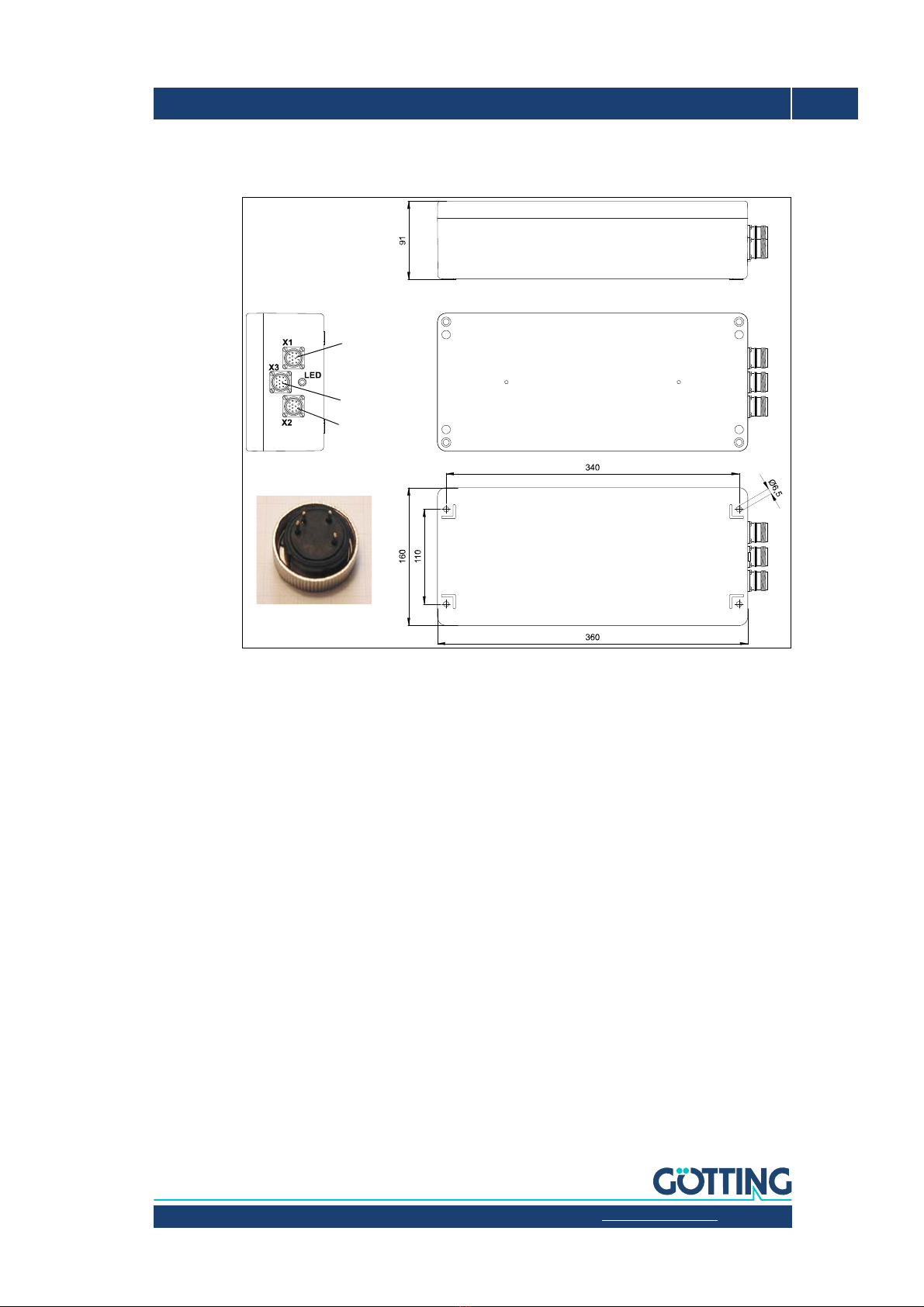

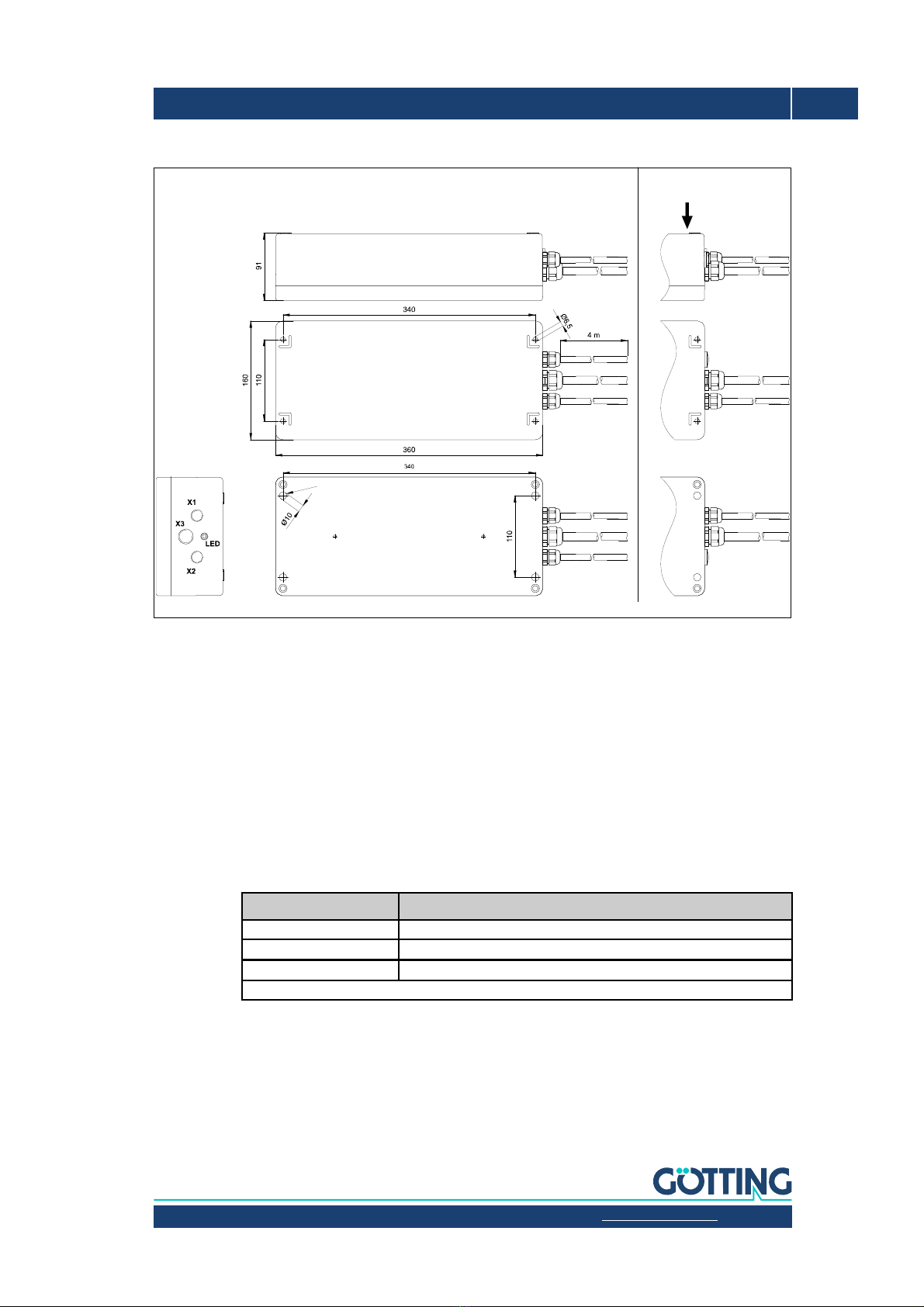

Figure 8 Outline of antenna HG G-98780YA/XA (including housing dimensions and picture of the ter-
minating resistor / Terminator)
Antenna and interpreting electronics are housed in a 360 x 160 x 91 mm casing. The read-
ing side of the antenna is the top of the casing with the casing cover. The three 12 pin built-
in connectors (M23; gold-plated contacts) are facing in the direction of travel. For each an-
tenna, a correspondingly suitable line termination resistance is included in the scope of sup-
ply.
Inside the casing are the completely sealed antenna electronics and the heater. For con-
necting the antenna, the female connectors X1 and X2 (Profibus) or the male connector X3
(PosiPuls, RS232, power supply) are being used. The integrated LED is lit for the Profibus
status Data exchange.
For each antenna of this variant a connection set HW CONSET00001 will be supplied, in-
cluding 3 connectors, the terminating resistor and an inserter tool. Those sets are pre-
configured for cable diameters of 7 — 12 mm2. If the actual cable diameters do
not match the pre-configured values the actual cable diameters have to be indi-
cated on order.
Reading
side
(casing cap)
Mounting
side
(with mounting drill holes)
Terminating resistor
X1
X3
X2
female
female
male

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
16 Chapter 5: Components and Operation HG G-98780-A
5.2.2.2 Pin Allocations X1/X2/X3
The Profibus version of the antenna offers two identical 12 pin sockets for the bus function
as well as one 12 pin connector for the power supply.
5.2.3 HG G-98780UA (with Profibus, RS422 and Cable Tails)
This antenna variant comes with pre-configured cable tails for the connections:
– 1 x Power/Serial X3
– Additionally the following options can be ordered
– 1 x Profibus X1 & 1 x Profibus Terminating Resistor
if the antenna is to be the last device on the Profibus or
– 2 x Profibus X1/X2
if further devices follow on the Profibus
Contact Allocation
1signal ground
2line A
3 n. c.
4line B
5 n. c.
6+5 V Signal
7 +24 V DC (antenna)
8GND (antenna)
9shield
10 n. c.
11 n. c.
12 RTS
housing shield
Table 4 Variant XA/YA: Pin allocation of the 12 pin Profibus connectors X1 / X2 (female)
Contact Allocation
HG 98780YA HG 98780XA
1 +24 V DC (antenna)
2GND (antenna)
3 +24 V DC / 2 A (heater)
4GND (heater)
5Rx (RS232) +RX (RS 422)
6 n. c. -RX (RS 422)
7Tx (RS232) +TX (RS 422)
8 n. c. -TX (RS 422)
9+ Posi Pulse (see section 5.2.4 on page 18)
10 - Posi Pulse (see section 5.2.4 on page 18)
11 n. c.
12 signal ground
housing shield
Table 5 Variant XA/YA: Pin allocation of the 12 pin connector X3 for the antenna power supply/
serial (male)

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
17Chapter 5: Components and Operation HG G-98780-A
5.2.3.1 Dimensions
Figure 9 Outline of antenna HG G-98780UA with/without terminating resistor
Antenna and interpreting electronics are housed in a 360 x 160 x 91 mm casing. The read-
ing side of the antenna is the top of the casing with the casing cover. Up to three connec-
tions X1, X2 (Profibus) and X3 (power/serial) are facing in the direction of travel. If a termi-
nating resistor is included connection X2 is replaced with a dummy plug.
Inside the casing are the completely sealed antenna electronics and the heater. For con-
necting the antenna, the cable tails X1 and X2 (Profibus) and X3 (PosiPuls, RS422, power
supply) are being used. The integrated LED is lit for the Profibus status Data exchange.
5.2.3.2 Pin Allocations X1/X2/X3
This Profibus variant of the antenna offers up to two identical cable tails X1/X2 for Profibus
connections depending on whether a terminating resistor is included.
Color Allocation
Shield Signal Ground
Green Line A
Red Line B
Shield
Table 6 Variant UA: Pin allocation of the Profibus cable tails X1/X2
Reading
side
(casing cap)
Mounting
side
(with mounting drill holes)
Without terminating resistor With terminating resistor
4x drill holes for mounting

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
18 Chapter 5: Components and Operation HG G-98780-A
In addition there is a cable tail X3 for the power connection and the serial interface.
5.2.4 Positioning Pulse
The digital positioning output indicates the crossing of the center line of the antenna in di-
rection of travel (x direction). Its duration is adjustable within a millisecond pattern.
Both positioning connections are separately and not internally connected to +24 V or GND,
as a strict voltaic separation is essential for some of the systems. For safety reasons, a
20 mA current limitation has been implemented in the antenna for these outputs. In case a
24 V output is required, contact No. 9 may be connected to +24 V and contact No. 10 may
be connected to GND via a 1 KOhm resistor.

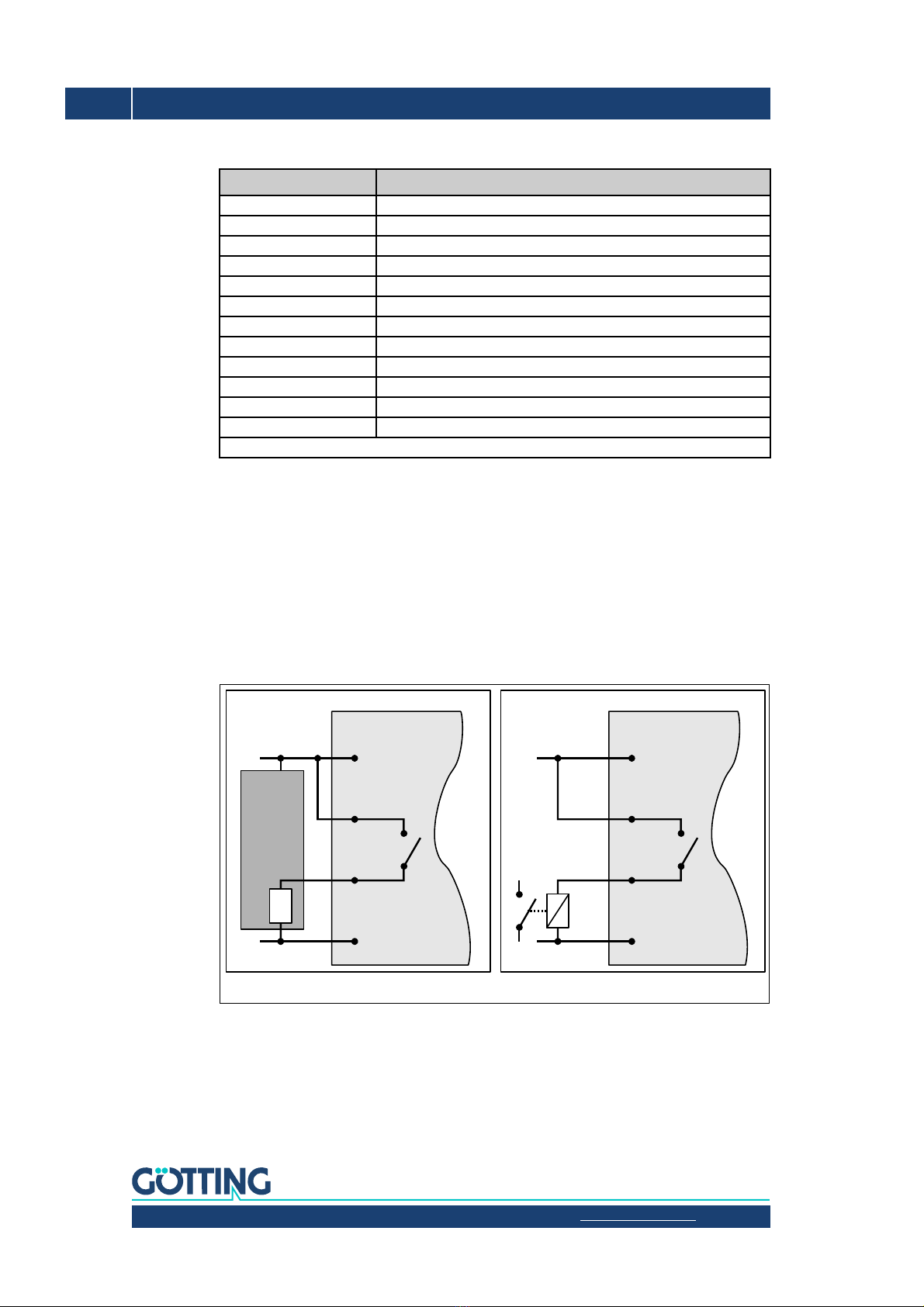

Figure 10 Connection possibilities positioning pulse
5.2.5 Switch-on Characteristics
Once the supply voltage has been applied, the antenna requires 10 s until it reacts to data
input, or outputs data protocols. During these 10 s, a software download may be started (al-
so refer to section 5.2.7 on page 24).
Numeric Print Allocation
1 +24 V DC (antenna)
2GND (antenna)
3 +24 V DC (heater)
4GND (heater)
5+RX (RS 422)
6-RX (RS 422)
7+TX (RS 422)
8-TX (RS 422)
9+ Posi Pulse (see section 5.2.4 on page 18)
10 - Posi Pulse (see section 5.2.4 on page 18)
11 n. c.
Green-yellow signal ground
Shield
Table 7 Variant UA: Allocation of the cable tail X3 antenna power supply/RS 422
Pin
HG G-98780
1
9
10
2
Posi
Puls
+Posi
-Posi
+24 VDC
GND
Connecting to a relayConnecting to a PLC
Pin
HG G-98780
1
9
10
2
Posi
Puls
+Posi
-Posi
+24 VDC
GND
PLC

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
19Chapter 5: Components and Operation HG G-98780-A
5.2.6 Interfaces
5.2.6.1 Serial (RS 422 / RS 232)
The serial output may be configured in several ways. The transmission rate is adjustable be-
tween 9600 and 19200 Baud, the output protocol may be chosen as “transparent“ or
“3964R“. Apart from that, the content of the telegrams is configurable, as the user may
choose from a list of parameters.
Serial commands are used for activating a system monitor. The crossing of the antenna´s
center axis in direction of travel, is shown by the digital positioning output. Its transmission
time is adjustable in blocks of milliseconds. In addition, it may be reduced to one impulse
per crossing.
5.2.6.1.1 List of system data to be output
A telegram consists of max. 15 bytes. The minimum update rate at 9600 Baud is then cal-
culated as follows
Figure 11 Formula: minimum update rate
As the transmission is binary, it is possible - when using the 3964R procedure - that further
(DLE) characters are added by this procedure. All multiple-byte variables are output either
with the highest byte or the lowest byte first (adjustable)!
The 8 bit check character is only output when using the transparent protocol. It then in-
cludes the start character. The check character (transparent protocol), cannot be removed
from the data block. It is a matter of configuration, whether data telegrams are output per-
manently according to the set update rate or only during the period, when a transponder is
within the field.
Table listing the data words of a telegram of 15 byte length:
Byte # Length Priority Type Description
11 Byte 0x01 Unsigned char Start character ASCII-061: „=“
2,3,4,5 4 Byte 0x02 Unsigned long 32 Bit of the Transponder code
6,7 2 Byte 0x04 Unsigned int Voltage induced by the Transponder within
the frame antenna in Samples
81 Byte 0x08 Unsigned char Supply voltage for the antenna [x 100 mV]
91 Byte 0x10 Unsigned char Power consumption [x 10 mA]
10 1 Byte 0x20 Signed char Temperature within the antenna [oC]
11,12 2 Byte 0x40 Unsigned int Number of readings during the latest tran-
sponder crossing
13,14 2 Byte 0x80 Unsigned int System status in binary encoding
(15) 1 Byte Unsigned char Check character (EXOR function over all
characters), only for transparent protocol!
Table 8 Data words in a telegram of 15 (14) byte length
15 Byte
Telegram
---------------11
Bit
Byte
------- 9600Bit
s
----- 17 2 ms
Telegram
---------------,=

Device Description HG G-98780-A | English, Revision 15 | Date: 12.10.2017 | www.goetting-agv.com
20 Chapter 5: Components and Operation HG G-98780-A
The following table shows a list of the binary codes used to describe the system status (for
bytes # 13 and 14 from Table 3):
*) These bits are deleted as soon as the transponder has left the antenna field.
Example: Status 0x0600
stands for TRANS_IN_FIELD and CODE_OK
The status 0x0002 may also arise during ordinary transponder crossings, if the code trans-
mission is aborted due to decreasing power output level. The message 0x0100
(REF_TRANS_ON) enables checking whether transmission of the corresponding switch-off
command has been forgotten (in this case, it is no longer possible to read runway transpon-
ders correctly).
Priority Name Description
0x0001 HW_ERROR Hardware error
0x0002 CODE_CRC_ERR Reception of transponder code with CRC error
0x0004
0x0008
0x0010
0x0020 PARAM_CRC_ER Parameter block no longer save
0x0040
0x0080 F_ERROR Transmission oscillator not operating at set frequency
0x0100 REF_TRANS_ON Note: reference transponder is activated.
0x0200 TRANS_IN_FIELD Transponder within antenna field *)
0x0400 CODE_OK Decoded code correct *)
0x0800
0x1000 POSIPULS Transponder has crossed the center of the antenna *)
0x2000
0x4000
0x8000
Table 9 Possible system status messages
