Goudsmit Easy Clean Cleanflow SECE Series User manual

User Manual
Easy Clean Cleanflow magnet, series SECE
The descriptions in this manual may differ from your version.
GOUDSMIT Magnetic Systems B.V.
P.O. Box 18 5580 AA Waalre
Petunialaan 19 5582 HA Waalre
The Netherlands
Tel. (+31) (0)40 2213283
Internet www.goudsmitmagnets.com
E-mail [email protected]

2
Contents
Contents.........................................................................................................................................................................................2
Safety..............................................................................................................................................................................................3
General .....................................................................................................................................................................................3
Safety regulations .....................................................................................................................................................................3
Danger of magnetic field ........................................................................................................................................................... 4
Identification plate.........................................................................................................................................................................5
Removal of ferromagnetic particles in Easy Clean Cleanflows................................................................................................6
Construction and functioning of Cleanflow magnet..................................................................................................................7
Earthing..........................................................................................................................................................................................8
Deflector (option) ......................................................................................................................................................................8
Installation, start-up and servicing..............................................................................................................................................9
The information we supply may only be used for service or operation of the product.
It may not be disclosed to any third parties without our prior written permission.
Our products and the data in our documentation may be subject to later amendment without any
obligation to previously supplied equipment.
Please ensure that anyone working with the device has access to all the necessary documentation.
Manual SECE Cleanflow magnet, version 05/2020

3
Safety
General
The device is provided with safeguards where necessary. Make sure every person who comes in contact
with the device, or enters the area around it, wears adequate personal protection (overalls, safety glasses,
ear protectors, helmet, steel-toed safety shoes etc.). Areas of the device considered dangerous are
marked with warning pictograms.
If the device remains easily accessible to persons, extra safety precautions (e.g. safeguards) must be
installed. When safeguards are not possible, make sure clear instructions are given to people using the
machine.
Safety regulations
•Read and observe the warnings and
instructions given on stickers and labels on
the device Do not ignore them.
They are applied for your safety!
•Remain a safe distance from rotating and
moving components.
•The activities described in this manual can
only be done by trained and competent
personnel.
•Wear protective clothing, goggles and safety
shoes when working on the device.
•Follow all safety and warning regulations
provided in this manual!
•Pregnant persons should maintain a minimum
distance of 5 cm from the magnet bars.
•Always observe the locally applicable safety
and environmental regulations.
•Follow local occupational safe weight limits
when manually lifting the equipment.

4
Danger of magnetic field
The magnets generate a powerful magnetic field that strongly attracts ferromagnetic (Fe) materials.
Always take into account that these materials may suddenly be powerfully drawn towards the magnet.
This applies to steel workbenches and steel tools, but also to ferromagnetic materials carried on your
person, such as coins in your wallet or your keys. Wherever possible make use of non-magnetic tools
and workbenches fitted with a wooden worktop and preferably a non-ferromagnetic frame (for instance
stainless steel).
Remember that ferromagnetic items, including personal items, will be attracted if you are closer
than 0.3 metres to a magnet.
Danger - strong magnetic field!
People fitted with implanted active medical devices must stay at a distance of 1 metres from
the equipment. The magnetic field could interfere with the functioning of such devices.
Prohibited for people with pacemakers!
Do not bring ferromagnetic objects, e.g. tools, watches, jewellery within a distance of 0.5 meter
from the magnet pad. Sudden traction could result in injury and or the magnetic field could result
in damage to sensitive devices.
Attraction and projectile risk
Warning Pictograms
Ensure that all warning pictograms are legible. Replace if lost or damaged.
General Protection
Wear all the personal safety equipment necessary for safe operation or maintenance.
This may include; overalls, safety glasses, ear protection, helmet, safety shoes, etc.
Keep all screens and safeguards in place

5
Identification plate
Product key: SECE-x-xxxx-xxx-x-xx-xxx-x-x
Part no.:
Serial no.: ORxxxxxx-xxx-xxx
www.goudsmitmagnets.com
Weight:
Year:
If you need to correspond about your device, make a note of the numbers on the identification
plate. On smaller devices there may not be an identification plate but an etching.

6
Removal of ferromagnetic particles in Easy Clean Cleanflow magnets
When cleaning the pneumatic Cleanflow magnets of ferromagnetic particles
1. Stop product flow.
2. Loosen the fasteners and slide the extractor unit out of the housing.
The magnet unit inside the extractor will automatically slide out of the front section.
3. Clean the ferromagnetic particles from the extractor with a clean soft brush.
4. Dispose of ferromagnetic debris. Use the collection tray for sampling.
5. Slide the extractor unit back into the housing and refasten.
The magnet unit will automatically slide back into the extractor unit.
6. Resume product flow.
Pneumatic rods,
containing the magnets
Fasteners
Seal
Guiding rod
Collection tray
Flange

7

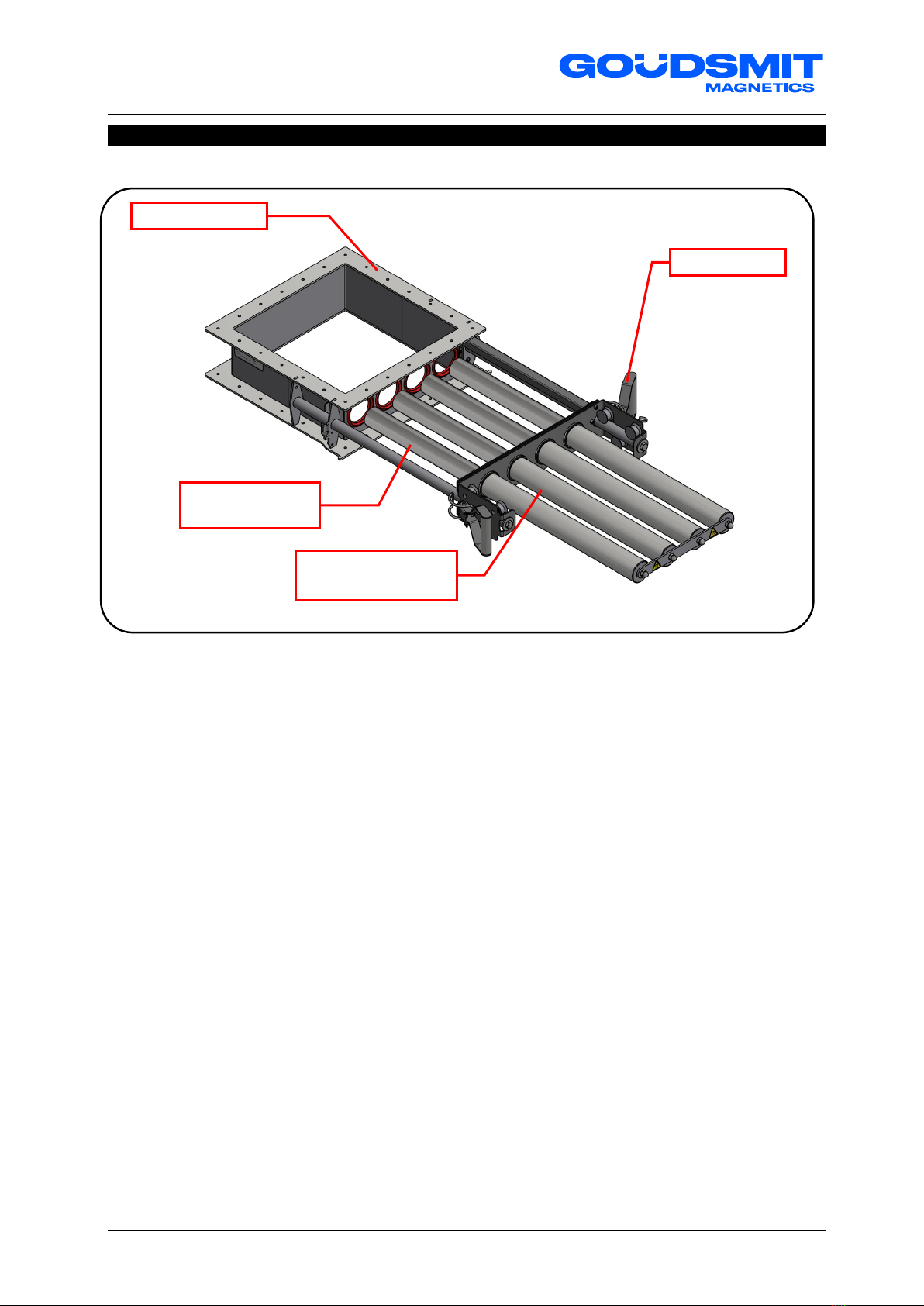

Construction and functioning of Cleanflow magnet
Function
The function of the device is to capture ferromagnetic particles in the product stream.
The product flows through the pipe and around the magnets. These capture ferromagnetic particles.
Features
The manual pneumatic Cleanflow magnets have a telescopic assembly. Whereby the pneumatic
components automatically move the magnet unit in and out of the front section of the extractor if it is
pulled in or out of the housing.
Flange
Guided extractor
and magnet unit
Pneumatically
activated
Fasteners

8

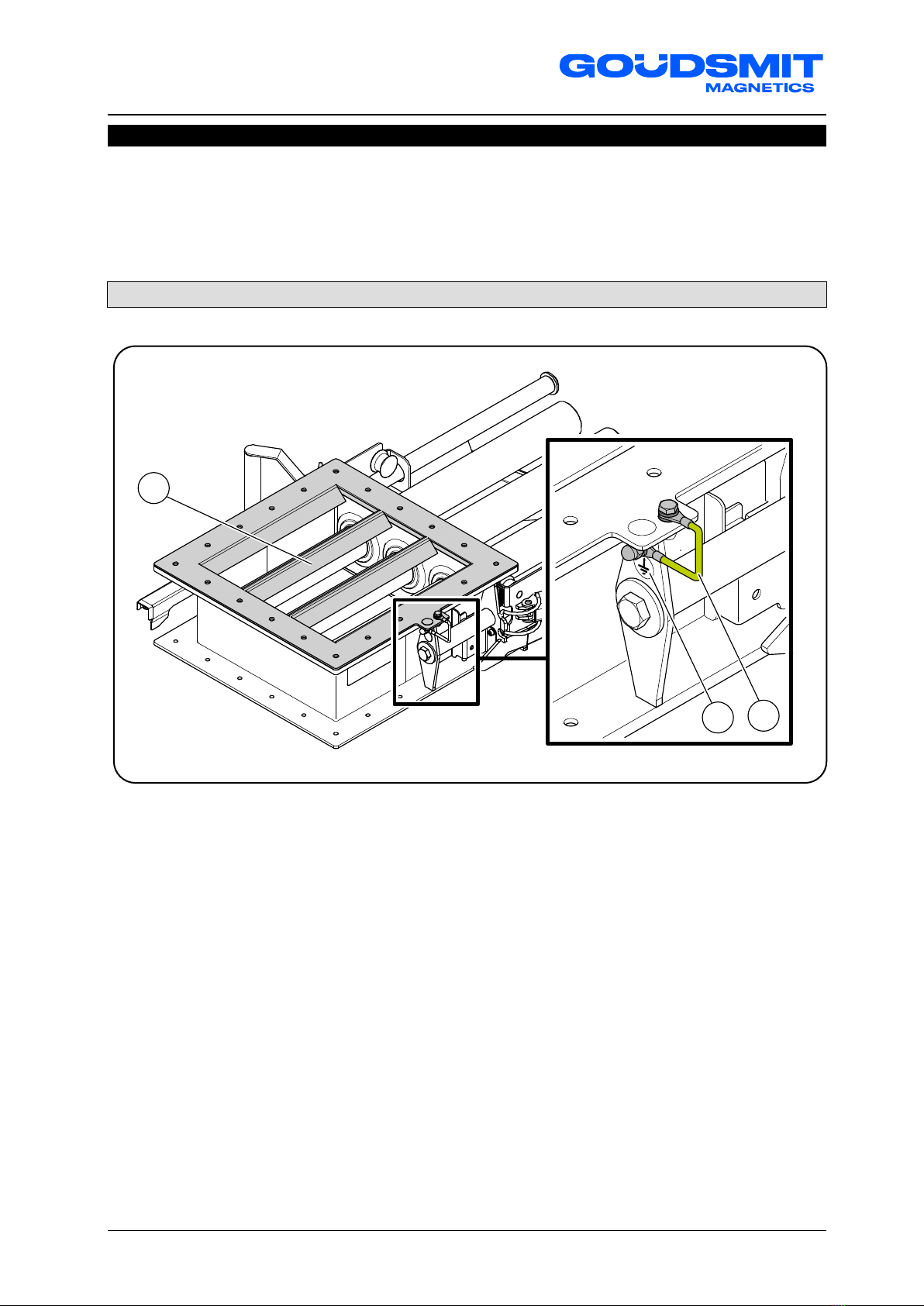

Earthing
The standard Cleanflow magnet is not earthed. A provision has been made on the bracket to realise an
earthing (see earthing symbol) [1].
To prevent the creation and build-up of static electricity, make sure there is a metal bridge between the
magnetic device / product channel and the installation. The completed installation must also be earthed.
Deflector (option)
2
13
A deflector [2] is optionally available to ensure that all particles of the product stream touch the bars.
The deflector is standard equipped with a earth wire [3].

9
Installation, start-up and servicing
Installation
•Only allow qualified personnel to work on the installation.
•Handle the Cleanflow magnet with great care. The extractor tubes are very fragile.
•Remember that any ferromagnetic tools and components are attracted to the magnet and may
damage it.
•Connect joints or flanges correctly to the inlet and outlet joint.
•Use a pressure of 4 bar on the pneumatic connection. Press connection hose in remaining
connection.
13
4
14 2
G1/8
G1/8 Ø6 mmØ6 mm
G1/8 Ø6 mm
Air supply
(Customer connection)
4 - 8 bar
Magnetic bars
Roller lever valve 4/2
•Install the Cleanflow magnet correctly and at the proper work height.
Leave 100 mm free space underneath
Start-up
Ensure that:
˗the device has no damages or malfunctions. Test the pneumatic bar operation with a paperclip.
It should react if the magnet is operated.
˗all connections, whether mechanical or pneumatic, are made properly.
Servicing
If the extractor or magnetic bars are damaged or dented, check that they still operate correctly.
Spare parts include the pneumatic bar magnet and the seals. The seals must be replaced every year.
Goudsmit Magnetic Systems can offer a yearly inspection with a replacement of seals and magnetic
inspection report and certificate.
Storage and dismantling
When recycling the device at the end of its technical life, dispose of correctly and according to local
regulations.
