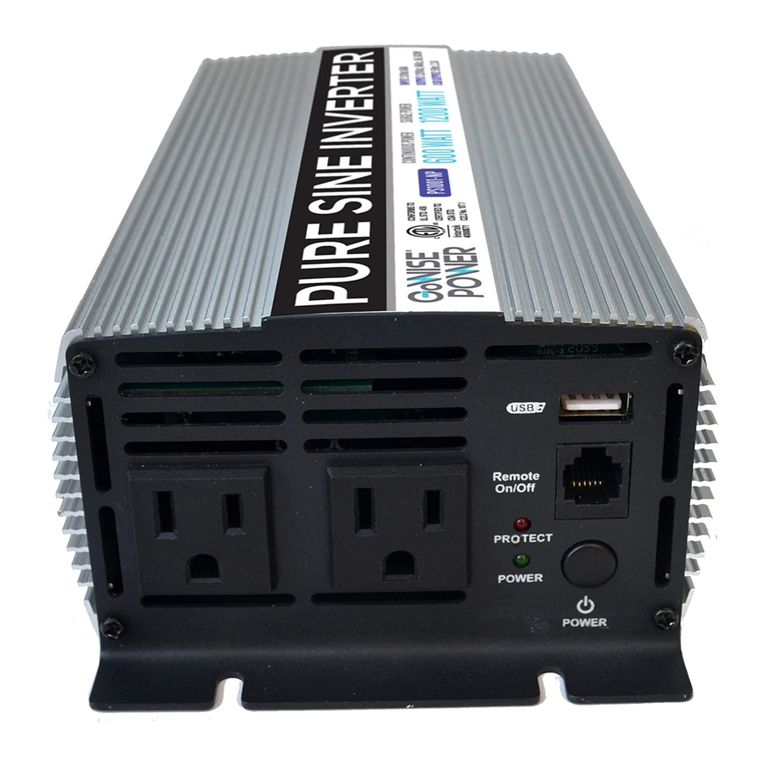

GoWISE Power Tech-On PS1001 User manual

005

IMPORTANT SAFETY INSTRUCTIONS
WARNING : EXPLOSION HAZARD
PRECAUTIONS WHEN WORKING WITH BATTERIES
WARNING: EXPLOSION OR FIRE HAZARD
This section contains important safety and operating instructions. Read and keep
this user manual for future reference.
1. Before installing and using the PURESINE inverter, read all instructions and
cautionary markings on the PURESINE, the batteries, and all appropriate
sections of this manual.
2. Do not expose the PURESINE inverter to rain, snow, or spray water. To reduce
risk of fire hazard, do not cover or obstruct the ventilation openings. Do not
install the PURESINE inverter in a zero-clearance compartment. Overheating
may result.
3. To avoid a risk of fire and electric shock, make sure that existing wiring is in good
condition and that wire is not undersized. Do not operate the PURESINE with
damaged or substandard wiring.
4. Do not disassemble the PURESINE. It contains no user-serviceable parts. See
the WARRANTY section for instructions or obtaining service. Attempting to
service the PURESINE inverter yourself may result in a risk of electrical shock or
fire. Internal capacitors remain charged after all power is disconnected.
5. To reduce the risk of electrical shock, disconnect both AC and DC power from the
PURESINE before attempting any maintenance or cleaning or working on any
circuits connected to the PURESINE inverter. Turning off controls will not reduce
this risk.
1. Working in the vicinity of lead-acid batteries is dangerous. Batteries generate
explosive gases during normal operation. Therefore, you must read this guide
and follow the instructions exactly before installing or using your inverter.
2. This equipment contains components which tend to produce arcs or sparks. To
prevent fire or explosion, do not install the PURESINE inverter in compartments
containing batteries or flammable materials, or in locations that require ignition-
protected equipment. This includes any space containing gasoline powered
machinery, fuel tanks, as well as joints, fittings, or other connections between
components of the fuel system.
1. Make sure the area around the battery is well ventilated.
2. Never smoke or allow a spark or flame near the engine or batteries.
3. Use caution to reduce the risk of dropping a metal tool on the battery. It could
spark or short circuit the battery or other electrical parts and could cause an
explosion.
4. Remove all metal items, like rings, bracelets, and watches when working with
lead-acid batteries. Lead-acid batteries produce a short circuit current high
enough to weld metal to skin, causing a severe burn.
5. Have plenty of fresh water and soap nearby in case battery acid contacts skin,
clothing, or eyes.
6. Wear complete eye protection and clothing protection. Avoid touching your eyes
while working near the batteries.
7. If battery acid contacts skin or clothing, wash immediately with soap and water. If
acid enters your eye, immediately flood it with running cold water for at least
twenty minutes and get medical attention immediately.
8. If you need to remove a battery, always remove the ground terminal from the
battery first. Make sure all accessories are off, so you don't cause a spark.
If you have any questions or need further assistance, please contact GoWISE USA
via email [e-mail] or phone [phone] between 8 am - 4 pm MTN.

5VDC,1A
3.7LBs 5.3LBs11.4LBs14.8LBs
1) Read the manual before use and keep it for future reference.
2) Don't put the inverter under sunlight, near a heating source, wet or humid environment.
3) The case housing of inverter will be hot when using, please keep the inverter away from
material that can't withstand high temperature, such as clothing, sleeping bags, carpets etc.
4) Our power inverter is designed to use with the negative ground electrical system! Don't use
with positive ground electrical systems (The majority of modern automobiles, RVs, trucks
and boats are negative ground).
5) Do not disassemble the unit , it may cause fire or electric shock.
6) Keep the inverter out of reach from children.
7) The power inverter will output AC power as utility power, please treat the output terminal as
carefully as your home AC socket. Don't put anything into the output terminal except
electrical appliance plug.
8) Disconnect the battery and inverter when it is not in use.
Our power inverter is an advanced tool of power conversion, and it can supply you with AC
power converted from DC power source. Not only can be used in cars, vessels and camping,
but also can be used in emergency if the power fails.
In order to use the inverter efficiently and safely, please install and use it in a proper way.
Please read the instruction carefully before installing and using the appliance.
1.
32°F ~ 104°F (0℃~40℃)
-14°F ~ 113°F (-10℃~45℃)
8.4"x5.5"x3" 11.5"x5.5"x3" 17.1"x9.3"x4" 22"x9.3"x4"
Pure sine wave (THD≤ 3%)
149°F ± 40°F(65℃±5℃)
5VDC,2.1A
Continuous output
frequency
Surge power
Input voltage range
(12V)
Input under voltage
activation (12V)
Input under voltage
protection (12V)
Input over voltage
protection (12V)
Input voltage
Output voltage
Output frequency
Output waveform
Conversion efficiency
Overload protection
Thermal protection
Use of advanced
microprocessor control
USB Output
Display
Intelligent cooling
Fuse(outer car fuse)
Dimension(LxWxH)
Weight
Working temperature
Storage temperature
& PS1004 & PS1005
Length of the remote
controller wire
PS1005
1500W
3000W
9.9LBs
15.8"x9.3"x4"
40Ax6
The fan starts
to work when
the load power
is larger than
100W,does
not work when
no load or
small load.
90%

The weight of the inverter is very heavy. Be sure to place the inverter on a stable
surface, such as the floor, a table, or stand etc. Make sure that areas you place the
inverter on can withstand the weight of the inverter. In addition, be sure to affix the
product with the provided screws to keep the inverter from falling or moving.
2. 3.
Before installing the PURESINE inverter, the area or location MUST meet the following
requirements:
● DRY – Do not allow water or other fluids to drip or splash on the PURESINE inverter.
DO NOT MOUNT THE INVERTER IN AN AREA SUBJECT TO SPLASHING WATER
AND SPRAY WATER.
● COOL – Normal air temperature should be between 32°F and 104°F (0°C and 40°C)-
the cooler the better.
● VENTILATED – Allow at least 5 in. (13cm) of space at the DC end of the PURESINE
inverter for air flow, 1 in. (2.5 cm) on each side, and 2 in. (5 cm) at the AC end of the
inverter. For cooling, the size of the space is not as important as the overall supply of air.
The more clearance for ventilation around the unit, the better the performance. DO NOT
allow the ventilation openings on the ends of the unit to become obstructed.
● SAFE – Do not install PURESINE in the same compartment as batteries or in any
compartment capable of storing flammable liquids like gasoline.
● CLOSE TO THE BATTERY COMPARTMENT AND THE AC SOURCE AND LOAD
PANELS. Avoid excessive cable lengths (which reduce input and output power due to
wire resistance). Use the recommended cable lengths and sizes.
WARNING: FIRE AND EXPLOSION HAZARD
This equipment contains components that tend to produce arcs and sparks. To
prevent fire or explosion, do not install the PURESINE in compartments
containing batteries or flammable materials or in locations that require ignition-
protected equipment. This includes any space containing gasoline-powered
machinery, fuel tanks, or joints, fittings, or other connections between
components of the fuel system.

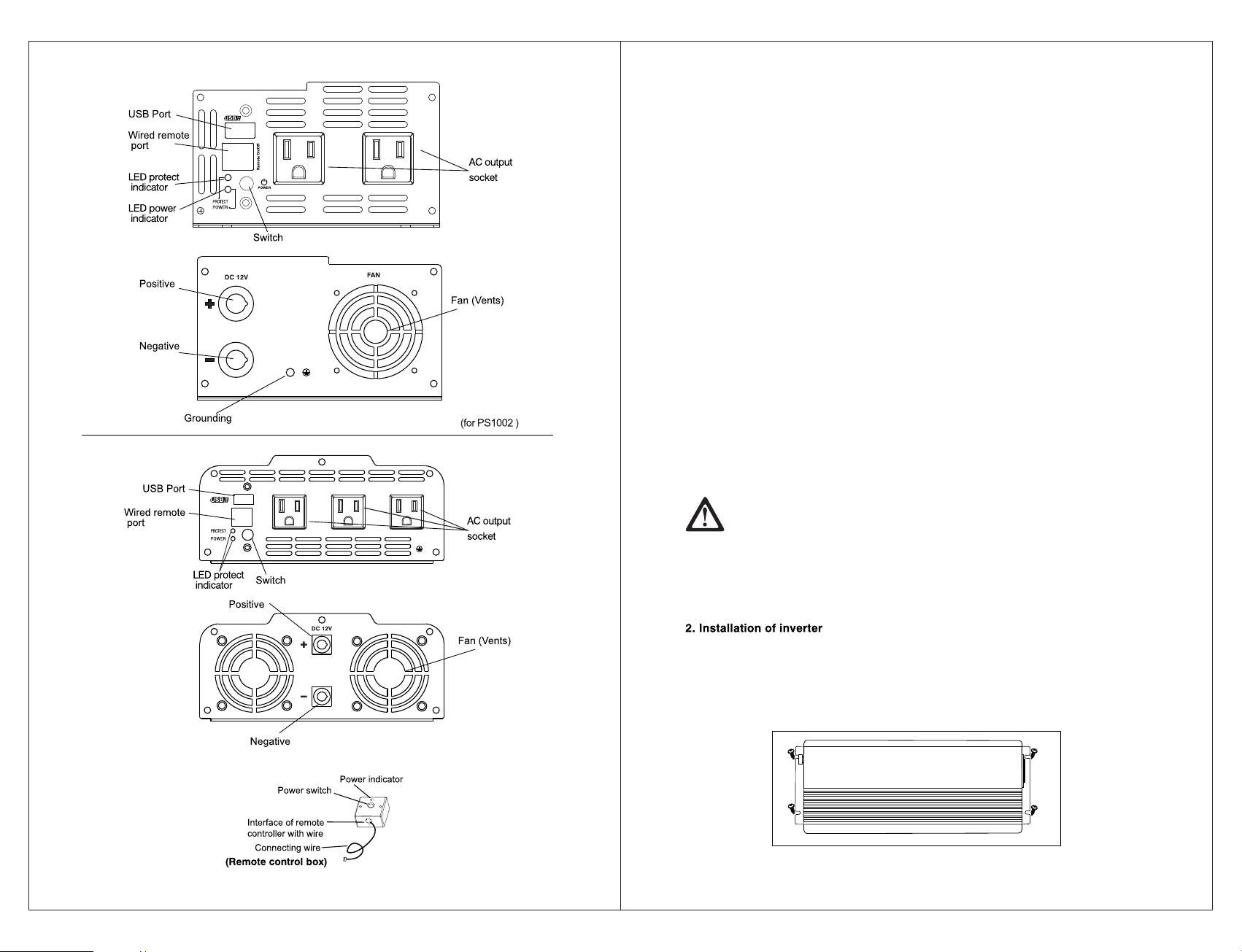

(for PS1003 & & )PS1004 PS1005
1. The requirements of the installation location.
4. INSTALLATION AREA

(For PS1002 & PS1003 & PS1004 ) & PS1005
Indication: This product can be used as normal pure sine wave inverter even if
not connected to the remote control box
4. 5.
CAUTION
Before making the final connection DC connection, check cable polarity at
both the battery and the PURESINE inverter. Positive must be connected to
positive; negative must be connected to negative. Reversing the positive
and negative battery cables will damage the PURESINE and void your
warranty. This type of damage is easily detected.
PS1002, PS1003 & PS1004 & PS1005
1. Check the output voltage and capacity of the battery, it should comply with the
requirement of the product used.
2. Connect the battery and the DC cable of the inverter, ensure that the polarities are not
reversed and are in good contact.
3. Turn on the switch. The green LED power indicator light should be on.
4. Turn off electrical appliance and insert the electrical appliance plug to the AC output
socket of the inverter. Turn on the electrical appliance for use.
5. Turn off the electrical appliance and inverter if you are no longer going to use them.
Disconnect the inverter from the battery if it will not be in use for a long period of time.
1. Check the output voltage and capacity of the battery, it should comply with the
requirement of the product used.
2. Connect the battery and the DC cable of the inverter, ensure that the polarities are not
reversed and are in good contact.
3. Press and hold the power switch on the inverter or the remote control box for at least
5 seconds. The power indicator on the inverter and remote control box should be on.
(This will avoid interference.)

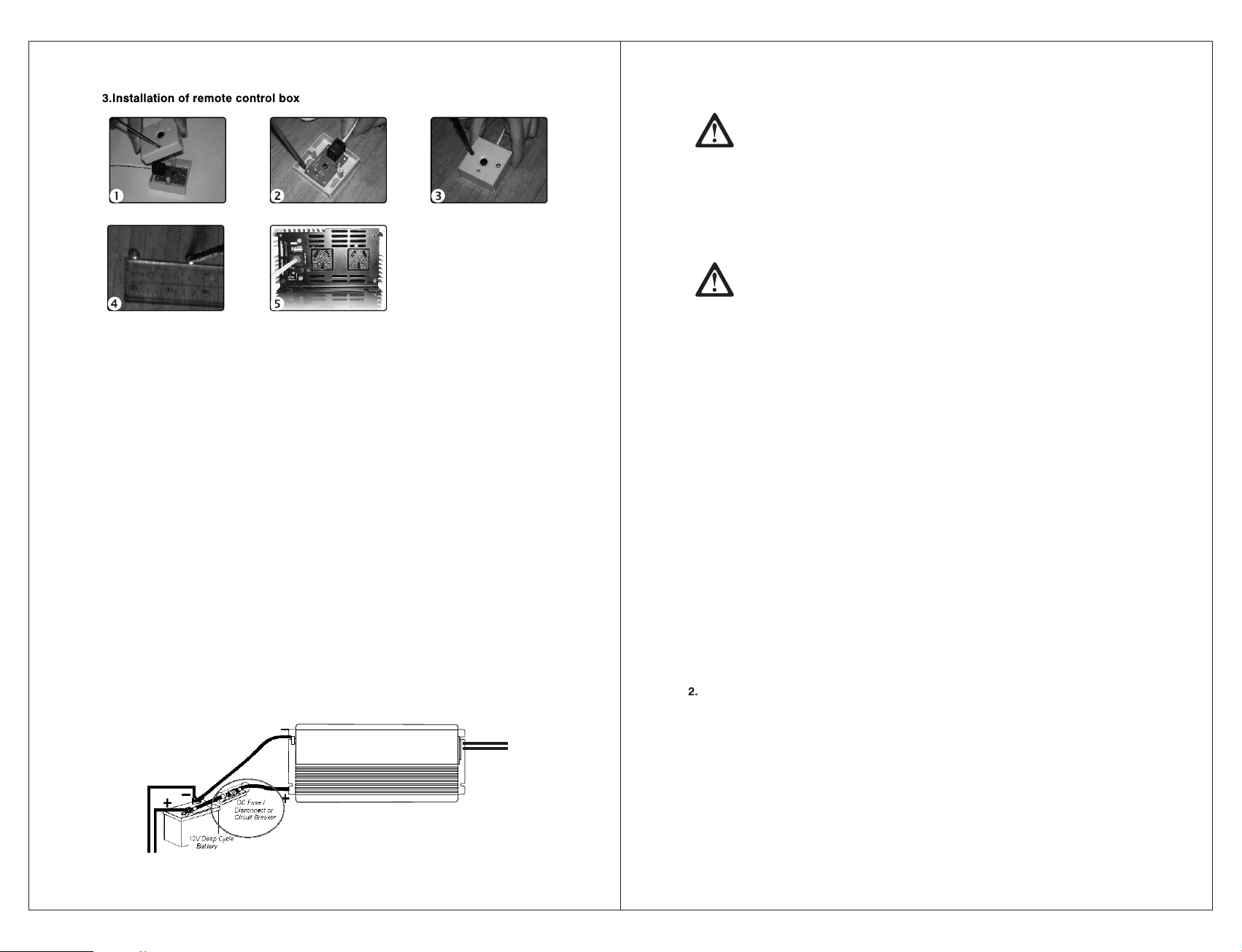

1) Open the cover of remote control box.
2) Fix the bottom of the remote control box on suitable place,such as wall,tabletop etc.
3) Close the cover of remote control box
4) If fixed in the vertical plane, first fix two screws in the position of 40mm apart on the
plane, then hang up the remote control box on it.
5) Connect the cable between the remote control box and inverter. 1. PS1001
HOW TO INSTALL THE DC CIRCUIT BREAKER (DC CIRCUIT BREAKER
IS NOT INCLUDED)
The DC circuit from the bettery to the inverter should be equipped with a disconnect
and over-current device. This usually consists of a circuit breaker, a “fused-
disconnect”, or a separate fuse and DC disconnect. Do not confuse AC circuit breakers
with DC circuit breaker. They are not interchangeable. The rating of the fuse or breaker
must be matched to the size of cables used in accordance with the applicable
installation codes. The breaker or disconnect and fuse should be located as close as
possible to the battery, in the positive cable. Applicable codes may be limited as to how
far the protection can be from the battery. The photo below is for your reference.
5. USING THE INVERTER
WARNING
Operation of the inverter without a proper ground connection may result in
an electrical safety hazard.
Chasis Ground (Grounding) : Ground to vehicle chassis using #8 AWG
wire.

1. Input under-voltage alarm: When the input DC voltage is lower than 10.6V, the
buzzer will whistle intermittently to warn the user that the inverter will go into the under
voltage protection. If this happens, be sure to save all your data if a computer is being
used.
2. Under voltage protection: The inverter will automatically shut down when the input
DC voltage is lower than 10V and the buzzer will whistle continuously. The green light
will turn off and the red light will turn on. Please turn of the inverter and charge the
battery before continuing use.
3. Over voltage protection: The inverter will automatically shut down when the input
DC voltage is higher than 16V. The buzzer will whistle continuously and the switch
indicator light will turn on. If this happens, turn off the inverter and adjust the input
voltage to the allowed range.
4. Overload protection: The inverter will automatically shut down when the load power
is higher than the rated power. The buzzer will whistle continuously. Turn off the inverter
and resume normal operation after taking away the redundant load.
5. Thermal protection: The unit will be hot during operation. If the temperature is higher
than 149°F , the inverter will automatically shut down. Then the buzzer will whistle
continuously and the green light is off, red light is on. Please turn off the inverter, and
continue using it after the temperature goes back to normal temperature naturally.
Meanwhile find out what factors are causing the fault, such as ventilation, ambient
temperature, vent, load power and so on. This can avoid that similar things don't
happen after checking it.
7.
6.
3. How to use USB power supply
, ,
1003 & PS1004 2.1 ,
.
Notice: using the USB power supply, please make sure the device can be charged
by USB and the maximum working current is no more than 1000mA (PS1003 & PS1004
the maximum working current is no more than 2.1A).
This model with USB output can provide stable 5V DC voltage the maximum current is
1000mA (PS maximum current is A) can directly provide power for the
portable device with USB port
Before
600≈4 hours

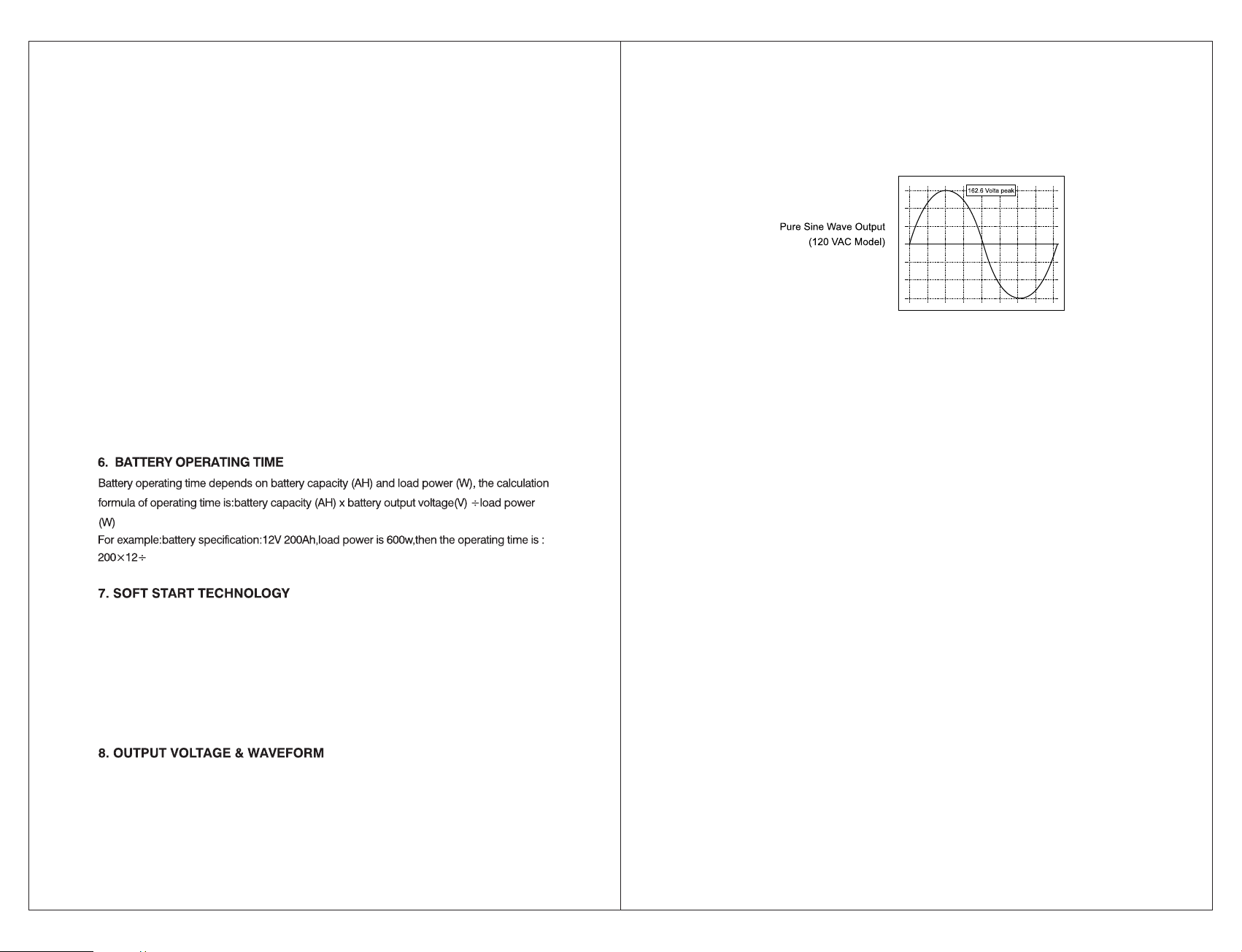

The output waveform of the inverter is pure sine wave, which has the same
waveform of the sine utility power, even higher than the purity of the domestic power.
This kind of waveform is suitable for most electrical appliances, including linear and
switching in electronic equipments, transformers, motor etc. Compared with
4. Turn off electrical appliance and insert the electrical appliance plug to the AC
output socket of the inverter. Turn on the appliance for use.
5. The inverter's cooling fan will start running when the case temperature reaches
about 100°F.
6. When the inverter is not in use, turn the inverter off by pressing the power switch on
the inverter or remote control box. The power indicator light should be off. This will
conserve the battery power.
modified sine wave inverters, the power factor and power utilization of electric fans,
refrigerators and other inductive loads can be improved by using pure sine wave
inverter, and the noise during appliance operation can be effectively reduced too.
The unit has the latest soft start technology, that is, the output voltage gradually
increases to the normal value from low value after the inverter is turned on. It can
reduce the transient large current attack and help to start the hard start load
For large power inductive load, such as electrical motor or capacitive loads such as
Large Power SMPS adopt soft start. Please turn on the switch of load, then turn on the
switch of inverter.

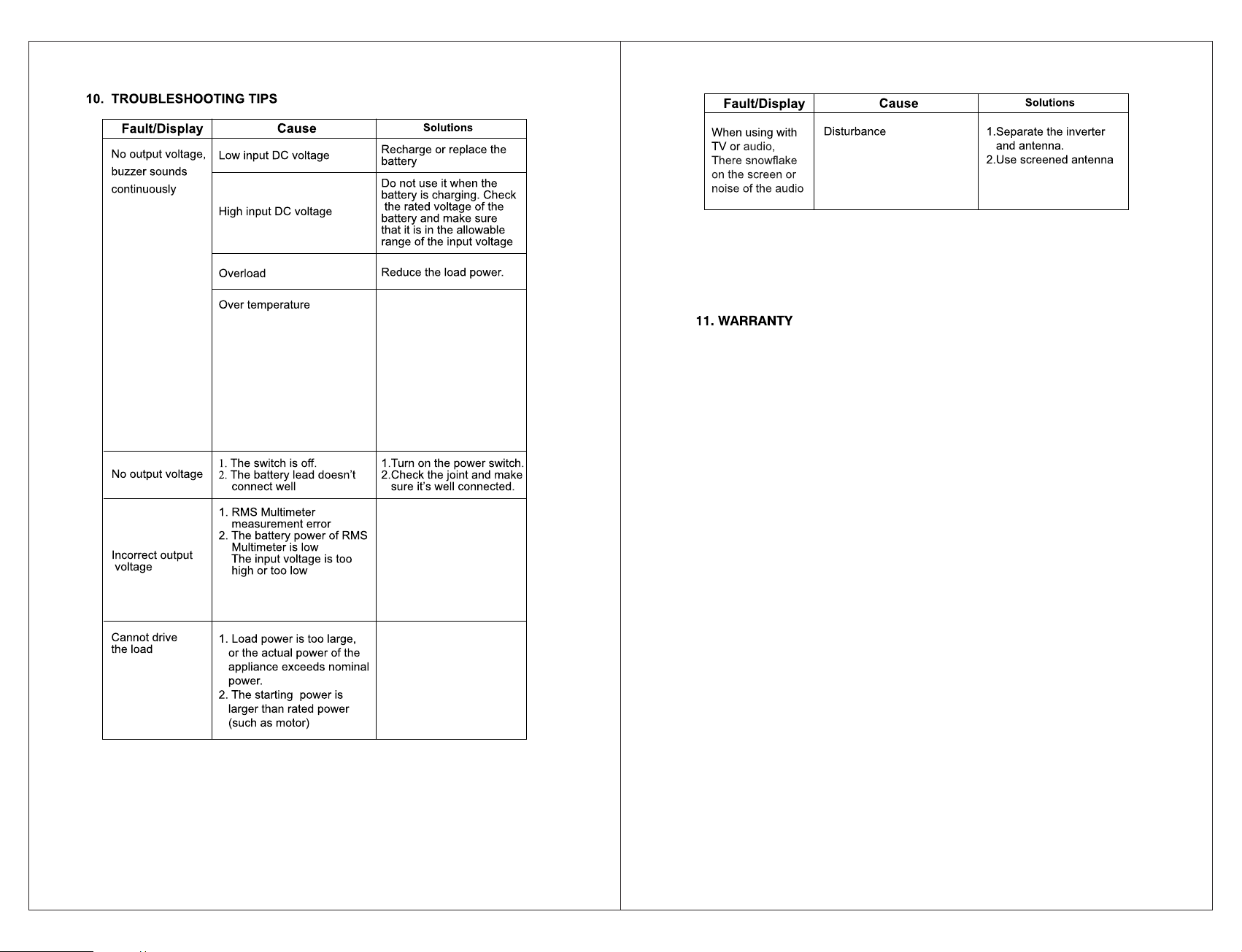

9.FUNCTIONS

Cut off the load and keep
it cool naturally for 10 to
30 minutes. Restart it after
it returns to nomal
temperature. The load
power is too large and
reduce the total load
power to the range of
rated power. Avoid
blocking the vent and
improve the ventilation
condition. Reduce the
ambient temperature.
8. 9.
This product is warrantied against defects in materials and workmanship
for one year from the date of purchase, when used in accordance with the
instructions provided. This warranty does not cover damages or wear
resulting from accident, misuse, abuse, commercial use, or unauthorized
adjustment and/or repair.
GoWISE USA shall not be liable for loss of use or any other incidental,
consequential or indirect costs, expenses or damages. There are no express
warranties except as listed above. This warranty gives you specific legal
rights, and you may have other rights which vary from state to state.
Should this product require service (or replacement at our option) while
under warranty, CALL 1-855-233-9199 for RETURN INSTRUCTIONS. Be sure
to keep your receipt showing the date of purchase.
GoWISE USA
3000 E. Chambers St.
Phoenix AZ 85040
www.gowiseusa.com
1-855-233-9199
Reduce a load power,
or open the appliance first,
then open the inverter,
The inverter internal
soft-start circuit to buffer
start the appliances.
If the inverter still malfunctions after all solutions mentioned above are tried,
please contact GoWISE USA for warranty instructions.
1. Use a true RMS multimeter
to measure, such as the
model FLUKE 177/179.
2.Try to maintain the input
voltage in the range of
rated power
3.Change the battery of the
multimeter then test again.
