Gozney Arc User manual

EU DOC-0509-05
Technical Manual
Arc & Arc XL

Live-Fire cooking made easy.

4
Introduction
WARNING
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
An LPG cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odour continues, keep away from the
appliance and immediately call your fire
department.

5
Never operate this appliance in enclosed
areas. Failure to follow these instructions
could result in fire or explosion which
could cause property damage, personal
injury or death.
Never operate this appliance unattended.
Never operate this appliance within 1.5m
of any structure, combustible material or
other gas cylinder.
Never operate this appliance within 7.5m
of any flammable liquid.
Do not fill the cooking vessel beyond the
limitation of the door dimensions.
Heated liquids remain at scalding
temperatures long after the cooking
process. Never touch cooking appliance
until liquids have cooled to 45C or less.
If a fire should occur, keep away from the
appliance and immediately call your fire
department. Do not attempt to extinguish
an oil or a grease fire with water.
This appliance must be kept away from
flammable materials during use.
Use outdoors only.
Do not modify the appliance.
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and
instructions when using the appliance. Keep this manual
for future reference.

6
Contents
GENERAL ADVICE 
EU DECLARATION OF COMFORMITY 
END OF LIFE 
PRODUCT OVERVIEW 
DATA PLATE 
 OPERATION & INSTALLATION 
SAFETY CONSIDERATIONS 
FIRE 
CARBON MONOXIDE 
 SETUP & ACCESSORIES 
ADJUSTING THE STONES 
INSTALLING THE FLUE
& BURNER GUARD 
MOVING THE OVEN 
OVEN PLACEMENT 
DIGITAL TEMPERATURE DISPLAY 
SET UP 
RECOMMENDED TEMPERATURE RANGES 
TROUBLESHOOTING 
E ERROR CODE 
E ERROR CODE 
OPTIONAL ACCESSORIES 
ARC MANTEL 
ARC BOOSTER 
ARC COVER 
 FIRING UP GAS 
CONNECTING TO GAS 
GAS SAFETY 
INSTALLING THE
IGNITER BATTERY 
CONNECTING THE GAS HOSE 
PUSH FIT REGULATOR 
CLOCKWISE/ANTICLOCKWISE
REGULATOR 
TESTING FOR LEAKS 
IGNITION 

7
FIRST FIRING 
TROUBLESHOOTING GAS BURNER 
DISCONNECTING GAS 
PUSH FIT REGULATOR 
CLOCKWISE/ANTICLOCKWISE
REGULATOR 
 GENERAL MAINTENANCE 
MAINTENANCE 
CLEANING THE VENTURI 
CLEANING THE OVEN 
INTERNAL 
EXTERNAL 
REPLACING THE PROBE 

8
Arc gets extremely hot and should not be
used by children. Do not allow children
near the device during or after operation.
Arc can stay hot for a few hours after use.
Do not use under any apartment or
balcony or deck.
This appliance is for cooking purposes
only. It must not be used for other
purposes, for example heating a room.
Arc has not been designed or intended to
be used on a boat or within a recreational
vehicle or any other form of confined
area.
Assembly and operation of the oven
should be carried out by a competent
person.
The use of alcohol, prescription or
non-prescription drugs may impair the
consumers ability to assemble or operate
the device safely.
Do not use any plastic or glass utensils
within Arc.
Use heat-resistant gloves when operating
the oven.
Do not insert items into Arc that are
bigger than the dimensions of the oven
mouth.
Do not over fill Arc or cover the burner.
Do not move Arc whilst in operation.
Do not operate Arc in strong winds.
Winds can extinguish the flame and also
cause irregular air pressure resulting in
the flame and heat coming out the back
of Arc. Use a wind break in open areas
but keeping over 45cm away from the
device.
Do not pour water on to the cooking
stone as this will likely crack it and could
be dangerous because of oil and grease.
Do not wear loose flammable clothing or
sleeves near Arc.
Parts sealed by the manufacturer or the
agent shall not be manipulated by the
user.
Never use gas and wood simultaneously.
For replacement parts "/contact us at
[e-mail] / inquiries@
gozney.com
GENERAL ADVICE

9
EU DECLARATION OF
CONFORMITY
Manufacturer’s Name: Gozney Limited
Manufacturer’s Address: Gozney Group
Ltd, Bobbys, Third floor,The Square, 2-12
Commercial Rd, Bournemouth BH2 5LP.
Herewith declare that this product
Product: Arc Oven, Arc XL oven
Type(s):
Arc: GOZ-1485
Arc XL: GOZ-1728
Trade name: Arc, Arc XL
Is in conformity with the following EC
directives:
- Gas Appliance Regulation (EU)
2016/426
- Gas Appliances (Enforcement) and
Miscellaneous Amendments Regulations
2018 (UK Statutory Instrument 2018 No.
389)
and that the following harmonized
standards have been applied:
EN 498:2012
END OF LIFE
At product's end of life, please dispose
responsibly.

10
Thermometer
Burner Guard
Gas Control Dial
Gas Hose & Regulator
Product Overview - What's in the Box
Oven
Dock
Flue Outlet

11
Gas Inlet
Torx Screwdriver
Stone Adjustment
Tool

12
Data Plate
Read the instructions before installing and using the appliance.
This appliance must be installed according to the regulations in force and only used
in a well ventilated space.
WARNING: accessible parts may be very hot. Keep young children away.
Pin Code: XXXX/XX/XXXXX
Suitable for outdoor use only.
Gozney Group Ltd, Bobbys, Third floor, The Square, 2-12 Commercial Rd, Bournemouth BH2 5LP
Appliance Name: Gozney Arc
Gozney Arc XL
Model/Type No.:
Arc:
Arc XL:
GOZ-1485
GOZ-1728
Trade name: Gozney Arc
Gozney Arc XL
Total nominal output for the gas burner:
Arc:
Arc XL:
4.5 kW for I
B/P()
I
P()
I
3+(28-30/37)
I
B/P()
I
P()
I
P()
I
B/P()
5.5 kW for I
B/P()
I
P()
I
3+(28-30/37)
I
B/P()
I
P()
I
P()
I
B/P()
XXXX-XX
23
2575

13
ARC
ARC XL
Total nominal heat output for the gas burner 5.5kW for IB/P()IP() I3+(28-30/37)IB/P() IP() IP() IB/P()
Injector size 1.02mm 1.14mm 1.15mm
Gas Category IB/P() IP() I3+(28-30/37) IP() IB/P() IB/P() IP()
Gas Type Butane, Propane
or their mixture
Propane Butane Propane Propane Butane, Propane
or their mixture
Butane, Propane or
their mixture
Propane
Gas Pressure 50 mbar 50 mbar 28-30 mbar 37 mbar 37 mbar 37 mbar 30 mbar 30 mbar
Destination
countries
AT, CH, DE,
LU, NL
AT,
CH,DE,
LU, NL
BE, CH, CY, CZ, ES, FR,
GB, GR, HR, IE, IT, LV,
LU, PL, PT, SK, SI
BE, FR, IT, IE, GB,
GR, PT, ES, CZ,
LT, SK, CH, SI, HR,
NL, PL
BE, CH, CY, CZ,
ES, FR, GR, HR,
IE, IT, LV, LU, PL,
PT, SI
AL, BE, BG, CY, HR,
DK, EE, FI, FR, HU, IS,
IT, LT, LU, MT, MK, NL,
NO, RO, SI, SE, TR
AL, BE, BG, CY, HR, DK,
EE, FI, FR, HU, IS, IT,
LT, LU, MT, MK, NL, NO,
RO, SI, SE
Total nominal heat output for the gas burner 4.5kW for IB/P()IP() I3+(28-30/37)IB/P() IP()IP() IB/P()
Injector size 0.96mm 1.04mm 1.07mm
Gas Category IB/P() IP() I3+(28-30/37) IB/P() IP() IB/P() IP()
Gas Type Butane, Propane
or their mixture
Propane Butane Propane Butane, Propane
or their mixture
Propane Butane, Propane or
their mixture
Propane
Gas Pressure 50 mbar 50 mbar 28-30 mbar 37 mbar 37 mbar 37 mbar 30 mbar 30 mbar
Destination
countries
AT, CH, DE,
LU, NL
AT,
CH,DE,
LU, NL
BE, CH, CY, CZ, ES, FR,
GB, GR, HR, IE, IT, LV,
LU, PL, PT, SK, SI
BE, CH, CY, CZ,
ES, FR, GR, HR,
IE, IT, LV, LU, PL,
PT, SI
BE, FR, IT, IE, GB,
GR, PT, ES, CZ,
LT, SK, CH, SI,
HR, NL, PL
AL, BE, BG, CY, HR,
DK, EE, FI, FR, HU, IS,
IT, LT, LU, MT, MK, NL,
NO, RO, SI, SE, TR
AL, BE, BG, CY, HR, DK,
EE, FI, FR, HU, IS, IT,
LT, LU, MT, MK, NL, NO,
RO, SI, SE

1
This section details the correct operation and install of a
Gozney Arc.

Operation & Installation

16
SAFETY CONSIDERATIONS
This appliance must be installed on a
secure level base prior to use.
WARNING: This appliance will become
very hot, do not move it during
operation.
WARNING: Keep away from children
and pets.
The Arc unit and the burner must
always be well ventilated.
The appliance must be installed under
a suitable extraction hood to evacuate
any substances harmful to health in the
room in which they are installed.
Do not move or leave Arc unattended
whilst in use.
Do not operate Arc in strong winds.
Wind can extinguish flame.
Do not burn wood in this oven.
The oven can become very hot. Do not
use the accessory hatch when the oven
is in operation.
Do not wear flammable loose garments
or sleeves.
Do not cover oven mouth when there
is an active flame, this will cause
damage to the oven.
This oven is not intended to be
installed in or on recreational vehicles.
Product may contain sharp edges!
Please use caution.
WARNING: Contact your local
municipality for any building codes
applicable to the use, installation
and operation of outdoor barbecue
appliances.

17
CARBON MONOXIDE
Carbon Monoxide is a highly
poisonous gas which can be produced
when the device isn’t receiving
enough ventilation.
We therefore recommend using wood
or gas fuels in a well ventilated area
away from direct wind and to never
cover the oven mouth when there is an
open flame present.
It is difficult to know if your device is
producing Carbon Monoxide as it is an
odourless and colourless gas.
It can, however cause these symptoms
when you are exposed to it:
• Tightness across the forehead
• Headache
• Weakness
• Dizziness
• Nausea
• Vomiting
• Coma, intermittent convulsions
• Depressed heart action, slowed
respiration
If the exposure has been severe it may
cause death.
Please follow local regulations and
install a CO alarm if necessary.
FIRE
Most fires are caused by a build up of
grease, or (if using gas) an improper gas
connection. In the event of a fire ensure
all people and pets are kept as far away
as possible.
Use a fire extinguisher if possible, but if
water is the only fire retardant available,
thoroughly soak the area around the
appliance. When spraying water on Arc
itself, do not use a strong jet of water,
as this may cause splashing of burning
grease, resulting in a further spreading
of the fire.

2
This section details the set up of the oven and the
accessories included with your Arc.

Setup & Accessories

20

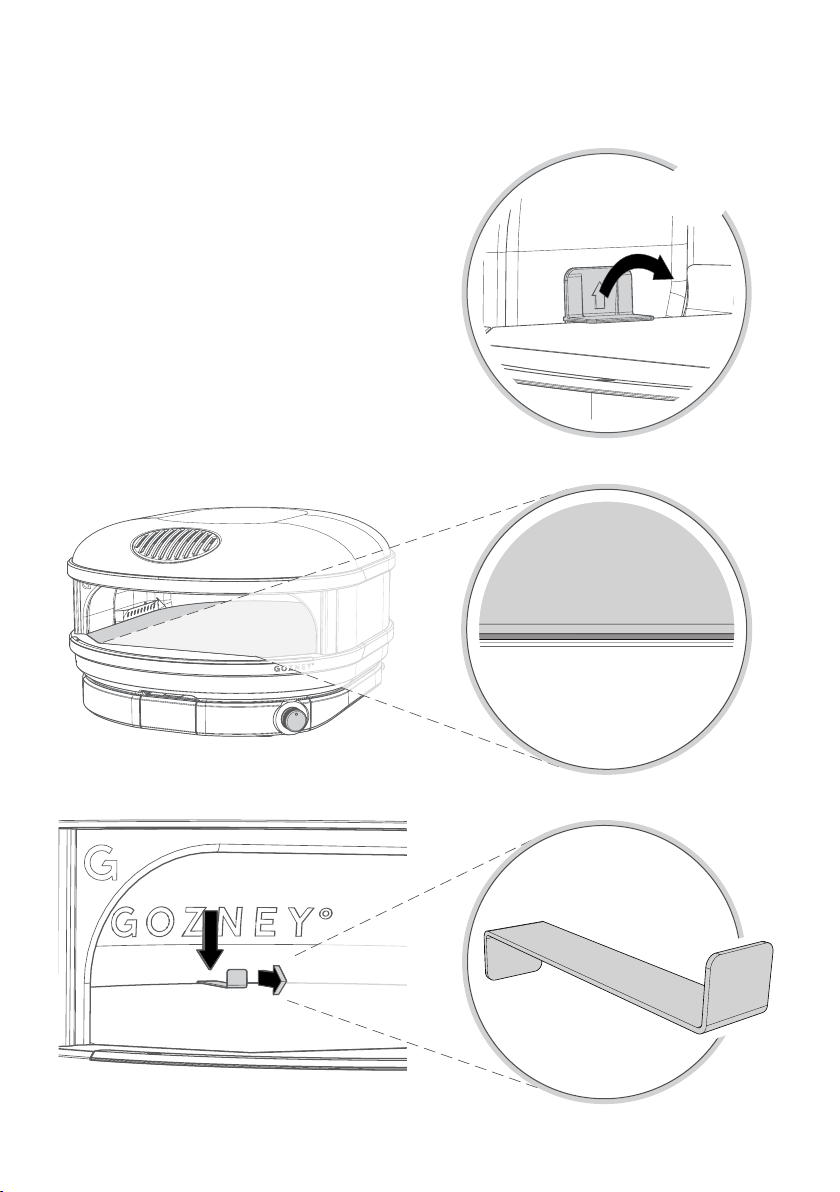

Adjusting The Stones
Before using Arc it is important that the
four blue stone retention wedges and
other packaging inside of the oven are
removed.
The removable stone design of Arc
means that it is not fixed inside the oven
and as such can shift backwards during
transport. If there is a large visible gap at
the front of the stone, you can use the
included stone adjustment tool to hook
the back of the stone and pull it forward.
x4
