10 NEMOGRABO®INTRODUCTIONTheNemoGRABO®isaportableelectricvacuumliftingdeviceintendedtolift,move,andplaceobjectssuchastiles,stonepavers,drywall,glassandfurniture.TheNemoGRABO®isdesignedtoworkwithdry,roughandslightlyporousmaterial.TheNemoGRABO®isnotintended:ltobeusedforclimbingorsecuringthehumanbodyinanyway.Thisproductisnotdesignedorintendedforclimbingortosupportaperson’sweight.Usingthisproductforclimbingoranyotherunintendedpurposemayresultininjuryordeath.ltolift,move,orplaceobjectsconsistingofveryporous,soft/flexible,andcrumblingmaterials,suchassimplecardboardboxes,styrofoam,drycastpavers,compressedsand,orbadqualityconcrete.!Readthisinstructionmanualcarefullybeforeuseandsaveitforfuturereference➋
TECHNICALSPECIFICATIONSElectricvacuumliftingdeviceNemoGRABO®Dimensions297x181x118mm/11.7x7.1x4.7inchesNetweight(withbattery)1.6kg/3.3lbsBatteryBatterytypeLi-ion2600mAh/14.8V(4xcells3.7V)Batteryratedcapacity2.6AhNominalvoltage/Chargevoltage14.8V/16.8VChargecurrent520mARatedpower16WOverchargeprotection4.25VWorkingtime(fullcharge)1.5hoursOperatingtemperature0°C...+45°C/+32°F...+115°FCharge-20°C...+60°C/-4°F...+140°FDischargeStoragetemperaturebattery-40°C...+125°C/-40°F...+257°FLong-termstoragebattery(>3months)+5°C...+20°C/+40°F...+70°FChargedto14.4–15.6V(80–90%offullcharge)ENNLDEFRESITSEDKARRUTR

BatterychargerChargingoutputvoltage16.8Vrated;8-12VunderloadChargingoutputcurrent200-400mAunderload,1.4AmaxCharginginput100-240VAC;50/60Hz;1.5Amax.Ratedpower23.52WOperatingtemperature0°C…+40°C/+32°F...+105°FStoragetemperature-20°C...+85°C/-4°Fto+185°FWorkingconditionsIndooruseonly;notwaterproof(IP0)NEMOGRABO®liftingcapacityNOTICE:TheNemoGRABO®wastestedupto240kg(530lbs)atmaximumliftingforceunderidealconditions.However,thisfigureisthebreakingpointunderoptimallabtestingconditionsandmustneverbereachedinreal-worldapplications!LocalregulationsrequiredifferentsafetymarginstobeusedandtheofficialtoolWorkingLoadLimit(WLL)issetto120kg(265lbs)basedona2:1ratioonanon-poroussurface.TheWorkingLoadLimitof120kg(265lbs)isone-halfofthetestedmaximumliftingforceunderidealconditions(240kg/530lbs)andshouldbeadheredtowhenworkingincountrieswherethe2:1safetymarginapplies,regardlessofthefactthatthechartbelowshowsamaximumliftingforceof170kg(375lbs).InnocaseshouldtheNemoGRABO®beusedtoliftmorethan170kg(375lbs).Usethechartbelowtoestimatesafeliftingvalues:WLL:120kg(265lbs)onnon-poroussurfacesIMPORTANT:Theliftingforceishighlydependentontheliftedsurfaceandfactorssuchastemperature,altitude(ambientpressure),andotherfactors.AlwayscheckthepressuredisplayedontheNemoGRABO®PressuregaugeⒼanddonotrelysolelyontheestimatedmaximumliftingforceschartwhenliftingdifferentmaterialssincedifferentfactorsrelatedtoyourspecificapplicationmayreduceliftingcapabilitiesofthetool.11
NEMO GRABO® | Operator’s manual

12 EstimatedmaximumliftingforcesastestedondifferentmaterialsPerpendicularholdingforce⓫Parallelholdingforce⓬
Glass170kg/375lbs120kg/265lbsCeramictile170kg/375lbs120kg/265lbsMetal110kg/242lbs110kg/242lbsPlastic100kg/220lbs100kg/220lbsWood100kg/220lbs65kg/143lbsRoughconcrete80kg/176lbs80kg/176lbsDrycastpavers80kg/176lbs80kg/176lbsDrywall75kg/165lbs65kg/143lbsWARNING:SwitchingthegreenmotorpowerbuttonⒸonisadvisedwhenapproaching-0.2bartoavoidlossofvacuum/suction/negativepressureandloaddetachment.GeneralspecificationsRunningcycles(onfullcharge)900ON-OFFcyclesof10secondsRatedairflow20l/min(0.7cfm)ApplicablesurfacetypePeak/valleyheightslessthan3mm/0.1inch,arclessthan5°SCOPEOFDELIVERYNOTICE:Theexactscopeofdeliverymaychange,butitwillalwayscontaintheitemslistedbelow.Ifyourdeliverycontainsanyadditionalitems,thesewillbelistedseparately.SeeSparePartsformoreinformationonorderingspareparts.BASICNEMOGRABO®SCOPEOFDELIVERY:lNemoGRABO®(toolonly)lMulti-socketbatterychargerlBatterylFabricbagORBlowmoldcaselOperator’smanualTOOLELEMENTS❶
A.BatteryF.Attachmentrings(4x)B.RedvacuumreleasebuttonG.PressuregaugeC.GreenmotorpowerbuttonH.RubberfoamsealD.PowerON/OFFswitchI.AirfilterpadE.BatterybarindicatorJ.AirfilterlockringENNLDEFRESITSEDKARRUTR

SAFETYGENERALPOWERTOOLSAFETYWARNINGSWARNING:Readallsafetywarnings,instructions,illustrationsandspecificationsprovidedwiththispowertool.Failuretofollowallinstructionslistedbelowmayresultinelectricshock,fireand/orseriouspersonalinjury.Saveallwarningsandinstructionsforfuturereference.Theterm"powertool"inthewarningsreferstoyourmains-operated(corded)powertoolorbattery-operated(cordless)powertool.1)WORKAREASAFETYa.Keepyourworkareacleanandwelllit.Clutteredbenchesanddarkareasinviteaccidents.b.Donotoperatepowertoolsinanexplosiveatmosphere,suchasinthepresenceofflammableliquids,gases,ordust.Powertoolscreatesparkswhichmayignitedustorfumes.c.Keepchildrenandbystandersawaywhileoperatingapowertool.Distractionscancauseyoutolosecontrol.2)ELECTRICALSAFETYa.Powertoolplugsmustmatchtheoutlet.Nevermodifythepluginanyway.Donotuseanyadapterplugswithearthed(grounded)powertools.Unmodifiedplugsandmatchingoutletswillreduceriskofelectricshock.b.Avoidbodycontactwithearthedorgroundedsurfacessuchaspipes,radiators,rangesandrefrigerators.Thereisanincreasedriskofelectricshockifyourbodyisgrounded.c.Donotexposepowertoolstorainorwetconditions.Waterenteringapowertoolwillincreasetheriskofelectricshock.d.Donotabusethecord.Neverusethecordforcarrying,pullingorunpluggingthepowertool.Keepcordawayfromheat,oil,sharpedgesormovingparts.Damagedorentangledcordsincreasetheriskofelectricshock.e.Whenoperatingapowertooloutdoors,useanextensioncordsuitableforoutdooruse.Useofacordsuitableforoutdoorusereducestheriskofelectricshock.f.Ifoperatingapowertoolinadamplocationisunavoidable,usearesidualcurrentdevice(RCD)protectedsupply.UseofaRCDreducestheriskofelectricshock.3)PERSONALSAFETYa.Stayalert,watchwhatyouaredoingandusecommonsensewhenoperatingapowertool.Donotuseapowertoolwhileyouaretiredorundertheinfluenceofdrugs,alcoholormedication.Amomentofinattentionwhileoperatingpowertoolsmayresultinseriouspersonalinjury.b.Usepersonalprotectiveequipment.Alwaysweareyeprotection.Protectiveequipmentsuchasadustmask,nonskidsafetyshoes,ahardhat,orhearingprotectionusedforappropriateconditionswillreducepersonalinjuries.c.Preventunintentionalstarting.Ensuretheswitchisintheoff-positionbeforeconnectingtoapowersourceand/orbatteryandpickinguporcarryingthetool.Carryingpowertoolswithyourfingerontheswitchorenergizingpowertoolsthathavetheswitchoninvitesaccidents.d.Removeanyadjustingkeyorwrenchbeforeturningthepowertoolon.Awrenchorakeyleftattachedtoarotatingpartofthepowertoolmayresultinpersonalinjury.e.Donotoverreach.Keepproperfootingandbalanceatalltimes.Thisenablesbettercontrolofthepowertoolinunexpectedsituations.f.Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhairandclothingawayfrommovingparts.Looseclothes,jewelleryorlonghaircanbecaughtinmovingparts.13
NEMO GRABO® | Operator’s manual

14 g.Ifdevicesareprovidedfortheconnectionofdustextractionandcollectionfacilities,ensuretheseareconnectedandproperlyused.Removalofdustcanreducedust-relatedhazards.h.Donotletfamiliaritygainedfromfrequentuseoftoolsallowyoutobecomecomplacentandignoretoolsafetyprinciples.Acarelessactioncancausesevereinjurywithinafractionofasecond.4)POWERTOOLUSEANDCAREa.Donotforcethepowertool.Usethecorrectpowertoolforyourapplication.Thecorrectpowertoolwilldothejobbetterandsaferattherateforwhichitwasdesigned.b.Donotusethepowertooliftheswitchdoesnotturnonandoffeasily.Anypowertoolthatcannotbecontrolledwiththeswitchisdangerousandmustberepaired.c.Disconnecttheplugfromthepowersourceand/orremovethebattery,ifdetachable,fromthepowertoolbeforemakinganyadjustments,changingaccessories,orstoringpowertools.Suchpreventivesafetymeasuresreducetheriskofstartingthepowertoolaccidentally.d.Storeidlepowertoolsoutofthereachofchildrenanddonotallowpersonsunfamiliarwiththepowertoolortheseinstructionstooperatethepowertool.Powertoolsaredangerousinthehandsofuntrainedusers.e.Maintainpowertools.Checkformisalignmentorbindingofmovingparts,breakageofpartsandanyotherconditionthatmayaffectthepowertool’soperation.Ifdamaged,havethepowertoolrepairedbeforeuse.Manyaccidentsarecausedbypoorlymaintainedpowertools.f.Keepcuttingtoolssharpandclean.Properlymaintainedcuttingtoolswithsharpcuttingedgesarelesslikelytobindandareeasiertocontrol.g.Usethepowertool,accessoriesandtoolbitsetc.inaccordancewiththeseinstructions,takingintoaccounttheworkingconditionsandtheworktobeperformed.Useofthepowertoolforoperationsdifferentfromthoseintendedcouldresultinahazardoussituation.h.Keephandlesandgraspingsurfacesdry,cleanandfreefromoilandgrease.Slipperyhandlesandgraspingsurfacesdonotallowforsafehandlingandcontrolofthetoolinunexpectedsituations.5)BATTERYTOOLUSEANDCAREa.Rechargeonlywiththechargerspecifiedbythemanufacturer.Achargerthatissuitableforonetypeofbatterymaycreateariskoffirewhenusedwithanotherbattery.i.Usepowertoolsonlywithspecificallydesignatedbattery.Useofanyotherbatterymaycreateariskofinjuryandfire.j.Whenbatteryisnotinuse,keepitawayfromothermetalobjects,likepaperclips,coins,keys,nails,screwsorothersmallmetalobjects,thatcanmakeaconnectionfromoneterminaltoanother.Shortingthebatteryterminalstogethermaycauseburnsorafire.k.Underabusiveconditions,liquidmaybeejectedfromthebattery;avoidcontact.Ifcontactaccidentallyoccurs,flushwithwater.Ifliquidcontactseyes,additionallyseekmedicalhelp.Liquidejectedfromthebatterymaycauseirritationorburns.l.Donotuseabatteryortoolthatisdamagedormodified.Damagedormodifiedbatteriesmayexhibitunpredictablebehaviorresultinginfire,explosionorriskofinjury.m.Donotexposeabatteryortooltofireorexcessivetemperature.Exposuretofireortemperatureabove130°C/265°Fmaycauseanexplosion.n.Followallcharginginstructionsanddonotchargethebatteryortooloutsidethetemperaturerangespecifiedintheinstructions.Chargingimproperlyorattemperaturesoutsidethespecifiedrangemaydamagethebatteryandincreasetheriskoffire.ENNLDEFRESITSEDKARRUTR

6)SERVICEa.Haveyourpowertoolservicedbyaqualifiedrepairpersonusingonlyidenticalreplacementparts.Thiswillensurethatthesafetyofthepowertoolismaintained.b.Neverserviceadamagedbattery.Serviceofbatteryshouldonlybeperformedbythemanufacturerorauthorizedserviceproviders.VACUUMLIFTINGDEVICESAFETYWARNINGS/INSTRUCTIONSa.Donotdeliberatelytrytoriptheloadoffwithextremeforce.Thereisariskoftheloadcrushingfeetandhandsanddamagingtheobjectandtool.b.Donotliftobjectsweighingmorethan170kg(375lbs).Thereisarisktheweightcanfalloff.c.Riskofloadcrushingfeetandhandsanddamagingtheobjectandtool.Donotshakethetoolwhilelifting,movingandplacingobjects.Donotswingorshaketheloadwhilelifting,movingandplacingobjects.Donotusethetoolwhenthesealiswornout.Liftandcarrytheloadwithuniformspeedwithoutsuddensharpandstrongmovements.d.Donotusethetoolwhilethebatteryislow.Thereisariskofinjuryanddamagetothematerialsbeinglifted.e.Ifthesealingforcebeginstonoticeablydecreasewhilethebatteryisfullycharged,checktherubberfoamsealforwearandtearordamage.Donotattempttoliftanythingwiththetooluntilyouhavereplacedtheseal.f.Usecautionwhenliftinglargethinflexiblesheets,likedrywall,cardboard,plastic,plywood,thinsheetmetaletc.Thinsheetsbendandflexandcanunexpectedlychangecurvatureabovetheirlimitanddetach.g.Donotattachthetooltosurfaceswithvisiblepuddlesofwater.Internalcomponentsarenotwaterproof.Ifwaterissuckedintotheairductsitcancausepermanentdamagetothetool.TheNemoGRABO®isnotwaterproofandthereforeextremecautionshouldbetakenwhenusingitintherainorwetconditions.h.Donotdropthetoolfromheightsabove1.5meterabovetheground(chestlevel).Ifdroppedbyaccident,inspectthesealsidelipsfordamage.i.Donotplaceheavyobjectsontopofthetool.j.Toavoidoverheating,donotcoverthetool.k.Ensuretheswitchisintheoff-positionbeforetransportingthetoolandwheninstorage.Bemindfulthatthetoolisnotswitchedonaccidently.l.NOTICE:DuetothehighpressurethatiscreatedwiththeNemoGRABO®westronglyrecommendthatyoudonotattempttoattachtheNemoGRABO®toglassthinnerthan6mmthick.Damagecanoccurtoglassthatisthinnerthan6mmthick.!WARNING:Weightmaydropwithoutwarningifthesafetyprecautionsarenotkept!TheNemoGRABO®createsastrongvacuum.Incasethesealisbrokenortheallowedweightisexceededoranyotherfactorthatcausesthenegativepressuretoreleasespontaneously,thiskindoffailurewillhappenverysuddenlyandabsolutelywithoutanysensoryindicationorwarning.Youwillnotnoticetheweightdetachingandtherewillbenopossibilitytostoporcatchit.Thisisverydangerous,especiallywithheavyloads.Thereforeallsafetyprecautionsshouldbekepttothemaximum.15
NEMO GRABO® | Operator’s manual

16 RUBBERFOAMSEALUSAGEANDSAFETY!Therubberfoamsealismadeoftwoparts:blackrubberfoamandredsiliconseal.Blackrubberfoamismostlyusedtocreateinitialvacuum.Afteritcompresses,theredsealholdsthelongestandstrongestseal.Aslongastheinitialsealisformedtogetsuction,the"strong"sealwillalsobeformed.Therubberfoamsealusespatentedtechnologyandisoneofthemaincomponentsofthetool.Itshouldbehandledwithcautionasitdirectlyimpactstheoverallperformanceandsafety.a.Thesealcanwithstandanestimated900compressioncycles,dependingonforceanddurationofcompression,withoutanydamage.b.Avoidrubbingthesealoverroughsurfaces.Sealmaterialisverypronetoparallelwear(movingparalleltoroughsurfaceinironingmotion).Liftperpendicularlyonveryroughsurfaces.Rubbingthesealoverasmoothsurfacesuchasgraniteinthepresenceofthickabrasives(thicksand)willdamagethesealandmaycauseunexpecteddetachment.c.Surfaceswithverysharpedgesshouldnotbeliftedinparallelhold.Edgessharperthan45degreesmaydamagethesealandleadtosuddenvacuumlossandsuddendetachment.Themotorshouldalwaysbeon.d.Alwaysstorethesealcoveredwithahardcover.Thesealcanbeeasilydamagedbysharpcornersandedgeswheninstorage.Thesealshouldnotbestoredwithanysharptoolsorincontactwithanyhardobjects(e.g.insideatoolbox).e.Donotdipthesealinwater.Therubberfoamsealisslightlywaterabsorbent.Unlessitisfullydippedinwaterandsoakingwet,slightlysoakingthesealwithwaterwillnotdamageitsperformance.Ifitissoakedinwater,itcanbesqueezedbyhandlikeaspongetodrywithoutdamage.Itisadvisabletouseadrysealtoavoidwatergettingsuckedintoairductsandinsidethebody.!Donotdiporusethesealinthepresenceofanyoil-basedproducts.Oilandoilproducts(machineoil+lubricants)willpermanentlydamagethesealandcannotberemoved.Ifthesealhasabsorbedanyoil,itshouldbedisposedofsafely,thebaseshouldbecleaned,andthesealreplaced.!Donotuseorstorethesealinthepresenceofchemicalsolvents.Kerosene,acetone,turpentine,benzene,acids,etc.andeventheirfumesinclosedspacesorthinlayersonsurfacescanmeltthesealanddamageitsstructureandcausefailure.ENNLDEFRESITSEDKARRUTR

EXPLANATIONOFSYMBOLSUSEDONTOOL❷Readtheoperator'smanualbeforeuse❸Wearprotectiveshoesandgloves❹DonotdisposeofthetooltogetherwithhouseholdwastematerialNOISEEMISSION/VIBRATIONlA-weightedsoundpressurelevelLpA=79.4dB(A),uncertaintyK=3dB(A).A-weightedsoundpowerlevelLwA=71.4dB(A),uncertaintyK=3dB(A).lVibrationtotalvalue=1.240m/s2,uncertaintyK=0.11m/s2.Thedeclaredvibrationtotalvaluehasbeenmeasuredinaccordancewithastandardtestmethodandmaybeusedforcomparingonetoolwithanother.Thedeclaredvibrationtotalvaluemayalsobeusedinapreliminaryassessmentofexposure.!WARNING:Thevibrationemissionduringactualuseofthepowertoolcandifferfromthedeclaredtotalvaluedependingonthewaysinwhichthetoolisused.It’snecessarytoidentifysafetymeasurestoprotecttheoperatorbasedonanestimationofexposureintheactualconditionsofuse(underconsiderationofallpartsoftheoperatingcyclesuchasthetimeswhenthetoolisswitchedoffandwhenitisrunningidleinadditiontothetriggertime).TRANSPORTThelithium-equivalentcontentinthebatteriesisbelowapplicablelimitvalues.Regulationsgoverninghazardousgoodsmayberelevantwhentransportingseveralbatteries.Inthiscase,itmaybenecessarytocomplywithspecialconditions,suchasthosegoverningpackaging.Alwaysmakesurethenationalinstallationregulationsareobserved.ASSEMBLYCONNECTINGASTRAPTOTHENEMOGRABO®❺
lAsanoption,youcanattachastraptotheNemoGRABO®tocarrythedevicesafely.1.LocatethefourattachmentringsⒻ.2.Connectastraptoanytwooftheseattachmentrings.3.Secureeachoftheclipsattheendsofastrapintoanattachmentring.OPERATIONLIFTINGTECHNIQUESlPlanahead.Knowwhatyouareliftingandhowyouwillliftit.Beawareoftheweightoftheobject.Determinewhetherornotitissafetoliftonyourown.Makesuretheworkareaisflat,dryandclearofdebris.lCheckyourpath.Makesuretheliftpathisclear.Removeanytrippinghazardsordebris.Checkforanywetorslicksurfaces.17
NEMO GRABO® | Operator’s manual

18
lUseergonomicequipment.Useliftassistssuchasaforklift,dolly,cart,handtruck,orhoist.lMakesureyouaretrainedbeforeusingtheequipment.lGethelpwhenneeded.Whenliftingawkwardorheavyloads,utilizeatwopersonlift.Makesureyouliftatthesametimeandkeeptheloadlevel.lWearproperrequiredprotectiveshoesandgloves.lBasicdiagonalliftingtechnique:❻
!Usethisbasicliftingtechniqueforsmallobjectswhenyoucanstraddletheloadanduseawidestance.1.Getasclosetotheobjectaspossible.2.Useawidestancewithonefootforwardandtothesideoftheobjectforgoodbalance.3.Keepyourbackstraight,pushyourbuttocksout.Useyourlegsandhipstoloweryourselfdowntotheobject.4.Movetheobjectasclosetoyouaspossible.5.Putyourhand(samesideofyourbodyastheforwardfoot)onthesideoftheobjectfarthestfromyou.6.WhenliftingtheloadholdingtheNemoGRABO®withonehand,securetheloadwithyourotherhand.7.Prepareforlifting,tightenyourcoremuscles,lookforwardandupward,andmaintainastraightandstrongback.!Donotholdyourbreathwhilelifting.Donotbendortwistyourwaist.Donotuseapartialgrip(1-2fingers).Donotobstructyourvisionwhencarrying.Donotjerkorliftquickly.Donotpinchyourfingersortoes.8.Liftslowlyandfollowwithyourheadandshoulders.Holdtheloadclosetoyourbody.Liftbyextendingyourlegswithyourbackstraight,andbreatheoutasyoulift.Pivotyourfeettoavoidtwisting.CHARGINGTHEBATTERYBEFOREFIRSTUSE❼
ThebatteriesarepartiallychargedandmustbechargedtofullcapacitybeforeusingtheNemoGRABO®forthefirsttime.Whenthebatteriesarefullycharged,whichtakesapproximatelytwohoursfromthedischargedstate,theNemoGRABO®motorcanrunforupto1.5hours.SeeCHARGINGTHEBATTERY.OPERATINGTHENEMOGRABO®1.SlidethepowerON/OFFswitchⒹintotheONposition.ThebatterybarindicatorⒺshowstheamountofavailablecharge.NOTICE:Ifthebatterybarindicatorflashes,thebatteryneedstobecharged(seeCHARGINGANDCHANGINGTHEBATTERY).ENNLDEFRESITSEDKARRUTR

!CAUTION:UsingtheNemoGRABO®whilethebatteryislowmayresultininjuryanddamagetothematerialsbeinglifted.ItisadvisabletofullychargethebatterybeforeusingtheNemoGRABO®.2.PositiontheNemoGRABO®firmlyagainstthesurfaceoftheobjectyouwanttolift.3.PressthegreenmotorpowerbuttonⒸ.Asealiscreatedwithinseconds.4.Liftandmovetheobject.!Whenliftingsmoothmaterials(suchasglass,smoothtiles,andmarble),youcanpressthegreenmotorpowerbuttonⒸagaintoswitchoffthemotoroncethesealiscreated.Whenliftingslightlyporousmaterials(suchaswood,timber,drywall,concrete,orcardboard),makesuretheNemoGRABO®motorremainsonwhilelifting.!Whenliftingmaterialswithdusty,dirty,ormoistsurfaces,removethedustanddirtasmuchaspossibleandkeepthemotoronatalltimes.TOENDOPERATINGTHENEMOGRABO®1.Whenyouaredoneandtheobjectisinasecureandstableposition,presstheredvacuumreleasebuttonⒷtobreakthesealandreleasetheobject.CHARGINGANDCHANGINGTHEBATTERY❼
Chargethebatterywhenthecapacityisloworthebatteryisempty.1.SlidethebatterylatchtounlockthebatteryⒶ.2.Removethebattery.3.Connectthebatterywiththemulti-socketbatterychargertoawallsocket.4.Whenthebatteryisfullycharged,thebatterybarindicatorⒺturnsgreen.5.Disconnectthemulti-socketbatterychargerfromthewallsocketandbattery.6.Putthebatteryinthebatterycompartment.7.Pressandslidethebatterylatchtolockthebattery.!Chargeonlywiththechargerspecifiedbythemanufacturer.!Duringtheprocessofcharging,thechargercanbecomewarm:thisisnormal.!Onlyusethechargerinadryenvironment.Thechargerisnotwaterproof.!Ensurethatthepowersupplyvoltagecorrespondstothedataonthenameplateofthebatterycharger.!Keepawayfromflammableobjectswhilecharging.19
NEMO GRABO® | Operator’s manual

20 EXPLANATIONOFVISUALINDICATORSNemoGRABO®SignalMeaningNolightTheNemoGRABO®isturnedoffLEDflashesgreenBatterycapacityislow/emptyChargethebatteryLEDiscontinuouslygreen1Bar=20%full2Bar=40%full3Bar=60%full4Bar=80%full5Bar=100%fullBatteryChargerSignalMeaningLEDiscontinuouslyredBatteryischargingLEDiscontinuouslygreenBatteryisfullychargedMAINTENANCEWARNING:Changestothetoolandtechnicalmodificationsarenotpermitted.Thiscanleadtoinjury.Ifthetoolfailsdespitethecaretakeninmanufacturingandtestingprocedures,repairshallbecarriedoutbyanafter-salesservicecentrefortheNemoGRABO®.REPLACINGTHERUBBERFOAMSEAL❽
Removetherubberfoamsealifithasbecomewornordamaged.1.PullouttherubberfoamsealⒽ.2.Gentlypressareplacementrubberfoamsealintoposition.3.Makesurethatthereplacementrubberfoamsealfitscorrectlyandsecurely.REPLACINGORCLEANINGTHEAIRFILTER❾

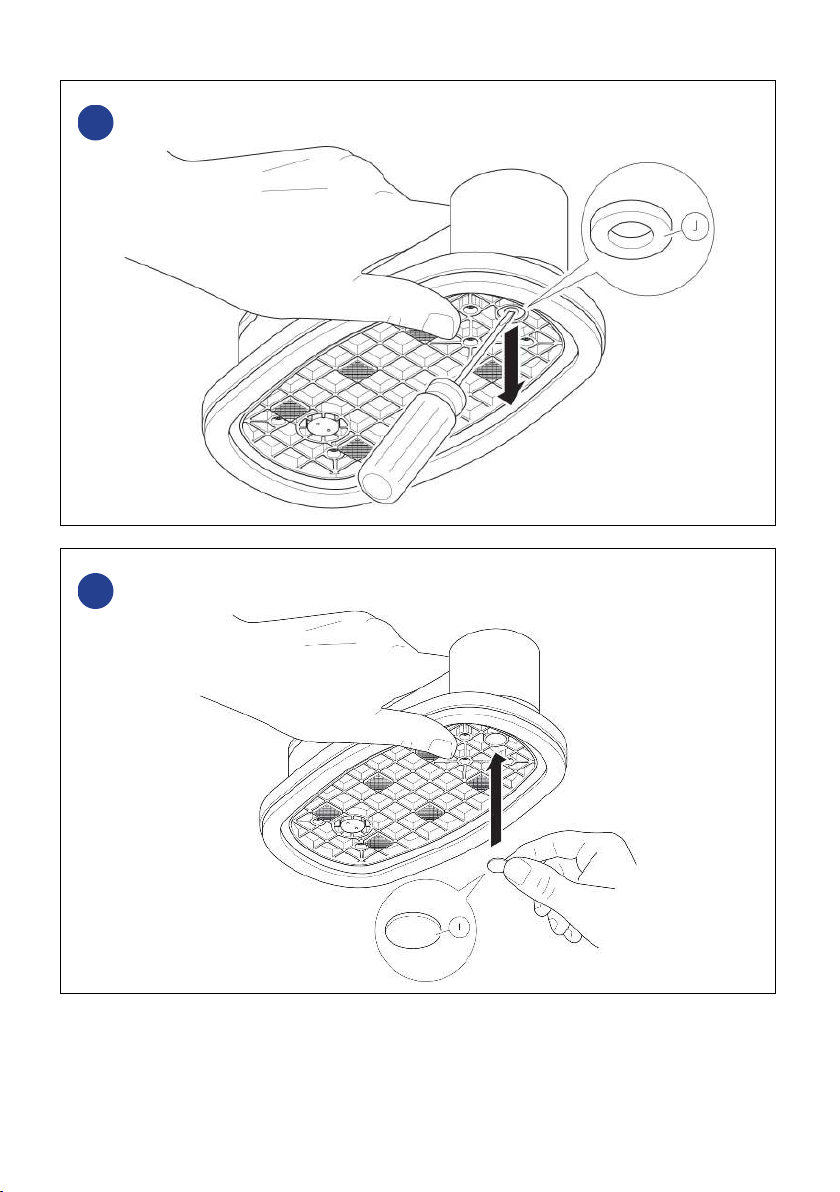

Cleanthefilterwhendirty.Thefilterneedstobereplacedwhenthefilterisbadlywornorripped(atcustomer’sdiscretion).ThisisdeterminedbyhowtheNemoGRABO®isbeingused.Whenliftingcleanmaterial,thefilterwilllastlongerthanwhenbeingusedondirty/dustymaterials.1.TurntheNemoGRABO®upsidedown.2.UsethetipofascrewdrivertoremovetheairfilterlockringⒿandtheairfilterpadⒾ.3.Dooneofthefollowing:a.Cleanthefilterwithcompressedair,orb.Insertareplacementairfilterpad.4.Inserttheairfilterlockringtosecurethefilter.ENNLDEFRESITSEDKARRUTR
