SuperCELL® Model SC500-LW-GPS User Information
Power
Menu
Button
Up 1
Message
Button
Up 5
Messages
Button
Down 1
Message
Button
Down 5
Messages
Button
Power
Select
Button
Antenna
LCD
Display
Front View Top ViewBack View
Swivel Clip
Operation
Status LED
S
wiv
e
Introduction
SuperCELL® Model SC500-LW-GPS is an intrinsically safe,
high performance, RF-wireless, emergency signaling and
monitoring device which provides Man-Down monitoring
and notication for personnel working alone in hazardous
environments.
A self-contained GPS continuously tracks location and
transmits this location along with the user’s status to other
Grace Telemetry products, including the MX900H.
Features
• Location: Tracking the location of the SuperCELL® is
possible outdoors with built-in GPS, or indoors when used
in conjunction with the Grace Locator Beacon and Grace-
Watch® safety monitoring system.
• Alarm Monitoring: Alerts the Lone Worker that a GRACE
Man-Down telemetry device, within signaling range, is
transmitting an alarm message.
• Auto ON/OFF: SuperCELL® is turned On and O by
removing or inserting the device into the Charging Base.
• Panic ALARM: Manually activated Emergency Alarm.
• Man Down Alarm: A safety monitoring feature which
provides the Lone Worker with motion sensing protection.
• Alarm Acknowledgment: When a SuperCELL® is in an
alarm condition, an Alarm Acknowledgment message
can be sent from an MX900 trainsceiver. This will clear the
alarm condition and display the Alarm Ack message.
• Canned Text Messaging: Allows the Lone Worker to send
and receive pre-set Canned Text Messages to other Super-
CELL® devices and In-Command® monitoring systems.
Specications
• Model: SC500-LW-GPS, Lone Worker.
• Dimensions: 2-3/16” wide, 1-3/8” deep (without clip), 5”
high (with antenna).
• Weight: 5.6 oz.
• Internal Battery: 3.7 V nominal, 1960 mAh, intrinsically
safe, lithium-ion rechargeable.
• Device Run Time: Approximately 24 hrs. in Sensing Mode,
and 8 hrs. in Alarm Mode.
• Radio Frequency: ISM license free, spread spectrum.
• Battery Charger Operational Voltage: 120VAC or 12VDC.
Available international power adapters rated for 100-240VAC
input, with UL, FCC, CE, safety ratings.
• Battery Charge Time: 6 - 8 hrs.
• Certications:
• Intrinsically Safe UL913, CSA C22.2 No. 157
• IP67
• Radio Certications:
• FCC ID: J5XT3HEP
• IC: 5916A-T3HEP
• Australia / New Zealand: Compliant to ACMA AS/NZS
CISPR22:2006, ClassA Digital Apparatus| AS/NZS4268:2012
for Intentional Radiators
• EMC93142C-ACMA
• EMC93142C-AS/NZS 4268
Table of Contents
Quick Start Guide 2
Menu Screens 3
Denition of Terms 6
Warranty Information 7
SC500-LW-GPS UI 2019-09
Alarm
Button
GPS Antenna
GPS
Antenna

Grace Industries, Inc. 2
TURN ON: Remove SuperCELL® from the Charging Base.
TURN OFF: Insert SuperCELL® into the Charging Base.
PAGE NAVIGATION: Pressing the MENU/PWR button cycles
through the pages on the SuperCELL®.
MOTION ALARM: If SuperCELL® remains motionless for the
preset length of time, the SuperCELL® will sound a repeating
alarm tone and transmit man-down alarm messages.To clear
Alarm and reset the SuperCELL®, simultaneously press the
MENU/PWR and SEL/PWR buttons. Motion Alarm cannot be
disabled or adjusted by the user. Time to Alarm for SC500-
LW is set to 120 seconds unless other timing is specied.
Pre-Alert occurs after approximately 108 seconds of no
motion detected.
PANIC ALARM: Activate the Emergency Alarm by pressing
the top button. A Panic Alarm signal will be sent and ALARM
will be displayed. To clear Alarm and reset the SuperCELL®,
simultaneously press the MENU/PWR and SEL/PWR buttons.
EVACUATION ACKNOWLEDGMENT: If an Evacuate message
is received by the SuperCELL®, it can be manually acknowl-
edged by simultaneously pressing the MENU/PWR and SEL/
PWR buttons.
ALARM MONITORING: Alerts the Lone Worker that a GRACE
Man-Down telemetry device, within signaling range, is
transmitting an alarm message. This alert can be cleared
from SuperCELL® by simultaneously press the MENU/PWR
and SEL/PWR buttons.
NOTE: If an alarm has been received, SuperCELL® will not turn
o until the alarm has been cleared or reset. To force Super-
CELL® to turn o (even with an active alarm) hold down the Up
button along with both side PWR buttons.

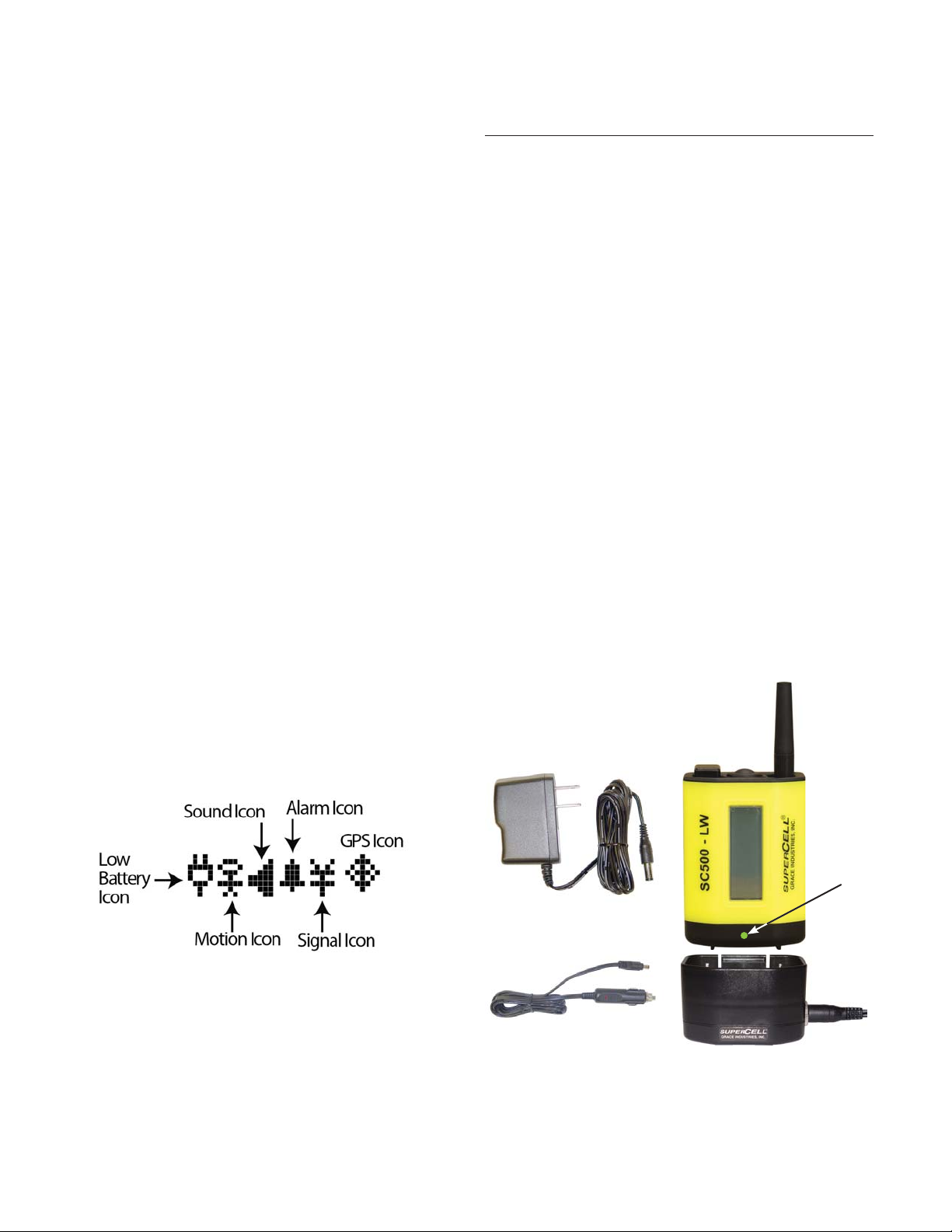

SuperCELL® Display Icons
Quick-Start Guide
Always test SuperCELL® prior to use
Low Battery Indication / Battery Charging
When approximately 3 hours of operating time remain
in standby mode, the SuperCELL® will display a plug icon
on the display status screen. The power-on tones are not
emitted when SuperCELL® has a low battery. Low battery is
also indicated by the Operational Status LED changing to a
periodic Red strobe. A double chirp sounds once every ve
minutes with audio enabled. Warning: There are no audible
low battery sounds with audio tones disabled.
When low battery is indicated, less than 3 hours of
operating time remain and the battery should be charged
immediately.
With the charger provided, recharge time is approximately
6 hours from a low battery warning and 9 hours for a dead
battery. Due to current limits imposed by Intrinsic Safety
requirements, a unit that has gone completely dead will
have to be removed from the charging base and reinserted
when the charging light turns Red. Typical operation time
between recharging is approximately 24 hours in standby/
ready mode.
Plug the charger into an outlet. It takes approximately 20
seconds for the Green charger LED to light up. If it does not
turn on or a Red LED turns on, then the battery is either too
hot or cold, or has a fault.
Charging is complete when the Green charge LED starts to
slowly ash.
120VAC Adapter
Optional 12VDC Adapter
Green
Charge
LED
Charging Base

Grace Industries, Inc. 3
Menu Pages
Pressing MENU button brings up menu pages in the
following order:
Page 1 - Send Message
Page 2 - Latitude / Longitude Display
Page 3 - Alarm History Display
Page 4 - Event Counters Display
Page 5 - Device Name and Run Time Display
Page 6 - Setup Mode
Page 1 - Send Message
The Send Message function may be used to send one
of 80 user-programmed, canned text messages. These
messages are programmed into the SuperCELL® device
through the SuperCELL® Database Manager Utility Program
via the ACTiSYS IrDA USB Adapter, available for the Super-
CELL® device. This process is explained in the IrDA Transfer
section, on page 4.
To send a message, proceed to the Send Message page
by pressing the MENU/PWR button. Next, cycle through
the messages stored on the SuperCELL® by pressing the UP,
DWN, *, or # buttons until you nd the desired message you
wish to send. UP and DWN cycle the message count by one,
*and # cycle the count by ve. Once you have the desired
message displayed, pressing the SEL button transmits the
message, and a Message Sent acknowledgment is displayed
on the screen. Other messages can be selected and sent by
pressing the UP, DWN, *, or #, and then pressing SEL to send.
Pressing MENU/PWR will navigate away from the Send
Message page. Resetting the device will return the SuperCELL®
to the home page.
Page 2 - Latitude / Longitude Display
Press the Up/Dwn buttons to cycle through four Latitude /
Longitude display formats:
Degrees
LAT: 41.313266 N
LON: 80.339424 W
Degrees Minutes (DD mm.mmmm)
LAT: 41 18.7969’N
LON: 80 20.3736’W
Degrees Minutes Seconds (DD mm ss.ss)
LAT: 41 18’47.677”N
LON: 80 20’22.366”W
Raw Data
LAT: 00E2F0E6
LON: FE46AE73
Press the */# buttons to view Quality of Fix Screen and the
Time to First Fix
Quality of Fix / Satellites in View
Quality of Fix:
00: No Fix
01: Ideal (01.00 -> 01.50); Icon is Solid
02: Excellent (01.51 -> 02.50); Icon is Solid
03: Good (02.51 -> 05.00); Icon is Solid
04: Moderate (05.01 -> 09.99); Icon will Flash
05: Fair (10.00 -> 19.99); Icon is Inverted and will Flash
06: Poor ( ≥ 20.00); Icon is Inverted and Solid
Time to First Fix (in Seconds)
GPS Hardware Version
Pressing MENU/PWR will navigate away from the Alarm
History Display page. Resetting the device will return the
SuperCELL® to the home page.
Page 3 - Alarm History Display
The Alarm History Display page displays the name and
unit ID of any Grace Industries telemetry product that
has transmitted an alarm message received by the Super-
CELL®.
Proceed to the Alarm History Display page by pressing
the MENU/PWR button. On the Alarm History Display page,
the UP and DWN buttons cycle through the stored alarm
messages that were received by the SuperCELL®. The 32
most recent, unique, alarms are stored on the SuperCELL®
in the order they were received. Turning the SuperCELL® o
clears the Alarm History.
Pressing MENU/PWR will navigate away from the Alarm
History Display page. Resetting the device will return the
SuperCELL® to the home page.
Satellites
in View
Quality
of Fix

Grace Industries, Inc. 4
Page 4 - Event Counters Display
The Event Counters Display page shows the number of
Page (Evacuate), Par, and Roll Call events received by the
SuperCELL® device since it was last turned on.
Navigate to the Event Counters Display page by pressing
the MENU/PWR button.
Pressing MENU/PWR will navigate away from the Event
Counters Display page. Resetting the device will return the
SuperCELL® to the home page. Turning the SuperCELL® device
o resets each counter to zero.
Page 5 - Device Name and Run Time Display
The Device Name and Run Time Display page displays
the SuperCELL® device name which has been programmed
onto the device through the SuperCELL® Database Man-
ager Utility Program via the ACTiSYS IrDA USB Adapter,
available for the SuperCELL®. This page also displays the
length of time the SuperCELL® has been running (turned
on), in days/hours/minutes.
Navigate to the Device Name and Run Time Display page
by pressing the MENU/PWR button.
Pressing MENU/PWR will navigate away from the Device
Name and Run Time Display page. Resetting the device will
return SuperCELL® to the home page.
Page 6 - Setup Mode
The Setup Mode page allows the user to put the
SuperCELL® into Setup Mode, where the various user
preferences of the device can be changed.
To enter Setup Mode, proceed to the Setup Mode page
by pressing the MENU/PWR button. Next, press and hold the
SEL/PWR button for three seconds. The SuperCELL® device is
now in Setup Mode. Press the MENU/PWR button while in
Setup Mode to cycle through the Setup Mode pages.
WARNING: While in Setup Mode, Alarm, Page, Par, and
Roll Call messages CANNOT be monitored or be logged in
the SuperCELL® devices Event Counter. Any Alarm, Page,
Par, or Roll Call messages received, while in Setup Mode,
will be subject to the SuperCELL® device’s inhibit timer.
Resetting the device or waiting two minutes without a button
press will exit out of Setup Mode and return the SuperCELL® to
the home page.
Setup Mode Page 1 - Alarm Disabled Notication
Setup Mode Page 2 - Firmware Versions
Setup Mode Page 3 - IrDA Transfer Mode
Setup Mode Page 4 - View Adjust
Setup Mode Page 5 - Enable GPS
Setup Mode Page 1 - Alarm Disabled Notication
The Alarm Disabled Notication page acts as a reminder
the SuperCELL® will not monitor Alarm, Page, Par, or Roll
Call transmissions while in Setup Mode.
Pressing MENU/PWR will navigate away from the Alarm
Disabled Notication page. Resetting the device will exit out of
Setup Mode and return the SuperCELL® to the home page.
Setup Mode Page 2 - Firmware Versions
The Firmware Versions page displays the model number,
CPU rmware version, and radio rmware version found
on the SuperCELL® device.
Navigate to the Firmware Versions page by pressing the
MENU/PWR button.
The top text line displays the model number of the device.
The middle text line displays the CPU rmware version
found on the device.
The Bottom text line displays the creation date of this
rmware version.
Press the SEL/PWR button to display the radio rmware
version.
Pressing MENU/PWR will navigate away from the Firmware
Versions page; resetting the device will exit out of Setup Mode
and return SuperCELL® to the home page.
Setup Mode Page 3 - IrDA Transfer Mode
The IrDA Transfer Mode allows the SuperCELL® device
to be loaded with over 60,000 names (254 groups of 255
names) of 16 characters each. The SuperCELL® can also be
loaded with 80 user-programmed canned text messages,
plus the unit ID. This information is programmed into the
SuperCELL® through the SuperCELL® Database Manager
Utility Program via the ACTiSYS IrDA USB Adapter, available
for the SuperCELL®.
To enter the IrDa Transfer Mode, navigate to the IrDA
Transfer page by pressing the MENU/PWR button. Once
arriving on the IrDA Transfer page, press and hold the SEL/
PWR button for three seconds to enter the IrDA Transfer
Mode. In the IrDA Transfer Mode, the SuperCELL® will only
respond to commands from the host computer running the
SuperCELL® Database Manager Utility Program.
WARNING: While in IrDA Transfer Mode, the device

Grace Industries, Inc. 5
CANNOT monitor or send Alarm, Page, Par, or Roll Call
messages, nor will these messages be logged in the
SuperCELL® device’s Event Counter. Any Alarm, Page, Par,
or Roll Call messages received, while in IrDA Transfer Mode,
will be subject to the SuperCELL® device’s inhibit timer.
Interrupting an IrDA transfer while in progress may corrupt
the SuperCELL® device’s name database. If this should occur,
the SuperCELL® name database will need to be reloaded.
Pressing the MENU/PWR button navigates away from the
IrDA Transfer page. Resetting the device exits out of IrDA
Transfer Mode and returns the SuperCELL® to the home page.
Setup Mode Page 4 - View Adjust
The View Adjust page allows the display contrast to be
adjusted for easier viewing of the SuperCELL® device’s
display. Adjusting the display contrast may be necessary if
the SuperCELL® is used in extreme temperatures.
To adjust the display contrast, navigate to the View
Adjust page by pressing the MENU/PWR button. At the View
Adjust page, press the UP and DWN buttons to increase
(or decrease) the display contrast by 1, and the * and # to
increase (or decrease) the display contrast by 10.
Pressing MENU/PWR will navigate away from the View
Adjust page. Resetting the device will exit out of Setup Mode
and return the SuperCELL® to the home page.
Setup Mode Page 5 - Enable GPS
Use the SEL/PWR button to enable or disable the GPS.
End of Setup Mode Screens
Safety Certications
Intrinsically Safe, Sécurité Intrinsèque
SuperCell®SC500 Models Intrinsically Safe per ANSI/UL913 For use
in Class 1, Groups A, B, C and D; Class II, Groups E, F, G; Div. 1 Haz-
ardous Locations. CSA C22.2 No.157.
Temperature Code T6. IP67. Exia Rated 4.2VDC.
Radio Certications
• FCC ID: J5XT3HEP
• IC: 5916A-T3HEP
• Australia / New Zealand: Compliant to ACMA AS/NZS
CISPR22:2006, Class A Digital Apparatus | AS/NZS 4268:2012 for
Intentional Radiators
• EMC93142C-ACMA
• EMC93142C-AS/NZS 4268
WARNINGS, AVERTISSEMENTS
WARNING! To prevent ignition of hazardous atmosphere, battery
must only be charged in area known to be nonhazardous.
AVERTISSEMENT! Pour éviter l’inammation d’une atmosphère
dangereuse, les batterie doivent être chargées seulement dans
une zone connu comme être non dangereuse.
FCC Statements
Changes or modications not expressly approved by the party re-
sponsible for compliance could void the user’s authority to oper-
ate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful in-
terference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
Industry Canada Statements
This Class A digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause un-
desired operation of the device.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.(select the class for your device)
Le présent appareil est conforme aux CNR d’Industrie Canada ap-
plicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accept-
er tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.

Grace Industries, Inc. 6
Alarm Inhibit Timer:When the SuperCELL® receives an alarm
message from another device, and that alarm is cleared,
the Alarm Inhibit Timer provides a 30 second period of
time where the SuperCELL® will not receive another alarm
message from that same device.
Alarm Message: A radio transmitted signal sent from a
SuperCELL®, or other GRACE Industries telemetry device,
when the panic button is pressed for the purpose of notifying
monitoring personnel that an emergency situation is present
and rescue action is requested.
Alarm Mode: A SuperCELL®, or other GRACE Industries
telemetry device, is placed in alarm mode by pressing
the device’s panic button. When this occurs, the device
transmits an alarm signal and emits a loud alarm audio
tone.
Canned Text Message: Canned Text Messages are pre-
programmed, text based messages that can be sent from
one SuperCELL® to another.
Device Name: The Device Name is a pre-programmed name
assigned to the SuperCELL® device that can be viewed on
the Device Name and Run Time Display page.
Dilution of Precision: A term used in satellite navigation to
express the positioning accuracy of a GPS device.
GPS Status Icon: The GPS Status Icon appears on the Icon
Line of the Home Page when the GPS Location feature is
active. The icon changes based on the satellite x quality.
Home Page: The Home Page is the main page of the
SuperCELL® that is displayed on startup and any time the
device is reset. Displayed on this page is the status icons,
motion sensing timer, device OEM and ID numbers, and
the rmware versions loaded on the device.
Icon Line: The Icon Line is the display line at the top of the
home page that displays the device status icons.
Man-Down Alarm Mode: A SuperCELL, or other GRACE In-
dustries telemetry device, enters Man-Down Alarm Mode
when the Motion Sensing Timer counts down to zero.
Monitoring Authority: The Monitoring Authority is the
person/people responsible for monitoring the status
of the telemetry devices used by the various on-scene
personnel, usually from a centralized base location.
Motion Sensing Activation Icon: The Motion Sensing
Activation Icon appears on the Icon Line of the Home
Page when the Motion Sensing feature is active. The icon
changes as the devices senses motion.
Motion Sensing Timer: The Motion Sensing Timer indicates
the seconds of lack-of-motion required before the Super-
CELL® enters the Man-Down Alarm mode.
Radio Signal Propagation: Radio Signal Propagation is the
behavior radio waves exhibit when they are transmitted.
Radio Signal Propagation can be aected by structural,
environmental, and atmospheric conditions.
Resetting the Device: Simultaneously pressing the MENU/
PWR and SEL/PWR resets the SuperCELL® and returns the
display to the Home Page.
Sensing Mode: When the SuperCELL® is turned on, it
is in Sensing Mode. In Sensing Mode, the device is
monitoringradiotracforalarmmessagesandcannedtext
messages. The SuperCELL® is also sensing motion, if
enabled.
Setup Mode: Setup Mode allows certain characters and
functions on the SuperCELL® to be activated, deactivated,
or modied.
Signal Loss: Signal Loss is an event that occurs when the
SuperCELL® is out of the communication range of a base
monitor for a preset length of time.
Signal Loss Activation Icon: The Signal Loss Activation Icon
appears on the Icon Line of the Home Page when the
Signal Loss feature is active.
Unit ID: The Unit ID is the unique ID number assigned to the
SuperCELL® device for purposes of radio communication.
It can be viewed on the device’s home page.
Unit OEM: The Unit OEM is a number assigned to the Super-
CELL® device, similar to the Unit ID. The key dierence is
the Unit OEM is not a unique number to each device. In
most applications all of the SuperCELL® devices will have
the same OEM number; from the factory this number will
usually be 9090.
Denition of Terms

Grace Industries, Inc. 7
Grace industries, Inc. warrants SuperCELL® & related Grace telemetry products to be free from defects in workmanship and materials for
a period of one year from the date of purchase. This warranty is valid only when the returned product is accompanied by a sales slip or
other proof of purchase that states the date and location of purchase. Grace Industries, Inc. will not repair or replace any merchandise
under warranty which has been damaged because of accident, misuse or abuse while in possession or control of the consumer. This
warranty is void if any attempt to repair or replace parts was made or attempted by other than qualied Grace Industries, Inc. person-
nel. This warranty is void if any of the sealed compartments are opened or tampered with. Send all returned merchandise, prepaid and
accompanied by proof of purchase to: Grace Industries, Inc., Repair Division, 305 Bend Hill Road, Fredonia, PA 16124 USA. Grace Indus-
tries, Inc. shall not be liable for any direct, incidental or other consequential loss or damage arising out of the failure of the product to
operate. End-user or customer is responsible for return shipping/freight charges.
The sole and exclusive remedy under all guarantees or warranties, express or implied, is strictly limited to repair or replacement as
herein provided. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE
HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE (1) YEAR FROM THE DATE OF PURCHASE. The warranty and liability set forth in
the prior paragraphs are in lieu of all other warranties, expressed or implied, in law or in fact, including implied warranties of merchant-
ability and tness for a particular purpose. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitations may not apply to you.
This warranty gives you specic legal rights and you may also have other rights which may vary from state to state.
This information is believed to be accurate and reliable. Grace Industries, Inc. provides this information as a guide only.
Technical assistance is available by contacting Grace Industries, Inc. by telephone at 724-962-9231, M – F, 8:00 am – 4:30 pm.
For training purposes a copy of User’s Information is available by contacting Grace Industries, Inc. at www.graceindustries.com or by
mail to: 305 Bend Hill Rd, Fredonia, PA 16124 U.S.A.
Warranty Information

305 Bend Hill Road,
Fredonia, PA 16124 USA
www.graceindustries.com
(724)-962-9231
