Grace EASY User manual

GRACE EASY Manual
Page | 67
GRACE EASY
Manual English

Page | 68
GRACE EASY Manual
Table of contents
I. Explanations of symbols .......................................................................................... 71
1. Your GRACE EASY......................................................................................................72
1.1. About this operating manual................................................................................... 73
1.2. Scope of supply........................................................................................................ 73
1.3. Description of equipment on the GRACE EASY ....................................................... 74
1.4. Anti-manipulation-plate .......................................................................................... 75
1.5. Use of the vehicle as intended ................................................................................ 75
2. First time use ............................................................................................................77
2.1. Removing/inserting the battery .............................................................................. 77
2.2. Charging the battery................................................................................................ 78
2.3. Adjusting the saddle ................................................................................................ 81
2.4. Adjusting the saddle position and -angle ................................................................ 82
2.5. Adjusting the position of the brake lever................................................................ 83
2.6. Adjusting the width of the brake lever.................................................................... 83
2.7. Assembling the side reflectors (S-Pedelec only) ..................................................... 83
2.8. Rear-view mirror (S-Pedelec only)........................................................................... 84
2.9. Insurance plate (S-Pedelec only) ............................................................................. 84
2.10. Mounting instruction Pedal reflectors for Schindelhauer-pedals........................... 85
3. Before each ride........................................................................................................87
3.1. Checking the wheels and tyres ................................................................................ 87
3.2. Checking the battery fitting..................................................................................... 87
3.3. Checking the drive belt............................................................................................ 88
3.4. Checking the function and wear of the brake system............................................. 88
3.5. Checking the suspension forks (optional accessory)............................................... 89
3.6. Checking the screw connections ............................................................................. 89
4. Function description..................................................................................................90
4.1. BionX drive............................................................................................................... 90
4.2. Removing/installing the display unit ....................................................................... 90
4.3. Display unit .............................................................................................................. 90
4.4. Switch the drive system on/off................................................................................ 92
4.5. Choose an assistance level ...................................................................................... 92

GRACE EASY Manual
Page | 69
4.6. Select the generator level........................................................................................ 93
4.7. Change display......................................................................................................... 94
4.8. Check the charge status of the battery ................................................................... 94
4.9. Set the time ............................................................................................................. 95
4.10. Lights........................................................................................................................ 95
4.11. Belt drive.................................................................................................................. 96
4.12. Gear change............................................................................................................. 98
4.13. The derailleur system .............................................................................................. 98
4.14. Braking ..................................................................................................................... 98
4.15. Tyres and wheels ..................................................................................................... 99
4.16. Side-/double-kick stand......................................................................................... 100
4.17. Luggage rack (optional accessory)......................................................................... 101
4.18. Suspension forks Rock Shox Recon 29'' (optional accessory) ............................... 102
5. Maintenance...........................................................................................................103
5.1. Regular maintenance work.................................................................................... 103
5.2. Removing/installing the front wheel..................................................................... 103
5.3. Removing/installing the rear wheel ...................................................................... 104
5.4. Adjusting the gears ................................................................................................ 106
5.5. Tensioning and aligning the drive belt .................................................................. 106
5.6. Adjusting the belt guide......................................................................................... 109
5.7. The drive chain (EASY 1x10) .................................................................................. 109
5.8. Switching gears (EASY 1x10).................................................................................. 109
5.9. Assembling the pedals........................................................................................... 110
5.10. Checking the wear on the brake pads ................................................................... 111
5.11. Replacing the brake pads....................................................................................... 112
5.12. Checking the wear on the brake disc..................................................................... 114
5.13. Replacing the bake disks........................................................................................ 114
6. Transport ................................................................................................................115
7. Cleaning and maintenance ......................................................................................116
8. Troubleshooting......................................................................................................118
9. Wear parts..............................................................................................................120
9.1. Tyres....................................................................................................................... 120
9.2. Handlebar grips...................................................................................................... 121

Page | 70
GRACE EASY Manual
9.3. Brake pads ............................................................................................................. 121
9.4. Belt (EASY, Red Dot)............................................................................................... 121
9.5. Sprockets (EASY, Red Dot) ..................................................................................... 121
9.6. Chain (EASY 1x10) .................................................................................................. 122
9.7. Chain wheels, the cartridge, rear derailleur rollers and the bottom bracket....... 122
9.8. Shift cables............................................................................................................. 122
9.9. Lubricants............................................................................................................... 122
9.10. Handlebars and saddle post .................................................................................. 122
9.11. Moving parts and bearings .................................................................................... 122
9.12. Frame paint and coating........................................................................................ 122
10. Maintenance...........................................................................................................123
11. Disposal ..................................................................................................................123
12. Technical data.........................................................................................................124
12.1. Motor..................................................................................................................... 124
12.2. Battery ................................................................................................................... 124
12.3. Charger................................................................................................................... 124
12.4. Braking system....................................................................................................... 125
12.5. Weights.................................................................................................................. 125
12.6. Add-on parts .......................................................................................................... 125
12.7. Frame sizes ............................................................................................................ 126
12.8. Tightening torques................................................................................................. 126
13. Warranty ................................................................................................................128
14. EC Declaration of Conformity..................................................................................129

GRACE EASY Manual
Page | 71
I. Explanations of symbols
To begin with, we would like to acquaint you with the meaning of the attention and hazard
symbols which you can find in these operating instructions.
It is very important that you follow the information by the symbols.
Caution!
This caution symbol points out a potentially hazardous situation through which
persons in the environment may sustain injury, or the product or objects may be
damaged.
Danger!
Denotes an immediate danger through explosion, for instance by improper handling
of the battery
and charger.
Information!
This sign has useful information about how to handle your product.
Note!
This symbol points out that damage is possible on the vehicle.
Read the original operating manual!
This symbol refers to important information in the original operating instructions of
the component manufacturers.

Page | 72
GRACE EASY Manual
1. Your GRACE EASY
The GRACE EASY is a member of the class of electric power-assisted motorcycles, also known
as EPAC's. The motor only provides assistance when you apply force to the pedals.
The force applied by the rider is measured in terms of speed, pedalling frequency, and
torque through which the motorised assistance is adjusted. The maximum assisted speed is
25 km/h (15.5 mph) or 32 km/h (20 mph) in the USA as a Pedelec, or 41 km/h (25.5 mph) as
an S-Pedelec. The electric motor switches off once this speed is reached. However, you are
also free to travel faster than the maximum assisted speed with your own pedal power and
without support from the electric motor.

GRACE EASY Manual
Page | 73
1.1. About this operating manual
This operating manual is solely for the GRACE EASY range in the Pedelec- and S-Pedelec
variants and frame sizes Mand L. Follow the instructions and warnings for your own safety.
Failing to do so may damage the bike and/or lead to personal injury.
For maintenance work and repairs, please talk directly to your dealer.
Also observe the important information in the original operating instructions of the
component manufacturers availabl
e online:
Avid
www.sram.com/de/avid
BionX
www.bionxinternational.com
Busch + Müller
www.bumm.de
Cane Creek
www.canecreek.com
Continental
www.conti-online.com
Gates Carbon Drive
www.carbondrivesystems.com
Magura
www.magura.com
SRAM
www.sram.com
SR
Suntour www.srsuntour-cycling.com
1.2. Scope of supply
Included in the GRACE EASY scope of supply:
BionX standard battery charger
Transport safety mechanisms, 2 pieces, for the braking system
Keys, 2 pieces, for securing the battery pack
GRACE EASY manual
GRACE EASY service manual
Reflectors, 2 pieces, (S-Pedelec only)
Rear-view mirror (S-Pedelec only)
Pedals and pedal reflector 2 pairs
The following components in the scope of supply do not come pre-assembled by default:
However, they can also be mounted to the vehicle by request. Please contact your GRACE
dealer for more information.
Mudguard: Curana C-Lite 28'' x 40 mm
Luggage rack: Tubus Vega
Fork: Rock Shox Recon 29''

Page | 74
GRACE EASY Manual
1.3. Description of equipment on the GRACE EASY
1. Saddle
2. Battery
3. Battery lock
4. Stem
5. Twist shifter
6. Headlight
7. Front wheel
8. Fork/spring fork*
9. Hydraulic disc brake
10. Crank and pedal
11. Double kick stand
12. Carbon belt / Chain
13. Rear wheel
14. Motor
15. Mudguard*
16. Luggage rack*
17. Saddle post
18. Rear light
19. Derailleur
*optional accessory

GRACE EASY Manual
Page | 75

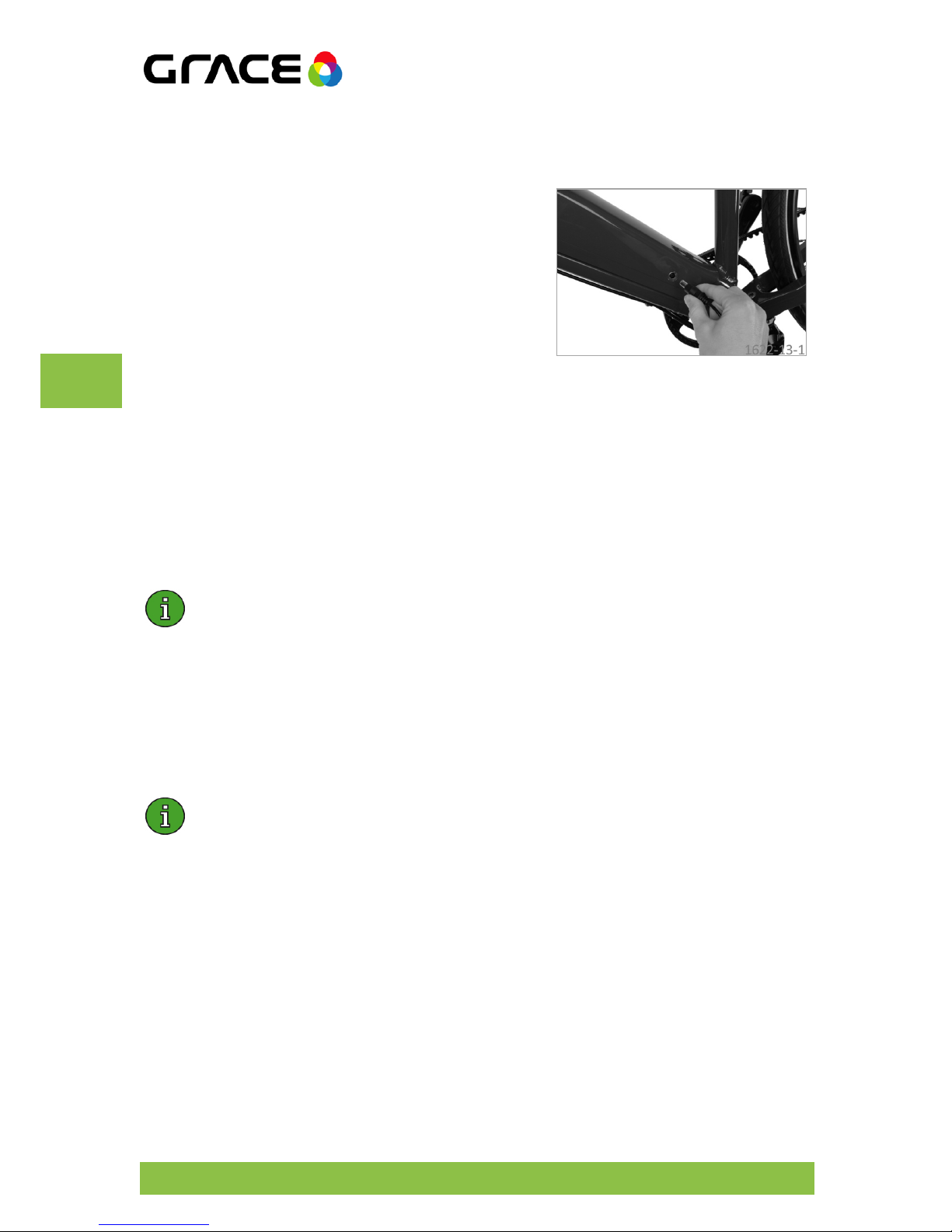

1.4. Anti-manipulation-plate
The anti-manipulation-plate is located on
the down tube under the battery.
To see it, the battery must be removed..
1.5. Use of the vehicle as intended
Please pay attention to the following data when using the vehicle:
the safety-related advice in this operating manual
the "Technical data" chapter in this operating manual
the country-specific road traffic regulations (in Germany this is the German Road
Traffic Regulations, StVO)
country-specific regulations for vehicle registrations (in Germany this is the German
Traffic Registration Regulations, StVZO)
The design and equipment on the GRACE EASY mean it is designed for use on tarmacked
roads and maintained forest and dirt tracks. The tyres must not leave the ground. The
GRACE EASY is not designed for riding over obstacles such as high curbs. It is also not
designed for transporting more than one person. The active and passive lighting equipment
required under technical safety regulations in Germany are not in compliance with the
StVZO.
This technical safety equipment must be inspected regularly and when needed must be
repaired by a technician.
The total weight comprising the GRACE EASY incl. rider, accessories and luggage must not
exceed the maximum permissible weight of 120 kg (256 lbs).
The GRACE EASY is not intended for persons with impaired physical, sensory or intellectual
capabilities. GRACE EASY is also not suitable for children under 14 years.
GRACE EASY is not suitable for competitions.
Riding the GRACE EASY as an S-Pedelec with a bike trailer is not permitted.
Bear in mind that other road users may not be able to judge the high speeds you
are riding at.
Modifications to your GRACE EASY which result in an increase in the motor output
and speed
put your safety while riding at risk and can lead to your driver's licence
being revoked or the loss of insurance coverage.

Page | 76
GRACE EASY Manual
Please install the following components, it is essential to fulfill the requirements of
the german StVZO:
Reflectors, 2 pieces (S-Pedelec)
Rear-view mirror (S-Pedelec)
Pedal reflector 2 pairs (Pedelec, S-Pedelec)
A helmet must be worn at all times when riding the S-Pedelecs, and the bike must
have an insurance plate. You must have an M
-category driver's licence and mus
t
carry your licence with you at all times.
Neither manufacturer nor dealer assume any liability for any damage resulting from
use beyond what is specified in this operating manual or from non
-
compliance with
technical safety instructions.
Before joining the main roads, first practice on your new GRACE EASY in an area
with little traffic.
You may be legally required to wear a helmet for Pedelecs depending on which
country you are using your GRACE EASY. We recommend for your own safety that
you always wear a suitable helmet and goggles regardless of whether it is required
or not.
Wear bright and noticeable clothing suitable for riding and shoes which are
appropriate for the pedals. When riding in traffic, always be considerate and pay
attention t
o the traffic rules so as not to put yourself or others in danger.
Please follow the technical data at the end of this operating manual.
