Graco InvisiPac GS35 Plug-Free Parts list manual

Instructions-Parts
InvisiPac™ GS35 Plug-Free™
HotMeltAppli
cator 3A2805B
EN
For dispensing hot melt adhesive. For professional use only.
Not approved for use in explosive atmospheres or hazardous locations.
Important Safety Instructions
Read all warnings and instructions in this manual. Save these
instructions.
1500 psi (10.3 MPa, 103 bar)
Maximum Working Fluid Pressure
80 psi (0.5 MPa, 5.5 bar) Maximum
Air Pressure
See page 6 for models and approval
information.
PROVEN QUALITY. LEADING TECHNOLOGY.

Contents
Warnings ........................................................... 3
Models............................................................... 6
Component Identification..................................... 7
Overview............................................................ 8
Grounding .......................................................... 8
Installation.......................................................... 9
Mounting ..................................................... 9
Connect Heated Hose .................................. 9
Connect Solenoid Valve ............................... 9
Connect Triggering Device ........................... 10
Prime Before Using Equipment ..................... 10
Flush...........................................................10
Install Nozzle ............................................... 11
Operation........................................................... 11
Pressure Relief Procedure............................ 11
Maintenance ...................................................... 12
Replace Inlet Filter ....................................... 12
Troubleshooting.................................................. 13
Check Module.............................................. 15
Check Nozzle and Module............................ 15
Check Heater .............................................. 16
Check RTD.................................................. 16
Repair................................................................ 17
Before Beginning Repair............................... 17
Replace Heater Cartridge ............................. 18
Replace RTD............................................... 18
Replace Thermal Cutoff................................ 18
Replace Cordset .......................................... 18
Replace Solenoid Valve ............................... 20
Replace Module........................................... 20
Replace Applicator....................................... 20
Notes ................................................................ 21
Parts.................................................................. 22
Kits and Accessories........................................... 30
Dimensions ........................................................ 32
Technical Data ................................................... 33
Graco Standard Warranty.................................... 34
23A2805B

Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific
risks. When these symbols appear in the body of this manual or on warning labels, refer back to these
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body of this manual where applicable.
WARNING
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid
severe burns:
• Do not touch hot fluid or equipment.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can
cause electric shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before
servicing equipment.
• Connect only to grounded power source.
•Allelect
rical wiring must be done by a qualified electrician and comply with all local codes
and regulations.
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce
skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get
immediate surgical treatment.
• Do not point dispensing device at anyone or at any part of the body.
•Donot
put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning,
checking, or servicing equipment.
•Tight
en all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
3A2805B 3

Warnings
WARNING
FIRE AND EXPLOSION HAZARD
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless
they are antistatic or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock.Do not use
equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
•Turnof
f all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
•Makes
ure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
•Dono
t kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyesoronskin,
inhaled, or swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
43A2805B

Warnings
WARNING
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
•Protectivee
yewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
3A2805B 5

Models
Models
All models use a 240 V heater.
Single
Part RTD Type Solenoid Valve
24P073 Platinum 100
Ohm
24 VDC
24P074 Platinum 100
Ohm
110 VAC
24P246 Platinum 100
Ohm
N/A
24P299 Nickel 120 Ohm 24 VDC
24P300 Nickel 120 Ohm 110 VAC
24P307 Nickel 120 Ohm N/A
Dual
Part RTD Type Solenoid Valve
24P075 Platinum 100
Ohm
24 VDC
24P076 Platinum 100
Ohm
110 VAC
24P247 Platinum 100
Ohm
N/A
24P301 Nickel 120 Ohm 24 VDC
24P302 Nickel120Ohm 110 VAC
24P308 Nickel120Ohm N/A
Quad
Part Module
Spacing
in. (mm)
RTD Type Solenoid
Valve
24P077 0.88 (22.4) Platinum
100 Ohm
24 VDC
24P078 0.88 (22.4) Platinum
100 Ohm
110 VAC
24P079 0.15 (3.8) Platinum
100 Ohm
24 VDC
24P080 0.15 (3.8) Platinum
100 Ohm
110 VAC
24P250 0.88 (22.4) Platinum
100 Ohm
N/A
24P254 0.15 (3.8) Platinum
100 Ohm
N/A
24P303 0.88 (22.4) Nickel 120
Ohm
24 VDC
24P304 0.88 (22.4) Nickel 120
Ohm
110 VAC
24P305 0.15 (3.8) Nickel 120
Ohm
24 VDC
24P306 0.15 (3.8) Nickel 120
Ohm
110 VAC
24P309 0.88 (22.4) Nickel 120
Ohm
N/A
24P310 0.15 (3.8) Nickel 120
Ohm
N/A
Model Approvals
63A2805B

Component Identification
Component Identification
A
CB
AD
E
F
G
H
J
M
K
K
L
N

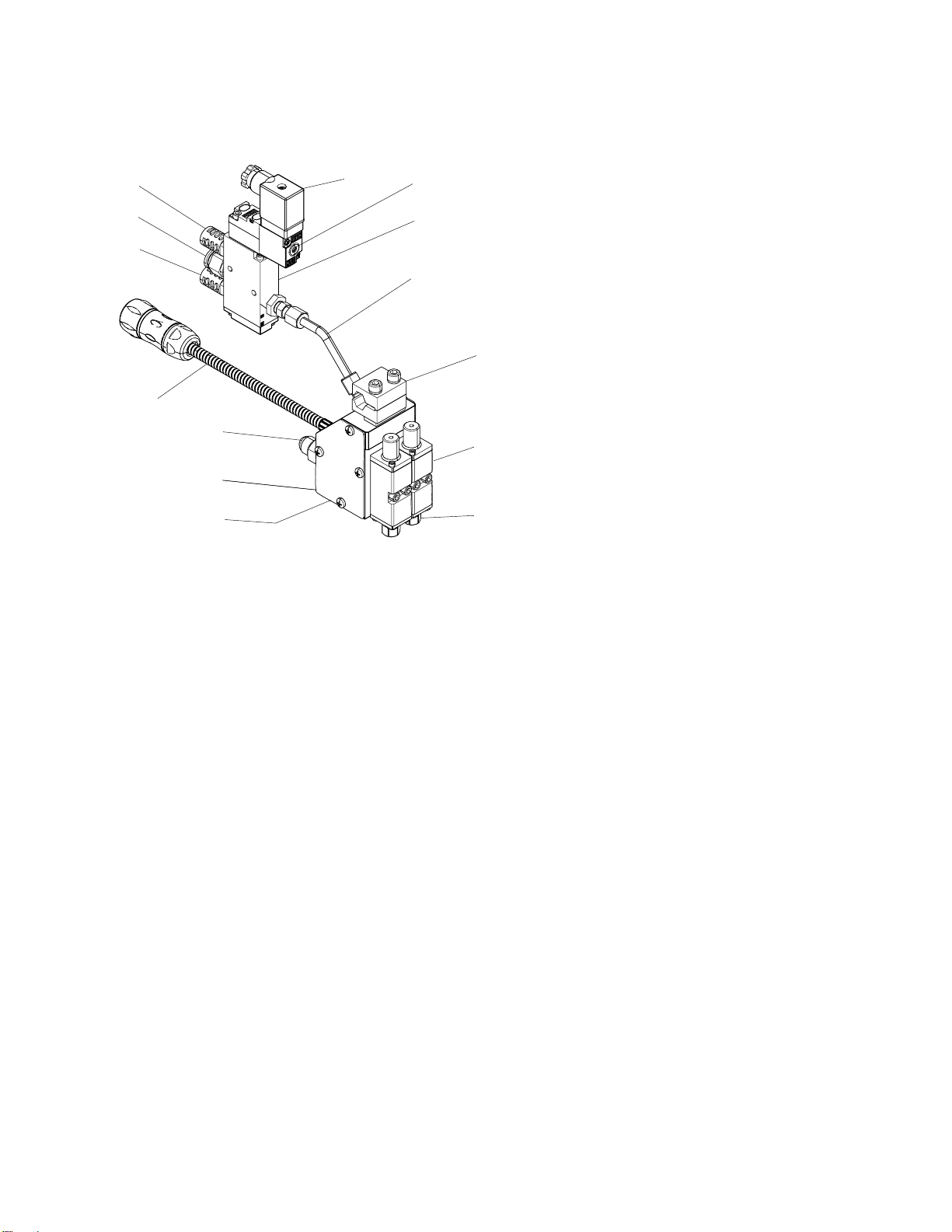

Figure 1 Dual Module Configuration Shown
A Dispense module
B Fluid outlet
C Fluid filter
DManifold
EFluid inlet (9/16–18, —6 JIC, 37° flare)
FCordset
GAir tube
HMounting clamp (1/2 in. diameter bar)
JSolenoid valve (24 VDC, 120 VAC); not
included with all models
KMuffler
LAir inlet (3/8 in. diameter tubing)
M Manual override switch
NSolenoid valve electrical connector
3A2805B 7

Overview
Overview
The valve uses the air-opened, spring closed mode
of operation. It uses a three-way exhausting solenoid
to control the piston inside the valve. Fluid is filtered
through the manifold filter before entering the valve
fluid inlet port.
When air moves the piston and rod from its seat, it
opens the fluid outlet. When the air shuts off, the
spring pushes the piston and rod into its seat and
closes the fluid outlet.
The gun should be rigidly mounted and remotely
operated by a melter system and triggering device.
Themeltersystemprovidespressurizedfluidtothe
valve. The triggering device controls the fluid flow by
opening and closing the solenoid valve.
Figure 2 Air and Fluid Flow
Air
Fluid
Grounding
The equipment must be grounded to reduce the
risk of static sparking. Static sparking can cause
fumes to ignite or explode. Grounding provides an
escape wire for the electric current.
•Pump: follow manufacturer’s recommendations.
•Dispense applicator: grounded through electrical
connection.
•Air compressor: follow manufacturer’s
recommendations.
•Fluid supply container: follow local code.
•Solvent pails used when flushing: follow local
code. Use only conductive metal pails, placed
on a grounded surface. Do not place the pail
on a nonconductive surface, such as paper or
cardboard, which interrupts grounding continuity.
•To maintain grounding continuity when flushing or
relieving pressure: ensure mounting manifold and
electrical power connector are grounded properly.
83A2805B

Installation
Installation
Mounting
Mount manifold on a 1/2 in. (12 mm) diameter bar
using mounting clamp (H) to hold the gun assembly
in place and ensure adhesive is applied properly.
NOTICE
To prevent heat transferring into other components
of the packaging line, ensure that the insulator is
installed.
1. Usea5mmAllenwrenchtoloosenthemounting
clamp and slide the gun assembly on the
mounting bar.
2. Tighten the mounting clamp.
Note
Provide enough room to access sides of
applicator for maintenance and repair.
H
Figure 3 Mounting Clamp
Connect Heated Hose
1. Connect the hose fluid outlet to the manifold fluid
inlet (E). Use two 11/16 in. wrenches to tighten
thehosefitting.
M
E

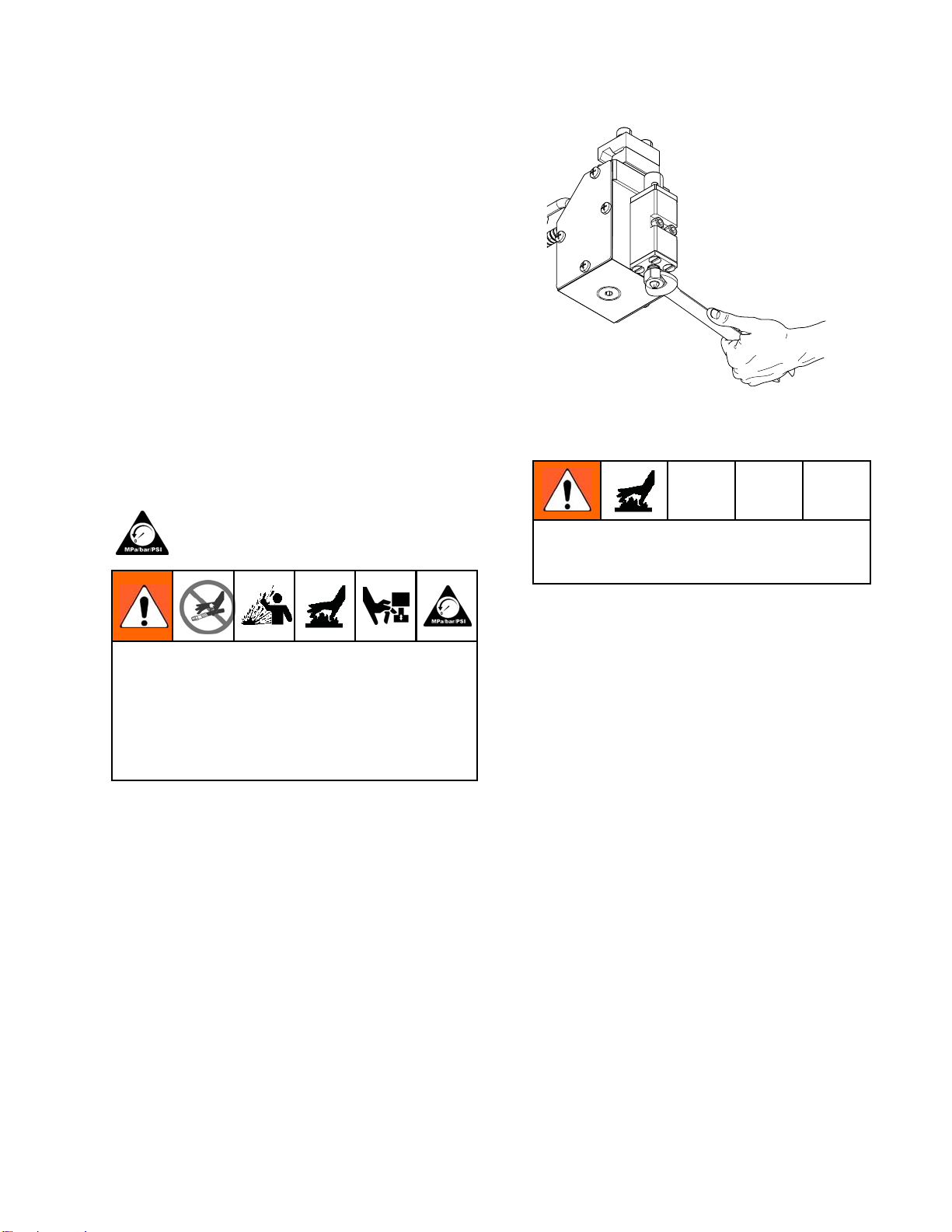

Figure 4 Connect the Heated Hose
2. Connect the cordset (M) to the hose.
3. Connect the hose inlet to the melter system
outlet. See the heated hose manual for
installation guidelines.
4. Connect the hose cordset to melter. See the
heated hose manual for installation guidelines.
Connect Solenoid Valve
1. Connect 3/8 in. diameter air supply tubing to a
clean, dry, and non-lubricated air supply and to
the push-to-connect air inlet fitting (L).
L
Figure5 AirInletFitting
2. Connect solenoid valve to 24 VDC or 110 VAC
signal. See Connect Triggering Device, page 10.
For applicators without a supplied solenoid valve:
• Use solenoid valves with an override switch.
• Ensure that your solenoid valve is connected to the
manifold with tubing rated for 400°F(204°C).
• Ensure the solenoid valve is rated for
high-temperature applications.
3A2805B 9

Installation
Connect Triggering Device
Identify if your model uses a 24 VDC or 110 VAC
solenoid valve. Connect solenoid valve to 24 VDC
or 110 VAC signal.
Improper electrical connection can result in electric
shock. All electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
1. Loosen the mounting screw and disconnect the
electrical connector (N) from the solenoid valve
(J). Set the gasket and screw aside.
J
N
P
Figure 6 Solenoid Valve Electrical Connector
2. Insert a small screwdriver where the mounting
screw was removed and gently press the
electrical connector (P) out of the electrical
connector housing (N).
3. Thread a three-conductor cable through the strain
relief. Connect the positive and negative wires to
terminals 1 and 2 on the electrical connector (P).
Connect the ground wire to the ground terminal.
21
GND
Solenoid Valve Connector
Figure 7
4. Reassemble the electrical connector (P) and
housing (N). Retighten strain relief.
5. Place the gasket on the housing and connect the
electrical connector into the solenoid valve (J)
with the mounting screw. See Fig. 6.
Prime Before Using Equipment
The equipment was tested with lightweight oil, which
is left in the fluid passages to protect parts. To avoid
contaminating your fluid with oil, prime the equipment
with hot melt until all of the oil is pushed out before
using the equipment. See Flush, page 10.
Flush
1. Disconnect or turn off the device which triggers
the solenoid valve.
2. Heat the system to working temperature.
3. Place waste container under the gun to catch the
adhesive.
4. Ensure the nozzle is removed.
5. Press the manual override switch (S) to manually
trigger the solenoid valve.
6. Dispense hot melt (adhesive) until it is clean.
Figure 8
10 3A2805B

Operation
Install Nozzle
Use 1/2 in. wrench to install nozzle. See
Kits and Accessories, page 30.
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
This equipment stays pressurized until pressure
is manually relieved. To help prevent serious
injury from pressurized fluid, such as skin injection,
splashing fluid and moving parts, follow the
Pressure Relief Procedure when you stop spraying
and before cleaning, checking, or servicing the
equipment.
1. Depressurize system.
2. Close the bleed-type master air valve.
3. Actuate the applicator repeatedly until no fluid
flows.
Material inside the module and hose may still
be near setpoint temperature. Wear protective
clothing to avoid severe burns.
4. If you suspect the module nozzle is clogged,
remove nozzle and then actuate the module to
relieve pressure.
5. If you suspect the module or fluid hose is
clogged or that pressure has not been fully
relieved after following the steps above, VERY
SLOWLY loosen inlet fitting, inlet filter, or hose
end coupling to relieve pressure gradually,
then loosen completely. Clear hose or module
obstruction.
6. Turn off air pressure to the solenoid valve.
3A2805B 11

Maintenance
Maintenance
Material inside the applicator can be near setpoint
temperature. Wear protective clothing to avoid
severe burns.
Daily:
Clean hot melt and char from exterior of gun.
Weekly:
Inspect the applicator, fluid lines, cordset,
and solenoid cable for wear or damage. See
Repair, page 17 for instructions.
Replace Inlet Filter
NOTICE
Remove the filter when the gun is hot. If the gun is
cold, theadhesivewillbehardandthefiltermay
be difficult to remove or damaged.
1. Disable gun assembly. See
Before Beginning Repair, page 17.
Material inside the applicator can be near
setpoint temperature. Wear protective clothing
to avoid severe burns.
2. Remove dirty filter (16) from manifold (1).
16
1
Figure 9 Inlet Filter
3. Apply a thin coating of high-temperature lubricant
to seals on the new filter (16) and install in the
manifold (1). Torque to 30 in-lbs (3.4 N∙m),
usings a5/32in. (4mm)Allenwrench.
123A2805B

Troubleshooting
Troubleshooting
Problem Cause Solution
Plugged manifold filter Replace manifold filter. See
Replace Inlet Filter, page 12.
Clogged hoseClean or replace hose.
Failed solenoid valve Check for correct operation. Clean
or replace.
No signal to solenoid valve Check solenoid valve for correct
operation.
Incorrect solenoid valve wiring Check solenoid valve wiring.
Incorrect signal to solenoid valve Check if 24 VDC or 120 VAC.
Solenoid muffler plugged Check and replace mufflers.
No fluid pressure Check adhesive delivery system.
Heater failure (cold gun) Check and replace
heater cartridges. See
Replace Heater Cartridge, page 18.
No air to solenoid valve Check air supply.
Dirty or faulty triggering device Check, clean, or replace triggering
device.
Solenoid valve connected
incorrectly
Check solenoid valve air connections.
No adhesive or incorrect
amount of adhesive out of all
modules when triggered
Clogged manifold passage Clean or replace manifold.
Plugged nozzle Clean or replace nozzle.
Failed module in closed position Check for correct operation.
Clean or replace. See
Check Module, page 15.
Plugged module filter Replace module. See
Replace Module, page 20.
No adhesive or incorrect
amount of adhesive out of
one/some modules when
triggered
Clogged manifold passage Clean or replace manifold.
Failed module in open position Clean or replace module. See
Replace Module, page 20.
Adhesive out of one/some
modules when not triggered
Adhesive pressure too high Check and reduce fluid pressure.
3A2805B 13

Troubleshooting
Problem Cause Solution
Heater failureCheck and replace
heater cartridge. See
Replace Heater Cartridge, page 18.
Loose cord set connection Check connection.
RTD failure Check and replace RTD. See
Check RTD, page 16.
Incorrect RTD for adhesive delivery
system
Check delivery system RTD
requirement
Gun will not heat
Thermal cutoff is tripped Check and replace
thermal cutoff. See
Replace Thermal Cutoff, page 18.
Heater failure Check and replace
heater cartridge. See
Replace Heater Cartridge, page 18.
RTD failure Check and replace RTD. See
Check RTD, page 16.
Incorrect RTD for adhesive delivery
system
Check delivery system RTD
requirement.
Gun overheats
Incorrect power to heater Check and correct power.
Heater failure Check and replace
heater cartridge. See
Replace Heater Cartridge, page 18
RTD failure Check and replace RTD.
Incorrect RTD for adhesive delivery
system
Check delivery system RTD
requirement.
Gun under-heats
Incorrect power to heater Check and correct power.
Module o-ring failure Check and replace o-ring. See
Replace Module, page 20.
Inlet fitting loose Tighten fitting.
Manifold filter o-ring failure Check and replace o-ring.
Adhesive leaking from gun
Nozzle loose Tighten nozzle.
Solenoid valve failure Check and replace solenoid valve.
Adhesive pressure too high Check and reduce fluid pressure.
Solenoid valve connected
incorrectly
Check solenoid valve air connections.
Adhesive out of all modules
when not triggered
Module failure Check and replace all modules. See
Check Module, page 15.
143A2805B

Troubleshooting
Check Module
Check the module operation to verify if the module
has failed and needs to be replaced.
1. Insert a smallAllenwrenchintothetopofthe
module.
2. Press the solenoid valve override switch (S) to
manually trigger the gun.
2
Figure 10 Check Module
If the wrench moves up and down, then the module
is operating properly
If the wrench does not move, then the module needs
to be replaced. See Replace Module, page 20.
Check Nozzle and Module
Trigger the gun without the nozzle to determine if the
nozzle or module is clogged.
1. Disable gun assembly. See
Before Beginning Repair, page 17.
2. Usea1/2in. w
rench to loosen the nozzle and
remove by hand.
Figure 11
3. Connect the power and solenoid cable.
4. Return the gun back into operation.
5. Trigger the gun.
a. If adhesive flows, clean the nozzle and
reinstall on the module.
b. If adhesive does not flow, the module is
clogged and needs to be replaced. See
Replace Module, page 20.
3A2805B 15

Troubleshooting
Check Heater
Check the continuity of the heater to verify proper
resistance. If there is no continuity, the heater has
failed and needs to be replaced.
1. Disable gun assembly. See
Before Beginning Repair, page 17.
2. Check resistance of the heater using a multimeter
between the pins of the cordset connector. See
connectors illustrations in cordset pin tables.
3. Replace the heater cartridge if the
resistance reading is outside the
range or if there is no continuity. See
Replace Heater Cartridge, page 18.
Cordset Check Pins Approximate
Resistance
Values
24P280,
Platinum 100
Ohm RTD
Cordset
A and C
24P283, Nickel
120 Ohm RTD
Cordset
1 and 2
130–140 ohms
Table 1 24P280, Platinum 100 Ohm RTD Cordset
Pin Description
AThermal Cutoff
BGround
CHeat -
DRTD (White)
ERTD (Red)
Table 2 24P283, Nickel 120 Ohm RTD Cordset
Pin Description
1Thermal Cutoff
2 Heat -
3RTD (White)
5RTD (Red)
GGround
Check RTD
Check the continuity of the RTD to verify proper
resistance. If there is no continuity, the RTD has
failed and needs to be replaced.
1. Disable gun assembly. See
Before Beginning Repair, page 17.
2. Check resistance of the RTD using a multimeter
between the pins of the cordset connector. See
connectors illustrations in cordset pin tables.
Cordset Check Pins Approximate
Resistance
Values
At Room
Temperature
24P280,
Platinum 100
Ohm RTD
Cordset
D and E 107-115
ohms
24P283,
Nickel 120
Ohm RTD
Cordset
3 and 5 130-140
ohms
3. Replace the RTD if the resistance reading is
outside the range, or if there is no continuity. See
Replace RTD, page 18.
16 3A2805B

Repair
Repair
Required Tools
• Phillips screwdriver
• Flat blade screw driver
• 5/64in(2mm)and5/32in. (4mm)Allenwrenches
•1/2in.and7
/16 in. wrenches
•Torquewren
ch
• Waste container
•High-temp
erature anaerobic thread sealant
•High-temp
erature lubricant
• Anti-sieze
Before Beginning Repair
1. Turn off the melter system. See melter manual
for shutdown instructions.
2. Relieve pressure. See
Pressure Relief Procedure, page 11.
3. Disconnect the cordset from the heated hose.
Figure 12 Disconnect Cordset
4. Loosen the mounting screw and disconnect the
solenoid valve power connector (N) from the
solenoid valve (J).
J
N
Figure 13 Disconnect Solenoid Valve Power
Connector
3A2805B 17

Repair
Replace Heater Cartridge
1. Disable gun assembly.
2. Use a Phillips screwdriver to remove the four
screws (15) and manifold cover plate (18).
3. Remove the heater cartridges (3) from the
manifold (1).
Note
Note the placement of the heaters and
lead lengths.
4. Disconnect the existing heater leads (3) from the
terminal block (5) and connect the new heater
leads. Tighten the terminal block screws. Torque
to 5-7 in-lbs (0.5-0.8 N∙m).
5. Insert the new heater cartridges (3) into the
manifold (1), placing the heater with the shorter
leads closer to the wiring port.
Note
Do not apply thermal grease to the
heater cartridge.
6. Reinstall the manifold cover plate (18).
7. Reconnect the cordset to the heated hose.
8. Reconnect the solenoid valve power connector
to the solenoid valve (9).
Replace RTD
The RTD is replaced by replacing the entire cordset.
See Replace Cordset, page 18, for instructions.
Replace Thermal Cutoff
The thermal cutoff is replaced by replacing the
entire cordset. See Replace Cordset, page 18,for
instructions.
Replace Cordset
See Fig 14, page 19.
Note
There are two types of cordsets (17): 24P280
is for 100 Ohm RTD controlled guns and
24P283 is for 120 Ohm RTD controlled guns.
Ensure you have the correct cordset before
replacing. See Parts, page 22.
1. Disable gun assembly. See
Before Beginning Repair, page 17.
2. Use a Phillips screwdriver to remove the four
screws (15) and manifold cover plate (18).
3. Usea2mmAllenwrenchtoremovetheset
screw (8) holding the cordset (17) on the manifold
(1).
4. Remove the terminal block (5) out of the manifold
(1).
5. Use a flat blade screwdriver to remove the
cordset lead (black) and thermal cutoff lead
(white) from the terminal block (5).
6. Use a Phillips screwdriver to remove the ground
lead and star washer (20) from the manifold (1).
7. Remove the RTD and thermal cutoff from the
manifold (1).
Note
If the RTD or thermal cutoff do not
easily pull out, remove the other cover
plate (19) and press out with a small
screwdriver.
8. Remove the cordset (17) from the manifold (1).
9. Install the new cordset (17) in the manifold.
Note
Ensure the cordset bushing is fully
inserted into the manifold.
10. Install set screw (8) against the cordset bushing
to secure the cordset (17) to the manifold (1).
11. Insert the cordset lead (black) and thermal cutoff
lead (white) into the terminal block. Tighten
terminal block screws. Torque to 5-7 in-lbs
(0.5-0.8 N∙m).
18 3A2805B

Repair
12. Reinstall the ground lead onto the manifold (1).
Note
Ensure the star washer (20) is placed
below the ground ring terminal.
13. Insert the RTD and thermal cutoff into the
manifold.
Note
Do not apply greaseontheRTD.
14. Insert the terminal block (5) and heater cartridges
(3) in the manifold (1).
NOTICE
Do not pinch any wires when inserting the
terminal block in the manifold to prevent
removing wire insulation or disconnecting
wires. If wire insulation is removed, the RTD
or heaters could short out and need to be
replaced.
15. Reinstall the manifold cover plate (189).
16. Reconnect the cordset (17) to the heated hose.
17. Reconnect the solenoid valve power plug
housing to the solenoid valve.
R
T
Figure 14 Repair Parts
3A2805B 19

Repair
Replace Solenoid Valve
1. Disable gun assembly. See
Before Beginning Repair, page 17.
2. Remove solenoid valve fitting (102) and solenoid
valve (9) from tube (7).
3. Use a 1/2 in. and 7/16 in. wrench to tighten
connector (102) to tube (7).
Figure 15 Replace Solenoid Valve
Replace Module
1. Disable gun assembly. See
Before Beginning Repair, page 17.
Material inside the applicator can be near
setpoint temperature. Wear protective clothing
to avoid severe burns.
2. Use a 5/32 in. (4 mm) Allen wrench to remove
the two mounting screws (22) and module (2)
from manifold (1).
NOTICE
Do not allow adhesive to enter the air ports,
to allow air to flow through valve. Adhesive in
the air ports will obstruct the flow of air and
damage the valve.
Figure 16 Remove Module From Manifold
3. Apply high temperature lubricant to o-rings in
module (2).
4. Apply anti-seize to two screw threads (22). Use
a5/32in. (4mm)Allenwrenchtoinstallnew
module (2) on manifold with two screws (22).
Torque to 28–32 in.-lbs (3.2–3.6 N•m).
5. Connect cordset (17) to the heated hose.
Replace Applicator
Material inside the applicator can be near setpoint
temperature. Wear protective clothing to avoid
severe burns.
1. Disable gun assembly. See
Before Beginning Repair, page 17.
2. Loosen the mounting bar clamp and remove the
applicator from the mounting bar.
3. Install new applicator. See Installation, page 9 .
20 3A2805B
