Graco 226816 Operation manual

Instructions–Parts List
307363S
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
VISCON High Pressure
Fluid Heater
Used for variable heating of fluids.
3000 psi (21 MPa, 210 bar) Maximum Working Pressure
80–190_F (26–88_C) Temperature Range
Model 226816, Series F 120 Volt
Model 226819, Series F 240 Volt
FM Approved as explosion proof for
Class I, Division 1, Group D, Hazardous Locations,
Temp Code (identification number) T3C. See the Technical Data
on page 20 for additional information on this code.
US
WARNING
Hazard of Using Fluids Containing Halogenated Hydrocarbons
Never use 1,1, 1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in this equipment. Such use could result in a serious chemical reac-
tion, with the possibility of explosion, which could cause death, serious injury, and/or substantial
property damage.
Consult your fluid suppliers to ensure that the fluids being used are compatible with aluminum and
zinc parts.

2 307363
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Relief Procedure 8. . . . . . . . . . . . . . . . . . . . . . .
Maintenance 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Hole Layout 22. . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Information 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
corresponding instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before operating the equipment.
DUse the equipment only for its intended purpose. If you are uncertain about usage, call your Graco
distributor.
DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DDo not exceed the maximum working pressure of the lowest rated system component. These
heaters have a 3000 psi (21 MPa, 210 bar) maximum working pressure.
DUse fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
DDo not use hoses to pull equipment.
DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).
DDo not touch the heater during operation; it is very hot.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.

307363 3
WARNING
SKIN INJECTION HAZARD
Spray from the gun, hose leaks, or ruptured components can inject fluid into your body and cause
extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin
can also cause serious injury.
DFluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate surgi-
cal treatment.
DDo not point the gun at anyone or at any part of the body.
DDo not put your hand or fingers over the spray tip.
DDo not stop or deflect leaks with your hand, body, glove or rag.
DDo not “blow back” fluid; this is not an air spray system.
DAlways have the tip guard and the trigger guard on the gun when spraying.
DBe sure the gun trigger safety operates before spraying.
DLock the gun trigger safety when you stop spraying.
DFollow the Pressure Relief Procedure on page 8 whenever you: are instructed to relieve pres-
sure; stop spraying; clean, check, or service the equipment; and install or clean the spray tip.
DTighten all fluid connections before operating the equipment.
DCheck the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Permanently coupled hoses cannot be repaired; replace the entire hose.
DUse only Graco approved hoses. Do not remove any spring guard that is used to help protect the
hose from rupture caused by kinks or bends near the couplings.
DWear hearing protection when operating this equipment.

4 307363
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
DGround the equipment and the object being sprayed. Refer to Grounding on page 5.
DIf there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
DKeep the spray area free of debris, including solvent, rags, and gasoline.
DElectrically disconnect all equipment in the spray area.
DExtinguish all open flames or pilot lights in the spray area.
DDo not smoke in the spray area.
DDo not turn on or off any light switch in the spray area while operating or if fumes are present.
DDo not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
DAlways wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
DKeep clear of all moving parts when you start or operate the equipment.
DBefore you service this equipment, follow the Pressure Relief Procedure on page 8 to prevent
the equipment from starting unexpectedly.

307363 5
Installation
Grounding
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 4.
1. Pump: use a ground wire and clamp as shown in
your separate pump manual.
2. Air hoses: use only electrically conductive air
hoses.
3. Fluid hoses: use only electrically conductive fluid
hoses.
4. Heater: by wiring to a properly grounded power
supply through the electrical connections. In a
mobile installation, be sure the truck or trailer is
grounded to a true earth ground, also.
5. Air compressor or hydraulic power supply: follow
manufacturer’s recommendations.
6. Spray gun: grounding is obtained through connec-
tion to a properly grounded fluid hose and pump.
7. Object being sprayed: according to your local
code.
8. All solvent pails used when flushing, according to
local code. Use only metal pails, which are con-
ductive, placed on a grounded surface. Do not
place the pail on a nonconductive surface, such as
paper or cardboard, which interrupts the grounding
continuity.
9. To maintain grounding continuity when flushing or
relieving pressure, always hold a metal part of the
gun firmly to the side of a grounded metal pail,
then trigger the gun.

6 307363
Installation

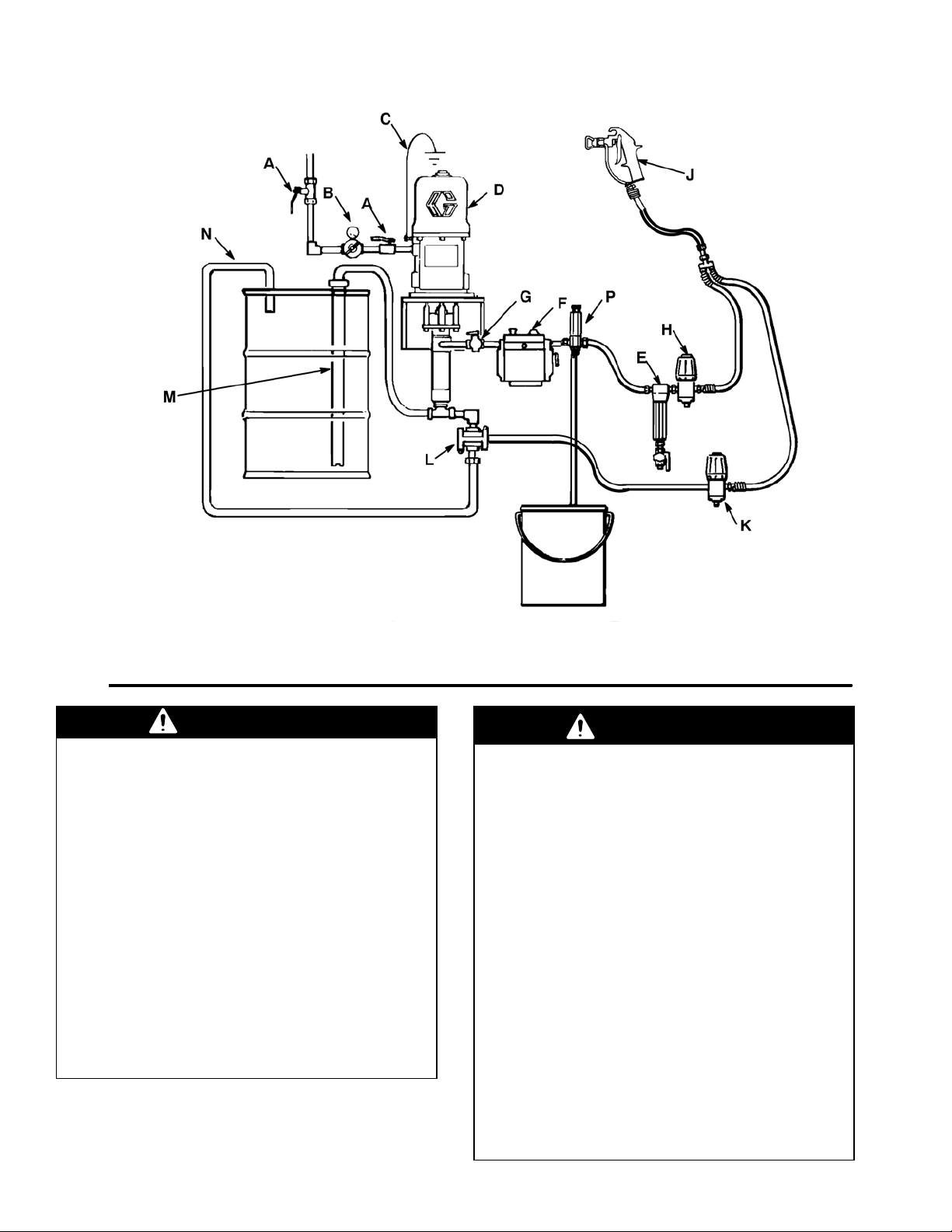

KEY
ABleed-type Master Air Valve
BAir Regulator and Gauge
CGround Wire
DPump
EFluid Filter with Drain Valve
FVis–Con Heater
GFluid Shutoff Valve
HFluid Pressure Regulator
JSpray Gun
KBack Pressure Valve
LDirector Valve
MSiphon tube
NDrain Back Tube
PPressure Relief Valve
Fig. 1
HEATED CIRCULATING SYSTEM
WARNING
To reduce the risk of serious injury, including fluid
injection, splashing in the eyes or on the skin,
burns from hot fluid or heated surfaces, electric
shock or property damage, always follow these
precautions when installing the heater.
1. Shut off the electric circuit.
2. Relieve air and fluid pressure in the system.
3. Have a trained and qualified person install and
wire the heater.
4. Be sure the installation is in compliance with all
local, state, and national codes.
5. Do not install any shutoff devices downstream
from the heater.
WARNING
Heat causes the fluid to expand. If fluid in the
heated portion of your system is trapped with
nowhere to expand, it can cause a system rupture.
A system rupture can result in serious injury and
property damage. Be sure your system has an
adequate way to handle heat expansion.
1. Use flexible hoses between the heater and
gun.
2. OR, install a properly sized accumulator down-
stream from the heater.
3. OR, install a pressure relief valve (P – see the
Installation drawing above), preset to relieve
pressure when it exceeds the system’s maxi-
mum working pressure.
4. Never install any shutoff device between the
heater and gun. If you are using a fluid regula-
tor before the gun, never use it as a shutoff
device.

307363 7
Installation
Mounting the Heater
This Typical Installation is only a guide to setting up
a heated, circulating spray system. For assistance in
designing a system to suit your needs, contact your
Graco distributor.
Use 1/4 in. diameter mounting screws (P) to install the
heat insulators (19) on each side of the bolt holes in
the heater housing (Q). See Fig. 2. Mount the heater
near the object to be sprayed, but outside the spray
area. Be sure the surface on which you mount the
heater can support the weight of the heater, filters,
hoses, and fluid. See the Dimensions on page 22 and
Technical Data on page 20.
Fig. 2
Q
P
19
Install a fluid shutoff valve (G) UPSTREAM from the
heater. This is used to isolate the heater when it re-
quires servicing. DOWNSTREAM, install a fluid filter
and drain valve (E). The filter removes sediment that
may have collected in the heater, which could clog the
spray gun.
Connecting the Hoses
Connect the fluid lines to the 1/2 npt(f) inlet and outlet
of the heater. See the Typical Installation, on page
6.
To minimize heat loss, fluid lines should be insulated
when they are especially long if the environment is
cool.
WARNING
When using a flexible power cord, the attached
equipment is no longer explosion proof rated. To
reduce the risk of serious injury from a fire or
explosion, do not use the heater near flammable
materials or vapors.
Locate the heater where operators will not come in
contact with the hot metal surfaces.
Wiring

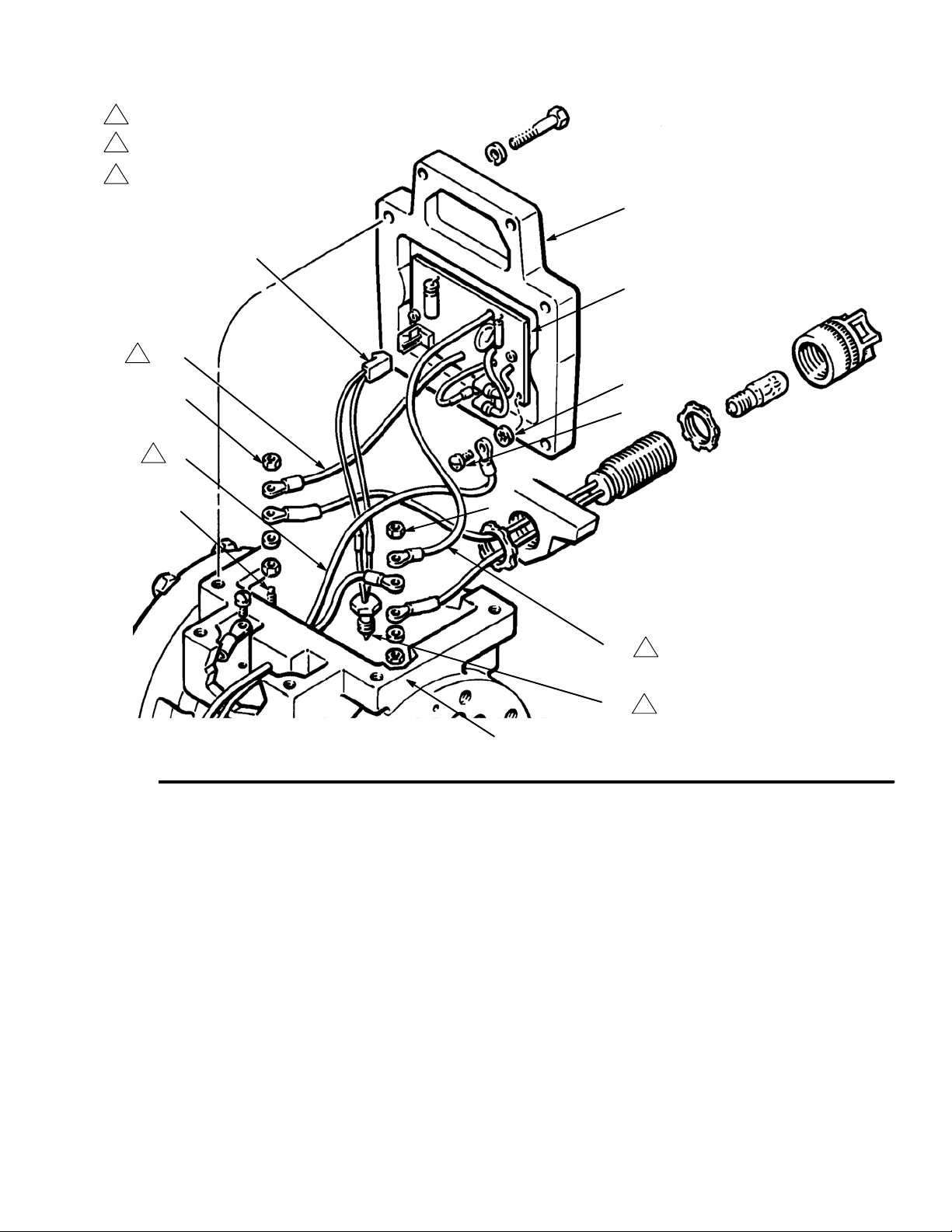

Remove the heater cover (20). Connect the electric
wires of the circuit to the heater leads (R, S) with
connectors (T). Crimp the terminal (24) onto the
ground wire (U) of the circuit and connect to the heater
ground connection screw (5). See Fig. 3.
WARNING
All wire nuts used for heater connections must be
rated at 150_C or higher. NEVER use wire nuts
rated less than 150_C; they cannot withstand the
heat generated.
NOTE: Be sure your voltage supply agrees with the
heater voltage. The 120 volt heater draws 18 amps,
and the 240 volt heater draws 9 amps.
Fig. 3
U
24
5
T
R
S

8 307363
Operation
Pressure Relief Procedure
WARNING
SKIN INJECTION HAZARD
Fluid under high pressure can be in-
jected through the skin and cause
serious injury. To reduce the risk of an
injury from injection, splashing fluid, or moving
parts, follow the Pressure Relief Procedure
whenever you:
Dare instructed to relieve the pressure,
Dstop spraying,
Dcheck or service any of the system equipment,
Dor install or clean the spray tip.
1. Lock the gun trigger safety.
2. Shut off the main power to the heater.
3. Circulate the fluid for at least 10 minutes to cool
the heated fluid and heater.
4. Shut off all air and fluid supplies.
5. Unlock the gun trigger safety. Maintaining firm
metal-to-metal contact between the gun and a
grounded metal pail, trigger the gun to relieve
pressure. Lock the gun trigger safety.
6. Open the fluid filter drain valve, having a container
ready to catch the fluid.

307363 9
Operation
Flushing the Heater Before First Use
The heater was factory tested in lightweight oil. Use
low pressure and a compatible solvent to flush the
system. While the system is pressurized, check it
carefully for leaks at all fluid connections. Pump out
the solvent, relieve the system pressure, and tighten
any leaking connections. Prime the system and check
to be sure that all leaks have stopped.
WARNING
To reduce the risk of serious injury when flushing:
1. Use the lowest possible pressure to reduce the
risk of fluid injection and splashing solvent in
the eyes or on the skin.
2. Maintain firm metal-to-metal contact between a
metal part of the gun and a grounded metal pail
to reduce the risk of static sparking which can
cause a fire or explosion.
WARNING
To reduce the risk of serious injury from a fire or
explosion, never operate the heater with its covers
removed.
Priming the System (Refer to page 6)
Pump the fluid until all air has been purged from the
system, to permit proper heating and spraying. In a
completely closed, circulating system, use a director
valve (L) attached to the pump intake to purge the
system. See the Typical Installation on page 6.
Setting the Heater Controls (See Fig. 4)
NOTE: The knob settings for Series E and older
Vis–Con heaters will differ from Series F heaters
(covered in this manual). It’s important that you take
this into consideration when setting the heaters. Refer
to the charts which illustrate the difference.
1. Stop the pump.
2. Set the control knob (V) at 4 or 5 (trial setting) and
let the heater warm up for about 10 minutes. See
Fig. 5.
NOTE: Start the pump and circulate the fluid at a low
speed – 10 to 20 oz/min. (0.30 to 0.35 liter/min.) –
during the warmup.
Adjusting for Spraying
1. Start the pump and check the fluid flow through
the gun.
2. Readjust the control knob setting, if necessary, to
obtain the proper temperature for spraying.
3. In a Hydra–Sprayrsystem with a tip installed in
the gun, adjust the pump speed (use the pump air
regulator) to the lowest fluid pressure that will
completely atomize the fluid.
4. In a circulating system, adjust the back pressure
valve, also.
Fig. 4
NOTE: Shaded area indicates continuous op-
eration capability of one heater. Use more heat-
ers if your needs exceed these guidelines.
Fig. 5

10 307363
Operation
Determining the Proper Fluid Temperature
CAUTION
Use the lowest temperature setting needed, for
maximum heater life. Operating the heater at its
highest setting – over 82_C (180_F) – for long peri-
ods of time decreases the heater life.
Higher than necessary temperatures also causes the
fluid to dry out, resulting in a poor finish and clogging
the heater.
The chart in Fig. 6 is used on determining the Under–
Boilrtemperature. It also shows the effect of tempera-
ture on reducing viscosity. Notice that most of the
viscosity reduction occurs by 55_C (130_F).
Under–Boil is the Graco method of hot, airless spray-
ing in which the fluid is heated to a temperature just
under the boiling point of its most volatile solvent.
To find the Under–Boil temperature of your fluid:
1. Pour a small sample into a heat–proof container.
2. Measure and record the temperature and viscosity
of the fluid. Use a No. 2 Zahn cup.
3. Heat water in a large container to 93_C (200_F).
Place the sample in the water.
4. At every 10_temperature rise, measure and
record the viscosity and temperature. Do this until
solvents start boiling off and the viscosity starts to
level off – usually 71_to 77_C (160_to 170_F).
5. Subtract the lowest viscosity reading from the
highest one. Multiply that result by 0.90. Subtract
the new result from the highest viscosity reading.
Find this number on your temperature and viscos-
ity records. This is the temperature to use in your
Under-Boil system.
Fig. 6

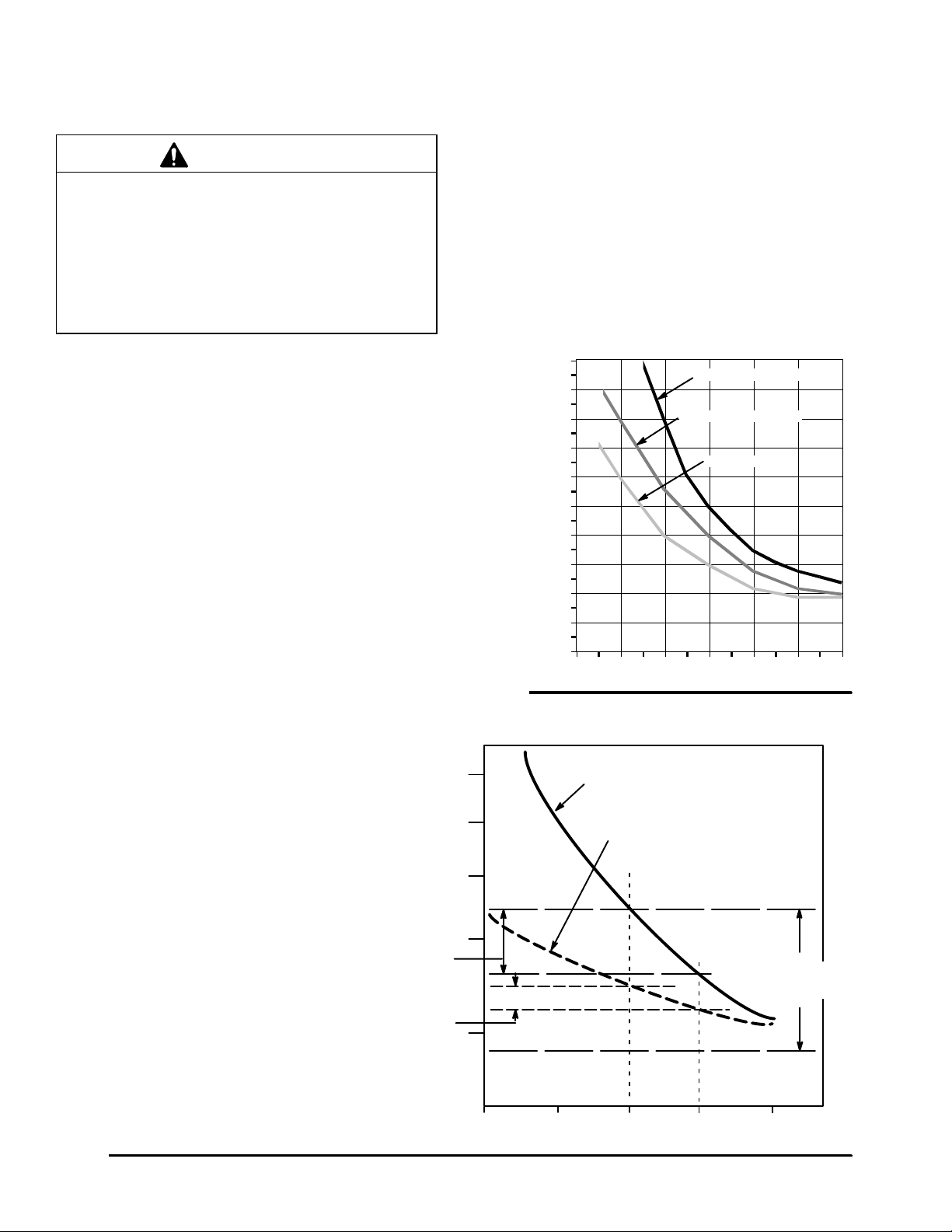

EFFECT OF TEMPERATURE ON REDUCING VISCOSITY
UNDER–BOIL METHOD
0
10
20
30
40
50
60
70
80
90
100
60 80 100 120 140 160 18
0
TEMPERATURE (_F)
HEAVY LACQUER
MEDIUM LACQUER
ENAMEL
VISCOSITY
TIME IN
SECONDS
with No. 2
ZAHN CUP
Fig. 7
Effect of Temperature in Reducing
Two Fluids to a Sprayable Viscosity
60 80 100 120
20
30
40
50
60
140
nU2
nU1
TYPICAL HIGH–SOLID PAINT
TYPICAL ENAMEL PAINT
TYPICAL
SPRAY
VISCOSITIES
APPARENT
VISCOSITY
with NO. 2
ZAHN CUP
TEMPERATURE (_F)
The chart in Fig. 7 shows the effect of tempera-
ture in reducing two fluids to a sprayable vis-
cosity – in the range of 20 to 34 seconds using
a No. 2 Zahn cup.
Notice that temperature has more of an effect
on high solid fluids than on thin enamels. That
is, for the same 10_temperature rise, more
viscosity reduction occurs in the high solid fluid
than the enamel. This shows that high solid
fluids are “temperature sensitive,” which needs
to be taken into consideration when planning
your system.
Also note that once the fluid is reduced to
about 34 on the chart, viscosity reduction starts
to level off. Therefore, high temperatures will
not significantly improve sprayability, but will
use more energy.
EFFECT OF TEMPERATURE ON VISCOSITY

307363 11
Maintenance
Flushing After Use
1. Drain and clean the fluid filter frequently to be sure
it filters the fluid thoroughly. Always relieve system
pressure first, and cool the fluid, if possible. If not
possible, wear protective eyewear and gloves to
protect yourself from possible burns.
2. Flush the heater often enough to prevent a buildup
of dried sediment in it.
WARNING
Before flushing, always shut off the main power to
the heater. Circulate the fluid through the system
for at least 10 minutes to cool the fluid and heater.
This reduces the risk of serious injury from burns.
CAUTION
Clogged fluid passages can be very difficult to clean.
They also reduce heating efficiency, flow rate, and
pressure. To prevent clogged passages, do not
overheat or dry out the fluid, and flush frequently,
including whenever the system or heater is not in
use.
3. If the system runs dry, refill it immediately before
fluid can dry in it. Or flush the system thoroughly if
you are not going to use it immediately.
4. To drain the fluid from the heater, first relieve all
system pressure. Cool the fluid, if possible. Re-
move the drain plug (7) in either end plate and
drain the fluid into a container. See. Fig. 8.
5. Shut down.
CAUTION
When shutting down the system, turn the control
knob (V) to set point 1 and circulate the fluid for at
least 10 minutes before shutting off the pump. This
allows unheated fluid to gradually cool the heater and
heated fluid.
Fig. 8
V
9
7
Unclogging Fluid Passages
1. Remove an end plate (21) and use a wire bottle
brush to clean. If necessary, use 1/2 in. (13 mm)
hand reamer to remove hard, caked deposits.
2. Put the end plate back on, turning all screws hand
tight.
3. Follow the sequence shown in Fig. 9, torquing
each screw to 50 in-lb (5.6 NSm).
4. Torque them again, using the same sequence, to
175–225 in-lb (20–25 NSm).
Fig. 9
Torquing Sequence

12 307363
Troubleshooting
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
Before servicing this equipment always make sure to
relieve the pressure.
Check all possible problems and solutions before
disassembling the heater.
PROBLEM CAUSE SOLUTION
Heater will not heat No current. Check circuit, fuses.
Faulty circuit board. Replace the cover and circuit board
assembly (20).
Burned out heater element. Replace the housing.
Temperature too low Fluid requires more warmup time. Increase warmup time.
Wrong temperature setting. Adjust the knob.
Flow rate too high. Reduce flow rate or use two
heaters.
Clogged fluid passages. Clean. Flush regularly.
Faulty circuit board. Replace the cover and circuit board
assembly (20).
Temperature too high Wrong temperature setting. Adjust the knob.
Faulty circuit board. Replace the cover and circuit board
assembly (20).
Too much pressure drop / fluid will
not flow Flow rate too high. Reduce flow rate or use two heat-
ers.
Clogged fluid passages. Clean. Flush regularly.
Leakage from end plates Loose bolts, damaged seals. Tighten or replace seals.

307363 13
Notes

14 307363
Service
Replacing the Cover and Circuit Board
Assembly
WARNING
All service to the heater must be performed by a
qualified electrician to reduce the risk of electric
shock or serious personal injury.
Follow the Pressure Relief Procedure on page 8
before continuing.
NOTE: Parts with ref. nos. 1, 3, and 20a–20h are
included in the cover and circuit board assembly (20).
To replace these parts, order 217184 for Heater Model
226816 or 217185 for Model 226819.
1. Remove the six old screws (3) and lockwasher (1).
Discard.
2. Swing the old cover (20a) into an upright position
on the heater housing edge.
3. Remove the old screw (20c) and lockwasher (20d)
from the threaded terminal in the lower right–hand
corner of the circuit board (20b) to disconnect the
black or white input wire (R). Discard the screw
and lockwasher.
4. Disengage the wiring harness female connector
(20e) from male connector in lower left–hand
corner of the circuit board (20b).
5. Unscrew the thermistor (20f) from the heater
housing. Discard the thermistor wiring harness.
6. Remove the nut (4) from the right heat element
terminal (W). Remove the small white wire (20g).
7. Remove the nut (4) from the left heat element
terminal (X) and remove the heavier black or white
wire (20h). Discard the cover and circuit board
assembly. Save the nuts (4).
8. Reassemble the new parts in the reverse order of
removal, being sure wires are routed carefully and
not in a position where they could be pinched
when installing the cover on the heater housing.
9. Tighten the screw (20c) and terminal (W, X) nuts
(4) securely.
10. Apply terminal grease (Part No. 110009) to the tip
of the thermistor (20f) before threading it into the
housing.

307363 15
Service

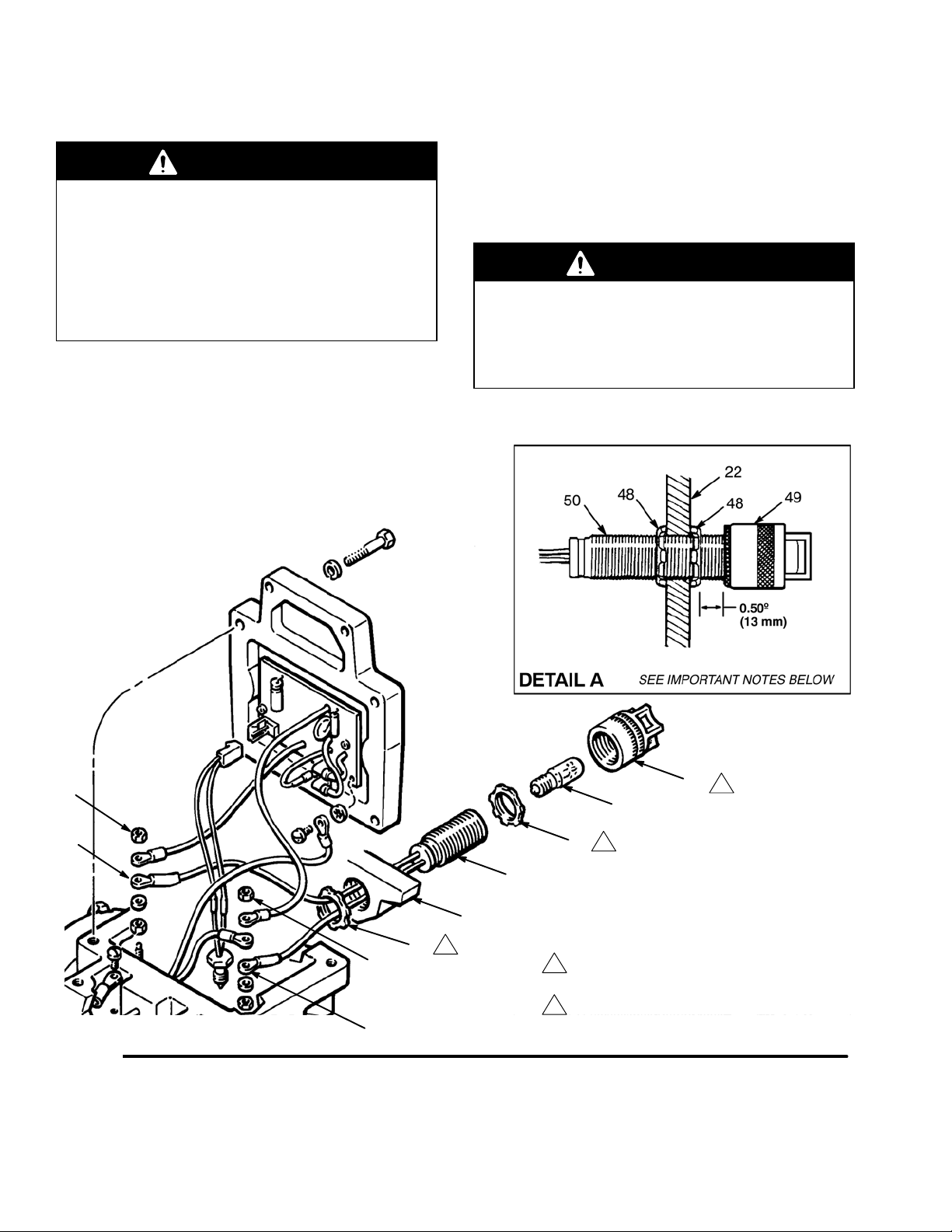

Fig. 10
20a
20b
20d
20c
20g
1
3
2
1
20f
2
3
White
White 120V
Black 240V
Apply thermal grease (Graco Part No.
110009) to tip.
4
W
20e
20h
4
R
X
2

16 307363
Service
Replacing the Indicator Lamp
WARNING
All service to the heater must be performed by a
qualified electrician.
To reduce the risk of serious injury, including fluid
injection, burns, or electric shock, always shut off
the power to the heater, relieve fluid and air pres-
sure in the pump, and allow the fluid to cool before
servicing the heater.
1. Unscrew the lens cap (49).
2. Remove the lamp (47) and replace it with a new
lamp.
3. Screw the lens cap onto the socket (50) until the
o–ring in the lens cap contacts the socket, then
turn the lens cap 1/2 to 1 turn more to ensure a
good seal.
WARNING
The terminals (46) on the ends of the indicator
lamp socket (50) are special, fused terminals. To
reduce the risk of fire or explosion which can result
in serious injury and property damage. Use only
original Graco replacement parts.
Fig. 11
1
2
4
46
46
448
22
50
48
47
49
Tighten onto socket (50) until seal in lens cap
contacts socket and then turn 1/2 to 1 turn more.
Tighten to contact housing (22) and then turn
1/8 to 1/4 turn more.
1
2
2

307363 17
Notes

18 307363
Parts
3
1
20
NOTE: See important repair
and assembly information on
pages 14–16.
27
4
46
17
1
5
24
19
19
49
47
48
50
28
30
48
46
22
15
18
8
NOTE: See page 11 for important
tightening sequence and torque
values for the endcap screws (16).
21
2
16
7
9
2
16

307363 19
Parts
Model 226819, Series F
240 Volt Heater
Includes items 1–50
Ref
No. Part No. Description Qty Ref No. Part No. Description Qty
1 100016 LOCKWASHER, 1/4 in. 6
2 100052 LOCKWASHER, 7/16 in. 36
3 100014 CAPSCREW, hex hd; 1/4–20 x
1–1/4 in. 6
4 100166 NUT, hex; 10–32 screw size 4
5 100268 SCREW, mach, rd hd; 10–24 x
3/8 in. 1
7 100509 PLUG, std pipe; 1/4 in. npt size 3
8 101097 PIN, grooved; 1/8 in. dia;
1/2 in. long 2
9 102124* THERMOMETER, dial; 0 to 250_F
(–18 to 121_C) range 1
15 105496* PACKING, o–ring;
glass–filled PTFE 2
16 105498 SCREW, cap, hex hd; 7/16 x
2 in. long 36
17 157974 WASHER, flat; steel;
3/16 in. screw size 2
18 166412* PACKING, o–ring; PTFE 2
19 167002 INSULATOR, heat 8
20 222217 COVER & CIRCUIT BOARD ASSY
120 V (Model 226816 only) 1
222218 COVER & CIRCUIT BOARD ASSY
240 V (Model 226819 only) 1
21 176839 CAP, end, heater 2
22 215922 HOUSING, heater; 120 V
(Model 226816 only) 1
215921 HOUSING, heater; 240 V
(Model 226819 only) 1
24 104911 TERMINAL, ring; 12–10 ga. wire 1
27 215355 WIRING HARNESS 1
28 100272 LOCKWASHER 1
47 106214 LAMP, incandescent; 120 V
(Model 226816 only) 1
106215 LAMP, incandescent; 240 V
(Model 226819 only) 1
48 106216 LOCKNUT, external 2
49 106217 CAP, lens 1
50 109023 LAMP, socket, fused 1
*Keep these spare parts on hand to reduce down
time.

20 307363
Technical Data
Category Data
Voltage Model 226816, Series F: 120 volts AC, single phase, 18 amp
Model 226819, Series F: 240 volts AC, single phase, 9 amp
Explosion proof Class 1 – Division 1 & 2, Group D, Hazardous Location
Heating element wattage 2100 watts
Fluid passage area 254 sq. in. (163, 870 mm2)—8 watts per sq. in.;
.013 watts/mm2) of heat transfer area
Fluid passage diameter and length 0.56 in. (14.2 mm2), 12 ft (3.7 m)
Working pressure up to 3000 psi (21 MPa, 207 bar) maximum
Thermometer range 0 to 250_F (–18 to 121_C)
Temperature range 80 to 190_F (26 to 88_C)
Weight 37.5 lb (17 kg)
* This heater has a surface temperature code (identification code) of T3C, indicating a maximum external (surface)
temperature rating of 160_C (320_F) in accordance with Article 500 – Hazardous Locations – of NFPA 70 National
Electrical Code and/or Section 18 – Hazardous Locations – of Part 1 of the Canadian Electrical Code. See and
comply with the requirements of these and similar codes as to the proper location of the heater.
