Graco LSA 200 Operation manual

INSTRUCTIONS–PARTS LIST 310500
Rev. D
Low Shear Agitators
LSA 200, LSA 220, LSA 300
The Graco LSA series, low-shear agitators are de-
signed to reduce energy consumption and decrease
material degradation. Electric, air, and hydraulic mo-
tors are available, as are various shaft lengths and im-
peller sizes.
LSA 200 – 5.04:1 ratio gear reducer, and a standard
maximum shaft output of 350 RPM with 1750 RPM
shaft input. Choice of the air-powered (variable speed)
or the electric motor.
LSA 200H – (hydraulic) direct drive, with 0 – 350 RPM
shaft output using the 0.25 HP motor.
LSA 220 – 6.32:1 ratio gear reducer, and a standard
maximum shaft output of 280 RPM with 1750 RPM
shaft input. Choice of the air-powered (variable speed)
or the electric motor.
LSA 220H – (hydraulic) direct drive, developing 0 to
280 RPM shaft output using the 0.25 HP motor.
LSA 300 – 6.32:1 ratio gear reducer, and a standard
maximum shaft output of 140 RPM with 900 RPM
shaft input. Choice of the air-powered (variable speed)
or the electric motor.
LSA 300H – (hydraulic) direct drive, with 0 – 140 RPM
shaft output using the 0.25 HP motor.
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 2000, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
Parts

2 310500
FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS.
Read and understand all instruction manuals before operating equipment.
FIRE, EXPLOSION, AND ELECTROSTATIC SHOCK HAZARD
Improper grounding, poor air ventilation, open flames or sparks can cause a hazardous condition
and result in fire or explosion and serious injury.
DGround the equipment and the object being sprayed.
DIf there is any static sparking while using the equipment, stop dispensing immediately. Identify
and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvent or material.
DDo not smoke in the dispense area.
DExtinguish all open flames or pilot lights in the dispense area.
DDo not turn on or off any light switch in the dispense area.
DKeep the dispense area free of debris, including solvent, rags and gasoline.
MOVING PARTS HAZARD
Moving parts, such as an impeller blade, can pinch or amputate fingers.
DKeep clear of any moving parts when starting or operating the equipment.
DDisconnect the power supply before checking or servicing the equipment to prevent starting it
accidentally.
DFor hydraulic driven units, follow the Pressure Relief Procedure before checking or servicing
the agitator to prevent it from starting accidentally.
HOT SURFACE HAZARD
DThe surfaces of equipment which dispense hot materials can become heated enough to cause
burns if touched. When working with such equipment, wear appropriate protective gloves and
clothing. Allow hot surfaces time to cool, if possible, before servicing.
TOXIC FLUID HAZARD
The improper handling of hazardous fluids or inhaling toxic fumes can cause extremely serious
injury, even death, due to splashing in the eyes, ingestion, or bodily contamination.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
DWear appropriate clothing, gloves, eyewear and respirator.
DPipe and dispose of the exhaust air safely. See your separate pump manual for further informa-
tion.
WARNING
WARNING

3310500
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture, malfunction or start unexpectedly and result
in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before operating the equipment.
DUse the equipment only for its intended purpose. If you are uncertain about the usage, call Graco
Technical Assistance at (313) 416–3400.
DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.
DCheck the equipment daily. Repair or replace any worn or damaged parts immediately.
DDo not exceed the power supply requirement of the electrical equipment.
DFor air-powered and hydraulic-powered agitators, the Maximum Input Pressure depends on the
model type – refer to the Technical Data section on page 23. Never exceed these pressures.
DBe sure that all accessories on the system’s air and/or hydraulic power lines are rated to with-
stand the system pressure. Never exceed the maximum working pressure of the lowest-rated
component in your system.
DDo not move or lift any pressurized equipment.
DUse fluids or solvents that are compatible with equipment wetted parts. See the Technical Data
section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
DThe fluid hoses must have spring guards on both ends to protect them from rupture caused by
kinks or bends at or close to the couplings.
DComply with all applicable local, state and national fire, electrical and other safety regulations.
ELECTRIC SHOCK HAZARD
Beware of HIGH VOLTAGE in systems with electrical equipment. CONTACT WITH HIGH VOLT-
AGE ELECTRICITY CAN BE FATAL!
DBe sure all electrical installations and service is performed by a qualified electrician only.
DBe sure electrical installations comply with applicable codes.
DBe sure power is disconnected when servicing and repairing equipment.
WARNING
WARNING
Symbols
Be sure you read and understand each of these terms
before reading the rest of the manual.
NOTE: Gives additional information or helpful hints.
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.

4 310500
Installation
For best results, do not remove any protective wrap-
pings from any of the agitator parts until just prior to
assembly and installation. Also, store the agitator
parts indoors, in clean, dry air, with an ambient temper-
ature between 59_ – 104_ F (15_ – 40_ C).
Impeller Installation

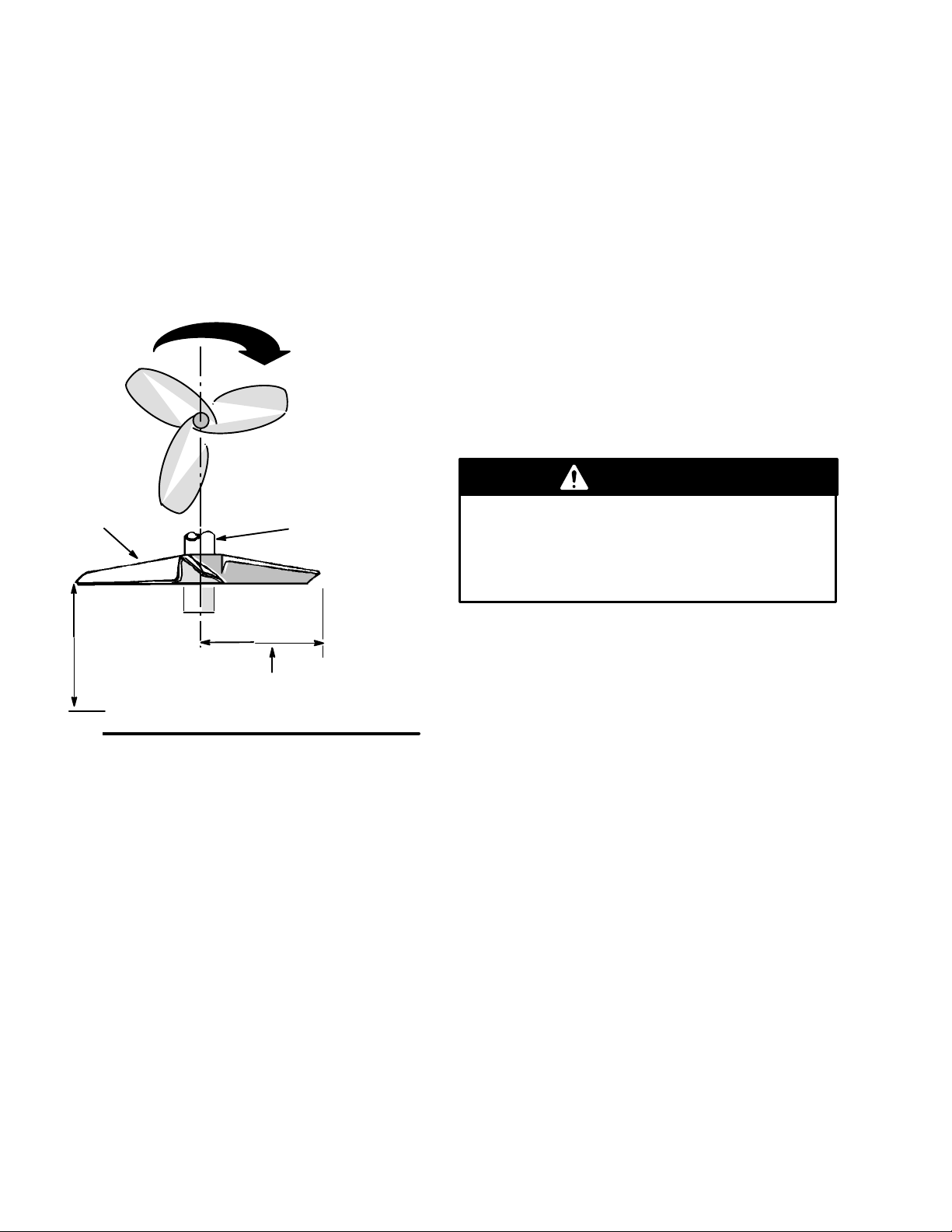

1. Slide the impeller(s) onto the shaft so the side
marked DOWN faces away from the agitator.

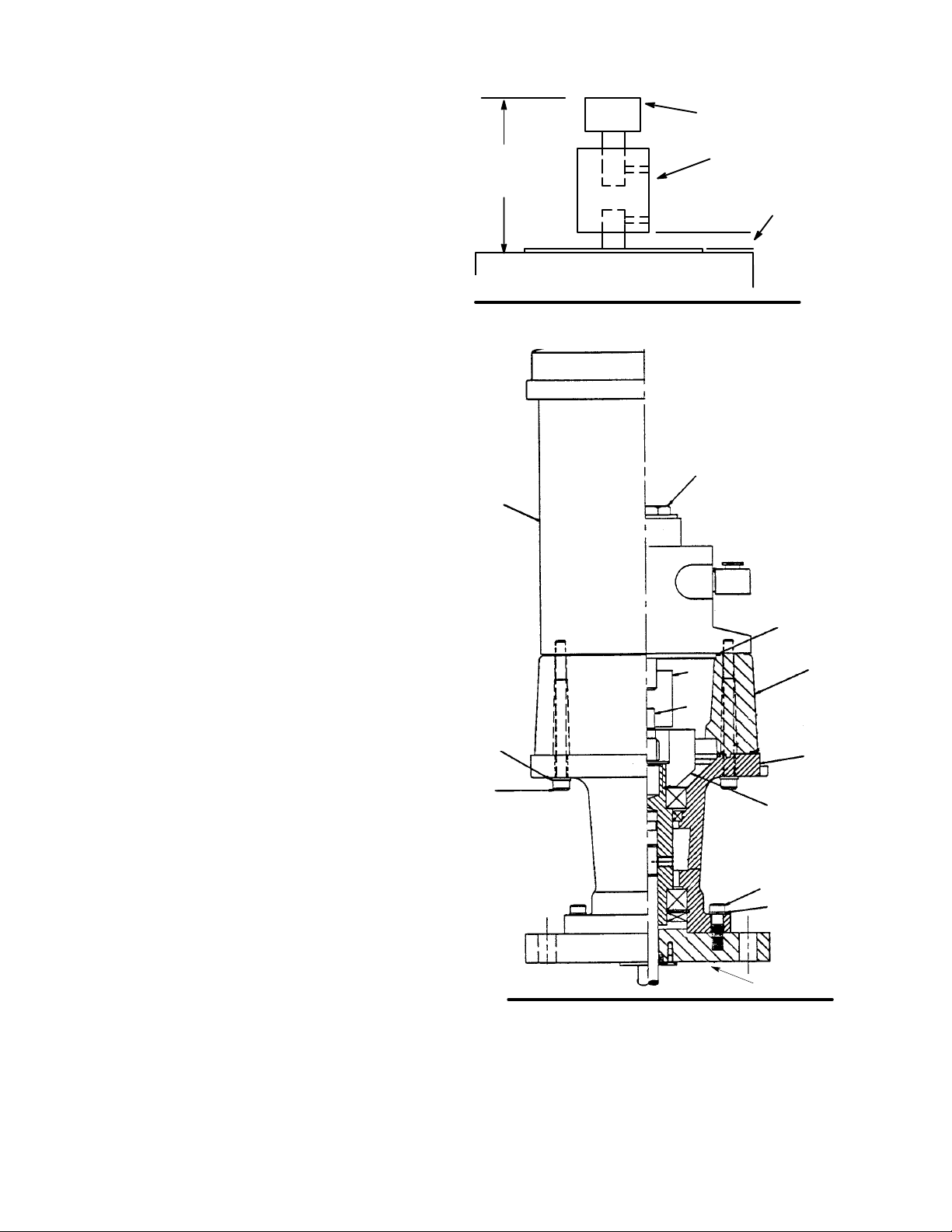

Fig. 1
SHAFT
IMPELLER
The spacing
between the
impeller and the
tank bottom. . . must be equal to, or
greater than 1/2 the
diameter of the impeller
ROTATION
2. Position the impeller(s) along the shaft as required.
The distance from the tank bottom to the lowest
impeller blade should be equal to, or greater than
1/2 the diameter of the impeller blade. See Fig. 1.
NOTE: If installing more than one impeller onto the
shaft, call Graco technical assistance for spacing
recommendations.
3. After positioning the impeller(s) along the shaft as
required, secure them by tightening the impeller
set screw to 15-30 ft-lbs.
Agitator Installation
1. Be sure the agitator mounting surface is prepared
with a bung-hole to accommodate the agitator
shaft, and with holes drilled for the agitator mount-

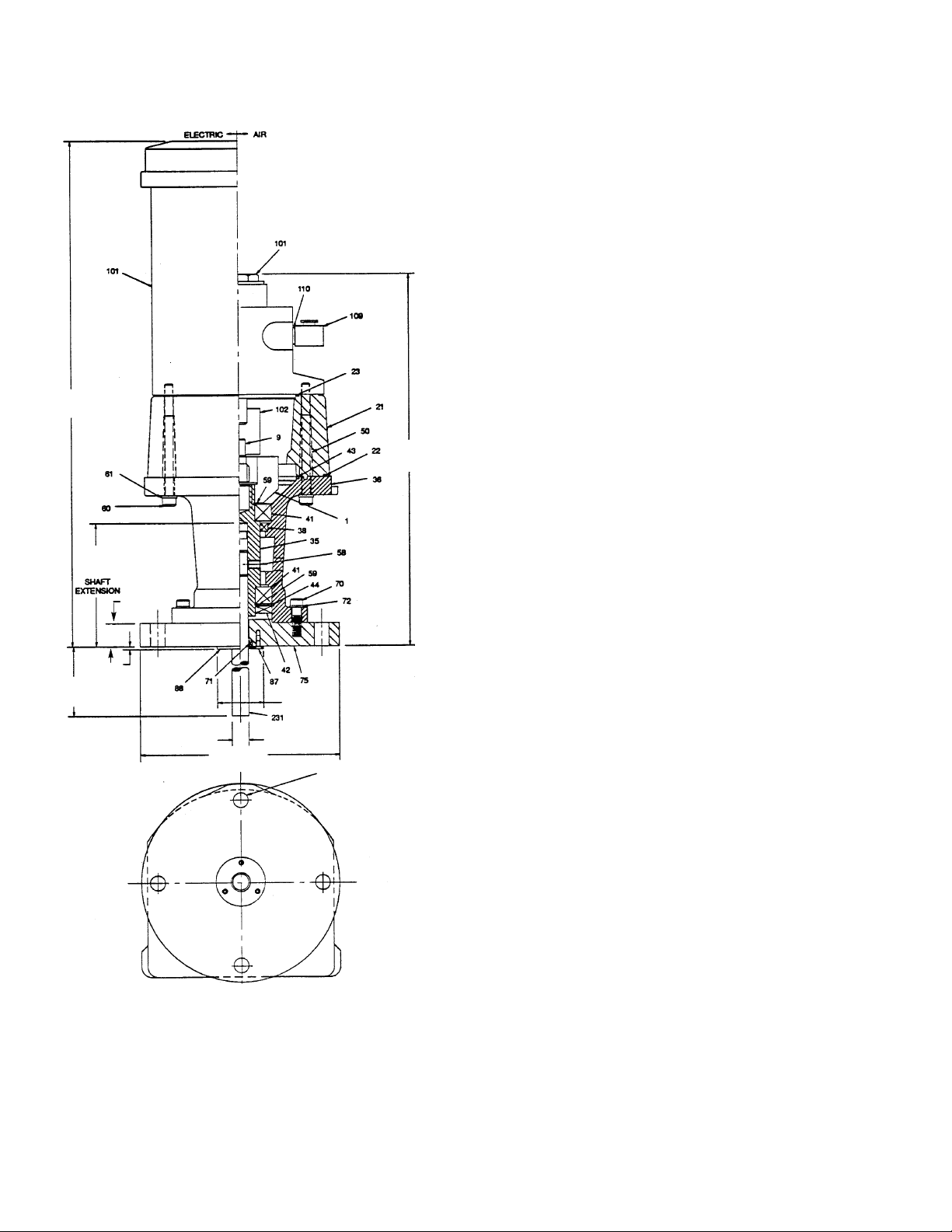

ing bolts. Refer to the appropriate agitator drawing
(pages 16 and 17) in the Parts section for
dimensions.
2. Securely attach a lifting device to the agitator for
use in positioning.
EQUIPMENT MISHANDLING HAZARD
To reduce risk of injury or damage to equipment
due to mishandling, do not lift the agitator by hand;
use a properly-rated lifting device to position the
agitator for assembly and installation.
WARNING
3. Place the supplied gasket (140) over the flange
(75), then place the agitator body and gasket over
the mounting holes, orienting the agitator so the
power connections are accessible.
4. Secure the agitator in place:
a. Place each of the four mounting bolts through
the holes in the agitator mounting flange,
gasket, and mounting surface.
b. For each mounting bolt, install a flat washer
and nut on the mounting bolt. Tighten the four
nuts securely.

5310500
Installation
Shaft Installation

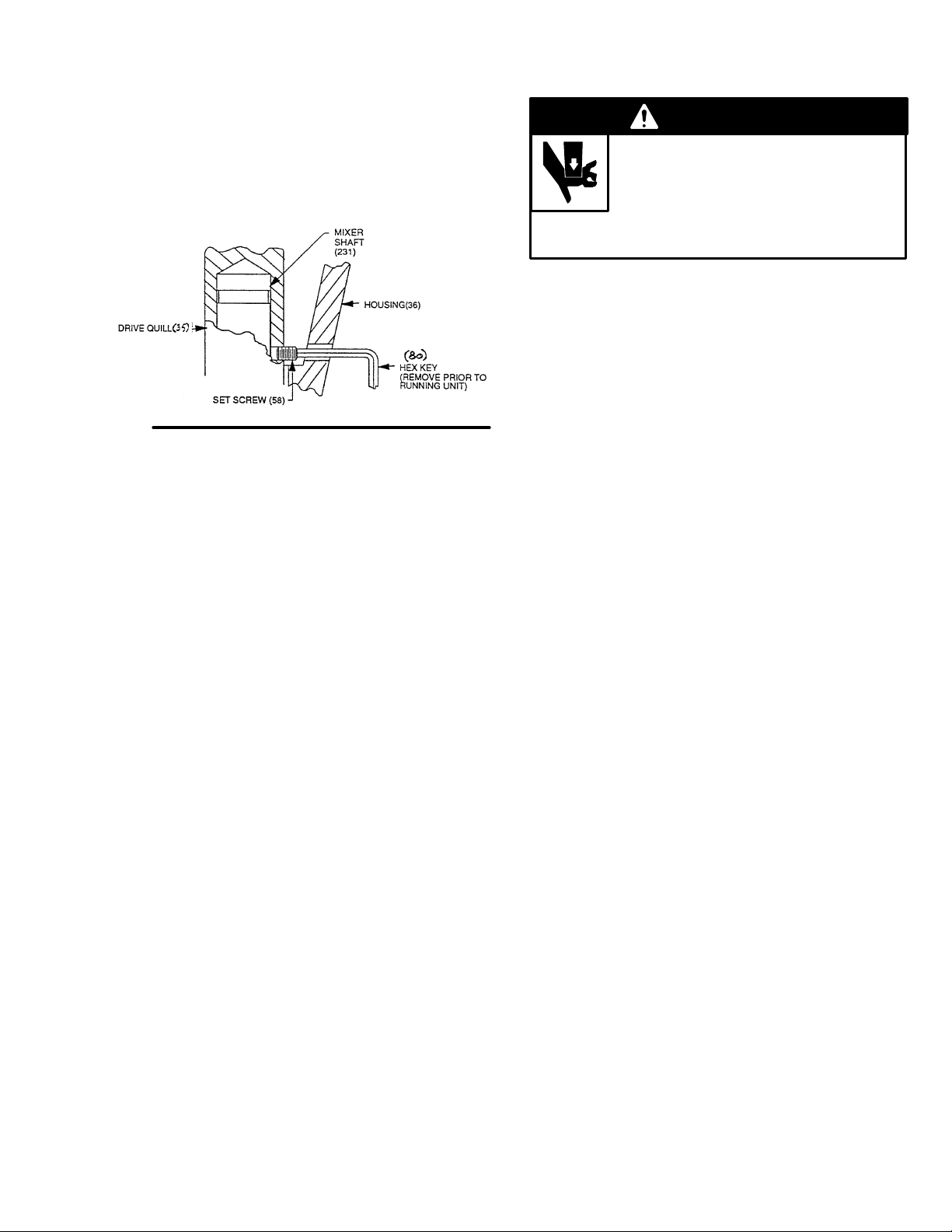

1. Check the access hole in the drive unit housing to
see if the drive quill set screw (58) is accessible
(see Fig. 2).
Fig. 2
2. If the drive quill set screw is not accessible, jog the
motor to align the drive quill (35):
MOVING PARTS HAZARD
Moving equipment parts can cause
injury, including amputating of hands or
fingers. To reduce risk of injury or
equipment damage, do not jog the motor with the
shaft and impeller in the drive quill.
WARNING
a. Refer to the Power Connection section for
your motor type to connect power to motor.
b. Supply power in short intervals, rotating the
drive quill until the drive quill set screw is
accessible by a hex wrench.
c. Disconnect power from the motor.
3. With power disconnected, insert the top end of the
shaft into the drive quill so that the shaft contacts
the top of the quill.
4. With the shaft fully inserted into the drive quill, use
a hex key wrench to secure the set screw.

6 310500
Installation
Connecting Power

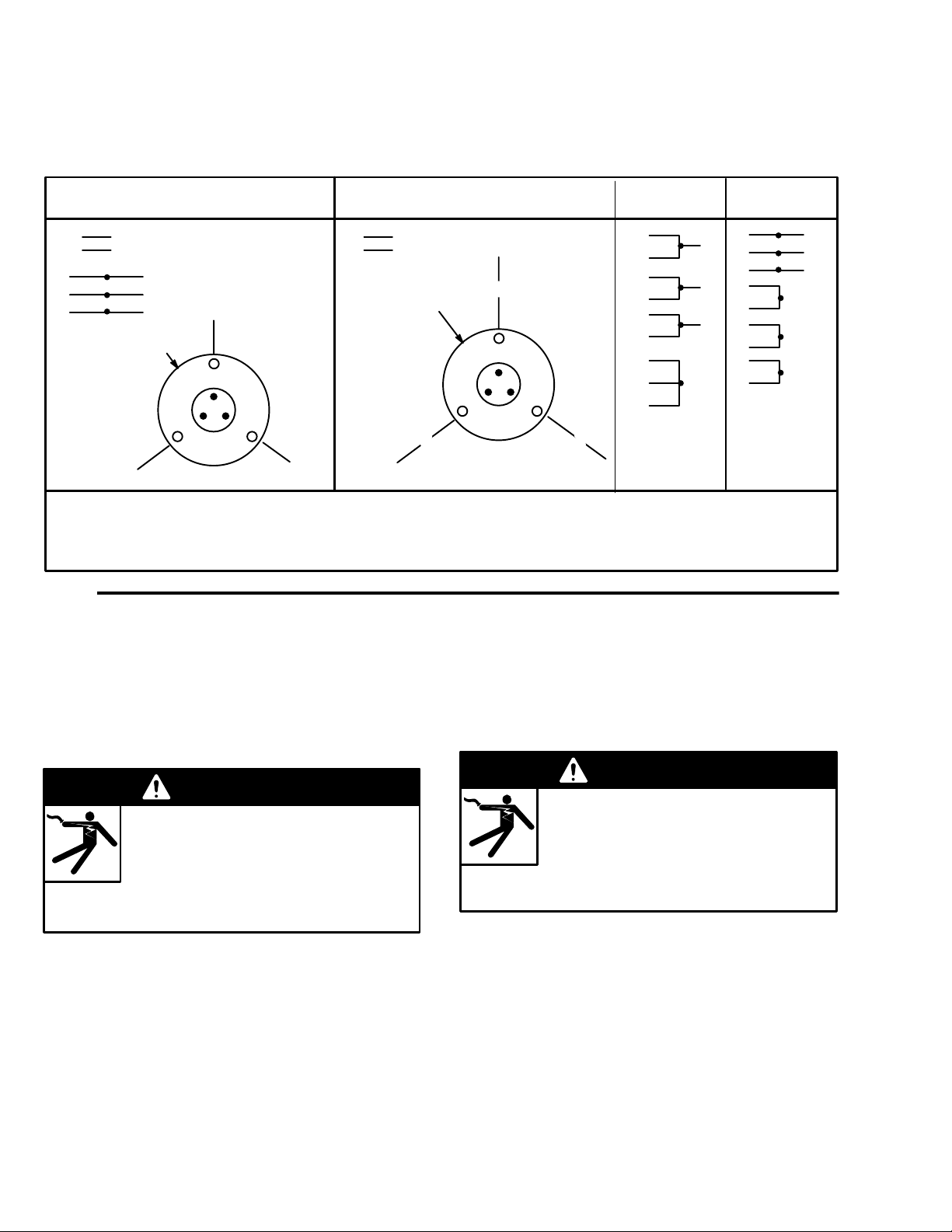

3 PHASE SINGLE VOLTAGE
T1
T2
T3
MOTOR WIRING
LOW
VOLTAGE
HIGH
VOLTAGE
T1
T2
T3
L1
L2
L3 T1
T2
T3
1
4
2
56
3
THERMAL
PROTECTOR
T1
T2
T3
1
4
2
56
3
THERMAL
PROTECTOR
T4
T7
T8
T5
T9
T6
L1
L2
L3
T1
T7
T2
T8
T3
T9
T4
T5
T6
L1
L2
L3
T4
T7
T5
T8
T6
T9
NOTE: TO REVERSE ROTATION, INTERCHANGE ANY TWO LINE LEADS (L1, L2, or L3)
Fig. 3
P1
P2
THERMOSTAT
LEADS
}P1
P2 }
CONNECT LEADS P1 AND P2 IN SERIES WITH THE HOLDING
COIL OF THE MOTOR CONTROLLER WHICH USES A MANUAL
MOMENTARY START SWITCH.
WITH THERMAL PROTECTOR
3 PHASE DUAL VOLTAGE
WITH THERMAL PROTECTOR
THERMOSTAT
LEADS
Electric Agitators
Refer to the motor wiring diagram (Fig. 3).
The required power supply varies depending on your
model number. For power supply requirements, see
Technical Data on page 27 of this manual.
WARNING
ELECTROCUTION HAZARD
Make sure that your installation complies
with National, State, and Local codes for
the installation of electrical equipment.
Have only a qualified electrician make the connec-
tions.
1. Verify the electrical supply and control equipment
are properly rated for the motor being used.
2. Check the stator winding insulation resistance. If
the resistance is less than 1 megohm, call Graco
Customer Service for assistance.
3. With power disconnected, connect all the electrical
leads as indicated in the wiring diagram.
ELECTROCUTION HAZARD
Contact with electricity can be fatal! To
reduce risk of serious injury or death,
make sure the power supply lines to the
agitator are disconnected from the power supply
when servicing and repairing the equipment.
WARNING
NOTE: The blade rotation should be clockwise, look-
ing down from the motor to the blade. To change the
direction of rotation, disconnect power from the agita-
tor power supply lines, and change the leads as indi-
cated in Fig. 3.

7310500
Installation
Hydraulic Agitators
The required hydraulic power supply varies, depending
on your model. For power supply requirements, see
Technical Data on page 27 of this manual.

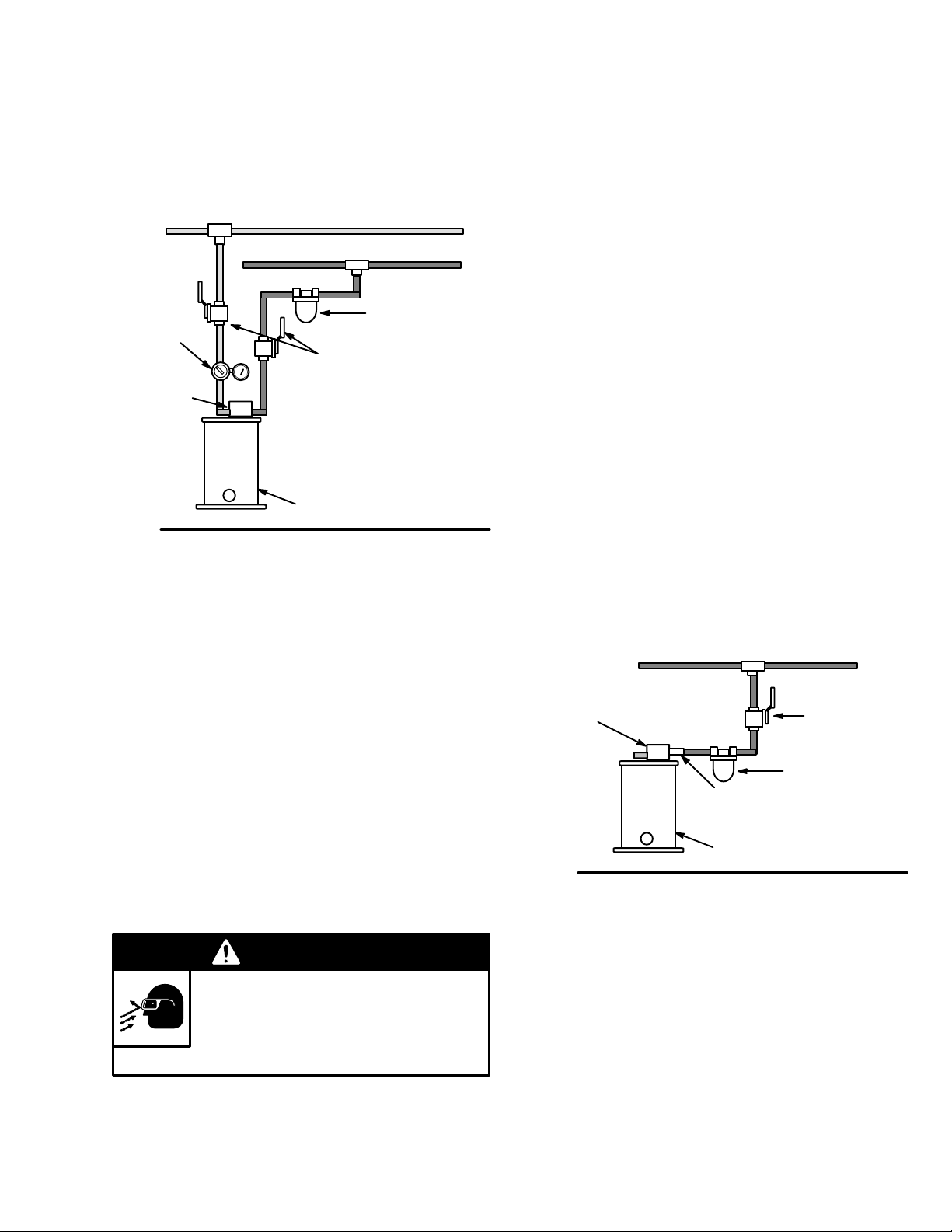

AGITATOR
MOTOR
Fig. 4
HYDRAULIC SUPPLY LINE
HYDRAULIC RETURN LINE
10 MICRON
FILTER
ON/OFF VALVES
MIX TANK (REFERENCE ONLY)
REGULATOR
When connecting hydraulic power (see Fig. 4):
NOTE: The hydraulic motor ports are 3/8” NPT.
1. Connect the hydraulic supply line to the hydraulic
motor supply inlet. The supply line should have a
shutoff valve, and a hydraulic fluid regulator to
regulate the hydraulic motor speed.
2. Connect the hydraulic return line to the hydraulic
motor return outlet. The return line should have a
shutoff valve installed. It is recommended that a
return line filter, with a 10 micron or finer filter
screen, be installed.
NOTE: The return line should be open whenever
hydraulic power is supplied to the agitator.
Always shut off and disconnect the hydraulic power
before servicing the agitator.
PRESSURIZED FLUID HAZARD
To reduce the risk of serious injury, such
as fluid injection or splashing fluid in the
eyes or on the skin, follow the Hydraulic
Pressure Relief Procedure on page 9.
WARNING
Air-powered Agitators
The required power supply varies, depending on your
model. For power supply requirements, see Technical
Data on page 27 of this manual.
NOTE: The air motor air inlet is 1/4” NPT.
When connecting the air power (see Fig. 5):
1. Install an air line filter (5 micron, Graco part no.
515873, or equivalent) to remove harmful dirt and
moisture from the air supply.
2. Install an air line lubricator downstream from the
filter. Although the air motors operate with or
without lubrication, lubrication may increase perfor-
mance and length of service.
To disconnect the air power:
1. Close the main valve for the air supply to the
motor.
2. Close the air motor needle valve.
3. Disconnect the air supply lines to motor.
Always shut off and disconnect the air power before
servicing the agitator.
AGITATOR
MOTOR
Fig. 5
AIR SUPPLY LINE
5 MICRON
FILTER
ON/OFF VALVE
MIX TANK (REFERENCE ONLY)
NEEDLE VALVE

8 310500
Installation
Grounding the Agitator
Fluid dispensing can cause a static charge to build,
which can spark, and cause electrical shock, or explo-
sions. Always ground the agitator and all dispensing
equipment before operating. Refer to the FIRE,
EXPLOSION, OR ELECTRIC SHOCK HAZARD on
page 2.
WARNING
FIRE, EXPLOSION, AND
ELECTROSTATIC SHOCK HAZARD
Fluid dispensing can cause a static
charge to build, which can spark, and
cause electrical shock, or explosions.
Always ground the dispensing equip-
ment before operating. Refer to the
FIRE, EXPLOSION, OR ELECTRIC
SHOCK HAZARD on page 2.
Ground The System
To reduce the risk of static sparking, ground the valve
and all other dispensing equipment used or located in
the dispensing area. Check your local electrical code
for detailed grounding instructions for your area and
type of equipment.
1. Agitator: connect a ground wire and clamp to a
true earth ground.
2. Pump: connect a ground wire and clamp to a true
earth ground as shown in your separate pump
manual.
3. Valve: connect to ground through grounded materi-
al lines to valve.
4. Fluid and air hoses: use only grounded material
and air hoses.
5. Dispense gun: obtain grounding through the con-
nection of the hose, or cable.
6. Air compressor: follow the manufacturer’s recom-
mendations.
7. Object being sprayed: according to local code.
8. Fluid supply container: according to local code.
Operation
General Operation

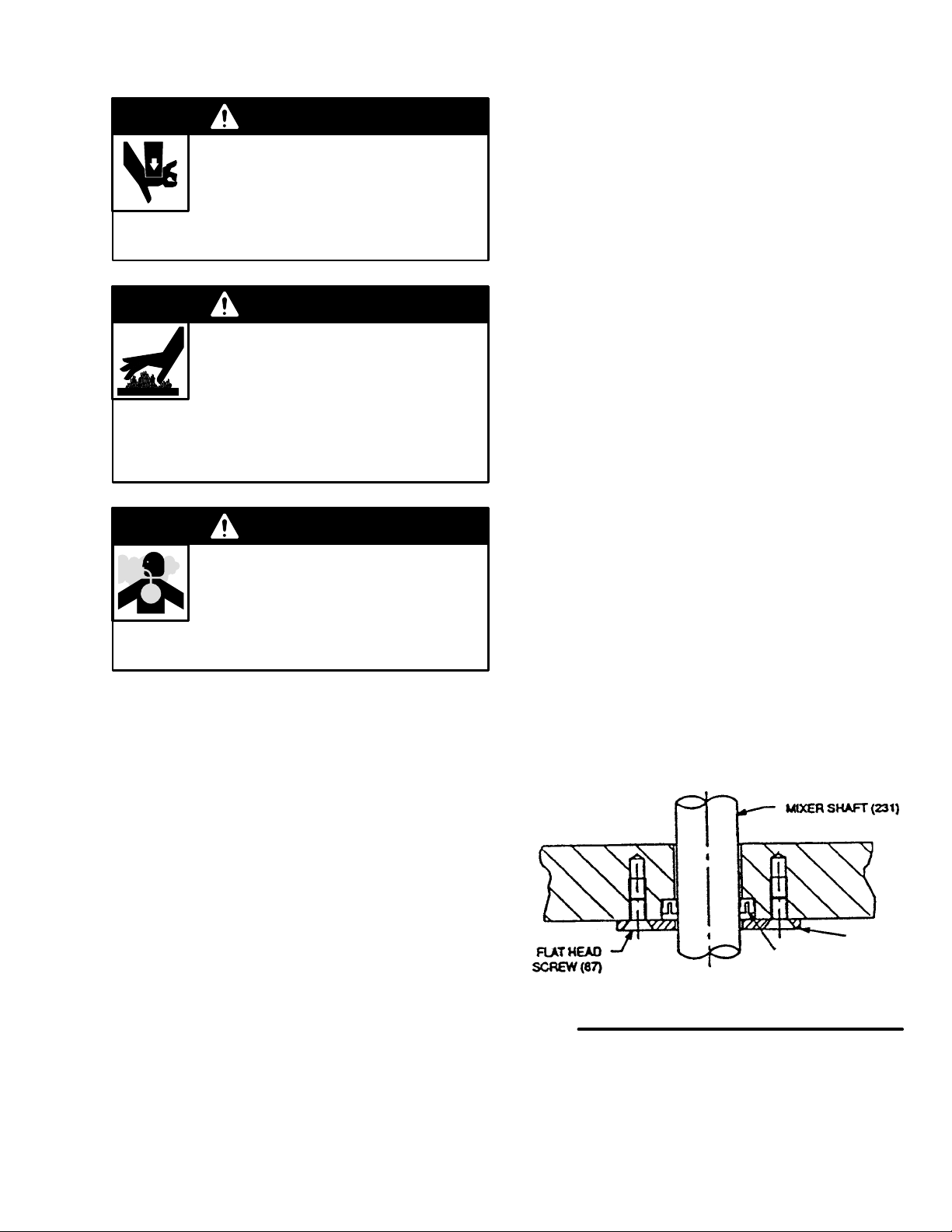

MOVING PARTS HAZARD
Moving parts, such as an impeller blade,
can pinch or amputate fingers. To
reduce risk of injury or damage to equip-
ment, before supplying power to equipment:
1. Be sure the agitator shaft rotates freely by
hand; the movement of the shaft and impeller
must not be hindered by the container, pump,
or any other objects.
2. Be sure the cap screws and set screws are
tightened as required.
3. Be sure all protective guards and covers are in
place.
WARNING
To connect the power to the agitator, see the Power
Connection section. Disconnect the power supply
before checking or servicing the agitator.
Activate the agitator to mix fluid thoroughly before
supplying fluid to the dispensing equipment. Continue
mixing fluid while the dispensing equipment is being
supplied.
NOTE: Always use moderate agitation speeds; exces-
sive agitator speed may cause vibration, foaming of
fluid and increased wear on parts.
HOT SURFACE HAZARD
During operation, the motor and the
shaft near the motor can get hot enough
to cause burns if touched. When working
with such equipment, wear appropriate protective
gloves and clothing. Allow the motor to cool for at
least one hour before touching either the motor or
the shaft.
WARNING

9310500
Operation
Operation – Electric Motor
The agitator speed is fixed for electric motor models;
the specific speed depends on the model type. See
Technical Data on page 27 for electrical requirements
for your model type.
1. To start the agitator, turn on electric power to the
motor.
2. To stop the agitator, turn off electric power to the
motor. Disconnect electric power before checking
or servicing the agitator.
NOTE: The motor has thermal protection circuitry
which shuts down the motor if overheating occurs. If
this happens, disconnect power and recheck your
wiring connections and electrical supply.
MOVING PARTS HAZARD
The thermal protection circuit resets
automatically when the motor cools
down. To reduce the risk of injury or
damage to equipment, always disconnect the
power supply before checking or servicing the
agitator motor.
WARNING
Operation – Air Motor
The agitator speed for air motor models is variable
over a certain range, depending on the model type.
See Technical Data for your model type on page 27.
1. To start the agitator, turn on the air supply and
slowly open the air needle valve.
2. To stop the agitator slowly close the air needle
valve.
Turn off the air supply and disconnect the air hose
from the air motor before servicing the agitator.
Operation – Hydraulic Motor
The agitator speed for hydraulic motor models is
variable over a certain range, depending on the model
type. See Technical Data for your model type on page
27.
To start the agitator:
1. Open the shutoff valve at the hydraulic return line.
2. Open the shutoff valve on the hydraulic supply line
to the agitator.
3. Adjust the regulator to increase or decrease the
agitator speed.
4. To stop the agitator, close the hydraulic shutoff
valve in the hydraulic supply line.
Disconnect the power supply before checking or
servicing the agitator.
PRESSURIZED FLUID HAZARD
To reduce the risk of serious injury, such
as fluid injection or splashing fluid in the
eyes or on the skin, follow the Hydraulic
Pressure Relief Procedure.
WARNING
Hydraulic Pressure Relief Procedure
For hydraulic agitators, always follow this procedure
whenever you shut off the agitator and before inspect-
ing, removing, cleaning or repairing the agitator, to
reduce the risk of serious bodily injury, including
splashing in the eyes or on the skin, and injury from
moving parts.
1. Shut off the main hydraulic power supply.
2. Close the regulator to the motor.
3. Shut off the hydraulic return valve.
4. Disconnect the hydraulic lines to the agitator.

10 310500
Maintenance
MOVING PARTS HAZARD
Moving parts, such as an impeller blade,
can pinch or amputate fingers. To
reduce risk of injury or damage to equip-
ment, always disconnect power from the agitator
before performing maintenance or service.
WARNING
HOT SURFACE HAZARD
During operation, the motor and the
shaft near the motor can get hot enough
to cause burns if touched. When working
with such equipment, wear appropriate protective
gloves and clothing. Allow the motor to cool for at
least one hour before touching either the motor or
the shaft.
WARNING
Check Screw and Bolt Tightness
Within the first two weeks of operation, check all cap
screws and set screws to make sure they are tight.
Retighten as required.
Routine Periodic Maintenance
Check all cap screws and retighten them at least every
six months or during down times if they occur more
frequently.
Gear Housing Grease Check
NOTE: This procedure does not pertain to hydraulic
models.
The gear housing is factory filled with grease; this
grease normally does not need to be changed, unless
ambient air conditions are harsh, or unless some other
service is being performed.
Harsh air conditions, including high humidity, dusty or
chemical laden air, or widely varying air temperatures,
can increase the deterioration of the grease. If harsh
conditions are present, check the grease at least every
six months for deterioration. If necessary, replace the
grease. See the Gear Reducer Lubrication heading
in the Service section.
CAUTION
Use only Mobil Mobilith SHC 007 lubricant to
lubricate the gear housing. The use of any other
may cause part deterioration or inadequate
performance.
Power Supply System Check
Check your power supply system equipment regularly
and repair or replace worn or damaged parts immedi-
ately. Have supply system maintenance performed by
a qualified technician only.
Air Motor Flush
If the air motor performs sluggishly, try flushing with a
suitable solvent (recommended solvents include Gast
Flushing Solvent AH255, Loctite Safety Solvent,
Inhibisol Safety Solvent, or Dow Chemical Chloro-
thane).
TOXIC FLUIDS HAZARD
Improper handling of hazardous fluids or
inhaling toxic fumes can cause ex-
tremely serious injury, even death, due
to splashing in the eyes, ingestion, or bodily con-
tamination. See Toxic Fluids Hazard on page 2.
WARNING
To flush the air motor:
1. Shut off air supply to the motor, and disconnect air
line from motor.
2. Pour several teaspoons of solvent directly into
motor through the air inlet.
3. Rotate the motor by hand, if possible, in both
directions, for a few minutes.
4. Reconnect the air line. Open air valve, and slowly
open needle valve until no solvent is exhausted.
If the air motor performance is still sluggish, repeat the
procedure. Continued sluggish performance may
require repair or replacement of the motor to correct

11310500
Service
MOVING PARTS HAZARD
Moving parts, such as an impeller blade,
can pinch or amputate fingers. To
reduce risk of injury or damage to equip-
ment, always disconnect power from the agitator
before performing maintenance or service.
WARNING
HOT SURFACE HAZARD
During operation, the motor and the
shaft near the motor can get hot enough
to cause burns if touched. When working
with such equipment, wear appropriate protective
gloves and clothing. Allow the motor to cool for at
least one hour before touching either the motor or
the shaft.
WARNING
TOXIC FLUIDS HAZARD
Improper handling of hazardous fluids or
inhaling toxic fumes can cause ex-
tremely serious injury, even death, due
to splashing in the eyes, ingestion, or bodily con-
tamination. See Toxic Fluids Hazard on page 2.
WARNING
Agitator and Shaft Removal
1. Make sure power is disconnected from the unit
(see Power Connection ).
2. Rotate the agitator shaft by hand until the drive
quill set screw is accessible through the access
hole in the housing. See Fig. 2, page 5.
3. Make sure the shaft is supported, then use a hex
key wrench to loosen the drive quill set screw two
turns to release the shaft.
4. Remove the shaft from the drive quill.
5. Remove the agitator from the tank:
a. Make sure any lifting device used is of
adequate capacity for the agitator.
b. Loosen and remove the nuts and washers
securing the agitator to the mounting surface.
c. Lift and remove the agitator.
Lip Seal Removal and Replacement
The lip seal (71) and seal retainer plate (88) are lo-
cated at the bottom of the agitator flange. The lip seal
should be inspected periodically for wear or damage,
and replaced if necessary.
To inspect and replace the lip seal, with the agitator
removed from its mount, and the shaft removed (see
Agitator and Shaft Removal ):
1. Remove the flat head screws (87) holding the
retainer plate (88) in place. See Fig. 6.
2. Remove the retainer plate, and lip seal (71) from
the housing.
3. Inspect the seal for damage. Replace if neces-
sary.
4. To reinstall, place the new lip seal in flange (75),
and place retainer plate over the lip seal.
5. Secure the retainer plate and lip seal in place with
the flat head screws (87). Tighten securely.
Fig 6
RETAINER (88)
LIP SEAL (71)

12 310500
Service
Air or Electric Motor Removal
NOTE: Agitators with hydraulic motors are direct
drive, and do have not reducers. See Hydraulic
Motor Removal and Replacement .
1. Make sure power is disconnected from the unit
(see Power Connection ).
2. Remove the agitator (see Agitator and Shaft
Removal). Place the agitator on a clean, level
surface capable of supporting its weight.
NOTE: The gear housing is filled with grease, which
may be in a liquid state. To prevent spillage, secure
the gear housing in an upright position when removing
the motor from the gear housing.
3. Remove the four socket head cap screws (60)
holding the bearing housing (36) and gear housing
(21) to the motor (101). See Fig. 8.
4. Lift the motor (101), drive coupling (102), and sun
gear (9) off the gear housing (21) and gear carrier
assembly (1).
5. If replacing the motor:
a. Carefully measure and record the dimension
from the motor face to the opposite side of the
sun gear. This dimension is required for
reassembly.
b. Remove the drive coupling (102) and sun gear
(9) as a unit from the old motor shaft. Inspect
the sun gear, and replace if necessary.
c. Unpack the new motor.
d. Inspect the O-ring (23) and replace if neces-
sary (part. no. 51A026).
e. Place the drive coupling and sun gear as a unit
onto the new motor shaft. Set the elevation of
the sun gear and coupler from the motor as
shown in Fig. 7 (use the dimension recorded in
step 5.a, or nominal, as shown).
6. If replacing the gear carrier assembly, continue
with Gear Carrier Assembly Replacement.
Otherwise, see Air or Electric Motor Replace-
ment.
SUN GEAR (9)
DRIVE
COUPLER
(102)
MOTOR (101)
3.27–3.28”
(83–83.3mm)
Fig 7
1/16” min.

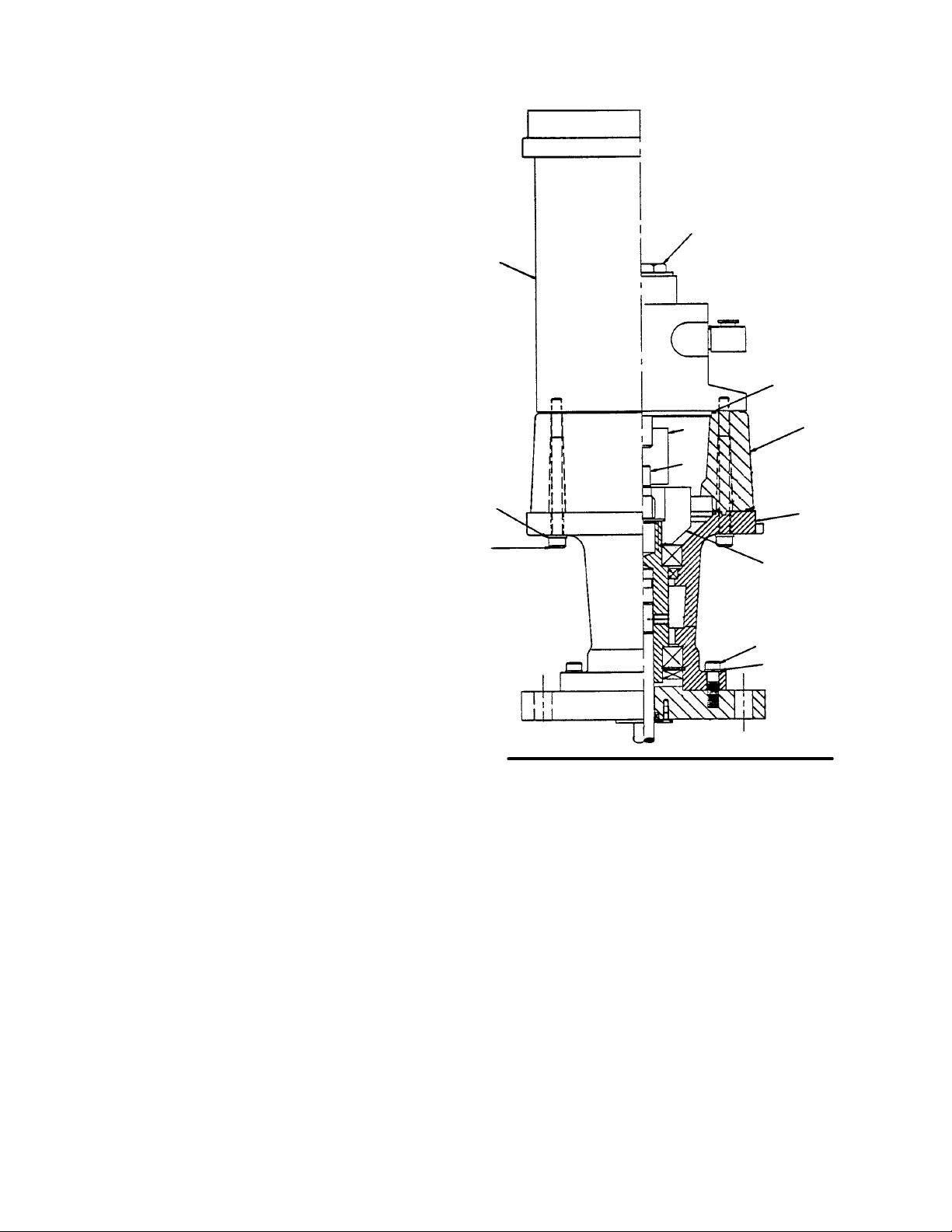

Fig 8 75
101
61
101
23
21
36
1
70
72
102
9
60

13310500
Service
Gear Reducer / Bearing Assembly
Replacement
This procedure assumes the motor has been
removed (see Air or Electric Motor Removal, page
12). Refer to Fig. 8, page 12 for this procedure.
1. Loosen and remove the socket head cap screws
(70) and lock washers (72) holding the bearing
housing to the flange.
2. Remove the gear reducer and bearing housing (21
and 36) from the flange (75) as an assembly.
3. Unpack the new gear reducer and bearing assem-
bly (21 and 36), being very careful not to alter the
orientation and alignment of the gears.
4. Install the socket head cap screws (70) and lock
washers (72) to secure the bearing housing to the
flange, and tighten.
NOTE: For best results, apply lubricant, such as
grease or anti-seize compound, to screws when re-
assembling.
5. Loosen the set screw on the sun gear (9), remove
from the new gear carrier, and replace the old sun
gear on the motor shaft. Set the elevation of the
sun gear and drive coupling (102) from the motor
as shown in Fig. 7, page 12 (use the dimension
recorded in step 5.a on page 12, or nominal, as
shown).
6. Pack the new gear carrier with grease (see Gear
Carrier Lubrication), and continue with Air or
Electric Motor Replacement on page 14.
Gear Carrier Lubrication
All agitator bearings are sealed and pre-packed with
lubricant. Lubrication of these bearings is not neces-
sary.
Change the gear housing grease when performing
service involving motor or gear removal, or whenever a
grease change is necessary due to deterioration or
discoloration.
To change the gear housing lubricant:
1. Remove the motor from the gear housing (see Air
or Electric Motor Removal). Secure the gear
housing in an upright position when removing the
motor from the gear housing to avoid spillage.
2. Remove all old grease from the gear chamber and
wipe clean.
3. Pack the gear chamber with fresh grease (use
Mobil Mobilith SHC 007). The housing grease
capacity is approximately 1 lb. (.45 kg). Fill the
gear housing to a level about two inches (50mm)
from the top of the housing.
CAUTION
Use only Mobil Mobilith SHC 007 lubricant to
lubricate the gear housing. The use of any other
may cause part deterioration or inadequate
performance.
NOTE: When packing grease, paddle the grease,
while rotating the shaft manually, and shake the
housing, for more complete coverage.

14 310500
Service
Air or Electric Motor Replacement
This procedure assumes the motor has already been
removed, and the gear reducer and bearing housing
have been replaced, if necessary (see pages 12–13 for
procedures). Refer to Fig. 9 for this procedure.
1. Verify the elevation of the sun gear (9) and coupler
(102) on the motor shaft to be as shown in Fig. 7,
page 12 (or use dimensions obtained prior to
removal, as suggested on page 12, in step 5a).
2. Clean and repack the gear carrier (1) and gear
housing (21) with new grease (see Gear Carrier
Lubrication, page 13), if this has not been done.
3. Mount the motor onto the gear carrier (1), aligning
the sun gear (9) so that the sun gear meshes with
the “planet” gears in the gear carrier assembly.
4. Align the motor, rotating the shaft as necessary,
and bolt the motor to the gear housing (21) and
bearing housing (36), using the socket head cap
screws (60) and washers (61). Alternately tighten
the cap screws to 9 ft-lb (12 N-m).
NOTE: For best results, apply lubricant, such as
grease or anti-seize compound, to screws when re-
assembling.
This completes the motor replacement. To reinstall the
agitator, refer to the Installation instructions.
Fig 9
101
101
61
102
23
21
36
70
72
9
1
63

15310500
Service
Hydraulic Motor Replacement
1. Make sure power is disconnected from the unit
(see Power Connection ).
PRESSURIZED FLUID HAZARD
To reduce the risk of serious injury, such
as fluid injection or splashing fluid in the
eyes or on the skin, follow the Hydraulic
Pressure Relief Procedure on page 9.
WARNING
2. Remove the agitator (see Agitator and Shaft
Removal), and place on a clean level surface
capable of supporting its weight.
3. Remove the four socket head cap screws (60) and
washers (61) holding the motor adapter (131) to
the bearing housing (36).
4. Carefully lift the motor adapter off the bearing
housing. It may be necessary to gently tap the
bearing housing to separate it from the adapter.
5. Inspect O-ring (43) and replace if necessary.
6. Loosen the set screws for the coupling half (103)
and insert (105) and remove from the motor shaft.
7. Loosen the machine screws (130) holding the
motor to the motor adapter, and remove the motor
from the adapter.
NOTE: If you intend to replace the bearing assembly,
see Bearing Assembly Replacement on this page at
this point and then continue this procedure.
8. Unpack the new motor.
9. Install the motor onto the motor adapter (131), and
tighten the machine screws (130) to secure the
motor to the motor adapter.
NOTE: For best results, apply lubricant, such as
grease or anti-seize compound, to screws when re-
assembling.
10. Install the motor coupling half and insert removed
from the old motor onto the new motor shaft.
11. Position the motor adapter on the bearing housing
(36), aligning the coupling halves of the motor
shaft and bearing housing as necessary, so the
two halves mesh.
12. With the motor adapter in place on the bearing
housing, install the washers (61) and four socket
head cap screws (60) to secure the motor to the
bearing housing.
This completes the motor replacement. To reinstall the
agitator, refer to the Installation instructions.

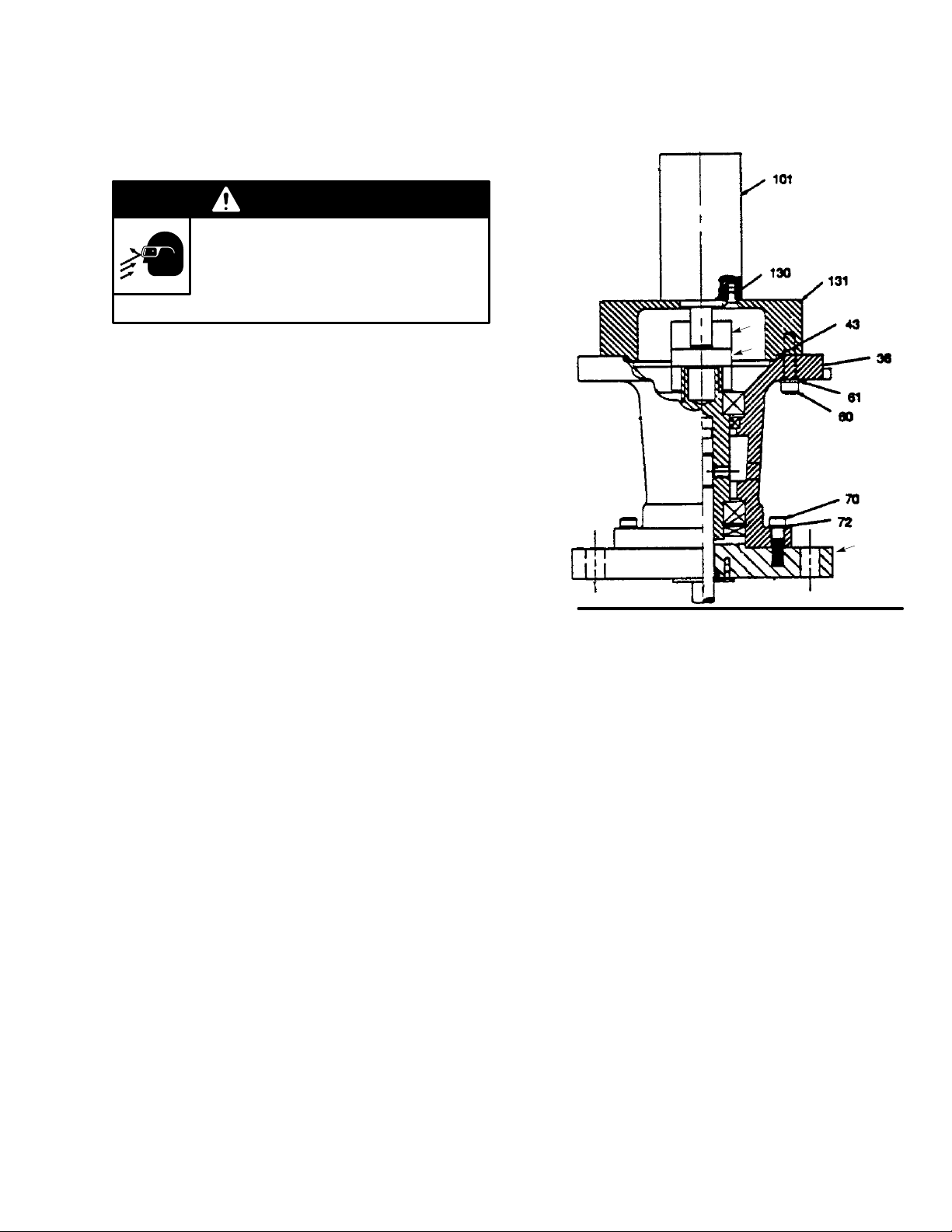

Fig 10
103
105
75
Bearing Assembly Replacement
This procedure assumes the motor has been removed
(see steps 1–7 Hydraulic Motor Replacement). See
Fig. 10 for this procedure.
1. Loosen and remove the socket head cap screws
(70) and lock washers (72) holding the bearing
housing to the flange.
2. Remove the bearing housing (36) from the flange
(75) as an assembly.
3. Unpack the new bearing housing assembly, being
very careful not to alter the orientation and align-
ment of the components.
4. Place the new bearing housing onto the flange,
and secure tightly in place with the socket head
cap screws (70) and lock washers (72).
NOTE: For best results, apply lubricant, such as
grease or anti-seize compound, to screws when re-
assembling.
5. Continue with step 8 of the Hydraulic Motor
Replacement procedure, or with step 11, if a new
motor is not being installed.

16 310500
Parts
LSA 200, LSA 220, LSA 300
 16mm
0.63 in *
  14mm , 0.56 in
MOUNTING HOLES
90 _ APART
158.75mm BC
6.3 in
540 mm
21.4 in
125 mm
5.0 in
28.75 mm
1.14 in
3.18 mm
0.125 in
190.5 mm
7.56 in
Per order
face
  20mm
0.8 in for
LSA 300
365 m
m
14.5 in
Ref
No. Part No. Description Qty
*1 51A023 Gear carrier assembly (LSA 200 only) 1
51A024 Gear carrier assembly (LSA 220, 300) 1
21 51A027 Gear housing 1
*22 51A025 O-ring 1
*23 51A026 O-ring 1
35 51A021 Quill shaft – 16mm (LSA 200, 220) 1
51A022 Quill shaft – 20mm (LSA 300 only) 1
36 51A029 Bearing housing 1
*38 51A030 Oil seal 1
*41 51A031 Ball bearing 2
*42 51A032 Oil seal 1
*43 51A026 O-ring 1
*44 51A033 Retaining ring 1
58 51A035 Hex socket set screw 1
*59 51A036 Retaining ring 2
60 51A038 Socket head cap screw 4
61 51A039 Flat washer 4
70 51A037 Socket head cap screw 4
*71 51A043 Lip seal, (LSA 200, 220) 1
51A044 Lip seal, (LSA 300 only) 1
72 51A045 Lock washer 4
75 51A046 Flange 1
87 51A972 Socket flat head screw 4
88 51A974 Seal retainer plate (LSA 200,220 only) 1
51A975 Seal retainer plate (LSA 300 only) 1
101 51A049 Non-lubricated air motor 1
101a 51A051 Electric motor (LSA 200, 220) 1
51A053 Electric motor (LSA 300 only) 1
*102 Drive coupling comprised of
51A052 Coupling half 1
51A054 Coupling half 1
51A055 Insert 1
*109 51A056 Needle valve 1
110 51A057 Pipe nipple 1
135 51A059 Speed control muffler (LSA 300 only) 1
(not shown)
*140 516315 Gortex gasket (ID 2.5”, OD 7.5 ”x0.06”)1
(not shown)
*Indicates replacement items
NOTE: Gortex gasket (not shown), item 140, is supplied for
placement between flange and mounting surface
Additional Replacement Items
Ref
No. Part No. Description Qty
101a 51A051 Electric motor (LSA 200, 220) 1
51A053 Electric motor (LSA 300 only, 900 rpm) 1
101 51A049 Non-lubricated air motor 1
**150 51A775 Air motor repair kit (not shown) 1
**NOTE: When ordering this repair kit, also order the O-ring,
ref. no. 23, part no. 51A026.
PTFE
PTFE

17310500
Parts
LSA 200H, LSA 220H, LSA 300H
 16mm
0.63 in *
 14mm , 0.56 in
90 _ APART
158.75mm BC
6.3 in
MOUNTING
HOLES
170 mm
6.75 in 125 mm
5.0 in
28.75 mm
1.14 in
3.18 mm
0.125 in
190.5 mm
7.56 in
  20mm
0.8 in for
LSA 300
141 mm
5.6 in.
 57.2 mm
2.27 in
322 mm
12.8 in
Ref
No. Part No. Description Qty
35 51A021 Quill shaft – 16mm 1
51A022 Quill shaft – 20mm (LSA 300 only) 1
36 51A029 Bearing housing 1
*38 51A030 Oil seal 1
*41 51A031 Ball bearing 2
*42 51A032 Oil seal 1
*43 51A026 O-ring 1
*44 51A033 Retaining ring 1
58 51A035 Hex socket set screw 1
*59 51A036 Retaining ring 2
60 51A038 Socket head cap screw 4
61 51A039 Flat washer 4
70 51A037 Socket head cap screw 4
*71 51A043 Lip seal, (LSA 200, 220) 1
51A044 Lip seal, (LSA 300 only) 1
72 51A045 Lock washer 4
75 51A046 Flange 1
87 51A972 Socket flat head screw 4
88 51A974 Seal retainer plate (LSA 200,220 only) 1
51A975 Seal retainer plate (LSA 300 only) 1
*90 51A971 O-ring 1
101a 51A976 Hydraulic motor (LSA 200H only) 1
51A977 Hydraulic motor (LSA 220H only) 1
51A978 Hydraulic motor (LSA 300H only) 1
103 51A052 Coupling half 1
104 51A054 Coupling half 1
*105 51A055 Insert 1
*109 51A056 Needle valve 1
110 51A057 Pipe nipple 1
111 51A059 Speed control muffler (LSA 300 only) 1
130 51A973 Hex socket machine screw 3
131 51A980 Motor Adapter (hydraulic only) 1
140 51.315 Gortex gasket (ID 2.5”, OD 7.5 ”x0.06”)1
(not shown)
*Indicates replacement items
NOTE: Gortex gasket (not shown), item 140, is supplied for
placement between flange and mounting surface
Additional Replacement Items
Ref
No. Part No. Description Qty
101a 51A976 Hydraulic motor (LSA 200H only) 1
51A977 Hydraulic motor (LSA 220H only) 1
51A978 Hydraulic motor (LSA 300H only) 1
PTFE
PTFE

18 310500
Parts
LSA-200 AGITATOR
LSA Drive Units Part No. Form No.
Air 516552* 305633
Electric 516556 305633
Hydraulic 516560 305633
* Requires 96A498 Filter Kit (5 micron)
51B373 Filter Element (5 micron)
NOTE: LSA–200 Agitator shaft diameter is 16 mm.
Agitator
Shaft
Part No.
Shaft Length
in. (mm)
Agitator
Shaft
Part No.
Shaft Length
in. (mm)
516889 18 (457) 516909 28 (711)
516900 19 (483) 516910 29 (737)
516901 20 (508) 516911 30 (762)
516902 21 (533) 516912 31 (787)
516903 22 (559) 516913 32 (813)
516904 23 (584) 516914 33 (838)
516905 24 (610) 516915 34 (864)
516906 25 (635) 516916 35 (889)
516907 26 (660) 516917 36 (914)
516908 27 (686) 516918 37 (940)
Impeller
Part No.
Impeller
Diameter
in. (mm)
Impeller
gpm (lpm)
LSA 220
Shaft Lengths
Allowed
in. (mm)
515770 7.6 (193) 371 (1404) 0–37 (0–940)
515771 8.8 (224) 574 (2173) 0–36 (0–914)
515772 10.0 (254) 844 (3196) 0–35 (0–889)
515773 11.2 (284) 1187 (4493) 0–32 (0–813)

19310500
Parts
LSA-200 AGITATOR (continued)
Agitator
Part No.
Drive
Type
Shaft
Length
in. (mm)
Impeller
Diameter
in. (mm)
922000 Electric 29 (737) 7.6 (193)
922198 Electric 29 (737) 8.8 (224)
922001 Electric 29 (737) 10.0 (254)
922002 Electric 29 (737) 11.2 (284)
962602 Air 29 (737) 7.6 (193)
922003 Air 29 (737) 8.8 (224)
922004 Air 29 (737) 10.0 (254)
922199 Air 29 (737) 11.2 (284)
922005 Electric 30 (762) 7.6 (193)
922006 Electric 30 (762) 8.8 (224)
922200 Electric 30 (762) 10.0 (254)
922007 Electric 30 (762) 11.2 (284)
922008 Air 30 (762) 7.6 (193)
922201 Air 30 (762) 8.8 (224)
922202 Air 30 (762) 10.0 (254)
922009 Air 30 (762) 11.2 (284)
922203 Electric 31 (787) 7.6 (193)
922010 Electric 31 (787) 8.8 (224)
922011 Electric 31 (787) 10.0 (254)
922012 Electric 31 (787) 11.2 (284)
922204 Air 31 (787) 7.6 (193)
922013 Air 31 (787) 8.8 (224)
922014 Air 31 (787) 10.0 (254)
922015 Air 31 (787) 11.2 (284)
922016 Electric 32 (813) 7.6 (193)
922205 Electric 32 (813) 8.8 (224)
922017 Electric 32 (813) 10.0 (254)
922206 Electric 32 (813) 11.2 (284)
922018 Air 32 (813) 7.6 (193)
922019 Air 32 (813) 8.8 (224)
922020 Air 32 (813) 10.0 (254)
922021 Air 32 (813) 11.2 (284)
Agitator
Part No.
Drive
Type
Shaft
Length
in. (mm)
Impeller
Diameter
in. (mm)
922022 Electric 33 (838) 7.6 (193)
962686 Electric 33 (838) 8.8 (224)
922023 Electric 33 (838) 10.0 (254)
922024 Air 33 (838) 7.6 (193)
962684 Air 33 (838) 8.8 (224)
922207 Air 33 (838) 10.0 (254)
922025 Electric 34 (864) 7.6 (193)
922208 Electric 34 (864) 8.8 (224)
922209 Electric 34 (864) 10.0 (254)
922026 Air 34 (864) 7.6 (193)
962601 Air 34 (864) 8.8 (224)
922027 Air 34 (864) 10.0 (254)
922028 Electric 35 (889) 7.6 (193)
922029 Electric 35 (889) 8.8 (224)
922210 Electric 35 (889) 10.0 (254)
922030 Air 35 (889) 7.6 (193)
922031 Air 35 (889) 8.8 (224)
96A381 Air 35 (889) 10.0 (254)
922032 Electric 36 (914) 7.6 (193)
922033 Electric 36 (914) 8.8 (224)
922211 Air 36 (914) 7.6 (193)
922034 Air 36 (914) 8.8 (224)

20 310500
Parts
LSA-220 AGITATOR
LSA Drive Units Part No. Form No.
Air 516553* 305519
Electric 516557 305519
Hydraulic 516561 305519
* Requires 96A498 Filter Kit (5 micron)
51B373 Filter Element (5 micron)
NOTE: LSA–220 Agitator shaft diameter is 16 mm.
Agitator
Shaft
Part No.
Shaft Length
in. (mm)
Agitator
Shaft
Part No.
Shaft Length
in. (mm)
516889 18 (457) 516910 29 (737)
516900 19 (483) 516911 30 (762)
516901 20 (508) 516912 31 (787)
516902 21 (533) 516913 32 (813)
516903 22 (559) 516914 33 (838)
516904 23 (584) 516915 34 (864)
516905 24 (610) 516916 35 (889)
516906 25 (635) 516917 36 (914)
516907 26 (660) 516918 37 (940)
516908 27 (686) 516919 38 (965)
516909 28 (711)
Impeller
Part No.
Impeller
Diameter
in. (mm)
Impeller
gpm (lpm)
LSA 220
Shaft Lengths
Allowed
in. (mm)
515770 7.6 (193) 297 (1124) 0–38 (0–965)
515771 8.8 (224) 459 (1737) 0–38 (0–965)
515772 10.0 (254) 675 (2555) 0–38 (0–965)
515773 11.2 (284) 949 (3591) 0–37 (0–940)
515774 11.8 (300) 1112 (4209) 0–36 (0–914)
515775 12.8 (325) 1417 (5363) 0–34 (0–864)
515776 13.6 (345) 1700 (6435) 0–32 (0–812)
