Graco 218969 Operation manual

307727R
EN
Instructions - Parts List
Rolling Drain Cart
For collecting used oil in a fast-lube facility. For professional use only.
Model 218969
30 Gallon Capacity
Model 235346
27 Gallon Capacity
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
WARNING
To reduce the risk of injury resulting from falling from
the cart or from the cart falling off the track:
• Do not use the drain cart as a step.
• Never extend the wheel arm further than flush with
the inside edge of the arm guide. See FIG. 1.
• Ensure the bolts (6) are torqued into the nuts (11)
to 45-55 ft-lb (62-75 N.m). See FIG. 1.

Installation
2307727R
Installation
Install the wheels (5) and arms (16-right, 19-left) in the
arm guides. Extend the arms equally on each side of the
pan to fit the service pit tracks, But do not extend them
further than the inside end of the arm guides. Refer to
the Dimensional Drawing, page 3, for maximum
extensions. Torque bolts (6) into nuts (11) to 45-55 ft-lb
(62-75 N.m). (FIG. 1)
Kit No. 218970 (parts marks with *) is available for
connecting two carts together and draining one into the
other. See FIG. 2.
To drain oil from the pan, connect a suitable hose to the
1-1/2 npt(f) ball valve (8) and open the valve. Be sure to
close the valve before using the pan.
Parts

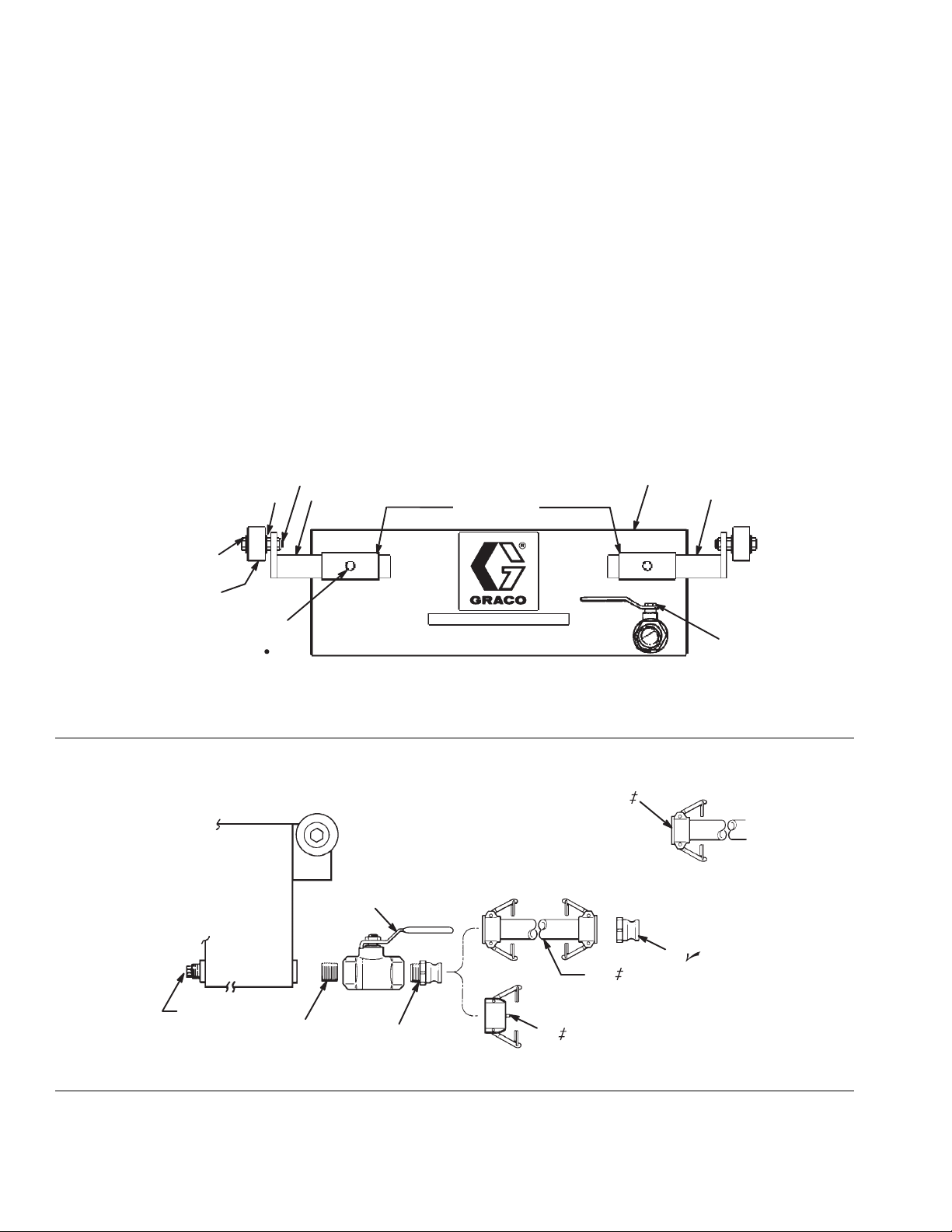

FIG. 1
5b**
6, 11
T
orque to 45–55 ft–lb
(62–75 N m).
15 16
arm guides
5d**
5a**
5c**
19
8*
FIG. 2
21†
20*
8*
9* 13* 14
12
24

Parts
307727R 3
Model 218969 and 235346
* Parts included in Kit 218970 (purchase separately).
** Parts included in Kit 249102 (purchase separately).
† Optional hose, same as 108205 except that it has
only 1 coupler.
‡ For replacement sealing washer, order item 22.
To plug hose (20) when not in use. Must purchase
separately.
Dimensions
Ref. Part Description Qty.
5 249102 KIT, wheel, includes items 5a-5d 4
5a** WHEEL 1
5b** BOLT, hex head, 5/8-11 UNC x
3.25 lg
1
5c** NUT, lock, 5/8-11 UNC x 0.406 hgt 1
5d** 100681 NUT, jam, 5/8-11 UNC x 0.375 hgt 1
6 BOLT, hex head, 1/2-13 UNC x
1.25 lg
4
8* 108204 VALVE, ball 1
9* 108209 NIPPLE, pipe close 4
11 100338 NUT, jam, 1/2-13 UNC x 0.313 hgt 4
12 PLUG, pipe, 1-1/2 in. npt 1
13* 108202 CAMLOCK, male, 1-1/2 npt 1
14‡ 108203 CAP, adapter 1
15 222350 GRATE, model 218969 1
235348 GRATE, model 235346 1
16 222000 ARM, roller, rh 2
19 222626 ARM, roller, lh 2
20*‡ 108205 HOSE, coupled 2
21†‡ 108491 HOSE, single coupler 1
22 112857 WASHER, sealing, (replacement
washer for ‡ items)
1
24108201 PLUG, camlock, male 1
Ref. Part Description Qty.
Model 218969:
Weight: 120 lb (54kg)
Width: 24” (610 mm)
Model 235346:
Weight: 113 lb (51 kg)
Width: 24” (610 mm)
Maximum Extension
Model 218969: 46 in. (1168 mm)
Model 235346: 42.6 in. (1082 mm)
Model 218969: 37.5 in. (953 mm)
Model 235346: 34.1 in. (866 mm)
2.5 in. (64 mm)
Maximum
Model 218969: Length: 33 in. (838 mm)
Model 235346: Length: 29.6 in. (752 mm)
Models 218969 and 235346:
Depth: 11 in. (279 mm)
2.5 in. (64 mm)
Minimum
I-Beam Dimension
Required
For Wheel
And
Bolt Heads
