Graco G-Mini Series User manual

3A6714B
EN
Instructions
G-Mini™Pump
For dispensing NLGI Grades #000 to #2 greases. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Models, page 3
4061 psi (28 MPa, 280 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.

Contents
23A6714B
Contents
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . 7
Divider Installation Remote............................. 7
CSP Valve Installation with Bracket ............... 7
Choose an Installation Location. . . . . . . . . . . . . . 8
System Configuration and Wiring . . . . . . . . . . . . 8
Fuses..............................................................8
Recommendations for Pump Usage in
Harsh Environments................................. 8
Wiring and Installation Diagrams.................... 9
Manual Run Button . . . . . . . . . . . . . . . . . . . . . . 11
Proximity Switch. . . . . . . . . . . . . . . . . . . . . . . . . 11
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 12
Disconnect and isolate all power supplies....12
Connect to Auxiliary Fittings . . . . . . . . . . . . . . . 12
Pressure Relief Valves ................................. 12
Pressure Relief Valves. . . . . . . . . . . . . . . . . . . . 12
Set Pump Outlet Volume . . . . . . . . . . . . . . . . . . 13
Load Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Change Greases ..........................................14
Priming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Non Controller Operation . . . . . . . . . . . . . . . . . . . 16
Low-Level Output Option.............................. 16
Controller Operation . . . . . . . . . . . . . . . . . . . . . . . 17
RUN MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SETUP MODE . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ON TIME Configuration (Minutes) ................ 18
ON TIME Configuration (Cycles) .................. 19
OFF TIME Configuration (Min./Hrs).............. 19
ADVANCED PROGRAMMING . . . . . . . . . . . . . 20
Advanced Programming Menu Descriptions 20
Alerts and Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . 23
Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Alert and Alarm Scenarios . . . . . . . . . . . . . . . . . 24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Reservoir Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Pump Element Kits . . . . . . . . . . . . . . . . . . . . . . . 27
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Pump Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Universal Bracket Mount . . . . . . . . . . . . . . . . . . 31
CSP Valve Bracket Mount . . . . . . . . . . . . . . . . . 31
Technical Specifications . . . . . . . . . . . . . . . . . . . . 32
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 34

Models
3A6714B 3
Models
Model
Reservoir
Non-
Controller Controller
Voltage
Power
Input
Low
Level
Cycle
Feedback
Input
Pump
Element
Quantity Heater0.5 L 1 L 12VDC 24VDC
25R800 X X X CPC X 1
25R801 X X X CPC X M12 1
25R802 X X X CPC X 1
25R803 X X X CPC X M12 1
25R804 X X X CPC X M12 1 X
25R805 X X X CPC X M12 2 X
25R806 X X X CPC X M12 1 X
25R807 X X X CPC X 1
25R808 X X X CPC X M12 1
25R809 X X X CPC X 1
25R810 X X X CPC X M12 1

Warnings
43A6714B
Warnings
The following warnings are for the setup, use, maintenance, and repair of this equipment. The exclamation point
symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these
symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.

Warnings
3A6714B 5
PRESSURIZED EQUIPMENT HAZARD
Over-pressurization can result in equipment rupture and serious injury.
• A pressure relief valve is required at each pump outlet.
• Follow the Pressure Relief Procedure in this manual when servicing equipment.
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many cleaning solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
• Use only compatible solvents to clean plastic structural or pressure-containing parts.
• See Technical Specifications in all equipment manuals for materials of construction. Consult the
solvent manufacturer for information and recommendations about compatibility.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not
limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
WARNING

Installation
63A6714B
Installation
Component Identification
Key:
A Reservoir
B Venting Tube
C Follower Plate
D Pump Element
E Zerk Inlet Fill Fitting
F Cycle Indicator Connector (Controller model only)
G CPC Connector
H Controller
J Return to Reservoir
FIG. 1:
D
A
B
C
F
G
E
H
J
J

Installation
3A6714B 7
Typical Installation
Divider Installation Remote
CSP Valve Installation with Bracket
K Connection to fused power source
L Pressure relief valve (required for each outlet)*
See Pressure Relief Valves, page 12
M Proximity switch cable
N Series progressive divider valves (Divider Installation)
P Connection to lube points
R Proximity switch, see page 11
S Bracket, see page 8
T Direct Mount CSP Hose, see page 8
U CSP valves
*User Supplied
FIG. 2:
K
R
P
N
M
L
FIG. 3:
R
SL
KT
U

Installation
83A6714B
Choose an Installation Location
• Select a location that will support the weight of the
pump and lubricant, as well as all plumbing and
electrical connections.
• Refer to the two mounting hole layouts provided in
the Mounting Pattern section of this manual, page
31.
• Use designated mounting holes and provided con-
figurations only.
• Use the two fasteners (included) to secure the pump
to the mounting surface.
Some installations may require an additional pump
bracket.
Mounting Bracket
Direct Mount CSP Hose Kits
CSP Mount Kits
System Configuration and
Wiring
Fuses
Fuse kits are available from Graco. The following table
identifies the correct fuse to use for the input voltage
and the corresponding Graco Kit number.
Recommendations for Pump Usage in
Harsh Environments
• Use pump with CPC style power cable.
• Use a corrosion preventative electrical grease on all
contacts.
AUTOMATIC SYSTEM ACTIVATION HAZARD
Unexpected activation of the system could result in
serious injury, including skin injection and amputa-
tion.
This device has an automatic timer that activates the
pump lubrication system when power is connected or
when exiting the programming function. Before you
install the lubrication pump or remove it from the sys-
tem, disconnect and isolate all power supplies and
relieve all pressure.
Part No Description
26C826 Universal Bracket
26C825 CSP Mounting Bracket
Part No Description
26C956 1/4 NPT (Pressure Relief Outlet) to 1/8
NPT (CSP Inlet)
26C957 1/4 NPT (Pressure Relief Outlet) to 1/8
BSPT (CSP Inlet)
Part No Description
26C958 Kit, CSP Mount, NPT
26C959 Kit, CSP Mount, BSPT
All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
NOTICE
Fuses (user supplied) are required on all DC models.
To avoid equipment damage:
• Never operate pump DC models without a fuse
installed.
• A fuse of the correct amperage must be installed in
line with the power entry to the system.
Fuse Value Graco Kit No.
Applicable
Model
10A 26C916
25R802
25R803
25R806
25R809
25R810
5A 26C917 25R800
25R807
7.5A 571039
25R801
25R804
25R805
25R808

Installation
3A6714B 9
Wiring and Installation Diagrams
NOTE: Wire colors provided on these pages refer only
to the Graco power cable.
Power CPC DC - 5 Wire (Non-Controller)
Pin Out
NOTICE
The stirring paddle should rotate clockwise (as viewed
from the top) (FIG. 4) when power is applied. Allowing
the stirring paddle to rotate counterclockwise dam-
ages the pump’s internal components.
If the stirring paddle is rotating counterclockwise, stop
the pump immediately. Check that the wiring is correct
and make any necessary changes.
If the motor does not run after power is supplied,
check the pump wiring.
FIG. 4
1 Not Used Not Used
2 -VDC Black
3+VDC Red
4 Low-Level White
5 Low-Level Orange
6 Not Used Not Used
7 Not Used Green
FIG. 5

Installation
10 3A6714B
Power CPC DC - 5 Wire (Controller)
Pin Out
Divider Valve Indicator Cycle Inputs (M12)
See Technical Specifications, page 32 for ratings.
1 Not Used Not Used
2 -VDC Black
3+VDC Red
4LED+ White
5 Button Orange
6 Not Used Not Used
7LED- Green
FIG. 6
FIG. 7

Installation
3A6714B 11
Part No. 124333: Cable Pin Out (M12) for
5 m Cable
Wire Colors (FIG. 8)
Manual Run Button
Proximity Switch
NOTE: Reference ILE buyer’s guide for appropriate PNP
proximity switches and cables.
Item No. Color
1Brown
2White
3Blue
4Black
FIG. 8
Part No. Description
25C981 Manual Run Button, 12V
25C982 Manual Run Button, 24V

Setup
12 3A6714B
Setup
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
Disconnect and isolate all power supplies.
Relieve pressure in the system using two wrenches
working in opposite directions on the pump element and
pump element fitting to slowly loosen fitting only until the
fitting is loose and no lubricant or air is leaking from
fitting.
NOTE: When loosening the pump element fitting, do not
loosen the pump element. Loosening the pump element
changes the output volume.
Connect to Auxiliary Fittings
• Always use two wrenches working in opposite direc-
tions when connecting anything to pump element or
auxiliary fittings. See FIG. 9 for an example.
• Torque pump element fittings to 50 in-lb (5.6 N•m).
• Torque pump element to 65 in-lb (7.3 N•m) when
connecting to the housing.
Pressure Relief Valves
NOTE: A pressure relief valve may be purchased from
Graco. See Pressure Relief Valves, page 12.
Pressure Relief Valves
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
FIG. 9
NOTICE
Do not attach unsupported equipment to auxiliary fit-
tings such as fill ports and pump element. Attaching
unsupported equipment to these fittings can result in
irreparable housing damage.
To prevent over-pressurization, which can result in
equipment rupture and serious injury, a pressure
relief valve appropriate for the lubrication system
must be installed close to each pump outlet to allevi-
ate unintended pressure rises in the system and pro-
tect the pump from damage.
• Only use a pressure relief valve that is rated for
no more than the working pressure of any com-
ponent installed in the system.
• Install a pressure relief valve before any auxiliary
fitting.
Part No. Description
571028 Kit, Adj. Pressure Relief

Setup
3A6714B 13

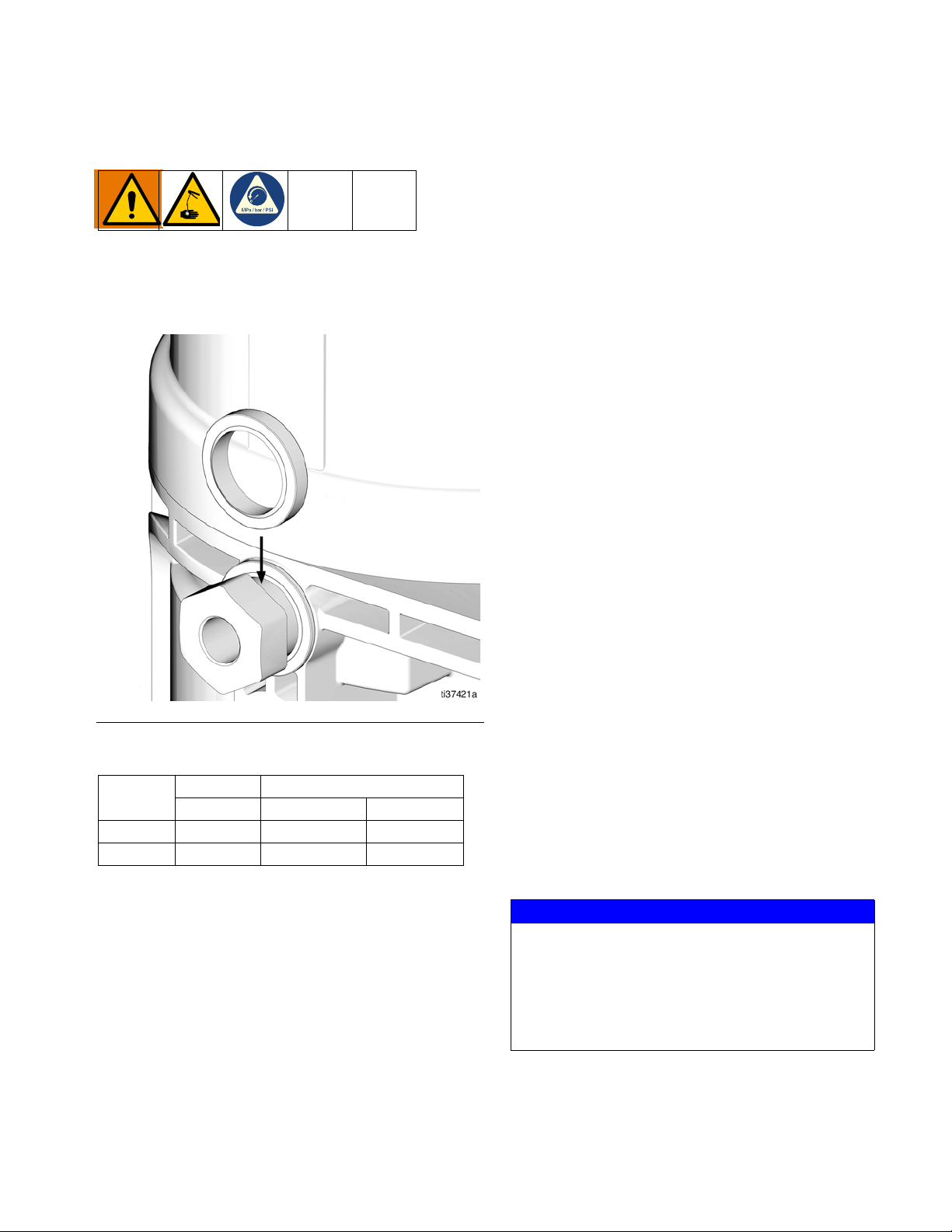

Set Pump Outlet Volume
1. Follow the Pressure Relief Procedure, page 12.
2. Use a wrench and turn the pump element counter-
clockwise to remove the entire pump element.
3. Replace the current spacer with the desired spacer.
NOTE: A spacer is required for operation. Only one
Graco spacer can be used at a time. The pumps from
the factory have a spacer (25N814) installed on the
pump element. Pump Element Kits (page 27) come
with a spacer. The spacer may be replaced depending
upon the required output volume.
4. Re-install the pump element into the pump base,
ensuring that the first thread of the element
engages correctly.
NOTE: It may be necessary to repeat the pump outlet
volume setup procedure after the pump is operating to
adjust the volume of the dispensed fluids.
5. Use a wrench and tighten the pump element fitting.
Torque to 50 in-lb (5.6 N•m).
NOTE:
• The dispensed volume amount varies depending
upon external conditions, such as lubricant
temperature and back pressure from downstream
connections.
• Use the volume adjustment process in conjunction
with setting the ON time of the pump to control the
output volume.
• The volume adjustment process should be used as
a starting point for dispensing the desired lubrication
volume.
Load Grease
To ensure optimal performance from the pump:
• Use only NLGI #000 - #2 greases appropriate for
the application, automatic dispensing, and the
equipment’s operating temperature. Consult with the
machine and lubrication manufacturers for details.
• Fill the reservoir using a hand operated pump,
pneumatic pump or electric transfer pump.
• Do not overfill.
• Do not operate the pump without having a reservoir
attached.
FIG. 10
Spacers
Thickness Output Volume/Minute
mm Cubic In. Cubic cm
25N814 1.5 0.183 3.0
18A317 4.6 0.0915 1.5
NOTICE
• Always clean fitting (E) with a clean dry cloth
prior to filling the reservoir. Dirt and/or debris
can damage pump and/or lubrication system.
• Use care when filling the reservoir using a pneu-
matic or electric transfer pump to avoid pressur-
izing and breaking the reservoir.

Setup
14 3A6714B
1. Connect the fill hose to the Zerk Inlet Fill Fitting (E)
(FIG. 11).
2. For higher viscosity fluids, start the pump, per the
controller instructions, to rotate the stirring paddle
during filling to prevent air pockets from forming in
the grease.
For models using an external controller, start the pump
operation following the controller instructions.
3. Fill the reservoir with NLGI grease to the MAX line
(FIG. 12).
NOTE: The venting tube (B) should not be used as an
overfill indicator (FIG. 12).
4. Remove the fill hose.
Change Greases
Always use compatible grease when changing grease.
FIG. 11
E
FIG. 12
B

Setup
3A6714B 15
Priming
It is not necessary to prime the pump every time the
pump is filled. The pump only requires priming the first
time it is used, or if it is allowed to run dry.
1. Loosen the pump element fitting (FIG. 13).
NOTE: When loosening the pump element fitting, do not
loosen the pump element. Loosening the pump element
changes the output volume and causes leakage.
2. Only run the pump until air is no longer dispensed
with the lubricant out of element fitting (FIG. 14).
3. Tighten the pump element fitting using two
wrenches working in opposite directions (FIG. 15).
FIG. 13
FIG. 14
FIG. 15

Non Controller Operation
16 3A6714B
Non Controller Operation
The pump can be controlled using an external, user sup-
plied, controller.
NOTE:
• When using an external controller, Pump ON (Run)
Time should be set for no longer than 30 minutes.
• In most cases, Pump OFF (Rest) Time should be
twice as long as Pump ON (Run) time. If alternative
ON / OFF times are required, contact Graco Cus-
tomer Service for assistance.
Low-Level Output Option
Pumps without controllers include a Low-Level Output
Option. The low-level signal is monitored across PINS 4
and 5. For the locations and wiring information for PINS
4 and 5, see the Wiring and Installation Diagrams,
page 9.
Typical Low-Level Output Response with Low-Level Fluid
FIG. 16

Controller Operation
3A6714B 17
Controller Operation
Control Panel Overview (FIG. 17)
FIG. 17
DISPLAY
•Upon entering SETUP MODE, the
first digit in the display begins to
blink.
•In RUN MODE, the programmed
ON TIME, CYCLES or OFF TIME
displays and counts down to zero.
ON TIME
•In SETUP MODE, the LED illumi-
nates when ON TIME duration or
cycles are set up.
•A dot illuminates under MM on the
display.
•The ON TIME range is 1 to 30
minutes, or 1 to 99 cycles.
•In RUN MODE, the LED illuminates
during the ON TIME sequence. ALARM
The LED illuminates when
an alert / alarm event occurs.
Most alerts/alarms occur
during ON TIME MODE.
However, if a Low-Level alert
triggers near the end of an
ON TIME cycle, the alert will
display while the controller is
in OFF TIME MODE. A soft-
ware error occurring when
the controller is operating in
the OFF TIME MODE will
also activate the alarm LED.
MANUAL RUN / ENTER
•In SETUP MODE, press this button to save the
entry, move the cursor in the display one field to the
right or to the next setup step.
•In RUN MODE, press this button to start a manual
run cycle.
UP and DOWN ARROWS
•Hold both the UP and
DOWN arrow buttons
together for 3 seconds to
enter SETUP MODE.
•In SETUP MODE, the UP
and DOWN arrows
increase or decrease time
and cycle setting values
shown on the display.
•In RUN TIME MODE,
pressing the UP
arrow/CANCEL button ter-
minates the lubrication
period.
OFF TIME
•In SETUP MODE, the LED illuminates when OFF TIME duration is
set up.
•A dot illuminates under HH on the display.
•The OFF TIME range is 15 / 30 / 45 min or 1 to 99 hours.
•The LED illuminates when OFF TIME sequence is running.

Controller Operation
18 3A6714B
The controller operates in two modes; RUN MODE and
SETUP MODE. Each mode has multiple functions.
RUN MODE
RUN MODE performs two functions while monitoring
Alert/Alarm conditions: ON TIME and OFF TIME.
• In ON TIME the motor is
running and the lubrication
is delivered. ON TIME can
be configured to be active
for a period of time in minutes or a period of lube
cycles (cycle or proximity switch is required).
• In OFF TIME the motor is not
running. This is a period
where no lubrication is deliv-
ered. OFF TIME can be con-
figured for 15 / 30 / 45 min. or 1 to 99 hours.
By default, units with controllers are set to operate with
an ON TIME period of five (5) minutes and an OFF
TIME period of one (1) hour.
Once an ON TIME lubrication period
begins, it can be terminated by pressing
the UP arrow/CANCEL button.
While in RUN MODE the controller
monitors Alert/Alarm conditions. See
Alert and Alarm Scenarios, page 24 for full descrip-
tions.
SETUP MODE
Press both the UP and
DOWN arrow buttons
together for 3 seconds to
enter SETUP MODE.
The first digit on the display
begins to blink. This indicates SETUP MODE. After
entering SETUP Mode, if no activity is detected, after 60
seconds a timeout occurs and the controller resumes in
RUN MODE.
ON TIME Configuration (Minutes)
The first configuration in SETUP MODE is programming
the ON TIME.
Notice the following on the controller:
- The LED next to the
Clock in the ON field illu-
minates.
- The first digit on the dis-
play begins to blink.
- A dot on the display
under the MM illumi-
nates.
This confirms that the controller is ready for the first digit
to be configured for ON TIME in Minutes (MM).
NOTE: The ON TIME can be configured between 1 to
30 minutes.
1. Press the UP or DOWN
arrows to select the first
digit.
2. Press the ENTER button
to save the selection.
After the ENTER button is
pressed, the second digit begins
to blink. The ON LED and MM
dot remains lighted.
This confirms that the second
digit for ON TIME is being config-
ured in Minutes (MM).

Controller Operation
3A6714B 19
3. Press the UP or DOWN
arrows to select the sec-
ond digit.
4. Press the ENTER button
to save the selection.
The controller automatically switches to OFF TIME con-
figuration.
ON TIME Configuration (Cycles)
NOTE: The proximity switch accessory must be installed
and Cycle Count enabled in Advanced Programming
(page 20) before the number of cycles can be config-
ured in SETUP MODE.
Notice the following on the controller:
- The LED next to the
Clock in the ON field illu-
minates
- The display reads “CY”
to identify that the ON
TIME is configured for
Cycles Counts.
NOTE: The number of cycles counts can range from 1
to 99.
1. Press the ENTER button to
advance the display.
The first digit on the display
begins to blink. This confirms
that the controller is ready for
the cycle count to be config-
ured.
2. Press the UP or DOWN
arrows to select the first
digit.
3. Press the ENTER button to save the
selection.
After the ENTER button is
pressed, the second digit
begins to blink. The ON LED
remains lighted.
This confirms that the second
digit for ON TIME is being con-
figured in Minutes (MM).
4. Press the UP or DOWN
arrows to select the sec-
ond digit.
5. Press the ENTER button to save the
selection.
The controller automatically switches to OFF TIME con-
figuration.
OFF TIME Configuration (Min./Hrs)
Notice the following on the controller:
- The LED next to the
Clock in the OFF
field is lighted.
- The first digit on the
display begins to
blink.
- A dot on the display
under the HH illumi-
nates.
This confirms that the controller is ready for the first digit
to be configured for OFF TIME in Hours (HH).
NOTE: The OFF TIME must be configured between 15
min, and 99 hours.
1. Press the UP or Down
arrows to select the first
digit.
2. Press the ENTER button
to save the selection.

Controller Operation
20 3A6714B
After the ENTER button is
pressed, the second digit
begins to blink. The OFF
LED and HH dot remain
lighted.
This confirms that the sec-
ond digit for OFF TIME is
being configured in Hours
(HH).
3. Press the UP or DOWN
arrows to select the sec-
ond digit.
4. Press the ENTER button
to save the selection.
The controller automatically switches to RUN MODE.
ADVANCED PROGRAMMING
The Seven Advanced Programming Menu Descriptions
are:
• A1 - PIN Entry Enable/Setting Up the PIN Code,
page 20
• A2 - Prelube and Delay, page 22
• A3 - Low-Level Alert Duration, page 22
• A4 - Missed Cycle Threshold, page 22
• A5 - Low-Level Power Cycle Retry, page 22
• A6 - Low-Level Alert Enable, page 22
• A7 - Cycle Count Enable, page 22
To access ADVANCED PROGRAMING:
1. Press both the UP and
DOWN arrow buttons for
3 seconds to enter
SETUP MODE.
2. In SETUP MODE, press and hold
the UP arrow for 10 seconds.
The display reads A1. This confirms
that the controller is in the
ADVANCED PROGRAMMING set-
tings.
After entering ADVANCED PROGRAMMING, if no activ-
ity is detected for 60 seconds, a timeout occurs and the
controller resumes RUN MODE.
Press the ENTER button to advance to the
configurable portion of the specific settings.
1. Press the UP or DOWN
arrows to configure the
selection.
For ON or OFF selection:
-ON:UParrow
- OFF: DOWN arrow
2. After completing configuration, press the
ENTER button to save and proceed to
the next ADVANCED PROGRAMMING
settings.
After all of the ADVANCED PROGRAMMING settings
are configured, press the ENTER button to return the
controller to RUN MODE.
Advanced Programming Menu Descriptions
A1 – PIN Entry Enable/Setting Up the PIN Code
A PIN Code provides additional controller security by
requiring that a PIN Code be entered before gaining
access to SETUP MODE.
NOTE: The PIN Code can be configured to be any num-
ber between (and including) 00 and 99.
To set up the PIN Code:
1. Follow Steps 1 and 2 of ADVANCED PROGRAM-
MING, (page 20).
2. When A1 appears on the display, press
the ENTER button. Either On (PIN Code
ON) or OF (PIN Code OFF) displays.
• On (ON) - Select On to configure the controller to
require that a PIN Code be entered prior to
accessing SET UP Mode.
-
