Graco Husky 2150e Instruction Manual

Operation
Husky™ 2150e
Electric-Operated Diaphragm Pump 3A4068E
EN
2–Inch pumps with electric drive for fluid transfer applications.
Not approved for use in explosive atmospheres or hazardous locations unless otherwise stated. See
Approvals page for more information. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and in your Husky
2150e Repair/Parts manual. Save these instructions.
Maximum Working Pressure: 100 psi
(0.69 MPa, 6.9 bar)
See page 7 for approvals.
PROVEN QUALITY. LEADING TECHNOLOGY.

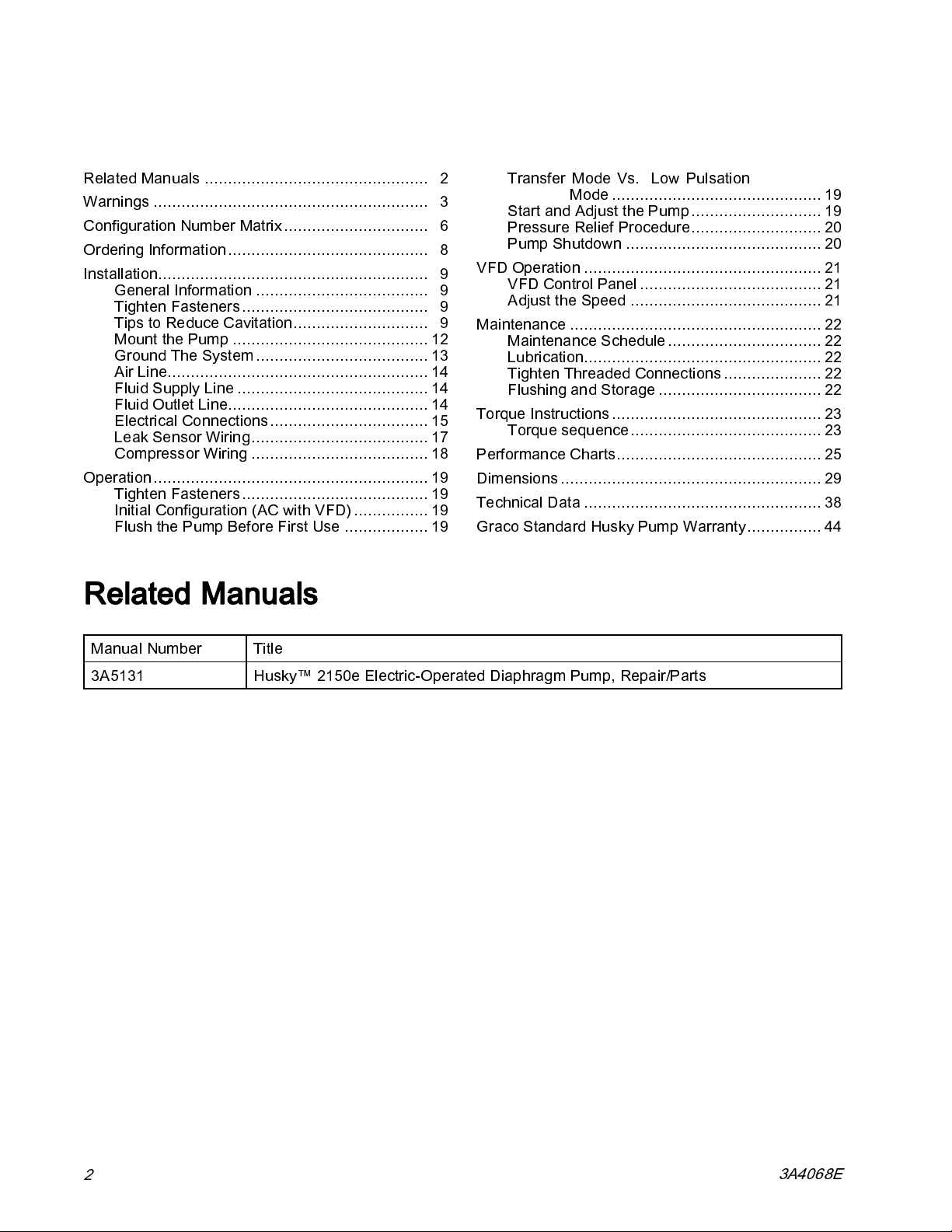

Contents
Related Manuals ................................................ 2
Warnings ........................................................... 3
onfiguration Number Matrix............................... 6
Ordering Information........................................... 8
Installation.......................................................... 9
General Information ..................................... 9
Tighten Fasteners........................................ 9
Tips to Reduce avitation............................. 9
Mount the Pump .......................................... 12
Ground The System..................................... 13
Air Line........................................................ 14
Fluid Supply Line ......................................... 14
Fluid Outlet Line........................................... 14
Electrical onnections.................................. 15
Leak Sensor Wiring...................................... 17
ompressor Wiring ...................................... 18
Operation........................................................... 19
Tighten Fasteners........................................ 19
Initial onfiguration (A with VFD)................ 19
Flush the Pump Before First Use .................. 19
Transfer Mode Vs. Low Pulsation
Mode ............................................. 19
Start and Adjust the Pump............................ 19
Pressure Relief Procedure............................ 20
Pump Shutdown .......................................... 20
VFD Operation ................................................... 21
VFD ontrol Panel....................................... 21
Adjust the Speed ......................................... 21
Maintenance ...................................................... 22
Maintenance Schedule................................. 22
Lubrication................................................... 22
Tighten Threaded onnections..................... 22
Flushing and Storage ................................... 22
Torque Instructions............................................. 23
Torque sequence......................................... 23
Performance harts............................................ 25
Dimensions........................................................ 29
Technical Data ................................................... 38
Graco Standard Husky Pump Warranty................ 44
elated Manuals
Manual Number Title
3A5131 Husky™ 2150e Electric-Operated Diaphragm Pump, Repair/Parts
3A4068E

Warnings
Warnings

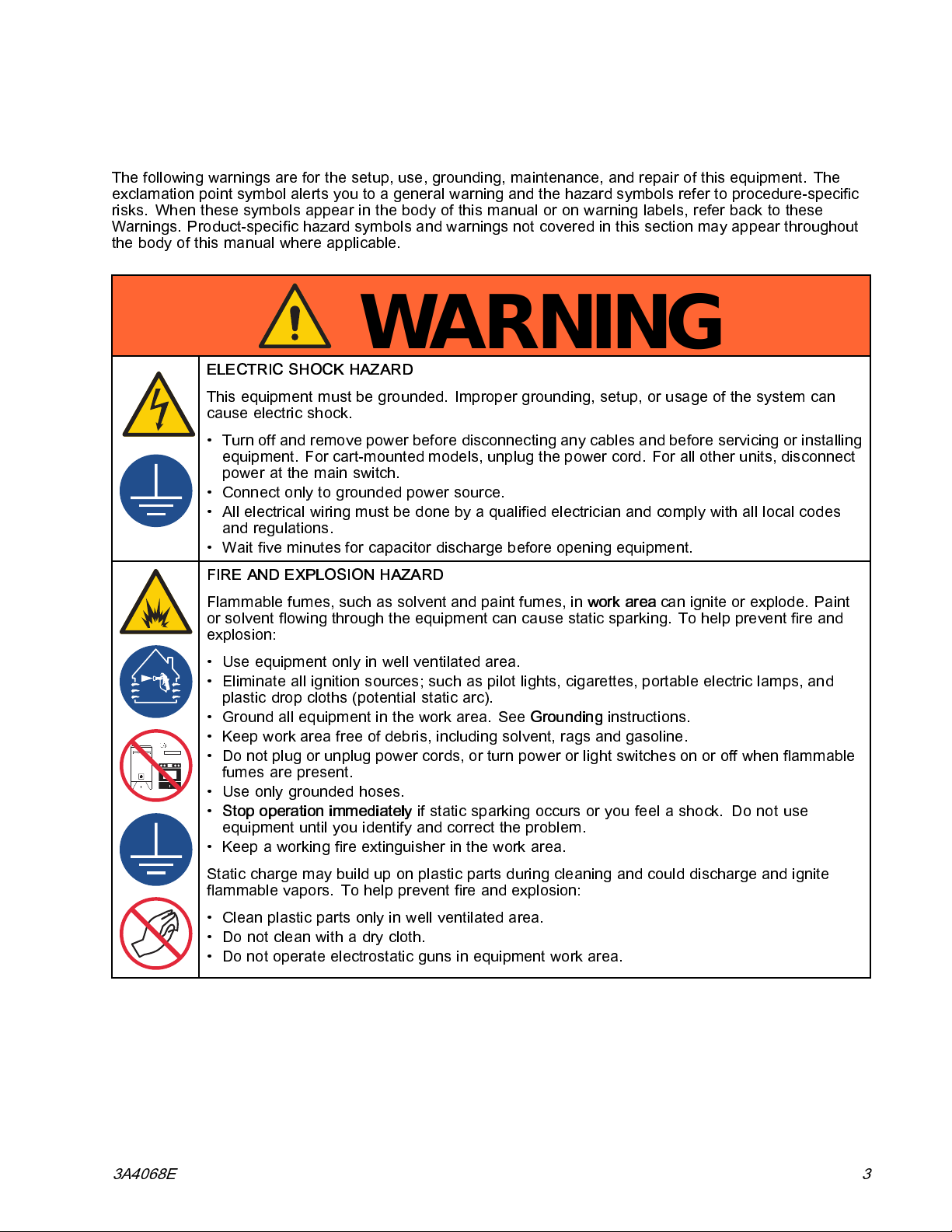

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific
risks. When these symbols appear in the body of this manual or on warning labels, refer back to these
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body of this manual where applicable.
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can
cause electric shock.
• Turn off and remove power before disconnecting any cables and before servicing or installing
equipment. For cart-mounted models, unplug the power cord. For all other units, disconnect
power at the main switch.
• onnect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes
and regulations.
• Wait five minutes for capacitor discharge before opening equipment.
FIRE A D EXPLOSIO HAZARD
Flammable fumes, such as solvent and paint fumes, in work area canigniteorexplode.Paint
or solvent flowing through the equipment can cause static sparking. To help prevent fire and
explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Ground all equipment in the work area. See Grounding instructions.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
• Use only grounded hoses.
• Stop operation immediately if static sparking occurs or you feel a shock . Do not use
equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge and ignite
flammable vapors. To help prevent fire and explosion:
• lean plastic parts only in well ventilated area.
• Donotcleanwithadrycloth.
• Do not operate electrostatic guns in equipment work area.
3A4068E 3

Warnings
WARNING
PRESSURIZED EQUIPME T HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin
and cause serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before
cleaning, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• heck hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
EQUIPME T MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request Safety Data Sheet (SDS) from distributor or retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• heck equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. all your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• omply with all applicable safety regulations.
PRESSURIZED ALUMI UM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result in death,
serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. ontact your material
supplier for compatibility.
43A4068E

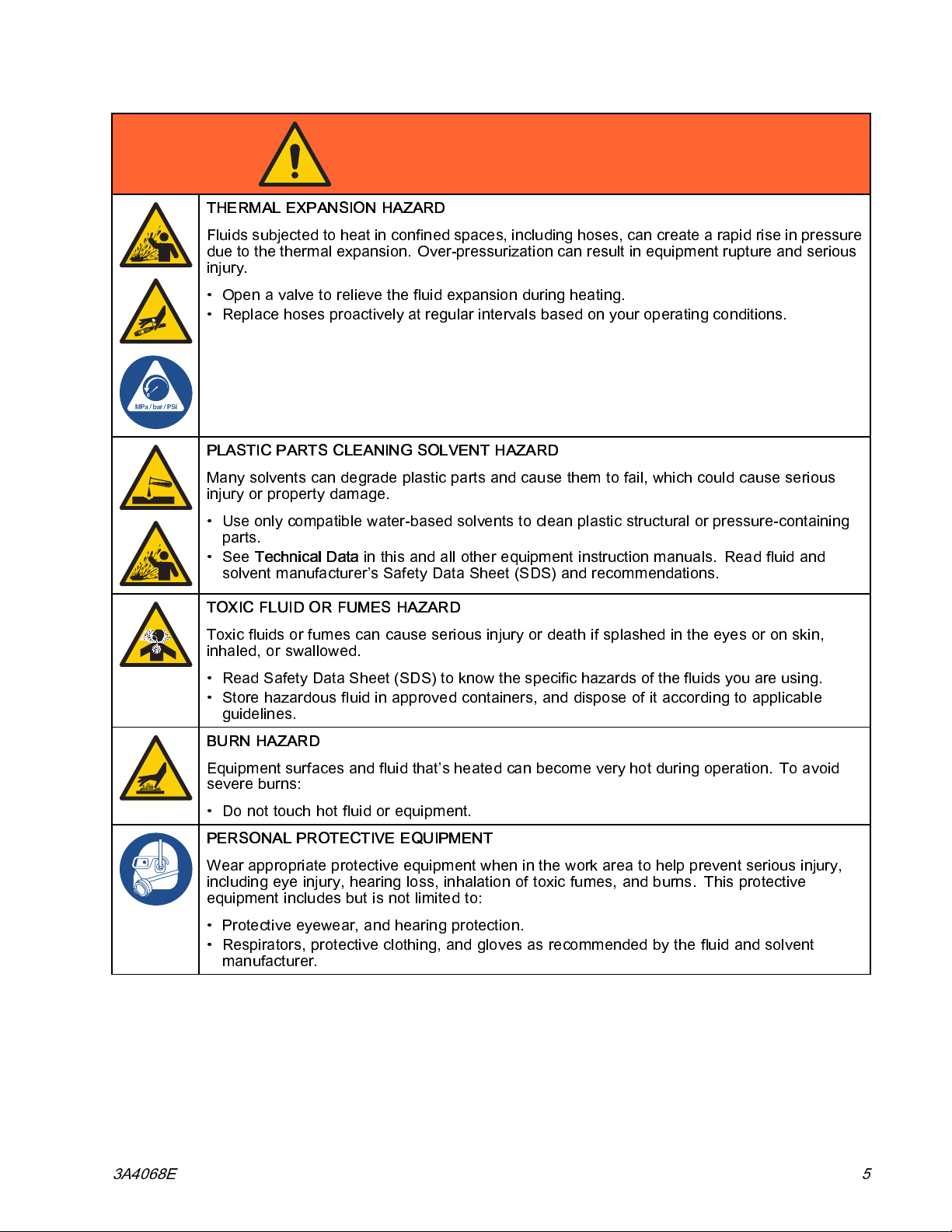

Warnings
WARNING
THERMAL EXPA SIO HAZARD
Fluidssubjectedtoheatinconfinedspaces,includinghoses,cancreatearapidriseinpressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious
injury.
• Openavalvetorelievethefluidexpansionduringheating.
• Replace hoses proactively at regular intervals based on your operating conditions.
PLASTIC PARTS CLEA I G SOLVE T HAZARD
Many solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.
•See Technical Data in this and all other equipment instruction manuals. Read fluid and
solvent manufacturer’s Safety Data Sheet (SDS) and recommendations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
BUR HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid
severe burns:
• Do not touch hot fluid or equipment.
PERSO AL PROTECTIVE EQUIPME T
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
3A4068E 5

Configuration Number Matrix
Configuration Number Matrix
heck the identification plate (ID) for the
onfiguration Number of your pump. Use the
following matrix to define the components of your
pump.
Sample Configuration umber: 2150A-E,A04AA1TPTPTP- -
2150 AEA04 AA1 TP TP TP --
Pump
Model Wetted Section
Material
Drive Center
Section
Material
Gear Box
and Com-
pressor
Motor Fluid Covers and
Manifolds Seats Balls Diaphragms Manifold O-Rings
OTE: Some combinations are not possible. Please refer to Ordering Information, page 8 .
Pump Wetted Section
Material Drive TypeCenter Section Material Gearbox and Compressor Motor
2150 A
Aluminum
E
Electric
A
Aluminum
94
No Gearbox or
ompressor
A
Standard
Induction Motor
C
onductive
Polypropylene
S
Stainless Steel
04
High Speed Gear
Ratio
C
ATEX Induction
Motor
F
PVDF
05
High Speed
Gear Ratio/120V
ompressor
D
Flameproof
Induction Motor
I
ast Iron
06
High Speed
Gear Ratio/240V
ompressor
G
No Motor
P
Polypropylene
14
Mid Speed Gear
Ratio
S
Stainless Steel
15
Mid Speed
Gear Ratio/120V
ompressor
16
Mid Speed
Gear Ratio/240V
ompressor
24
Low Speed Gear
Ratio
25
Low Speed
Gear Ratio/120V
ompressor
26
Low Speed
Gear Ratio/240V
ompressor
63A4068E

Configuration Number Matrix

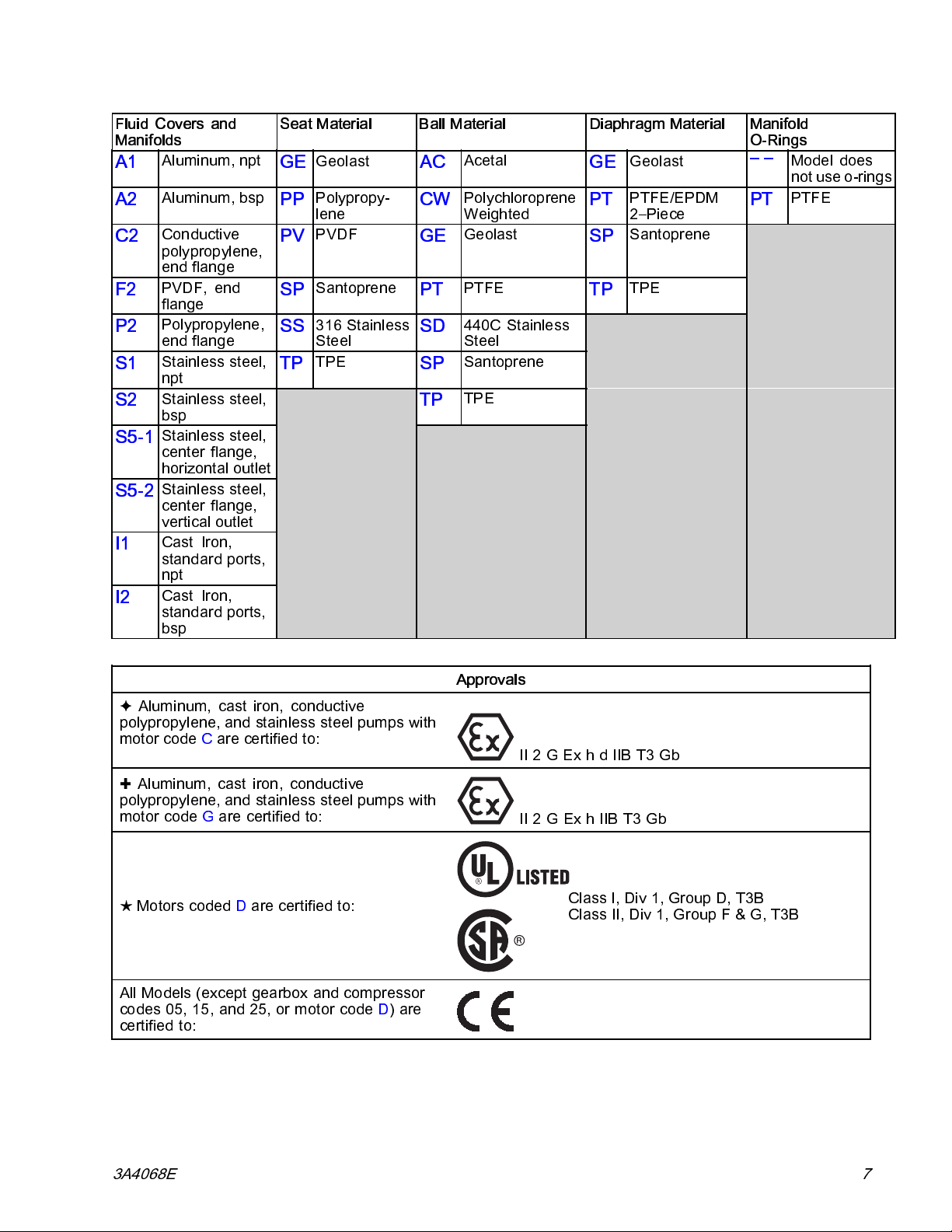

Fluid Covers and
Manifolds Seat Material Ball Material Diaphragm Material Manifold O-Rings
A1
Aluminum, npt
GE
Geolast
AC
Acetal
GE
Geolast
––
Model does
not use o-rings
A2
Aluminum, bsp
PP
Polypropy-
lene
CW
Polychloroprene
Weighted
PT
PTFE/EPDM
2–Piece
PT
PTFE
C2
onductive
polypropylene,
end flange
PV
PVDF
GE
Geolast
SP
Santoprene
F2
PVDF, end
flange
SP
Santoprene
PT
PTFE
TP
TPE
P2
Polypropylene,
end flange
SS
316 Stainless
Steel
SD
440 Stainless
Steel
S1
Stainless steel,
npt
TP
TPE
SP
Santoprene
S2
Stainless steel,
bsp
TP
TPE
S5-1
Stainless steel,
center flange,
horizontal outlet
S5-2
Stainless steel,
center flange,
vertical outlet
I1
ast Iron,
standard ports,
npt
I2
ast Iron,
standard ports,
bsp
Approvals
✦ Aluminum, cast iron, conductive
polypropylene, and stainless steel pumps with
motor code are certified to: II 2 G Ex h d IIB T3 Gb
✚ Aluminum, cast iron, conductive
polypropylene, and stainless steel pumps with
motor code Garecertifiedto: II2GExhIIBT3Gb
★ Motors coded Darecertifiedto: lass I, Div 1, Group D, T3B
lass II, Div 1, Group F & G, T3B
All Models (except gearbox and compressor
codes 05, 15, and 25, or motor code D)are
certified to:
3A4068E 7

Ordering Information
Ordering Information
To Find Your Nearest Distributor
1. Visit www.graco.com.
2. lick on Where to Buy and use the Distributor Locator.
To Specify the Configuration of a New Pump
Please call your distributor.
OR
Use the Online Diaphragm Pump Selector Tool at www.graco.com. Go to the Process Equipment Page.
To Order Rep acement Parts
Please call your distributor.
83A4068E

Installation
Installation
Installation of this equipment involves potentially
hazardous procedures. Only trained and qualified
personnel who have read and who understand
the information in this manual should install this
equipment.
• All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations
Genera Information
The Typical Installation shown is only a guide for
selecting and installing system components. ontact
your Graco distributor for assistance in planning a
system to suit your needs. Always use Genuine
Graco Parts and accessories. Be sure all accessories
are adequately sized and pressure rated to meet the
system’s requirements.
Reference letters in the text, for example (A), refer to
the callouts in the figures.
Tighten Fasteners
Before mounting and using the pump for the first time,
check and retorque all external fasteners. Follow
Torque Instructions, page 23, or see the torque
tag on your pump. After the first day of operation,
retorque the fasteners.
Tips to Reduce Cavitation
avitation in a double diaphragm pump is the
formation and collapse of bubbles in the pumped
liquid. Frequent or excessive cavitation can cause
serious damage, including pitting and early wear of
fluid chambers, balls, and seats. It may result in
reduced efficiency of the pump. avitation damage
and reduced efficiency both result in increased
operating costs.
avitation depends on the vapor pressure of the
pumped liquid, the system suction pressure, and the
velocity pressure. It can be reduced by changing any
of these factors.
1. Reduce vapor pressure: Decrease the
temperature of the pumped liquid.
2. Increase suction pressure:
a. Lower the installed position of the pump
relative to the liquid level in the supply.
b. Reduce the friction length of the suction
piping. Remember that fittings add friction
length to the piping. Reduce the number of
fittings to reduce the friction length.
c. Increase the size of the suction piping.
OTE: Be sure the inlet fluid pressure does not
exceed 25% of the outlet working pressure.
3. Reduce liquid velocity: Slow the cyclic rate of
the pump.
Pumped liquid viscosity is also very important but
normally is controlled by factors that are process
dependent and cannot be changed to reduce
cavitation. Viscous liquids are more difficult to pump
and more prone to cavitation.
Graco recommends taking all the above factors
into account in system design. To maintain pump
efficiency, supply only enough power to the pump to
achieve the required flow.
Graco distributors can supply site specific
suggestions to improve pump performance and
reduce operating costs.
3A4068E 9

Installation

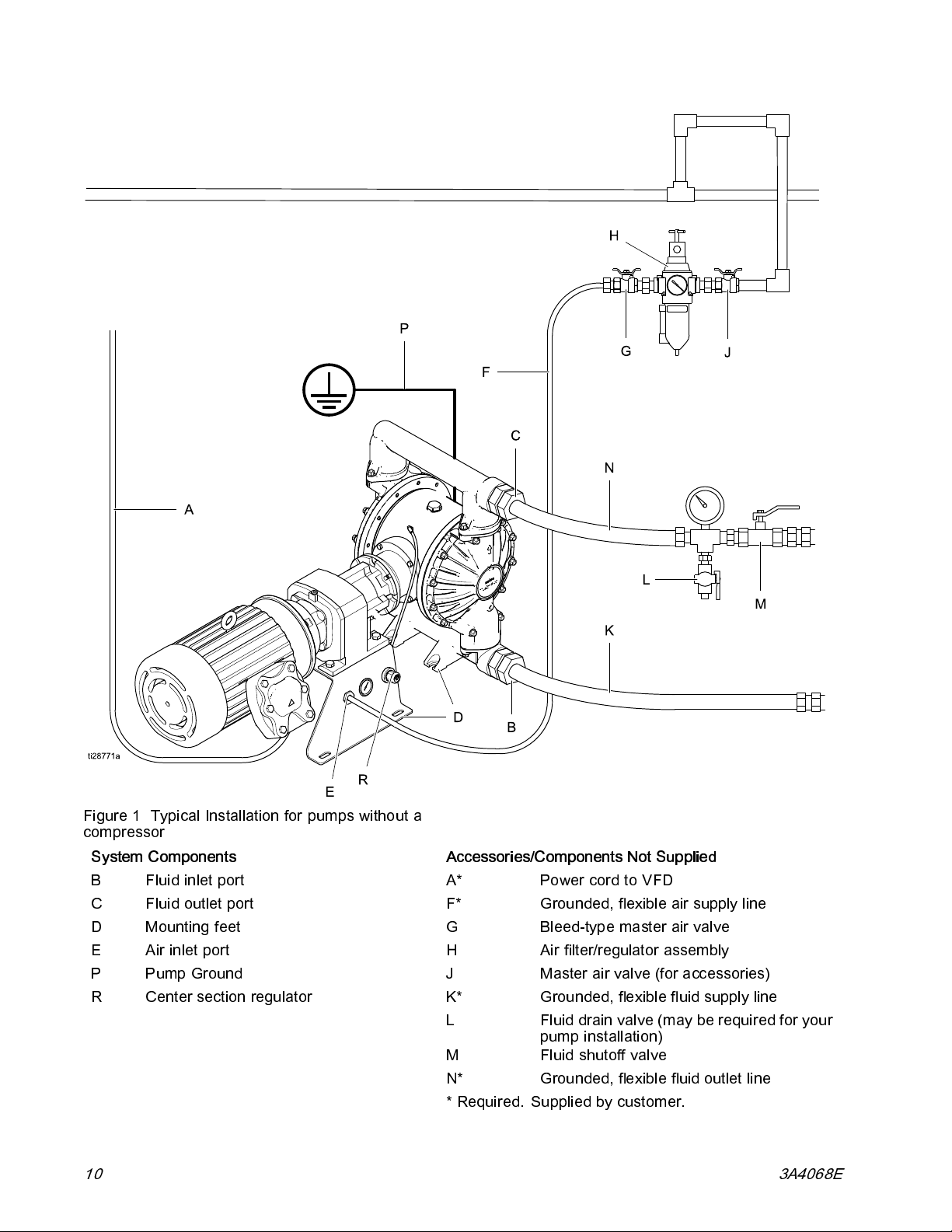

Figure 1 Typical Installation for pumps without a
compressor
System Components Accessories/Components ot Supplied
B Fluid inlet port A* Power cord to VFD
Fluid outlet port F* Grounded, flexible air supply line
DMounting feet G Bleed-type master air valve
E Air inlet port H Air filter/regulator assembly
PPump Ground JMaster air valve (for accessories)
Renter section regulator K* Grounded, flexible fluid supply line
LFluiddrainvalve(mayberequiredforyour
pump installation)
MFluid shutoff valve
N* Grounded, flexible fluid outlet line
* Required. Supplied by customer.
10 3A4068E

Installation
Figure 2 Typical installation of a pump with
compressor
System Components Accessories/Components ot Supplied
B Fluid inlet port A* Power cord to VFD
Fluid outlet port F* Power cord to compressor
DMounting feet K* Grounded, flexible fluid supply line
E Air inlet port L Fluiddrainvalve(mayberequiredforyour
pump installation)
Jenter section regulator MFluid shutoff valve
PPump Ground N* Grounded, flexible fluid outlet line
* Required. Supplied by customer.
3A4068E 11

Installation

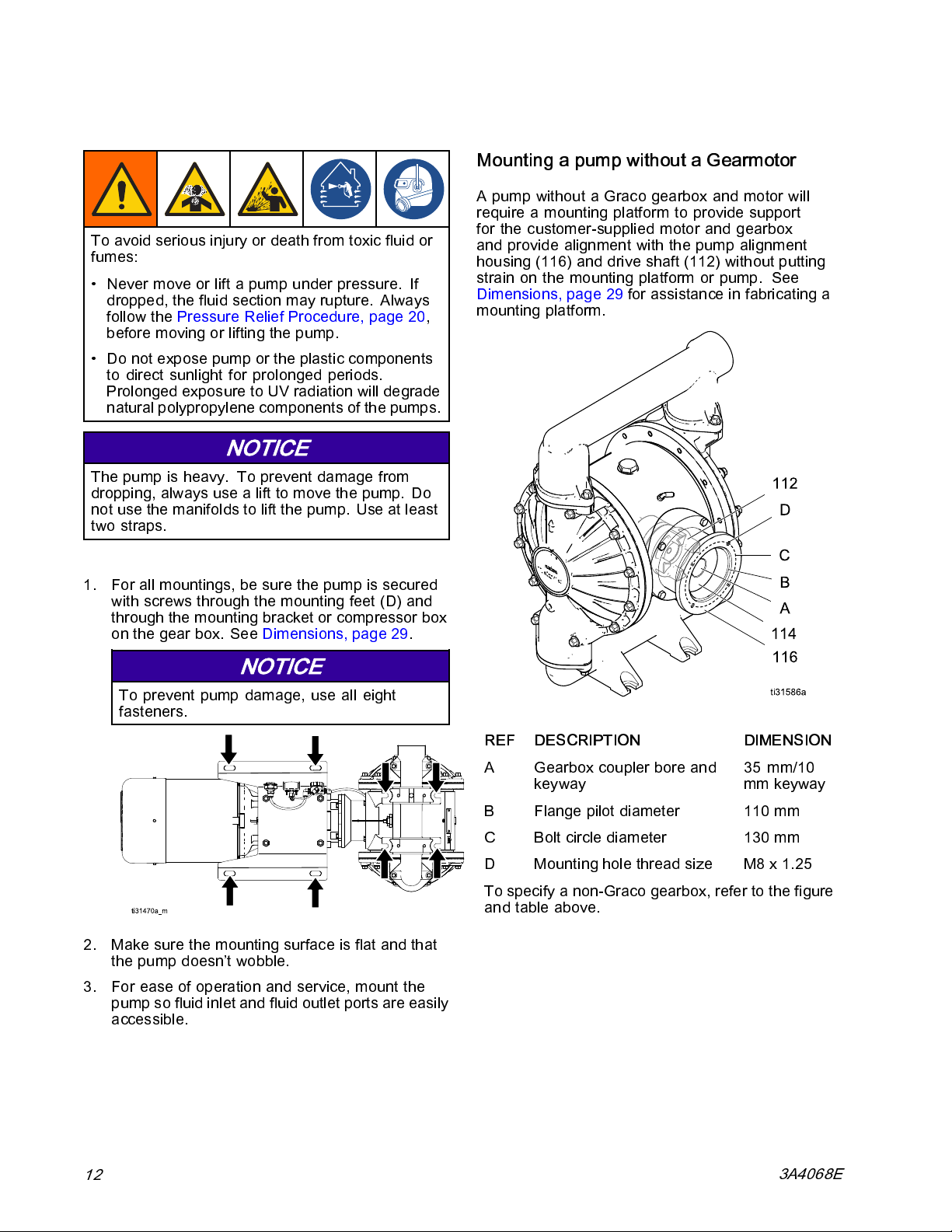

Mount the Pump
To avoid serious injury or death from toxic fluid or
fumes:
• Never move or lift a pump under pressure. If
dropped, thefluidsectionmayrupture.Always
follow the Pressure Relief Procedure, page 20,
before moving or lifting the pump.
• Do not expose pump or the plastic components
to direct sunlight for prolonged periods.
Prolonged exposure to UV radiation will degrade
natural polypropylene components of the pumps.
NOTICE
Thepumpi
s heavy. To prevent damage from
dropping, always use a lift to move the pump. Do
not use the manifolds to lift the pump. Use at least
two straps.
1. For all mountings, be sure the pump is secured
with screws through the mounting feet (D) and
through the mounting bracket or compressor box
on the gear box. See Dimensions, page 29.
NOTICE
To prevent pump damage, use all eight
fasteners.
2. Make sure the mounting surface is flat and that
the pump doesn’t wobble.
3. For ease of operation and service, mount the
pump so fluid inlet and fluid outlet ports are easily
accessible.
Mounting a pu p without a Gear otor
A pump without a Graco gearbox and motor will
require a mounting platform to provide support
for the customer-supplied motor and gearbox
and provide alignment with the pump alignment
housing (116) and drive shaft (112) without putting
strain on the mounting platform or pump. See
Dimensions, page 29 for assistance in fabricating a
mounting platform.
REF DESCRIPTIO DIME SIO
AGearbox coupler bore and
keyway 35 mm/10
mm keyway
B Flange pilot diameter 110 mm
Bolt circle diameter 130 mm
D Mounting hole thread size M8 x 1.25
To specify a non-Graco gearbox, refer to the figure
and table above.
1 3A4068E

Installation

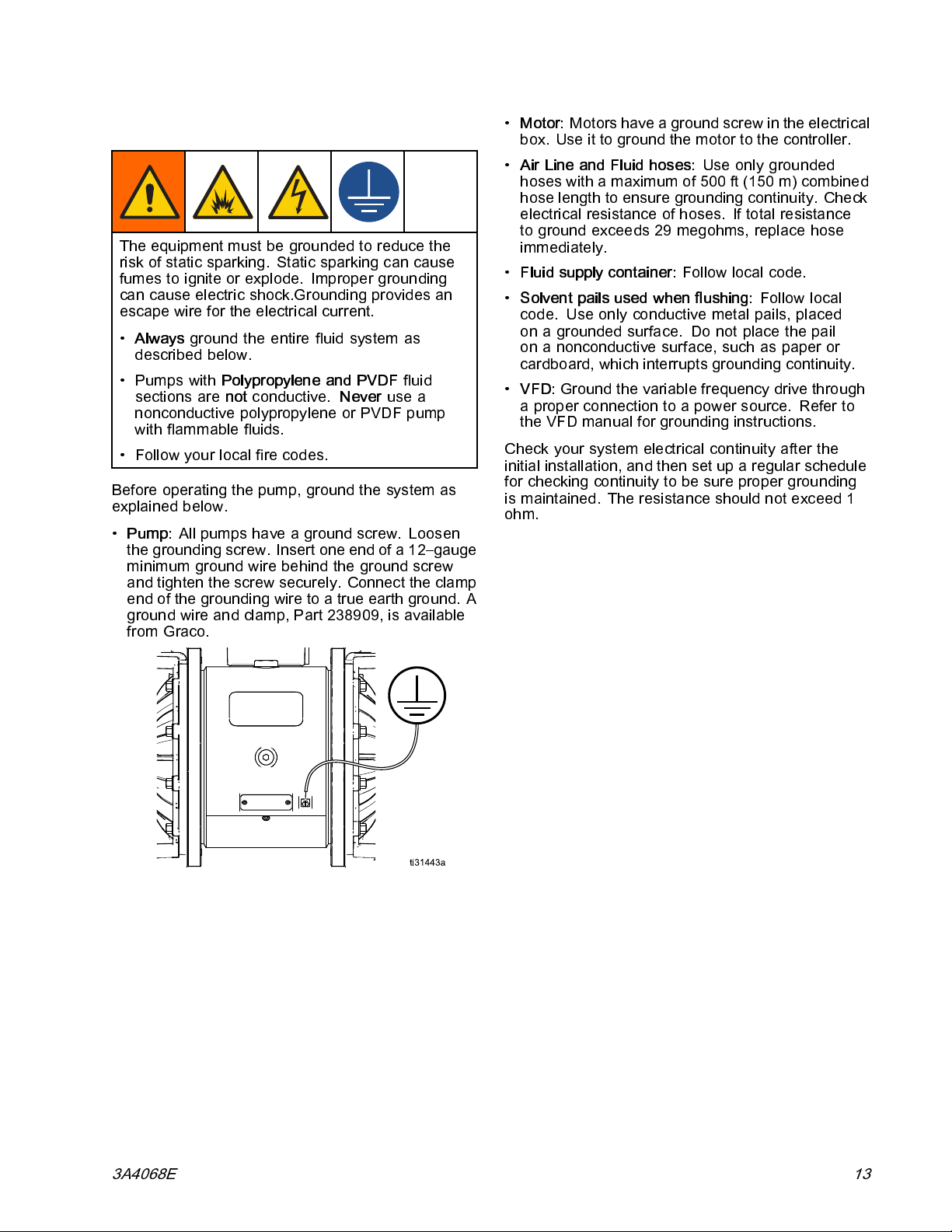

Ground The System
The equipment must be grounded to reduce the
risk of static sparking. Static sparking can cause
fumes to ignite or explode. Improper grounding
can cause electric shock.Grounding provides an
escape wire for the electrical current.
• Always groundtheentirefluidsystemas
described below.
•Pumpswith
Polypropylene and PVDF fluid
sections are not conductive. ever use a
nonconductive polypropylene or PVDF pump
with flammable fluids.
•Followyo
ur local fire codes.
Before operating the pump, ground the system as
explained below.
• Pump: All pumps have a ground screw. Loosen
the grounding screw. Insert one end of a 12–gauge
minimum ground wire behind the ground screw
and tighten the screw securely. onnect the clamp
end of the grounding wire to a true earth ground. A
ground wire and clamp, Part 238909, is available
from Graco.
• Motor: Motors have a ground screw in the electrical
box. Use it to ground the motor to the controller.
• Air Line and Fluid hoses: Use only grounded
hoses with a maximum of 500 ft (150 m) combined
hose length to ensure grounding continuity. heck
electrical resistance of hoses. If total resistance
to ground exceeds 29 megohms, replace hose
immediately.
• Fluid supply container: Follow local code.
• Solvent pails used when flushing: Follow local
code. Use only conductive metal pails, placed
on a grounded surface. Do not place the pail
on a nonconductive surface, such as paper or
cardboard, which interrupts grounding continuity.
• VFD: Ground the variable frequency drive through
aproperconnectiontoapowersource.Referto
the VFD manual for grounding instructions.
heck your system electrical continuity after the
initial installation, and then set up a regular schedule
for checking continuity to be sure proper grounding
is maintained. The resistance should not exceed 1
ohm.
3A4068E 13

Installation

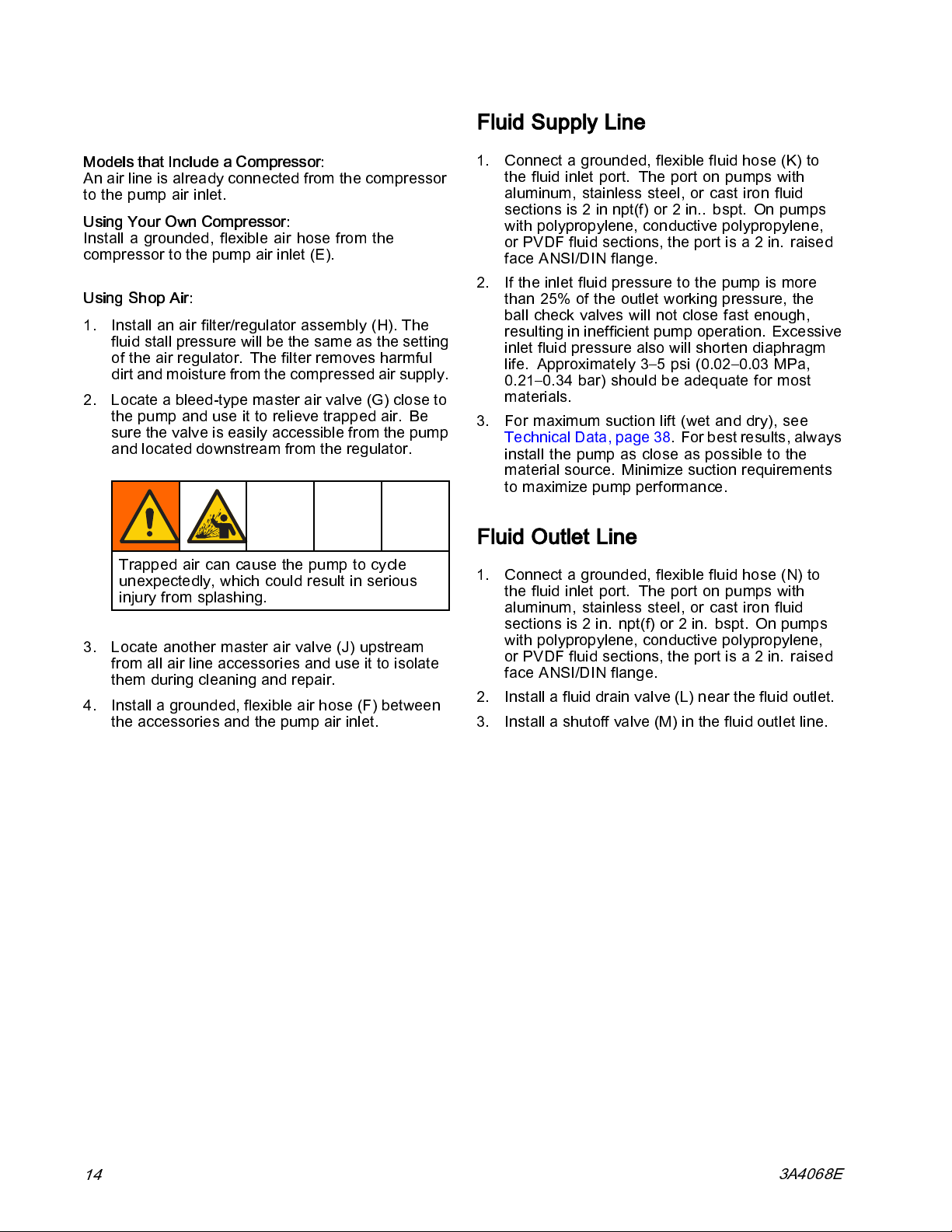

Air Line
Models that Include a Compressor:
An air line is already connected from the compressor
to the pump air inlet.
Using Your Own Compressor:
Install a grounded, flexible air hose from the
compressor to the pump air inlet (E).
Using Shop Air:
1. Install an air filter/regulator assembly (H). The
fluid stall pressure will be the same as the setting
of the air regulator. The filter removes harmful
dirt and moisture from the compressed air supply.
2. Locateableed-typemasterairvalve(G)closeto
the pump and use it to relieve trapped air. Be
sure the valve is easily accessible from the pump
and located downstream from the regulator.
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious
injury from splashing.
3. Locate another master air valve (J) upstream
from all air line accessories and use it to isolate
them during cleaning and repair.
4. Install a grounded, flexible air hose (F) between
the accessories and the pump air inlet.
F uid Supp y Line
1. onnect a grounded, flexible fluid hose (K) to
the fluid inlet port. The port on pumps with
aluminum, stainless steel, or cast iron fluid
sections is 2 in npt(f) or 2 in.. bspt. On pumps
with polypropylene, conductive polypropylene,
or PVDF fluid sections, the port is a 2 in. raised
face ANSI/DIN flange.
2. If the inlet fluid pressure to the pump is more
than 25% of the outlet working pressure, the
ball check valves will not close fast enough,
resulting in inefficient pump operation. Excessive
inlet fluid pressure also will shorten diaphragm
life. Approximately 3–5 psi (0.02–0.03 MPa,
0.21–0.34 bar) should be adequate for most
materials.
3. For maximum suction lift (wet and dry), see
Technical Data, page 38. For best results, always
install the pump as close as possible to the
material source. Minimize suction requirements
to maximize pump performance.
F uid Out et Line
1. onnect a grounded, flexible fluid hose (N) to
the fluid inlet port. The port on pumps with
aluminum, stainless steel, or cast iron fluid
sections is 2 in. npt(f) or 2 in. bspt. On pumps
with polypropylene, conductive polypropylene,
or PVDF fluid sections, the port is a 2 in. raised
face ANSI/DIN flange.
2. Install a fluid drain valve (L) near the fluid outlet.
3. Install a shutoff valve (M) in the fluid outlet line.
14 3A4068E

Installation
E ectrica Connections
Wire Connections at the Motor
(Motor Code A)
OTE: Follow the instructions in the motor
manufacturer’s manual. Use a motor starter with
overload protection. Wire size, fuse size, and other
electrical devices must comply with all local codes
and regulations.
The motor must be wired to the VFD. Install the
wiring at the motor as follows:
1. Remove 4 bolts to open the motor’s electrical
box.
2. Install a strain relief in one of the ports at the
bottom of the junction box.
3. onnect the green ground wire to the ground
screw.
4. For 230 V motors: Bridge as shown, then
connect L1 to T1, L2 to T2, and L3 to T3.
T4 T5 T6
L2 L3L1
T7 T8 T9
T1 T2 T3
Figure 3 Wire onnections for a 230 V Motor
5. For 460 V motors:
Bridge as shown, then
connect L1 to T1, L2 to T2, and L3 to T3.
T4 T5 T6
L2 L3L1
T7 T8 T9
T1 T2 T3
Figure 4 Wire onnections for a 460 V Motor
6. lose the motor electrical box. Torque the bolts
to 20 in-lb (2.2 N•m).
Wire Connections at the ATEX Motor
(Motor Code C)
Install the wiring at the motor as follows:
1. Open the motor’s electrical box.
2. Install wiring system with proper connections to
the motor electrical box.
3. onnect the green ground wire to the ground
screw.
4. For 400V Wiring: Bridge as shown, then connect
wireL1toU1,L2toV1,andL3toW1.
W2 U2 V2
L2 L3L1
U1 V1 W1
Figure 5 onnections for 400V Wiring
5. For 230V Wiring: onnect wire L1 to U1, L2 to
V1, and L3 to W1. Bridge as shown.
W2 U2 V2
L2 L3L1
U1 V1 W1
Figure 6 onnections for 230V Wiring
6. Torqueterminalsto20in-lb(2.3N•m).
7. lose the motor electrical box. Torque the
screws to 20 in-lb (2.3 N•m).
8. onnect thermostat wires P1 and P2 to external
overload detection. Thermostat is N (normally
closed).
3A4068E 15

Installation
Wire Connections at the Explosionproof
Motor (Motor Code D)
Install the wiring at the motor as follows:
1. Open the motor’s electrical box.
2. Install wiring system with proper connections to
the motor electrical box.
3. onnect the green ground wire to the ground
screw.
4. For 460V Wiring: onnect wire L1 to T1, L2 to
T2, and L3 to T3, and bridge the other wires, as
shown.
T1
T2
T3
L1
L2
L3
T4
T7
T5
T8
T6
T9
Figure 7 onnections for 460V Wiring
5. For 230V Wiring: Bridge the wires as shown.
Then, connect L1 to T1/T7, L2 to T2/T8, and L3
to T3/T9.
T1
T7
T2
L1
L2
L3
T8
T3
T9
T4
T5
T6
Figure 8 onnections for 230V Wiring
6. onnect thermostat wires P1 and P2 to external
overload detection. Thermostat is N (normally
closed).
7. lose the motor electrical box. Torque the
screwsto20in-lb(2.3N•m).
Wire Connections at the Variable Frequency
Drive (VFD)
OTE: Follow the instructions in the VFD
manufacturer’s manual.
Install the wiring at the VFD as follows:
1. onnect the wires to the motor. See
Electrical onnections, page 15.
2. Open the VFD’s electrical box.
3. Install strain reliefs in both ports at the bottom of
the VFD box.
4. onnect the green ground wire to the ground
screw.
5. onnect the wires from the motor terminals to the
matching terminals in the VFD box, as shown.
U/T1 V/T2 W/T3 PE
PE
PES
PES
PES
PES
PES
PE
Figure 9 Wire onnections from the Motor to the VFD
Main Power Connections at the VFD
All electrical wiring must be completed by a
qualified electrician and comply with all local codes
and regulations.
onnect the power supply wires to the VFD, as
follows:
1. onnect the wiring between the motor and VFD,
as detailed above.
2. onnect the green ground wire of the power
supply to the ground screw. The ground wire
from the motor is also connected to this screw.
3. onnect the power supply wires to the power
terminals in the VFD box, following all local codes
and regulations.
4. lose the VFD electrical box.
16 3A4068E

Installation
Leak Sensor Wiring
Follow these instructions to wire the Leak Sensor to
aVFD.
OTE : The leak sensor is designed to operate as
a normally-closed circuit.
1. Turn off power to the VFD.
2. Open the access cover on the VFD.
3. For a Graco VFD, perform the following:
a. Wireoneleadtoterminal4ontherail.
b. Wire a second lead to terminal 13A on the
rail.
c. lose the access cover.
d. Turn on power to the VFD.
e. Go to screen P121.
f. hange the value to 21 and press the Mode
button.
4. For a non-Graco VFD, perform the following:
a. Attach the two leads to the detection circuit
in the VFD.
OTE : Refer to the VFD manual for proper
connection points.
b. lose the access cover.
c. Turn on power to the VFD.
d. onfigure the VFD to monitor the leak sensor
circuit.
5. Refer to the VFD manual for information on how
to configure the VFD to generate a fault or stop
the pump when a leak is detected.
3A4068E 17

Installation
Compressor Wiring
To avoid injury from fire, explosion, or electric
shock, all electrical wiring must be done by a
qualified electrician and comply with all local codes
and regulations.
Follow these instructions to wire Graco ompressor
24Y544 (120V) or 24Y545 (240V).
OTE: Use only copper wire with an insulation rating
of 75° or higher.
1. Remove the cover from the compressor’s
electrical box.
2. Install wiring system with proper connections (i.e.
conduit/fittings, power cable/cable grip) to the
compressor electrical box.
3. onnect line power (120VA or 240 VA ,
depending on your compressor) to L1 and L2/N.
onnect supply ground to . Use minimum
12 AWG (4 mm
2
)wirewhenthesystemis
configured for a 16A circuit and 14 AWG (2.5
mm
2
) when configured for a 12A circuit. Torque
terminals to 10 in-lb (1.2 N•m).
4. Reinstall the cover of the electrical box. Torque
screwsto60in-lb(6.8N•m).
Figure 10
L1
L2
A
KEY
A To power supply
18 3A4068E

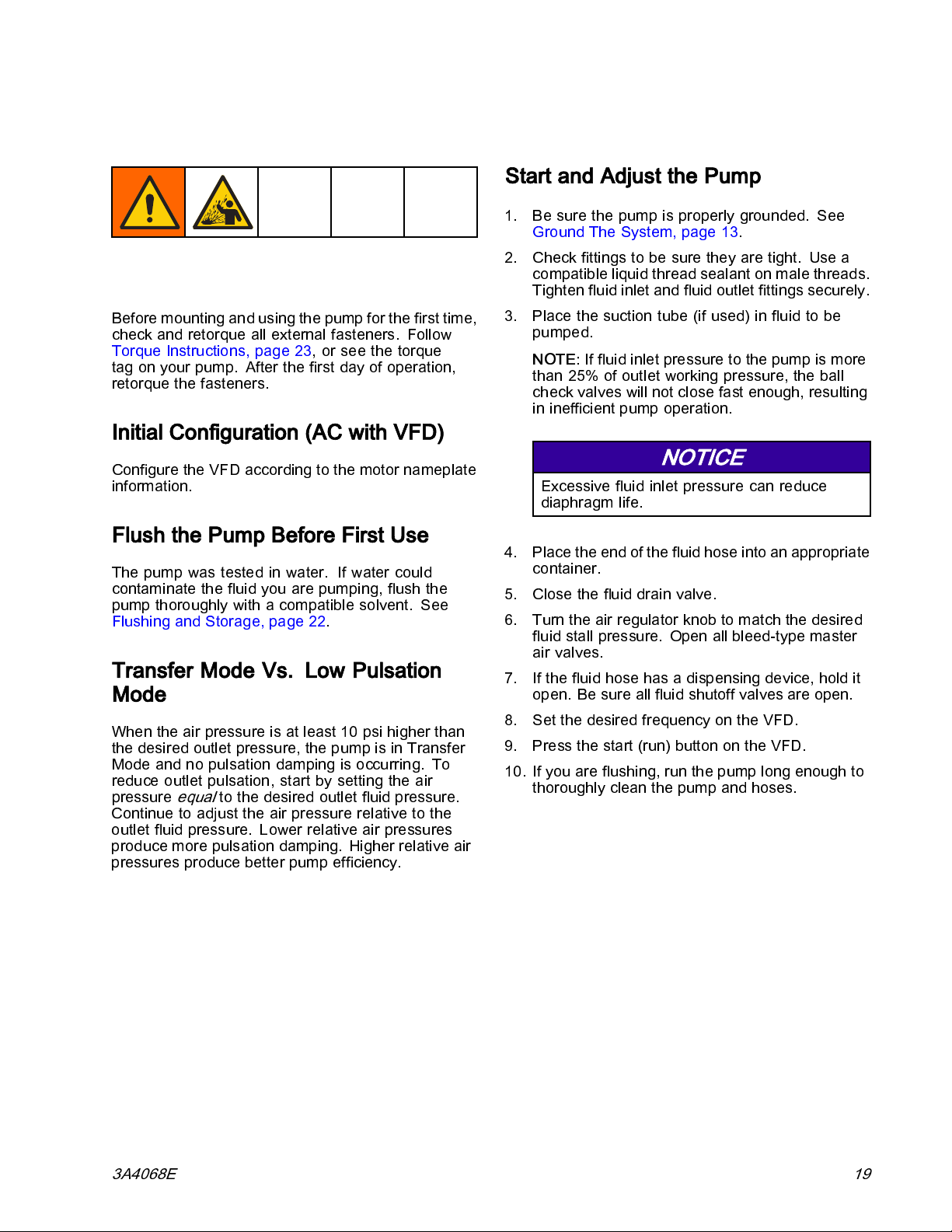

Operation
Operation
Tighten Fasteners
Before mounting and using the pump for the first time,
check and retorque all external fasteners. Follow
Torque Instructions, page 23, or see the torque
tag on your pump. After the first day of operation,
retorque the fasteners.
Initia Configuration (AC with VFD)
onfigure the VFD according to the motor nameplate
information.
F ush the Pump Before First Use
The pump was tested in water. If water could
contaminate the fluid you are pumping, flush the
pump thoroughly with a compatible solvent. See
Flushing and Storage, page 22.
Transfer Mode Vs. Low Pu sation
Mode
When the air pressure is at least 10 psi higher than
the desired outlet pressure, the pump is in Transfer
Mode and no pulsation damping is occurring. To
reduce outlet pulsation, start by setting the air
pressure equal to the desired outlet fluid pressure.
ontinue to adjust the air pressure relative to the
outlet fluid pressure. Lower relative air pressures
produce more pulsation damping. Higher relative air
pressures produce better pump efficiency.
Start and Adjust the Pump
1. Be sure the pump is properly grounded. See
Ground The System, page 13.
2. heck fittings to be sure they are tight. Use a
compatible liquid thread sealant on male threads.
Tighten fluid inlet and fluid outlet fittings securely.
3. Placethesuctiontube(ifused)influidtobe
pumped.
OTE: If fluid inlet pressure to the pump is more
than 25% of outlet working pressure, the ball
check valves will not close fast enough, resulting
in inefficient pump operation.
NOTICE
Excessivefluidinletpressurecanreduce
diaphragm life.
4. Place the end of the fluid hose into an appropriate
container.
5. losethefluiddrainvalve.
6. Turn the air regulator knob to match the desired
fluid stall pressure. Open all bleed-type master
air valves.
7. If the fluid hose has a dispensing device, hold it
open. Be sure all fluid shutoff valves are open.
8. Set the desired frequency on the VFD.
9. Press the start (run) button on the VFD.
10. If you are flushing, run the pump long enough to
thoroughly clean the pump and hoses.
3A4068E 19

Operation
Pressure Re ief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
This equipment stays pressurized until pressure
is relieved manually. To help prevent serious
injury from pressurized fluid, such as splashing
in the eyes or on skin, follow the Pressure Relief
Procedure when you stop pumping and before you
clean, check, or service the equipment.
1. Remove power from the system.
2. Open the dispensing valve, if used.
3. Open the fluid drain valve (L), if used, to relieve
fluid pressure. Have a container ready to catch
the drainage.
4. Shut off the air supply to the pump.
5. Back out center section regulator to relieve air
pressure in center section.
Pump Shutdown
At the end of the work shift and before you check,
adjust,clean,orrepairthesystem,followthe
Pressure Relief Procedure, page 20.
0 3A4068E
