INSTRUCTIONS-PARTS LIST
1 @ ,Thismanualcontains irnpo&T
warnings andInformation.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
3:l Ratio President@
Model 237-526
For LubricatingProducts
540 psi (37 bar) Maximum Working Pressure
180 psi (12 bar) Maximum Air input Pressure
A CAUTION I
This pump is designedto pump lubricating fluids
only.
Table of Contents
Warnings ................... .. .. .... ... .. ... ... 2
Operation ....... . . .... . . . . ..:. . . . ..... . . ...... 8
Installation .......... .. . . .. . . . ......... . ....... 5

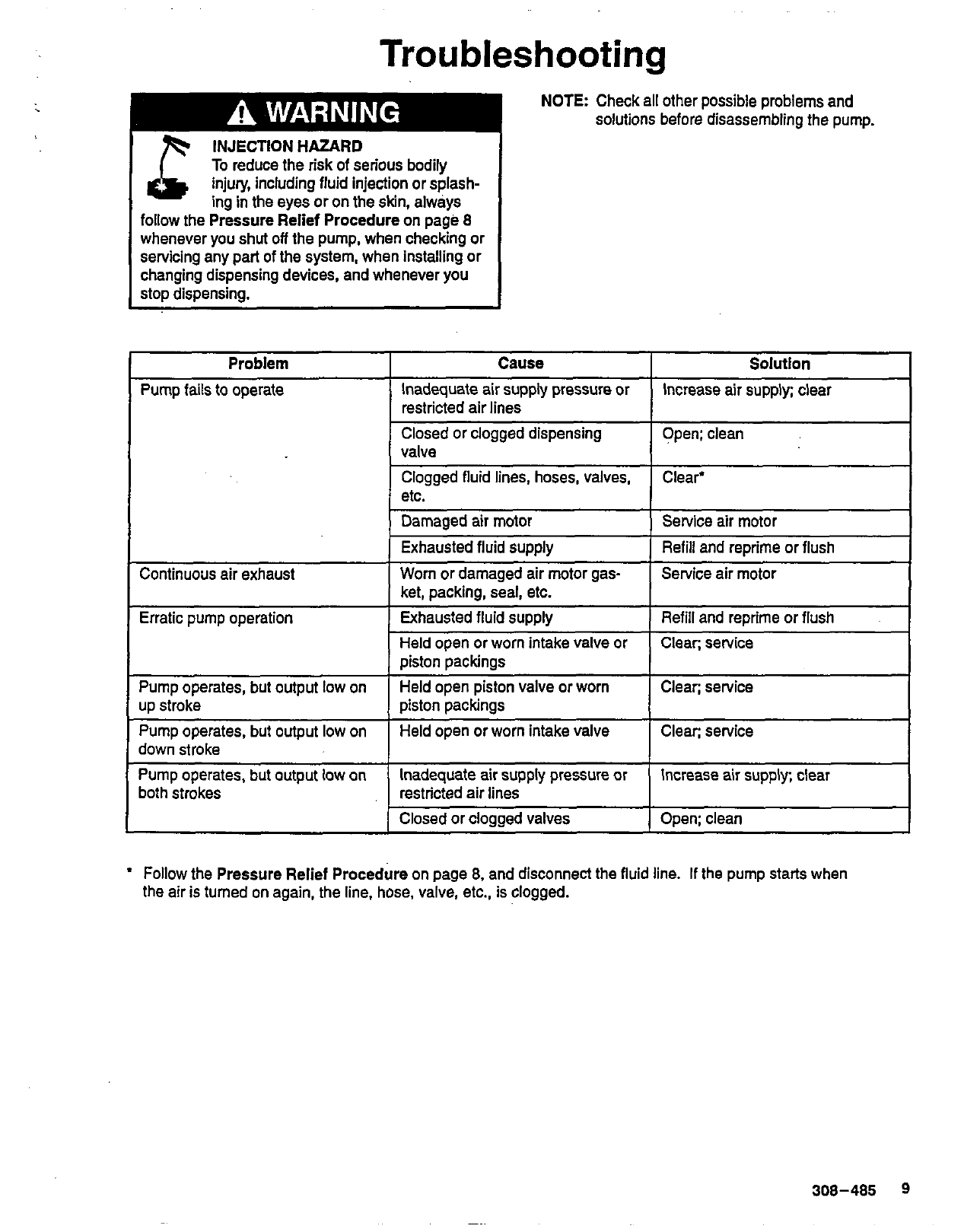

Troubleshooting Guide . . . ..... . .. . . . ... ...... ... 9

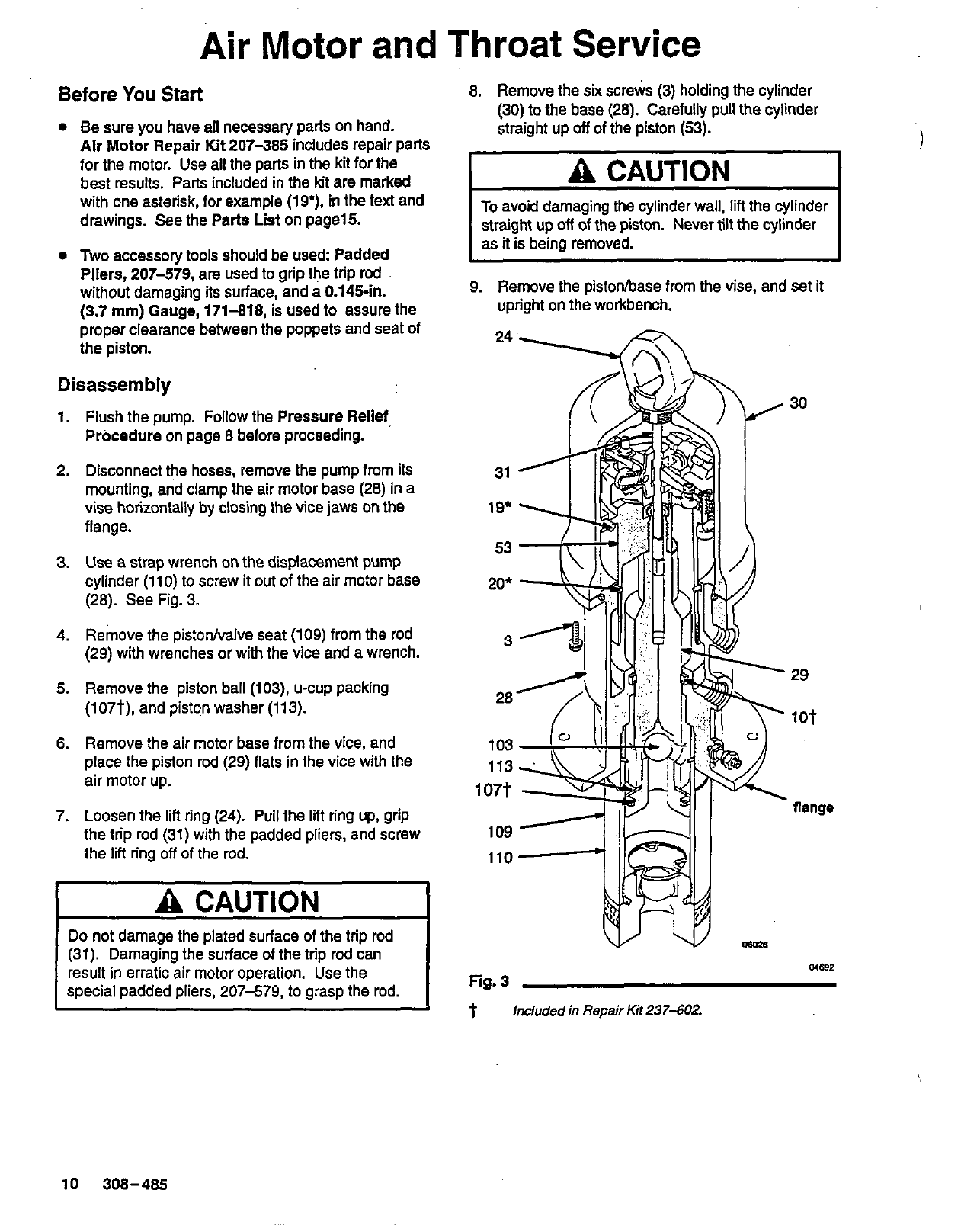

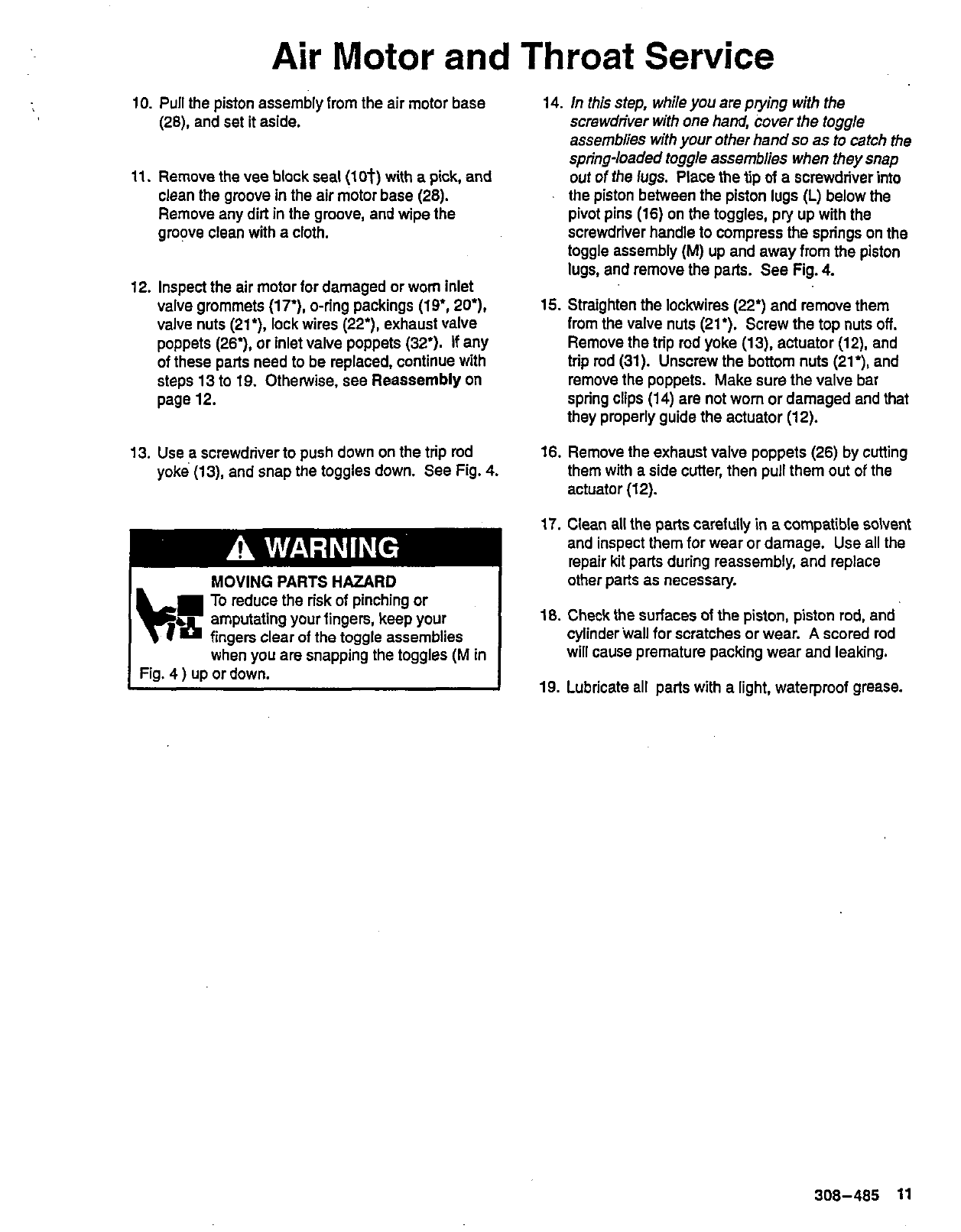

Air Motor and Throat Service . .. .... .. .. .. ..
. . . . 10
Air Motor Parts Drawing ..... .. , ...... . . . ...
...
. 14
Displacement Pump Service . . . .. . .. ........
....
13
Air Motor Parts List . . . .. . , . .. .. ..... . . . . ,, .
. .. . 15

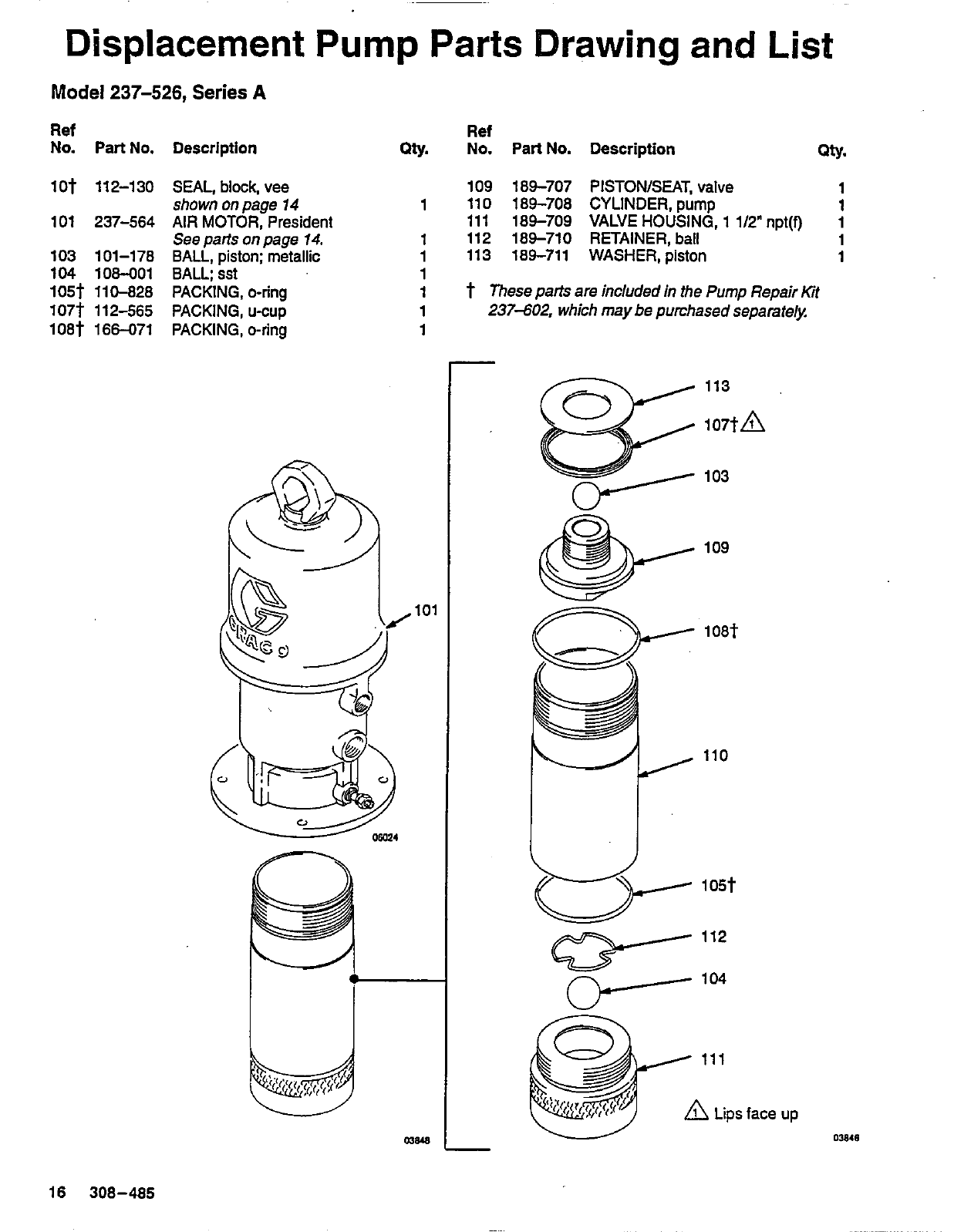

Displacement Pump Parts Drawing and List ..
. ... 16

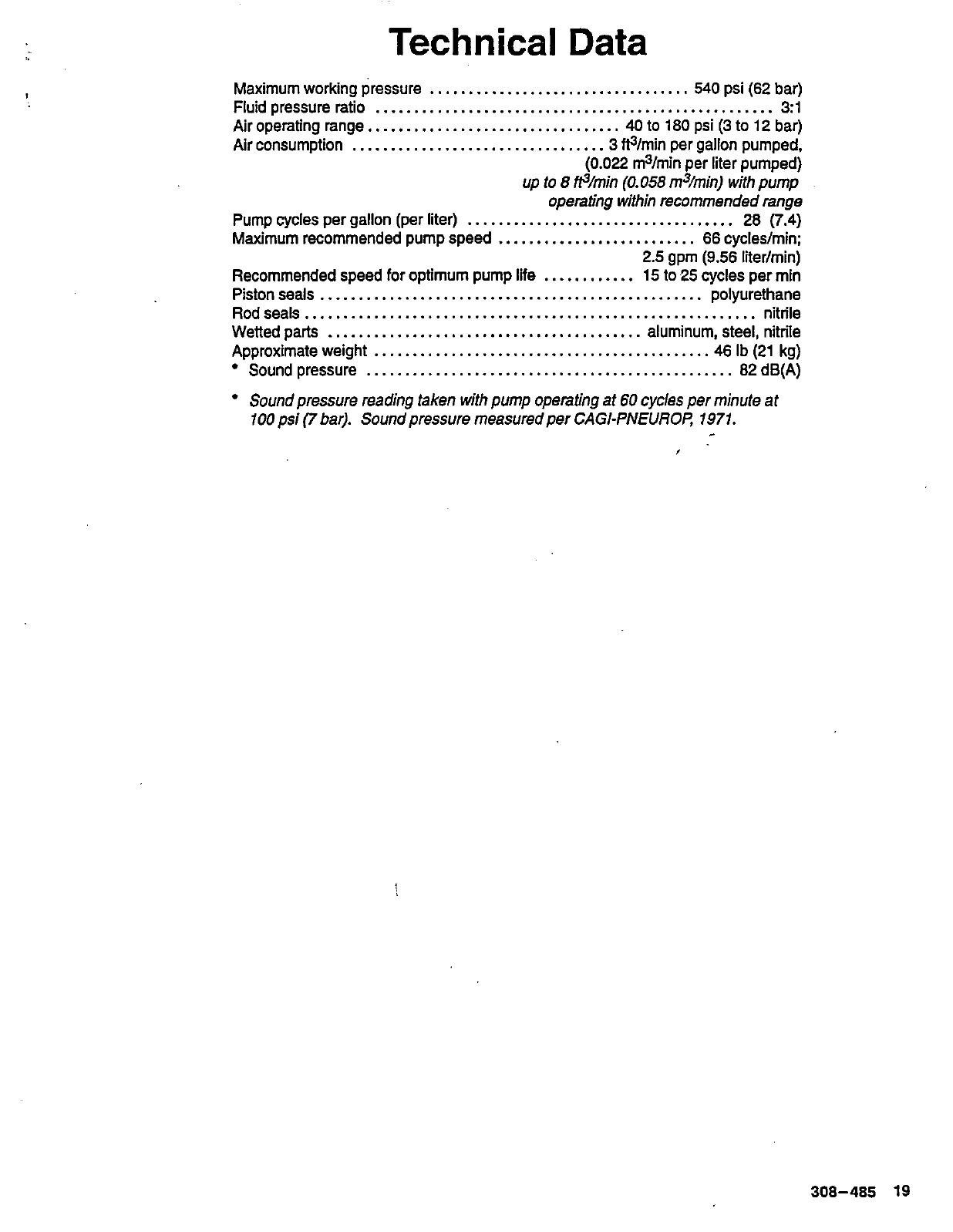

Technical Data ........ . ... . ..... .. ..... .. .
:. ..
19

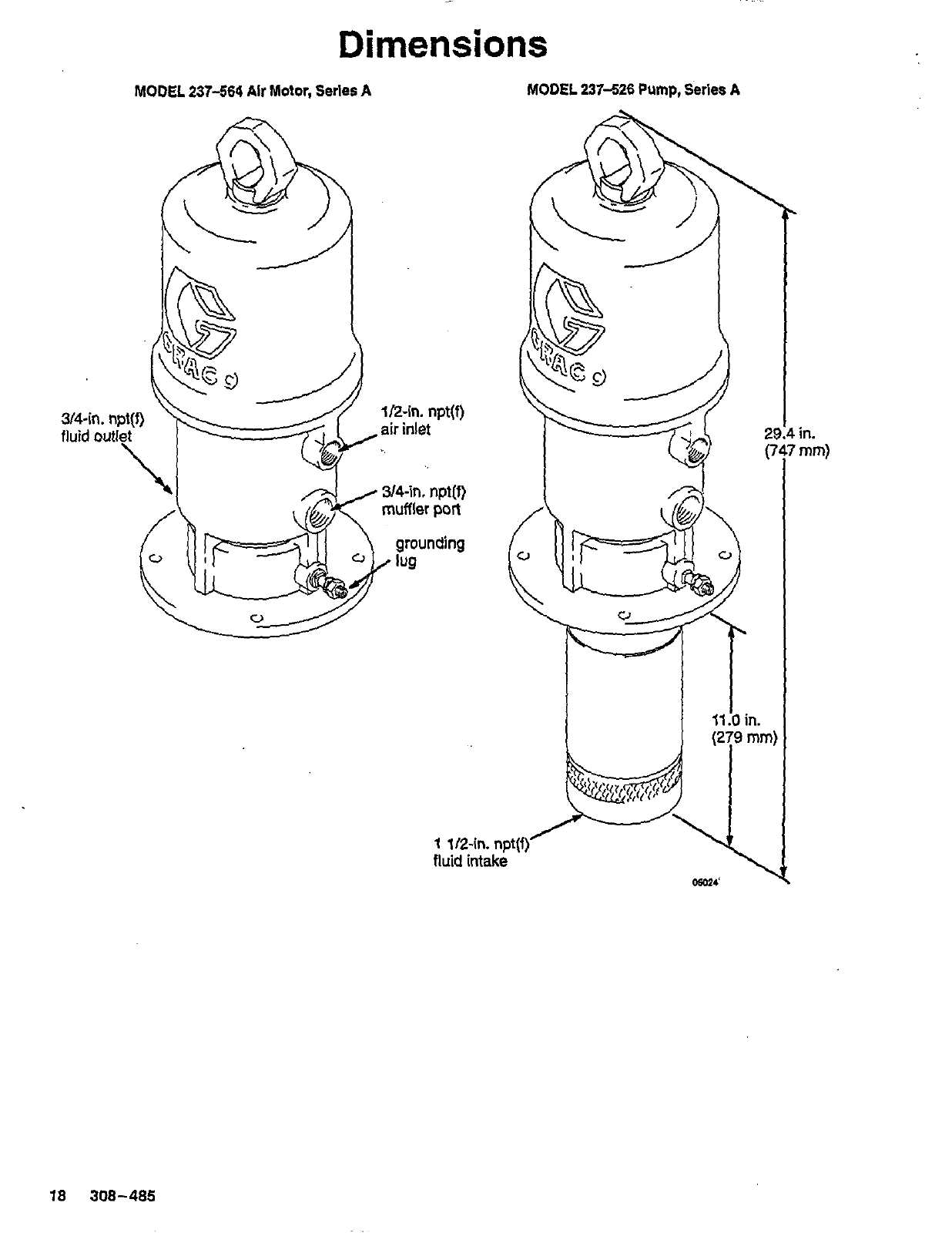

Dimensions.. . . . . .. . ...... . . ....... . .. . . . .
...
. 18

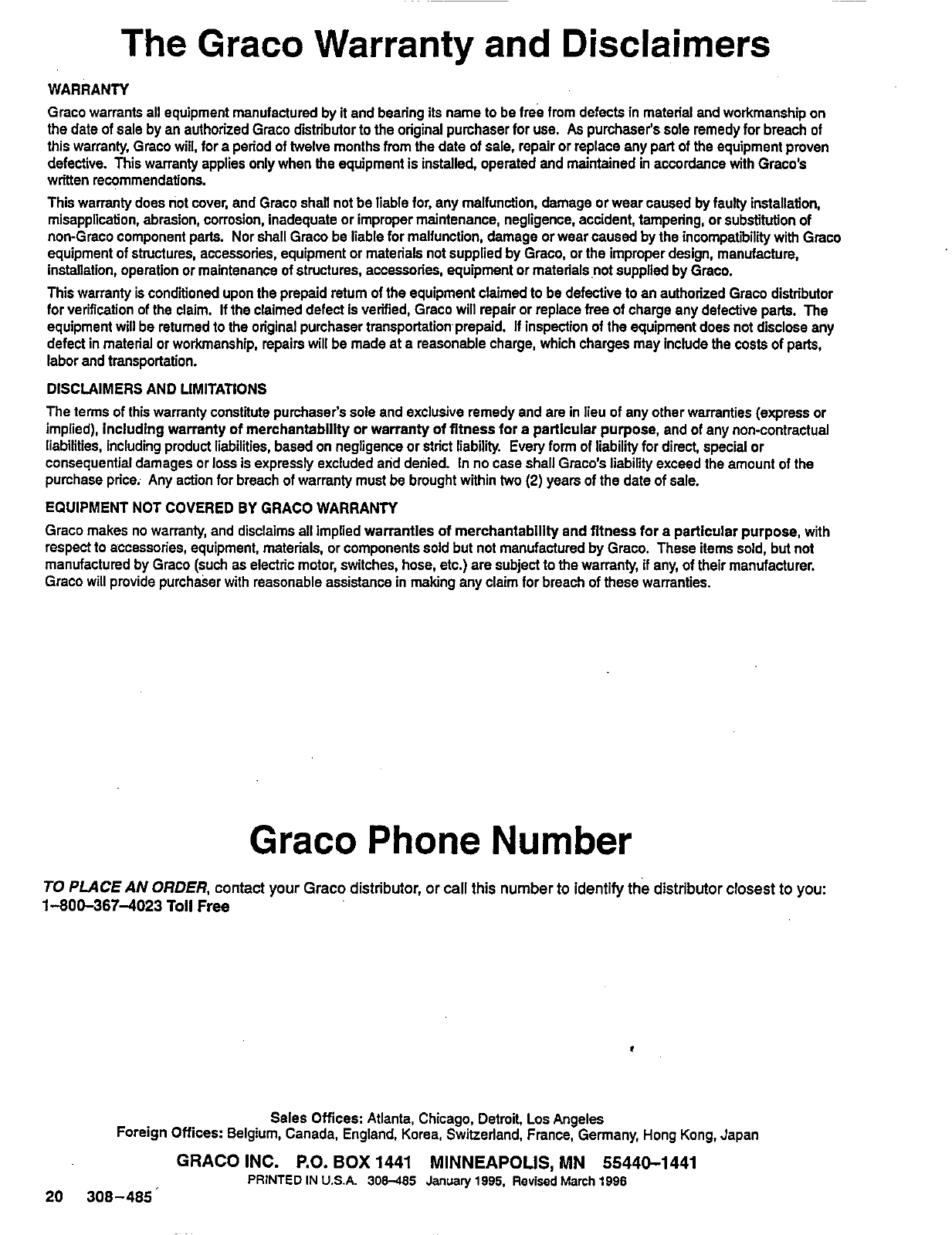

Warranty .. . .. . . .. . . . . .. ....... ... .. .. .. ..
.
.. . 20
Graco PhoneNumber.. . . .. ...... .. .. .. .... .. .. 20
e 308-485
~~
Rev.C
GRAco Supersedes Rev. B
Pump
1 1
GRACOINC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
@COPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN IS0 9001

Sym bok
Warning Symbol Caution Symbol
This symbol alerts youtothe possibility of serious This symbol alerts you to
the possibility of damage to
injury or death
if you do not follow the instructions. or destructionof equipment if you do not follow the
instructions.
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and resultinserious injury.
0 This equipment is for professional use only.
0 read allinstructionmanuals,tags,andlabelsbeforeoperatingtheequipment. i
0 Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
Do not alter or modify this equipment.
0 Check equipment daily. Repair or replace wom or damaged parts immediately.
0 Do not exceed the maximum working pressure stated on the equipment orin theTechnicalData
section of the instruction manual for your equipment.
Do not exceed the maximum working
pressure of the lowest rated componentinyour system.
0 Use fluids and solvents that are compatible with the equipment welted parts. Refer to the
Technical
Data section ofall equipment manuals. Read the fluid and solvent manufacturer's
warnings.
0 Do not use l,l,l-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents,
chemical reaction, with the possibility of explosion.
or fluids containing such solvents
in pressurized aluminum equipment. Such use could resultina
Handle hoses'carefully. Do not pull on hosesto move equipment.
Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not
expose Graco hoses to temperatures above
82' C (180' F) or below -40° C (40' F).
Do not lift pressurizedequipment.
Comply withall applicable local, state, and national fire, electrical, and safety regulations.

INJECTION HAZARD
Fluid from the dispensing valve, leaks, or ruptured components can inject fluid into your body and
cause extremely serious Injury, including the need for amputation. Fluid splashed in the eyesoron
the skin can also cause serious injury.
0 Fluid injected into the skin may look like just a cut, butit isa serious injury. Getimmediate
medicalattention.
0 Do not pointthedispensing valve at anyone or at any partof the body.
0 Do not put your hand or fingers over the end of the dispensing valve.
0 Do not stop or deflect leaks with your hand, body, glove, or rag.
0 Use only extensions and no-drip tips that are designed for use with your dispensing valve.
0 Do not use a low-pressure flexible nozzle with this equipment.
Follow the Pressure ReliefProcedure on page 8 if the dispensing valve clogs and before
cleaning, checking, or servicing the equipment.
..
Tighten all fluid connections before operating the equipment.
D Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. Do
not repair high pressure couplings: you must replace the entire hose.
D Fluidhoses must have spring guards on both ends to help protect them from rupture causedby
kinks or bends near the couplings.
4AZARDOUS FLUIDS
ieath from splashinginthe eyes, ingestion,orbodily contamination.
mproper handling of hazardous fluids
or inhaling toxic fumes can cause extremely serious injury or
1 Know the specific hazards of thefluid youare using.
1 Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state, and national guidelines.
1 Always wear protective eyewear. gloves, clothing, and respirator as recommended by the fluid
and solvent manufacturer.
308-485 3

FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation,open flames, or sparks can cause a hazardous condition and
result
in a fire or explosion and serious injury.
Ground the equipment and the object being lubricated. Refer toGroundingon page 7.
0 If there is any static sparkingor you feel an electric shock while using this equipment,stop
dispensingImmediately.
Do not use the equipment until you identify and correct the problem.
0 Provide fresh air ventilation to avoid the buildupof flammable fumes from solventsor the fluid
being dispensed.
0 Keep the dispensing area free of debris, including solvent, rags, and gasoline.
0 Before operating this equipment, electrically disconnect all equipment in the dispensing area.
0 Before operating this equipment, extinguishall open flames or pilot lights in the dispensing area.
Do not smoke in the dispensing area.
0 Do not turn on or off any light switch in the dispensing area while dispensingor while there are
any fumesin theair.
0 Do not operate a gasoline engine in the dispensing area.
MOVING PARTS HAZARD
Moving parts, such as !he airmoior piston, can pinchor amputate your fingers.
Keep clear ofall moving parts when starting or operating the pump.
0 Before servicing the equipment, follow thePressureRelief Procedureon page 8 to prevent the
equipment from starting unexpectedly.
..
Manual Change Summary
This manual was changed from Rev. B to Rev. C to reflect the following changes to the pump:
0 The grounding lug (7) has been moved from just below theair motor cylinder dome to just above the flange on
the air motor base.
0 The cylinder cap nut (24) has been replaced witha lift ring.
4 308-485

Installation
The typical installation shown in Fig. 1 is only a guide for selecting and installing a pump; it is not an actual system
design. Contact your Graco representative
for assistance in designing a system to suit your needs.
For portable applications
KEY
A Bleed-typemasterairvalve(required)
B Airline filter
C Air regulatorandgauge
D Pumprunawayvalve(shownfor
position) notneededifyou use
a low-levelcut-ofl valve
E Air Inlet
H Fluiddrainvalve(required)
0 Pump(Model237-526shown)
J Dispensingvalve(Model 222411 shown)
L Male quickdlsconnectfifing
K Thermal reliefkit(required) 237-601
M Female quickdisconnectcoupler
N Alr line lubricator
S FluldInlet, 1 1/2" npt
P Fluidhose
Y Ground wlre (required)
R Electricallyconductive air hose (218493shown]
Fig. 1
308-485 5

Installation

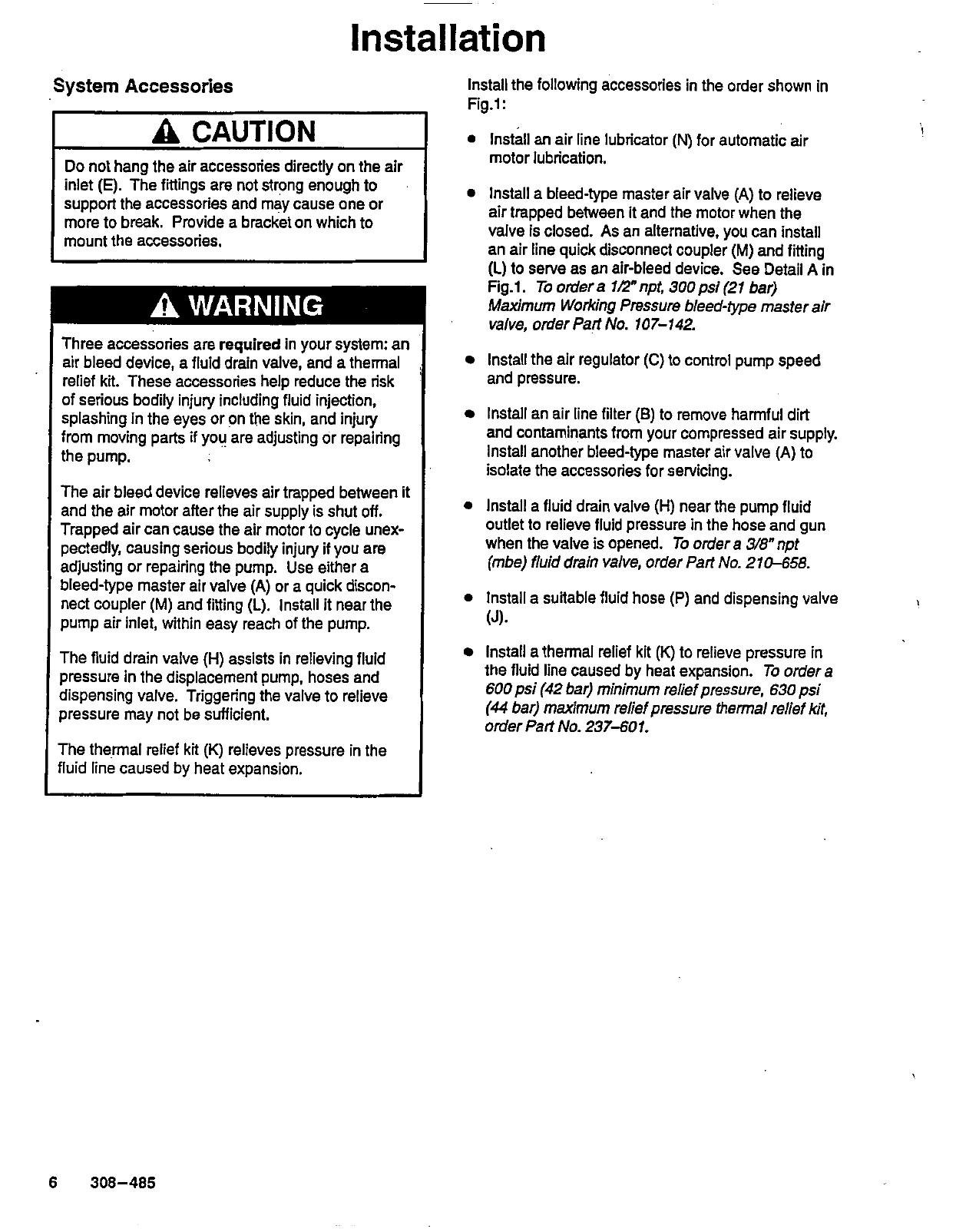

System Accessories
A CAUTION I
inlet (E). The fittings are not strong enough to
Do not hang the air accessories directly on the air
support the accessories and may cause one or
mount the accessories.
more
to break. Provide a bracket on which to
Three accessories arerequiredin your system: an
air bleed device, a fluid drain valve, and a thermal
relief kit. These accessories help reduce the risk
of serious bodily injury including fluid injection,
splashinginthe eyesor on the skin, andinjuly
from moving parts
if you are adjusting or repairing
the pump.
The air bleed device relieves air trapped betweenit
and the air motor after the air supply is shut
off.
Trapped air can cause the air motor to cycle unex-
pectedly, causing serious bodily injuryifyou are
adjusting or repairing the pump. Use either a
bleed-type master air valve
(A) or a quick discon-
nect coupler
(M) and fitting (L). Installitnear the
pump air inlet, within easy reach
of the pump.
The fluid drain valve
(H) assists in relieving fluid
pressure
in the displacement pump, hoses and
dispensing valve. Triggering the valve
to relieve
pressure may not be sufficient.
The thermal relief kit
(K) relieves pressure in the
fluid
line caused by heat expansion.
Install the following accessories in the order shown in
Fig.1:
0 Install an air line lubricator (N) for automatic air
motor lubrication.
0 Install a bleed-type master air valve (A) to relieve
air trapped betweenitand the motor when the
valve isclosed.
As an alternative, you can install
an air line quick disconnect coupler
(M) and fitting
(L) to serve as an air-bleed device. See Detail A in
Fig.1.
To order a 1P npt, 300 psi (21 bar)
Maximum Working Pressure bleed-type masterair
valve, order Parf
No. 107-142.
Install the air regulator (C) to control pump speed
and pressure.
Install an air line filter (E) to remove harmfuldirt
and contaminants from your compressedair supply.
Install another bleed-type master air valve
(A) to
isolate the accessories for servicing.
0 Install a fluid drain valve (H) near the pump fluid
outlet
to relieve fluid pressure in the hose and gun
when the valveisopened.
To orderaW8"npt
(mbe)
fluid drain valve, order Part No. 210-658.
0 Install a suitable fluid hose(P) and dispensing valve
(J).
Install a thermal relief kit (K) to relieve pressure in
the fluid line caused by heat expansion.
To order a
600 psi (42 bar) minimumreliefpressure, 630 psi
(44 bar) maximum relief pressure thermal relief kit,
orderPart
No. 237-601.
6 308-485

Installation
Grounding
safe system.
Proper grounding Is an essential part of maintaining a
To reduce the risk of static sparking, ground the pump.
Check your local electrical code for detailed grounding
sure
to groundallof the following equipment:
instructions for your area and
type of equipment. Be
Pump: Use a ground wire and clamp as shown to
the right.
0 Airand Nuid hoses: Use only electrically
conductive hoses.
0 Air compressor:Followmanufacturer’s
recommendations.
0 Nuid supp/y container: According to local code.
To maintain grounding continuiiy when flushing or
valve firmiy to the side ofa grounded metal pail.
relieving pressure, always hold a metal part
of the
then trigger the valve.
To ground the pump, loosen the grounding lug
gauge
(1.5 mm2) minimum ground wire (Y) into the slot
locknut (W) and washer (X).~ Insert one endof a 12
inthe grounding lug (2) and tighten the locknut
securely. Connect the other end of the wire to a true
earth ground.
To order a ground wireandclamp, order
Part
No. 222411.
Fig. 2
06W4

Operation
Pressure Relief Procedure
INJECTION HAZARD
To reduce the risk of serious bodily
injury, including fluid injection or splash-
follow this procedure whenever you shut
off the
ing in the eyes or on the skin, always
pump, when checking or servicing any part of the
system, when installing or changing dispensing
devices, and whenever you stop dispensing.
1. Close the pump air regulator and the bleed-type
master air valve (required in your system).
2. Hold a metal partof the dispensing valve firmly to
valve to relieve the fluid pressure, or open the
a grounded metal waste container and trigger the
drain valve
(H).
Startup and Adjustment
,
COMPONENT RUPTURE HAZARD
The maximum working pressure of each
component in the system may not be the
same. To reduce the risk of overpres-
surizing any component
in the system, be sure you
component. Never exceed the maximum working
know the maximum working pressure of each
system. Overpressurizing any component can
pressure of the lowest rated componentinthe
and serious injury.
result inrupture, fire, explosion, property damage,
To determine the fluid output pressure using theair
regulator reading, multiply the ratio ofthepump by
the
air pressure shown on the regulator gauge. For
example:
3 (A) ratio x 180 psi air =
540 psi fluid output
[3 (3) ratio x 7 bar air = 21 bar fluid output]
Limit the air
to the pump so that no air line or fluid
line component or accessory is overpressurized.
1. With the air regulator (C) closed, open the
bleed-type master air valves(A), or,
if so
equipped, join the quick disconnect coupler (M) to
the male fitting (L).
2. Open the dispensing valve (J) into a grounded
contact between the container and valve.
metal waste container, making firm metal-to-metal
3. Open the pump air regulator (C) slowly, just until
the pump is running. When the pump is primed
and
all air has been pushed out of the lines, close
the dispensing valve.
NOTE: When the pump is primed, and with sufficient
air supplied, the pump starts when the
dispensing valveisopened and shuts
off when
it isclosed.
4. Adjust the air regulator until you get sufficient flow
at the lowest speed necessary to get the desired
from the dispensing valve. Always run the pump
pressure of any componentinthe system.
results.
Do not exceed the maximum working
NOTES:
Never allow the pump to run dryof the fluid being
pumped.
A dry pump will quickly accelerate to a
high speed, possibly damaging itself. If your pump
accelerates quickly, or is running
too fast, stop it
immediately and check the fluid supply. If the
supply containeris empty and air has been pumped
into the lines, prime the pump and lines with fluid,
or flushitand leaveitfilled with a compatible
solvent.
Be sure to eliminateallair from the fluid
lines.
Read and follow the instructions supplied with each
component in your system.
If the pump will be unattended for any period of
time, or to shut off the system at the end of the
work shift, always follow thePressureRelief
Procedureat
left.

Troubleshooting
.
INJECTION HAZARD
To reduce the risk of serious bodily
injuiy, including fluid injection or splash-
ing
in the eyes oronthe skin, always
follow thePressureRelief Procedureon page
8
whenever you shut off the pump, when checkingor
servicing any part
of the system, when installing or
changing dispensing devices, and whenever you
stop dispensing.
Problem Solution Cause
Pumpfails
to operate I Inadequateairsupplypressureor I Increaseairsupply;clear
Continuous air exhaust
restricted air lines
valve
Closed or clogged dispensing
Clear'
Clogged fluid lines, hoses, valves,
Open; clean
etc.
Damaged air motor Service air motor
Exhausted fluid supply Refill and reprirne or flush
Wom or damaged air motor gas- Service air motor
ket, packing, seal, etc.
-
I
Erratic pump operation Exhaustedfluidsupply
1 Refillandreprimeorflush
HeldoDenorworn intake valveor
1 Clear:sewice
I pistonbackings
PumooDerates.butoutoutlowon
I HeldoDenDistonvalveorworn I Clear:service
up siroie
down stroke Held open or worn intake valve
Pump operates, but output low on pistonpacings
restricted air lines both strokes Increase air supply; clear Inadequate air supply pressure or Pump operates, but output low on
Clear; sewice
Closed or clogged valves Open; clean
* Follow thePressureRelief Procedureon page 8. and disconnect the fluid line. If the pump starts when
the air is tumed on again, the line, hose, valve, etc., is clogged.
308-485 9

Air Motor and Throat Service
Before You Start
0 Be sure you have all necessary parts on hand.
Air MotorRepair Kit 207485includes repair parts
for themotor. Use allthe parts
in the kitforthe
with one asterisk, for example(19.).
in the text and
best results. Parts included in the kit are marked
drawings. See the PartsListon pagel5.
Two accessory tools should beusedPadded
without damagingitssurface, anda 0.145-in.
Pliers, 207-579, are used to grip the trip rod
(3.7
mm) Gauge, 171-818, is usedto assure the
thepiston.
proper clearance between the poppets and seat of
Disassembly
1. Flushthepump.Followthe PressureRelief
Procedureon page
8 before proceeding.
2. Disconnect the hoses, remove the pump from
its
mounting, and clamp the air motor base (28) in a
vise horizontally
by closingthevice jaws on the
flange.
3. Use a strap wrench on the displacement pump
cylinder (110) to screwitout of the air motor base
(28).SeeFig.3.
4. Remove the pistonhalve seat (109) from the rod
(29) with wrenches
or with the vice and awrench.
5. Removethepistonball(103),u-cuppacking
(107t),and piston washer (113).
6. Remove the air motor base from the vice, and
place the piston rod (29) flats in the vice with the
air motor up.
7. Loosen the
lift ring (24). Pull the lift ringup, grip
the trip rod(31) with the padded pliers, and screw
the
lift ring off of the rod.
A CAUTION I
Do not damage the plated surface of the trip rod
(31). Damaging the surfaceof the trip rod can
result
in erratic air motor operation. Use the
special padded pliers, 207-579, to grasp the rod.
8. Remove the six screws (3) holding the cylinder
(30) to
the base (28). Carefullypullthe cylinder
straight up
off of the piston (53).
I A CAUTION I
To avoid damaging the cylinder wall, lift the cylinder
straight up
off of the piston. Never tilt thecylinder
as it isbeing removed.
9. Remove the pistonbase from the vise, and setit
upright on the workbench.
31
19*
53
20*
3
28
103
113
107t
109
110
30
29
lot
flange
W692
Fig. 3
t Included inRepair Kit 237-602.
10 308-485

Air Motor andThroat Service
10. Pull the piston assembly from the air motor base
(28), and setitaside.
11. Remove the vee block seal (lot) with a pick, and
clean the groove in the air motor base (28).
Remove any dirtinthe groove, and wipethe
groove clean with a cloth.
12. Inspect the air motor for damaged or wom inlet
valve grommets
(173, O-ring packings (19*, 207,
valve nuts (217, lock wires (227, exhaust valve
poppets
(26'), or inlet valve poppets (32'). If any
of these parts need
to bereplaced, continue with
steps
13 to 19. Otherwise, see Reassembly on
page
12.
13.
Use a screwdriver to push down on the trip rod
yoke
(13), and snap the toggles down. See Fig. 4.
MOVING PARTS HAZARD I
To reduce the risk of pinchingor
amDUtatinPYourfinaers.keeDYour
I
I
\ fingers cl&; of theioggieassemblies
Fig.
4) upor down. I
when you are snapping the toggles (M in
14. In this step, while you are prying with the
screwdriver with one hand,cover the toggle
spring-loaded toggle assemblies when they snap
assemblies withyourotherhand
so asto catch the
out of the lugs. Place the lip of a screwdriver into
the piston between the piston lugs
(L) below the
pivot pins
(16) on the toggles, pry up with the
toggle assembly
(M) up and away from the piston
screwdriver handle to compress the springs on the
lugs, and remove the parts. See Fig.
4.
15. Straighten the lockwires (22') andremove them
from the valve nuts
(21.). Screw the top nuts off.
Remove the triprod yoke (13), actuator (12), and
trip rod
(31). Unscrew the bottom nuts (Zl'), and
remove the poppets. Make surethe valve bar
they properly guide
the actuator
(12).
spring clips (14) are not worn or damaged and that
16. Remove the exhaust valve poppets (26) by cutting
them with a side cutter, thenpullthem out
of the
actuator
(12).
17. Clean all the parts carefully in a compatible solvent
and inspect them for wear or damage. Use all the
repair kit parts during reassembly, and replace
other parts as necessary.
18. Check the surfaces ofthepiston, piston rod, and
will cause premature packing wear and leaking.
cylinder'wall for scratches orwear.
A scored rod
19. Lubricate all parts with a light, waterproofgrease.

Air Motor and Throat Service
14 26* 21*
Fig. 4
Cutaway View
Reassembly
1. Place the piston rod (29) flats in the vice with the
air motorup.
2. Pull theexhaust valve poppets (26') into the valve
actuator
(12). and clip off the top partsof the
poppets (shown with dotted lines inthe Cutaway
View inFig.
4).
3. Install thegrommets (17') in the actuator (12).
place the inlet valve poppets (32') in the piston,
and thread the bottom valve nuts
(21') onto the
inlet valve poppets until there are a few threads left
before'thethreads run out.
NOTE: If you thread the valve nutstoo fardown
onto the poppets, theywill run off of the
threaded part of the poppets.
4. Grease heavily and place the trip rod (31) in the
piston, place the actuator
(12) in the yoke (13),
and place the well-greased actuator/yoke
assembly in the piston, with the trip rod going
through the center holes of the actuator and yoke
and the inlet valve poppets
(32') going through the
grommets
(17').
5. Thread the top valve nuts (21') onto the inlet valve
poppets
(32') untilone thread of the inlet valve
poppets
is exposed above the valve nuts.
6. Install the toggle pins (15) inthe yoke (13), place
the toggle arm
(23) ends of thetoggleassembly
(16) ends of the toggle assembly into the lugs (L).
(M) onto the toggle pins, and snapthe pivot pin
12 308-485
7. Measuring with the gauge (Part No.171-818).
create 0.145 in. (3.7 rnm) of clearance between
the inlet valve poppets
(32') and the piston seat
whenthe inlet valve isopen. See the Cutaway
View Fig.
4.
NOTE Adjust the distance between the inlet valve
poppets and the piston seat by turning the
top valve nuts
(21').
8.
Tighten the bottom valve nuts (21') securely by
hand.
9. Align the holesinthe valve nuts (21') and the slots
drop the lock wires
(22') through the holesinthe
on the tops
of the inlet valve poppets (32'), and
valve nuts and into the slotsinthe inlet valve
poppets. Pull the lock wires down tightly, and
pulled back outof the holes.
bend the ends with pliers
so that they cannot be
10. Grease and install the newO-rings (19' and 20')
onthe piston assembly (27) and in the groovein
the air motor base
(28).
11. Grease and reinstall the vee block seal (lot) in
the groove in the air motor base
(28).

Air Motor and Throat Service
12. Slide the piston rod (29) down through the
packing, and lower thepiston
(27) into the air
motor base
(28).
13. Clamp theair motor base (28) in a vise horizontally
by closing the vice jaws on the flange.
14. Install the u-cup packing (107t) with the lipsup,
and place the piston washer
(113) on the
pistodvalve seat
(109).
NOTE: Make sure the lips of the u-cup packing
(107t) face up. See Fig. 3.
15. Place the piston ball (103) in the piston rod (29).
17. Clamp the flats of the pistodvalve seat (109) in a
vice, and, using a crow's-foot wrench, torque the
piston rod
(29) to the piston valve seat to 40 to 60
ft-lb.
18. Clamp the air motor base (28) ina vise horizontally
by closing the vice jaws on the flange
19. Use a strap wrench to screw the displacement
pump cylinder
(110) to the air motor base (28), and
toquewith a crow's-foot wrench
to 95 to 105 ft-lb.
20. Before remounting the pump, connect an air hose
and run the air motor slowly (at about
40 psi
[3 bar]) to see that it operates smoothly.
16. ApplyLoctitem to thethreads of the pistodvalve 21. Reconnectthegroundwirebeforeregular
seat
(109). andthreadtheassemblyfromStep 14 operation of the pump.
onto thepiston rod
(29).
Displacement Pump Service
Disassembly 1. FollowthePressureRelief Procedureon
NOTE: DisplacementPumpRepair Kit 237-602
page 8.
includesrepairpartsforthepumpthroatand 2. Followsteps 1 through 6 of Disassemblyonpage
1.
2.
piston. Use allthe parts in the kit for the best
results. Parts included
in the kit are marked
with a dagger,for example
(i't), in the text and
drawings. See the
Parts List onpage 16.
Flush the pump. Follow the Pressure Relief
Procedureonpage
8, before proceeding.
mounting, and clamp the air motor base
(28) in a
Disconnect thehoses, remove the pumpfrom its
vise horizontally by closing the vice jaws on the
flange.
IntakeValve See Fig 5.
1. Follow the PressureRelief Procedureon
page
8.
2.
Unscrewthevatvehousing (111). Removethe
O-ring
(105t), retainer (112), and ball (104).
3. Inspect the parts for wearor damage. If the ball is
nicked, replace it. Reassemble, using grease on
the male threads.
Displacement Pump See Fig 5.
NOTE Clean and inspect all parts for wear or damage
as you disassemble them. Replace parts as
needed. For best results, always replaceall
the O-rings and packings when you
disassemble the pump.
10.
3. Carefully inspect the smooth,inner surface of the
cylinder
(110) for scoring or irregular surfaces.
Such damage causes premature seal wear and
leaking. Replace the cylinder as needed.
Reassembly
Do steps 14 through 21 inAir Motor andThroat
Service
on this page.
Fig.
5
t lncluded in Repair Kif 237-602.
308-485 13

-
Air Motor Parts Drawing
Model 237-564, Series A
108t
11oA
105t
112
104
j
111
14308-485

Air Motor Parts List
Model 237-564, Series A
Ref.
No. Part No.
3101-5784 102-620
5102-656
7 104-029
6 102-975
8 104-582
11 156-698
12158-359
14 158-361
13158-360
15 158-362
16158-364
17'158-367
18158-377
19'158-378
9 111-741
Description
SCREW, cap, hex hd
MUFFLER, air exhaust
PACKING, O-ring
SCREW. machine.
rh
LUG, grounding, electrical
WASHER.
tab
RIVET, tack
ACTUATOR, valve, air
PACKING, O-ring
YOKE, rod, trip
CLIP, valvebar
smina
PIN, toggle
PIN, pivot
GROMMET, inlet valve
PACKING, ring, seal
PACKING, o-nng
.-
Qtu.
8
1
1
2
1
2
1
2
1
2
1
2
2
2
1
1
Ref.
No. Pari No.
20' 158-379
21' 160-261
22' 160-618
23 160-623
24190-929
26'170-709
27170-711
28 190-229
29 190-233
30 162-629
32' 236-079
33290-038
34290-040
35 290-053
25167-585
31207-150
Description
NUT, valve
PACKING, O-ring
ARM. tooale
WIRE, lock
PISTON.~motor, air
BASE, motor, air
ROD, piston
CYLINDER, motor, air
ROD, trip
POPPET. inlet valve
LABEL, designation
LABEL, designation
LABEL, warning
* lncludedin repairkit 207-385.
Qtu.
1
2
4
2
1
2
2
1
1
1
1
2
1
1'
1
1
308-485 15

Displacement PumpParts Drawing and List
Model 237-526, Series A
Ref
No. Part No. Description
lot 112-130 SEAL,block.vee
101237-564 AIR MOTOR, President
shown onpage
14
103 101-178 BALL,piston:metallic
See patts on page
14.
104 108-001 BALL;sst
l05t 110-828 PACKING,o-ring
lO8t 166071 PACKING,o-ring
107t 112-565 PACKING, UCUP
QtY.
1
1
1
1
1
1
1
Ref
No. Part No. Description Qty.
109189-707 PISTON/SEAT,valve
110189-708 CYLINDER,pump
1
111 189-709 VALVE HOUSING, 1 1/2” nptQ 1
1
112189-710 RETAINER,ball
113189-711 WASHER,piston
1
1
t These parkare included in the PumpRepair Kit
237-602, which may be purchased separately.
113
107tn
103
109
lost
110
16
308-485

Dimensions
MODEL 237-564 Air Motor, Series A MOOEL 237-526 Pump, Serles A
18 308-485

Technical Data
Maximum working pressure ..................................
540 psi(62 bar)
Airoperatingrange 40to180psi(3to12bar)
Fluid pressure ratio
31
Air consumption ................................. 3 @/min per gallon pumped,
(0.022 m3/min per liter pumped)
up to 8 f+/min (0.058 m3/min) withpump
operating within recommended range
Pumpcyclespergallon(perliter)
................................... 28 (7.4)
Maximum recommended pump speed .......................... 66 cycledmin;
2.5 gpm (9.56 litehin)
Recommended speed for optimum pumplife
............ 15 to 25 cycles permln
Pistonseals
.................................................. polyurethane
Rod seals
........................................................... nitrile
Wettedparts
......................................... aluminum,steel, nitrile
Approximate weight
............................................ 46 Ib (21 kg)
Soundpressure ................................................ 82dB(A)
Sound pressure reading taken with pump operatingat 60 cydesperminuteat
....................................................
.................................
100 psi (7 bar). Sound pressuremeasuredper CAGI-PNEUROP, 1971.
-
308-485 19

The Graco Warranty and Disclaimers
WARRANTY
Graco warrantsall equipment manufactured
by it and bearingitsname tobefree from defectsinmaterial and workmanshipon
the date of salebyan authorized Graco distributortothe original purchaser for use.
As purchaser's sole remedyforbreach of
thiswarranty. Graco will, for aperiod of twelve months from the date of sale, repair or replace any part of the equipment proven
defective. Thiswarranty applies only when
the equipmentisinstalled, operated and maintainedin accordance with Graco's
writtenrecommendations.
Thiswarranty does
not cover, andGraco shallnotbeliablefor, any malfunction, damage or wear caused by faulty installation,
misapplication, abrasion, corrosion, inadequateor improper maintenance, negligence, accident. tampering,or substitutionof
non-Graco component parts. Nor shall Graco beliableformalfunction, damage or wear caused by the incompatibility with Graco
equipment of structures, accessories, equipment or materials notsupplied byGraco. orthe improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials.not supplied by Graco.
This warrantyis condftioned upon the prepaid return
of the equipment claimedto bedefectivetoanauthorized Graco distributor
for verification of the claim.If the claimed defect
is verified, Graco will repair or replace free of charge any defective parts. The
equipmentwillbereturned to the original purchaser transportation prepaid.
If inspectionof the equipment does not disclose any
defectinmaterial or workmanship, repairswillbemade at a reasonable charge, which charges may include the costs
of parts,
laborand transportation.
DISCLAIMERS AND LIMITATIONS
The terms of this warranty constitute purchaser's
sole and exclusive remedy and areinlieuof any other warranties (express or
implied), Includingwarranty of merchantability orwarranty of fltnessfor
a particular purpose, and of any non-contractual
liabilities, including product liabilities, based on negligence or strict liability. Every form
of liability for direct, special or
consequential damages or
loss isexpressly excluded arid denied. In nocase shall Graco's liability exceed the amount of the
purchase price. Any action for breach of warranty must be broughtwithin
two (2) years of the date of sale.
EQUIPMENT NOT COVERED
BY GRACO WARRANTY
Graco makes no warranty, and disclaimsallimpliedwarranties of merchantability andfitness fora particular
purpose, with
respect
to accessories, equipment. materials. or componentssoldbutnot manufacturedbyGraco. These items sold,butnot
manufactured by Graco (such
as electric motor, switches, hose, etc.)are subjecttothewarranty, if any, oftheirmanufacturer.
Graco
will provide purchaser with reasonable assistancein makhgany claimforbreach of these warranties.
Graco Phone Number
1-800-367-4023 Toll Free
TO PLACE AN ORDER, contact yourGracodistributor, or callthis number toidentify the distributor closest toyou:
Foreign
Offices: Belgium, Canada, England, Korea, Switzerland, France, Germany, Hong Kong, Japan
SalesOffices: Atlanta, Chicago, Detroit,
Los Angeles
GRACOINC. P.O. BOX 1441MINNEAPOLIS,MN55440-1441
20 308-485'
PRINTED IN U.S.A. 308-485 January 1995. Revised March 1996
