Gram KF 350-01 User manual

KF 310-01
KF 320-01
KF 350-01
M60 Series Manual

CONGRATULATIONS ON YOUR NEW GRAM
FRIDGE/FREEZER.
Congratulations on your new fridge/freezer. The fridge/freezer
was developed taking the different storage requirements of food
items into consideration. Some must be stored cold - others require
a little higher temperature. A few must be stored separately so as
not to impart flavour and odour to other items of food. Most items
of food require high air humidity in order to stay fresh.
To ensure that you get as much joy out of your new fridge/freezer
as possible, it is important that you become familiar with it’s
functions and know how to use the accessories. Please read this
manual carefully before setting up and using your fridge/freezer.
As these instructions apply to several fridge/freezer models, the
equipment may vary from model to model.
Before using the fridge/freezer
On receipt, check to ensure that the fridge/freezer has not become
damaged during transportation. Transport damage should be
reported to the local supplier before the fridge/freezer is put to use.
It is also highly recommended that your fridge/freezer is left in it’s
final position in the kitchen for a minimum of 2 hours prior to
turning on. This allows the oil to settle in the compressor, which is
caused by movement during transportation.
Before filling the fridge/freezer with items of food, the fridge/
freezer interior should be cleaned with lukewarm water containing
a mild detergent. Use a soft cloth. If the fridge/freezer has been
stored in cold surroundings (colder than +5ºC), it must be allowed
to stabilise for at least 2 hours before being switched on.
Read more about setting up and installation on pages 8 through to
14.
2

CONTENTS
ImportantInformation 5
Transporting and moving the fridge/freezer 5
If the fridge/freezer is not to be used for some time 6
Warning 6
Disposal 6
ProductDescription 7
Setting Up And Installation 8
Where to place the fridge/freezer 8
Building into a kitchen cabinet 9
Building into a fridge/freezer cabinet 9
Installation and ventilation diagrams 10
Electricalconnection 11
Changing the door hinge over to the opposite side 12
Using The Fridge/Freezer 15

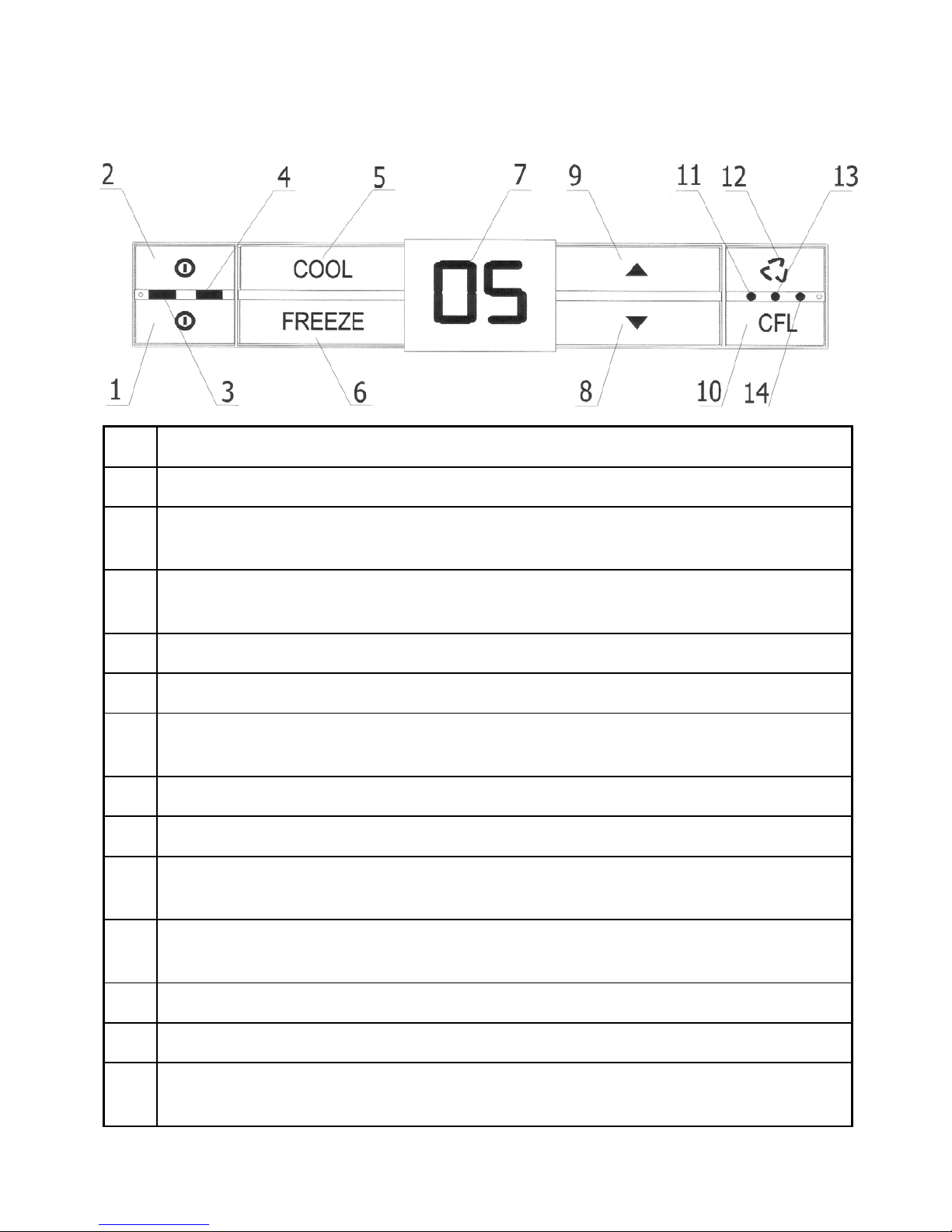

Electronic control diagram 15
Electroniccontrol 16
Operating the fridge/freezer 16
Replacing the bulb 17
Temperatureregulation 18
Displaying the temperature 18
Temperature inside the fridge/freezer 18
QuickFreezing 19
Brief temperature variations 19
Super refrigerating function 20
Function with a ventilator 20
Display brightness adjustment 21
Alarms 22
Alarmcodes 22
Interrupting an alarm 22
3

Using The Refrigerator’s Accessories 23
Glassshelves 23
Bottleshelf 23
Vegetabledrawers 23
Multi-boxes 23
Storage shelves in the door 23
Using The Freezer’s Accessories 24
DefrostingAndCleaning 25
Automatic defrosting of the refrigerator compartment 25
Manual defrosting of the freezer compartment 25
Warning 25
Cleaning 26
Cleaning of doors in stainless steel or aluminium 26
GRAM Customer Care And Servicing 27
Checklist 27
ContactDetails 28
SpareParts 28
Your appliance details and specifications 29
4

IMPORTANT INFORMATION
The fridge/freezer contains the environment-friendly, non-ozone
depleting refrigerant R600a. As R600a is a flammable gas, it is
important to avoid damage to the refrigeration circuit during
transport and installation. If the refrigeration circuit is damaged,
avoid using naked flame in the vicinity of the fridge/freezer and
connecting power to fridge/freezer. Also make sure that there is
good ventilation in the room. If you are in doubt, please contact
your supplier.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are recommended by
the manufacturer.
Transporting and moving the fridge/freezer
The fridge/freezer must always be moved in the vertical position.
The cabinet must not be tilted more than approx 40º. If the fridge/
freezer has been tilted more than 40º, the power supply must not
be connected until the appliance has stood upright for at least 2
hours.
5

If the fridge/freezer is not to be used for some time
If the fridge/freezer is to remain unused for a time, switch it off by
pressing buttons (1) and (2) for 5 seconds (diagram on page 15).
Then disconnect the power supply to the fridge/freezer and if
possible, pull the plug out of the wall socket.
Empty, defrost and clean the refrigerator. Leave the fridge and
freezer doors slightly ajar. This will prevent bad smells in the
fridge/freezer.
Warning
Old refrigerators and freezers are often fitted with complicated
latches that can only be opened from the outside. If you have an
old unit like this stored away somewhere, or if you scrap it,
remember to destroy the latch to prevent children from being
exposed to danger by getting locked inside the unit.
Note! Please also observe the environmental rules on disposal.
Disposal
If a refrigerator/freezer is to be disposed of, this must be done in an
environmentally correct way, in accordance with current rules of
disposal.
Please observe the environmental rules on disposal. There might
be special requirements/conditions to be observed. Information on
disposal can be obtained from:
- Gram A/S
- Your white-goods supplier
- Authorities (your local council, Ministry of the Environment, etc.)
6

PRODUCT DESCRIPTION
The fridge/freezer is intended for use in a normal household. It is
designed for temperature class SN-T in accordance with European
standard EN 153. This means that the fridge/freezer will run best
at a room temperature of +10ºC to +43ºC.
Control Panel
Halogen Lamp
Internal Circulating Fan
Glass Shelves
Multi-Boxes
Bottle Shelf
Storage Shelves
Storage Bins
Evaporation Tray
Vegetable drawers
Nameplate
Rubber Sealing Strip
Condenser
Freezing Drawers
Freezing Tray (KF350 only)
Compressor
Compressor Compartment
Door Handle
Adjustable Feet 7

8
SETTING UP AND INSTALLATION
Where to place the fridge/freezer
For safety reasons the fridge/freezer must not be installed
outdoors; it must be placed in a dry room. Never place the
appliance close to sources of heat such as cookers or radiators, and
avoid placing it in direct sunlight. The surface on which the
appliance is placed must be level and sturdy. The small wheels
mounted at the rear of the fridge/freezer make it easy to place it in
the required position.
Important Note: The use of other gas appliances inside the
building, such as cook tops, ovens and heaters may create extra
moisture in the air, along with places that experience general high
humidity. This may cause the refrigerator/freezer to build up an
excess of ice on the evaporator plate causing the drip tray at the
back to overflow with water during the defrost process. To help
eliminate excess moisture, a dehumidifier or ventilation unit is
recommended.
The fridge/freezer can be set up free-standing against a wall or
built into a kitchen cabinet.
It is important that the appliance stands completely level and that
there is good air circulation over, under and around it. The
refrigerator can be adjusted by turning the two adjusting screws
on the plinth. After adjustment, the feet and the two rear wheels
must be in contact with the surface on which the appliance stands.
It is extremely important that the fridge/freezer’s adjustable feet are
set correctly to avoid movement or future distortion of the cabinet
(2 optional rear feet are supplied in the parts kit).
It is also advantageous, but not necessary, that the fridge/freezer is
tilted slightly towards the rear to allow the door to close on it’s
own.
The illustrations on the following pages (9 & 10), show how to
create sufficient air circulation around the cabinet. The dimensions
give the actual size of openings. The circulation area must be at
least 200 cm².

9
Building into a kitchen cabinet
Building into a kitchen cabinet with sufficient ventilation
around the fridge/freezer to dissipate heat from the
compressor. The appliance can stand direct on the floor or on
its plinth. (15)
Building into a fridge/freezer cabinet
Building into a fridge/freezer cabinet follows the same
principal as shown in illustration 15. (16)
15
16

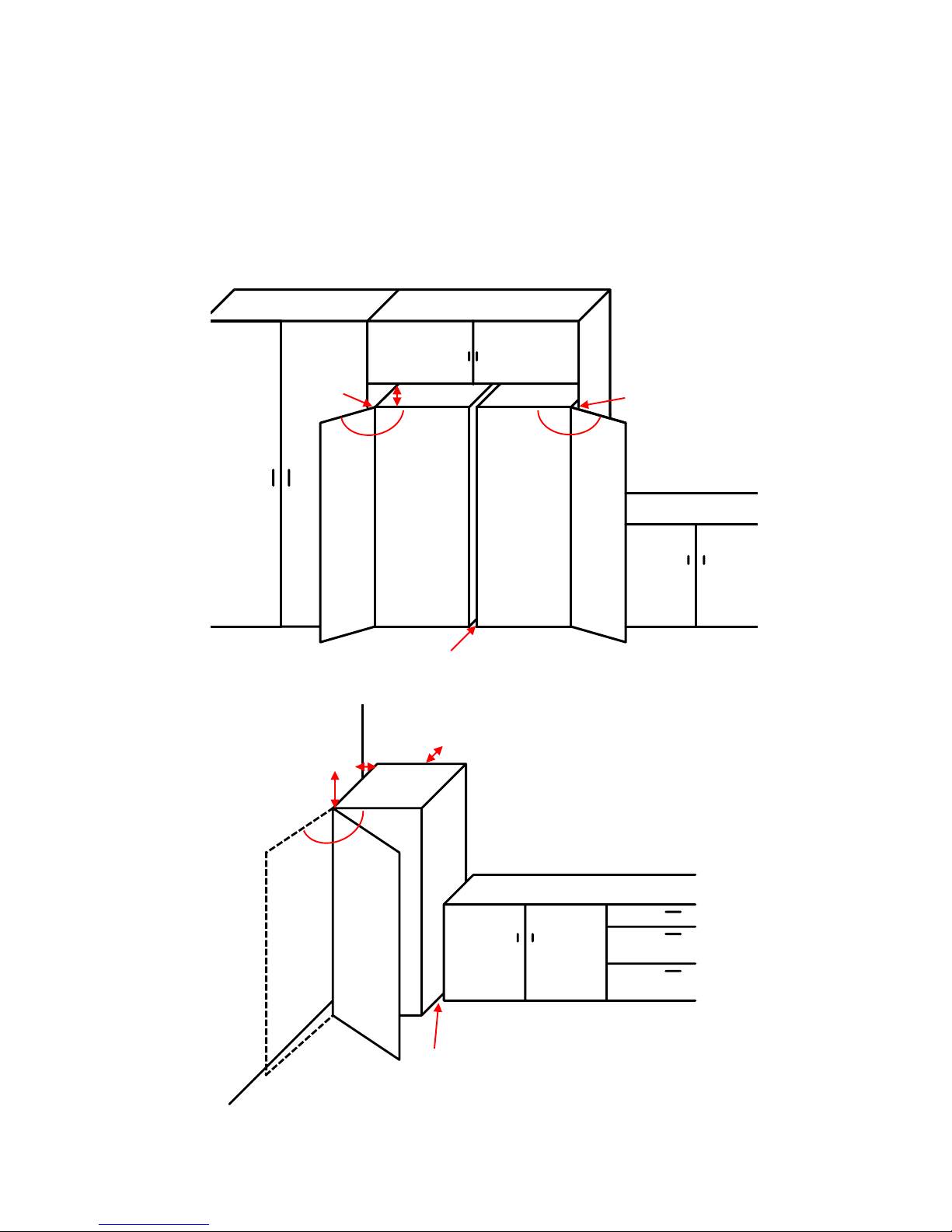

Installation And Ventilation Diagrams
The measurements below are to be used as guidelines only. The
degree of the door openings show the minimum requirement to
easily access the storage bins. (17 & 18)
10
5mm+
110º110º
10mm+ 10mm+
35-50mm+
110º
10mm+
35-50mm+
1mm+
40-60mm+
17
18

11
Electrical connection
The appliance is intended for connection to alternating current.
The connection values for voltage (V) and frequency (Hz) are given
on the nameplate inside the cabinet.
Power must be connected via a wall socket with switch. The wall
socket should be easily accessible.
It is recommended, as with any high tech appliance, that a power
surge protection device be used.
All earthing requirements stipulated by the local electricity
authority must be observed. The cabinet plug and wall socket
should then give correct earthing. If in doubt, contact your local
supplier or an authorised electrician.
WARNING - This appliance must be earthed. The flexible cord
(mains lead) fitted to this appliance has three cores for use with a
3-pin 10 amp plug.
IMPORTANT
The cores in this mains lead are coloured in accordance with the
following code:
GREEN AND YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
These colours might not correspond with the colour markings
identifying the terminals in your plug.
Proceed as follows:
Connect the GREEN AND YELLOW core to the plug terminal
marked “E” or by an earth symbol, or coloured GREEN or GREEN
AND YELLOW. Connect the BLUE core to the plug terminal
marked “N” or coloured BLACK.
Connect the BROWN core to the plug terminal marked “L” or
coloured RED.

12
Changing the door hinge over to the opposite side

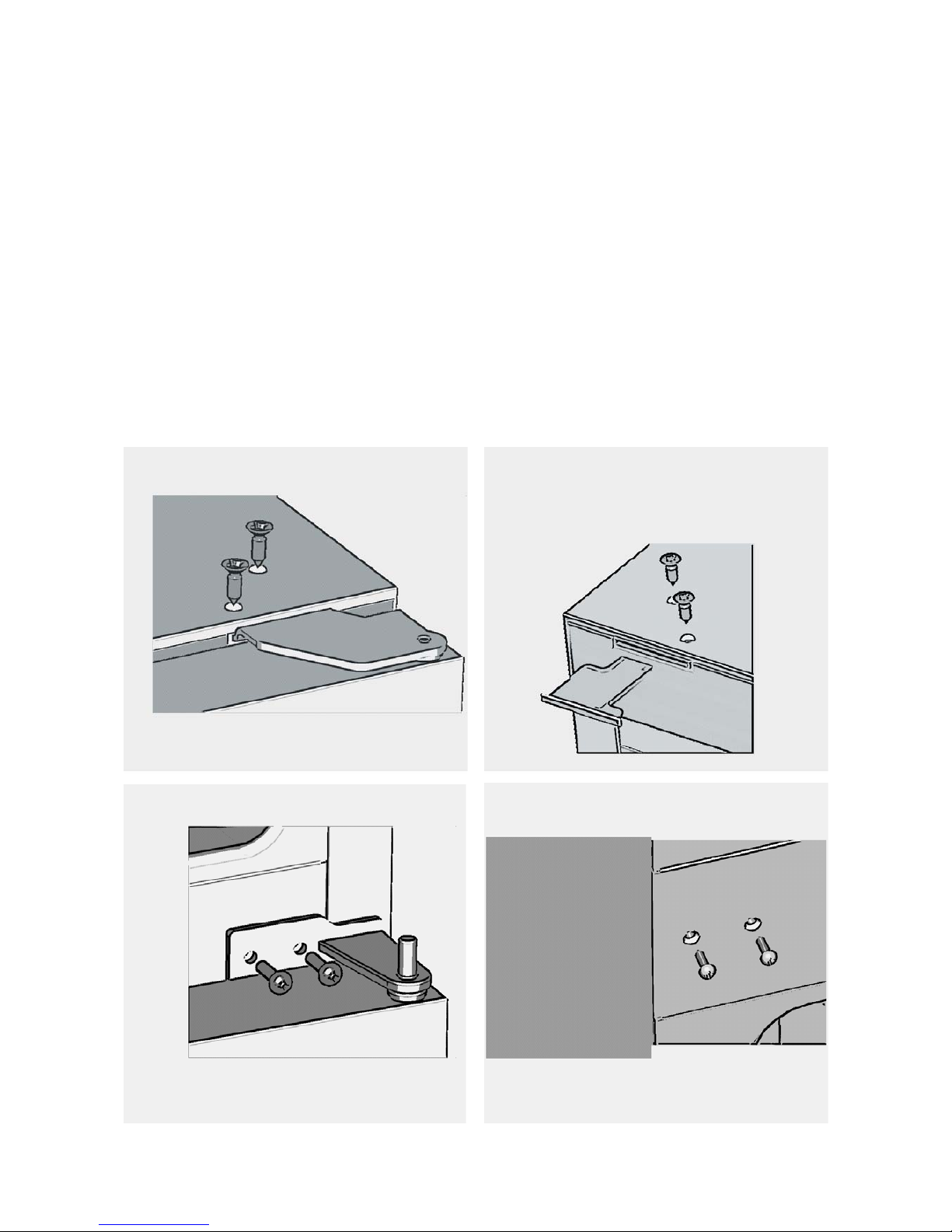

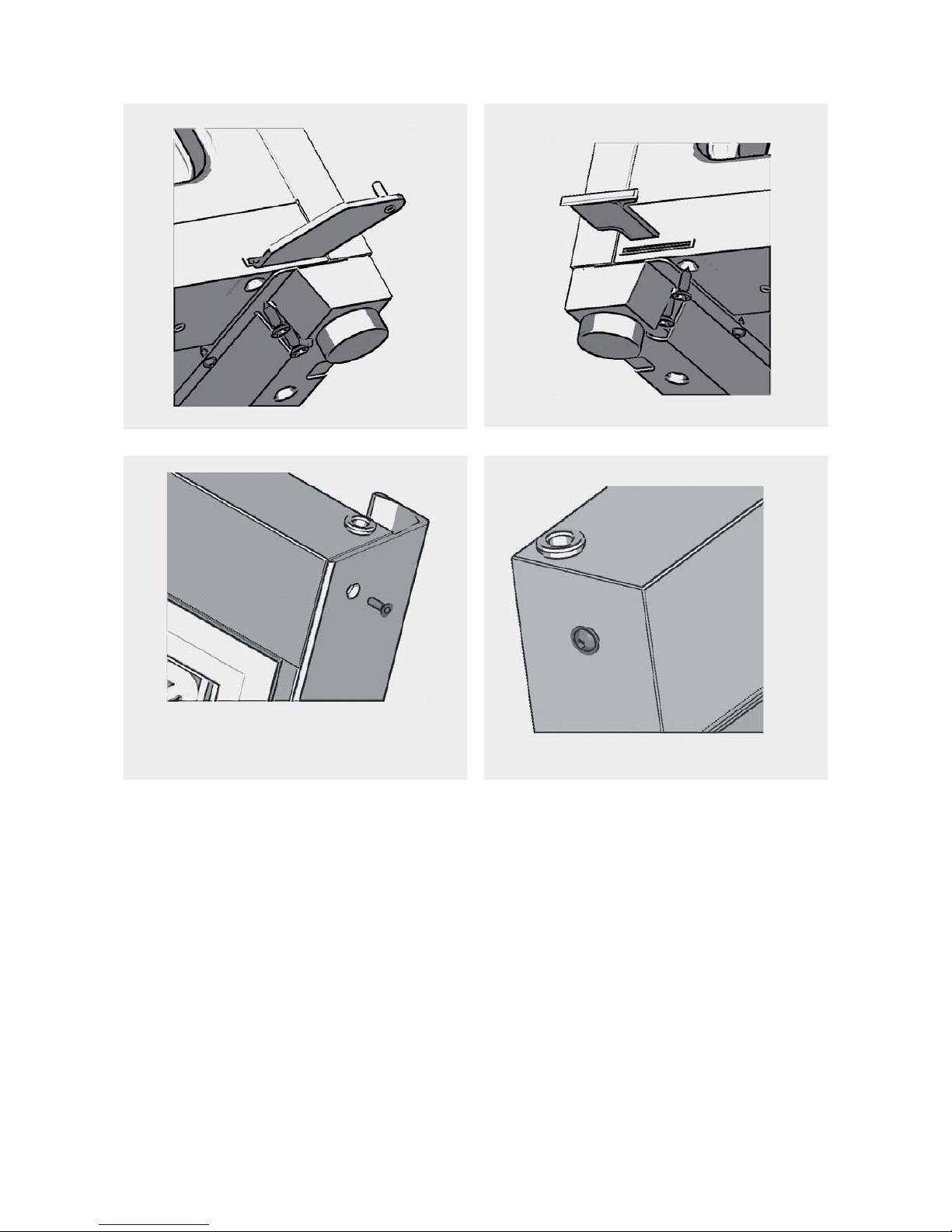

Illustrations 19-26 below and over the page, show how easy it is to
change the doors from right-hinged to left-hinged, or vice versa.
(Changing the door from left to right is done in the same way, but
opposite).
Top and bottom left hand hinges and accessories are supplied in
the parts kit.
*The fridge/freezer must be switched off and emptied completely.
- Remove the 2 screws in the hinge top on the right-hand side of
the cabinet. (19)
- Lift the refrigerator door slightly and take the door and upper
hinge off by pulling the door towards you.
- Remove the dummy hinge from the opposite side by unscrewing
the 2 screws. (20)
- Reverse the dummy hinge and refit it on the opposite side of the
cabinet using 2 screws.
- Remove the lower door by unscrewing the 2 screws in the
centre hinge. (21)
- Refit the 2 screws from the left-hand side on the right-hand side.
(22)
- Lift the lower door and the centre hinge up and take them off.
- Tilt the refrigerator to an angle of max. 45ºand unscrew the
bottom hinge. This is done by removing the 2 screws holding the
bottom hinge on the cabinet underside. (23)
- Remove the bottom dummy hinge in the opposite side in the
same way as the upper dummy hinge was removed. (24)
- Reverse the dummy hinge and refit it on the opposite side of the
cabinet.
- Reverse the upper right-hand hinge and refit it in the lower
left-hand corner of the cabinet.
- Place the cabinet in the vertical position again.
- Remove the door handles by removing the screws. (25)

13
20
2221
19
- Place the lower door in the correct position on the bottom
hinge.
- Reverse the centre hinge and refit it on the lower door and
screw it onto the cabinet. Remember to adjust the hinges.
- Lift the top door into position on the centre hinge. Reverse the
lower right-hand hinge and refit it on the top part of the door in
the left side of the cabinet. Push the door into position and slide
the upper hinge into the upper left-hand hinge casing. Tighten the
2 screws. Remember to adjust the hinges.
- Remove the screws on the right-hand side of the door and screw
them onto the left side of the door. Use the screws from the left
side to attach the handles to the right-hand edge of the doors. (26)

14
26
25
23 24

15
USING THE FRIDGE/FREEZER
1 Freezer’s ON/OFF button.
2 Refrigerator’s ON/OFF button.
3 Green light-emitting LED signalling that the refrigerator’s chamber
has been switched on.
4 Blue light-emitting LED signalling that the freezer’s chamber has
been switched on.
5 “COOL” button.
6 “FREEZE” button.
7 Display showing the set temperature, time of super freezing, and
alarm status codes.
8 Button for displaying real temperature inside freezer’s chamber.
9 Button for displaying real temperature inside fridge’s chamber.
10 Function button for quick freezing, quick cooling and adjustment
of the display light.
11 Blue light-emitting LED signalling that the quick cooling function
has been switched on.
12 The button turning the vent on and off.
13 The control light (yellow) signals initiation of the vent function.
14 Blue light-emitting LED signalling that the quick freezing function
has been switched on.

16
Electronic Control
The fridge/freezer is equipped with electronic control. The control
panel is concealed behind the refrigerator door. The appliance has
been factory set to operate at optimum temperature, i.e. +5ºC in
the refrigerator’s chamber and –18ºC in the freezers chamber.
If you wish to change the preset temperature, the new setting will
be stored in the electronic control. In case of power failure, the
control will remember the latest setting when the power to the
cabinet is restored.
The electronic control has the following functions:
- On/Off switch function.
- Display of the real temperature inside the refrigerator’s and
freezer’s chambers.
- Setting the temperatures in the refrigerator’s and freezer’s
chambers.
- Automatic defrosting of the refrigerator’s chamber.
- Quick freezing.
- Quick refrigeration.
- Vent function inside the refrigerator’s chamber.
- Adjustment of the display contrast.
- Acoustic and visual signalling of alarms.
- Visual signalling with use of LED’s of switched on functions.
Operating the fridge/freezer
Start the fridge/freezer by plugging it into a wall socket.
If the mains lead has been damaged, it must be replaced with a
corresponding type supplied by an electrical service centre and
installed by a qualified electrician.
The fridge/freezer incorporates a “stand-by function” and in the
display two horizontal lines indicate that the power supply has
been connected.
- Start the refrigerator compartment by pressing the upper on/off
button o(2). After approx. 5 seconds, the green light-emitting
LED (3) lights up to indicate that the refrigerating compartment is
switched on. The actual temperature inside the refrigerator’s
compartment is shown on the display (7).

17
- By pressing button (9) the actual temperature in the
refrigeration compartment will be displayed.
- To turn the refrigerator off, press and hold the button o (2).
- Start the freezer compartment by pressing the lower on/off
button o(1). After approx. 5 seconds, the blue light-emitting
LED (4) lights to indicate that the freezing compartment is switched
on. The actual temperature in the freezer’s compartment is shown
on the display (7).
- By pressing button (8) the actual temperature in the
freezing compartment will be displayed.
- To turn the freezer off, press and hold the button o(1).
The refrigerator and freezer can be switched ON and OFF
independently.
Replacing the bulb
Switch off the fridge/freezer by pressing buttons o(1 & 2) and
unplug the mains lead from the wall socket.
Remove the cover. Replace the bulb with a new one (max. 10watt,
12Volt, halogen base G4). Refit the cover, re-connect the power
supply and restart the fridge/freezer by pressing button o(1 & 2).
(27)
27

18
Temperature regulation
The temperature in the refrigerator’s chamber can be set within
the temperature range from +2ºC up to +9ºC. When pressing and
holding the “COOL” button (5), the set temperature will be shown
on the display. When pressing the button (9) or button
(8) it is possible to modify the setting of the temperature inside the
refrigerator.
The temperature in the freezer’s chamber can be set within the
range from –25ºC up to –16ºC. When pressing and holding the
“FREEZE” button (6), the set temperature shall be shown on the
display. When pressing the button (9) or button (8) it is
possible to modify the setting of the temperature inside the freezer.
Every pressing of the button shall activate a brief acoustic signal. In
case of the power supply failure or disconnection of the power
supply to the fridge/freezer, the control will keep in the memory
the latest settings after the power supply has been restored.
Displaying of the temperature
You can decide which temperature should be shown on the
display - the temperature inside the refrigerator’s chamber (by
pressing the button (9)) or of the temperature inside the
freezer’s chamber (by pressing the button (8)). The above
mentioned setting can be changed at any time.
Temperature inside the fridge/freezer
The temperature settings and temperature values shown on the
display are average temperatures of the fridge/freezer. It concerns
both the refrigerator’s chamber and the freezer’s chamber. Do not
change the temperature setting simply because it is warmer in
summer. The increase of the room temperature will be detected by
the sensor and the compressor will automatically run for a longer
time to maintain the set temperature.

19
Quick freezing
Quick freezing to a low temperature is important to maintain the
quality of the food products. Quick freezing is activated by
pressing and holding the function button “CFL” (10) and pressing
the “FREEZE” button (6). The blue light-emitting LED (14) switches
on signalling activation of the quick freezing function.
You can choose between freezing in 24 hours or 48 hours:
- by holding the function button “CFL” (10) and pressing once the
“FREEZE” button (6) you switch on the 24 hours quick freezing
function and “24” is shown in the display.
- by holding the function button “CFL” (10) and pressing twice the
“FREEZE” button (6) you switch on the 48 hours quick freezing
function and “48” is shown on the display.
- the next pressing of the button “FREEZE” (6) switches off the
quick freezing function and switches off the blue light-emitting
LED. The quick freeze function will be automatically disabled after
24 or 48 hours.
After pressing the quick freezing function button, the indication
“24” or “48” is displayed for 5 seconds. Afterwards the real
temperature inside the refrigerator’s chamber and freezer’s
chamber will be shown on the display.
It is recommended to switch on the quick freezing function (24 or
48 hours) for approximately 2 hours before loading the freezer’s
chamber with large quantities of food products.
Brief temperature variations
Brief temperature variations are normal and may occur when the
refrigerator is going through it’s automatic defrost cycle, when
fresh food has just been placed inside or when the door is open for
a longer time. These variations will not affect the food products
and the temperature will quickly return to the set-point level.
The interior light switches on when the door of the refrigerator’s
chamber has been opened. When the door remains open, the
interior light switches off after approximately 3 minutes. The
display will show E4 alarm and the acoustic alarm will be activated.
Please refer to page 22 to remedy.

20
Super refrigerating function
- The first pressing of the buttons (10) + (5) switches on the blue
light-emitting LED (11) and activates quick cooling down of the
refrigerator’s chamber to the temperature of approximately 1ºC
(the continuous operation of the compressor), after the
temperature of 1ºC has been reached the function automatically
disables and the equipment switches into a normal cyclic operation
restoring the latest temperature set for the refrigerator.
- During the super refrigerating function operation, the display
shows “Sc” indication, (it is possible to monitor the freezer
temperature by pressing the button (8).
- The second pressing of the buttons (10) + (5), (during operation
of the quick refrigerating function), disables the function and
switches off the blue light-emitting LED (11).
It is recommended to switch on the quick refrigerating function
“Sc” before loading the refrigerator’s chamber with a large quantity
of fresh food products.
Function with a ventilator
The ventilator, remains inactive until the cabinet has reached the
set operating temperature. It is turned on and off by button (12).
The yellow LED light (13) turns on when the ventilator is turned
on.
The ventilator allows it to maintain the same temperature on all
levels of the refrigerator chamber.
After being turned on, the ventilator works in a cycle function
except when the refrigerator door is opened.
