GRAND VIDEOKE TKR-371mp User manual

5-10
Packing Guide / Quick Guide
4
FCC DECLARATION OF CONFORMITY
11
11-12
13-14
14
15-19
Introduction
How to use the keys

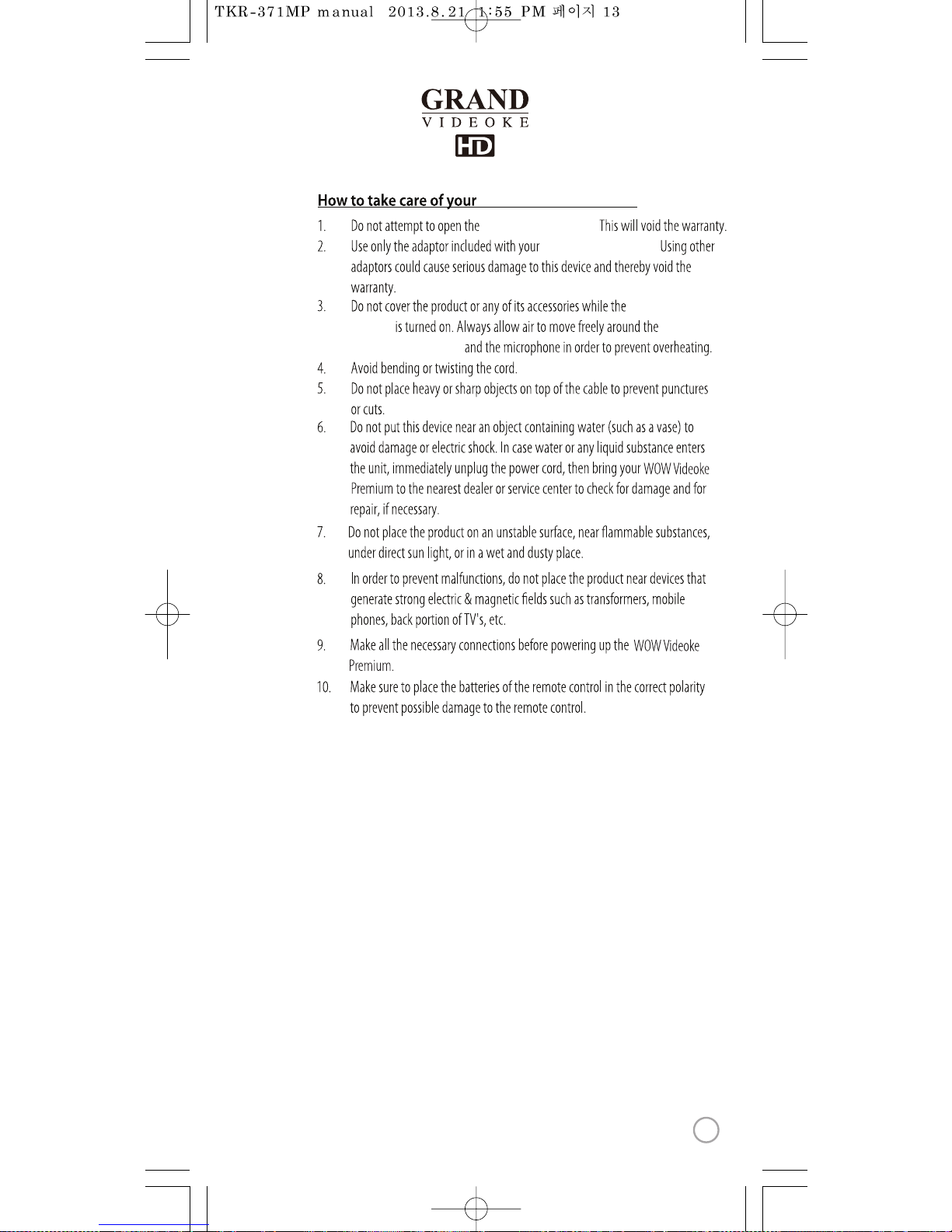

How to take care of your WOW Videoke Premium
Package Contents / Optional Items

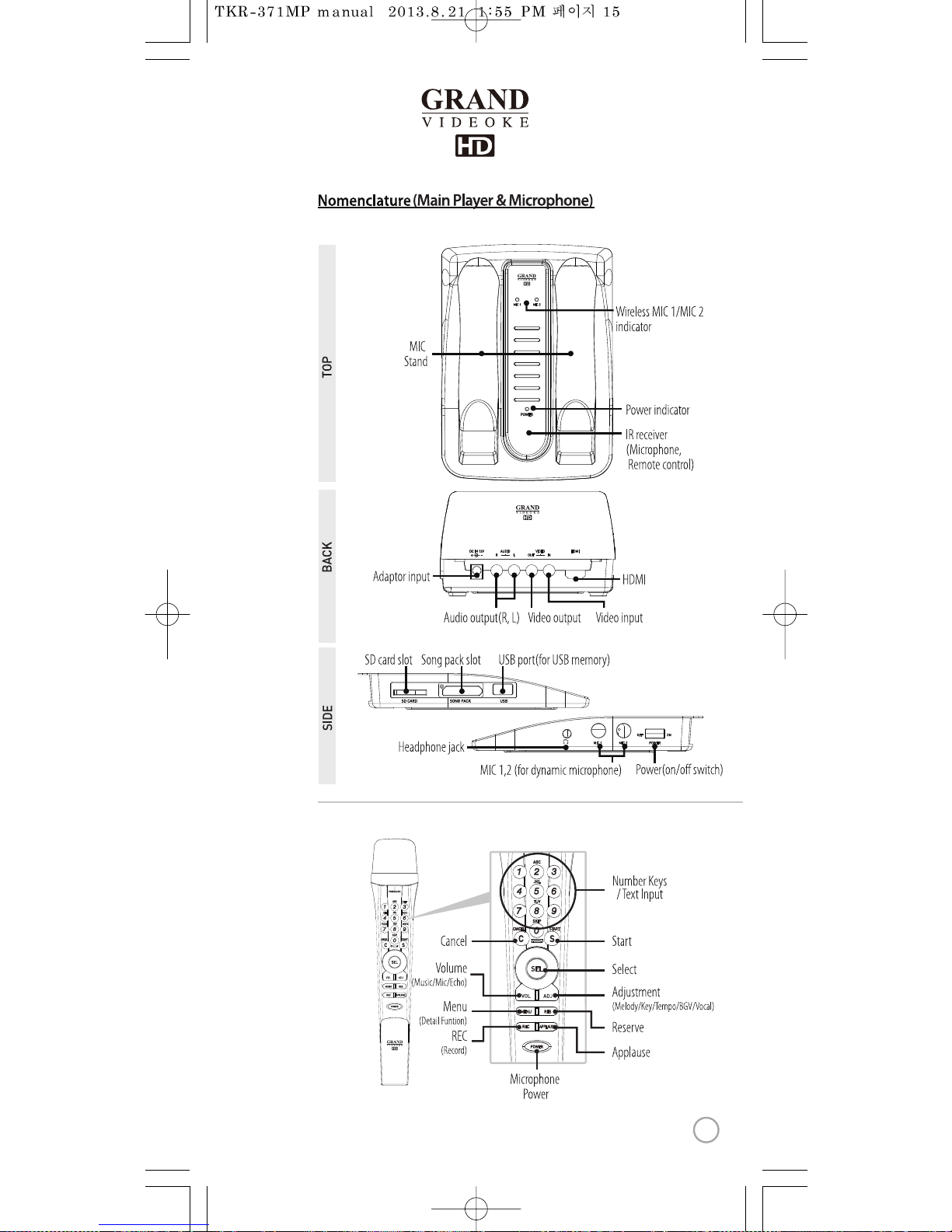

Nomenclature
- BasicFunctions, Secondary Functions
- Channel Settings
-Main player
-Microphone
- Remote control
23-28
How to operatethe WOW Videoke Premium
-Installation of song pack
-Power on/o
-Search function and song reservation
-Play, Pause, Stop, Music Volume,Mic volume, Echo,Melody,
Tempo adjustment, Key adjustment, Skip
20-22
Installation Guide
-Main unit-HDTVconnection
-Main unit-STANDARD TV connection
-Connecting the aVideo camera or DVD/VCD player to
your WOW Videoke Premium to change background video
29-33
Additional menu function & conguration settings
33
SD card& USB memory
42
Musicnote
35-41
Encoder
43
44
45
Troubleshooting guide
Q&A - other
Product specication
-Search Menu
-Favorite Menu
-RecordMenu
-Repeat Menu
-Game / Singer showdown Menu
-MTV/ Multiplex/ RealSound/ Chorus/Duet Menu
-Conguration Menu
3
www.wowvideoke.com

Declaration of Conformity
Trade Name : TJ media
Model : TKR-371MP
Responsible Party : TJ media Co.,Ltd.
Address : 23, Hwagok-ro 64-gil, Gangseo-gu, Seoul, Korea
Telephone : [phone]
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice for customers in the U.S.A.
Use of TJ media wireless devices is regulated by the Federal
Communications Commision as describedin Part 74 subpart
H of FCC regulations and users authorized thereby are
required to obtain an appropriate license.
IMPORTANT NOTE : To comply with the FCC RF
exposure compliance requirements, no change to the antenna
or the device is permitted, Any changeto the antenna or the
device could result in the device exceeding the RF exposure
requirements and void user’s authority to operate this device.
This device complies with FCC radiation exposure limits set
forth for uncontrolled equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in Supplement C to
OET65. This device has very low levels of RF energythat it is
deemed to comply without testing of specific absorptionradio(SAR).
Output Power listed is 0.00627W ERP.
4
www.wowvideoke.com

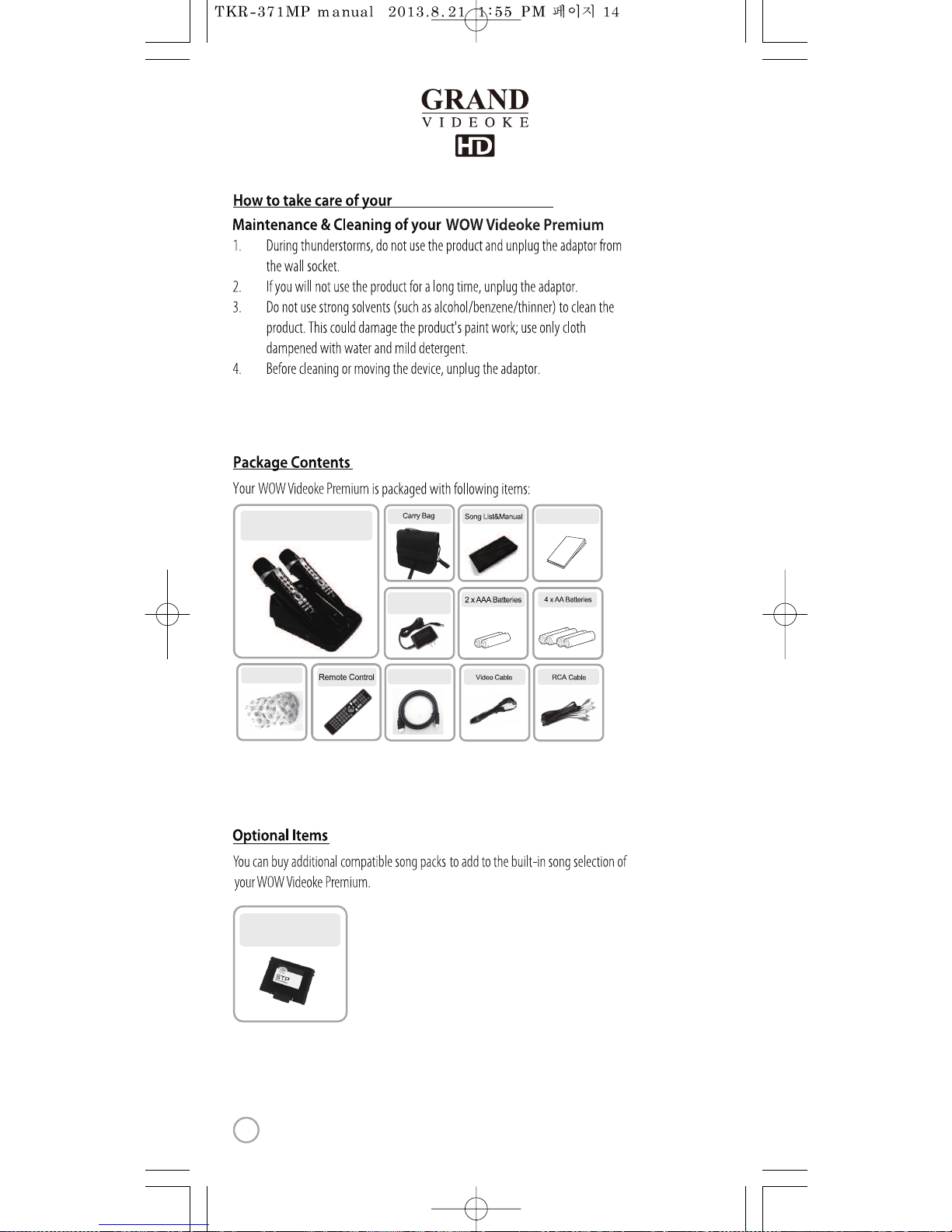

PACKING GUIDE
1. Main Unit(Player)
2.Wireless Microphone x 2
3. Remote Control
4. Song list & Manual & Quick Guide
5. Auto-Volt Power Adaptor
6. Audio/Video Cable(RCA cable)
7.VideoInput Cable
8. HDMI Cable
9. 4 x AA Batteries(Wireless Microphone)
10. 2 x AAA Batteries(Remote Control)
11. MIC Cover
Upper View
5

BASIC FUNCTIONS B
SECOND
SONG SELECTION & PLAYBACK
METHOD 1 By entering song numberdirectly
Key in the song number using the alphanumerickeypad,
then press .
METHOD 2 By sortingthe songin the list
1) To Open the Song List:Press the Arrow keysor .
2) To Sortby Title, Artist, Lyric orNumber: Press .
3) To Select: Press the Arrow keys, then press .
VOL
VOL
METHOD 3 By searching the song
1) To Open the Song List:Press the Arrow keysor .
2) To Sortby Title, Artist, Lyric orNumber: Press .
3) Input the Title, Artist, Lyric or Number by typing on the
alphanumeric keypad.
4) To Select: Press the Arrow keys, then press .
STOP
To stop a song while playing, press .
SELSEL
SELSEL
PAUSE
1) To pause a song while playing, press .
2) To continue, press .
RESERVATION
Select a song,then press .
VOLUME(MUSIC
1] V
2] T
3] A
KEY
Press ,
TEMPO
Press ,
SKIP
METHOD 1 Prel
METHOD 2 Rew
METHOD 3 V
6

BASIC FUNCTIONS
SECONDARYFUNCTIONS
S
anumerickeypad,
row keysor .
ber: Press .
n press .
VOL
VOL
row keysor .
ber: Press .
er by typing on the
n press .
S
.
SELSEL
SELSEL
s .
VOLUME(MUSIC, MIC, ECHO)
1] Volume : Press .
2] Type selection(MUSIC,MIC, ECHO) : .
3] Adjustment:,.
VOL
VOL
KEY
Press , . (While playing).
TEMPO
Press , . (While playing).
SKIP
METHOD 1 Prelude/Interludeskip
Press (While playing), .
METHOD 2 Rewind a tune, Forward a tune
Press (While playing), , .
METHOD 3 Verse skip
Press (While playing), .
S
S
7

SECONDARYFUNCTIONS
S
1) ,Select “REC”, Select“REC”,
SONG SEARCH,.
2) , Select“REC”, SONG SEARCH, .
3) SONG LIST, : Record the song.
4) While playing music, then press :
Record the playing song.
1) ,Select “REC”, Select “REC List”.
2) ,Select “REC List”.
FAVORITE SONGS
1] To Add: Select a song, press .
2)To Remove:Select a song thathasbeen added, press .
3) To Search: Press , then select “FAVORITE”.
RECORDING
You can record a song in 4ways:
SEARCHING RECORDED SONGS
You can record a song in 2ways:
SONG REPEAT
Press , Select “Repeat”.
GAME FUNCTION
Press , Select “Game”.
8

S
Step1] hange the channel on the main unit by using the
remote control.
3) Select one channel number from 1 to 8 and press that specific number
on the remote.

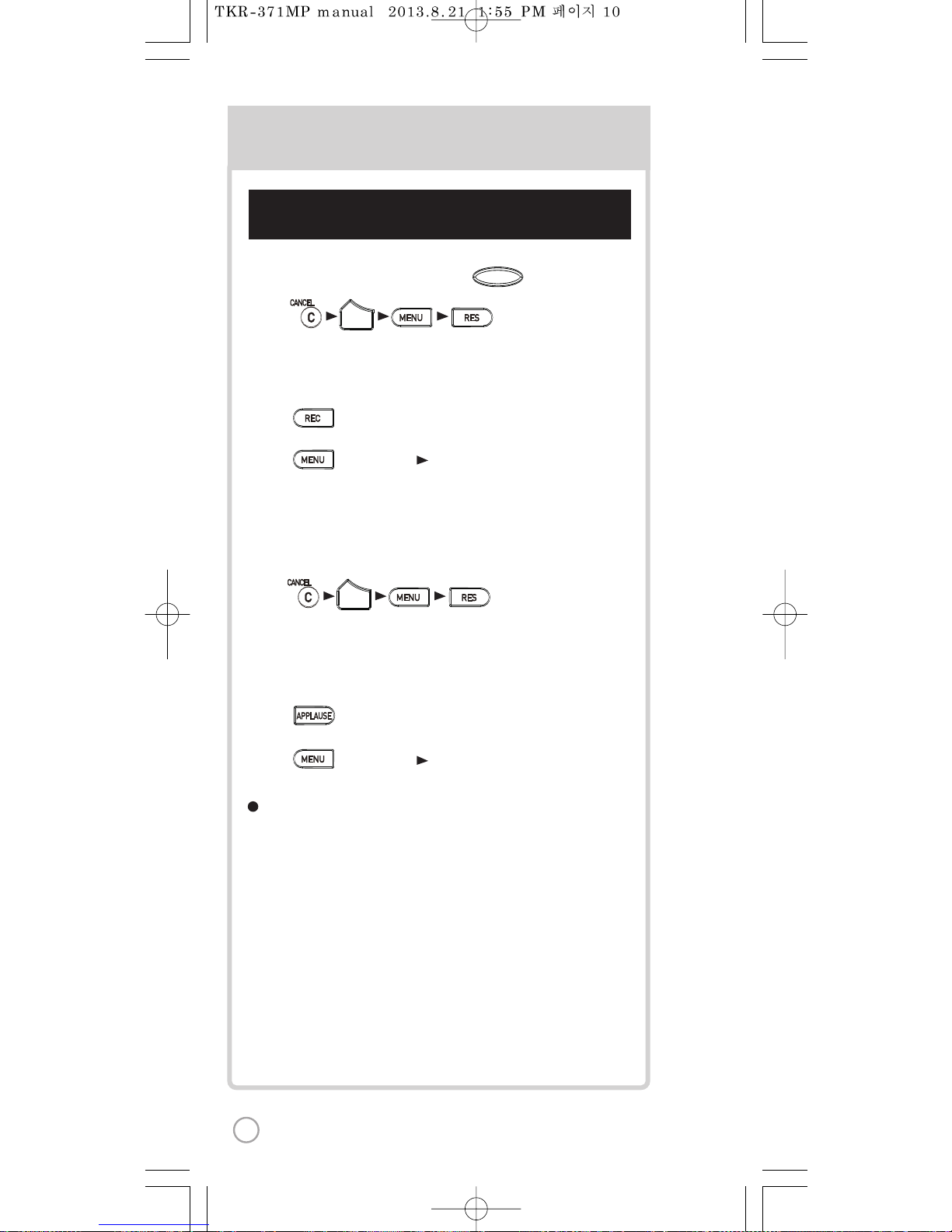

CHANNEL SETTINGS CH
2) Go to channel select menu:
Press button +
choose “Config” ”System” ”Channel Setup” + button.
SELSEL
TKR-371MP has eight (8) available channels.
Please take notethat microphones andmain player should beon the
same channel.
In case of channel interference (either one ortwo of the microphones
cannot be detected by the main player),
Please follow the step by step instruction belowfor re-channeling.
1) Turn on the main unit. Make sure no song is playing.
4) Press button.
5) Press [Power off] [Power on] to save.
Fo
1)
2)
T
3)
T
4)
5) Pres
Fo
1)
2)
3)
4)
5) Pres
MIC1 MIC 1
POWER
POWER
MIC 2
MIC 2
9

Step2] Set the channel of the twomicrophones using the
microphone's keypad.
ber
CHANNEL SETTINGS
For the first(1st) microphone:
1) Turn on the microphone by pressing the button.
2) Press button in order.
The microphone LED will be turned on and off twice.
3) Press thesame channel number thatyou set in the main player.
The microphone LED will be turned on and off twice.
4) Press button. Microphone LEDwill be turned on and off twice.
5) Press buttonto save.
Microphone LED will be turned on and off 6 times.
For the second (2nd) microphone:
1) Turn on the microphone by pressing the [POWER] button.
2) Press button.
Microphone LED will be turned on and off twice.
3) On the alphanumeric keypad, press the same channel number that you
have set inthe main player. The microphone LED will be turned on and
off twice.
4) Press button. Microphone LEDwill be turned on and off twice.
5) Press buttonto save.
Microphone LED will be turned on and off 6 times.
Check if both microphones are now working.
If not, try again. Contact our Customer Service forother concerns.
VOL
VOL
POWERPOWER
10

TheWOWVideoke PremiumPremium provides variouskinds of
Moving PictureBackground.(HD, Nature, 3D,MTV, K-POP M/V etc.)
TheWOWVideoke Premium provides additional built-in memory spaceof
500MB, theWOW Videoke Premium used high quality wireless microphone.
ve
-MTV is original music video with original singer's voice.
- Duet is songswith your partner.
Realsound
The in theWOW Videoke Premium Microphone is used to power
on the Microphone, while theon the remote control and the
WOW VideokePremium is used to turntheWOW Videoke Premium on and o.
WOW VideokePremium.
WOW Videoke Premium
WOW Videoke Premium
WOW Videoke Premium
WOW Videoke Premium
100
Button/Key Play Standby
Skip “0” “SPACE”→“0”
Move to Music, MIC,
EchoVolume
Move to Music,
MICVolume
Move toTitle, Artist,
Lyrics, Number Search Modes
Record the playingsong
Applause
Record Menu Record the song
MenuMenu
Adds the highlightedsong to favorites list
Move to Key,Tempo, MelodyLevels,
BGV, VOCAL ON/OFF(Only Multiplex)
BGV
Search Mode
MENU
11
www.wowvideoke.com

:When reserved song is repeated, the icon is indicated in the screen.
:When all song is repeated, the icon is indicatedin the screen
:When mic is on, the battery power is indicated in the screen.
:When multiplex is played, the vocalstatus is indicatedin the screen.
Icon the song list, the icon indicates as following.
Realsound song : Playusing real instruments & back-up vocals.
MTV song : Original MusicVideos.
Chorus song : Sing with back-up singers.
Multiplex song : Song with vocals.
Duet song : Sing with your partner.
Favoritesong : Own favorite song list.
:Realsound + Duet.
:MTV +Duet.
: Chorus + Duet.
: Multiplex + Duet.
12
www.wowvideoke.com

WOW Videoke Premium
WOW VideokePremium.
WOW VideokePremium.
WOW Videoke
Premium
WOW VideokePremium
13
www.wowvideoke.com

Main Unit(Player) &
Wireless Microphone x 2
Auto-Volt Power
Adaptor
HDMI cable
MIC Cover
Quick Guide
STP
(SONG TRANSFER PACK)
WOW Videoke Premium
14
www.wowvideoke.com

DEFDEF
MNOMNO
WXYZWXYZ
GHIGHI
PQRSPQRS
15
www.wowvideoke.com

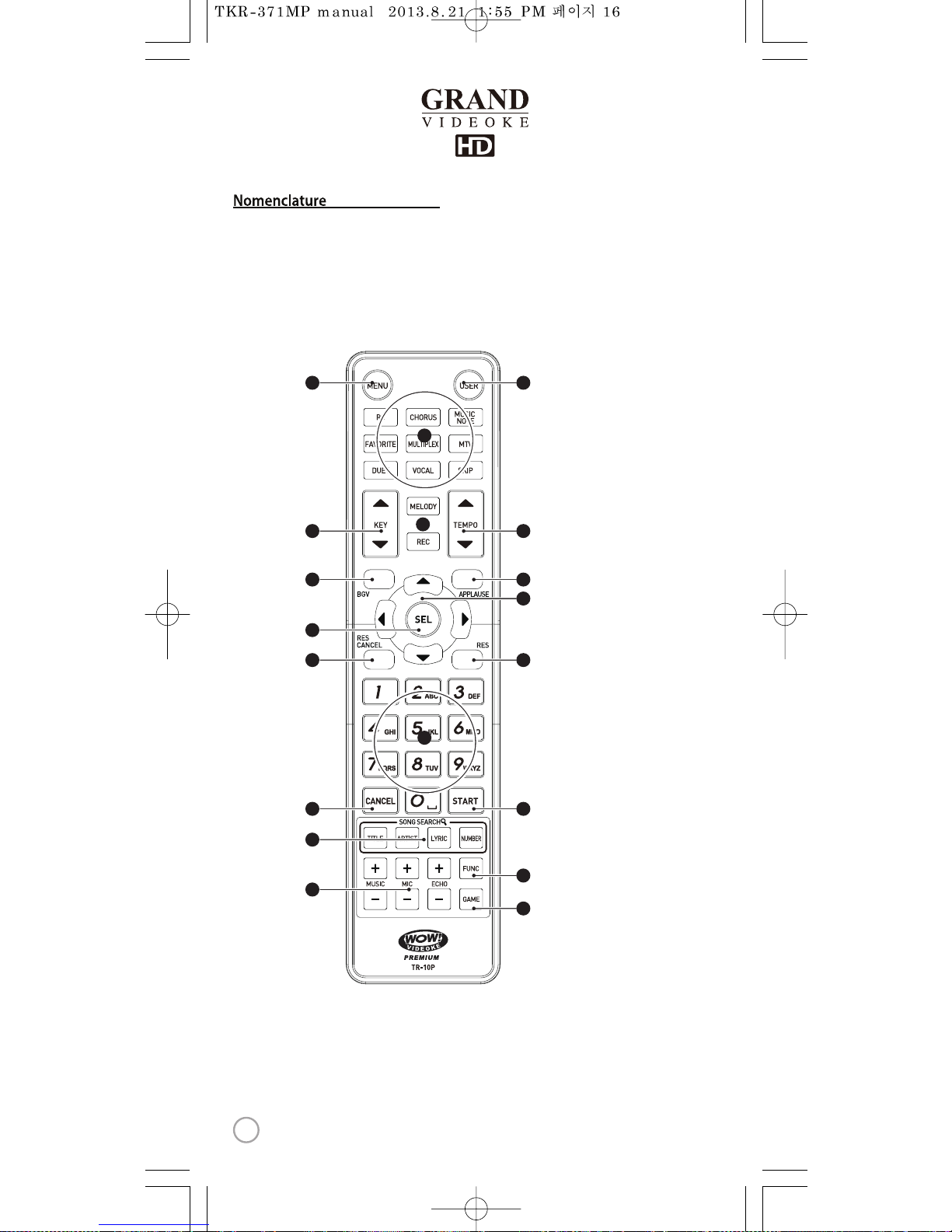

(RemoteControl)
3
6
8
9
21
4
7
12
11
15
17
19
14
16
18
10
5
13
16
www.wowvideoke.com

(RemoteControl)
NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
FUNCTION
MENU
USER
RS
CHORUS
MUSIC NOTE
FAVORITE
MULTIPLEX
MTV
DUET
VOCAL
SKIP
KEY ▲,▼
MELODY
REC
TEMPO ◀,▶
BGV
APPLAUSE
▲,▼,◀,▶
SEL
RES CANCEL
RES
NUMBER/TEXT
CANCEL
START
SONG SEARCH
FUNCTION
MUSIC/MIC/ECHO
GAME
SUBSTANCES
Menu display.
Select the user video & user MP3, Photo.
Display the list of RealSound songs.
Display the list of Chorus songs.
Display the list of Favorite songs.
Display the list of Multiplex songs.
Display the list of MTVsongs.
Display the list of Duet songs.
Vocal Assist -Vocal O -Vocal On.
Jump prelude or interlude,a tune, verse of a playingsong.
Microcontrol by single key step from a male or female standard key.
Control the speed of playing songs.
Select the background video.
Create a mood with applause eect.
Move up,down, left, right in the list or displayfunction.
Select.
Reservation cancel.
Reserve a song to play or Display the list of reserved song.
Number /Text.
Cancel.
Play, Pause.
Song search byTitle, Artist, Lyrics,Number.
View lyrics or help.
Control the volume of accompaniment,echo and microphone.
Game function.
Play(Music notedisplayon/o)
Standby(Displays the list of Music note songs)
Select the volume of melody playing.
(None - Low -Middle - High)
Record display or Start recording.
17
www.wowvideoke.com

(RemoteControl)

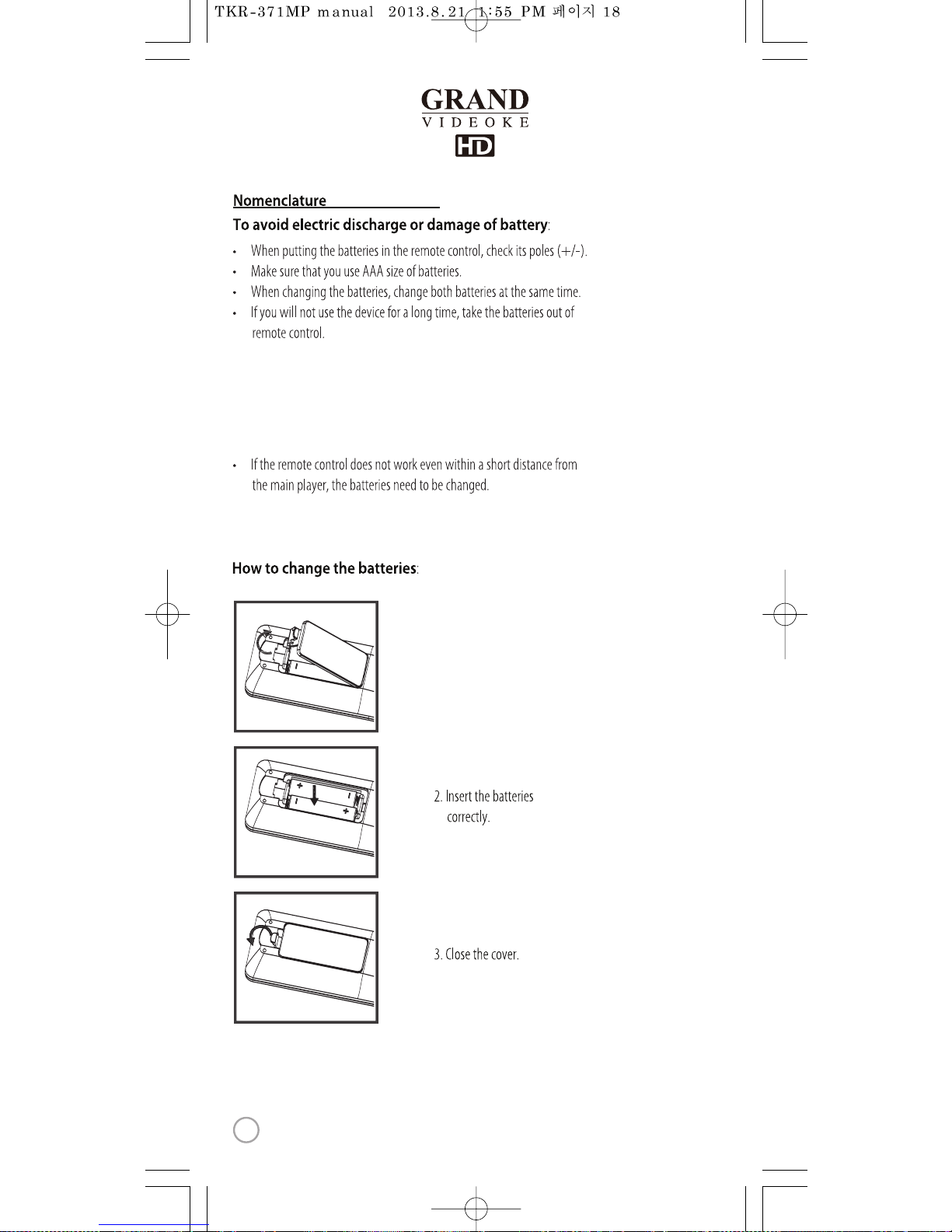

When to change the batteries(2 x AAA Batteries)
1. Pleasepull up to uncover.
18
www.wowvideoke.com

( Microphone )
microphone.
microphone
microphone
1. Please push down and
pull up to uncover.
19
www.wowvideoke.com

Please connect the main unit to theHDTV using an HDMI cableas shown in the
image below.
Main unit-HDTV connection
HD TV
TKR-371MP
HDMI
If a speaker system is available:
Please connect the audio output ofthemain unit tothe audio input ofthe
speaker system as shown in the image below.
HD TV
TKR-371MP
HDMI
AUDIO
R-AUDIO-L
20
www.wowvideoke.com
