Grandbeing MX0808-N50 User manual

Model No.: MX0808-N50
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.

Introduction
Grandbeing’s MX0808-N50 is an 8-by-8 HDMI in UTP & HDMI out matrix. It
allows any of the eight Input Channels(HDMI) to be routed to any of the eight
Output Channels(UTP&HDMI) simultaneously, no matter the source is HDCP
or not. Users can choose several different ways to control the matrix: by using
infrared extension receiver, RS232, RS485, and LAN and supplied remote
control. IR emitters in the matrix are for controlling the sources; the IR control
signal could be from remote locations when work with EX0101-N53.
The transmission distance of UTP outputs reaches up to 40 meters under the
video format of 1080P 24bit, together with infrared control signal.
MX0808- N50 offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.

Contents
HDMI Matrix ..........................................................................................................1
Product Overview..................................................................................................1
Features ................................................................................................................1
Package Contents.................................................................................................2
Panel Descriptions ................................................................................................3
Connections and Operations ................................................................................5
Operation...............................................................................................................6
1. Operation on Front Panel..................................................................................6
2. Control via IR remote. .......................................................................................7
3. Control via RS232. ............................................................................................7
4. LAN control......................................................................................................15
Specifications ......................................................................................................21
Typical Application...............................................................................................21
Maintenance........................................................................................................22
Product Service...................................................................................................22
Provided Service .................................................................................................22
Mail-In Service.....................................................................................................22
Warranty ..............................................................................................................23
Warranty Limits And Exclusions..........................................................................23

Page 1
HDMI Matrix (Routing Type)

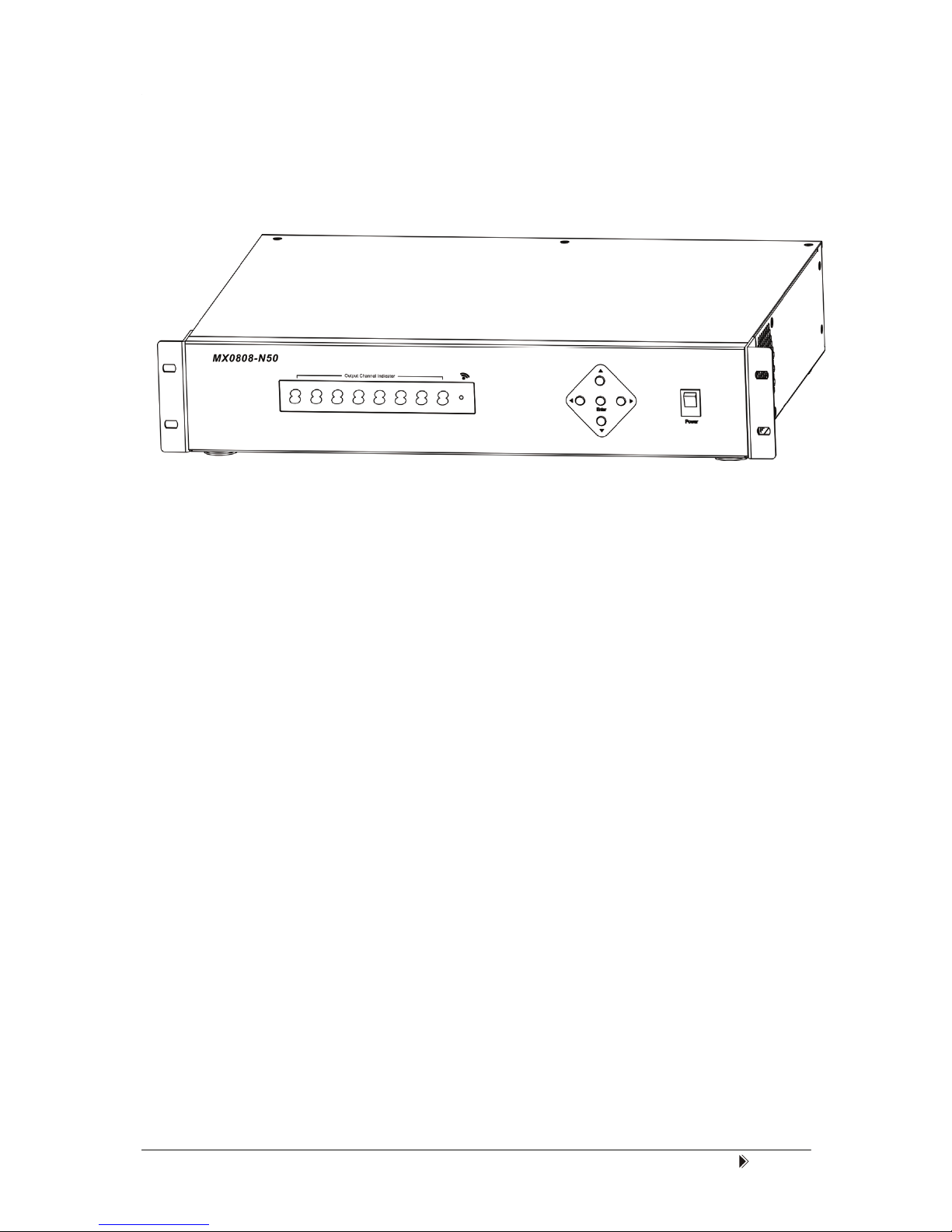

■Product Overview ( Model Number: MX0808-N50)
■Features
zAllows up to eight HDMI audio/video devices to be
independently switched to sixteen HDMI monitors, HDTV’s, or
projectors.
zThe eight output channels could show the same or different
source simultaneously no matter the source is HDCP or not.
zThe UTP Outputs must work with EX0101-N53 or other
specified UTP receiver.
zReading and saving EDID function from displays.
zSupport high definition resolutions, including 1080p, 1080i,
720p and other standard video formats.
zEach port supports both HDMI and DVI inputs.
zWith extra infrared extension receiver.
zSix switching modes: panel buttons, local IR, IR call back from
remote locations, RS232, RS485 and Ethernet.
zEight IR emitters to control the HDMI sources.
zHDCP compliant
zHDMI 1.4 with 3D

Page 2
"Notice
Grandbeing Inc. reserves the right to make changes in the
hardware, packaging and any accompanying documentation
without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
p
lu
g
s.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Page 3
■Package Contents
①1x Main unit. P/N_MX0808-N50.
②1x Remote. (One for main unit, others for IR calls back control from UTP receiver).
③ 1x IR RX (IR receiver cable).
④ 8x IR TX (IR emitter cable).
⑤ 8x IR RX (Broadband IR receiver cable 30KHz-50KHz).
⑥ 1x USB to UART cable.
⑦1x RS232 to RS485 converter.
⑧ 1 x 100~240V AC Power cable.
⑨Operating Instructions. P/N_INS MX0808-N50.
⑩ Mounting ears.
⑪ Stylus.
NOTE: PART NUMBER (Abbreviation as P/N).
■Panel Descriptions

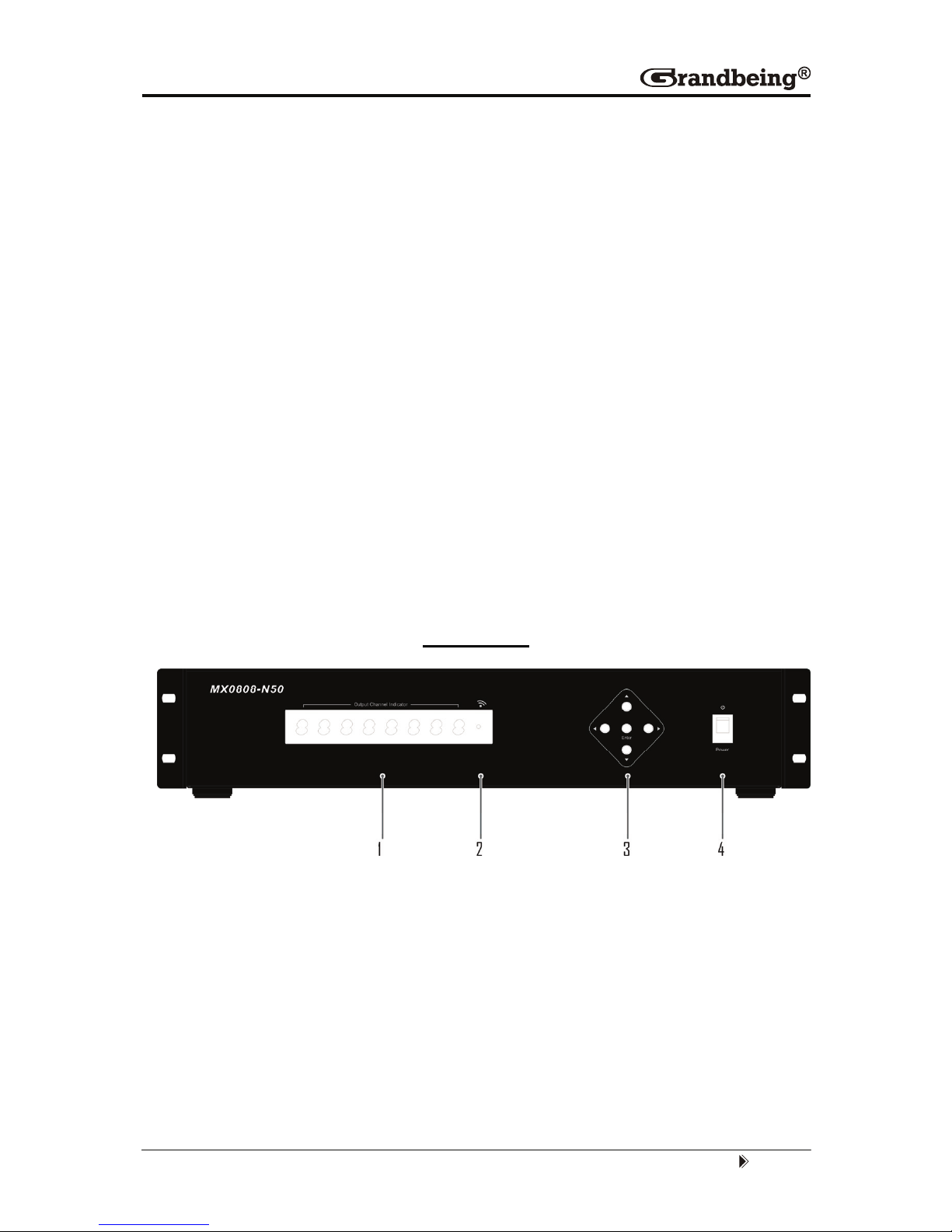

Front Panel
① LED indicator of input for output port 1 to 8.
② IR receive window.
③ Select and Enter Buttons.
④ Power switch.

Page 4

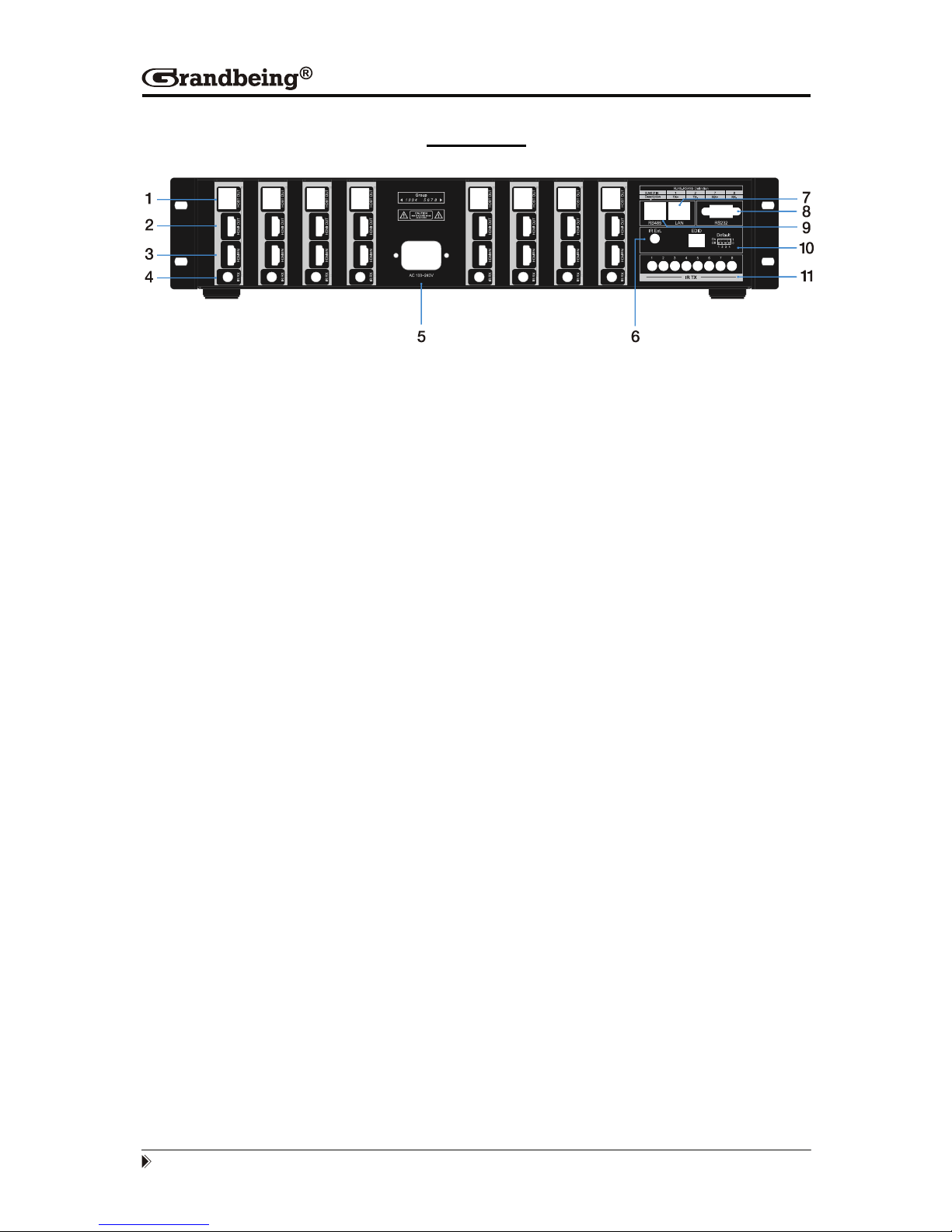

Rear Panel
① UTP Output.
② HDMI Output.
③ HDMI Input
④ IR RX, corresponding to the Input port from 1 to 8
⑤Power input.
⑥IR extension.
⑦LAN port.
⑧RS232 port.
⑨ RS485 port.
⑩ DIP for Matrix Setting.
⑪ IR emitter, corresponding to the Input port from 1 to 8
NOTE: RS232 port and LAN port are for matrix control. The LAN port is connected to the computer
via cross UTP and connected to the router or switcher via direct UTP.

Page 5
■Connections and Operations
1) Connect the HDMI input source ( such as HD-DVD/ PS3 /STB etc.)Into
MX0808- N50.
2) Connect HDMI OUT of MX0808- N50 to display equipment.
3) Connect UTP OUT of MX0808- N50 to UTP IN of EX0101-N53.
4) Connect HDMI OUT of EX0101-N53 to display equipment ( such as:
HD-LCD/HD-DLP )
5) Connect the Broadband IR receive cable into MX0808- N50 IR RX ports
and EX0101-N53 IR RX port.
6) Connect the IR emitter cables into MX0808- N50 IR emitter ports and
EX0101-N53 IR TX port.
7) Power on the input source you want to show. ( Keep the unused input
power off, otherwise it may interfere the normal display).
8) Plug the power cable into MX0808- N50.
9) Turn on the power, when the LED panel stops flashing circularly, the
initialization of the matrix are ready.
10) Turn on the displays you want to watch.
11) Use the remote to control the matrix, or using Front Panel, RS232, RS485
and LAN port to control.

Page 6
■Operation
1. Operation on Front Panel.
First: Press the ‘Left’ or ‘Right’ Button to select Output Channel, the corresponding LED of the
Output Channel will blink slowly.
Second: Press ‘Up’ or ‘Down’ Button to choose the desired Input Channel.
Third: Press the ‘Enter’ button to confirm the action. Then the LED stops blinking.

Page 7

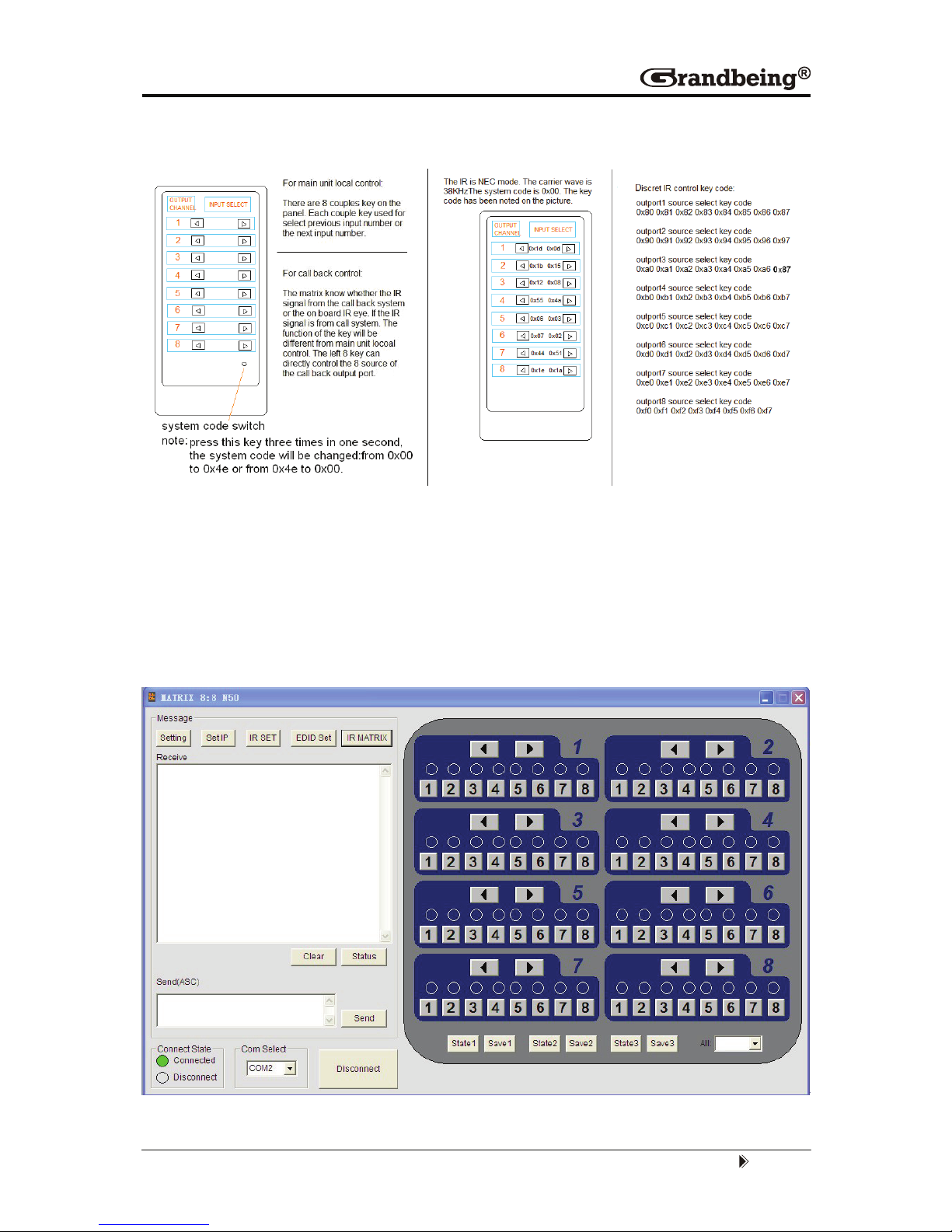

2. Control via IR remote.
NOTE: if the IR remote isn’t work, please press the” system code switch key”, but please do not put
the remote against the MX0808-N50.
3. Control via RS232.
1) The Interface of MX0808- N50 comctl

Page 8
2) The Message Window
2.1) Receive Window
The “receive window” will show the message received from MX0808. When you click the Control
Buttons ( see step 4) or send Control Command ( see 2.3) to MX0808, it will send out the
message about “operation results” as below:

Page 9

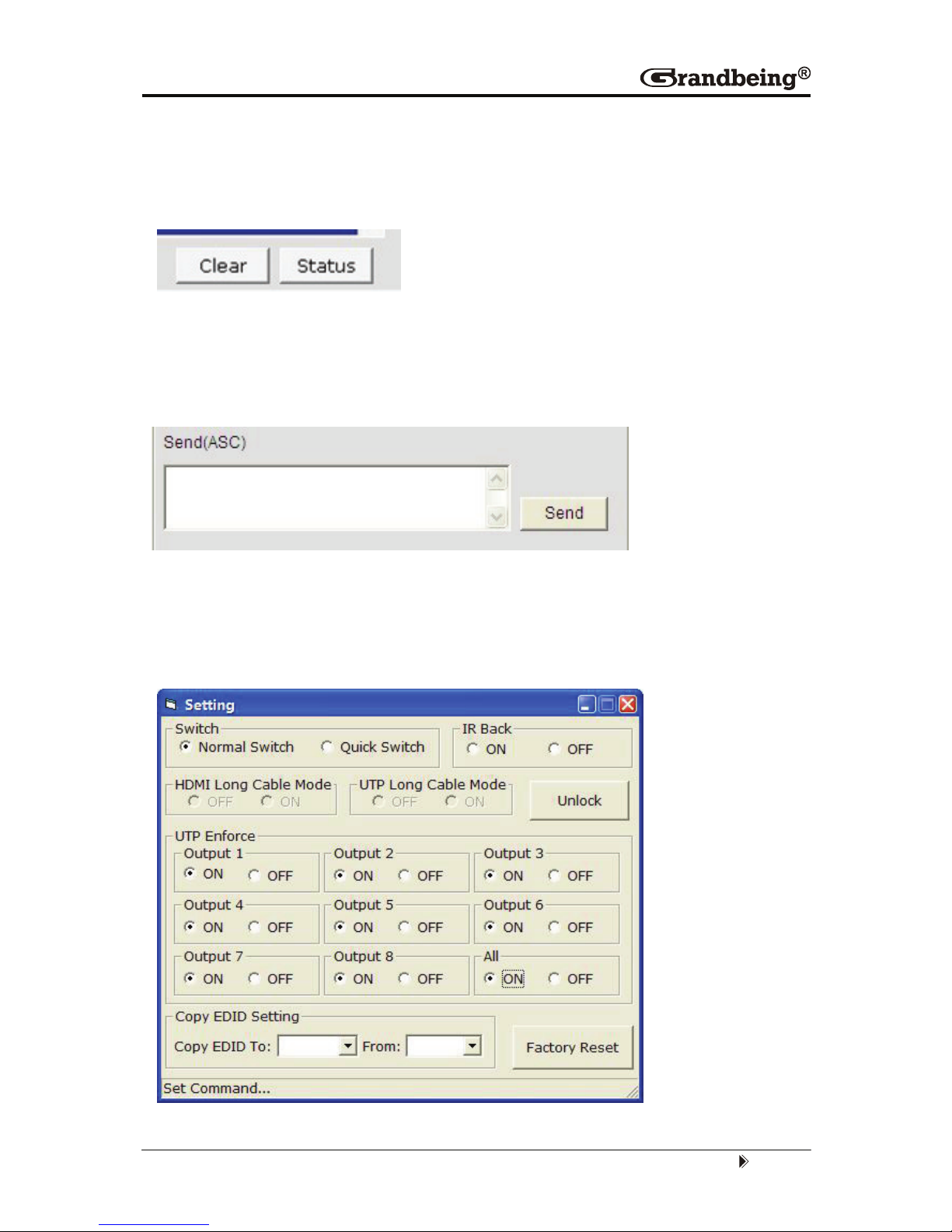

2.2) Status Button
Click this button to read the status of MX0808. The status is about which input is selected by the
output.
2.3) Send Window
Input the control command in this window. The control command use ASCII.
2.4) Setting Button
Click this button to enter Setting menu, MX0808-N50 only use Switch/IR Back/EDID Setting/
Copy EDID Setting.

Page 10

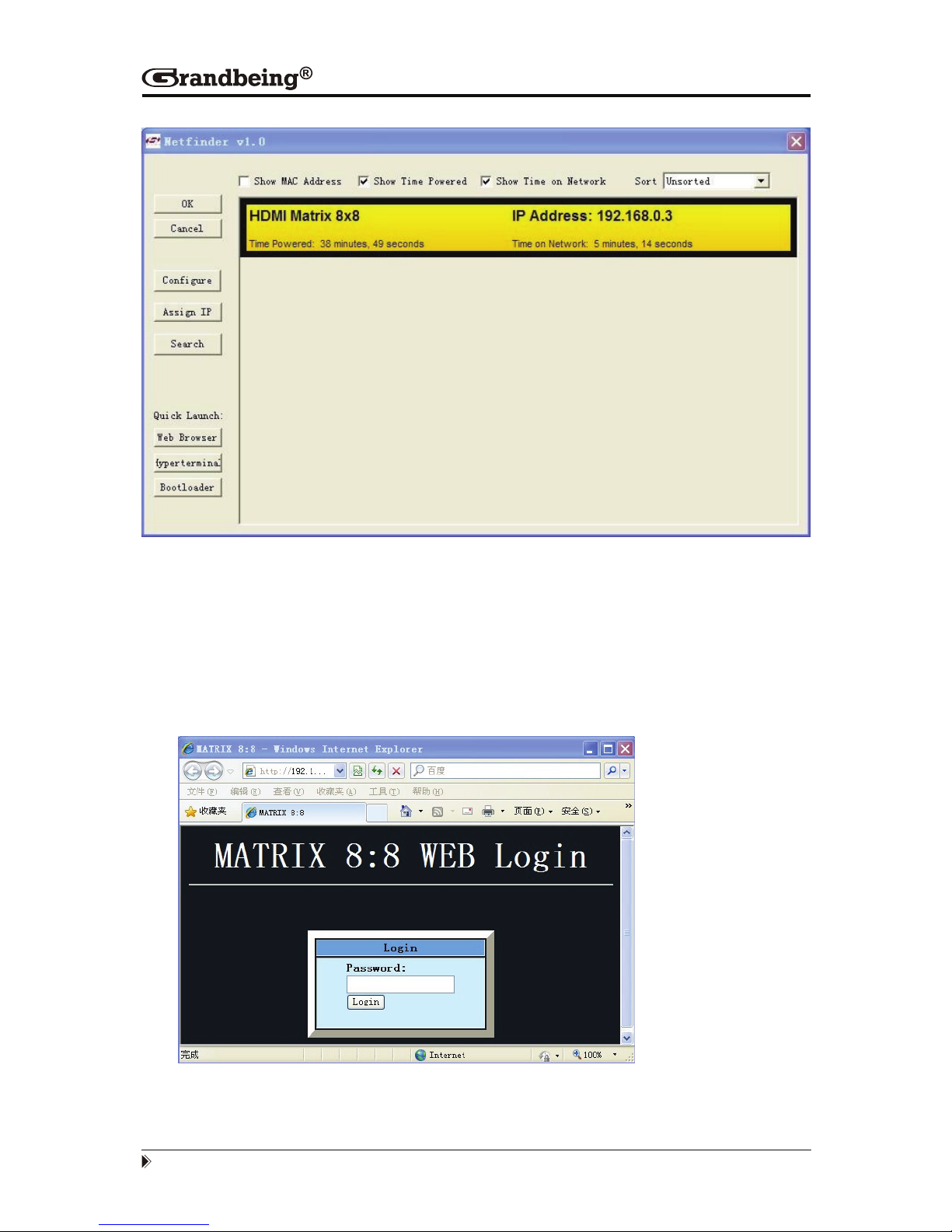

2.5) Set IP Button
Click this button to set IP address for LAN control (for example: 192.168.0.3).
2.6) IR Set button
Click this button to set IR code for remote control. The device will enter ire set mode.
You can edit your ire code in this mode.
Step:
"1, Read the ire code first by pressing "Read Code” button.
"2, Select the code with cursor which you want to change.
"3, Press the button on your remote control with the remote against to the device. And the
selected code will change to this button code.
"4, when you finish it, click the "write code" button. It will write the new code onto device.
"5. Close the IR Code setting window. The device will enter normal mode from IR setting
mode.
Notices: All the codes have to be filled in and no blank is allowed. The same data codes are not
allowed, and every data code should be different.

Page 11
2.6.1) Read Code button
Click this button to take out the current ire code form the device
2.6.2) Write Code button
Click this button to write the codes onto the device.
2.7) EDID Set button
Select the Output Port in “Port Select” column, click “Read EDID” button to get EDID from display
equipment.
Select the Input Port in “Port Select” column, click “Download” button to set EDID of this Input
Port the same as display equipment.
Click “Save as” button to save EDID read from display equipment as “*.bin” file.
Click “Open EDID” button to open saved “*.bin” file, select the Input Port in “Port Select” column,
click “Download” button to set EDID of this Input Port the same as “*.bin” file.

Page 12
2.8) IR MATRIX button
IR MARTIX function is available when MX0808- N50 UTP OUT connect to EX0101-N53
Each blue column stand for an EX0101-N53’s IR TX Port, click the button to select Input’s IR RX
Port.
Use the drop-down menu to set all EX0101- N53’s IR TX Port to one Input’s IR RX Port.
Click the “Status” button to view current IR MARTIX.
3) The Com Status

Page 13
3.1) connect state.
Connect state shows the com open or not. If it is open, the state is green. Otherwise, the state is
red.
3.2) com select.
ÆSelect which com you will use.
ÆConnect button.
The word on this button will change when the connection state changes. If the word is
“Disconnect”, then click this button, the com will be closed. If the word is “Connect”, then click this
button, the com will be opened.
4) Control command format
If user want to write his own control software, below are data format and baud rate setting.
Com port setting:
Baud Rate: 9600 bps
Data bits: 8 bits
Parity: None
Stop bits: 1 bit
Flow control: None

Page 14
The command format as follow:
Cir + ‘_’ + code + ‘ ’↙
“Cir” is the key word, ‘_’ is Space, “Code” is the Control code, and ‘↙’ is carriage return. For
example:
“Cir 39↙” (hex: 63 69 72 20 33 39 0D 0A), when the MX0808 received this command, it will
change the Outport4 status to the next input port. ( “c”-0x63,”I”-0x69,”r”-0x72,”
“-0x20,”3”-0x33,”9”-0x39, ‘↙’-0x0d0a)
5) Control code (MX0808- N50)
Outport1 <“08” >“09”
1“00” 2“01” 3“02” 4“03”5“04” 6“05”7“06”8“07”
Outport2 < “18” > “19”
1 “10” 2 “11” 3 “12” 4 “13”5“14” 6“15”7“16”8“17”
Outport3 < “28” > “29”
1 “20” 2 “21” 3 “22” 4 “23”5“24” 6“25”7“26”8“27”
Outport4 < “38” > “39”
1 “30” 2 “31” 3 “32” 4 “33”5“34” 6“35”7“36”8“37”
Outport5 <“48” >“49”
1“40” 2“41” 3“42” 4“43”5“44” 6“45”7“46”8“47”
Outport6 < “58” > “59”
1 “50” 2 “51” 3“52” 4 “53”5“54” 6“55”7“56”8“57”
Outport7 < “68” > “69”
1 “60” 2 “61” 3“62” 4 “63”5“64” 6“65”7“66”8“67”
Outport8 < “78” > “79”
1 “70” 2 “71” 3 “72” 4 “73”5“74” 6“75”7“76”8“77”

Page 15
When you send a control command to the MX0808, if succeed, it will feedback current output
port status to show which input port is selected. The return status format is as follows:
For example, if you send “cir 44↙” to MX0808,if succeeds, it will feedback “s55\r\n”, meanings
Output5 selects Input5.
6) Read Status Command
The command length is 4 bytes.
bc + ‘_’ + ‘ ’↙
“bc” is the key word, ‘_’ is Space, ‘ ’ is carriage return.↙
When you send the read status command to MX0808, if succeeds, it will feedback the status of
all outputs. When you send “bc” to MX0808, if succeed, it will feedback the current status of
MX0808.
For example, if you send "bc ↙"to MX0808,if succeeds, it will feedback
"s11\r\n" ,"s22\r\n" ,"s33\r\n" ,"s44\r\n" ,"s55\r\n" ,"s66\r\n" ,"s77\r\n" ,"s88\r\n". it means that
the output 1 select the input 1, the output 2 selects the input 2, output 3 selects the input3,
output 4 selects the input 4, output 5 selects input 5, the output 6 selects the input 6, the output
7 selects the input 7, the output 8 selects the input 8.
7) Web password reset
The command length is 4 bytes.
rpw+ ‘↙’
“rpw” is the key word , ‘↙’ is carriage return.
When you send the Web password reset command to MX0808, if succeed, it will feedback
"rpw", and the web password will be set as "0000000000".
4. LAN control
Note: Use the direct UTP cable to connect with PC, or use cross cable to connect to the
Ethernet switcher
A. Double click Netfinder.exe. Click “Search” button to get the device IP address.

Page 16
B. Click “Web Browser” button. A web browser will be shown. The default password is
"0000000000", input the password and login. The device controller page will be
displayed.

Page 17
The right area is for device controlling. Click these buttons to control the device. It is the same as
using the remote controller. The left area shows which input ports are being chosen by the output
ports.
C. Telnet Control
Telnet matrix’s IP address
Now you can control the matrix (Page 14: Control command format)
