OUTDOOR RADIANT HEATER
OWNER’S MANUAL
Ver. 03.2015

1
NOTE TO INSTALLER
This manual must remain with heater. An installer-supplied gas shut-off valve must be installed in an easily accessible
location. Outdoor installations must conform to local codes or, in the absence of local codes, with EN498 & AS4565 as
well as the requirements of any local council, gas, electricity authority or other statutory regulation. Spanner tightens all
gas fittings as per instructions.
A MESSAGE TO OUR CUSTOMERS
Thank you for selectingA GRANDFIRE Patio Heater.
Your grill has been designed and built with meticulous attention to detail and it offers unique and powerful features.
We have developed this Users’ Manual to assist you on use and maintenance. It contains valuable information on
how to properly install, operate and maintain your new appliance for optimum safety and performance.
Thanks again for your choice. Enjoy!
GUIDANCE FOR ASSEMBLY & OPERATION INSTRUCTION
This guidance is mainly based on standards: EN14543:2005+A1 & AS4565:2004+A1:2011.
This guidance indicates both mandatory and suggestive clauses which will be indentified in the following text:
EN14543:2005+A1: 2007: Specification for dedicated liquefied petroleum gas appliances -Parasol patio heaters -
flue less radiant heaters for outdoor or amply ventilated area use.
AS4565:2004+A1:2011

2
ASSEMBLY&OPERATIONINSTRUCTION
If You Smell Gas
Shut off gas to the appliance.
Extinguish any open flame, avoid using any
electrical appliance.
Ventilate the area.
Check gas connections with soap solution.
If odor still exists, immediately call your gas
supplier or your fire department.
Read the instructions before using the
appliance.
Only to be used outdoors
Do not move the appliance during use
Any modification of the appliance may be
dangerous
Parts sealed by the manufacturer or his
agent must not be altered by the user.
Hazardous fire or explosion may result if these
instructions are ignored.
It is the user’s responsibility to see that this appliance
is properly assembled, installed, and taken care of.
Failure to follow instructions in this manual could
result in serious bodily injury and/or property damage.
Any modification of the appliance, misuse, or failure to
follow the instructions may be dangerous and will
invalidate your warranty.
PRIOR TO USE:
DANGER:
IMPORTANT:
Accessible parts may be very hot. Keep
young children away.
Do not store or use petrol or other
flammable vapor or liquids in the vicinity
WARNING:
Manufactured in China
Hauland Limited
1b Douglas Alexander Parade, Albany, Auckland
PO Box 305 308 Triton Plaza,
North Shore 0757, New Zealand
Tel: 64 9 415 9939 / 0800 BUFFALO
Fax: 64 9 415 9935
Web: www.hauland.co.nz

3
TABLE OF CONTENTS
Information…………………………………………………………………………………………………………………4
Important Safeguards……………………………………………………………………………………………………..5

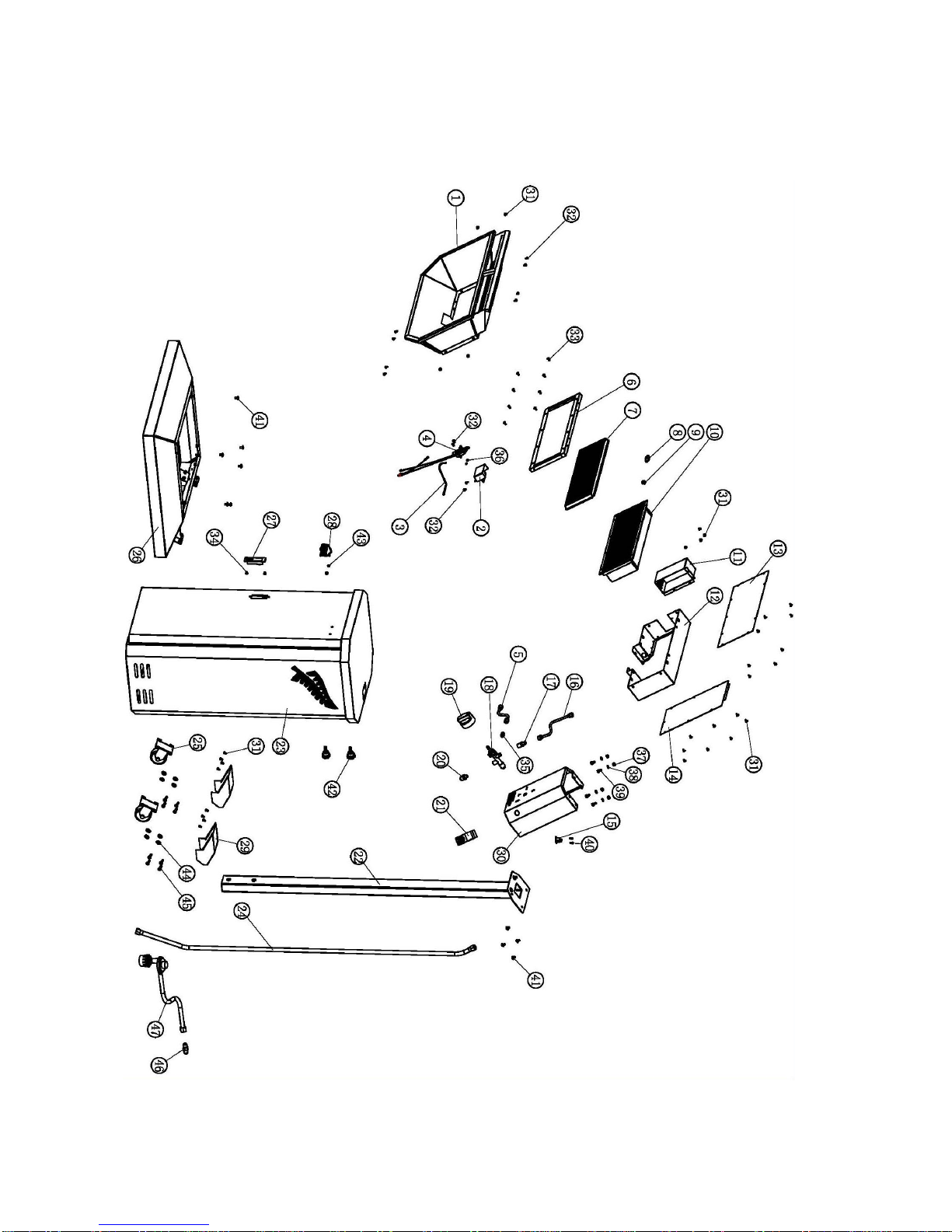

Exploded View & Parts list ………………………………………………………………………………………………8
Locating Your Appliance……………………………………………………………………...…………………………12
Assembly Instruction……………………………………………………………………………………………….14
Installing LP Gas Tank………………………………………………………………………………………………16
Operating Instructions………………………………………………………………………………………………….…17
Checking for Leaks…………………………………………………………………………………………………..17
Before lighting………………………………………………………………………………………….……………17
Lighting………………………………………………………………………………………………………………18
When Heater is ON…………………………………………………...……………………………………………18
Cleaning and Care………………………………………………………………………………………………………....19
Cleaning Surfaces……………………………………………………………………………………………………19
Maintenance…………………………………………………………………………………………………………19
Storage………………………………………………………………………………………………………………20
Heating Features…………………………………………………………………………………………………….……21
Benefits……………………………………………………………………………………………………………………21
Specifications…………………………………………………………………………………………………………….22
Patio Heater V.S. Radiant Heater…………………………………………………………………………………………22
Troubleshooting…………………………………………………………………………………………………………..23
Limited Warranty…………………………………………………………………………………………………………25
For customer Reference…………………………………………………………………………………………………..26
For More Information…………………………………………………………………………………………….………26
The use and installation of this product must conform to local codes. In absence of local codes use the National Fuel Gas
Code, EN14543:2005+A1: 2007 and AS 4565-2004, Radiant gas heaters for outdoor and non-residential indoor use.
Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or
her to read and same for future reference.
Manufactured in China for:
Hauland Limited.
DANGER
CARBON MONOXIDE HAZAED
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed space
can kill you.
Never use this appliance in an
enclosed space such as a
camper, tent, car or home.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Read the installation, operation, and maintenance
instruction thoroughly before installing or service
this equipment.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
WARNING
FOR YOUR SAFETY:

4
INFORMATION
Table 1:
Model
Injector Size (mm)
Qn (Kw)
∑Qn (g/h)
I3B/P(30)
I3B/P(50)
BPH-100
1.0
0.9
4.2
306
BPH-200
1.2
1.05
6.4
466
Model
Injector Size (mm)
Total (MJ/h) For
ULPG
Total (MJ/h) For
PROPANE
ULPG
PROPANE
BPH-100d
1.05
1.1
14.5
15
BPH-200
1.3
1.3
21.5
21.5
According to the CE requirements, please do not tamper with or modify regulator. Use only regulator which supply the
pressure listed in the tables above. A regulator of 30 mbar must be used for butane or a 50 mbar regulator for propane.
This appliance must be installed and the gas cylinder stored in accordance with the regulations in force.
Manufacturer
HAULAND LIMITED
Product Name
GRANDFIRE
Model Number
BPH-100d (BPH-100)/BPH-200
Cat
I3B/P(30)
I3B/P(50)
ULPG
Propane
Country code
BE, CY, DK, EE, FR,
GB, HU, IT, LT, NL,
NO, SE, SI, SK, RO,
HR, TR, BG, IS, LU,
MT, FI
AT, CH, DE, SK
Australia and New
Zealand
Australia
Gas Type and Pressure
G30 Butane and G31
Propane at 30mbar
G30 Butane and G31
Propane at 50mbar
Butane, Propane,
and Butane/Propane
Mixture at 2.75kPa
Propane at 2.75kPa
Nominal heat input
Qn = See Table 1
Total Heat Input
∑Qn = See Table 1
Electrical Supply
CAUTION:
USE OUTDOORS ONLY
READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE
MADE IN CHINA
WARNING:
ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY

5
IMPORTANT SAFEGUARDS
DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or
death, or in a fire or an explosion causing damage to property.
WARNING:
This heater is for outdoor use only, and shall not be
used in a building, garage, or any other enclosed are.

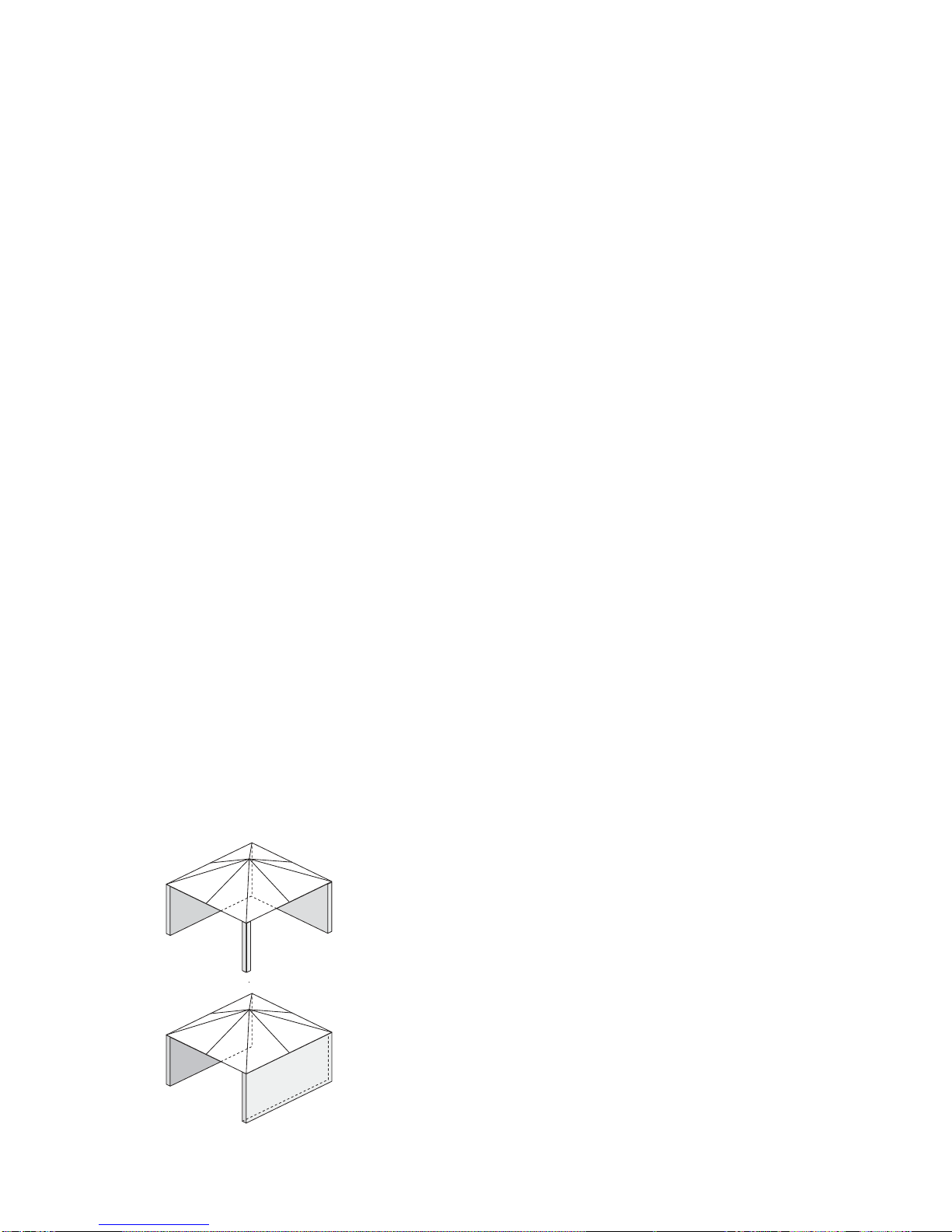

Always maintain at least 1500 mm clearance (top),
750 mm clearance (rear) and 750 mm clearance (side)
from combustible materials.
This heater is for use with liquid propane (LP) gas
only. The conversion to or attempted use of natural
gas in this LP gas heater is dangerous and will void
your warranty.
LP Gas Characteristics:
a) LP gas is flammable and hazardous if handled
improperly. Become aware of the characteristics
before using any LP gas product.
b) LP gas is explosive under pressure, heavier than
air, and settles and pools in low areas.
c) LP gas in its natural state has no odor. For your
safety, an odorant is added that smells like rotten
cabbage.
d) Contact with LP gas can cause freeze burns to
skin.
LP gas tank needed to operate. Only tanks marked
“propane” maybe used.
The LP gas tank must be constructed and marked in
accordance with the Specifications for LP gas
Cylinder to the A.U. standards.
LP gas tank must be arranged for vapor withdrawal.
The LP gas tank must have a listed overfilling
prevention device (ODP)
Only use 20-pound cylinders equipped with a
cylinder connection device compatible with
connection for outdoor cooking appliances.
The LP gas tank must have tank collar to protect the
tank valve.
Never use an LP gas tank with a damaged body,
valve, collar, or footing.
Dented or rusted LP gas tanks may be hazardous and
should be checked by your LP gas supplier prior to
use.
The LP gas tank should not be dropped or handled
roughly.
Tanks must be stored outdoors out of the reach of
children and must not be stored in a building garage
or any other enclosed area. Your tank must never be
stored where temperature can reach over 52℃
(125℉).
Never keep a filled LP gas tank in a hot car or car
trunk. Heat will cause the gas pressure to increase,
which may open the relief valve and allow gas to
escape.
Do not store a spare LP gas tank under or near this
appliance.
Never fill the tank beyond 80 percent full.
Never attempt to attach this heater to the
self-contained LP gas system of a camper trailer,
motor home, or house.
The use of alcohol, or prescription or
non-prescription drugs may impair the consumer’s
ability to properly assemble or safely operate the
appliance.
If You Smell Gas
Shut off gas to the appliance.
Extinguish any open flame, avoid using any
electrical appliance.
Open lid and ventilate the area.
Check gas connections with soap solution.
If odor still exists, immediately call your gas
supplier or your fire department.
DANGER:
For Your Safety:
Do not store spare LP cylinder within 10 feet
(3.05m) of this appliance.
Do not store or use gasoline or other flammable
vapors and liquids within 25 feet (7.62m) of this
appliance or any other appliance.
An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING

6
Your heater connections have been checked at the
factory for leaks. Recheck all connections, as
movement in shipping can loosen.
Check for leaks even if your unit was assembled for
you by someone else.
Do not operate if gas leak is present. Gas leaks may
cause a fire or explosion.
You must follow all leak-checking procedures before
operating. To prevent fire or explosions when testing
for a leak:
1. Always perform leak test before lighting the
heater and each time the tank is connected for
use.
2. No smoking. Do not use or permit sources of
ignition in the area while conducting a leak test.
3. Conduct the leak test outdoors in a
well-ventilated area.
4. Do not use matches, lighters, or any flame to
check for leaks.
5. Do not use heater until any and all leaks are
corrected.
If you are unable to stop a leak, disconnect the
LP gas supply. Call a gas appliance serviceman
or your local LP gas supplier.
Do not store or use gasoline or other flammable
liquids or vapors within 25 feet (7.62m) of this
appliance.
Do not use in an explosive atmosphere. Keep heater
area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
Keep all combustible items and surfaces away from
the heater at all times. Do not use this heater or any
gas product under any overhead or near any
unprotected combustible constructions.
Combustion of propane creates carbon monoxide,
which, when used in enclosed areas, can kill you.
It is essential to keep the heater’s valve compartment,
burners, and circulating air passages clean. Inspect
heater before each use.
Installation and repair should be done by a qualified
service person.
Do not alter heater in any manner.
Do not use the heater unless it is completely
assembled and all parts are securely fastened and
tightened.
This heater should be thoroughly inspected before
each use. Clean and inspect the hose before each use
of the appliance. If there is evidence of abrasion,
wear, cuts, or leaks, the hose must be replaced prior
to the appliance being put into operation.
Only for EU countries the regulator and hose are not
included in the grill package, should purchase it
from local store; but for AU they will be included in
the grill package.
Inspect heater before each use. If a damaged part is
detected, do not operate until an original equipment
part has been properly installed.
Use only Hauland Limited authorized parts. The use
of any part that is not factory authorized can be
dangerous. This will also void your warranty.
Top square lid and burner are extremely hot to touch
during operation. Never touch the lid or burner while
the heater is operating. Wait for unit to cool down
(approximately 45 minutes) after use.
During operation, do not touch burner assembly. The
surface of heater’s emitter can reach temperatures
approaching 870℃(1600℉).
Do not install or use in or on boats or recreational
vehicles.
Do not use heater in winds that exceed 10M.P.H..
Unit will operate at reduced efficiency below
5℃(40℉)
Do not leave a lit heater unattended, especially keep
children and pets away from heater at all times.
Always use extreme caution when near heater. Alert
both children and adults to the hazards of high
temperatures to avoid burns or clothing catching fire.
Do not attempt to move heater when in use.Allow
the heater to cool before moving or storing.
Storage of heater indoor is permissible only if the
tank is disconnected, removed from the heater and
properly stored outdoors.
Do not attempt to disconnect the gas regulator from
the tank gas fitting while the heater is in use.
Always place your heater on a hard, level surface.
Use extreme caution on wooden decks.
Move gas hoses as far away as possible from hot
surfaces.
Keep all electrical cords away from a hot heater.
Do not use heater for indoor cooking or heating.
TOXIC fumes can accumulate and cause
asphyxiation.

7
Keep sprinklers and other water sources away from
burner and controls.
Do not hang clothing or other flammable materials
either on or near heater.
Always allow heater to cool before attempting
service.
Any guard or other protective device removed for
servicing the heater must be replaced prior to
operating the heater.
Certain materials or items, when stored under heater,
will be subjected to radiant and could be seriously
damaged.
After a period of storage and/or nonuse, check for
leaks, burner obstruction and inspect for any
abrasion, wear, cuts to the hose.
If at any time you are unable to light the burner and
smell gas, wait 5 minutes to allow gas to dissipate
before attempting to light again.
Failure to not wait 5 minutes to allow the gas to
clear if the heater does not light, may result in an
explosive flame-up.
Be careful when attempting to manually ignite this
heater. Holding in the control knob for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
Avoid inhaling fumes from the heater’s first use.
Smoke and odor from the burning of oils used in
manufacturing will appear. Both smoke and odor
will dissipate after approximately 30 minutes. The
heater should NOT produce thick black smoke.
If heater is not in use, the gas must be turned off at
the supply tank.
Do not use this appliance without reading
“Operating Instruction” in this manual.
Deaths, serious injury or damage to property may
occur if the above is not followed exactly.
This appliance is not designed for marine use, and
shall not be installed on a boat or any marine craft.
Do not place articles on or against this appliance.
Do not use or store flammable materials near this
appliance.
Do not spray aerosols in the vicinity of this
appliance while it is in operation.
Children and adults should be alerted to the hazards of high surface temperatures, burners and clothing
ignition.
Young children should be carefully supervised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung from the appliance, or placed on or near the
appliance.
Any guard or other protective device removed for servicing the appliance must be replaced prior to
operating the appliance.
Installation of appliances fitted to fixed gas supply systems and repair of all appliances must be carried
out by a qualified service person.
The recommended period between inspections period by a qualified service person.
A statement that more frequent cleaning may be required as necessary.
A statement that it is imperative that control compartment, burners and circulating air passageways of
the appliance be kept clean.
WARNING!

8
EXPLODED VIEW
Model: BPH-100d

9
PARTS LIST
Model: BPH-100d (BPH-100)
ITEM PART NO DESCRIPTION BPH-100d
1 BPH100dP01 TOP REFLECTOR X
2 BPH100dP02 IGNITER PROTECTOR X
3 BPH100dP03 IGNITER WIRE 320mm X
4 BPH100dP04 IGNITION DEVICE X
5 BPH100dP05 FLEX TUBE - PILOT 325mm X
6 BPH100dP06B COVER ASSEMBLY FOR INFRARED BURNER X
7 BPH100dP07 WIRE MESH X
8 BPH100dP08 INJECTOR X
—Φ1.0
I3B/P(30)
—Φ0.9
I3B/P(50)
—Φ1.05 ULPG
—Φ1.1
PROPANE
9 BPH200P09 FIXING NUT(BRASS) X
10 BPH100dP10 INFRARED BURNER ASSEMBLY X
11 BPH100dP11 SIDE COVER X
12 BPH100dP12 REAR TOP SHELL X
13 BPH100dP13 REAR COVER FOR INFRARED BURNER ASSEMBLY X
14 BPH100dP14 REAR COVER FOR CONTROL BOX X
15 BPH100dP15 ANTI-TIP DEVICE X
16 BPH100dP16 FLEX TUBE 500mm X
17 BPH100dP17 OUTLET ADAPTER X
18 BPH100dP18 GAS VALVE W/ SAFETY DEVICE X
19 BPH100dP19 CONTROL KNOB X
20 BPH100dP20 INLET ADAPTER X
21 BPH100dP21 IGNITER STARTER X
22 BPH100dP22a SS SUPPORT 977mm X
23 BPH100dP23 CABINET X
24 BPH100dP24 HOSE 1150mm X
25 BPH100dP25 WHEELS X
26 BPH100dP26 PEDESTAL ASSEMBLY X
27 BPH100dP27 DOOR LOCKER X
28 BPH100dP28 BUFFALO LOGO X
29 BPH100dP29 PROTECTIVE HOUSING X
30 BPH100dP30 CONTROL HOUSING X
31
PHILIPS BIG FLAT HEAD SCREW M4*8 X
32
CROSS RECESS PAN HEAD SCREW M4*8 X
33
PHILIPS BIG FLAT HEAD SCREW M4*10 X
34
CROSS RECESS PAN HEAD SCREW M4*6 X
35 BPH100dP35 CONNECTOR FOR PILOT AND VALVE X
36
HEXAGON NUT M4 X
37
HEXAGON NUT M6 X
38
TAPER LOCK WASHER 6X
39
HEXAGON BOLT M6*10 X
40
CROSS RECESS PAN HEAD SCREW M3*10 X
41
PHILIPS BIG FLAT HEAD SCREW M6*10 X
42 BPH100dP23
STAR' BOLT M8*16 X
43
FLANGE NUT M4 X
44
BIG FLAT WASHER 6X
45
HEXAGON BOLT M6*16 X
46 BPH100dP46 LP FITTING X
47 BPH100dP47 LP REGULATOR (T-2A) X

10
EXPLODED VIEW
Model: BPH-200

11
PARTS LIST
Model: BPH-200
ITEM PART NO DESCRIPTION BPH-200
1 BPH200P01 TOP REFLECTOR X
2 BPH100P06 IGNITER PROTECTOR X
3 BPH100P09 IGNITER WIRE X
4 BPH100P04 IGNITION DEVICE X
5 BPH100P05 FLEX TUBE- PILOT X
6 BPH200P10A COVER ASSEMBLY FOR INFRARED BURNER X
7 BPH200P10B WIRE MESH X
8 BPH200P08 INJECTOR X
—Φ1.2
I3B/P(30)
—Φ1.05
I3B/P(50)
—Φ1.3 ULPG
—Φ1.3
PROPANE
9 BPH200P09 FIXING NUT(BRASS) X
10 BPH200P10 INFRARED BURNER ASSEMBLY X
11 BPH200P11 SIDE COVER X
12 BPH200P12 REAR TOP SHELL X
13 BPH200P13 REAR COVER FOR INFRARED BURNER ASSEMBLY X
14 BPH200P14 REAR COVER FOR CONTROL BOX X
15 BPH100P13 ANTI-TIP DEVICE X
16 BPH200P16 FLEX TUBE 500mm X
17 BPH100P15 OUTLET ADAPTER X
18 BPH100P16 GAS VALVE W/ SAFETY DEVICE X
19 BPH100P18 CONTROL KNOB X
20 BPH100P19 INLET ADAPTER X
21 BPH100P17 IGNITER STARTER X
22 BPH200P22 SS SUPPORT X
23 BPH200P24 TANK BASE X
24 BPH100P21 HOSE 1400mm X
25 BPH100P25 WHEELS X
26 BPH200P26 PEDESTAL ASSEMBLY X
27 BPH100P11 DOOR LOCKER X
28 BPH100P10 BUFFALO LOGO X
30 BPH100P12 CONTROL BOX X
31
PHILIPS BIG FLAT HEAD SCREW M4*8 X
32
CROSS RECESS PAN HEAD SCREW M4*8 X
33
PHILIPS BIG FLAT HEAD SCREW M4*10 X
34
CROSS RECESS PAN HEAD SCREW M4*6 X
35 BPH100P35 CONNECTOR FOR VALVE AND PILOT X
36
HEXAGON NUT M4 X
37
HEXAGON NUT M6 X
38
TAPER LOCK WASHER 6X
39
HEXAGON BOLT M6*10 X
40
CROSS RECESS PAN HEAD SCREW M3*10 X
41
PHILIPS BIG FLAT HEAD SCREW M6*10 X
42 BPH100P23
"STAR" BOLT M8*16 X
43
FLANGE NUT M4 X
44
BIG FLAT WASHER 6X
45
HEXAGON BOLT M6*16 X
46 BPH100P46 LP FITTING X
47 BPH100P47 LP REGULATOR (T-2A) X

12
LOCATINGYOURAPPLIANCE
Most importantly, this is an outdoor appliance. Ensure your appliance is positioned safely away from
anything that can catch fire.
Outdoor Use Only: Under no circumstances is this appliance to be used indoors. This includes garages or any other
enclosed area.
Clearance from Combustibles: Ensure your appliance remains at a distance of at least 45 cm (18”) from any
combustible material such as wood, gyprock, paper and plants. Do not store combustible materials, gasoline or
flammable liquids or vapors within 45 cm (18”) of the appliance.
Adequate Ventilation: Ensure there is adequate ventilation for both the appliance and cylinder. This is required not
only for proper combustion, but also to prevent gas build up.
Firm Level Surface: Use your appliance only on a firm level surface. This appliance is not designed for
recreational vehicles, and shall not be installed on a boat or any marine craft.
Protection from Weather: Keep the appliance protected from adverse weather, including rain and high winds.
Polyvinyl covers are available that have been specially designed for this range of appliances.
Allow clear access to the entire gas supply hose and regulator.
Maintenance Access: When your appliance is installed, you should be able to access the gas supply line including
the gas piping or hose, gas regulator, gas cylinder and any shut off valves.
Partial Enclosures: Many backyards have areas that are partially closed off, such as balconies and pergolas. In
some cases, it is hard to decide whether these partially enclosed areas should be classified as indoor areas,
particularly in terms of permanent (non-closable) ventilation. The gas safety authorities have agreed on the
definition of partial enclosures below.
Partial Enclosures
This appliance shall only be used in an above ground, open air situation with natural ventilation, without
stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural
convection. Any enclosure in which the appliance is used shall comply with one of the following:
Within a partial enclosure that includes an overhead cover and
no more than two walls.
A common example is an outdoor gazebo.

13
Any enclosure with walls on all sides, but at least one
permanent opening at ground level, and no overhead cover.
A common example is an enclosed back yard.
Typically, the walls are less than 3m high. If they are higher,
there is a danger of gas build up.
The appliance may be within a partial enclosure that includes an
overhead cover and more than two walls, the following shall apply:
At least 25% of the wall are is completely open; and
At least 30% of the remaining wall is open and unrestricted.
In the case of balconies, at least 20% of the total of the side, back and
front wall areas shall be and remain open and unrestricted.

14
ASSEMBLY INSTRUCTION
Do Not Return Product To Store:
For assistance, please contact the local authorized dealer.
Please have your owner’s manual and serial number available for reference.
For Easiest Assembly:
To avoid losing any small components or hardware, assemble your product on a hard level surface that does not
have cracks or openings.
Clear an area large enough to layout all components and hardware.
Tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware
Follow all steps in order to properly assemble your product.
This appliance shall not be installed or used indoors.
To complete assembly you will need:
(1) Leak Detection Solution (instructions on how to make solution are included in step Operating Section)
(1) Precision Filled LP Gas Grill Tank with Acme Type 1 external threaded valve connection (9kg,12kg or 18kg
size)
Note: You must follow all steps to properly assemble heater.
Typical assembly: approximately 15 minutes
STEPS
FIGURE DISPLAY
Step 1:
Open the base and take out all the parts inside.
Step 2:
Put the gas hose through the SS support.
BPH-100d (BPH-100)
BPH-200

15
Step 3:
Install the SS support onto the bottom of
control box with the screws provided. You will
not need any nuts- the screws feed directly into
pre-threaded holes on the bottom of control
box.
Step 4
Install the Tank Housing onto the base with the
hex screws and locking washer provided. You
will not need any nuts-the screws feed directly
into pre-threaded holes on the base panel. Please
use a cross head screws driver to fasten all
screws.

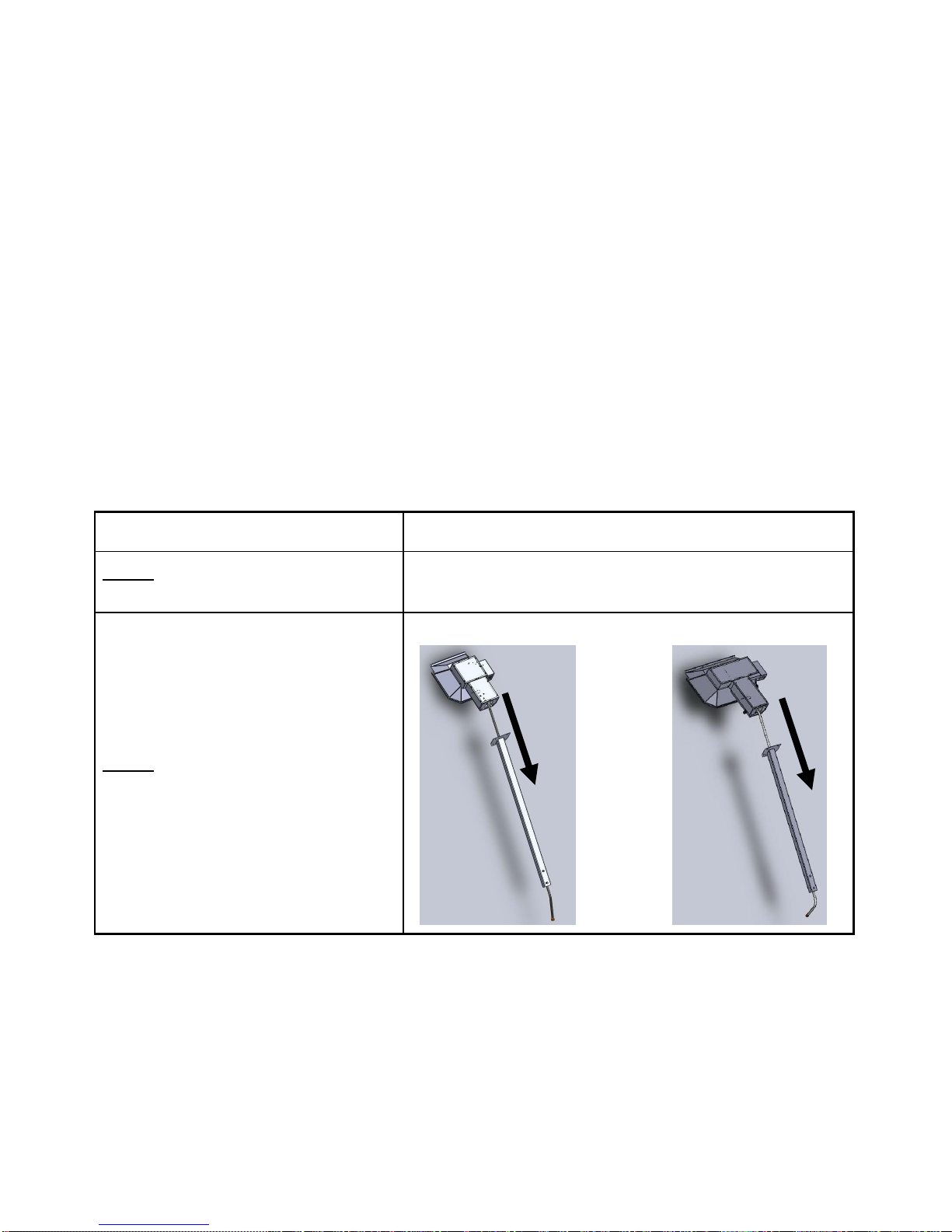

Step 5:
Push the assembled heater head with the SS
support into the hole on top of the tank base,
fasten with 2 ‘Star’ bolts. You may adjust the
height as desired.

16
Step 6:
Connect the regulator to the gas hose. Tighten
with a wrench.

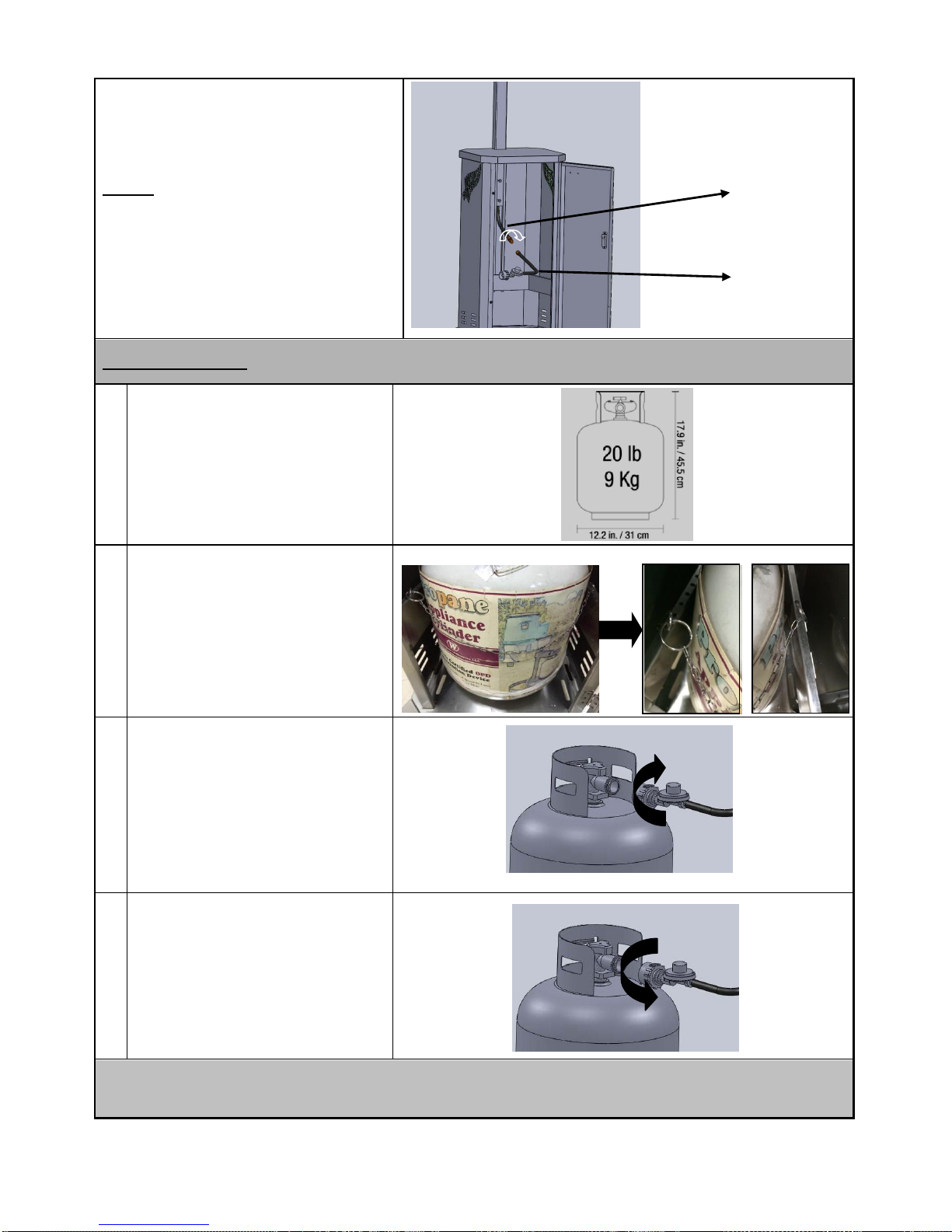

Installing LP Gas Tank
A
To operate you will need (1) precision
–filled standard LP Gas Tank (20lbs.) with
external valve threads.
Note: An empty standard grill LP gas tank
weighs approximately 18bls. A
precision-filled standard grill LP gas tank
should weigh no more than 38 lbs.
B
Insert LP gas tank:
Place gas tank upright into the tank base
and fix it stable with a rope chain. The
fixing hole on the left is used to be
adjusted to fix the tank tightly according
to the size of tank.
C
Connect LP Gas Tank:
Before connecting, be sure that there is no
debris caught in the head of the LP gas
tank, head of the regulator valve or in the
head of the burner and burner ports.
Connect gas line to tank by turning knob
clockwise until it stops.
D
Disconnect LP Gas Tank
Before disconnecting make sure the LP
gas tank valve OFF.
Disconnect gas line to tank by turning
knob counterclockwise until it loose.
AFTER ALL THE ABOVE INSTALLATION, DON’T FORGET TO CLOSE THE DOOR OF TANK BASE.
LP regulator
Rubber Hose
Left side Right side

17
OPERATING INSTRUCTIONS
Checking for leaks
WARNING: Failure to inspect the connections or follow these instructions could cause a fire or an
explosion which can cause death, serious bodily injury, or damage to property.
1. Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water.
2. Make sure control knobs are “OFF”.
3. Turn LP gas tank valve to “OPEN”.

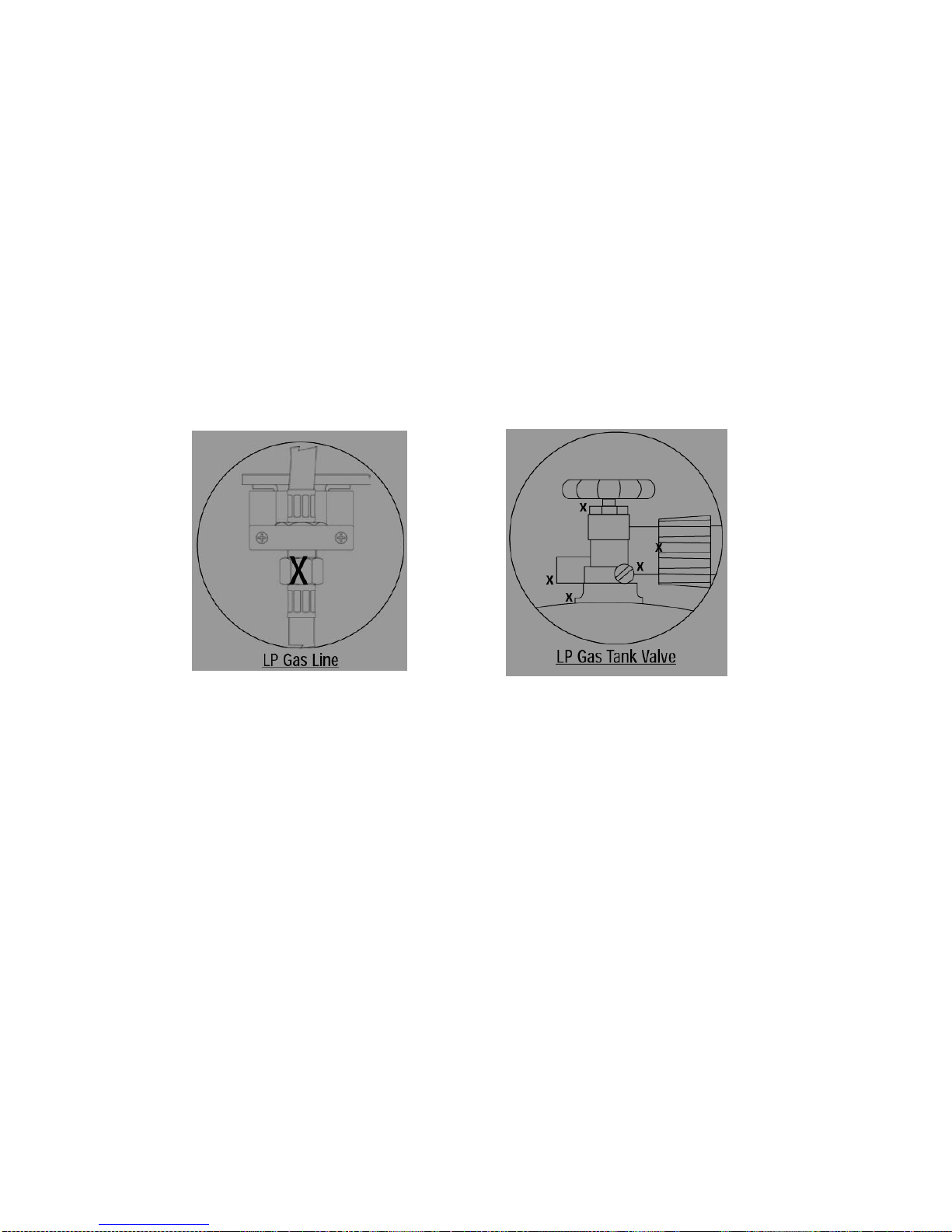

4. Spoon leak check solution at all “X” locations
a. If any bubbles appear turn LP gas tank valve to “Closed”, reconnect and re-test.
b. If you continue to see bubbles after several attempts, turn off LP gas tank and contact us for assistance.
c. If no bubbles appear after one minute turn LP gas tank valve to “CLOSED”, wipe away solution and
proceed.
Before Lighting
1. Heater should be thoroughly inspected before each use and by a qualified service person at least annually.
2. If relighting, always wait at least 5 minutes.
3. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspect areas should be leak tested.
If the hose leaks, it must be replaced prior to operation. Only use the replacement hose assembly specified by
manufacturer.

18

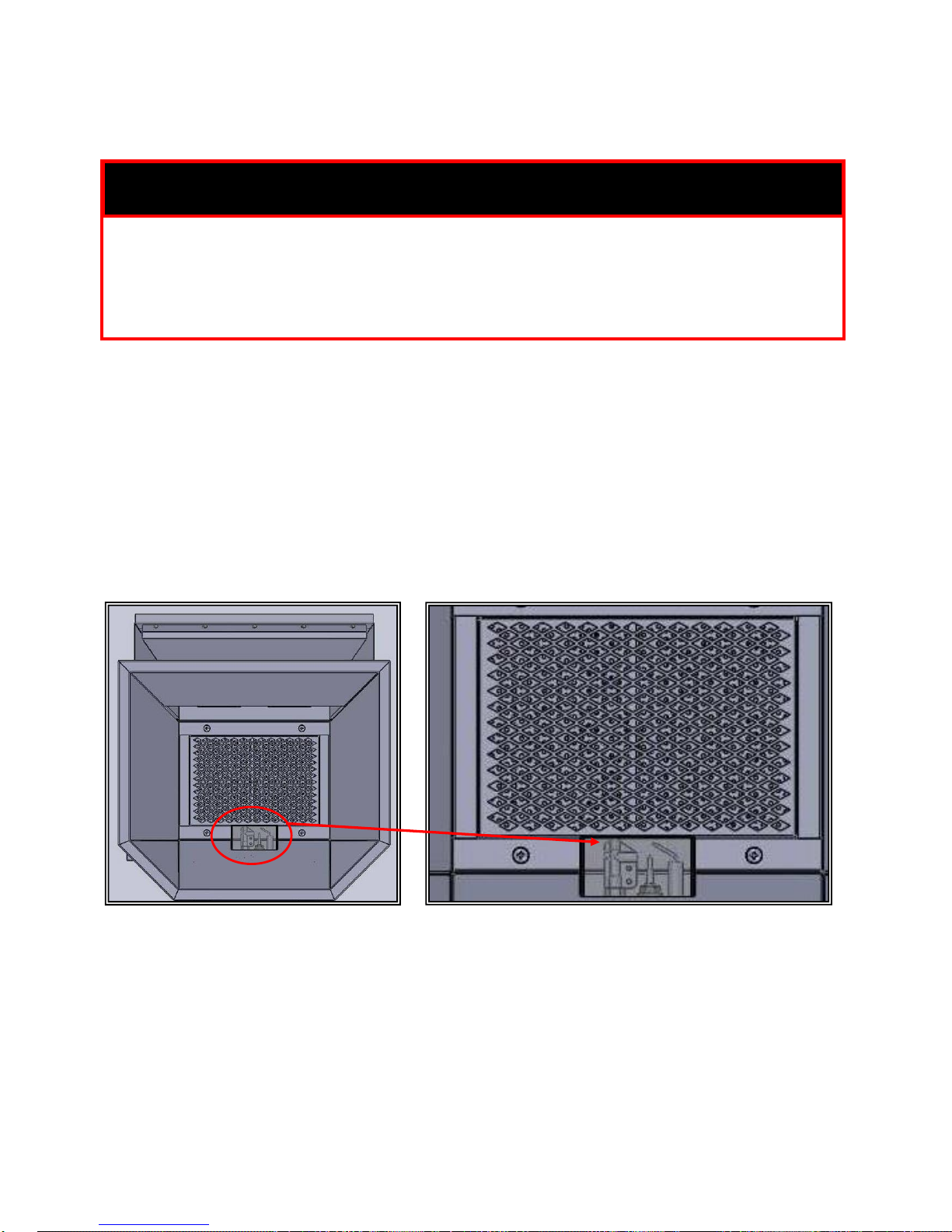

LIGHTING
Note: THE HEATER MUST BE IN 0-80mm POSITION DURING OPERATION.
To light heater:
1. Position yourself so that your face is not directly in front of the heater head.
2. Turn control knob on heater head to PILOT.
3. Push control knob and hold then press igniter button until the pilot lit, then turn control knob to HI position.
4. If the burner does not light within 5 seconds, wait for 5 minutes and re-try.
To turn heat off:
Turn control knob inward and turn to OFF position.
Wait 5 minutes before relighting.
For easy storage, remove extension arm cover, lower heater head to base.
When Heater Is ‘ON’
The ceramic heater will become bright red due to intense heat. The color is more visible at night.
The heater head should not produce thick black smoke, indicating an obstruction of airflow through the burners.
If excessive black smoke is detected, turn off heater and contact us for assistance.
PILOT
The first time connect the gas cylinder after completion of assembly; make sure all appliance control valves
are OFF. Take 1 minute to purge the line of air in the pipe before you lighting the heater:
Turn on the gas cylinder valve;
Press in control knob and rotate to pilot;
Push the control knob and hold for 1 minute until the gas filled into the pipe.
Every time you change the gas cylinder, steps above should be followed strictly!
IMPORTANT NOTE!

19
CLEANINGAND CARE
CAUTION: All cleaning and maintenance should be done when radiant heater is cool and with the fuel supply
disconnected.
CAUTION: DO NOT clean any heater part in a self cleaning oven. The extreme heat will damage the finish.
Notices 1. Abrasive cleaners will damage this product.
2. Never use oven cleaner to clean any part of heater.
3. Do not clean any heater part in a self cleaning oven. The extreme heat will damage the finish.
4. More frequent cleaning may be required as necessary. It is imperative that control compartment,
burners and circulating air passageways of the heater be kept clean.
5. Spiders and insects can create a dangerous condition that may damage heater or make it unsafe. Keep
burner area clean of all spiders, webs, or insects. Clean burner holes by using a heavy-duty pipe
cleaner. Compressed air may help clear away smaller particles.
6. Inspect heater before each use.
7. Have heater inspected annually and repairs should be made by a qualified service person.
8. Check heater immediately if any of the following conditions exist:
a. The smell of gas in conjunction with extreme black flames from the heater head.
b. Heater does not reach proper temperature. Note: At temperatures less than 40℉, heat output will
be reduced.
c. Heater’s glow is excessively uneven.
d. Burner makes popping noises during use. Note: A slight pop is normal when burner is
extinguished.
9. Carbon deposits may create a fire hazard. Keep top square lid and ceramic infra burner clean at all
times.
10.Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
11.This heater should be thoroughly cleaned on a regular basis.
12.After a period of storage and/or nonuse, check for leaks, burner obstructions and inspect for any
abrasion, wear, cuts to the hose.
Cleaning surfaces
1. Wipe surfaces clean with mild dishwashing detergent or baking soda.
2. For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
Note: While cleaning your unit, be sure to keep the area around the burner and pilot assembly dry at all times. Do
not submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It must be
replaced.
Maintenance
To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance
activities on a regular basis:
1. Keep exterior surfaces clean.
2. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme black flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
This manual suits for next models
2
Table of contents
Popular Heater manuals by other brands

TriangleTube
TriangleTube Phase III HM Series Installation and maintenance manual

Ayce
Ayce PH-1903-15 Original instructions

Fakir
Fakir WARMY user manual

Sunday Living
Sunday Living PTC-1500R user manual

Clatronic
Clatronic HL 3761 instruction manual

Inverter Fusion
Inverter Fusion RAV-SM2000DH FS Installation and owner's manual
