Grandstream Networks GXV3500 User manual

1297 Beacon Street, 2nd Floor
Brookline, MA 02446, USA
Tel : [phone] – 9300
Fax: [phone] – 1987
For Warranty and RMA information, please visit www.grandstream.com
GXV3500
IP Video Encoder/Decoder
QuickStart
Guide
Grandstream Networks, Inc.
深圳市南山高新科技园中区
科发路2号1栋（朗峰大厦）5楼
电话: [phone]
传真: [phone]
www.grandstream.com www.grandstream.cn

Content
English......................................................1
简体中文................................................11
Español...................................................21
Français..................................................31
Deutsch...................................................41
Italiano....................................................51

~1~ ~2~
PRECAUTIONS
PACKAGE CONTENTS
12V Power Supply
Quick Start Guide
CONNECTING THE GXV3500
Refer to the illustration below when following the
instructions on the next page.
NOTE: Choose Option A if using the power supply. Or
choose Option B if using a Power over Ethernet (PoE)
switch.
• Do not attempt to open, disassemble, or modify
the device
• Do not use a third party power adapter
• Do not expose this device to temperatures outside
the range of -10 C to +55 C
• Do not expose the GXV3500 to environments
outside of the following humidity range: 10-90%RH
(non-condensing)
TV out RCA cable
GXV3500
EN
o o

~3~ ~4~
Option A
Step 1: Insert the power adapter’s positive (+) bare
wire into the +12V DC port on the GXV3500.
Insert the negative (-) bare wire into the
ground (GND) port of the GXV3500 using a
screwdriver to press on the terminals. Plug the
other end of the adapter into an AC power
outlet.
Step 2: Plug an RJ45 Ethernet cable into the network
port. Plug the other end into a hub, switch
or router.
Option B
Step 1: Plug an RJ45 Ethernet cable into the network
port. Plug the other end into a Power over
Ethernet (PoE) switch.
GXV3500 CONFIGURATION
Conguring the GXV3500 using Microsoft
Internet Explorer
Connect the GXV3500 to the DHCP server
Step 1: Navigate your browser to:
http://www.grandstream.com/products/
tools/surveillance/gsurf_pro.zip
Step 2: Run Gurf_Pro -> Manage tool -> Search
tool.
Step 3: Click on the button in order to
begin the device detection.

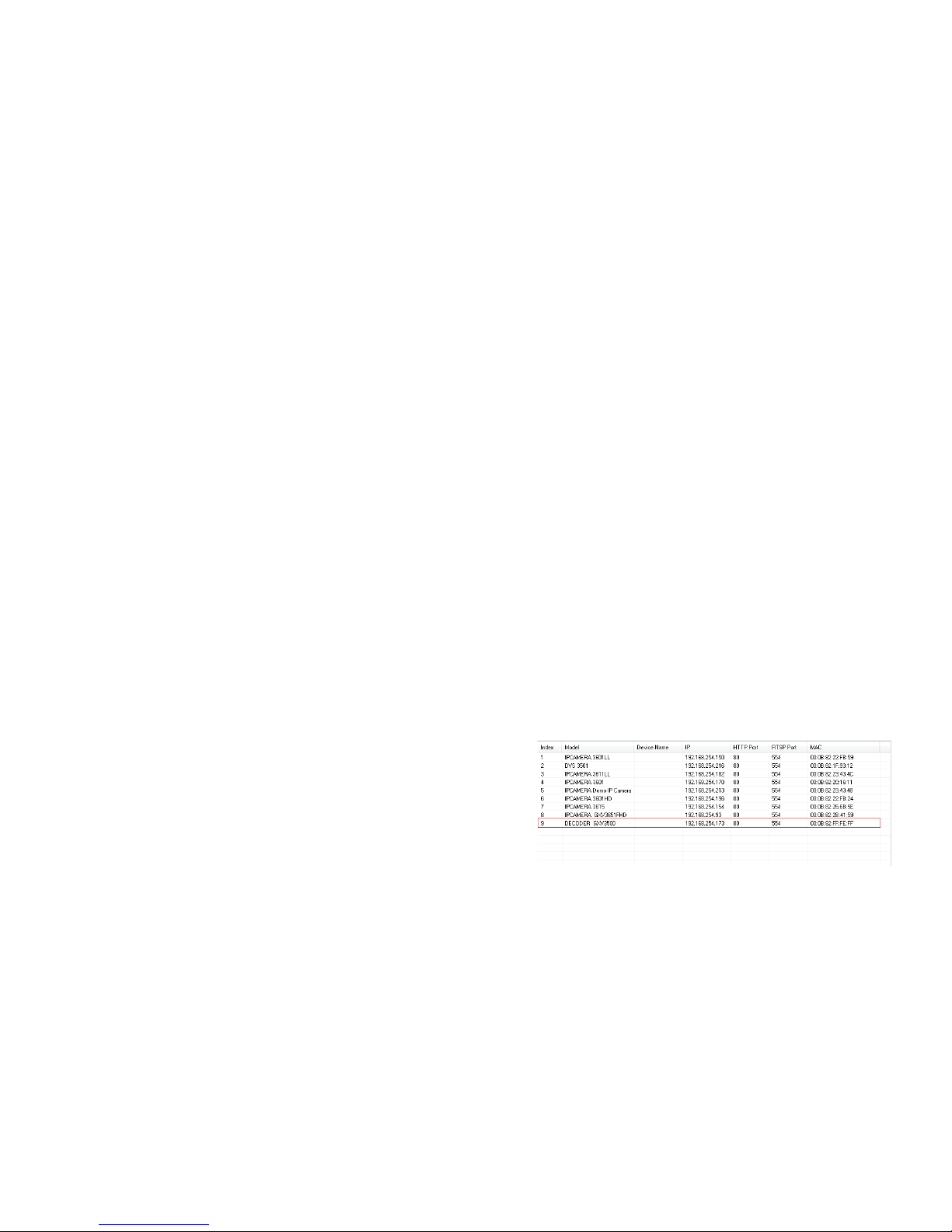

Step 4: The detected devices will appear in the
output eld.

~5~ ~6~
Step 5: Open Microsoft Internet Explorer on your PC.
Type in the IP in the address bar.
Step 6: A pop-up window will appear with prompts
for a user name and password. The default
administrator user name and password are
both set to “admin” at the default factory
conguration.
Step 7: Once you log into the GXV3500’s web
interface, the device will indicate that you
need to install or update the video plug in.
Step 9: Once the installation of the plug in is
completed, you will see the web page shown
in the screenshot on the next page. Click on
the play button to view the video feed.
Step 8: Save the VideoPlugine.exe le and run it on
your computer. Then restart Internet Explorer.
You should get a conrmation message
regarding the installation of the plug in.

~7~ ~8~
Connect the GXV3500 using Static IP
If the camera does not get a response from the DHCP
server after 3 minutes, it can be accessed by the
default IP 192.168.1.168
Step 1: Connect your PC and the GXV3500 to the
same network.
Step 10: Click through the menu of the left hand side
of the web GUI for more advanced
conguration parameters.
Step 2: Set the IP address of your PC to 192.168.1.X.
Set the subnet mask of your PC to
255.255.255.0.

~9~ ~10~
GXV3500 SAMPLE
CONNECTION DIAGRAM
Please download the user manual and FAQ
for more detailed conguration instructions:
http://www.grandstream.com/support/
gxv_series_sur-veillance/gxv3500/documents/
gxv3500_usermanual_english.pdf
Step 3: Open Microsoft Internet Explorer on your PC.
Type 192.168.1.168 in the address bar.
Step 4: Please refer to Steps 6-10 above.

~11~ ~12~
注意事项
• 请不要打开、拆卸或修改该设备
• 请不要使用第三方的电源适配器
• 请不要在超出-10至55摄氏度的环境下使用
此设备
• 请不要将GXV3500暴露在超出相对湿度
10-90%范围外的环境下
包装内容
快速入门指南一本
GXV3500一个 12V DC 电源一个
GXV3500 连接方法
请参照下图以及下一页的操作说明。
方案B: 使用RJ45以太网
接口通过PoE供电
方案A: 使用12V
DC 电源适配器
供电
注意: 选择A方案使用电源适配器给设备供电
或选择B方案使用PoE给设备供电。
音频视频线

~13~ ~14~
方案A
步骤 1: 将电源适配器的正极（+）与GXV3500
+12V DC 端口相连；使用螺丝刀将负
极（-）与GXV3500的接地端GND端口
相连；将电源适配器的另一端插入AC
电源插口；
步骤 2: 将RJ45网线一端与网络接口相连，另
一端与集线器、交换机或路由器相
连。
方案B
步骤 1: 将RJ45网线一端连入GXV3500网络接
口，另一端与以太网供电交换机相连
（PoE）。
步骤1: 通过浏览器访问地址下载IP搜索工具
http://www.grandstream.com/products/
tools/surveillance/gsurf_pro.zip
步骤2：运行下载的Manage Tool->搜索工具；
步骤3：点击 按键,搜索该网段下的设
备IP地址；
步骤4：搜索到的设备IP地址及HTTP端口将显示
在以下界面；
Gxv3500配置
连接GXV3500到DHCP服务器环境下,GXV3500
默认通过DHCP获取IP地址。

~15~ ~16~
步骤7: 登录到GXV3500网络界面后, IE浏览
器将提示您安装或更新插件；
步骤8: 保存VideoPlugine.exe并且在电脑上
运行。重新启动IE浏览器，您将会看
到以下窗口提示安装信息；
用户名密码提示窗口
步骤5: 打开IE浏览器，在地址栏输入搜索到
的设备IP地址；
步骤6: 界面将会跳出输入用户名及密码的验
证框，出厂时默认的用户名和密码均
为：admin
步骤9: 安装完毕后，您将会看到网页如下页
图中所示，点击播放按钮观看视频；
