GRANGE equipment GRL300 User manual

value
•
quality
•
service
Grange Product Range
Food Processors
Bandsaws
Juicers
Light Kitchen Equipment
Mincing Equipment
Mixers
Slicers
Wrapping Equipment

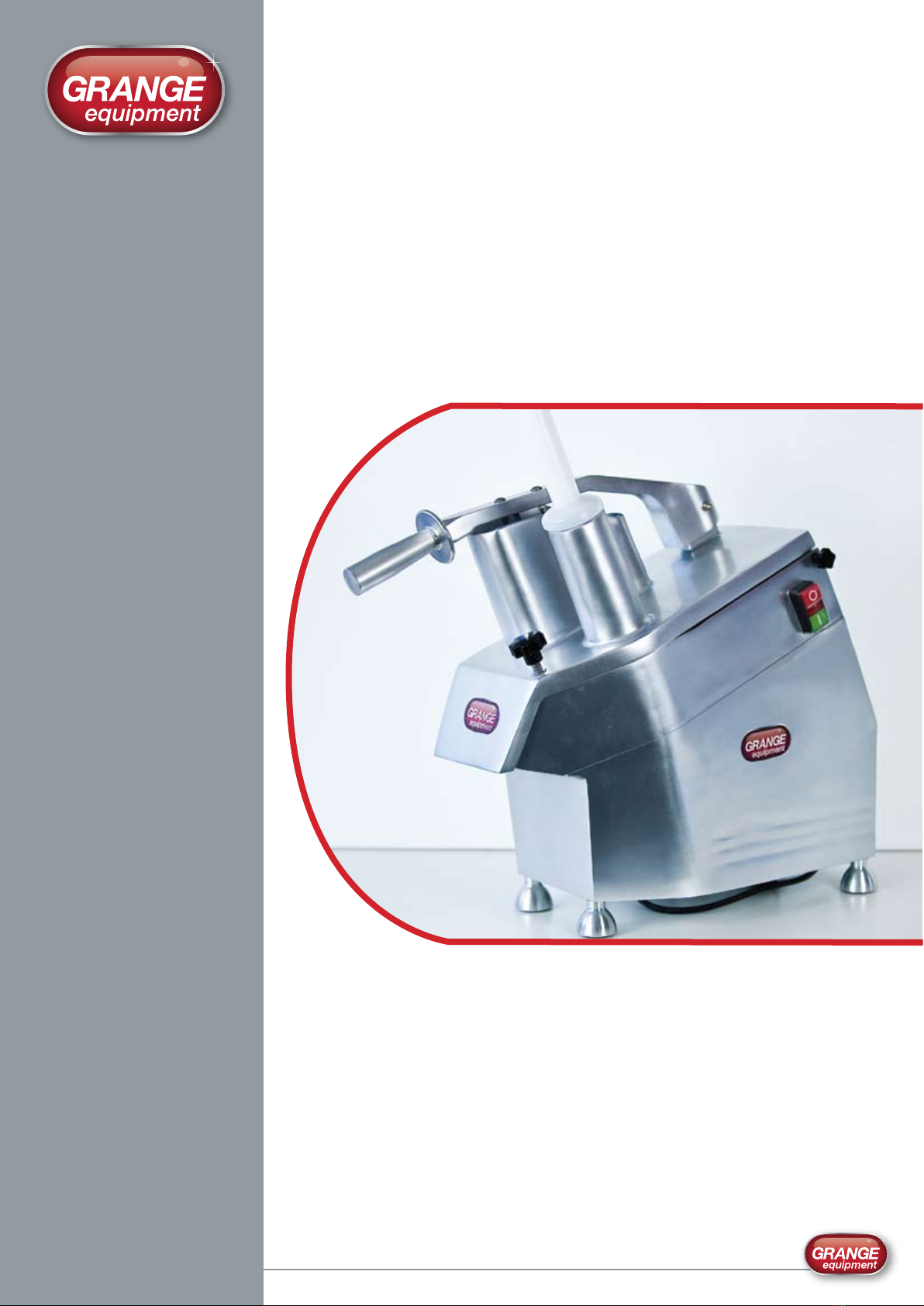

Food Processor Model GRL300
USER MANUAL

SAFETY PROCEDURES
NEVER ATTEMPT TO OPERATE THIS MACHINE
WITHOUT READING THE OPERATING MANUAL
 •NEVERtouchthismachinewithouttrainingandauthorisationfromyoursupervisor.
 •MachineMUSTBEonsolid,levelsupport.
 •ALWAYSusethethree-prongedplugprovided.
 •NEVERplaceyourhandinthemachine’sfeederchute.
 •NEVERattempttoplaceyourhandintotheoutputareaofthemachine.
 •KEEPhands,arms,hairandlooseclothingCLEARofallmovingparts.
 •ALWAYSwearappropriateprotectiveclothingwhencleaningorreplacingthecutting
orbladegroup.Westronglyrecommendtheuseofsteelmeshglovesforsuchtasks.
 •Shouldthemachinejam,SWITCHOFFANDUNPLUGbeforeremovingtheobstruction.
 •SWITCHOFFANDUNPLUGthemachinefromitspowersourcebeforecleaning,
sanitisingorservicing.
 •USEONLYtheattachmentsprovidedbythemanufactureranddesignedforthismachine.
YOUR SAFETY IS OUR PRIMARY CONCERN

Introduction
Overview
 ThisOperationandSafetyManualhasbeenpreparedtointroduceyoutotheGrangeGRPL300Food
Processor.Itexplainstheoperation,cleaningandmaintenanceofthesefoodprocessorinsimple,clear
termsandwithanemphasisonyoursafety.
 ThroughouttheManualproceduresaresupportedbyillustrationsshowingthepartsinvolvedandthe
recommendedsafemethodofhandlingthoseparts.
 MakesurethatyoureadthisManualcarefullysothatyouarefamiliarwiththefeaturesandprocedures
thatareuniquetothesemachines.
Conventions and Symbols used in this Manual
 Toreduceconfusion,andtohighlightimportantpointsandsafetymatters,wehaveestablishedsome
standardtermsandsymbols:
 •“vegetableprocessor”WheneverwetalkabouttheVegetableProcessor,wemeantheVegetable
ProcessorthatiscoveredinthisManual.
 •“foodstuff”Weusetheword“foodstuff”torefertoanykindofmeatorotherfoodthatisusually
choppedusingthevegetableprocessor.
 •“inletchute”or“inputfeeder”Weusethesetermstorefertotheopeninginthetopofthemachine
inwhichfoodstuffshouldbeplaced.
 •TheSpecialNoteagThisisanupside-downtrianglewithanexclamationmarkinsideit.Itappears
intheleftmarginofthepage,likethis,wheneverwewanttodrawyourattentiontoanimportantpoint.
 •The“NoHands”warningagThisisacirclewiththeoutlineofahandandablackbarthroughthe
hand.Itappearswhereverwewanttowarnyouthateither:youshouldn’tputyourhandsinorneara
particularcomponent.
 •The“Power”warningagsTTherearetwopowerwarningags.Therst,alightningboltinsidean
upside-downtriangle,isusedwheneverwewanttoremindandwarnyouthatthemachineisconnected
tothemainspowersupply.Thesecondwarningagisacirclewiththeoutlineofa
lightningboltandablackbarthroughthebolt.Itappearstoremindyouthataparticular
proceduremustbecarriedoutwiththepowertothemachineturnedoffatthepower
pointandthemachine’spowerplugdisconnectedfromthepowerpoint.

SAFETY WARNINGS
 Thisisanelectricaldevicethatusesmainssinglephase240Voltpower.Youmustbecarefulinhow
youhandlethefoodprocessoratalltimes.Thefollowingspecialwarningsmustbecompliedwithfor
yourownsafetyandthesafetyofothers.
  THEREARENOUSER-SERVICEABLEELECTRICALCOMPONENTSINTHISFOOD
PROCESSOR.ALLELECTRICALCOMPONENTSAREELECTRICALLYISOLATEDTO
EARTHANDARESEALEDFORYOURSAFETY.YOUMUSTNOTATTEMPTTOTOUCH
ANYELECTRICALCOMPONENTSORWIRES-YOUMAYEXPOSEYOURSELFTO
THERISKOFSERIOUSINJURYBYELECTROCUTION.
  UNLESSOTHERWISEINDICATED,ANYCLEANINGORMAINTENANCEPROCEDURE
MUSTBEPERFORMEDWITHTHEPOWERTOTHEFOODPROCESSORSWITCHED
OFFANDTHEFOODPROCESSOR’SPOWERCORDDISCONNECTEDFROMTHE
POWERPOINT.FAILURETOTURNOFFANDDISCONNECTPOWERMAYRESULTIN
SERIOUSINJURYCAUSEDBYTHEFOODPROCESSORBEINGACCIDENTLY
TURNEDONDURINGCLEANINGORMAINTENANCE.
TheGrangeFoodProcessor
 TheGrangeGRL300FoodProcessorhasbeendesignedforhighvolumeuseinlargerrestaurants,
supermarketsanddelicatessens.
 Conveniencefeaturesincludefastbladechangeanddualinletchuteswhichmakeforfastand
efcientslicingofanykindoffruitorvegetableinthebusiestenvironment.
 •manufacturedinstainlesssteelandanodisedaluminiumtoresistoxidisationandcorrosion;
 •constructedforeasycleaning;
 •forcedventilationtomotortopreventoverheating;
 •allbearingsareself-lubricatingandsealed-for-life;
 •safetycutoutswitchesforbasin,coverandinletchute.

Installingthefoodprocessor
 Positioningthefoodprocessor
 TheFoodProcessormustbemountedonaat,stablesurfacethatisstrongenoughtoholdtheweight
ofthemachine.Itisimportanttoensurethatthemachinecanbebotheasilyloadedandoperated,
andwerecommendabenchortableheightof800mmtoachievethis.
 NomatterwhereyouputtheFoodProcessor,youmustallowatleastasmuchspaceastheoverall
dimensionsindicate.Allowinganadditionalminimumof30cmeithersideoftheFoodProcessorwill
makeaccessforcleaningandmaintenanceeasier.
 TheFoodProcessorejectstheprocessedfoodthroughthelargechuteatthefrontofthemachine.Ensure
thatthereisenoughspaceonthebenchortabletoptoallowacollectioncontainertositunderneaththe
chute.Alternatively,andifspaceistight,theFoodProcessormaybepositionedwiththeejectionchuteout
overtheedgeofthebenchortableandacontainerplacedinfrontofthebenchandbelowthechute.This
optionisnotrecommendedasthereisconsiderablepotentialforcreatinganunsafeandunhygienicmess.
 Cleaningandfunctioncheck
 Beforeyouusethefoodprocessorwerecommendthatyouwipedownallexposedsurfaceswithasoft
cloththathasbeenplacedincleanwarmwaterandlightdetergentandsqueezeddry.
Thiswillremoveanytracesofmachineoil,dirtorgritpickedupduringmanufactureorstorage.
   Beforeyouwipedownthemachine,makesurethatthepoweristurnedoffatthewall
socket/powerpoint.
Oncethefoodprocessoriscleanyoucancheckthatitisfunctioningcorrectly.
  1.Switchonpowertothemachinefromthewallsocket/powerpoint.
  2.Makesurethatthefoodprocessoristurnedoffatthepowerswitchonthe
sideofthemachine.
 3.Openthefoodprocessorcoverbyturningtheknurledknob(locatedinfront
andtotherightoftheinputfeeder)anti-clockwiseuntilitreleases.
  4.Raisethecoverandplacethesuppliedbladediskinfoodprocessor.
5.Closethecoverandsecureitbyturningtheknurledknobclockwiseuntilitistight.
  6.Turnthefoodprocessoronusingthepowerswitchonthesideofthemachine.
Immediatelythechopperbladewillspininananti-clockwisedirection.
  7.Turntheprocessoroffatthepowerswitch.

Operatingthefoodprocessor
 Thingstokeepinmind
 1.Onlyusethelargeorsmallplungersuppliedtopushthevegetablesintothechopper.
 2.Therecommended,andonlysafewayofchangingbladesiswiththepower
switchedoffatthepowerpoint.
 3.Applyasteadypressuretotheplungerwhenusingthefoodprocessor.
Suddenheavypressuremaycauseajamasthebladediscstrytodealwithtoo
muchfoodstuffbeingforcedintocontactwiththecuttingsurfaces.
 4.DONOTplacefrozenfoodstuffs,orfoodstuffscontainingbones,inthemachine.
Thesewillonlydamagetheblades.
 Standardoperation
1.Turnthecoversecuringknobanti-clockwiseandopenthecover.
 2.Slidethechosencuttingdisk,orfordicingthedicingdiscfollowedbythechosencuttingdiscforthejob.
 3.Closeandsecurethecoverbyturningthecoversecuringknobclockwise.
Thiswilldisengagethesafetycutoutandallowthemachinetorun.
4.PresstheON/OFFbuttonmomentarilytohookthediscintothecorrectposition.
 5.Raisethefeederreduceronitsguidepostandswingitasidefromtheinletfeeder.Placefoodstuffinside
theinletfeeder,swingthereducerbackoverfeederandloweruntilitcomesincontactwiththefoodstuff.
Forsmallerfoodstuffs,simplyremovethesmallplungerfromthefeederreducer,insertthefoodstuff
inthethroatofthesmallerinlet,andreplacetheplunger.
6.TurnthemachineonusingtheON/OFFbutton.
 7.Withyourlefthandlightlymovethefeederplungerdownwardsuntilfoodstuffisfullyprocessed.
Youmaycontinuetointroducemorefoodstuffbyliftingthehandleandplacingfoodstuffintotheinlet
chute.Themachinewillstartautomaticallywhenthehandleisclosed.
 8.Repeatstep7asoftenasisrequired.
 9.Whencuttingiscompleted,switchoffthepowerattheON/OFFbutton.
 Changingorttinganewdisc
1.Makesurethatthemachineisswitchedoff.
 2.Rotatethecoversecuringknob,andopenthecover.
 3.Turnthediscanti-clockwiseandcoverthecuttingedgewithappropriatematerial(rubber,fabric,etc.)
thenliftitbysettingyourhandunderthedisc.Ifnodiscistted,gotoStep4.
4.Inserttheplasticejectingdiscandthenthechosendiscordisccombinationforthejob.
 5.Closeandsecurethecoverusingthecoversecuringknob.PresstheON/OFFbuttontohookthedisc
intothecorrectposition.

GeneralCleaning
 Thechopperhasbeendesignedandbuiltforefcientandspeedycleaningtoensurehygienicoperation.
 Beforeusingthechopper
 1.Beforethechopperisswitchedonforthersttimeeachday,quicklywipeoverall
exposedsurfaceswithacloththathasbeenplacedinwarmwaterandsqueezeddry.
Thisremovesanydustorothermatterthatmayhavebeendepositedovernight.
 Aftereachmixingjob
1.Removethediscs,thegridforcuttingdicesandtheplasticejectordiscandwashthoroughly
inwarmwaterandmilddetergent.
 2.Wipedownexposedportionsofthemachineandtheareawherethediscsrest,withacloththat
hasbeenplacedinwarmwaterandmilddetergentandsqueezeddry.Besuretocleanoffany
foodstuffthathasadheredtotheinsidetopofthemachinecoverandtheoutputchute.
 Attheendoftheday
1.Afterthechopperhasbeenusedforthelasttime,turnthemachineoffatthepowerswitchandatthe
powerpoint,anddisconnectthepowercord.
 2.Turnthecoversecuringknobanti-clockwisetoopenthecover,loosenthetwocoverrelease
knobsatthebacktoremovethecovercompletely.Washinwarmwaterandamilddetergent.
 3.Removethediscs,thegridforcuttingdicesandtheplasticejectordiscandwashthoroughlyi
nwarmwaterandmilddetergent.
 4.Withacloththathasbeenplacedinwarmwaterandmilddetergentandsqueezeddry,wipedown
allvisiblesurfaces,includingwherethecuttingdiscsrest.
How frequently the chopper is cleaned will depend on how heavily the machine is used.
