Granit HPT-A User manual

Original operating instructions for hand pallet jack GRANIT 76072170
Page 1of 21
Original operating instructions for hand pallet jack
Illustration of hand pallet jack (hand truck)
These operating instructions must be read thoroughly before use and followed.
These operating instructions must be kept for future reference.

Original operating instructions for hand pallet jack GRANIT 76072170
Page 2of 21
Table of Contents
1. ABOUT THESE OPERATING INSTRUCTIONS AND SYMBOL DESCRIPTION 3
2. SAFETY AND ACCIDENT PREVENTION REGULATIONS 3
2.1 GENERAL SAFETY INSTRUCTIONS 3
2.2 PRECAUTIONARY MEASURES4
3. PERFORMANCE SPECIFICATIONS 5
3.1 INTENDED USE 5
3.2 TECHNICAL SPECIFICATIONS 5
4. ASSEMBLY 5
4.1 MOUNTING THE DRAWBAR TO THE PUMP UNIT 6
4.2 ADJUSTING THE CONTROL 6
5. OPERATING THE HAND PALLET JACK 7
5.1 PREPARATION BEFORE FIRST USE 7
6. MAINTENANCE AND REPAIR 9
6.1 GENERAL MAINTENANCE INSTRUCTIONS 9
6.2 OIL 10
6.3 BLEEDING 10
6.4 DAILY INSPECTION AND MAINTENANCE 10
6.5 LUBRICATION 10
7. STORAGE AND TRANSPORT 10
8. DISPOSAL 10
9. DEALING WITH PROBLEMS 11
10 EC DECLARATION OF CONFORMITY 12
11. WARRANTY 12
12. ADDRESSES 12

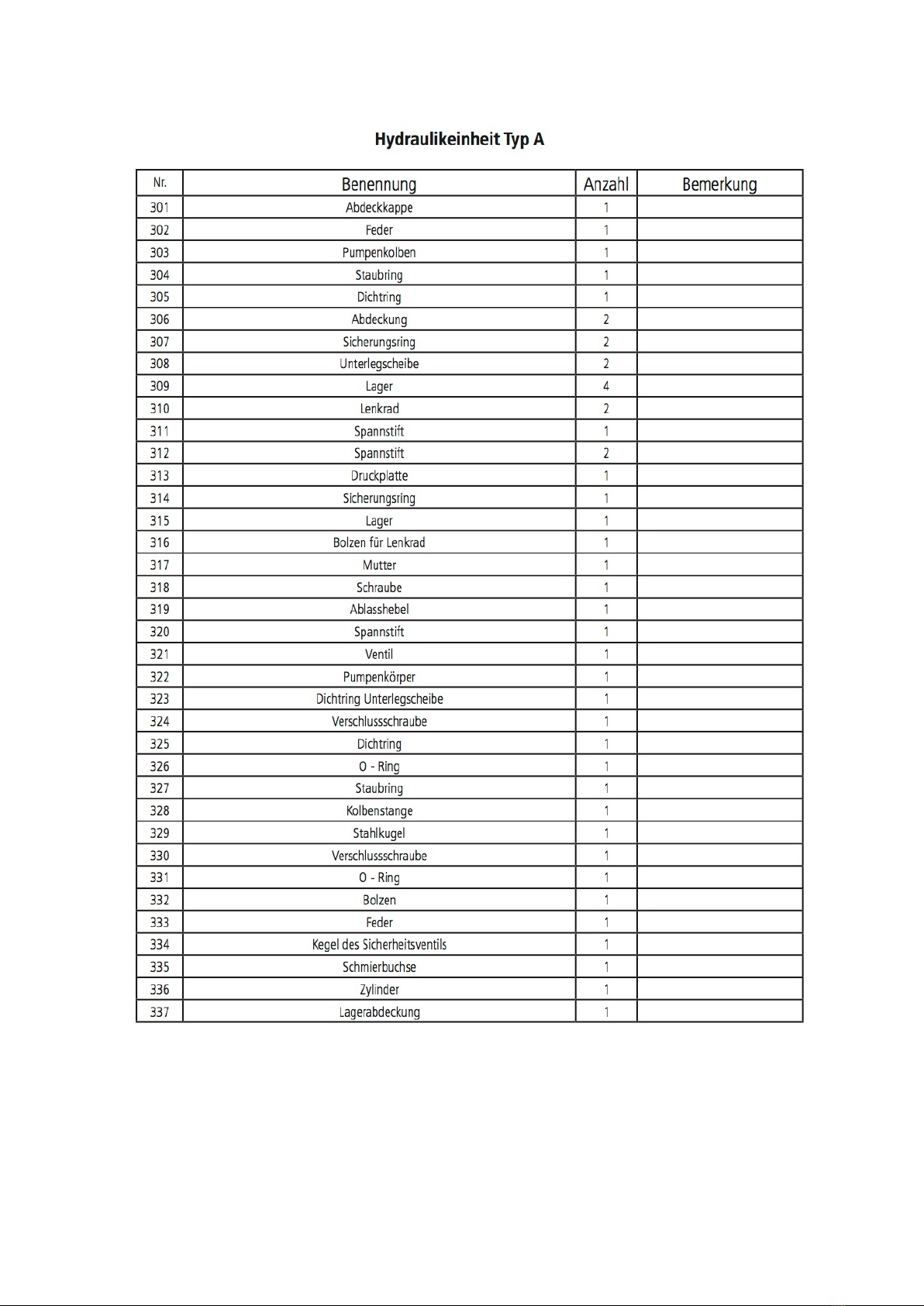

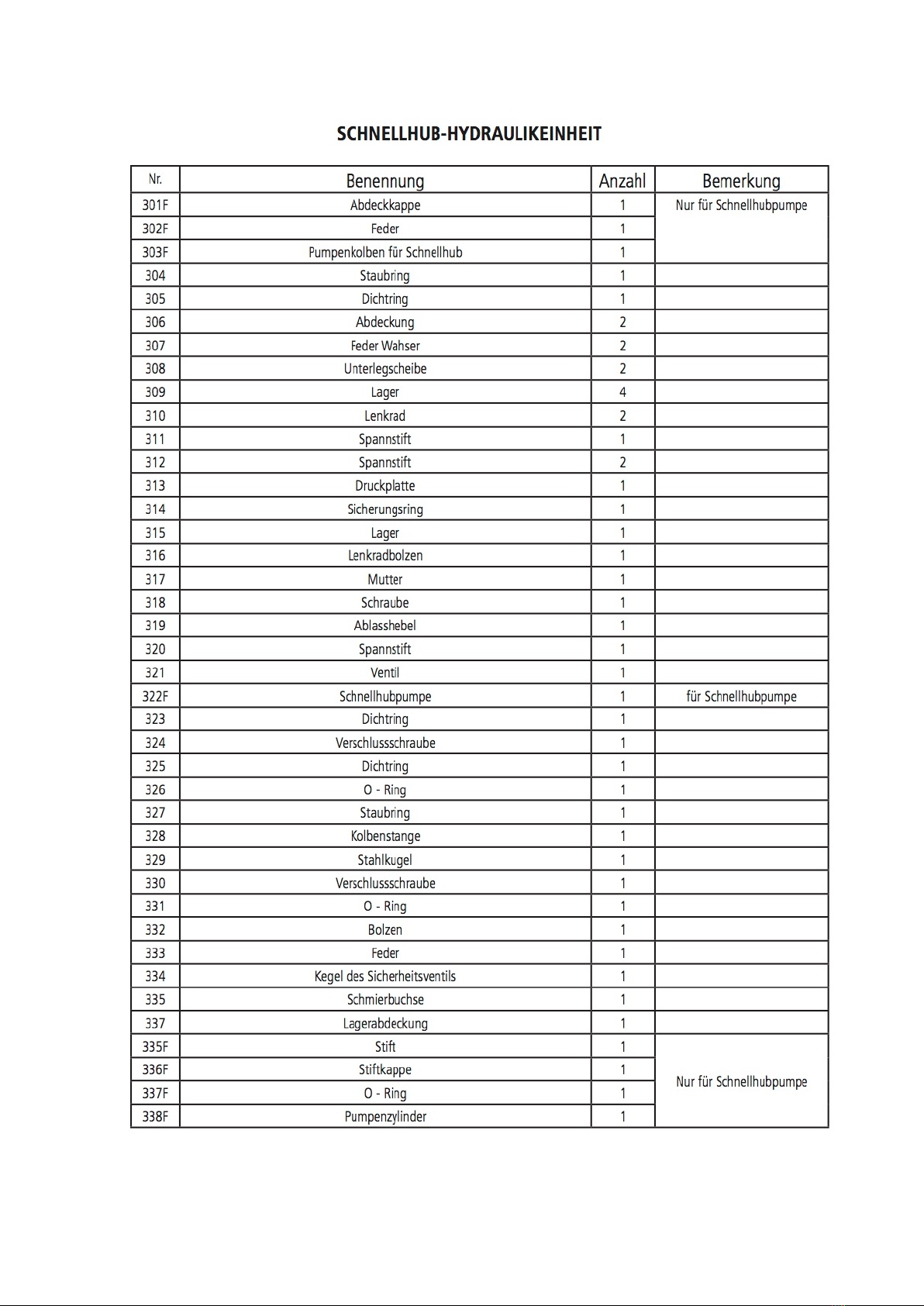

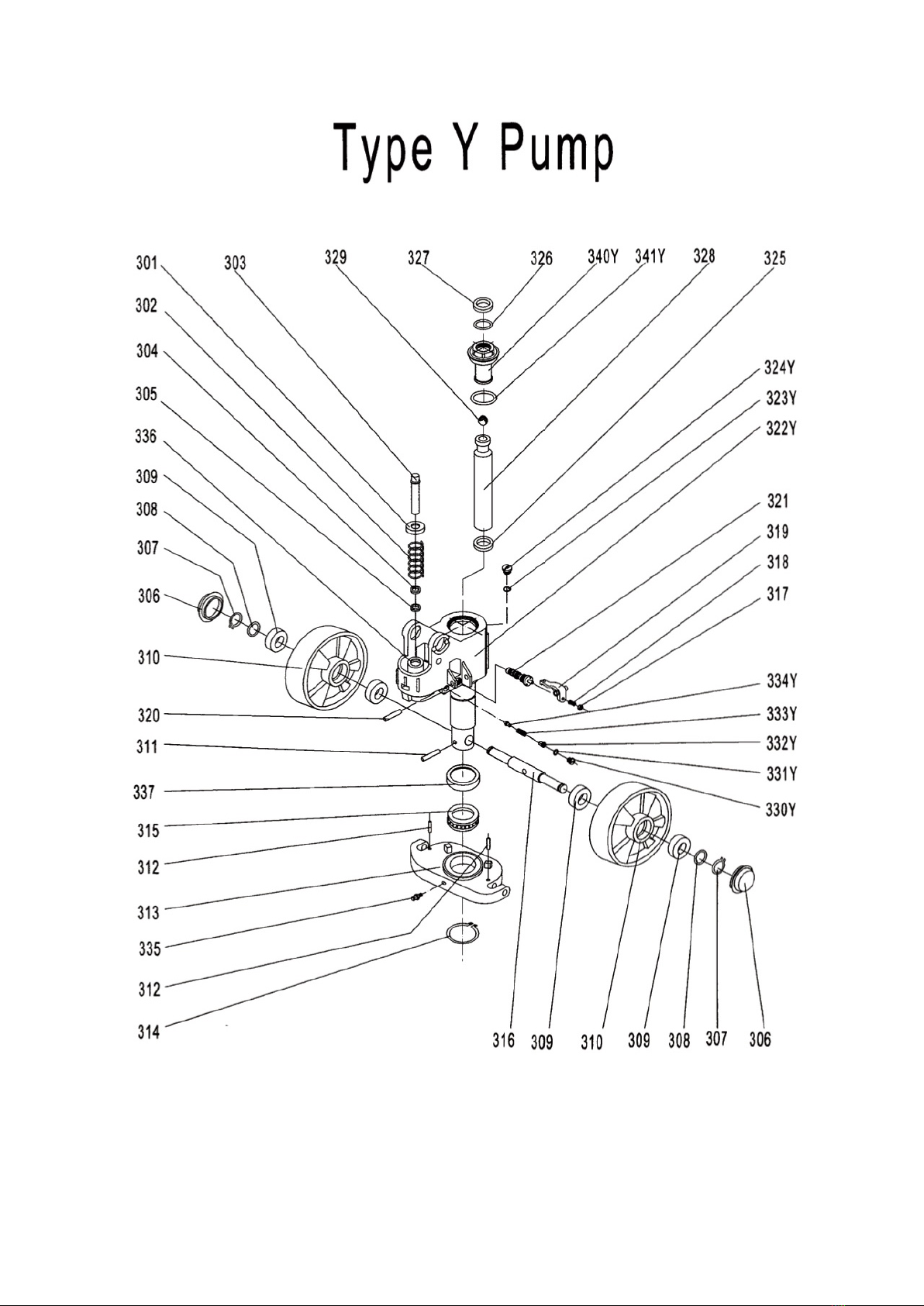

13. SPARE PARTS LISTS 13
14. LEGAL NOTICE 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 3of 21
1. About these operating instructions and symbol description
The information in these instructions is labelled as follows:
DANGER Warning of personal injury or environmental damage.
IMPORTANT Warning of property damage.
NOTE Additional information.
•Numbers in illustrations (1, 2, 3 ...) refer to the corresponding numbers in brackets (1), (2), (3) ...
in the text next to the item numbers in the tables.
•Instructions for which the order must be followed are numbered (1, 2, 3, ...)
•Lists are marked with dots (●, ●, ...)
2. Safety and accident prevention regulations
2.1 General safety instructions
•These operating instructions were prepared so that you can work safely with the equipment.
•People who are not familiar with these instructions should not perform these actions.
•Read these operating instructions thoroughly before use. Pay particular attention to the safety
instructions.
•This manual is intended for people with basic technical knowledge in using equipment such as
that described here.
•If you have no experience with such equipment, you should first get assistance from experienced
persons.
•Keep all supplied documents with the equipment for future reference if required. Keep the
purchase receipt for any warranty claims.
•If you lend or sell the equipment, supply all documentation with it.
•Observe the operating and maintenance instructions found in this manual.
•Children should be supervised to ensure that they do not play with the equipment.
•Mechanical maintenance should be performed at the prescribed intervals and to the prescribed
extent.
•Following maintenance work, all dismantled protective devices must be properly reinstalled. The
protective devices and their protective functions should be checked by a competent person
before using the machine.
•Defective equipment must be repaired promptly in order to minimize the extent of damage and
avoid endangering the safety of the equipment.
•The system components should only be used and operated under the conditions laid down in
these operating instructions.
•Retrofits, changes or modifications to the equipment are strictly prohibited. They require
consultation with and written approval of the manufacturer.
•If during operation (residual) hazards and risks become apparent which are not described in this
manual, the operator is obliged to report this to the manufacturer.
•Never exceed the rated lifting weight.
•Use the pallet jack only on firm and level surfaces.
•Never operate or reach under a raised load if you have not taken additional precautionary
measures to prevent the truck from rolling, slipping or tipping.
•Do not change the setting of the safety valve. Before each use check for proper functioning,
especially the hydraulic oil level, and check for possible leaks.

Original operating instructions for hand pallet jack GRANIT 76072170
Page 4of 21
•Under high pressure, escaping fluids (hydraulic oil) can penetrate the skin and cause serious
injury! If injured contact a doctor immediately! Risk of infection!
•Before working on the hydraulic system, de-pressurise the system!
•The pallet jack must be used only at points which are prescribed in the relevant operating
instructions.
•Keep all supplied documents with the equipment for future reference if required. Keep the
purchase receipt for any warranty claims.
•If you lend or sell the equipment, supply all documentation with it.
•Observe the operating and maintenance instructions found in this manual.
•Children should be supervised to ensure that they do not play with the equipment.
2.2 Precautionary measures
•Perform setup, maintenance and cleaning work on the equipment only while wearing
protective gloves to prevent injury from sharp parts.
•While working with and on the equipment, wear protective work shoes that fit well.
•Before each use always perform a visual and a function check of the equipment to
identify damage and worn parts, and arrange for their repair by trained personnel before
use.
•Before raising a load, make sure that the drain valve is closed.
•Ensure that the pallet jack is always on a solid and stable base before the load is lifted.
•Never work under a raised load supported only by the pallet jack.
•Lubricate all moving parts on the hydraulic jack regularly.
•If oil level is too low it should be replenished and the system bled before further use. Observe
the instructions in this manual!
•The pallet jack may only be operated by persons 16 years or older. As an exception, use by a
teenager is permitted in the course of training to attain skill under the supervision of an
instructor.

Original operating instructions for hand pallet jack GRANIT 76072170
Page 5of 21
3. Performance specifications
3.1 Intended use
The pallet jack has two fixed forks for holding pallets. Pumping the handle builds up pressure in the
built-in hydraulic cylinder to raise the forks.
Pressing the handling reduces the hydraulic pressure, and the forks go back down.
When the handle is in the middle position the forks remain at their height and are secured against
further movement.
The pallet jack should be used only to transport intrinsically stable objects, in particular pallets of
various sizes.
Other loads, animals or humans must never be lifted or transported with the pallet jack. Vehicles
should never be raised or moved using the pallet jack.
Never overload the pallet jack beyond the load specified in the following table.
The manufacturer shall not be liable for damages caused by failure to comply with generally
accepted regulations as well as the instructions in this manual, including insufficient maintenance.
The manufacturer is not liable for any damages.

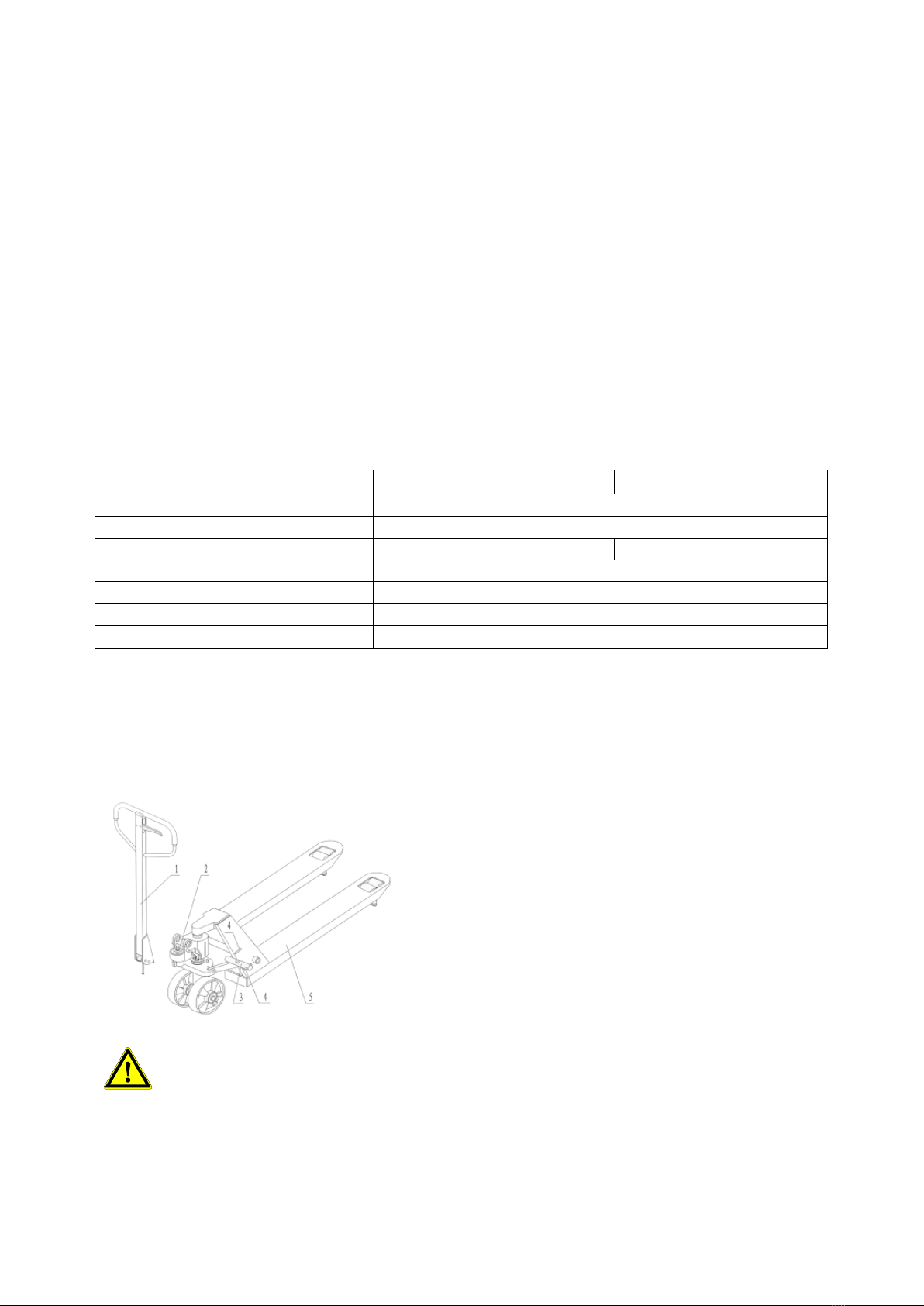

3.2 Technical specifications
Lifting capacity (kg)
2500
2500
Max. fork height (mm)
200 (or 190)
Min. fork height (mm)
85 (or 75)
Fork length (mm)
1150
1220
Total fork width (mm)
450/520/540/685
Individual fork width (mm)
160
Load wheel diameter (mm)
∅82x70 (or ∅74x70) nylon, polyurethane
Steer wheel diameter (mm)
∅200 (or ∅180) nylon, polyurethane, rubber
4. Assembly
Minor assembly is required if you purchased the pallet jack in shipping packaging. You will need tools
(hammer, pliers, wrench/spanner etc.), an arbour with hole (105), two roll pins (106) (one of which is
in the arbour (105)). These items are in a plastic bag on the drawbar.
Figure1
DANGER: Insufficient stability and incorrect positioning of the pallet jack may cause the
vehicle to overturn.
Legend:
1. Drawbar
2. Pin
3. Arbour with hole
4. Roll pin
5. Fork housing

Original operating instructions for hand pallet jack GRANIT 76072170
Page 6of 21

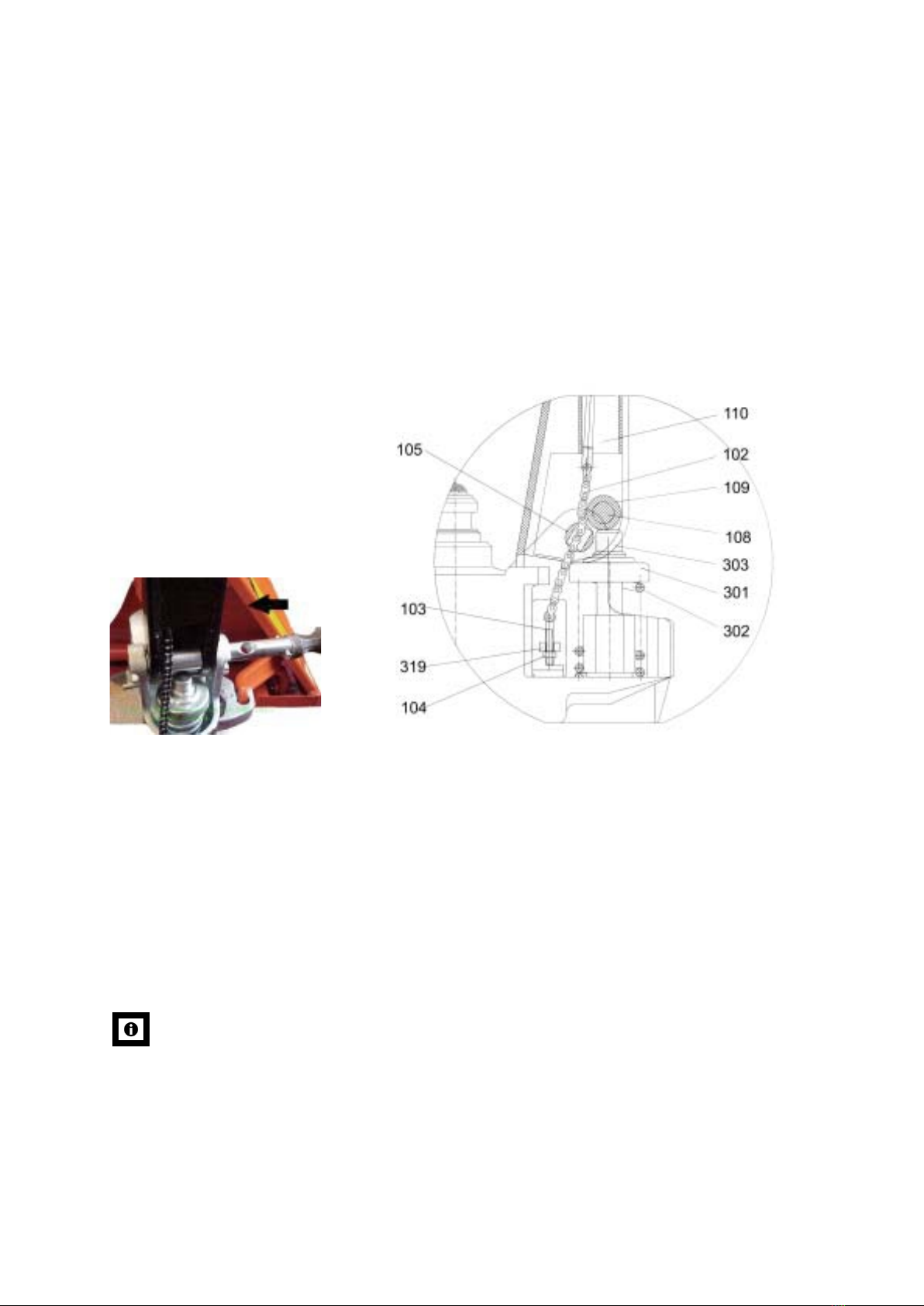

4.1 Mounting the drawbar to the pump unit
a) Put the drawbar on the pump piston (303). Using a hammer, insert the arbour with hole (105)
into the joint from the right (see Fig. 2).
b) Move the control lever (117 or 120G) to LOWER and then guide the adjusting nut (104),
adjustment pin (103) and chain (102) through the hole in the arbour (105) by hand (see Fig 3).
c) Press the drawbar (110, 110B or 111G) down and remove the pin. 
d) Move the control lever (117 or 120G) to the RAISE position. Lift the lever plate (319) with pin (2)
and insert the adjustment pin (103) into the front slot of the lever plate (319). The adjusting nut
(104) remains on the underside of the lever plate.
e) The drawbar is now connected to the pump.
Figure2 Figure3
4.2 Adjusting the control
The control lever (117 or 120G) is at the top of the drawbar. It can be in three positions:
Raise forks - Lever down
Drive position - Lever in middle
Lower forks - Lever up
NOTE: If the control is out of adjustment for some reason, it can be adjusted as follows:
a) If pump movements cause the forks to go up when the lever is in DRIVE position, turn the
adjusting screw (104) on the adjustment pin (103) or bolt (318) clockwise until the forks do not
move during pump movement and the drive position works properly.
b) If pump movements cause the forks to go down when the lever is in DRIVE position, turn the
adjusting screw (104) or bolt (318) counter-clockwise until the forks no longer move.
c) If the forks do not lower when the control lever (117 or 120G) is at LOWER, turn the nut (104)
or bolt (318) clockwise until operating the control lever (117 or 120G) lowers the forks. Test the

Original operating instructions for hand pallet jack GRANIT 76072170
Page 7of 21
DRIVE function as described under 3.1 and 3.2 to make sure the nut (104) and bolt (318) are in
the right position. 
d) If the forks do not go up when the lever is in RAISE position, turn the nut (104) or bolt (318)
counter-clockwise until the forks rise when the lever is in RAISE position. Then test the LOWER
and DRIVE lever positions as described under 3.1, 3.2 and 3.3.
5. Operating the hand pallet jack
5.1 Preparation before first use
After opening the packaging, check that all components are complete and undamaged. If
components are missing or damaged, contact your dealer immediately and use the device only after
approval by the dealer.
a) Before using, the operator should attentively read all the warnings and warning signs in these
instructions and on the equipment. 
b) Use the device only on flat surfaces.
c) Use the pallet jack only after you have checked that is in proper condition. Pay special attention
to the tyres and rollers, the drawbar, fork unit, lever plate etc.
d) To pull the pallet jack, always move the control lever to the DRIVE position. This makes it easier
to move the drawbar, and reduces the load on the hydraulic pump housing. This extends the life
of the hydraulic seals and valves. 
e) When moving loads, no persons should be within 0.6 m of the unit. 

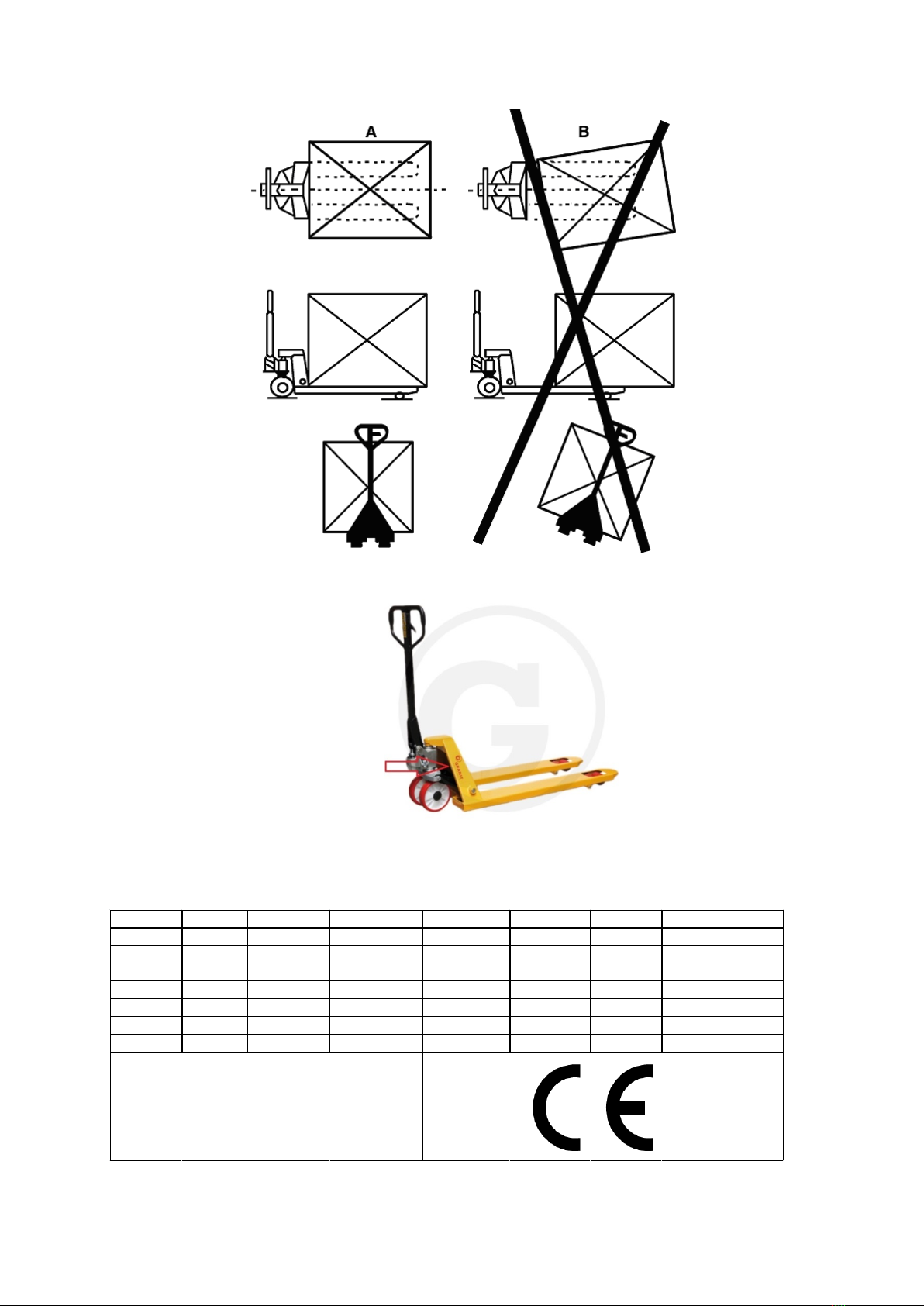

f) Do not move loads as shown in Fig. 5/B. 
g) Do not lift or move loads that exceed the maximum capacity. 
h) Be especially careful when operating the pallet jack in unfamiliar surroundings or conditions.

Figure4

Original operating instructions for hand pallet jack GRANIT 76072170
Page 8of 21
Figure5
Figure6: Manufacturer label
Figure7: Manufacturer label
DE DK EN FINL PL
Bezeichnung Betegnel s e Decription Désignation Designazione Benaming Oznacczeni e Paletten-Hubwagen
Arti kel nummer Arti kl enummer Article number
Numéro d'article Numero di articolo Ar ti kel n ummer Numer artykułu 76072170
Typ Type Type Constructi on Ti po Type Typ HPT-A
Option Løsning Opti on Opti on Opzione Opti e Opcia PTP 540x1150
Leergewi c ht Egenvægt Net wei gth Poids net Vuoto superiore Ledi g gewi c ht Ci ęża r 76 kg
Produktionsjahr Produktionsår Year of production Année de production
Anno di produzione Productiejaar Rok budowy 2017
Ser i ennummer Partinumrene Ser i al Number Numér o de s éri e
Numero di s eri e Seri e nummer Numer s eryjny 16021998M/009
WILHELM FRICKE SE
Zum Kreuzkamp 7, D-27404
Zeven/ Heeslingen, Germany

Original operating instructions for hand pallet jack GRANIT 76072170
Page 9of 21
6. Maintenance and repair
6.1 General maintenance instructions
•Maintenance and repair work may be performed only by qualified personnel.
•Use only original spare and wear parts.
•Maintenance, cleaning and repair are permissible only when the pallet jack is not under load and
the forks are lowered.
•If a paint touch-up is necessary, make sure not to obscure instruction and product signs. If
necessary, replace them with original spare parts.
•Fasteners must be regularly checked for tightness, and tightened as necessary.
•Lightly lubricate all moving parts, depending on use, 1 to 2 times per month.
DANGER: Never perform different kinds of work at the same time and with multiple people.
DANGER: Failure to follow maintenance instructions can lead to serious accidents and
malfunctioning.
DANGER: Do not let any body parts get between moving parts.
IMPORTANT: Non-compliance with the lubrication specifications can cause damage and
malfunctioning.
The pallet jack is almost maintenance-free.

Original operating instructions for hand pallet jack GRANIT 76072170
Page 10 of 21
6.2 Oil
Check the oil level every 6 months. Use hydraulic oil per ISO VG32 with a viscosity of 30 mm2/s at
40°C. The amount is about 0.4l. 
6.3 Bleeding
It is possible that air can get into the hydraulic oil during transportation or pump movement in
vertical position. This can lead to the forks not going up when the lever is in RAISE position. To bleed
out the air move the control lever (117 or 120G) to LOWER and move the drawbar up and down a
few times. 
6.4 Daily inspection and maintenance
Daily inspections minimise wear. Pay special attention to the wheels and axles, as cord or rags can
get caught and block them. Always lower the forks without load after use. 
6.5 Lubrication
All bearings and axles are factory-lubricated with a high quality long-life grease. Grease all lubrication
points every month and especially after cleaning the pallet jack.
7. Storage and transport
Always keep the pallet jack in a dry and freeze-free room.
Check the condition of the pallet jack before storage and perform maintenance before taking it out
of use, so it is ready quickly the next time you need it.
8. Disposal
The separate, environmentally friendly disposal of materials encourages recycling of materials.
Therefore, after expiry of the normal service life, the equipment itself and all related components,
including the lubrication, packaging and wear parts, should be disposed of at a recyclables collection
plant.
Packaging, equipment and accessories are made of recyclable materials and should be disposed of
accordingly.
If the equipment is no longer serviceable, make sure it is unusable before disposal.
DANGER: If you do not have the necessary expertise, engage a specialist for dismantling and
disposal. INJURY HAZARD!
!!! Always observe local disposal regulations!!!

Original operating instructions for hand pallet jack GRANIT 76072170
Page 11 of 21
9. Dealing with problems
No.
Problem
Cause
Solution
1
The forks cannot be raised to
the maximum height.
Insufficient hydraulic oil
Add oil
2
The forks cannot be raised
Insufficient hydraulic oil
The oil is dirty
The nut (104) is too high and
is keeping the pump valve
open
Air in the hydraulic oil
Add oil
Change oil
Adjust net (104) or bolt
(318)
Bleed air
3
The forks cannot be lowered.
The piston rod (328) or
pump (322) is defective due
to uneven excessive
loading. -The forks were left
raised for an extended
period of time and are
rusted or seized up.
The adjusting nut (104) or
bolt (318) is not correctly
adjusted.
Replace the piston rod
(328) or pump.
When not in use, leave the
forks in the lowest
position, and be careful to
properly grease/lubricate
the rod.
Adjust the nut (104) or
bolt (318).
4
Leakage
Seal kit worn or defective.
Parts are cracked or worn
down.
Replace
5
The forks drop down although
the valve has not been
operated.
Dirt in the oil prevents the
valve from closing all the
way.
Parts of the hydraulic unit
are damaged.
There is air in the oil.
Seal kit is worn or damaged.
The nut (104) or bolt (318) is
incorrectly adjusted.
Change oil
Inspect unit and replace
damaged parts.
Bleed air
Replace seal kit.
Adjust nut (104) or bolt
(318)

Original operating instructions for hand pallet jack GRANIT 76072170
Page 12 of 21
10 EC declaration of conformity
EC declaration of conformity for machinery (EC Directive 2006/42/EC)
The manufacturer,
Wilhelm Fricke SE
Zum Kreuzkamp 7
D-27404 Heeslingen, Germany
hereby declares on its sole responsibility that the
Hand pallet jack
Type/series identification: HPTA,HPT-A, HPTA25, HPT-A25
is in conformity with the provisions
of Machinery Directive 2006/42/EC.
The product was developed in accordance with the following standards:
DIN ISO 12100-1 A1/A2 , ISO 3691-5:2009
Technical documentation is kept by:
Arndt Strate, Wilhelm Fricke SE
The serial number and model year are shown on the type plate of the equipment.
Holger Wachholtz Heeslingen, 7 Feb. 2017
(Director)
11. Warranty
The warranty terms of Wilhelm Fricke SE, as can be found in the sales documents and the current
version of the Terms and Conditions, apply.
In case of questions, please contact the company's customer service line.
12. Addresses
Sales/Customer Service / Tel.: [phone]
Spare parts sales: Fax: [phone]
Postal and shipping address: Wilhelm Fricke SE
Zum Kreuzkamp 7
D-27404 Heeslingen

Original operating instructions for hand pallet jack GRANIT 76072170
Page 13 of 21
13. Spare parts lists

Original operating instructions for hand pallet jack GRANIT 76072170
Page 14 of 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 15 of 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 16 of 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 17 of 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 18 of 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 19 of 21

Original operating instructions for hand pallet jack GRANIT 76072170
Page 20 of 21
