Grape Solar GS-50-KIT Assembly instructions

1
50 Watt Off-Grid Charging Kit
(GS-50-KIT)
Quick Connect Guide
IMPORTANT: Please read GS-PWM-165W charge controller
owner’s manual and GS-STAR-50W connection guide (both
included with products) before assembling kit.
For additional information about Grape Solar products:
email [e-mail], or
call 1-877-264-1014 for live telephone support.

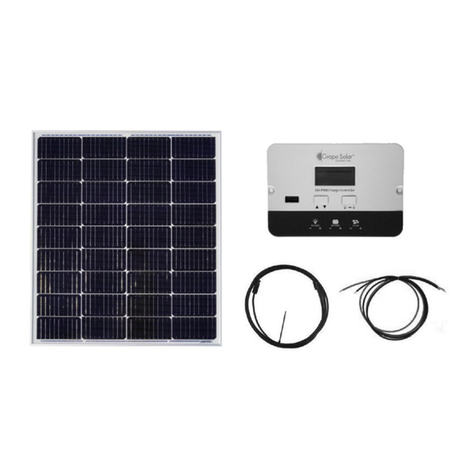

Check your order to make sure that all parts are included:
 GS-PWM-165W Charge Controller
 5-foot Ring-lug Cable, Red
 5-foot Ring-lug Cable, Black
 Black 15-foot MC4 Cable
 GS- STAR-50W Solar Panel
Additional tools and equipment you will need:
◦Screwdriver– Philips Head ◦Wire Stripper/Cutter
◦12-Volt Deep-Cycle Battery Bank ◦Voltmeter (for Troubleshooting)
GS-50-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 190316
Mount the 50-watt solar panel  so that it is facing due South at approximately the same angle as your latitude.
The ideal area has full sun and no shading. If the following connections are made during daylight, cover the
panel with cardboard, cloth, or a similar opaque material so that the panel does not output power.
Connect the wire end of the red battery cable  to the
“+BATTERY” terminal on the back of the PWM-165
charge controller . Connect the wire end of the 5-foot
black cable  to the “-BATTERY” terminal. A Phillips
head screwdriver can be used to loosen and tighten the
screw clamps onto the wires.
Attach the ring lug end of the red cable  to the positive
terminal of a 12V deep cycle battery. Attach the ring lug
end of the black cable  to the negative terminal.

2
3

www.GrapeSolar.com
Tel. [phone] (toll free), 1-541-349-9000 Document Version 20190316
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
[diagrams not to scale]

 
*12V deep cycle battery
not included with kit


Connect the bare wire end of the positive cable  to the “SOLAR +” input of the charge controller . Connect
the negative bare end to the “SOLAR -” input. Now, you can mount the PWM-165 to an indoor wall or within a
NEMA-3R rated enclosure.
Remove the panel covering. In good sunlight, the charge controller’s  ”BAT %” should increase to 100%. Once
the battery is fully charged and the controller is set to “LOAD ON,” the system will provide power through the load
control output or through the two USB ports. If an inverter is added to the system, it must be connected to the
battery bank, and not to the charge controller.
GS-50-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 190316
www.GrapeSolar.com
Tel. [phone] (toll free), 1-541-349-9000 Document Version 20190316
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
4Using wire cutters, snip the 10-gauge, 15ft.
MC4 extension cable  into two equal halves
(7.5ft each.) On the cut ends, strip off ¼-inch of
insulation, revealing bare wire.
Connect the MC4 ends of the halved cable  to the
compatible MC4 ends of the solar panel  cables.
(Mark the end of the positive panel cable with a piece
of tape to help distinguish polarity during connection.)
DISCLAIMER:
Installations of this kit could be subject to national and local building and electrical codes. Installers should have adequate knowledge of
national and local code to ensure the installation passes inspection by the local electric authority.
Proper fuses or breakers should be used to comply with all local and national codes. Contact Grape Solar for specific recommendations.
All batteries used for this system should be identical. Do not mix battery types or sizes. Do not mix old batteries with new batteries.
Performance and charging anomalies can occur if types, sizes, or age of batteries are not identical.
Grape Solar does not warrant the accuracy, sufficiency, or suitability to all customers of any technical or other information provided in
product manuals. Grape Solar does not claim any responsibility or liability for losses, damages, costs or other expenses whether special,
indirect, consequential or incidental, which might arise out of the use of such information.
5
6
7

 
 

*12V load not included

