SFP Optical Converter
Submodule Options
Introduction
This manual accompanies the optical/electrical converter submodule
options for fiber ready modules in the Kameleon 2000 Series and the
GeckoFlex 8900 Series. The low power, single mode SFP (Small-form Factor
Pluggable)/LC 1310nm optical converters include the following models:
• 1310NM-DRL – Dual receiver (2 inputs),
• 1310NM-DTL – Dual transmitter (2 outputs), or
• 1310NM-TRL – Transceiver (1 input/1 output).
The fiber ready modules currently available in the Grass Valley Kameleon
2000 and GeckoFlex 8900 Series are listed below:
Kameleon 2000 Fiber Ready Modules
• 2031RDA-SM SD Reclocking DA with Single-Mode Fiber I/F
• 2031RDA-MM SD Reclocking DA with Multimode Fiber I/F
• 2040RDA-FR Fiber Ready Wideband DA
• 2040RDA-16FR Fiber Ready Wideband DA (16 outputs)
GeckoFlex 8900 Series Fiber Ready Modules
• 8947RDA-FR SD/HD Distribution Amplifier
• 8949MDA-CFR SD/HD Monitoring Distribution Amplifier
• 8949MDA-SFR SD/HD Monitoring Distribution Amplifier
• 8985FSP HD/SD Frame Sync, Proc Amp
• 8985FS SD/HD Frame Sync
• 8985PRC SD/HD Proc Amp
• 8995UPC SD to HD Upconverter
• 8995DNC HD to SD Downconverter

10 SFP Optical Converters—Installation Manual
Kameleon 2000 Fiber Ready Modules
Kameleon 2000 Fiber Ready Modules
This section describes the installation and cabling of the SFP fiber optic sub-
modules for the fiber ready modules in the Kameleon 2000 Series.
Installation
CAUTION The Fiber Optic submodule is static sensitive. Use static handling precautions
when installing or removing the submodule.
The SFP submodule installs in the connector cage on the rear module cor-
responding to the front module in the 2000 frame. Figure 1 illustrates a rear
module using the 2040RDA-16FR as an example.
The submodule is hot-pluggable and may be installed or removed with
power applied to the main module. The submodule type is identified by
name on the label or can be identified by the direction of the two arrows on
the label (Rx-Rx, Tx-Tx, or Tx-Rx).

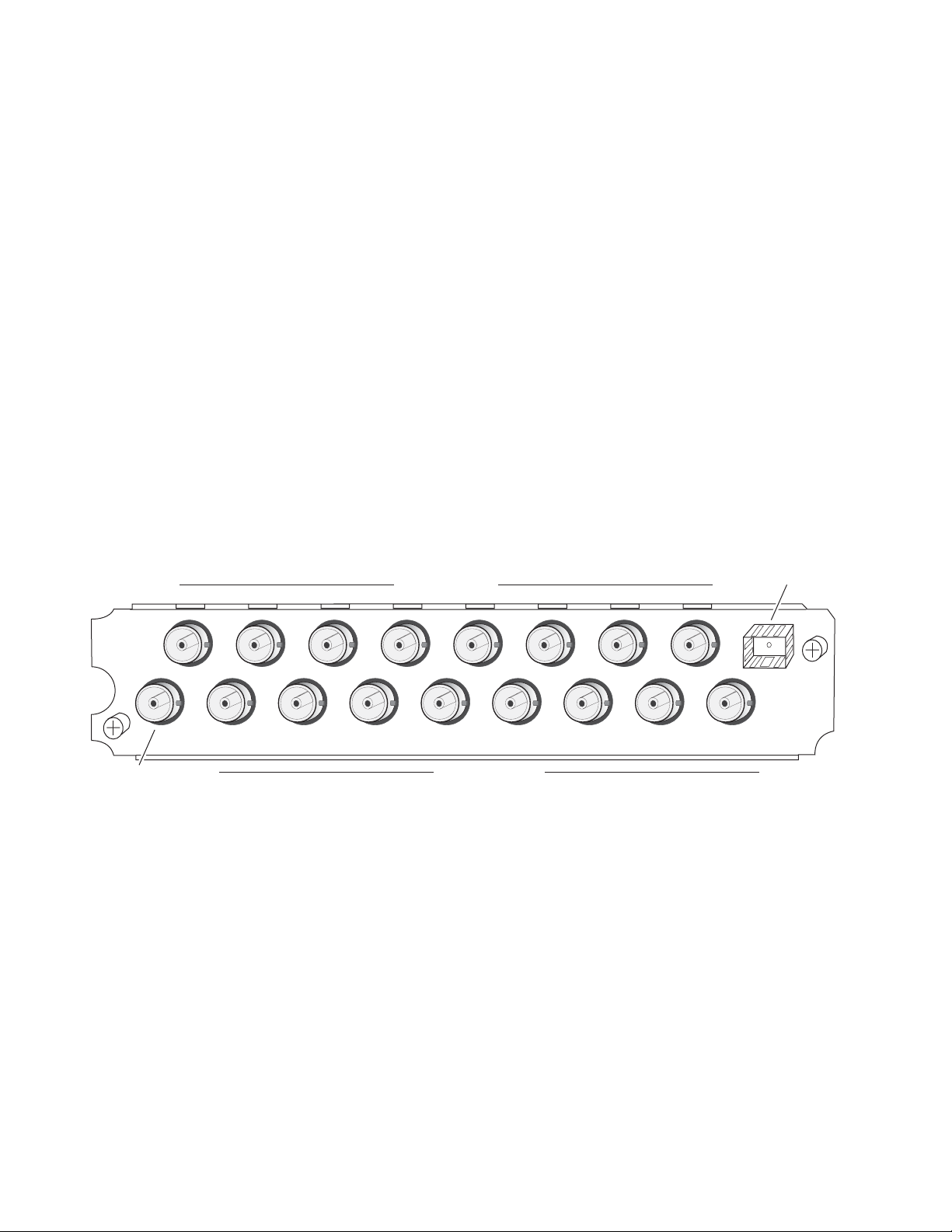

Figure 1. Rear Module Installation for 2040RDA-16FR
To install the optional SFP submodule, refer to Figure 2 on page 11.
1. Locate the cage connector on the top right of the rear module
corresponding to the front module.
2. With the submodule handle in the up position, slide the metal casing,
label side up, into the cage connector on the rear module.
Note When installed properly, the front end of the submodule will line up with the
BNCs. Do not try to force it in further.
J6J7J8
J9
2040
RDA-16
J5 J3J4 J2 J1
J15J16J17
Input
J14 J12J13 J11 J10
SFP Submodule
connector cage
8269_02
Outputs J1 – J8
Outputs J9 – J16

SFP Optical Converters—Installation Manual 11
Kameleon 2000 Fiber Ready Modules
Figure 2. Installing SFP Submodule
Cabling
All cabling to the 2040RDA module sets is done on the corresponding rear
module at the back of the 2000 frame. Cabling to each of the submodule
types is described below.
Dual Optical Receiver
With a dual optical receiver (1310NM-DRL) submodule installed, one of
the optical inputs can be configured as the module input (instead of the
coax BNC).
With the submodule handle in the up position, connect an optical input to
the left (Optic 1) or right (Optic 2) side of the optical connector as shown in
Figure 3.
Use local or remote controls to configure one of the optical inputs as the
module input as described in the instruction manual for the specific
module.
Figure 3. Dual Receiver Optical Inputs
8269_11
Label
Handle in
up position
Arrow Indicators
8269_12
Optic 1 (Input) Optic 2 (Input)

12 SFP Optical Converters—Installation Manual
Kameleon 2000 Fiber Ready Modules
Dual Optical Transmitter
With a dual optical transmitter (1310NM-DTL) submodule installed, the
output signal can be accessed from both optical outputs, Optic 1 (left) and
Optic 2 (right), in addition to the coax BNC outputs.
With the submodule handle in the up position, connect optical cables to one
or both outputs as shown in Figure 4.
These outputs must then be enabled with either local or remote configura-
tion controls.
Figure 4. Dual Transmitter Optical Outputs
Optical Transceiver
With the optical transceiver (1310NM-TRL) submodule installed, the
Optic 2 input (right) can be configured as the module input (instead of the
coax BNC input) and the Optic 1 output (left) can be enabled as a module
output (in addition to the coax BNC outputs).
For an optical input to the module, place the submodule handle in the up
position and connect the fiber cable to the Optic 2 input (right) as shown in
Figure 5. Use local or remote controls to configure this as the module input.
The output signal can also be accessed from the Optic 1 (left) connector
shown in Figure 5. Place the submodule handle in the up position and
connect an optical cable to this output. This output must be enabled with
local or remote configuration controls.
Figure 5. Dual Transceiver Optical Input and Output
8269_13
Optic 1 (output) Optic 2 (output)
8269_14
Optic 1 (output) Optic 2 (input)

SFP Optical Converters—Installation Manual 13
GeckoFlex Fiber Ready Modules
GeckoFlex Fiber Ready Modules
This section of the manual describes the installation and cabling of the SFP
fiber optic submodule for the fiber ready modules in the GeckoFlex 8900
frame. The front and rear modules must be installed first according to the
instructions in the specific GeckoFlex 8900 manual.
Installation
CAUTION The Fiber Optic submodule is static sensitive. Use static handling precautions
when installing or removing the submodule.
After the front and rear modules have been installed, install the SFP Fiber
Optic submodule option into the rear module metal cage labeled FIBER
(Figure 6 on page 14). The SFP submodule is hot-pluggable and may be
installed or removed with power applied to the module.
Note The submodule type is identified by name on the label or can be identified by
the direction of the two arrow indicators on the label.
1. Slide the fiber optic device into the metal fiber cage with the label and
handle to the right.
2. Push the device in as far as it will go without forcing it. It will not go
completely into the cage.
3. Cable the fiber optic connectors according to the instructions given in
Cabling on page 11.

14 SFP Optical Converters—Installation Manual
GeckoFlex Fiber Ready Modules
Cabling
Cabling to the fiber optic submodule is the same for all GeckoFlex modules
as shown in Figure 6.
Note 8985FSP modules shipped before June/2006 have the fiber inputs and
outputs reversed. Refer to the 8985FSP Instruction Manual for verion 1.0.0
software for cabling information.
Figure 6. Installing Fiber Optics Submodule
FIBER
J7
J9
J8
8489_01
Label
Handle
Arrow Indicators:
1310-DRL
1310-DTL
1310-TRL
FiberOptic Cabling
FiberRx 1
FiberTx 2
FiberRx 2
1310NM-DRL
FiberTx 1
FiberRx 1
FiberTx 2
1310NM-DTL
1310NM-TRL

SFP Optical Converters—Installation Manual 15
Configuration
Configuration
Once the submodules have been installed and cabled, refer to the specific
2000 and 8900 module instruction manuals for configuration and operation
information. In most cases, the fiber inputs and outputs must be enabled
using onboard local controls or through the web page GUI.
Manuals are available on-line at no cost at this link:
http://www.thomsongrassvalley.com/docs/
From this location, select Broadcast Products, then Modular Products.
Specifications
Table 1. Optical Submodule Specifications
Parameter Value
Fiber Inputs
Connector Up to two LC
Fiber mode Single mode, 1310 nm nominal
Minimum input power -20 dBm
Input signal formats Serial digital component video conforming to the following formats:
• SMPTE 292M (1.485 Gb/s and 1.485 Gb/s/1.oo1)
• SMPTE 259M (143 Mb/s, 177 Mb/s, 270 Mb/s, 360 Mb/s)
• SMPTE 310M (MPEG to 40 Mb/s)
• SMPTE 347M (540 Mb/s)
• 4 Mbps to 1.5 Gb/s
• DVB-ASI
Fiber Outputs
Connector Up to two LC
Fiber mode Single mode, 1310 nm nominal
Output power -12 to -7.5 dBm (average @ 1310 nm)
Signal type Serial digital component video conforming to the following formats:
• SMPTE 292M (1.485 Gb/s and 1.485 Gb/s/1.oo1)
• SMPTE 259M (143 Mb/s, 177 Mb/s, 270 Mb/s, 360 Mb/s)
• SMPTE 310M (MPEG to 40 Mb/s)
• SMPTE 347M (540 Mb/s)
• 4 Mbps to 1.5 Gb/s
• DVB-ASI

16 SFP Optical Converters—Installation Manual
Specifications

SFP Optical Converters — Installation Manual 17
Index
Numerics
1310NM-DRL
on 2000 module 11
on 8900 module 14
overview 9
1310NM-DTL
on 2000 module 12
on 8900 module 14
overview 9
1310NM-TRL
on 2000 module 12
on 8900 module 14
overview 9
C
cabling
on 2000 module 11
on 8900 module 14
configuration 15
D
documentation online 4
F
FAQ database 4
fiber ready modules
Gecko Flex 8900 Series 9
Kameleon 2000 Series 9
frequently asked questions 4
G
Grass Valley web site 4
I
installation
on 2000 module 10
on 8900 module 13
instruction manuals
finding online 15
O
online documentation 4
R
rear module
2000 module 11
S
software download from web 4
specifications 15
W
web site documentation 4
web site FAQ database 4
web site Grass Valley 4
web site software download 4

18 SFP Optical Converters — Installation Manual
Index
