18 8925DMB-B SD/HD Balanced Audio De-Embedder
Key Features
Eight-channel SD/HD audio de-embedder•
(demultiplexer) with AES outputs
Any embedded audio stream can be•
passed and distributed to any discrete
output
Choice of four balanced AES outputs•
Four HD-SDI/SDI outputs (one active loop-•
through)
Support 48 kHz audio sample rate and•
20-bit or 24-bit audio sample resolution
Handles Dolby E•
Fiber-ready option for receiving or•
transmitting over fiber
Remote control and monitoring via•
Ethernet frame interface
Applications
HD-SDI audio de-embedding•
SD and HD signal handling•
Receiving SD/HD SDI from fiber and•
de-embedded audio
Supported Frame Types
GeckoFlex with 8900NET (Net Card) for configuration
Power Rating
7.4 Watts – single slot
Video Inputs
SD/HD-SDI:
•Inputequalization:HDupto125m,SDupto330m
•Auto-sensing:yes
Optical: Single-mode (optional)
Formats supported: 1080i @ 59.94, 50,
720p @ 59.94, 50, 480i @ 59.94, 576i @ 50,
[email protected], 1080sF @ 23.98
Audio Outputs
AES: Four outputs
•Signaltype–balanced:AES-3id-1992
•Commonmoderange:10Vp-pDC20kHz
•Samplingrate:48kHz
•Resolution:20-or24-bit
•Outputreturnloss:>15dB(100kHzto12MHz)
•Inputimpedance–balanced:110Ω
•Connectortype–balanced:mini-screwterminal
block
Video Outputs
SD/HD-SDI: Four outputs
•Returnloss:>15dB,5to270MHz;
>15 dB typical, to 1.5 GHz
•Signallevel:SDI800mV/p±10%
•Rise/falltime(20-80%):140pstypicalforHD,
640 ps typical for SD
Output jitter, low jitter applied:•
< 0.2 UI HD > 100 kHz
< 1.0 UI HD 10 Hz > 100 kHz
< 0.2 UI SD > 1 kHz
< 0.2 UI SD 10 Hz > 1 kHz
Optical: Single-mode (optional)
Electrical length (delay)
SDI: HD input <400 ns, SD input <1.2 µs
AES (@48 kHz): HD input 0.41 ms, SD input 0.83 ms
De-embedding
Output audio stream: Silence or any embedded pair
Output audio resolution: 20-, 24-bit, or auto as input
This module can be mounted in a GeckoFlex
frame but not in other 8900 series frames,
including Gecko-A or Gecko-V frames. As this
module has no card-edge controls, an 8900NET
(Net Card) Network Interface module is required
for configuration.
8925DMB-B
SD/HD de-embedder, four balanced audio inputs, front
and rear module set
SFP-13103G-M1TRX
Fiber transceiver. Low-power 1310 nm single-mode
optical transceiver
SFP-13103G-M1DTX
Dual fiber transmitter. Dual low-power 1310 nm single-
mode optical transmitter
SFP-13103G-M1DRX
Dual fiber receiver. Dual low-power 1310 nm single-
mode optical receiver
For detailed specifications, installation, and setup
instructions see:
www.grassvalley.com/docs/modular
The 8925DMB-B is a compact SD/HD digital
audio de-embedder (audio demultiplexer)
module. It provides four balanced AES
outputs and supports both PCM audio and
Dolby E. This module is ideal for building dense
audio/video infrastructure for production and
playout applications. The 8925DMB-B provides
four SD/HD-SDI outputs, one of which is a
direct reclocked feed of the input. The four AES
outputs are synchronous to the video. Output
PCM audio sample resolution can be forced to
20 or 24 bits.
With its fiber-ready architecture, the
8925DMB-B can be configured to support up
to two fiber inputs or up to two fiber outputs.
Configured as a fiber transceiver it can take SDI
from fiber, de-embed audio, and provide SDI
output over fiber and discrete AES outputs. The
dual-receiver option makes it ideal for receiving
incoming feeds from longer distances with fiber
input selection, and locally de-embedding audio
for providing audio and SDI over copper.
All parameters can be adjusted via standard
HTML Web browsers or via the Newton Control.
In addition, NetConfig and NetCentral can be
used for remote configuration and signal health
monitoring.

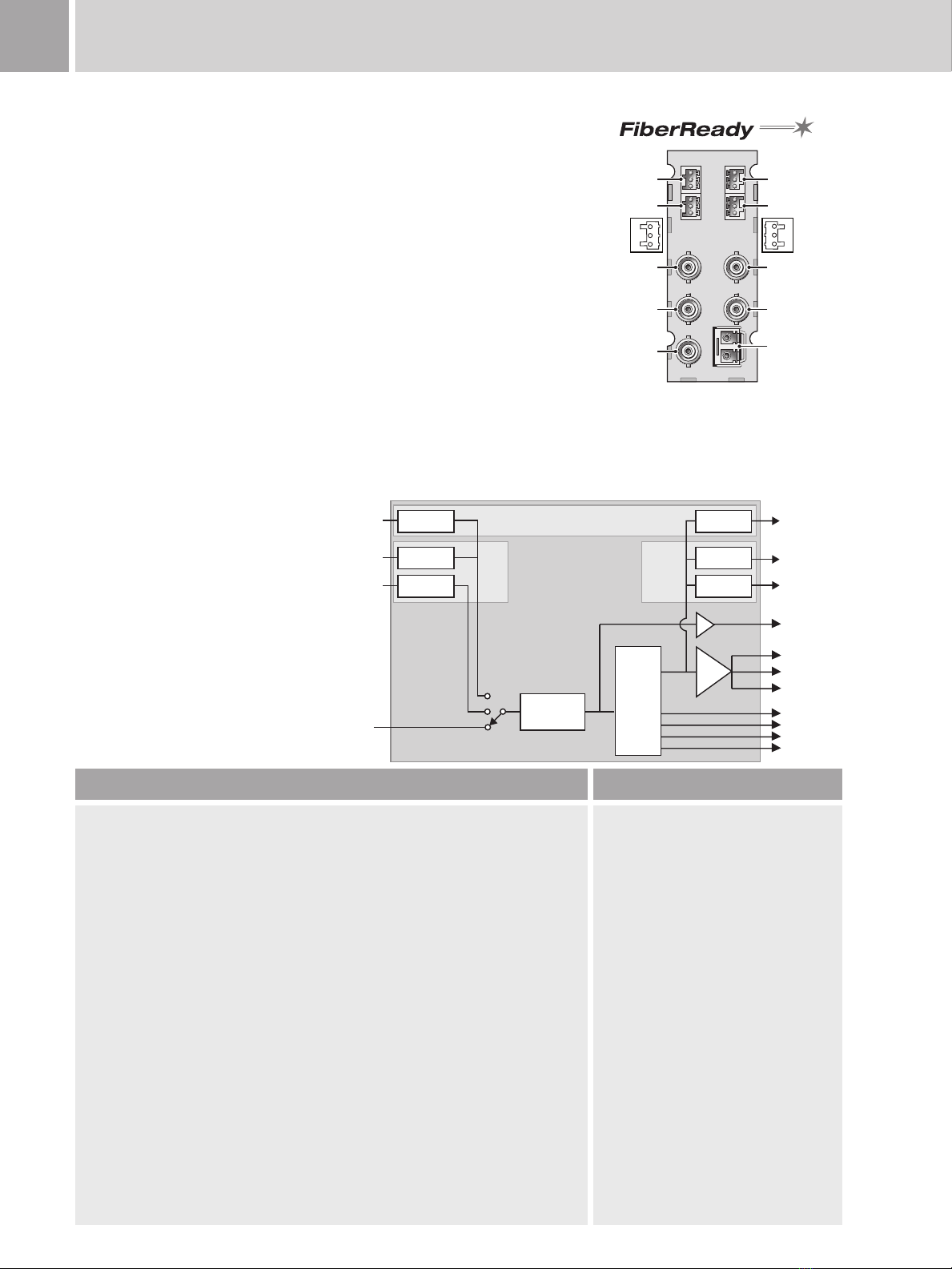

4X
AES
Out
3X SD/HD
SDI Out
SD/HD
Reclocked
SDI Out
SD/HD
SDI In
Equalizer and
Reclocker
Only one fiber
option may be
selected
Fiber TX
Fiber TX
Fiber TX
Fiber RX
Fiber RX
Fiber RX
SD/HD
Optical In
2X SD/HD
Optical In
SD/HD
Optical Out
2X SD/HD
Optical Out
Option Option
Option
DMUX
8900BVF-R
SD/HD
SDI Out
SD/HD
SDI Out
Reclocked
Output
SD/HD
SDI In
SD/HD
SDI Out
SD/HD
SDI Out
Fiber In/Out
Connector
Audio
Output
Audio
Output
Audio
Output
Audio
Output
Pin 3
Pin 2
Pin 1
Pin 1
Pin 2
Pin 3
+
_
G
G
_
+
J5 J6
J7 J8
J9
FIBER
J1
J2
J3
J4
