Kayak HD Release Notes
Introduction
This document includes notes for software installation, licenses, new fea-
tures changes and enhancements, and other information specific to the
release of Kayenne XL control panel, Kayenne XL menu panel and the
Kayak HD video frame that have changed since Kayak/Kayenne XL soft-
ware release V702.
New Features
• Aux Transition for Kayenne XL Control Panel
• Aux Transition for Kayak Control Panels
• Single button and Module disabling for Kayenne XL Control Panels
• New enhanced Macro Editor for Kayenne XL control panels
• Stand alone Kayenn XL Macro Editor for external PC
• Enhancement up to 32 external router outputs. 
Possibility to enter Router Output Names (only Kayenne XL)
• Bugfix: New Probel driver. Refer section Compatibility on page 2
• User Manual and Online Help updates and enhancements
• Installation Manual updates, e.g. Satellite Panel

2Kayak HD — Release Notes
Version 7.0.3
Compatibility
The Software is compatible for connected device types
• Kayenne XL control panel
• Kayenne XL menu panel
• Kayak control panel
• Kayak HD mainframes
if the software has been installed from the same Release CD.
To run the Kayenne XL control panel on a Kayak HD mainframe, the Soft-
ware License 'Kayenne XL Frame' must be installed at the Kayak HD main-
frame.
With V700 the Kayenne XL menu panel DS1220.xxx (1280x768Pix) replaces
the former KayakHD Sidepanel version DS0203.xxx (640X480 Pix).
The software version 7.0.3 does not support the following hardware
• Kayak DD-1 and Kayak DD-2 Production Switcher
• Kayak HDX Control Panels (former DD35/XtenDD Control Panels)
New Probel Router Driver
Because of a new Probel driver in V703 it is recommended to select the new
drivers (probel_ctrl_v703 repectively probel_syst_v703) after software instal-
lation in order to establish the connection to the router properly.
New Menu Panel Touch Screen Driver
With software release V703 the Sidepanel Menu Navigation Panel and -
Operation Panel run in a common window. Due to this change, the menu
panel can also run with the new version of touch screen driver
UniWinDriver V6.34.
Earlier software releases however still need the UniWinDriver V6.20. 
An update from V6.20 to V6.34 is not necessary.
Both versions are available on the software installation CD.
Input Timing
With introduction of AUX Transitions in software release V703, the input
timing range is reduced by 80 pixels. After software installation, the input
source timing must be checked again.

Kayak HD — Release Notes 3
Available Documentation on V7.0.3 Release CD
Available Documentation on V7.0.3 Release CD
The V7.0.3 Release CD contains the following documentation:
• ReleaseNote.pdf (this document)
• Release Note Addendum.pdf
• Kayenne_XL_ISM_V703.pdf (Installation and Service Manual)
• Kayenne_XL_User_Manual_V703.pdf (User Manual)
V694 Documentation for Kayak HD
• Kayak_User_Manual_V693.pdf (User Manual)
• KayakHDV694IPM845103.pdf, KayakHDV694ISM844806.pdf 
(Installation and Service Manual)

4Kayak HD — Release Notes
Version 7.0.3
New Features Using Kayak Control Panels
Aux Bus Transitions
AUX Bus Transition is a new feature introduced with software version
V703. It offers the possibity to execute up to two AUX-AUTO-MIX transi-
tions simultaneously from any Kayenne XL or Kayak control panel. The
AUX transition control settings Transition Mode and Transition Duration can
be enabled individually per AUX Bus of the video frame and are stored
with the frame's configuration settings.
Compared to the new Kayenne XL Control Panel the Kayak Control Panels
do not have the Direct Trans and Auto Trans buttons. Therfore AUX Transi-
tions can only be made when Direct Mode is activated in the Kayak‘s Aux
menu. If Auto Mode activated, Aux Transition can only be executed using
the menu buttons.

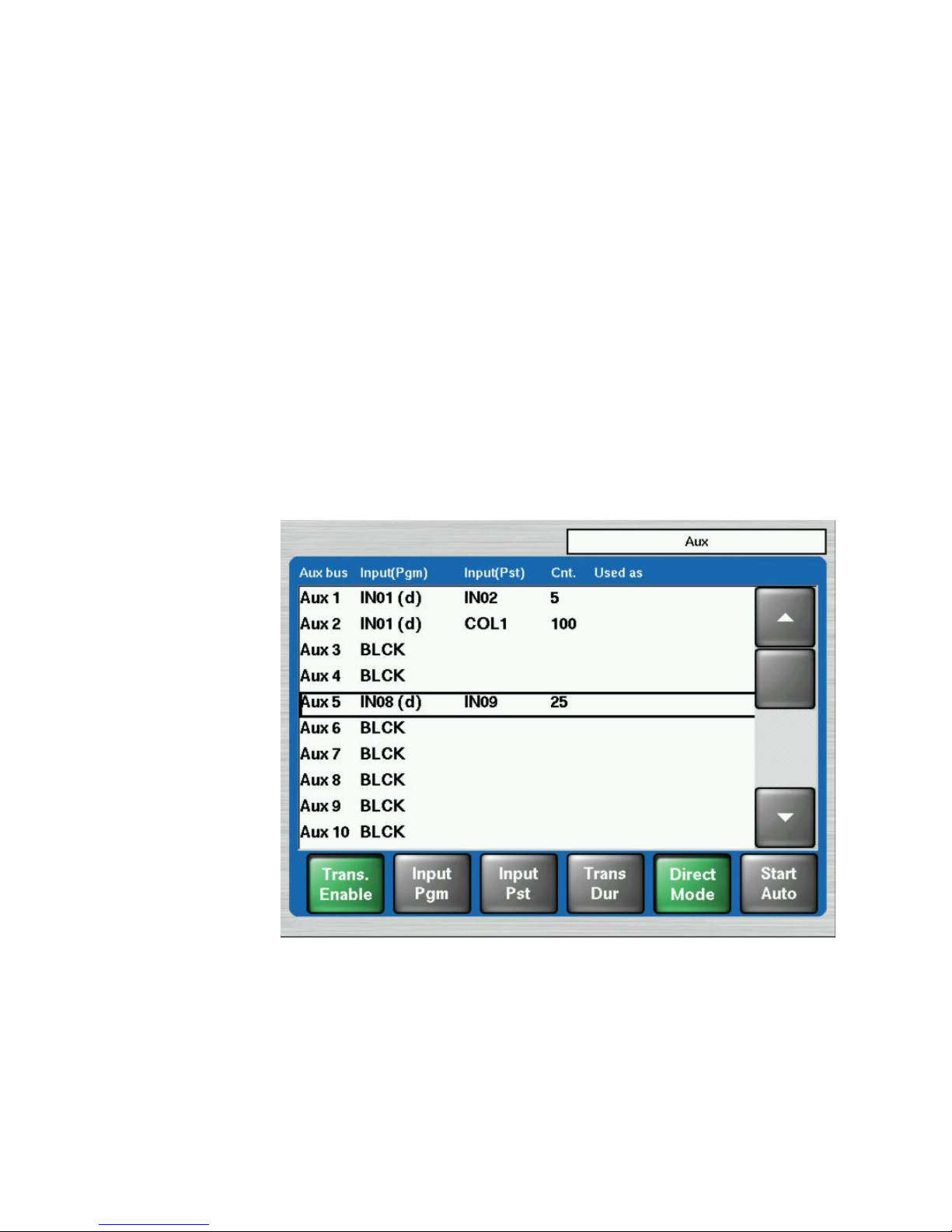

Figure 1. Kayak Aux Menu

Kayak HD — Release Notes 5
New Features Using Kayak Control Panels
•Trans. Enable:
Toggles the AUX Transition activation for the selected Aux Bus (Aux5).
If the AUX Transition is enabled you get access to the AUX transition
control buttons Input Preset, Trans Dur, Direct Mode and Start Auto.
•Input (Pgm)
Switch the AUX source immediately to a new input source.
•Input (Pst)
Set the new preset source for the next AUX Transition execution.
•Trans Dur 
Set the transition duration for subsequent AUX Transition executions
(in frames). While the AUX Transition is running, the Cnt. column
shows the transition count down value.
•Direct Mode
If Direct Mode is enabled, selecting a new AUX source on the Kayak
Control Panel starts an AUX transition. If Direct Mode is disabled the
Control Panels AUX source selection cuts to the new source.
•Start Auto
Starts the AUX Transition to the Input (Pst) source. At the end of an
AUX Transition, the AUX Pgm and AUX Pst inputs swap. 
During the transition the source button lamp flashs to indicate the tran-
sition
Note The running transition can be finished by pressing the Start Auto button
again. A pause of the running transition is not possible.
Note During transition it is possible to change the source (Pst) by simple pressing
another source button. The transition will be completed in the remainig time.

6Kayak HD — Release Notes
Version 7.0.3
Software Installation
Installing the Sidepanel Software
• Insert the Kayak HD Software CD into your computer's CD-ROM
drive. Or download the software from
www.thomsongrassvalley.com. Copy the software to a USB device
(flash memory or hard disk).
• Connect the USB device at the right side of the Menu Panel.
• Kayak HD Software uses an autorun application to help installing the
software. Navigate to the following directory:

\ds0206\Autorun\Autorun.exe
• Select 'Installation of graphical user interface' at the Kayak HD / Kayak
Installation wizard:
Figure 2. Side Panel Installation (Example)
• Click on Install Kayenne XL Sidepanel to launch the installation.

Kayak HD — Release Notes 7
Software Installation
Figure 3. Keyenne Side Panel Installation
• The Sidepanel Software Installation Welcome screen displays. Click
Next.
Figure 4. Confirm
• Choose the type of installation you wish to perform:
•Demo: Demo version, no connection to a panel or a frame.
•GUI PC: Connection only to a frame, not to a panel.
•MultiPanel: Connection to frame and panel.
•SinglePanel: Connection to a specified panel during installation.

8Kayak HD — Release Notes
Version 7.0.3
Figure 5. Installation type
• Select the network which is used for the switcher network and click
Next:
Figure 6. Select component
• Click to select or deselect the checkbox for Desktop Picture, Full Screen
Mode, Autostart Sidepanel on boot and Autostart TFTP Server on boot.

Kayak HD — Release Notes 9
Software Installation
Figure 7. Select options
• Click to select the checkbox for Yes, I want to restart my computer now and
click Finish.
Figure 8. Confirm restart

10 Kayak HD — Release Notes
Version 7.0.3
To complete the computer connection to the panel and frame after the com-
puter has rebooted.
• Launch the Sidepanel software application.
• Click to select the box for E-Box at the top of the screen. A blue line dis-
plays in the bottom of the box to indicate that it has been selected.
• Click to select the box for Panel at the top of the screen.
• Click to select the name and IP address for the frame and the panel from
the scrolling list at the bottom of the screen.
• Click the Connect button to connect the frame to the panel and to the
computer Sidepanel software for this session.
• Click Attach to make the connection from the frame to the panel and to
the computer Sidepanel software persistent so that it will remain after
the computer reboots.

Kayak HD — Release Notes 11
Software Installation
Installing Panel and Mainframe Software
• From the CD Installer Welcome screen click on the Install new software
button (third from the top on the left as shown in Figure below):
Figure 9. Software installation
• The Install new software selection screen is displayed. Click on Network
Devices button on the right to install software over the network.

12 Kayak HD — Release Notes
Version 7.0.3
Figure 10. Network Devices
• In the Device Selection screen every Kayak HD and Kayak devices con-
nected to your computer's network are displayed here in the window.
Click on a name in the list to select a device for installation.
• Click on Next.
Figure 11. Next
• Once you have selected the frame or the panel, click on Software Update
below the device list to start the software installation.

Kayak HD — Release Notes 13
Software Installation
Figure 12. Software Update
• Select Start Install to start the software installation on the selected
device.
Figure 13. Start Installation
•ConfirmwithYes. The installation progress will be shown at the top of
the screen.
• Confirm the reboot with Yes to complete the software installation.

14 Kayak HD — Release Notes
Version 7.0.3
Figure 14. Confirm
Figure 15. Progress bar Software update
