Grasslin Termio eco BG1s User manual

thermio™ eco BG1S, BG7S
and BG1Q
EN Operating manual

This manual ensures safe and efficient use of the timers
“thermio™ eco BG1S”, “thermio™ eco BG7S” and
“thermio™ eco BG1Q” (referred to as “device” in the fol-
lowing). This manual is a component of the devices and
must remain accessible at all times for everyone who
uses the devices.
2

Everyone who uses the devices must have read and
understood this manual before commencing any work.
The basic prerequisite for working safely is compliance
with all safety instructions and usage instructions speci-
fied in this manual. Furthermore, the local accident pre-
vention regulations and the general safety regulations in
the area in which the devices are operated apply.
Illustrations in this manual are intended to provide a gen-
eral understanding and may differ from the actual
design.
Copyright
This manual is copyright protected.
EN
3

Handover of this manual to third parties, reproductions of
any type and form – including excerpts – and use and/or
disclosure of the content without the written permission
of Grässlin GmbH (referred to as “manufacturer” in the
following), except for internal purposes, is not permitted.
Violations will result in liability for compensation. The
manufacturer reserves the right to assert additional
claims.
The copyright is held by the manufacturer.
© Grässlin GmbH
Bundesstr. 36
78112 St. Georgen
GERMANY
4

Declaration of conformity and download instructions
The declaration of conformity for the devices described in
this manual, a download of the manual, and the technical
data can be found at www.graesslin.de .
EN
5

Overview................................................ 7
Safety................................................... 14

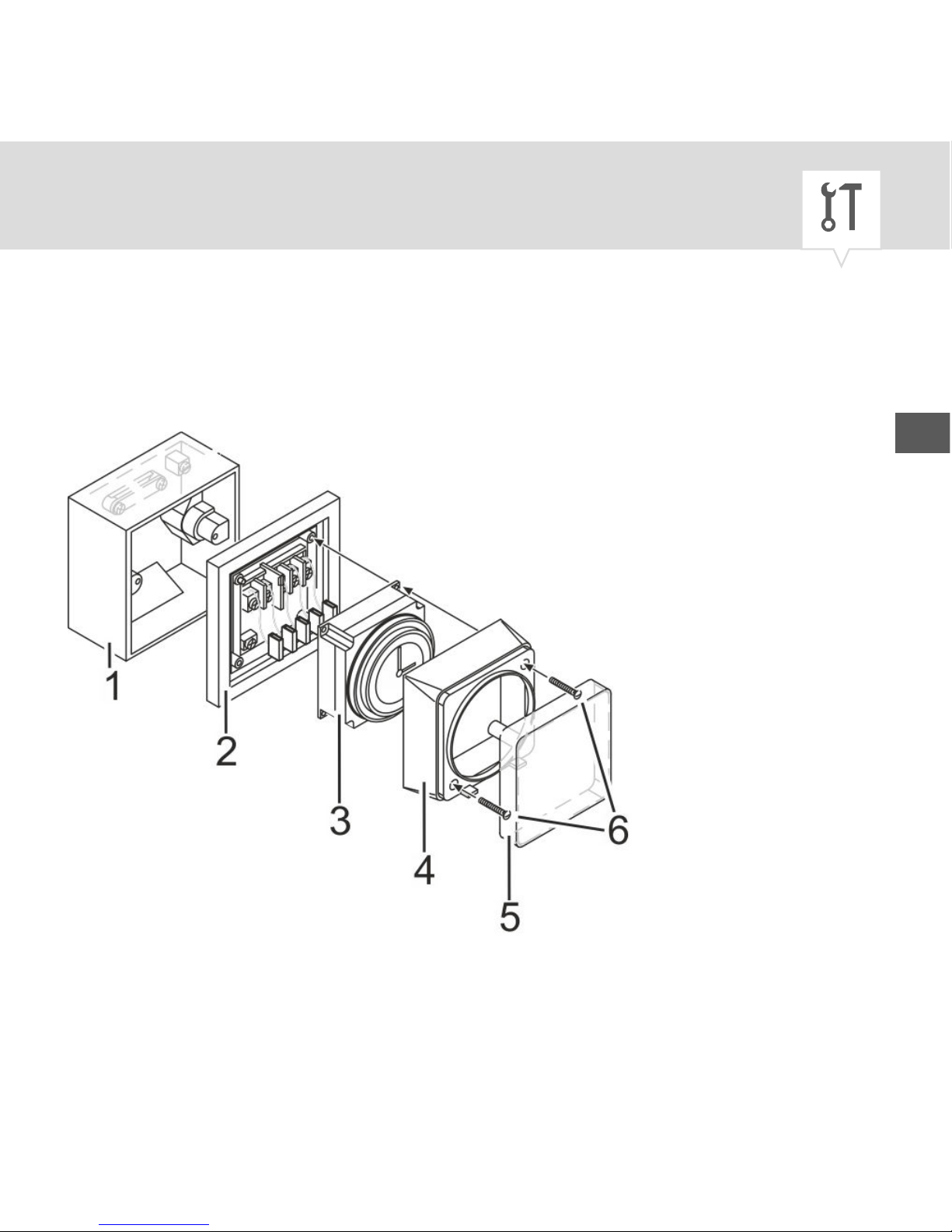

Installation............................................ 17
Operation............................................. 33
Setting the day of the week/time................ 33
Setting the on/off time................................ 38
Selecting the operating mode..................... 40
Disposal............................................... 42
6

Overview
Fig. 1: Front view
EN
7

1 Dial with tappets
2 Manual switch (ON, OFF, automatic mode)
3 Screw connection
4 “thermio™ BG7S” timer
5 “thermio™ BG1S und BG1Q” timer
Description of function
The “thermio™ eco BG1S” and “thermio™ eco BG7S”
timers are analogue single-channel synchronous timers
and the “thermio™ eco BG1Q” is an analogue single-
channel quartz timer.
The “thermio™ BG1S” and “thermio™ eco BG1Q” times
can switch connected loads with a smallest possible
switching time of 15 minutes.
8

The “thermio™ BG7S” timer can switch a connected
load on each day with a smallest possible switching time
of 2 hours.
EN
9

Manual switch

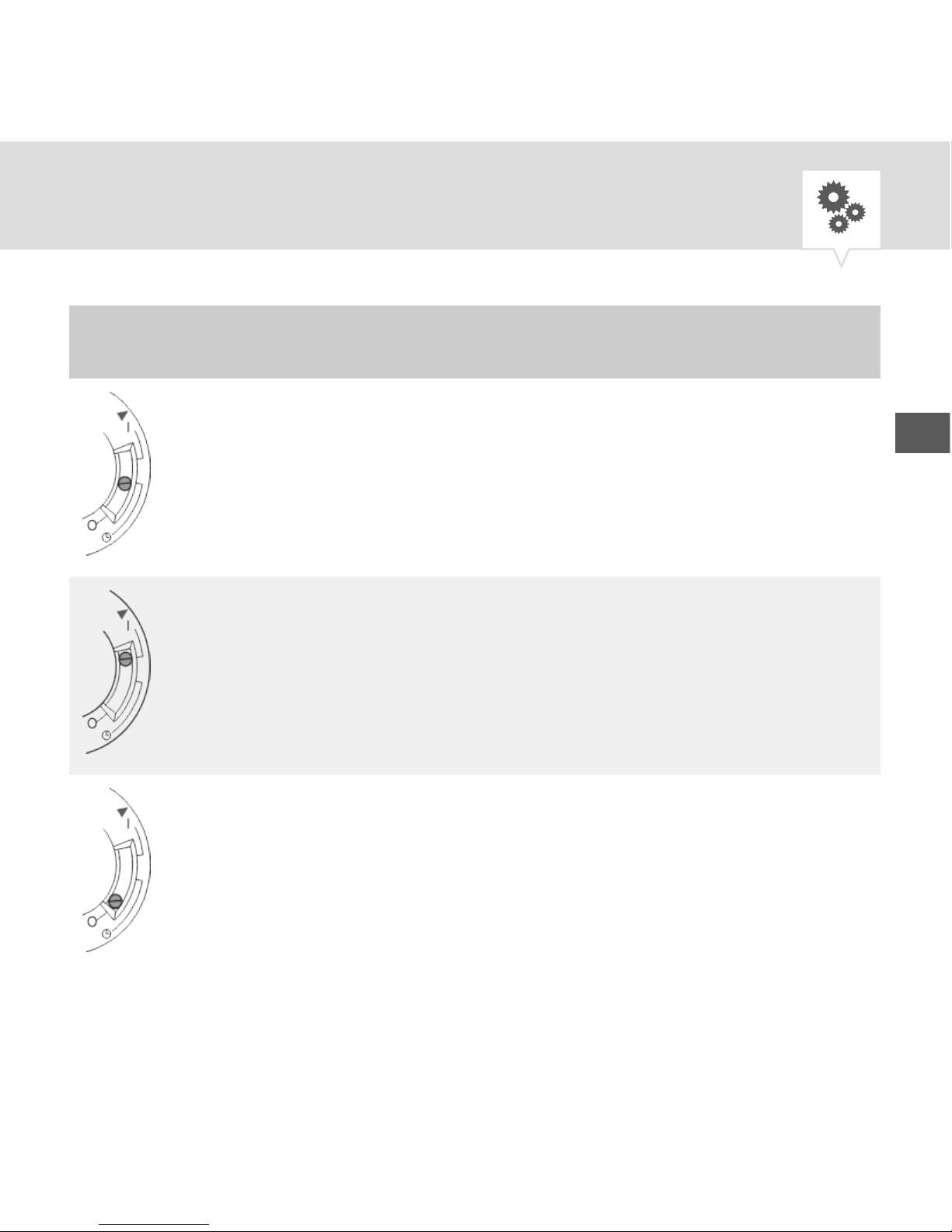

The timers have a manual switch; this can switch
between the modes (automatic), 0 (OFF) and I (ON).
10
