GRAUPNER LiPo BALANCER CHARGER 3-4S User manual

EN
No. S2034
with integrated net adapter 100-240V AC
LiPo BALANCER CHARGER 3-4S
Manual
Copyright © Graupner/SJ GmbH

2 / 16 6454.XH_sh_V1a

3 / 16
6454.XH_sh_V1a
Index
Introduction ...................................................................................4
Service centre.................................................................................4
Intended use...................................................................................5
Target group .................................................................................5
Disclaimer.....................................................................................5
Package content .............................................................................5
Technical data.................................................................................6
Symbol description.........................................................................6
Safety notes....................................................................................7
For your safety by handling the batteries .....................................9
First use ........................................................................................10
Charging LiPo batteries...............................................................10
Components description ............................................................10
Charging mode with net power supply.......................................12
SIMPLIFIED DECLARATION OF CONFORMITY...............................14
Manufacturer .............................................................................14
Notes on environmental protection ............................................14
Care and maintenance .................................................................14
Warranty conditions.....................................................................15

4 / 16 6454.XH_sh_V1a
Introduction
Thank you very much for purchasing a Graupner LiPo BALANCER
CHARGER 3-4S with net adapter 100-240V AC and separated con-
nection cable.
Read this manual carefully to achieve the best results with your LiPo
battery charger and first of all to safely charge your batteries. If you
experience any trouble during the charge operation, take the instruc-
tions to help or ask your dealer or Graupner Service Centre.
Due to technical changes, the information may be changed in this
manual without prior notice. Be always updated by checking period-
ically on our website, www.graupner.de to be always uptodate with
the products and firmwares.
This product complies with national and European legal require-
ments.
To maintain this condition and to ensure safe operation, you must
read and follow this user manual and all the safety notes before
using the product and you have to respect those notes also for future
use!
Note
This manual is part of that product. It contains important informa-
tion concerning operation and handling. Keep these instructions for
future reference and give it to third person in case you gave the
product.
Service centre
Graupner Central Service
Graupner GmbH
Henriettenstrasse 96
D-73230 Kirchheim / Teck
Servicehotline

(+49) (0)7021/722-130
Monday- Thursday:
9:15 am- 4:00 pm
Friday:
9:15 am- 1:00 pm
[e-mail]
Graupner USA
3941 Park Dr Suite 20-571
El Dorado Hills, CA 95762
Website: www.graupnerusa.com
Phone: [phone]
Email:[email protected]om
Graupner in Internet For the service centres outside Germany please refer to our web site
www.graupner.de.

5 / 16
6454.XH_sh_V1a
Intended use
The Graupner LiPo BALANCER CHARGER 3-4S has to be used exclu-
sively only for the scopes declared by the manufacturer. Any other
type of use is impermissible and may cause significant property dam-
age and/or personal injury. No warranty or liability is therefore
offered for any improper use not covered by these provisions.
This charger is only suitable for charging a lithium-polymer battery
with either three or four cells and a nominal cell voltage of 3.7 V.
Target group
The item is not a toy. It is not suitable for children under 14. The and
operation of the battery charger must be performed by experienced
modellers. If you do not have sufficient knowledge about dealing
with LiPo battery chargers, please contact your dealer, an experi-
enced modeller or a model club.
Disclaimer
Graupner/SJ cannot monitor compliance with the operating instruc-
tions, as well as the conditions and methods for installation, opera-
tion, use and maintenance of the charger. Therefore Graupner/SJ
does not accept any liability for loss, damage or costs arising from
improper use and operation or which are related to it in any way.
Package content
• LiPo BALANCER CHARGER 3-4S with integrated net adapter
• AC connection cable
• Manual

6 / 16 6454.XH_sh_V1a
Technical data
Charger
Input voltage 100 … 240 V~ (AC)
Suitable to charge LiPo batteries 3S (11,1V)/4S
(14,8V)
Admitted cells count 3 or 4 cells
Balancer ports
Usable at the same time
2
1
Charge current max. 3 A (< 40 W)
Light display 7 segment LED display
Balancer connection type XH
Voltage difference at the
balancer approx. 20mV
Dimensions Approx. 98 x 60 x 26 mm
Weight Approx. 135 g
Symbol description
Always observe the information indicated by these warning signs.
Particularly those which are additionally marked with the words
CAUTION or WARNING.
!
The signal word WARNING indicates the potential for serious injury,
the signal word CAUTION indicates possibility of lighter injuries.
The signal word Note indicates potential malfunctions.
Attention indicates potential damages to objects.

7 / 16
6454.XH_sh_V1a
Safety notes
!
These safety instructions are intended not only to protect the prod-
uct, but also for your own and other people’s safety. Therefore please
read this section very carefully before using the product!
• Always pay attention to the charging instructions of the bat-
tery manufacturers and always observe the recommended
charging currents and charging times.
• Do not carry out any fast charge as long as the manufacturer
does not explicitly state that the batteries are suitable for this
purpose.
• Lithium polymer cells are sensitive and can easily be damaged.
Therefore, charge LiPo cells only with suitable charging devices
and under permanent monitoring of the charging process.
• Protect the charger against dust, moisture, rain, heat (e.g.
direct sunlight) and vibrations. Only use in dry locations.
• Not for children under 14 years, no toys!
• Persons, including children, with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, or not
capable to use safely the battery charger must not use it with-
out supervision or instruction by a responsible person.
• The slots in the housing are used to cool the device and must
not be covered or sealed. The device must be positioned so
that the air can circulate without restriction.
• Do not connect several chargers to one power strip. Other-
wise, the socket can be overloaded and start to burn!
• The charger and the LiPo battery to be charged must be placed
on a non-combustible, heat-resistant and non-conducting sur-
face during operation. Never place the device on a car seat,
carpets or similar surfaces. Combustible or highly flammable
objects are to be kept away from the charging area. Ensure
good ventilation.
• Batteries can explode or catch fire if they are defective!
• The charge outputs and the connection cables must not be
modified or connected to each other in any way. The charging
cables and connection cables must not become coiled during
operation. Prevent short circuits between the charge output or
battery.
• Only use the components and spare parts that we recommend.
Always use matching, original Graupner plug-in connections of
the same design and material.

8 / 16 6454.XH_sh_V1a
• Make sure that all of the plug-in connections are tight. When
disconnecting the plug-in connections, do not pull the cables.
• Never leave the charger unattended when it is connected to
the power supply. Only use in rooms fitted with a smoke detec-
tor.
• Under no circumstances should both charge connections of
the LiPo BALANCER CHARGER 3-4S be used as short-circuit-like
effects can occur.
• If you have questions which cannot be answered by the oper-
ating manual, please contact us or another expert in the field.
• Avoid every kind of short-circuit in all sockets! Risk of fire! Use
only the suitable connectors. In no case the electronic compo-
nent of the charger may be changed or modified. Due to licens-
ing reasons, any reconstruction and/or modification of the
product is prohibited.

For your safety by handling the batteries
!
CAUTION
• Protect the batteries from dust, dirt, moisture, heat and vibra-
tions. Only use in dry locations.
• Batteries must always be monitored during charging!
• Connect the battery to be charged using the original GRAUPNER
XH balancer connection cables for lithium polymer cells.
• Do not use any damaged battery.
• Never try to load faulty or "puffy" lithium cells!
• Overcharging and deep-discharge processes cause irreparable
damage to the cells, permanently impair the performance of
the battery and reduce its capacity.
• Always ensure that all cables, plugs and terminals are well and
securely connected. If, for example, a wobble contact causes a
short interruption of the charging process, this inevitably leads
to a malfunction, such as a restart of the charging process. The
battery pack can be massively overcharged and, in the worst
case, start to burn.
• Batteries may not be heated, burned, short-circuited.
• If handled improperly, there is a danger of fire, explosion, irri-
tation and burns.
• Leaked electrolyte is caustic and should not be touched or
come into contact with your eyes. In case of emergency, rinse
with a large quantity of water and consult a Med. Doctor.
• Stock the batteries in dry and fresh conditions.
• Dispose of the battery in the proper disposal centers.

10 / 16 6454.XH_sh_V1a
First use
Charging LiPo batteries
Lithium batteries may ONLY be charged with suitable charger type.
Chargers or charging methods for NiCd or NiMH batteries are not
suitable for charging LiPo batteries since the respective charging
methods differ considerably. Also, LiPo chargers balance the cell
voltages during charging, they "balance" them. A technique which is
not used, for example, when charging NiCd or NiMH batteries.
The required charging current depends on the charge state and on
the capacity of the battery to be charged and is automatically deter-
mined by the charger as a rule.
Components description

11 / 16
6454.XH_sh_V1a
5 6
1Net power adapter admitted input voltage
100 … 240 V ~ (AC)
Output power 15 V / 15 W
2 Charger input admitted input voltage
100 … 240 V ~ (AC)
3 7 segment LED
display
FUL lights up after full charge
4 7 segment LED
display
Battery voltage lights up during char-
ging
5 Balancer socket left: for 3 cells batteries
6 Balancer socket right: for 4 cells batteries
AC connection
cable
7 Charger-side
connector
admitted operation voltage
100 … 240 V ~ (AC)

12 / 16 6454.XH_sh_V1a
Charging mode with net power supply
Step by step
Attention
Only one battery can be charged on the charger at a time. Never
plug in two batteries at the same time, this will destroy the char-
ger and the batteries.

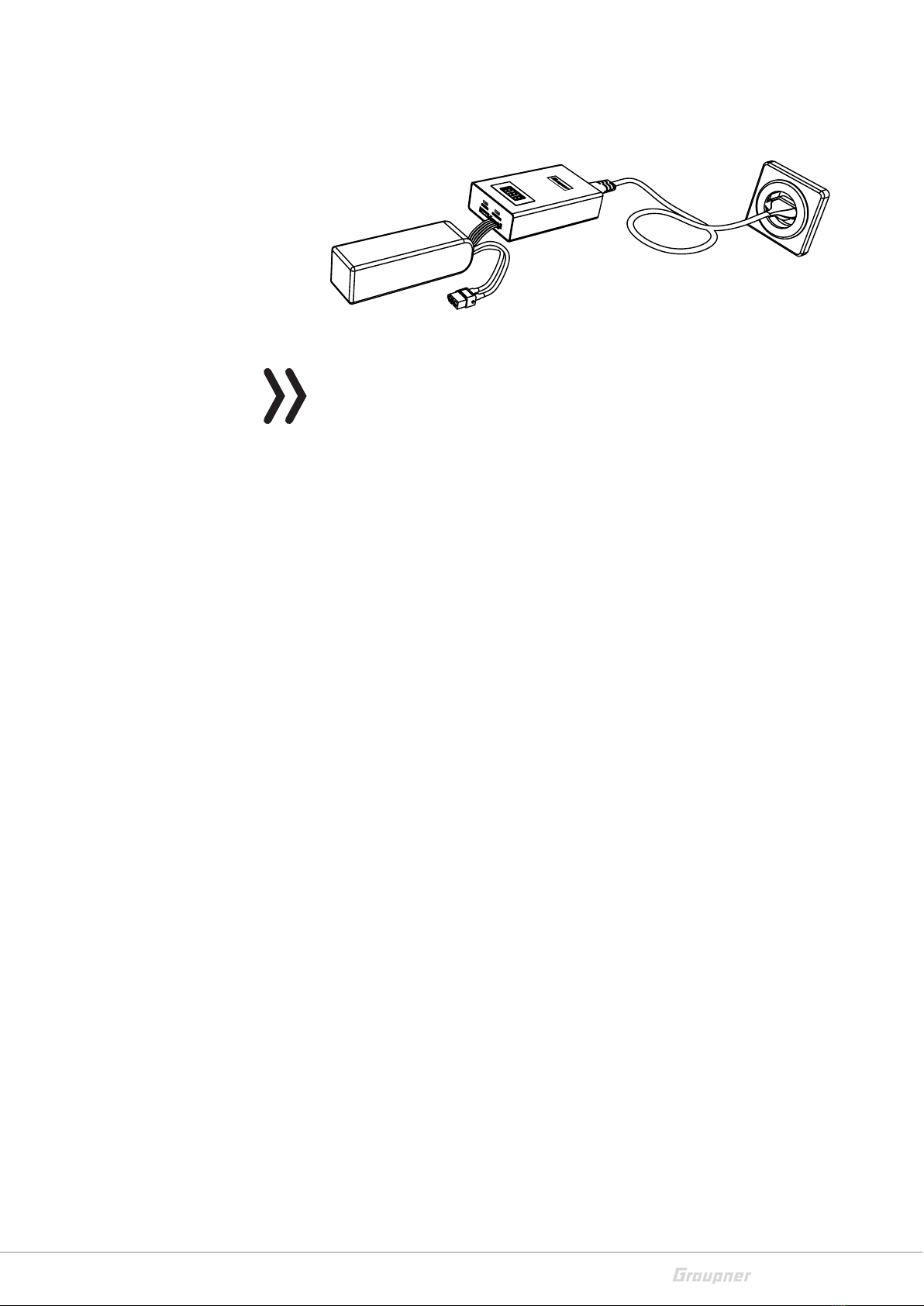

Connect the power cord of the supplied charger to the charger to a
suitable 100V- 240V source.
1.) The display on the charger shows the numbers
2.) Connect either a 3S battery with its white balancer plug to the
charger to the left 3S charging socket or a 4S battery with its white
balancer plug to the right 4S charging socket.
3.) The display then shows the battery voltage (charging mode).
4.) When the charging process is complete, the display alternates
between the battery voltage and the display . Then the bat-
tery is fully charged.
5.) Unplug first the battery connector from the charger and then the
connection cable from the power supply.
1. The red LED starts to light up and lights up constantly further
until the end of the charge process.
2. If the red LED gets off and the green one lights up, the charge
process is completed.
Connection example of a 3 cells LiPo battery

13 / 16
6454.XH_sh_V1a
Connection example of a 4 cells LiPo battery
Notes
• The batteries shown in the two connection examples are not
included with the charger.
• After charging, remove the LiPo battery to be charged from the
charger for safety reasons.
• Disconnect the charger from the power supply after charging.
• Do not place anything on the charger during charging.
• The admitted temperature range is from 0 to 40 ° C. The opti-
mum charging power is within 10 and 30 ° C.
• If there are consistent voltage differences between the individ-
ual cells of the LiPo battery to be charged, the charging time can
be extended.

14 / 16 6454.XH_sh_V1a
SIMPLIFIED DECLARATION OF CONFORMITY
Graupner/SJ hereby declares that the product LiPo Balancer Char-
ger 3-4S S2034 complies with the directives 2014/30/EU EMV and
2014/35/EU LVD.
The full text of the EU Declaration of Conformity is available at the
following Internet address: www.graupner.de
Manufacturer
Graupner Co., Ltd
Post Code: 14557
8th F, 202 Dong, Chunui Techno-Park II, 18, 198 Street
Bucheon-ro, Wonmi-Gu, Bucheon-Shi, Gyeonggi-do
South Korea
Notes on environmental protection
If this symbol is on the product, instructions for use or packaging, it
indicates that the product may not be disposed with normal house-
hold waste once it has reached the end of its service life. It must be
turned over to a recycling collection point for electric and electronic
apparatus.
Individual markings indicate which materials can be recycled. You
make an important contribution to protection of the environment by
utilizing facilities for reuse, material recycling or other means of
exploiting obsolete equipment.
Care and maintenance
The product does not need any maintenance. Always protect it
against dust, dirt and moisture.
Clean the product only with a dry cloth (do not use detergent!) lightly
rub.
P

15 / 16
6454.XH_sh_V1a
Warranty conditions
Graupner/SJ GmbH, Henriettenstrassee 96, 73230 Kirchheim/Teck
grants from the date of purchase of this product for a period of 24
months. The warranty applies only to the material or operational
defects already existing when you purchased the item. Damage due
to misuse, wear, overloading, incorrect accessories or improper han-
dling are excluded from the guarantee. The legal rights and claims
are not affected by this guarantee. Please check exactly defects
before a claim or send the product, because we have to ask you to
pay shipping costs if the item is free from defects.
These operating instruction are exclusively for information purposes
and are subject to change without prior notification. The current
version can be found on the Internet at www.graupner.de on the
relevant product page. In addition, the company Graupner/SJ has
no responsibility or liability for any errors or inaccuracies that may
appear in construction or operation manuals.
Not liable for printing errors.
