  9. Green Power HFC 5-15 User manual

Green Power HFC 5-15 User manual

USER’S MANUAL
MULTIPLE LEAD ACID BATTERY CHARGER
HFC 5-15
Apple Energy Private Limited
Office:
G-20 and Office 406, Hilton Centre, Sector 11,
CBD Belapur, Navi Mumbai 400614. MH. India.
Contact: Sales: +918080806938/48,
Service: +91 8080806918/28
Website: www.appleenergy.in
SELLER’S STAMP
DATE OF SALE:
S
OLD BY:
SERIAL NUMBER:
PURCHASER:
CONTACT NO.
INVOICE NO:
THIS IS AN UNIQUE BATTERY CHARGER WITH MOST ADVANCED SMPS AND SOFTWARE BASED
TECHNOLOGY. IT IS CAPABLE OF CHARGING FROM SINGLE 12 VOLT TO 5 NOS 12 V BATTERIES WITH
VARIOUS CHARGING CURRENT BETWEEN 0.5A TO 15A. IT CAN DELIVER CONSTANT OUTPUT CURRENT AT
SELECTED LEVEL FOR PROPER CHARGING OF LEAD ACID BATTERY. VERY LOW RIPPLE DC OUTPUT
CURRENT AND HIGH EFFICIENCT ARE THE KEY FEATURES.
IT IS ELECTRICALLY SHOCK-PROOF AT THE BATTERY END AND GIVES TOTAL PROTECTION AGAINST
OUTPUT OVERVOLTAGE. IT IS SMALL, LIGHTWEIGHT AND PORTABLE IN SIZE.

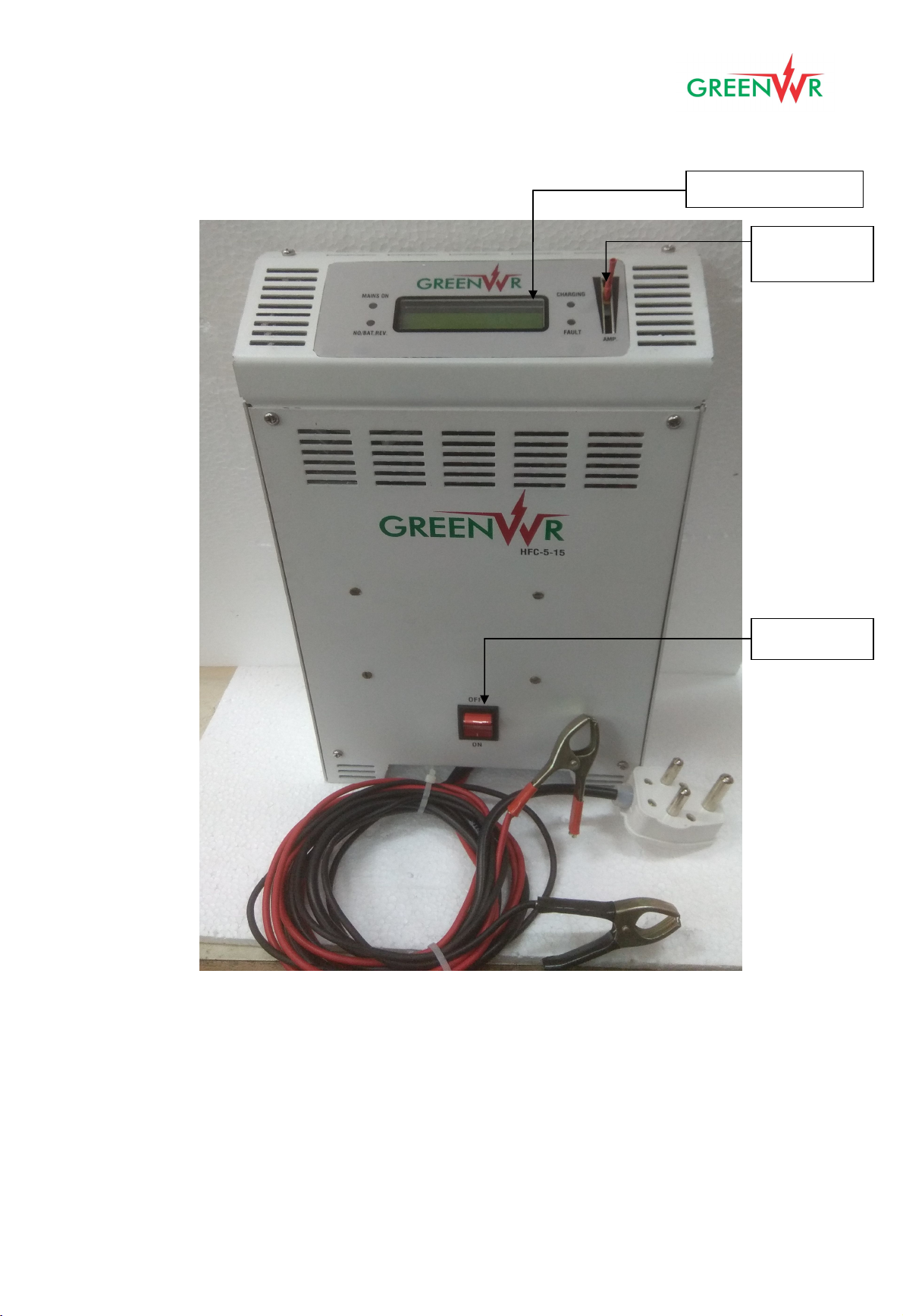

LCD DISPLAY
Current
Selector Lever
Main On/Off
IMPORTANT SAFETY INSTRUCTIONS (DO’S AND DON’TS):
BEFORE PROCEEDING FURTHER KINDLY GO THROUGH THE SAFETY INSTRUCTIONS
1. CONNECT TO MAINS SUPPLY & CONNECT THE OUTPUT WIRES TO THE BATTERY AND THEN POWER
ON THE INPUT SWITCH. INPUT POWER WIRING SHALL BE FOR MINIMUM 16 AMP.
2. THE BATTERY BANK SHALL BE PROPERLY INTERCONNECTED WITH RATED WIRE & THE TERMINAL
CONNECTION POINTS SHALL BE CLEAN.
3. BATTERY BANK VOLTAGE SHALL BEWITHIN 8 V TO 82.5 V
4. DO NOT INSTALL THIS CHARGER ON OR NEAR FLAMMABLE MATERIALS (PLYWOOD, CHEMICALS
AND GASOLINE ETC.).
5. PLACE THE CHARGER ON ITS WALL HANGING ARRANGEMENT OR ON THE FOOT REST. KEEPING
UPWARD DIRECTION. DO NOT KEP IT HORIGENTALLY.
TAKE IT TO OUR SERVICE CENTRE IN CASE OF ANY MALFUNCTION AND OR IF ANY SERVICE IS REQUIRED.
OPENING BY UNQUALIFIED PERSONNEL CAN RESULT ELECTRIC SHOCK OR FIRE HAZARD. OPENING OF
THE UNIT EXCEPT BY OTHER THAN SIGNOTRON ENGINEER WILL LEAD TO CANCELLATION OF THE
GUARANTEE OF THE PRODUCT.
TROUBLE SHOOTING
(IF THE CHARGER IS NOT CHARGING THE BATTERY BANK FOLLOW THE LED INDICATIONS TO FIND THE
ROOT CAUSE AND RECTIFY)
SYMPTOMS
PROBLEM
REMEDY
MAINS ON LED OFF
1.
WIRING PROBLEM OR IN
PUT
SWITCH OFF.
2. LOOSE CONNECTION / N
O VOLTAGE
AT PLUG POINT.
3. INPUT FUSE BLOWN
1.
CHECK WIRING & ON IN
PUT
SWITCH
2. CHECK INPUT VOLTAGE AND
CHECK ALL CONNECTION.
3. CHECK AC FUSE
NO / REV. BATTERY GLOWING BATTERY CONNECTION WRONG
CHECK THE BATTERY BA
NK VOLTAGE SHALL
BE > 8 V ALSO CHECK BATTERY BANK
WIRING
CHARGING ON
CHARGING PROCESS IS
ON. IN CASE IT
GETS OFF PLEASE CHECK LCD DISPLAY ACT AS PER LCD DISPLAY GUIDANCE
CHARGER FAULT LED GLOWING INPUT SUPPLY VOLTAGE OUT OF RANGE
OR INTERNAL TRIP MAKE THE INPUT SWITCH OFF AND ON
AFTER A DELAY OF FEW SECONDS
Technical Specification:
Product:
Intelligent Lead Acid Battery Charger
Model:
HFC 5
-
15
Technology:
State of Art
SMPS
based technology
INPUT:
AC Voltage:
160V ~
265
V
Single Phase (2 wire +
Earth)
Frequency:
50 ± 10%
OUTPUT:
Charging Mode:
Constant Current (CC)
DC Voltage:
Self selected
Charging Current:
1
–
15
AMPS Manually Adjustable
Output
Voltage
Ripple:
<3
% without Battery
< 1% with Battery
Efficiency:
>90%
( At Full Load
)
Battery Selection:
Auto selection for
1
-
5
units
12V Lead Acid Battery
having capacity from 20AH to 200AH. To be
connected in series. For mixed capacity batch,
suitable current to match the lower capacity battery
should be selected
For higher capacity
batteries
,
up to 5
strings
paralleling of the SIGNOFLEX MINI (HFC 5-15) is
permitted to enhance the charging current up to
75A.
Current Selection:
Manual current selection through lever for seamless
increase or decrease of current.
Charging Termination:
Auto charge termination available for any numbers
of batteries after Full Charge Voltage obtained.
PROTECTIONS :
Mains U
-
V / O
-
V
Mains U
-
V/O
-
V Mains Under or Over Voltage
No/Rev Bat:
Battery Not Connected /
Battery
Reverse Connected
Output S/C:
Outpu
t Sh
ort Circuited.
LCD DISPLAY
Bat. Current
DC Output current in Amps
Bat. Voltage
DC Output voltage in Volts
Charging AH
Ampere Hour input since switch on.
Nos. of Bat.
Numbers of battery units connected to the charger.
Chg. Time
Charging Time s
ince switch on.
Cooling:
Forced
Air
Cooling
with Fan
Temperature:
0 – 55 °C
Humidity:
0
-
95% RH (Non
-
condensing)
Dimensions (H x W x D):
3
90 x 21
0 x
9
3 (in mm) ± 3 mm
Weight:
8
Kgs ± 5%
Colour:
Industry Safe
Colours:
Gray
WARRANTY: 12 MONTHS FROM THE DATE OF SALE
Apple Energy Private Limited
ADDRESS: G-20 and Office 406, Hilton Centre, Sector 11, CBD Belapur, Navi Mumbai 400614. MH. India.
Contact: Sales:+91 8080806938/48, Service:+91 8080806918/28, E-mail: www.appleenergy.in
