GREEN SERIES FITNESS CIR-EL7000-G User manual

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
Owner's Manual
CIR-EL7000-G
Full Commercial Elliptical
Install Date: _________________________ Serial Number: ________________________

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
ELLIPTICAL Owner's guide
TABLE OF CONTENTS
TABLE OF CONTENTS ---------------------------------------------------------------- 1
SAFETY PRECAUTIONS ------------------------------------------------------------- 2
TECHNICAL SPECIFICATIONS ---------------------------------------------------- 3
UNPACKING & ASSEMBLY --------------------------------------------------------- 4-8
WARM UP & COOL DOWN ---------------------------------------------------------- 9
PANEL CONTROL -------------------------------------------------------------------- 10-11
PROGRAM ------------------------------------------------------------------------------ 12-15
HOW TO USE THE TRAINER ---------------------------------------------------------- 16
PREVENTATIVE MAINTENANCE ---------------------------------------------------- 17
Hint of how to dispose
• Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
• Contact your local government for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being.
• When replacing old appliances with new once, the retailer is legally obligated to take back your old
appliance for disposal at least for free of charge.
Descriptions & Specifications:
This Elliptical trainer is built in compliance with EN 957-1: 2005&EN 957-9: 2003 with maximum permissible user’s
weight of 150kg and classified as SA and equipped with speed independent braking system.
This training equipment is a stationary exercise machine used to simulate walking or running without causing
excessive pressure to the joints, hence decreasing the risk of impact injuries.
Elliptical trainers offer a non-impact cardiovascular workout that can vary from light to high intensity based on the
resistance preference set by the user. It will work the your upper and lower body and increase cardio capacity and
maintain fitness of your body also.
Before beginning any exercise program, consult your doctor.
This is especially important for people aged over 35 or who have previously had health problems, and those who
have not done any sport for a number of years.
Remark:
1. The classification of SA means this elliptical trainer is designed foe studio use and with good
accuracy class, the variations of power consuming are within ±5W up to 50W and ±10% over 50W.
2. The braking resistance level is adjustable by the controller, the power consumption is independent on
the pedaling speed.

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
SAFETY PRECAUTIONS
WARNING: Read all instructions in this manual before use and keep this user’s manual for entire life of this
product for further reference.
WARNING: It is owner’s responsibility to ensure that all users of this elliptical trainer are adequately informed
about all safety precautions before use. Use the elliptical trainer only as described in this manual.
WARNING: Consult your physician before beginning any exercise program.
WARNING: Do not to use if you feel dizzy or have an acute cold or fever.
WARNING: To reduce the risk of serious injury, read the following safety precautions before using the
exercise elliptical.
WARNING: Keep children under the age of 14 and pets away this trainer at all times. Before the training starts,
remove all objects within a radius of 2 meters from the machine.
WARNING: Never insert objects into any opening in the exercise elliptical. If an object should drop inside,
carefully retrieve it.
WARNING: Close supervision is necessary when this exercise elliptical is being used by or near children, or
disabled persons.
WARNING: Warning up exercise is necessary before you start your training.
WARNING: Your health could be impaired by incorrect or excessive trainings. If you feel pain or dizziness
while exercising, stop immediately and cool down then consult a doctor before beginning a
planned training program.
WARNING: The pulse sensor is not a medical device. Various factors including the user’s movement, may
affect the accuracy of the heart rate readings. The Pulse sensor is intended only as an exercise
aid in determining heart rate rends in general.
WARNING: Wear appropriate exercise clothing and when using the trainer. Do not wear loose clothing that
could be caught by this trainer.
WARNING: Assemble the machine exactly as described in the installation instructions and use the enclosed
parts contained in the parts& tool kits.
WARNING: Keep the exercise elliptical indoors, away from moisture and dust. Place the exercise elliptical
on a stable & level surface, with a mat beneath it to protect the floor or carpet. Make sure that
there is enough clearance around the exercise elliptical to mount, dismount, and use it.
WARNING: Inspect and properly tighten all parts regularly and. If any damages were found, keep the
equipment out of use until repair and call our service center or the retailer for further helps.
WARNING: Always follow the console instructions for proper operation
WARNING: When mounting and dismounting the exercise elliptical, always hold the handlebars tightly when
the elliptical trainer comes to rest then get off the pedal platform that is in the lowest position and
land on the floor.
WARNING: When you stop exercising, allow the pedals to slowly come to a stop.
WARNING: Allow only one person at a time on your machine.

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
TECHNICAL SPECIFICATIONS
SPECIFICATIONS:
SPECIFICATIONS:
Dimensions ： L: 2107 mmx W: 632 mmx H:1780 mm
Weight of product ： 90.5kg (199.5 lbs)
Program ： 6 preset programs , Fitness Test ,HRC*4
Standard features: 8*16dot matrix HR receive
Resistance System ： PMS(Perment Magnet System)
Power source ： Built-in generator & rechargeable battery 12V-1.2AH

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
UNPACKING & ASSEMBLY
HARDWARE KIT
Handle bar set Housing Console set
M5*12mm / 4pcs
(Console set)
Allen wrench / 1pc
(3mm)
Console frame cover
#3-6
#3-13
#3-8 #3-12
#3-5 #3-4
M4*12mm / 8pcs
(Left / right cover)
Allen wrench /
1pc(5mm)
(
5
mm)
Allen wrench /
1pc(6mm)
(6mm)
#5-20
#5-2
#5-12
#5-13
Left cover, right arm
Right cover, right arm
Left cover, left arm
Right cover, left arm
#5-10
#5-11
#5-5
M3*30mm / 2pcs
(Left / right cover)
#5-6
1pc
Bottle Holder
M4*10mm /2pcs
(Handle bar set)
M4*12mm /2pcs
(Console frame cover)
M8*20mm /4pcs
(Handle bar set)
M8*18mm / 4pcs
(Handle bar set)
M8mm / 4pcs
(Handle bar set)
PARTS
#5-1
#5-18 #5-17
#5-3 #5-4 #5-7 #5-9
#5-8
Allen wrench / 1pc
(4mm)

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
UNPACKING & ASSEMBLY
TO avoid components damage, please unpacking carton carefully, we suggest you to
put a pad on the floor before you put the elliptical down.

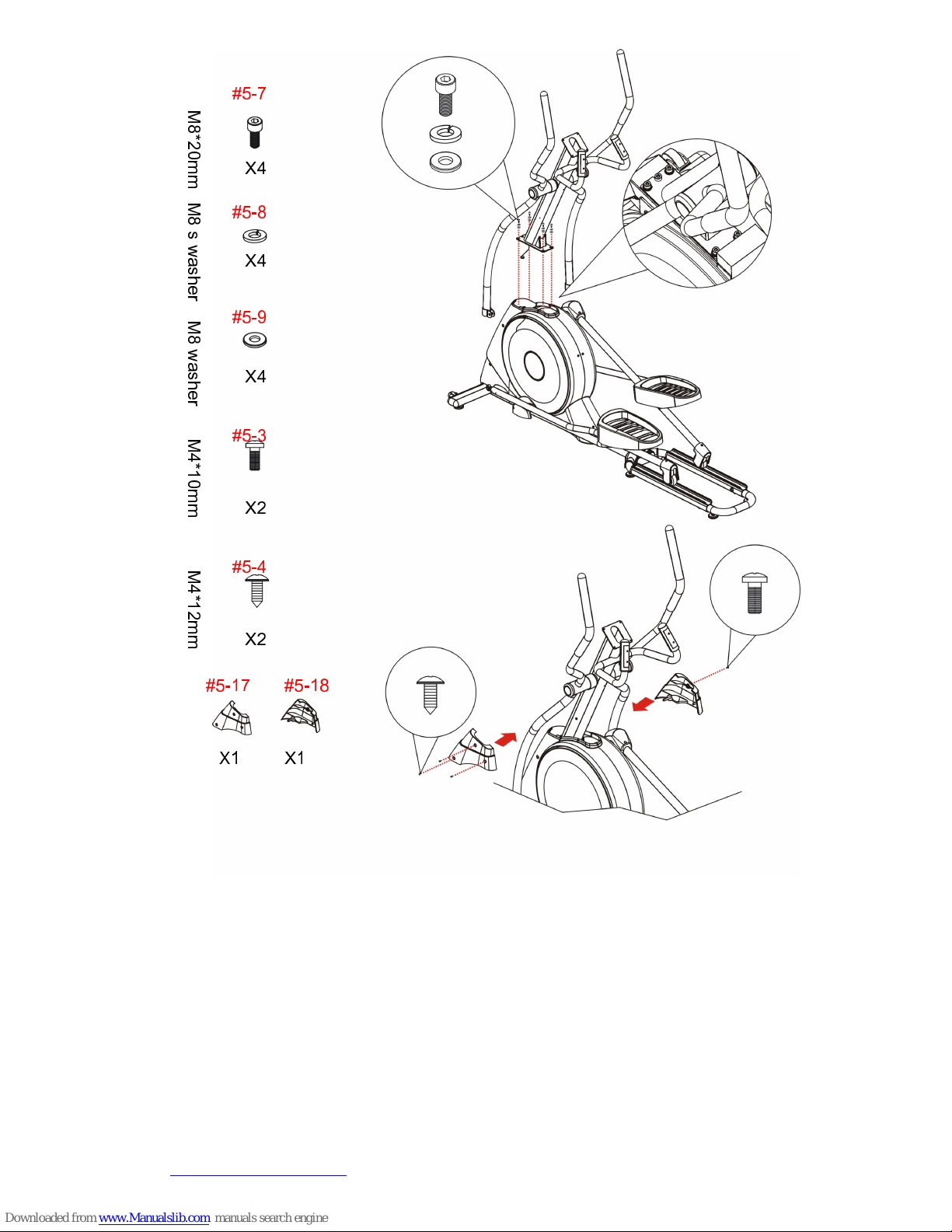

Step1.Assemble Handle bar set on the housing.
1).put handle bar post into main frame ， connected upper console wire and lower console wire.
2).Using 4pcs of M8*20mm screw 、 washer and S washer ， fixing handle bar post and main frame.
3).Using 2pcs of M4*12mm screw ， fixing the console frame cover and main frame.

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
X2
M
8
s
w
a
s
h
e
r
M
8
w
a
s
h
e
r
M
8
*
2
0
m
m
X4
X4
X4
X1 X1
X2
X2
M
4
*
1
0
m
m
M
4
*
1
2
m
m
#5-7
#5-8
#5-9
#5-4
#5-3
#5-17 #5-18

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
UNPACKING & ASSEMBLY

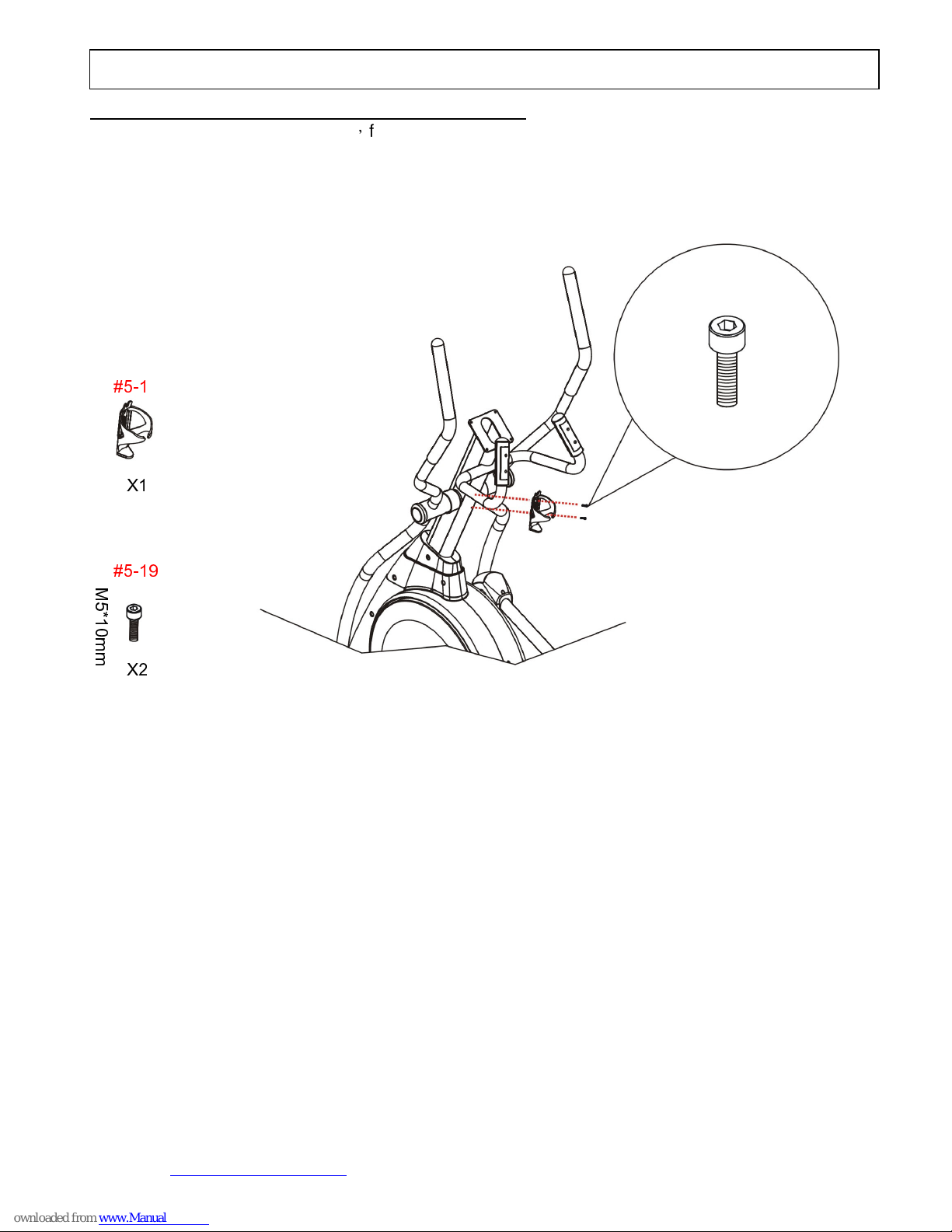

Step2.Assemble Bottle Holder on the handle bar set.
1).Using 2pcs of M5*10mm screw ， fixing the bottle holder on the handle bar post .
X1
X2
M
5
*
1
0
m
m
#5-19
#5-1

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
UNPACKING & ASSEMBLY

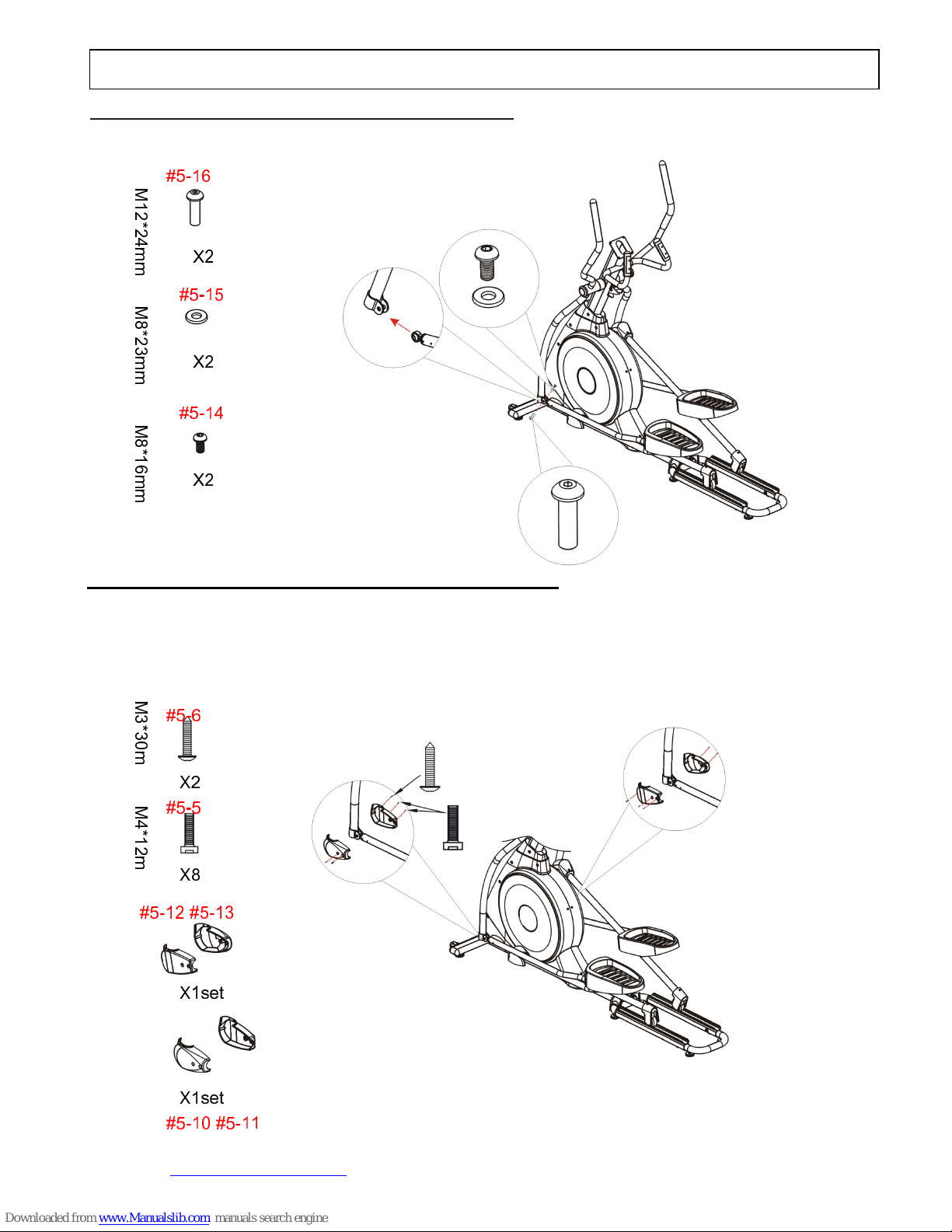

Step3.Assembly Handle arm on the Pedal linkage.
1).Use2x M1 2*24mm screws, M8*23 washer and M8*16mm screws to fasten Handle
arm and Pedal linkage.
Step 4. Assembly Left / right cover on the Pedal Linkage.
1).Assemble right/left arm cover with pedal arm.
2).Fasten 4pcs M4x12mm screws on left/right arm cover by 5mm wrench.
3).Fasten 1pcs M3x30mm screw on left/right arm cover by 3mm wrench.
X1set
X1set
M
1
2
*
2
4
m
m
M
8
*
2
3
m
m
M
8
*
1
6
m
m
X2
X2
X2
M
3
*
3
0
m
M
4
*
1
2
m
X2
X8
#5-14
#5-16
#5-15
#5-10 #5-11
#5-6
#5-5
#5-12 #5-13

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
UNPACKING & ASSEMBLY
Step5: Assembly console with handle bar post
1).Put the console into handle bar post ， connected upper console wire with lower console wire.
2).Using 4pcs of M5*12mm screw ， tighten all screws.
M
5
x1
2
mm
X4
Upper handle pulse wire
Upper console wire
Lower console wire
Lower handle pulse wire
#5-2

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
WARM UP & COOL DOWN
A successful exercise program consists of a warm up, aerobic exercise and a cool down. Warming
up is an important part of your workout, and should begin every session. It prepares your body for
more strenuous exercise by heating up and stretching out your muscles. At the end of your workout,
repeat these exercises to reduce sore muscle problems. We suggest the following warm-up and
cool-down exercises:
HEAD ROLLS
Rotate your head to the right for one count, feeling the stretch up the left side of
your neck. Next rotate your head back for one count, stretching your chin to the
ceiling and letting your mouth open. Rotate your head to the left for one count, and
finally, drop your head to your chest for one count .
Repeat this action for several times.
SHOULDER LIFTS
Lift your right shoulder up
toward your ear for one count.
Then lift your left shoulder up
for one count as you lower
your right shoulder.
Repeat this action for several times.
SIDE STRETCHES
Open your arms to the side and
continue lifting them until they
are over your head. Reach your
right arm as far upward toward
the ceiling as you can for one
count. Feel the stretch up your
right side. Repeat this action with
your left arm.
INNER THIGH STRETCH
Sit with the soles of your feet
together with your knees pointing
outward. Pull your feet as close
into your groin as possible. Gently
push your knees toward the floor.
Hold for 15 seconds.
Repeat this action 3-5 times.
HAMSTRING STRETCHES
Keep your right leg straight and the left foot on the floor; try to stretch your right
hand toward the toe, hold this posture for 15 seconds.
Relax, then repeat the action for left leg.
QUADRICEPS STRETCH
With one hand against a wall for
balance, reach behind you and
pull your right foot up. Bring your
heel as close to your buttocks as
possible. Hold for 15 seconds and
repeat with left foot up.
CALF/ACHILLES STRETCH
Step your right foot in front of your
body. Lean against a wall with
your arms and stretch your left foot
backward your body. Bend
forwards your right foot, and
slightly push your buttock toward
to the wall for 15 seconds.
Repeat the action with front left
foot and rear right foot for another
15 seconds.
TOE TOUCHES
Slowly bend forward from
your waist, letting your back
and shoulder relax as you
stretch toward your toes.
Reach down as far as you
can and hold for 15 seconds.

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
Display & Keys
Dot-matrix, display program profiles & message
Message window
PANEL CONTROL

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
Display function
Display Definition
Time
Displays time remaining or total time.
Calories Displays calories burned.
Heart Rate
Displays hand grip and wireless Heart Rate reading.
Distance Displays total distance KM/Mi.
RPM
Displays pedaling RPM.
Watts Displays consuming watt.
Mets
Displays the multiple of rest.
Level Displays current resistance level L1~L16
※ Calories & Heart Rate for reference only.
Key function
Key Function
Start Quick start or program start.
▲
▲▲
▲
Adjust workload up. Adjust value when program setting.
Select program
▼
▼▼
▼
Adjust workload down. Adjust value when program setting.
Select program
Display RPM←→Watt Calories←→Distance
Time←→Mets Level←→Heart Rate
Enter Confirm value entered.
Rest Reset back to idle mode while pause
Program Select program directly
Keypad Set value
PANEL CONTROL

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
PROGRAMS DESCRIPTION
1. QUICK START
1.1 To pedal over 30 rpm to wake up and initial the system to idle mode, press 『 START 』 to quick
start.
1.2 Press shift UP or DOWN to exercise level by 1 level or press quick Level Key to change
level.
1.3 Stop pedaling will pause the system, stop pedaling over 30 seconds system will auto shut
down.
2. Target
2.1.Press 『 Target 』 key to enter the program.
2.1.1. Set time ： use shift up or down device to set time then press 『 ENTER 』 to next settings.
2.1.2. Set weight: use shift up or down device to set weight then press 『 ENTER 』 to next
settings.
2.1.3. Set age: use shift up or down device to set age then press 『 ENTER 』 to next settings.
2.1.4. Set distance: use shift up or down device to set distance then press 『 ENTER 』 to next
settings.
2.1.5. Set calories: use shift up or down device to set calories then press 『 START 』 to begin
workout.
2.2.Beginning the workout:
2.2.1. If either, Time, Distance and Calories are set the program will count down. Once the
preset value reaches 0 the program will end. If no goal is set the program will not end
unless manually stopped.
3. Preset program ：
3.1.There are 5 preset programs, ROLLING, VALLEY, FAT BURN, INTERVAL, RANDOM. Press
their own program key to enter the program.
3.1.1. Set time ： use shift up or down device to set time then press 『 ENTER 』 to next settings.
3.1.2. Set weight: use shift up or down device to set weight then press 『 ENTER 』 to next
settings.
3.1.3. Set age: use shift up or down device to set age then press 『 ENTER 』 to next settings.
3.1.4. Set workout level: use shift up or down device to set level 1~5(For RANDOM program
will change the profile randomly. Press 『 START 』 to begin workout.
3.2.Beginning the workout:
3.2.1. The resistance level will change automatically according to the program settings, the
resistance level will change every 2 minutes per segment if the time is in count up
mode, if time is entered during setup then the segment time=set time / 16. You can
use any speed or incline key to change speed or incline during your workout.
3.2.2. The program will end when the counter reaches 0.
PROGRAM

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
3.2.3. Preset program profiles:
P1=ROLLING 、 P2=VALLEY 、 P3=FAT BURN 、 P4=INTERVAL 、 P5= RANDOM
P SEG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
P1
LEVEL 1 4 6 8 8 6 4 4 6 8 8 6 4 4 6 8 6
LEVEL 2 5 6 8 9 9 8 6 6 7 9 8 7 6 6 7 8
LEVEL 3 7 8 9 10 10 8 8 6 8 10 10 9 8 6 8 10
LEVEL4 9 10 11 13 10 8 11 13 10 9 8 10 11 13 10 9
LEVEL5 11 13 15 15 13 11 11 13 15 15 13 11 11 13 15 12
P2
LEVEL 1 8 8 6 6 4 4 2 2 2 2 4 4 6 6 8 8
LEVEL 2 9 6 5 4 3 2 2 4 6 6 7 10 10 11 11 12
LEVEL 3 11 10 10 8 7 6 5 4 3 3 5 5 7 10 10 13
LEVEL4 13 12 12 10 9 8 6 6 6 7 8 9 10 12 12 14
LEVEL5 15 15 12 12 10 10 8 8 8 8 10 10 12 12 15 15
P3
LEVEL 1 2 2 4 4 6 6 8 8 8 8 6 6 4 4 2 2
LEVEL 2 3 5 5 7 8 9 10 10 11 12 10 10 7 6 3 3
LEVEL 3 5 6 7 7 9 10 10 12 12 12 10 10 8 8 5 5
LEVEL4 6 6 8 8 11 11 13 14 14 12 10 10 9 8 6 6
LEVEL5 8 8 10 10 12 12 15 15 15 15 12 12 10 10 8 8
P4
LEVEL 1 2 4 8 4 2 2 4 8 4 2 2 4 8 4 2 2
LEVEL 2 3 5 8 6 1 1 5 7 6 3 3 3 6 6 4 3
LEVEL 3 5 7 9 9 6 5 4 4 4 6 7 8 10 8 6 6
LEVEL4 7 8 10 10 12 12 10 10 8 8 10 12 12 10 8 8
LEVEL5 8 10 15 10 8 8 10 15 10 8 8 10 15 10 8 8

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
4. HRC(Heart Rate Control)
4.1.Press 『 H.R.C 』 key to enter the program.
4.2.Set time ： use shift up or down device to set time then press 『 ENTER 』 to next settings.
4.3.Set weight: use shift up or down device to set weight then press 『 ENTER 』 to next settings.
4.4.Set age: use shift up or down device to set age then press 『 ENTER 』 to next settings.
4.5.Set workout mode: There are 3 types of HRC mode. 『 WEIGHT LOSS MODE 』 , 『 AEROBIC
MODE 』 , 『 TARGET MODE 』 , use shift up or down device to select the desired HRC type then
press 『 ENTER 』 to next settings.
4.6.Set target heart rate: use shift up or down device to set Target Heart Rate(WEIGHT LOSS
MODE default value=MHR 70%, setting range=MHR 66%~75%. AEROBIC MODE default
value=MHR 80%, setting range=MHR 76%~85%, TARGET HEART RATE default value=130,
setting range=100~180) then press 『 ENTER 』 to next settings.
4.7.Set begin resistance level: use shift up or down device to set LEVEL then press 『 START 』 to
begin workout.
4.8.Beginning the workout:
4.8.1The program will compare the real time and preset target heart rate every 30 seconds
to adjust resistance level until the actual heart rate is reaches with in + or – 5 beats of
the preset target heart rate.
4.8.2 During the program, if the actual pulse rate
≦ target workout heart rate minus 5, the
resistance level will be increased one level every 30 seconds until the max. level.
4.8.3 During the program, if the actual pulse rate ≧ target workout heart rate plus 5, the
resistance level will be decreased one level every 30 seconds until the min. level.
4.8.4 You can use any resistance level key or device to change the resistance level during
your workout.
4.8.5 The program will end when the counter reaches 0.
PROGRAM

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
5. Fitness Test ：
：：
：
5.1.Press 『 Fitness Test 』 key to enter the program.
5.2.Set weight: use shift up or down device to set weight then press 『 ENTER 』 to next settings.
5.3.Set age: use shift up or down device to set age then press 『 START 』 to begin workout.
5.4.Beginning the workout:
5.4.1. There are 10 stages at most, 3 minutes per stage, first stage(0~3 min) the wattage
preset value=55W, the preset wattage value from stage 2~10 depend on average
heart rate value of first stage, shown as below:
2:01-3:00 AVG. HR
Stage
< 80bpm 80-89bpm 90-100bpm >100bpm
2 – (3:01~6:00) 125W 100W 75W 55W
3 – (6:01~9:00) 150W 125W 100W 75W
4 – (9:01~12:00) 175W 150W 125W 100W
5 – (12:01~15:00) 200W 175W 150W 125W
6 – (15:01~18:00) 225W 200W 175W 150W
7 - (18:01~21:00) 250W 225W 200W 175W
8 - (21:01~24:00) ----- 250W 225W 200W
9 - (24:01~27:00) ----- ----- 250W 225W
10 - (27:01~30:00) ----- ----- ----- 250W
5.4.2. Can not adjust the resistance level manual, program will auto change the level
according to the preset rules.
5.4.3. The program will end while heart rate value reach or over MHR 85% - 10 for 10
seconds. The program will show you the VO2 MAX value.
MOVING
PROGRAM

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
PREVENTATIVE MAINTENANCE
F833705-013-00 EP-6000A1 10208
HOW TO CAREFOR YOUR ELLIPTICAL
The Safety of the equipment can be maintained only if the equipment is examined regularly for
damage or wear. If maintenance is required, keep the equipment out of use until defective parts
are repaired or replaced.
Pay special attention to parts that are subject to wear as outlined in the Preventative Maintenance
Schedule.
The following preventive maintenance will keep the exercise elliptical operating at peak
performance ：
● Locate the exercise elliptical in a cool, dry place.
● Clean the top surface of the pedals regularly.
● Keep the display console free of fingerprints and salt build-up caused by sweat.
● Use a 100% cotton cloth, lightly moistened with water and mild liquid cleaning product, to
clean the exercise elliptical other fabrics, including paper towels, may scratch the surface.
Do not finger to press the selection buttons on the console.
● Clean the housing thoroughly on a regular basis.
NOTE ：
：：
：
Before use the elliptical, please make sure the Aluminum tracks are cleaned and lubricated, this is
to prevent the damage and noise on tracks when you are exercising.
The exercise elliptical can be wiped clean with a soft cloth and mild detergent. Do not use
abrasives or solvents. To prevent damage to the console, keep liquids away from the console
and keep the console out of direct sunlight.
Preventative Maintenance Schedule
Follow the schedule below to ensure proper operation of the product.
ITEM WEEKLY MONTHLY BI-ANNUALLY ANNUALLY
Display Console C I
Console Mounting Bolts I
Accessory Tray C I
Frame C I
Plastic Covers C I
Pedals and Straps C I
KEY ： C=Clean; I=Inspect
Hand pulse
Before/after running, to put your feet separately on each side rein,
then hold the hand grip, so as to avoid any shaking. If the heart beat
is too high or irregular, please have your hands out of the hand grip
until the pulse display returns to " 0 ", then redoing the test.
Don't do this test while running.
lubricate

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
Limited Warranty
6000 SERIES LIGHT COMMERCIAL WARRANTY
The Green Series™ 6000 light commercial warranty is intended for non-dues-paying facilities where
equipment use is generally up to eight (8) hours per day
7000 SERIES FULL COMMERCIAL WARRANTY
The Green Series™ 7000 full commercial warranty is intended for facilities where equipment use is regularly
in excess of eight (8) hours per day All dues-paying facilities fall into the category of a full commercial
warranty as well as many non-dues-paying facilities
Please note that any warranty services or questions must be accompanied by the model number and serial
number from the transaction through which the warranted product was purchased The serial number
serves as your warranty number and must be retained GREEN SERIES™ cannot provide warranty service
without this number
GREEN SERIES™ Cardi Machines warrant this product and its parts against defects in materials or
workmanship for ten (10) years frame, five (5) years motor, three (3) years parts, two (2) years wearables
and one (1) year labor from the initial install date During this period, GREEN SERIES™ will repair or replace
defective parts or equipment with new or reconditioned parts at GREEN SERIES™ option, without charge to
customer This limited warranty extends only to the original purchaser and is non-transferable. (Excluding
Indoor Cycling Bikes)
GREEN SERIES™ Ind r Cycling Bikes warrant this product and its parts against defects in materials or
workmanship for five (5) years frame, two (2) years parts, one (1) year wearable and no labor from the
initial install date During this period, GREEN SERIES™ will repair or replace defective parts or equipment
with new or reconditioned parts at GREEN SERIES™ option, without charge to customer This limited
warranty extends only to the original purchaser and is non-transferable
Shipping fees incurred from returns for under-warranty service in the warranty time-line will be paid by
GREEN SERIES™ All shipping fees both to and from GREEN SERIES™ following this warranty time-line
period must be paid by the customer All returns, both during and following the warranty time-line
period, must be affected via the Procedures for Obtaining Warranty Service described below
All original parts (parts installed by GREEN SERIES™ at the original system build) replaced by GREEN
SERIES™, its authorized service center or authorized service technician, become the property of GREEN
SERIES™ Any after-market additions or modifications void all warranties The original purchaser is
responsible for the payment, at current rates, for any service or repair outside the scope of this limited
warranty
GREEN SERIES™ makes no other warranty, expressed or implied, including but not limited to implied
warranties of merchantability, fitness for a particular purpose, or conformity to any representation or
description, with respect to this warranty other than as set forth below GREEN SERIES™ makes no
warranty or representation, either expressed or implied, with respect to any other manufacturer’s product
or documentation, its quality, performance, merchantability, fitness for a particular purpose, or conformity
to any representation or description

www.GreenSeriesFitness.com ©September 2014 Call Toll free at [phone]
Except as provided below, GREEN SERIES™ is not liable for any loss, cost, expense, inconvenience or
damage that may result from use or inability to use the equipment Under no circumstances shall GREEN
SERIES™ be liable for any loss, cost, expense, inconvenience or damage exceeding the purchase price of the
equipment
The warranty and remedies set forth below are exclusive and in lieu of all others, oral or written, expressed
or implied No reseller, agent or employee is authorized to make any modification, extension or addition
to this warranty
Warranty C nditi ns and Restricti ns
The above Limited Warranty is subject to the following conditions:
1 This warranty extends only to products distributed and/or sold by GREEN SERIES™. It is effective
only if the products are purchased and operated in the USA, (Within the USA including US 48 States,
Alaska and Hawaii), Puerto Rico, Canada and Mexico All countries outside the USA for warranty
service do not include labor rates
2 This warranty covers only normal use of the equipment GREEN SERIES™ shall not be liable under
this warranty if any damage or defect results from (i) misuse, abuse, neglect, improper shipping or
installation; (ii) disasters such as fire, flood, lightning or improper electric current; or (iii) service or
alteration by anyone other than an authorized GREEN SERIES™ representative; (iv) damages
incurred through irresponsible use, including those resulting from equipment placed into humid
environments, unfinished structures, structures under construction or remodel or placed in an
outdoors setting, or other non-recommended practices
3 GREEN SERIES™ shall not be held liable or responsible for any damages to the units caused during
the install of any product
4 GREEN SERIES™ shall not be held liable or responsible for any structural or cosmetic damages to
facilities caused by the placement or operation of any equipment sold and installed by a GREEN
SERIES™ authorized service technician or installer
5 Changes in the cosmetic appearance of components and parts within the unit that do not affect its
performance will not be covered by any part of this warranty
6 Damage due to normal wear and tear as defined by items subject to normal use and/or exposure,
consumables, and cosmetic items, including, but not limited to the following: grips, seats, paint
scratches, and labels
7 Travel costs associated with service more than 100 miles or two hours outside the service area of
GREEN SERIES™ service technicians shall be the responsibility of the customer
8 Any and all shipping damages, visible or hidden, shall be the responsibility of the shipper Note:
Damage caused by common carrier is, by federal law, the carrier’s responsibility and must be
claimed with the carrier at the time of delivery The recipient who signed for the equipment is
responsible for the filling of the damage claim and notification to GREEN SERIES™
9 The end user of the equipment shall ensure that the facility has proper height, width and length
clearances, including ADA requirements, for the product(s) being placed into operation GREEN
SERIES™ will not be held liable or responsible for the fitment of equipment sold to the customer
